Product Type	4-port professional card reader for CFast 2.0 and SD UHS-II cards
Brand	Xcellon
Model	CR-CFASD
Interface	USB 3.1 Gen 2 (10 Gbps), Thunderbolt 3 compatible
Supported Card Types	CFast 2.0, SD UHS-II
Number of Slots	4 (2 CFast, 2 SD)
Maximum Transfer Speed (CFast)	Up to 550 MB/s
Maximum Transfer Speed (SD)	Up to 270 MB/s
Overall Bandwidth	800 MB/s
Power Options	12V DC power adapter (included) or bus power (3A source required for full 4-slot operation)
Included Cables	USB Type-C to Type-C, USB Type-C to Standard-A
Dimensions (H x W x D)	28 x 147 x 85 mm
Housing Material	Heat-dissipating aluminum
System Compatibility	macOS 10.6.x or later, Windows 7 or later
Warranty	One-year limited warranty
Simultaneous Card Access	Yes, supports simultaneous read/write from all slots
Card Insertion Orientation	Cards must be inserted label side up; do not force cards
Power Adapter Included	12V, 2A power adapter
Maintenance	Clean with a dry, soft cloth; avoid liquids and solvents
Safety Precautions	Do not force cards; keep away from water, heat, and magnets; use only included accessories

Frequently Asked Questions - CR-CFASD Xcellon

How many memory cards can I use at once?

The CR-CFASD has four slots: two for CFast 2.0 and two for SD UHS-II cards. You can use all four simultaneously with simultaneous read/write support.

What is the maximum transfer speed for each card type?

CFast 2.0 cards achieve up to 550 MB/s, while SD UHS-II cards reach up to 270 MB/s. The overall bandwidth is 800 MB/s, shared among slots.

Is the card reader compatible with Thunderbolt 3 ports?

Yes, the USB-C port is Thunderbolt 3 compatible, so you can connect it to Thunderbolt 3 ports on your computer.

How do I power the card reader?

You can power it using the included 12V DC power adapter or via bus power. For full 4-slot operation via bus power, your USB port must supply at least 3A.

What cables come with the product?

The package includes two USB 3.1 Gen 2 cables: USB Type-C to Type-C and USB Type-C to Standard-A.

Can I use the reader with a Mac or PC?

Yes, it supports macOS 10.6.x or later and Windows 7 or later. No additional software is required.

How should I insert memory cards?

Always insert cards with the label side up and do not force them. They should slide in easily.

What is the warranty period?

The product comes with a one-year limited warranty against defects in materials and workmanship.

How do I clean the card reader?

Use a dry, soft cloth to wipe the exterior. Avoid using liquids, solvents, or abrasive cleaners.

What should I do if the card reader is not recognized?

First, ensure the power source is adequate (use the power adapter if needed). Check that the cable is fully inserted. Try a different USB port. If the issue persists, contact Xcellon support.

USER MANUAL CR-CFASD Xcellon

USB 3.1 Gen 2 CFast and SD Card Reader

User Manual

XCELLON

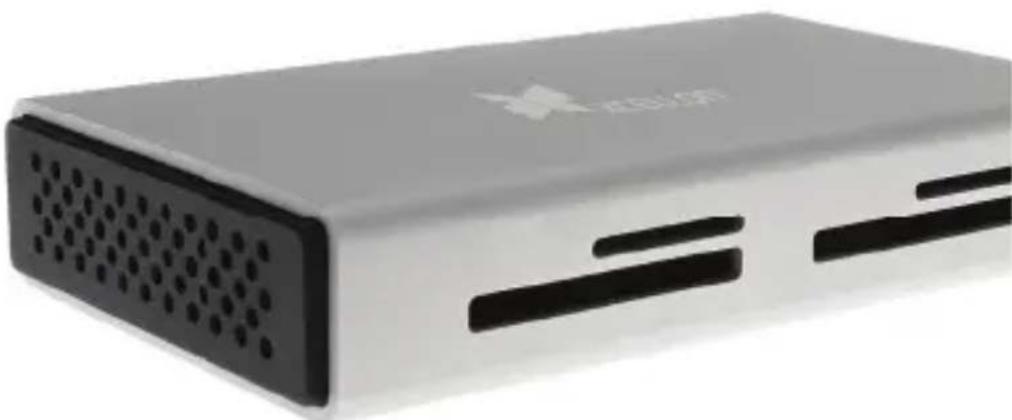

Exterior view of a silver and black electronic device with ventilation grilles (no visible text or symbols)

Thank you for choosing Xcellon.

Transfer photos, videos, and other large files to your computer at SuperSpeed USB 3.1 Gen 2 rates. Xcellon's CR-CFASD card reader accepts CFast 2.0 and SD UHS-II cards, and it's ready to go to work without any additional software or setup. The CR-CFASD supports simultaneous and inter-card transfer from all four slots to maximize workflow and minimize downtime.

» 4-port professional card reader for CFast 2.0 and SD UHS-II cards
» USB 3.1 Gen 2, 10 Gbps interface (Thunderbolt 3 port compatible)
»Simultaneous read/write from all slots
»Bus or self powered
»Heat-dissipating aluminum housing
»USB Type-C™ and USB Standard-A cables included

Precautions

Important! All cards must be inserted into the card reader label side up. Inserting the cards the wrong way can damage the memory cards or the card reader.

» Memory cards should easily slide into the card slot. Do not force a memory card into the card reader.
» Speeds may vary based on system configuration and card speed.
»Images are for illustrative purposes only.

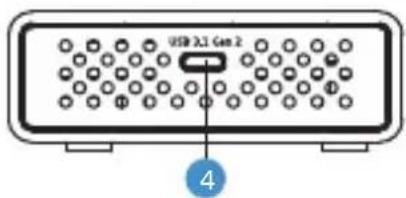

Overview

1 SD card slots
2 CFast card slots
3 12 V DC power port
4 USB Type-C port

Also Includes

»12 V, 2 A power adapter
»USB 3.1 Gen 2 cable (×2)

• Type-C to Type-C
• Type-C to Standard-A

Transfer Speeds

This Xcellon card reader has an overall bandwidth of 800 MB/s and regulates this max speed between each of the four slots. This means that your transfer speeds will be split based on the number of cards and type inserted into the card reader's slots. For example, when using all four slots, the theoretical max speed would be 200 MB/s per slot. When using just the two CFast slots, the theoretical max speed for each would be 400 MB/s.

Power Options

You can power the CR-CFASD with the included 12 V power adapter or by bus power. Using bus power requires a 3 A or higher output source in order to use all four slots at the same time. If the power source is less than 3 A, only two slots will work at a time.

Specifications

Ports	2 × SD UHS-II
Transfer Speeds	SD UHS-II: Up to 270 MB/sCFast 2.0: Up to 550 MB/s
Computer Interface	ard-A or USB Type-C (Thunderbolt 3 port compatible)
Power	(24W) adapterBus power: Full 4-slot operation requires 3 A sourceLimited to 2-slot operation from less than 3 A source
Cables	Standard-AType-C to Type-C
Cable Length
System Requirements	0.6.x or laterWindows 7 or later
Dimensions (H × W × D)	8 × 3.3 in. (28 × 147 × 85 mm)
Weight

One-Year Limited Warranty

This Xcellon product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Xcellon Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Xcellon along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.xcellongear.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Xcellon is a registered trademark of the Gradus Group.

© 2018 Gradus Group LLC. All Rights Reserved.

XCELLON® A Gradus Group Brand
