USER MANUAL LAM-820 Steren

Illustration of a square light fixture with a central square component and mounting bracket (no text or symbols)

IMPORTANTE

Illustration of a light bulb with wires connected to its cable (no text or symbols)

CONEXIÓN

20 W outdoor flood lamp

For indoor and outdoor use

User manual

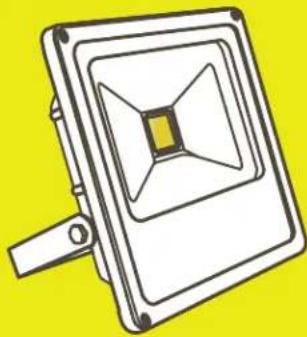

Illustration of a square light fixture with a central square component and mounting bracket (no text or symbols)

IMPORTANT

Before to use the product, please read carefully this manual to avoid any malfunction. The info in this manual is shown as reference. Due to updates can exist differences. Consult our website www.steren.com to obtain the current version of this manual.

CAUTIONS

• Before to make the installation, cut the power supply.
- This device is not designed for be using by people (including children) with physical capacities, sensorial or mental reduced, or they don't have the necessary experience or knowledge.
- Any reparation not authorized may cause malfunction and avoid the warranty.

INSTRUCTIONS

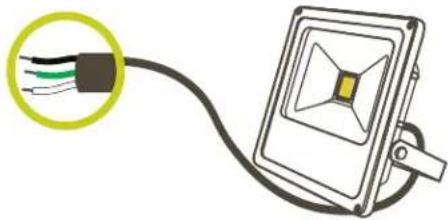

1. Identify the power conductors in the tips of the flood lamp.
2. Cut the power supply.
3. Use a 18 A/V (0.82 mm ^4 ) cable to connect the reflector in accord with your needs.

Line: black Ground: green Neutral: white

Illustration of a fluorescent lamp with wires connected to its cable (no text or symbols)

CONNECTION

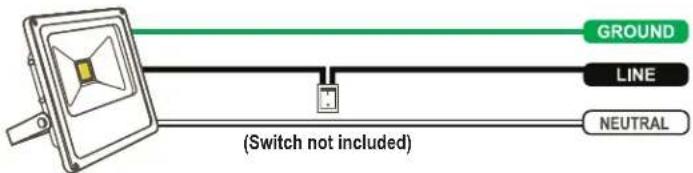

Option A. Connect it directly to the outlet

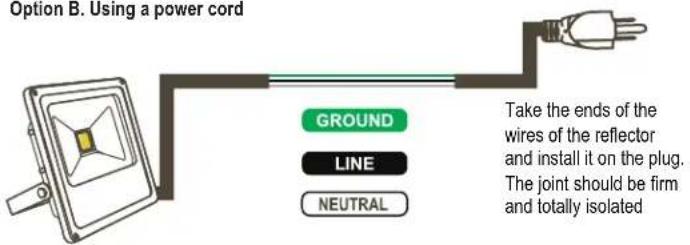

Option B. Using a power cord

SPECIFICATIONS

Specifications may change without notice

Input: 120 - 220 V\~ 50 / 60 Hz 320 mA max.

LED lamp power output: 20 W

Equivalent lighting power output: 800 W

Luminous efficiency: 100-110 lm / W

Consumption: 22 W/h

Stand-by power consumption: not applicable

Angle of beam: 120°

Temperature: 6 500 K

Life time: 50 000h

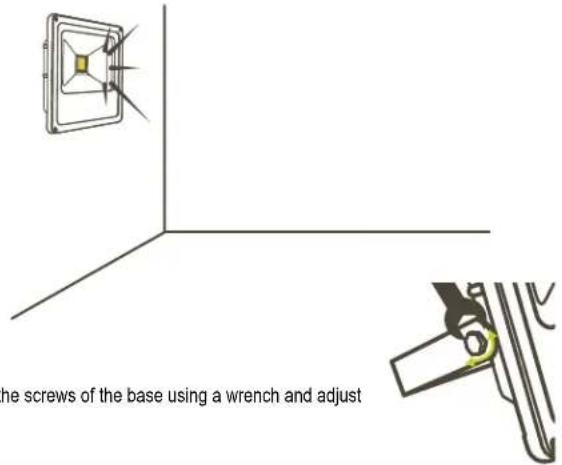

INSTALLATION ON WALL

1. Select a solid and fixed surface to install the flood lamp.
2. Use the base of the lamp to make marks for drilling.
3. Drill the surface and install the lamp into the base.

1. Loosen the screws of the base using a wrench and adjust the angle.

STEREN

Product: 20 W outdoor flood lamp Part number: LAM-820 Brand: Steren

WARRANTY

This Steron product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase.

CONDITIONS

1. This warranty card with all the required information, invoice, product box or package, and product, must be presented when warranty service is required.

2. If the product is in the warranty time, the company will repair it free of charge.

3. The repairing time will not exceed 30 natural days, from the day the claim was received.

4. Steren sell parts, components, consumables and accessories to customer, as well as warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, acts of God, mishandling, leaky batteries, failure to follow enclosed instructions, improper repair by unauthorized personnel, improper safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.

b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.
