Product Type	Tower Fan
Brand	ElectriQ
Model	TF29OSCT8RW
Dimensions (H x W x D)	100 cm x 30 cm x 30 cm
Weight	4.5 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	50 Watts
Number of Speed Settings	3
Oscillation	Yes, 80° wide oscillation
Timer	7.5 hours
Remote Control	Included with battery
Mode Functions	Normal, Nature, Sleep
Control Type	Touch panel and remote
Noise Level	≤ 60 dB
Airflow Volume	1200 m³/h
Maintenance and Cleaning	Wipe with a soft, damp cloth; do not immerse in water
Safety Features	Tip-over switch, overheat protection, protective grille
Spare Parts Available	Remote control, screws, base
Warranty	2 years
Usage	Indoor domestic use only

Frequently Asked Questions - TF29OSCT8RW ElectriQ

How do I clean the ElectriQ TF29OSCT8RW fan?

To clean the fan, first unplug it. Use a soft, damp cloth to wipe the exterior and grille. Do not use abrasive cleaners or submerge any part in water. For the blades, gently vacuum with a brush attachment.

Can I use the fan with a smart plug?

Yes, the fan has a mechanical on/off switch, so you can use a smart plug to control power. However, the fan's own electronic controls (modes, timer) will need manual setting after power is restored.

How do I replace the remote control battery?

The remote uses a CR2025 3V coin cell battery. Slide the battery compartment cover open, replace the battery with the positive (+) side facing up, and close the cover.

What does the oscillation button do?

Pressing the oscillation button on the control panel or remote makes the fan rotate left and right to distribute air across the room. Press again to stop oscillation.

Why is the fan making noise?

A slight hum is normal. If excessive, check if the fan is on a stable surface, or if the grille is loose. Also ensure no foreign objects are inside. If noise persists, contact support.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Exposure to moisture or dust may damage it and create safety hazards.

How do I set the timer?

Press the Timer button repeatedly to cycle through 0.5, 1, 2, 4, 6, and 7.5 hours. The fan will automatically turn off after the set time.

Does the fan have a filter?

No, the TF29OSCT8RW does not include a filter. It is a circulation fan that moves air without filtering particles.

What are the different speed modes?

There are three speed settings: Low, Medium, and High. Additionally, you can select Nature mode (simulates natural breeze) or Sleep mode (gradually decreases speed).

How do I assemble the fan?

Attach the base plate to the fan body using the provided screws and a screwdriver (not included). Then snap the front and back grilles together. Refer to the manual for detailed steps.

USER MANUAL TF29OSCT8RW ElectriQ

Line drawing of a tall rectangular electric heater with a grid-patterned side panel (no text or symbols)

TF29OSCT8RW

29 INCH TOWER FAN

Thank you for choosing ElectriQ

Please read this user manual before using this air circulator and keep it safe for future reference.

Visit our page www.electrlQ.co.uk for our entire range of Intelligent Electricals

CONTENTS

SAFETY INSTRUCTIONS 3

FEATURES 4

DIAGRAM 4

INSTALLATION 5

OPERATION 5

CONTROL PANEL AND SETTINGS 5

REMOTE CONTROL 5

MAINTENANCE 7

TROUBLE SHOOTING 7

APPENDIX 8

SAFETY INSTRUCTIONS

Important!

- Carefully read the instructions before operating the unit

- This appliance is for indoor use only.

- Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.

• Installation must be in accordance with regulations of the country where the unit is used.

- If you are in any doubt about the suitability of your electrical supply have it checked and, if necessary, modified by a qualified electrician.

- This fan has been tested and is safe to use. However, as with any electrical appliance - use it with care.

- Disconnect the power from the unit before dismantling, assembling or cleaning the unit

- Avoid touching any moving parts of the appliance.

- Never insert fingers, pencils or any other objects though the guard

- This appliance can be used by Children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not clean the unit by spraying it or immersing it in water.

- Never connect the unit to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a qualified electrician.

- Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not stretched or exposed to sharp object/edges.

- A damaged supply cord should be replaced by the manufacturer or a qualified electrician in order to avoid a hazard.

- Any service other than regular cleaning should be performed by an authorized service representative. Failure to comply could result in a voided warranty.

- Do not use the appliance for any purpose other than for its intended use.

- Never use the mains plug as a switch to start and turn off the fan. Use the provided ON/OFF switch located on the control panel.

• Always place the unit on a dry and stable surface. Do not move or tilt the unit

- High Velocity fans are designed to create rapid air movement, therefore make sure the fan is not placed near curtains or any objects that may be drawn into the fan inlet.

- The appliance should not be installed in laundry or wet rooms

- Do not use this unit in environments with flammable and explosive gases.

- Avoid keeping the unit in direct sunlight for a long period of time

Energy Saving and Unit Safety Protection Tips

• Do not cover or restrict the airflow. Do not use in dusty environment.
• For maximum performance the minimum distance from a wall or objects should be 50cm.

Warning: To reduce the risk of fire or electrical shock, DO NOT USE THIS FAN with any SOLID STATE Speed Control Device or any variable speed controllers.

TF29OSCT8RW 29 Inch Tower Fan with 3 Speed Settings

FEATURES

• Slim design takes minimal space
  ● High Speed Motor with 3 Fan Speed Settings
• Swing Function
  ● 7.5 hour standby timer allows the operating time to be set in 30 minute intervals.
  ● Remote Control allowing all functions to be changed.
• Choice of modes allowing the operation of the unit to be adjusted to the environment.

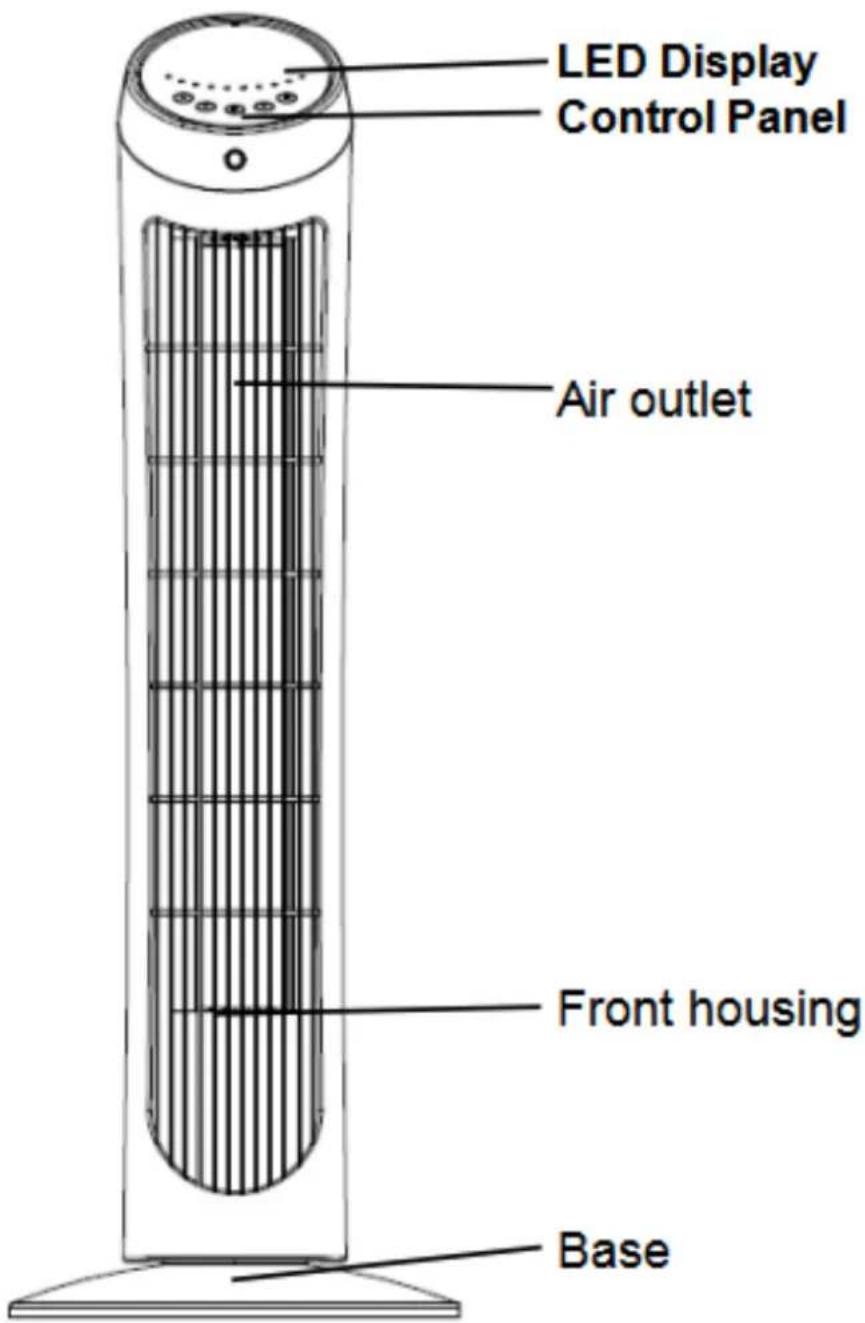

DIAGRAM

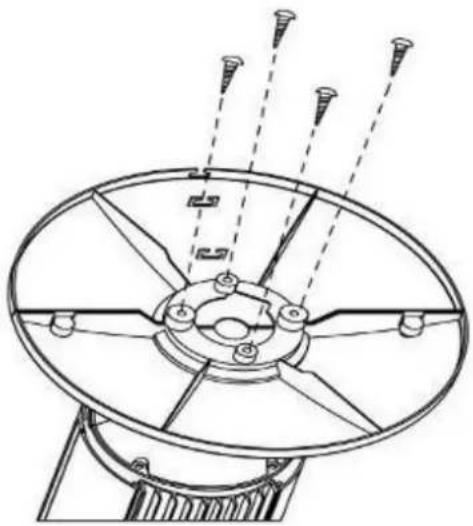

INSTALLATION

1. Push the two parts of the base together ensuring that the power cable is fed through the center.
2. Line up the tower fan on the base and fix the 4 screws into position using a screwdriver
3. Press the power cable into the two clips in the underside of the base, so that it runs out of the rear of the base.

Technical line drawing of a mechanical device with multiple screw holes and a central hub (no text or symbols)

OPERATION

Once assembled your fan may be operated by using either the manual controls located on the top of the fan or by your remote control.

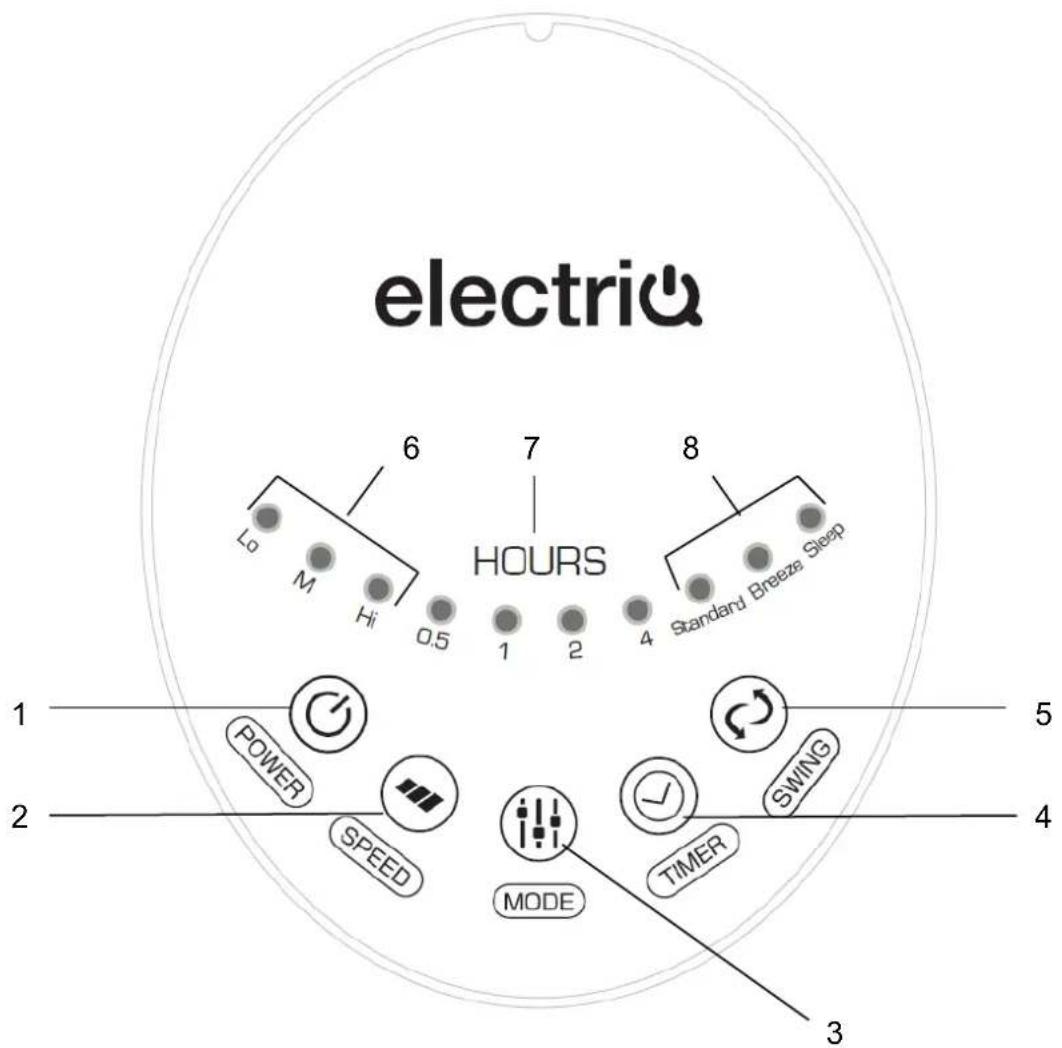

CONTROL PANEL AND SETTINGS

1. POWER BUTTON

Used to turn the tower fan ON and OFF.

2. SPEED BUTTON

Press to cycle through the three available fan speeds.

Lo – Low Speed, M – Medium Speed and Hi – High Speed

3. MODE BUTTON

Press to cycle through the modes.

Standard Mode: The fan will operate normally

Breeze Mode: The fan speed will vary to imitate a natural breeze.

Sleep Mode: The fan speed will be decrease by a level every 30 minutes, and once on low will remain running at that speed.

4. TIMER BUTTON

Press repeatedly to increase the running time in 30 minute intervals. The timer can be set between 30 minutes and 7.5 hours.

5. SWING BUTTON

Press to turn the Swing function on and off. When it is operational the horizontal direction of the airflow is slowly moved from side to side.

6. FAN SPEED INDICATOR

The corresponding light will illuminate to indicate the current fan speed. . I – Low Speed, II – Medium Speed, and III – High Speed.

7. TIMER INDICATOR

When setting the timer add up the lights to determine the length of timer set. i.e. If the 1hr, 2hr, and 4hr lights are illuminated the timer is set for 7 hours.

8. MODE INDICATOR

One light will illuminate to indicate the current mode which is operating.

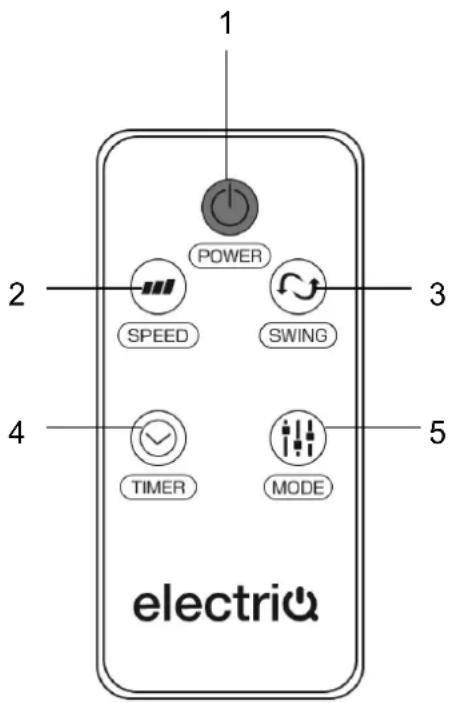

REMOTE CONTROL

The Buttons on the remote have the same effect as the buttons on the main control panel.

1	Power Button
2	Speed Button
3	Swing Button
4	Timer Button
5	Mode Button

The remote contains a button cell battery (CR2025)

MAINTENANCE

CLEANING AND STORAGE

ATTENTION: Please shut off the unit and unplug from the mains before cleaning or performing any maintenance.

Cleaning the surface

Clean the grills with a duster or a soft wet cloth.

Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. Make sure no water enters the control panel or fan motor

Do not run the unit until completely dry.

Place the fan in its original box or cover the fan to protect it from dust.

Store it in a cool dry place.

TROUBLESHOOTING

Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty and may cause bodily harm.

Issue	Possible Reason	Solution
No power	Power cord is unconnectedThe There is no power from socketThe power switch is not on.The fuse has blown	Connect the power cordCheck socket is turned onTurn the unit onReplace the fuse in the plug
Odour emission from unit	New unit. When the unit is used for the first time the fan motor may produce and odour which will dissipate within a week of use	No action required
Strong vibrations and noise	Fan is not used on a flat surfaceFan may be damaged	Place on a flat surface. May put an anti-vibration matt underneathif fan is damaged discontinue use and contact service centre

If the above solutions do not resolve the problem please contact the service centre.

APPENDIX

Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary.

■ Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils. Please remember that this equipment will be further handled during the recycling process, so please be considerate when depositing your equipment. Please contact the local council for details of your local household waste recycling centres.

TECHNICAL DATA

Model	TF29OSCT8RW
Fan Speeds	3
Cable length	1.5 meters
Rated Input	45 Watt
Running Current	0.2 Amps
Air Flow	19.45 m3/min
Noise	Max 53dB(A)
Power Supply	220-240V~50/60Hz
Net Weight	2.7 kg
Gross Weight	3.2 kg
Net Size (assembled)	270 x 272 x 745mm
Gross Size (packed)	760 x 200 x 187mm

ElectrIQ UK SUPPORT www.ElectrIQ.co.uk/support

Please, for your own convenience, make these simple checks before calling the service line.

If the unit still fails to operate call: 0871 620 1057 or complete the online form

1. Is the unit plugged into the mains?
2. Is the fuse OK?
3. Switch the unit off and wait three minutes to see if the issue is resolved. Restart the unit.

Office hours: 9AM - 5PM Monday to Friday

www.ElectrIQ.co.uk

Unit 2, The Nursery

Berristow Lane

South Normanton

Derbyshire, DE55 2FX
