Product Type	Ceiling Loudspeaker
Height	4.5 inches (114 mm)
Diameter	8.4 inches (213 mm)
Cutout Size	7.5 inches (191 mm)
Weight	3.5 lbs (1.6 kg)
Power Handling	30W continuous program, 60W peak
Transformer Taps (70V/100V)	30W, 15W, 7.5W, 3.75W, 1.9W and Common
Low Impedance Operation	8 ohms
Frequency Response	70 Hz - 20 kHz
Sensitivity	87 dB (1W/1m)
Speaker Driver	4" polypropylene cone
Operating Temperature	-40°F to +131°F (-40°C to +55°C)
Maintenance	Clean with a dry cloth; do not use liquids
Safety	Do not expose to moisture or extreme temperatures
Spare Parts	Available from Atlas Sound
Repairability	Accessible via back can; replaceable driver

Frequently Asked Questions - FAP42TC Atlas Sound

How do I wire the FAP42TC for a 70V distributed system?

Connect the common and the desired wattage tap (e.g., 30W) to the amplifier's 70V line. Set all other taps to the same wattage for consistent volume.

What is the required ceiling cutout size?

The cutout diameter is 7.5 inches (191 mm).

Can this speaker be used with a standard 8-ohm amplifier?

Yes. Use the low-impedance bypass tap (labeled 8 ohms) on the transformer, or connect directly to the 8 ohm input if available.

Is the FAP42TC suitable for outdoor installation?

It is designed for indoor use only. Exposure to moisture may damage the speaker.

How do I adjust the transformer tap?

Use a slotted screwdriver to rotate the tap selector on the transformer to the desired wattage setting.

What is the frequency response of this speaker?

The frequency response is 70 Hz - 20 kHz.

Does the FAP42TC come with a grille?

Yes, it includes a white perforated steel grille that is paintable.

What is the sensitivity rating?

Sensitivity is 87 dB SPL at 1 watt measured at 1 meter.

How do I clean the speaker?

Wipe the grille and enclosure with a dry cloth. Do not use water or cleaning agents.

Is the driver replaceable?

Yes, the driver is accessible from the rear and can be replaced if necessary. Contact Atlas Sound for spare parts.

USER MANUAL FAP42TC Atlas Sound

Strategy Series® II Low Profile In-Ceiling 4" Coaxial Speaker

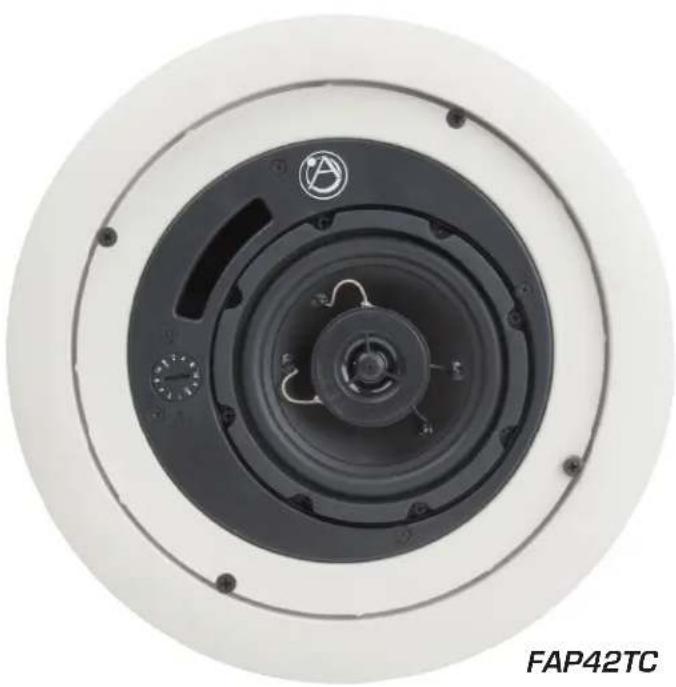

Close-up of a white circular speaker or camera module with visible internal components and no text or symbols

FAP42TC

Specifications

Power Rating 25 Watts

Transformer Taps 1, 2, 4, 8, & 16 Watts & 8Ω Bypass

Frequency Response 83Hz - 20kHz (±7dB)

Sensitivity (1W / 1M) 88dB

Woofer 4" Poly Cone with Butyl Rubber Surround

Woofer Magnet Weight 10oz (364g)

HF Driver Coaxially Mounted PEI Dome Tweeter

Diameter 10½" (267mm)

Overall Height 4 14 ' (108mm)

Enclosure Volume 134 in

Cut-Out Diameter 9" (229mm)

Features

• Low Depth (4") Speaker System for Limited Space Applications
• Easy Installation in Drop Tile or Sheetrock Ceilings Via C-Ring / V-Rail Tile Bridge and 'Dog Leg' Mounting System (Included)
• Front Mounted Tap Selector Switch for Easy System Tuning Adjustment Includes Transformer Bypass Setting for 8Ω Direct Coupled Operation
• "Press Fit" Grilles Blend Better into Contemporary Architecture
• Enhanced Quality 70.7V / 100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing Increased Output for Higher SPL Applications
• UL 1480 Listed

Applications

Atlas Sound's FAP42TC combines superior coaxial loudspeaker performance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42TC a perfect choice for low ceilings. The FAP42TC will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP42TC is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

General Description

The FAP42TC's 130° dispersion angle effectively reduces the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings.

The loudspeaker component matches the performance of the legendary Atlas Sound Strategy FA Series. High quality construction 4" coaxial cone type driver includes a 1" voice coil and polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. This loudspeaker is factory assembled in a deep drawn enclosure and includes a specially designed 16 watt low saturation, 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This switch also includes a transformer bypass setting for 8Ω operation.

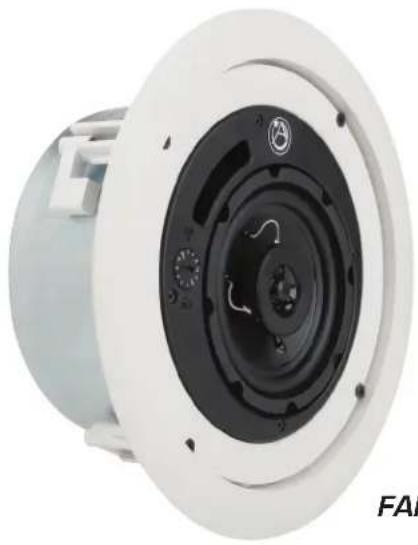

Top-down view of a circular mechanical component with concentric rings and mounting holes (no text or symbols visible)

Atlas Sound

Mounting Accessories

Mounting is simplified with Strategy style "Dog Leg" tabs that allow easy installation into drop tile or drywall ceilings with provided tile bridge assembly. The tile bridge consists of two "V" shaped formed mounting rails and a C-Ring assembly. The C-Ring can be attached to the rails with the screws provided to extend support to the T-bar grid in suspended ceiling applications. Multiple hole locations are provided to allow the C-Ring to be positioned to the outer edge of the tile if necessary.

For existing dry-wall applications the tile bridge C-Ring and support rails can be inserted into the hole cut for the FAP42TC. For easy positioning the "V" shaped support rails match the shape of the C-Ring tabs for easy maneuvering and location when working "blindly" above the deck.

A uniquely designed "easy access" input panel on the side of the enclosure allows for conduit runs using flexible conduit. Wiring terminals are concealed below this cover for easy daisy chain wiring to other full range loudspeakers or Atlas Sound FAPSUB subwoofers. The package includes an attractive press-fit grille which nicely matches contemporary architecture.

For new construction drywall ceiling applications, the optional FAP42-TR trim ring is available. This unit provides a marked location for drywall installers to cut around essentially reserving the desired location in the ceiling until final installation of FAP42TC. Mounting holes are provided to accommodate 16° or 24° OC stud / joist mounting.

A support ring is also provided on the top of the FAP42TC enclosure to facilitate an auxiliary support cable.

NOTE: IT IS MANDATORY THAT THIS SECONDARY SUPPORT BE UTILIZED IN DROP CEILINGS FOR SAFETY AND SEISMIC CONSIDERATIONS.

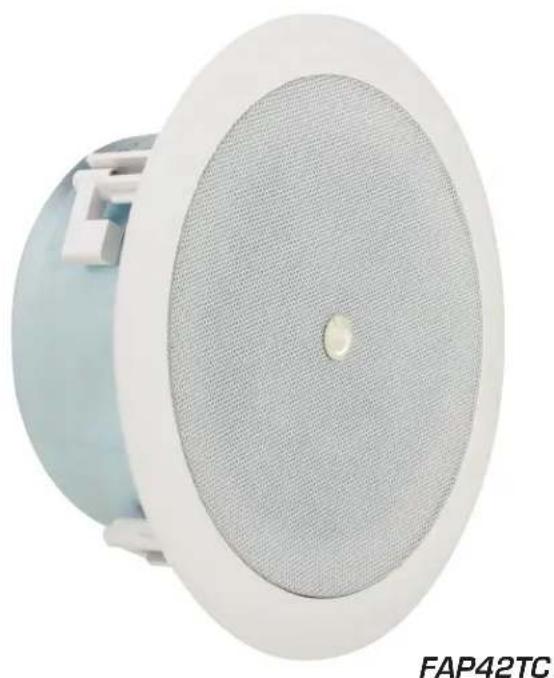

Close-up of a white circular speaker or fan with mesh grille and central button, labeled 'FAP42TC' at bottom right (no other text or symbols visible)

Architect & Engineer Specifications

The loudspeaker system shall be Atlas Sound FAP42TC. System shall include a high performance 4" coaxial loudspeaker, low profile enclosure and press-fit grille for conventional ceiling installation.

Frequency response for the system shall be 75Hz - 20kHz (±7dB).

Sensitivity shall be 88dB average. Loudspeaker shall be comprised of a 4" coaxial cone type driver. Cone shall be constructed of polypropylene with a butyl rubber surround. The 19mm tweeter shall be constructed of PEI. Magnet shall be a minimum of 10oz (264g) and the voice coil diameter shall be 1" (25mm).

Transformer shall be a 70.7V / 100V type with 1, 2, 4, 8, and 16 watt primary taps (@70.7V) with a front mounted tap selector switch to include transformer bypass setting for 8Ω direct coupled operation.

Enclosure shall be constructed of deep drawn steel. Internal volume shall be 134 in ^3 . To facilitate connection in conduit systems, enclosure shall be equipped with an access panel covering a recessed terminal cup. This cover shall provide a combination 34 " (19mm inside diameter) / 1" (25mm inside diameter) knock-out to conduit.

External wiring shall be accomplished via wiring connector with screw-down terminals to provide secure wire termination. The connector shall facilitate In / Out wiring and shall be located in the recessed area behind the conduit access panel.

Seismic support eye shall be provided for an additional suspension point when used in drop tile ceilings. Construction of enclosure shall be a minimum of 18-gauge deep drawn galvanized metal.

The system shall include a support backing plate to reinforce the ceiling material and tile support rails for use on either 2' x 4' (609mm x 1219mm) or 2' x 2' (609mm x 609mm) suspended ceiling tiles. This assembly can all be installed from beneath the ceiling tile. Overall front face diameter shall not exceed 10.5" (267mm); overall depth from the bottom of bezel to top of enclosure shall not exceed 4.24" (108mm).

Grilles shall be press-fit, manufactured from 24-gauge perforated steel mesh and finished in white epoxy. Round grill shall be 8.49" (216mm) diameter.

The loudspeaker shall be the Atlas Sound FAP42TC.

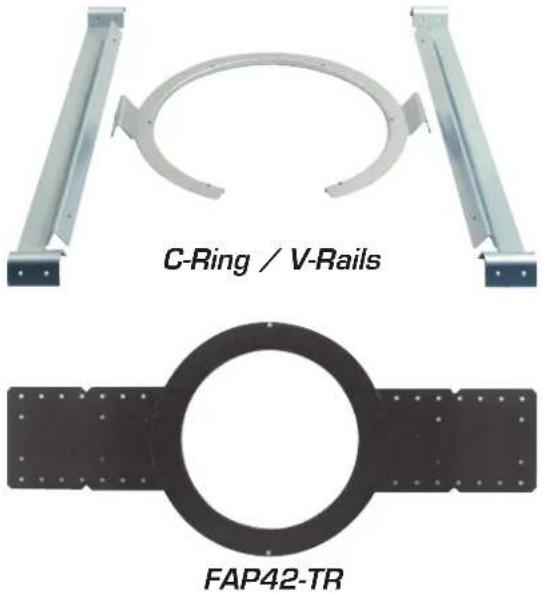

Two mechanical components: a C-ring / V-rail assembly and a FAP42-TR circular component, both without any visible text or symbols.

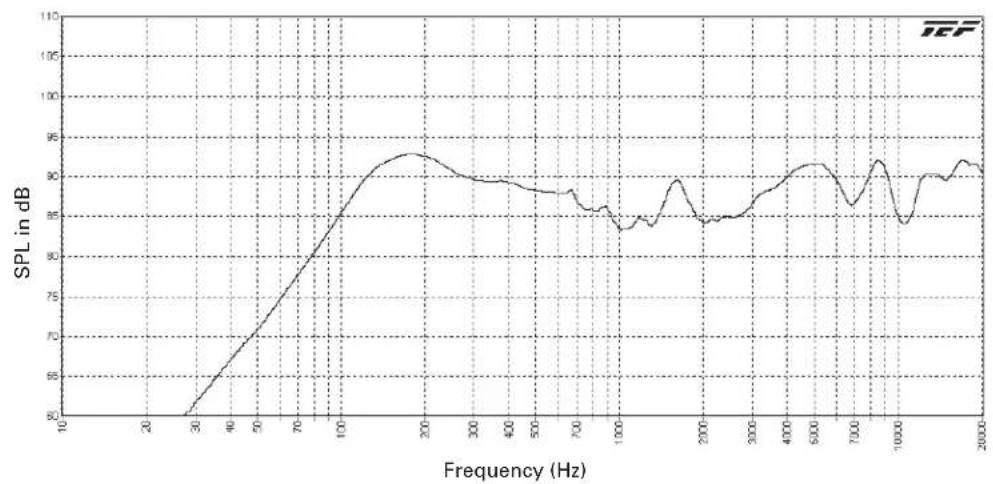

FAP42TC Frequency Response

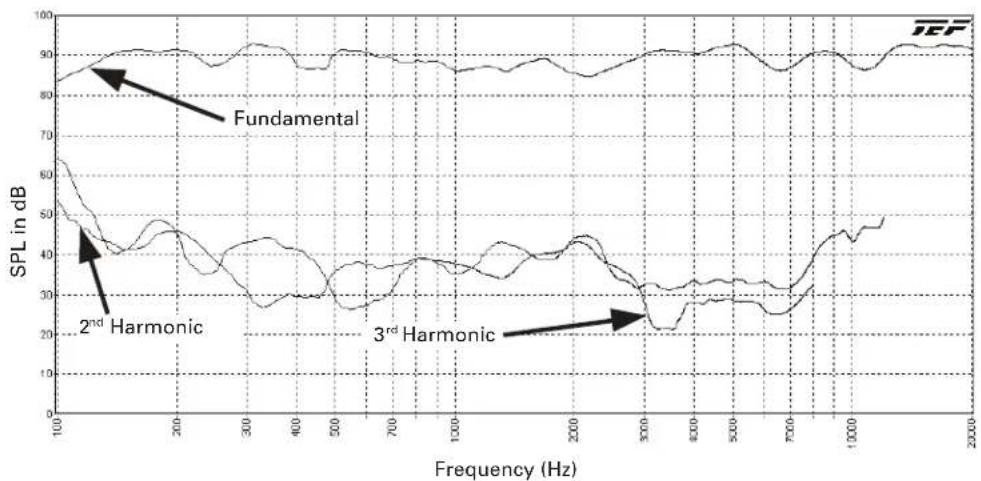

FAP42TC Harmonic Distortion

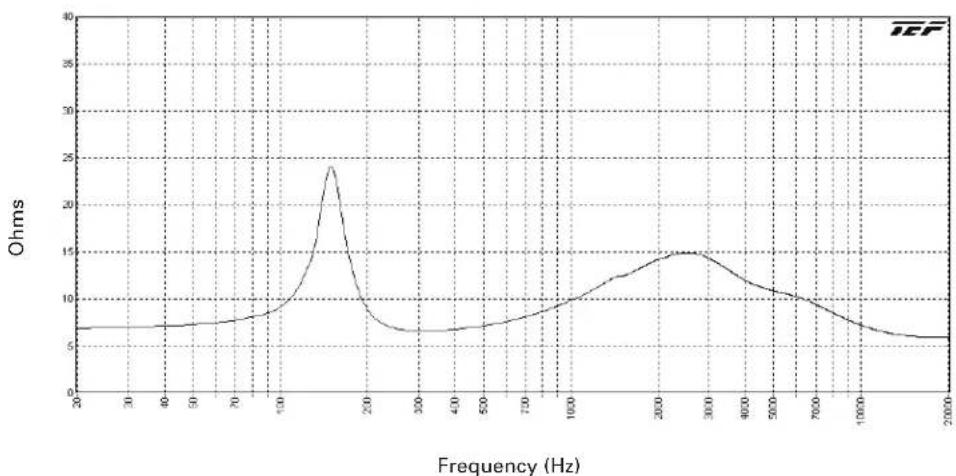

FAP42TC Impedance (Ohms) vs Frequency

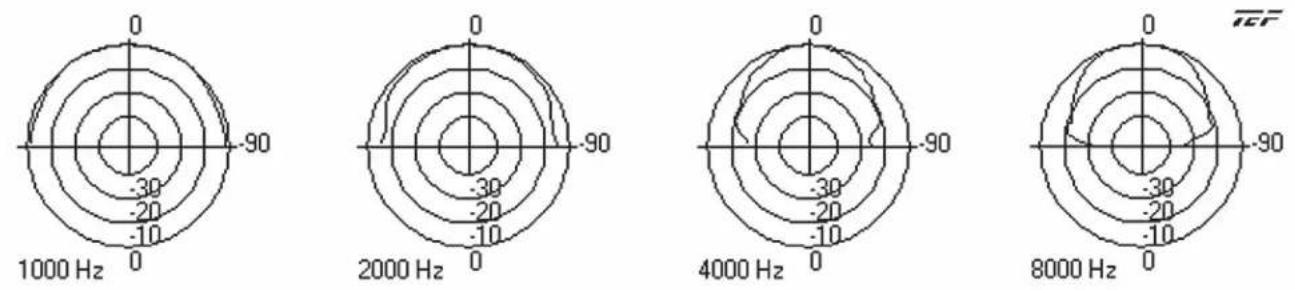

FAP42TC Polars (Normalized to Zero on Axis) (-6 dB)

Atlas Sound

The Atlas Sound Strategy Series® II assembly mounts easily into existing construction drop ceiling or drywall materials

FAP42TC

Installation Instructions ATS001748 RevA 4/04

Mounting Template 9" Dia.

Drop Tile Ceiling Installation

1. Remove 2'x2' or 2'x4' tile.

2. Align adjustable dual rail& c-ring assembly on rear of tilein desired position.

3. Using template provided mark cutout circle with marker and cut hole. (9* FAP42T)

4. Affix C-ring assembly to rails using screws provided and position assembly on rear of ceiling

tile. Replace tile into grid making sure that formed ends of tile bridge rails engage T-bar tile support rails.

1. Bring service loop from rear of tile, through tile bridge C-ring to access panel located on side of

enclosure. Terminate the service loop to terminal connector provided (please note polarity). Combination knock-outs are provided to facilitate conduit.

1. Insert enclosure through front of tile. Using standard #2 Phillips screwdriver or screw-gun, tighten (4) dogleg assemblies until they engage C-ring assembly. DO NOT OVER-TIGHTEN DOG LEG SCREWS!

2. Adjust front mounted switch to desired wattage tap setting or 8Ω* (See important note regarding 8Ω operation)

3. Install press-fit grille into front bezel ring. Push baffle upwards until baffle is flush with bezel ring.

4. For safety and seismic considerations a suspension ring is integrated into input panel section of unit. Atlas Sound strongly suggests that a support wire be installed from this support point to a suitable anchor point above ceiling grid. In drop tile applications, this wire can usually be installed from an adjacent tile access near speaker location.

Dry Wall ("Hard Deck") Installation

1. Using template provided, mark cutout circle in desired mounting location and cut hole. (9" FAP42TC)

2. Place tile bridge rails and C-ring through hole. Use V shaped edge of C-ring to align tile bridge assembly above ceiling (alignment screws provided are not required for this type of installation)

3. Bring service loop from through the tile bridge/C-ring to access panel located on side of the enclosure. Terminate service loop to terminal connector provided (please note polarity). Combination knockouts are provided to facilitate conduit.

4. Insert enclosure into hole. Using standard #2 Phillips screwdriver or screw-gun, tighten (4) dogleg assemblies until they engage the C-ring assembly.

DO NOT OVER-TIGHTEN DOG LEG SCREWS!

1. Adjust front mounted switch to desired wattage tap setting or 8Ω* (See Important note regarding 8Ω operation)

2. Install press-fit grille into front bezel ring. Push baffle upwards until baffle is flush with bezel ring.

New Construction (Drywall Ceilings)

Use of optional FAP42-TR1 (for use with FAP42TC) new construction bracket essentially reserves speaker mounting location prior to drywall installation in new construction. Bracket mounts between 16" or 24" OC studs and includes a 3/8" downward lip to provide a template for drywall installers to cut around. For final installation, please follow instructions below.

Note: tile bridge components are not used in new construction applications where new construction bracket is utilized.

1. Bring service loop through hole in ceiling provided by pre construction bracket to access panel located on side of enclosure.

Terminate service loop to terminal connector provided (please note polarity). Combination knockouts are provided to facilitate conduit.

1. Insert speaker assembly into hole. Using standard #2 Phillips screwdriver or screw-gun, tighten (4) dog leg assemblies until they engage ring provided on new construction bracket. DO NOT OVER-TIGHTEN DOG LEG SCREWS!

2. Adjust front mounted switch to desired wattage tap setting or 8Ω* (See Important note regarding 8Ω operation)

3. Install press-fit grille into front bezel ring. Push baffle upwards until baffle is flush with bezel ring.

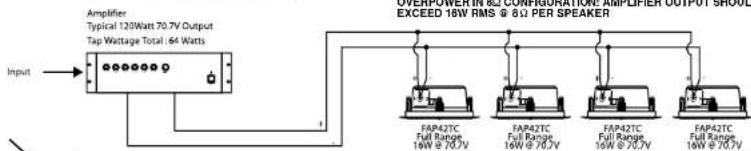

Typical Parallel Hookup of Full Range 70.7/100V Speakers
NOTE: *DO NOT USE 8Ω SETTING WITH 70.7V/100V SYSTEMS! *DO NOT OVERPOWER IN 8Ω CONFIGURATION! AMPLIFIER OUTPUT SHOULD NOT EXCEED 16W RMS @ 8Ω PER SPEAKER

1 FAP42-TR Has not been evaluated by UL Laboratories
NOTE: Dog legs will accommodate ceiling material thickness up to 1 1/4" as shipped from factory.
For thicker ceiling materials (up to 2') simply uncrew and flip dog legs as shown. DO NOT OVER-TIGHTEN DOG LEGS IN EITHER CONFIGURATION!
NOTE: UL recognized conduit clamp must be used for conduit.
connections. Cable connection cavity is not intended to be used on a transfer box.

Auxiliary Suspension Point

Ceiling Material up to 1-1/4"
FREQUENCY RESPONSE: 100Hz-20kHz

SENSITIVITY: 88dB (1W/1M)
Auxiliary Suspension Point
Dog Leg In
Inverted P

Ceiling Material up to 2"
