Product Type	Passive Speaker for Commercial/Public Address
Brand	Atlas Sound
Model	PM4FA-B
Driver Size	4-inch Full-Range Driver
Impedance	8 Ohms
Power Handling (RMS)	30 Watts
Frequency Response	80 Hz - 20 kHz
Sensitivity	90 dB (1W/1m)
Enclosure Material	ABS Plastic with Metal Grille
Mounting Type	Wall-Mountable with Included Bracket
Dimensions (H x W x D)	6.5 x 6.5 x 8.0 inches (165 x 165 x 203 mm)
Weight	3.5 lbs (1.6 kg)
Connection Type	Spring-Loaded Terminals (Accepts up to 14 AWG)
Color	Black
Usage Environment	Indoor/Outdoor (Weather-Resistant)
Certifications	UL Listed, CE Compliant
Warranty	5 Years Limited
Included Accessories	Mounting Bracket, Screws, User Manual

Frequently Asked Questions - PM4FA-B Atlas Sound

What type of amplifier is compatible with the PM4FA-B?

The PM4FA-B is an 8-ohm passive speaker. It works with any amplifier or receiver rated for 8-ohm loads, delivering up to 30 watts RMS per channel.

Can this speaker be used outdoors?

Yes, the enclosure is weather-resistant. However, avoid direct exposure to heavy rain or prolonged sunlight to ensure longevity.

How do I connect the speaker wires?

Use the spring-loaded terminals on the back. Press the tab, insert stripped wire (up to 14 AWG), then release. Ensure correct polarity (+/-) for proper sound.

What is the included mounting bracket like?

The bracket allows wall or ceiling mounting with adjustable tilt. Use appropriate screws for your surface. The speaker attaches securely with a locking mechanism.

Can I paint the speaker to match my decor?

Yes, the grille and enclosure can be painted. Use a light coat of spray paint designed for plastic. Avoid painting the driver cone or terminal connections.

What is the recommended placement for best sound?

Mount at ear level if possible. For stereo, space speakers 6-10 feet apart. Avoid corners to reduce bass boom. Angle toward listening area.

Does the speaker have overload protection?

The PM4FA-B does not include built-in protection. Use an amplifier with appropriate power rating to avoid distortion or damage. Stay within the 30-watt RMS limit.

How do I clean the speaker?

Disconnect from amplifier. Wipe the enclosure with a dry cloth. For the grille, use a soft brush or vacuum with brush attachment. Do not use water or solvents.

Is the speaker compatible with 70V/100V systems?

No, the PM4FA-B is a low-impedance (8 ohm) speaker. For 70V/100V lines, you would need an external transformer or choose a model designed for such systems.

What is the frequency response for this speaker?

The frequency response is 80 Hz to 20 kHz. It provides clear mids and highs, but for deep bass, consider adding a subwoofer.

USER MANUAL PM4FA-B Atlas Sound

Please Read Carefully Before Installing or Operating

• Read all instructions carefully
• Heed all warnings
  • Assure that the speaker is securely mounted

Hearing Damage

CAUTION:

This professional loudspeaker systems is capable of generating very high sound pressure levels.

Use care with placement and operation to avoid exposure to excessive levels that can cause permanent hearing damage.

Suspension & Mounting

Suspension or "flying" speaker systems requires training and expertise. Improper rigging of a flying speaker may result in injury, death, equipment damage, and legal liability. Installation must be carried out by fully qualified installers, in accordance with all required safety codes and standards at the place of installation.

A 5:1 design factor is a generally accepted minimum standard. However, legal requirements for overhead suspension vary by municipality, please consult your local safety standards office before installing any product. We also recommend that you thoroughly check any laws and bylaws prior to installation.

Loudspeakers flown in theaters, nightclubs, conference centers, or other places of work and entertainment must be provided with an independent, correctly rated and securely attached secondary safety — in addition to the principle suspension point(s). This secondary safety must prevent the loudspeaker from dropping more than (6") should the principle suspension device fail. If you lack the skills, training, and proper ancillary equipment to fly a speaker system, do not attempt to do so.

• Always assure power is off to amplifiers before making any connections
• Assure that all electrical equipment is properly grounded
- Keep instructions for future reference
- Should any questions arise after reading this document, please call Atlas Sound Tech Support at 800-876-3333

PM Series

Pendant Mount Loudspeakers

Installation Via Mounting Cables (Included)

General considerations and hardware recommendations

CAUTION: PM series models weigh as much as 21 pounds (7.9kg) – model PM8CX. A fall from almost any height could result in serious injury or death. Assure that the speaker is firmly mounted to an object that can handle the weight of the PM speaker. The mounting surface the PM speaker is being attached to should be able to handle five or more times the weight of the PM speaker

The hardware employed must be safely and securely attached both to the loudspeaker and the structure in question, using only the mounting holes. A general rule for soft surface installations (wood beams) is to multiply the corresponding working load limit by 75%: the result will be approximate working load strength. Use thread locking compound for all installations.

CAUTION: Mounting the PM loudspeaker may require two people.

When in doubt contact a qualified structural/mechanical engineer for approval of the mounting materials and methods.

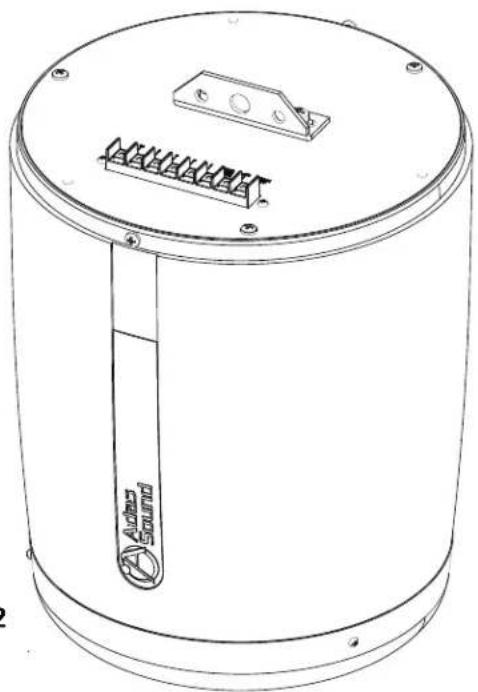

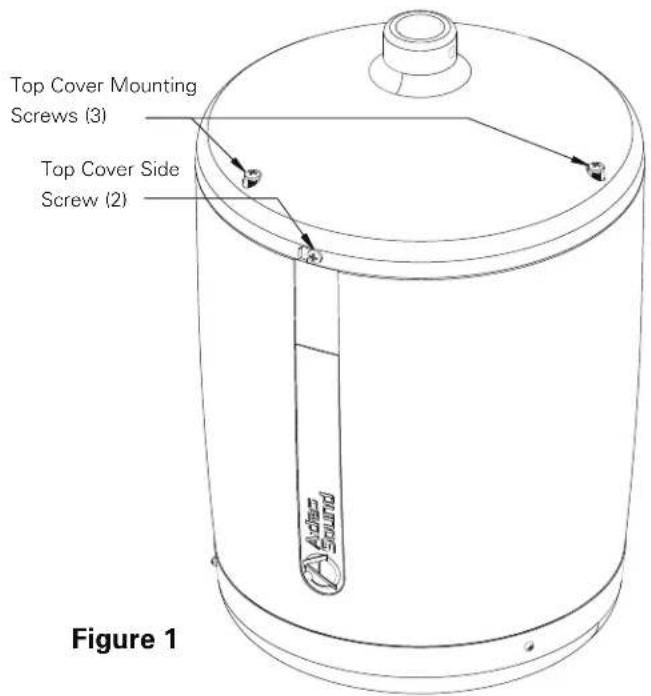

1. Remove the 3 top cover mounting screws, loosen the 2 side top cover screws rotate the top cover counterclockwise, and pull up to remove the top cover. (Fig 1 and 2)

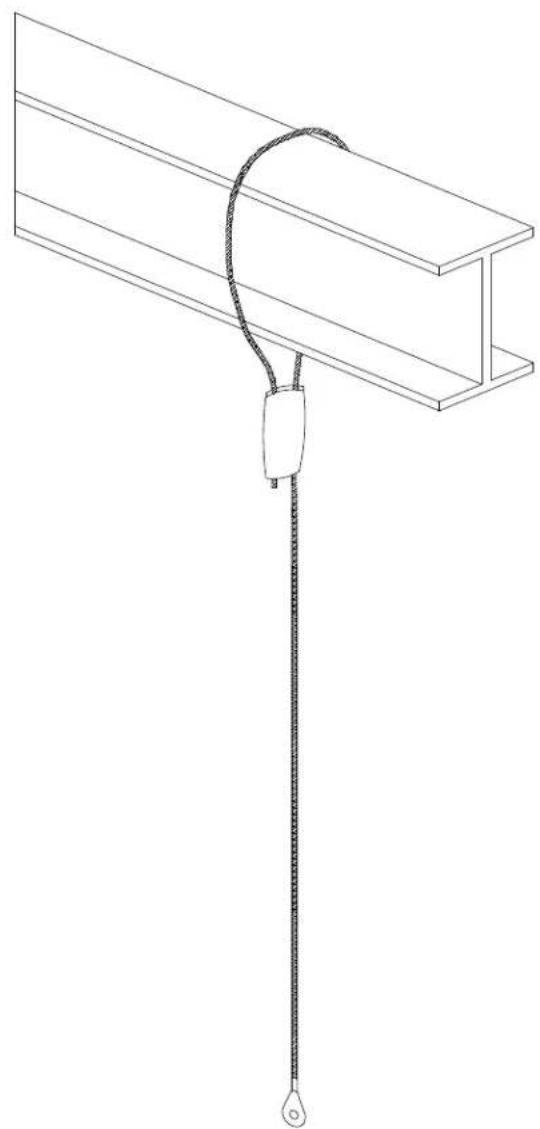

2. Locate suitable support structure in the area the speaker is to be installed.

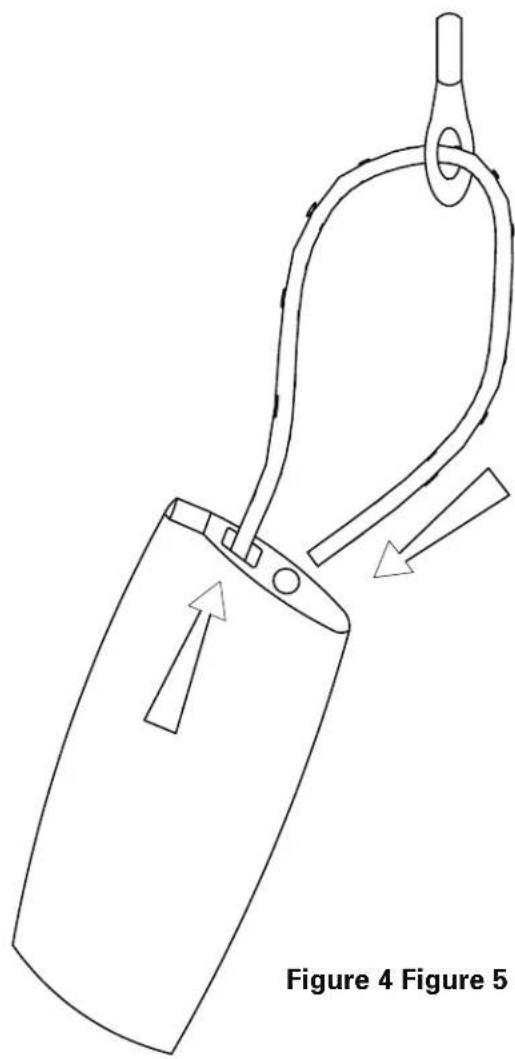

3. Route the bare end of the main support cable though the included clamp, then around the mounting structure, and back through the clamp. (Fig 3 and 4)
4. Adjust the cable length in the clamp so that the eyelet end of the cable is at the final height above the floor. (Fig 5)
5. (For PM8) Route the eyelet end of the main support cable through the top cover of the PM speaker, attach the included carabiner clip to the eyelet and the large mounting hole on the back of the PM speaker. (Fig 6a) (For PM4) Route the eyelet end of the main support cable through the top cover of the PM speaker, attach the eyelet to the large mounting hole on the back of the PM speaker using included mounting screw. (Fig 6b)

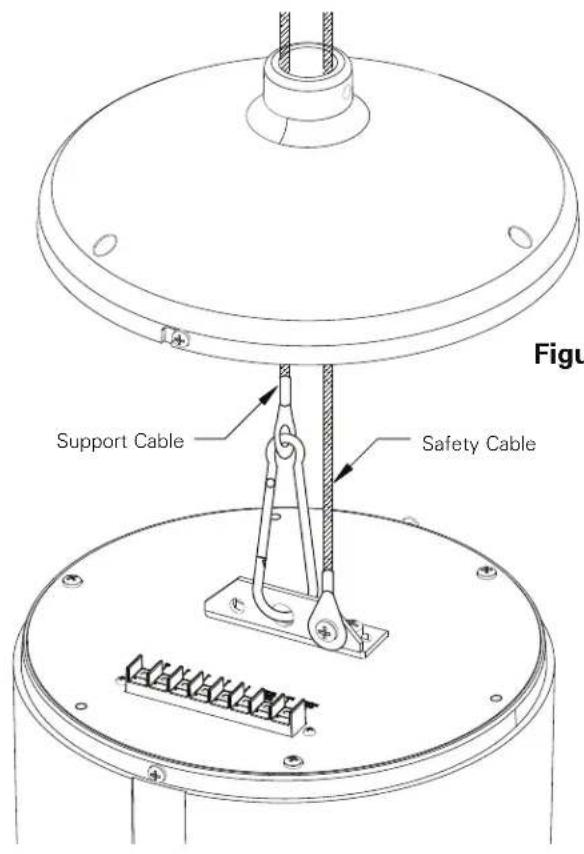

6. Repeat steps 1-4 for the safety cable and attach it the one of the smaller mounting holes on the support plate of the PM speaker with the included mounting screw. (Fig 6)
7. Route the speaker cable through the top cover and connect to the appropriate terminals.

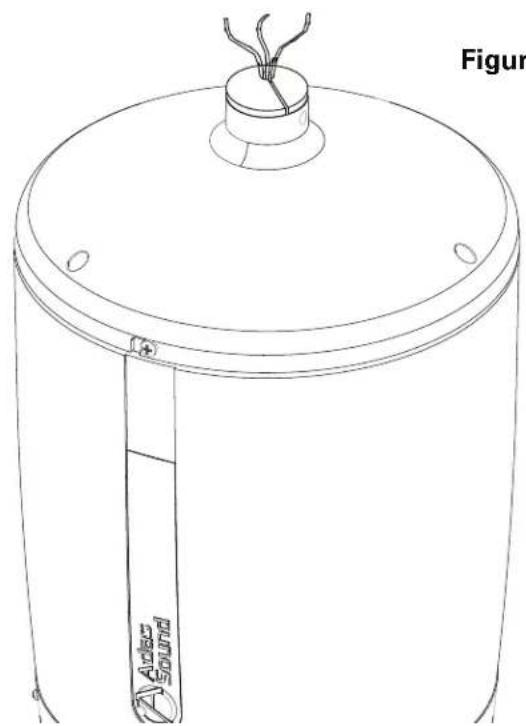

8. Position the top cover over the side cover screws and rotate the cover clockwise to align the top cover mounting screw holes. Reinstall the 3 mounting screws, tighten and tighten the side cover screws.

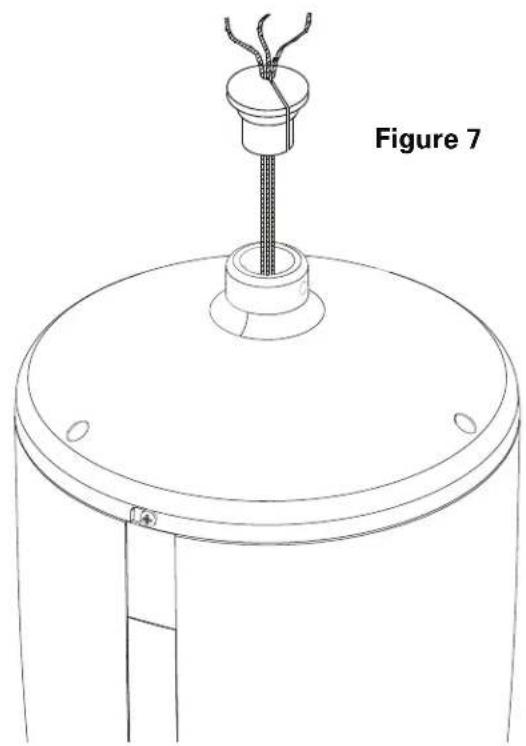

9. Slide the top hole plug over the main support cable, safety cable, and speaker cable using the opening on the side of the plug. Then slide the plug down the cable and into the top cover hole. (Fig 7 and 8)

Note: If the speaker is being installed outdoors, seal plug with RTV silicone to prevent moisture from entering speaker.

PM Series

Pendant Mount Loudspeakers

Line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Technical line drawing of a cylindrical industrial device with a central vertical component labeled 'Audi Sound' (no other text or symbols)

Figure 2

PM Series

Pendant Mount Loudspeakers

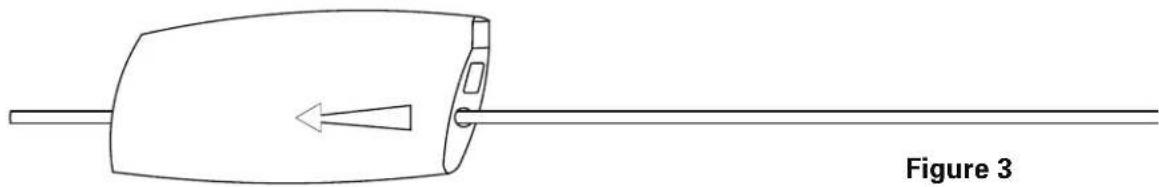

Simple line drawing of a device with an arrow pointing left, labeled Figure 3 (no text or symbols on the diagram itself)

Line drawing of a hook-shaped object with arrows indicating motion, labeled Figure 4 (Figure 5) at bottom (no text or symbols on the diagram itself)

Technical line drawing of a structural support bracket with a hanging cable and hook (no text or symbols)

PM Series

Pendant Mount Loudspeakers

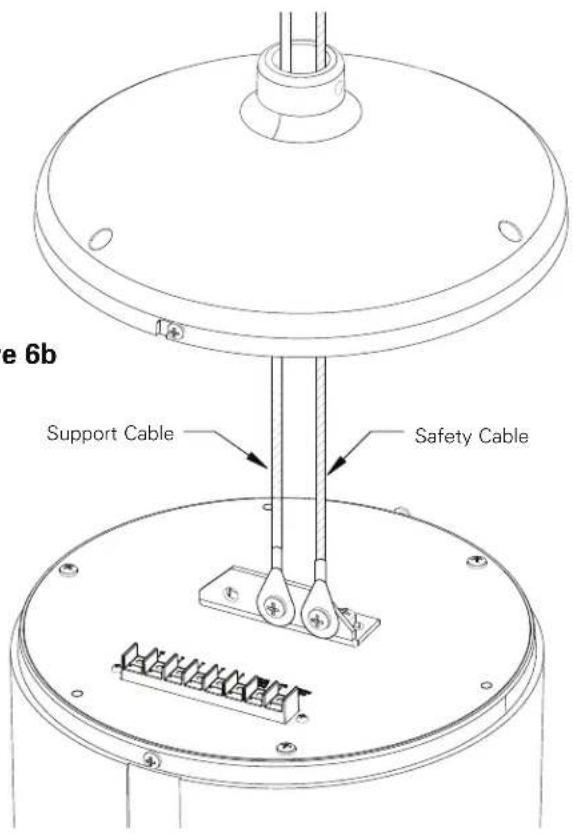

Figure 6a Figure 6b

Technical line drawing of a cylindrical mechanical component with a central rod and mounting base, labeled as Figure 7 (no text or symbols on the diagram itself)

Figure 8

Line drawing of a cylindrical device with a top and side ports, labeled 'Figure' in the corner (no other text or symbols)

PM Series

Pendant Mount Loudspeakers

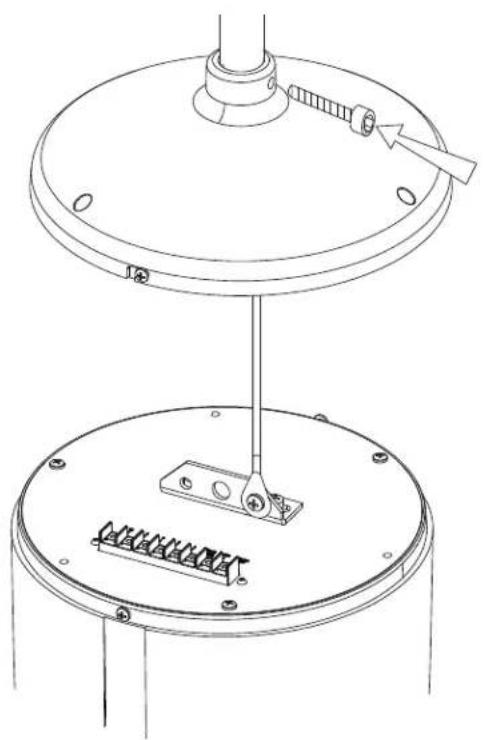

Suspended Installation Via Down Pipe (Not-Included) Using 34 " Diameter Ceiling Fan Hardware

Atlas Sound's PM series speaker may also be installed using industry standard ceiling fan hardware. This hardware is available at most local hardware stores. Using this type of installation allows speaker cable and safety cable to be concealed with the down pipe providing a very clean installation.

1. Remove the 3 top cover mounting screws, loosen the 2 side top cover screws rotate the top cover counterclockwise, and pull up to remove the top cover. (Figure 1 and 2)
2. Locate suitable support structure in the area the speaker is to be installed.
3. Mount the ceiling mount canopy and down pipe per manufacturer instructions.
4. Screw the PM speaker top cover onto the bottom of the down pipe, install the safety screw though the side of the top cover and through the end of the down pipe. (Figure 9)
5. Route the bare end of the safety cable though the included clamp, then around a suitable support structure, and back through the clamp. (Figure 3 and 4)
6. Route the eyelet end of the safety cable through down pipe and the cover of the PM speaker, attach the eyelet to one of the smaller mounting holes on the support plate of the PM speaker with the included mounting screw. (Figure 9)
7. Route the speaker cable through the down pipe and connect to the appropriate terminals.
8. Position the speaker under the top cover, align the side cover screws and rotate the speaker clockwise to align the top cover mounting screw holes. Reinstall the 3 mounting screws, tighten and tighten the side cover screws. (Figure 9)

Technical line drawing of a mechanical assembly with a circular base and a vertical rod inserted into a housing (no text or symbols)

Figure 9

PM Series

Pendant Mount Loudspeakers

Troubleshooting

PROBLEM	POSSIBLE CAUSE	REMEDY
There is no sound Power off. Equipment setting is wrong.Volume set too low.		Assure that power is applied to all equipment in system.Check that routing (input/output) controls are set correctly.Check that volume level is above minimum.
There is no sound Loose connection. Check system from start to finish for crossed wires, loose connection, etc. On the PM location check for correct connection.
Low sound level Setting/volume control is set too low.Connection is shorted or bad.		Check volume levels or amplifiers and related equipment (equalizer). Check that connections aren't partially shorted/ corroded.
Sound cuts in and out System overload/oscillation intermittent connection.		Check for overload condition or bad connection.
Distortion at increased levels	Amplifier/speaker overdriven.	Check that power to speaker isn't over limits. Check that amplifier isn't overdriven. Reduce power to amplifier slightly.
Speaker makes "buzzing" noise	Hardware loose or speaker damaged. Make sure speaker grille is tight. Check other hardware connections. Check speakers for loose parts or speaker damage.

PM4FA

Pendant Mount Speaker System

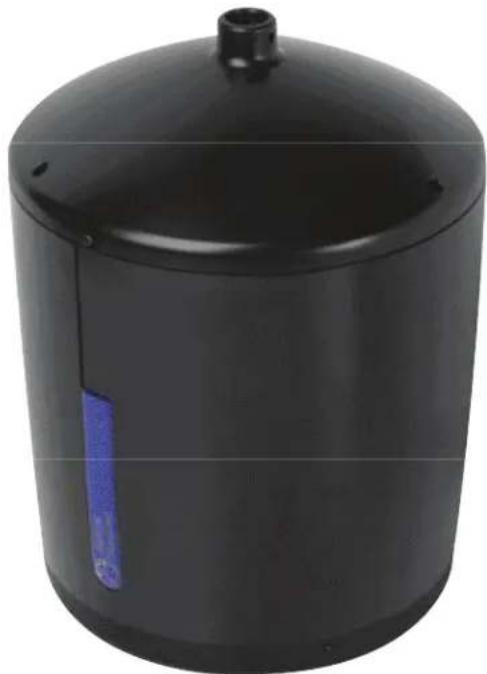

Black cylindrical industrial tank with a blue label on its side (no visible text or symbols)

PM4FA-B

Features

• 4" FA134 driver provides 130° (65° off-axis) coverage in the 2 kHz octave band
- 70.7V taps @ 1, 2,4,8, & 16 Watts plus 8 Ω direct input via concealed terminal block
• Discrete, attractive enclosure

Technical Specifications

Power Rating:

25 Watts @ 8 Ω

70.7 Taps: 1, 2, 4, 8, & 16

Frequency Response: 70 Hz - 20 kHz (±5 dB)

Sensitivity (1 W/1 M): 88 dB Average

Dispersion Angle: 90°

Woofer Mag. Wt.: 10 oz. (311 g)

Woofer:

4" Poly Cone Butyl Rubber Surround

HF Driver:

Coaxially Mounted PEI Dome Tweeter

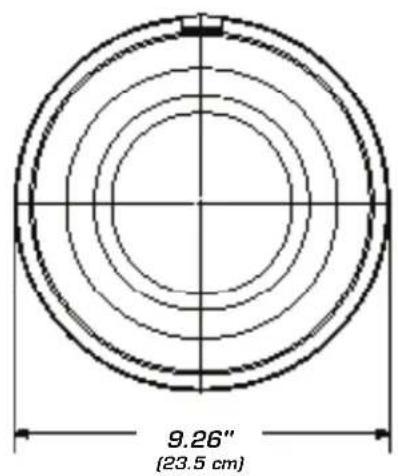

Enclosure Dimensions: Diameter - 9.25" (235 mm)

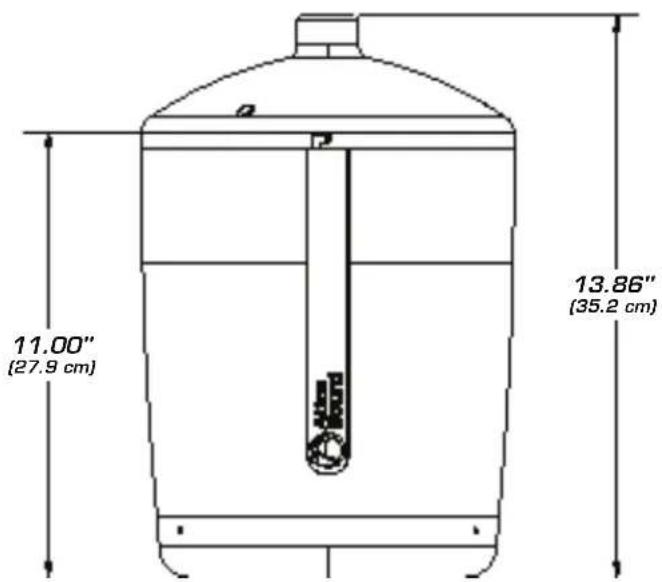

Overall Height - 13.87" (352 mm)

Enclosure Volume: 478 ^3 (7,1833 cm ^3 )

Weight: 13 lbs (5.89 kg)

Applications

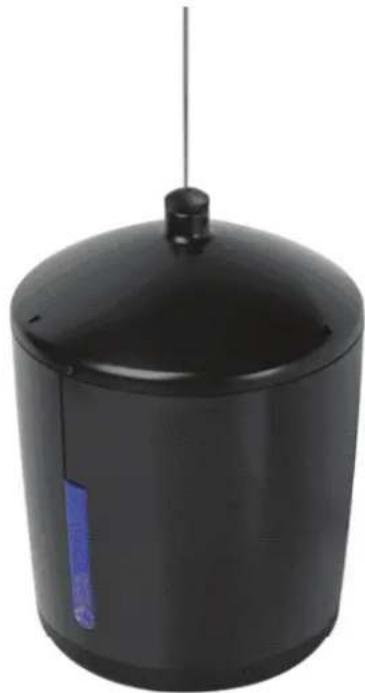

The Atlas Sound PM4FA features the familiar response and dispersion of Atlas Sound's model FA134 high performance 4" Strategy Series driver. This loudspeaker is the same FA Series device used in Atlas Sound's successful model FAP42T ceiling speaker package. Mounted down-firing in an attractive enclosure, the PM4FA provides natural sounding, wide coverage for low height installations while retaining impressive full range frequency response for both music and paging applications.

Attaching a PM4FA to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 34'' ceiling fan installation kit may be utilized. These kits are readily available under the FANTEC ^™ brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).

Either installation solution is discreetly implemented via the PM series innovative top cover design concealment cap. This "cap" includes a cable access plug that is easily removed for down pipe mounting. The cover also completely conceals the speaker cable terminations and the suspension anchor points.

Several packages are offered to suit various coverage pattern and installation scenarios. For low ceilings, Atlas Sound offers a discrete enclosure system containing an ultra wide coverage 4" FA series driver. For higher ceiling applications, Atlas Sound PM series answers the need for a variety of budget and performance requirements with three different 8" driver options, factory assembled into in a larger yet still attractive pedant style enclosure.

Available in black or white enclosure finish.

Black cylindrical device with a vertical rod and blue stripe, no visible text or symbols

PM4FA-B

Hanging

Atlas Sounc

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: [phone]

FAX [phone]

AtlasSound.com

Architect & Engineer Specifications

The loudspeaker system shall include a high performance 4.0 inch coaxial loudspeaker in a ported bass reflex enclosure and press-fit aluminum grille for conventional ceiling installation via cable or down tube mounting system.

Frequency response for the system shall be 70 Hz – 20 kHz (±5 dB). Sensitivity shall be 88 dB average. Magnet shall be a minimum of 10 oz. (264 g) and the voice coil diameter shall be 1" (25 mm).

Transformer shall be (70.7V/100V) volt type with 1, 2, 4, 8, & 16 Watts primary taps (@ 70.7V) and a transformer bypass position for 8 Ω direct coupled operation on an integrated 8 position terminal block.

The loudspeaker shall be the Atlas Sound PM4FA (-W or-B).

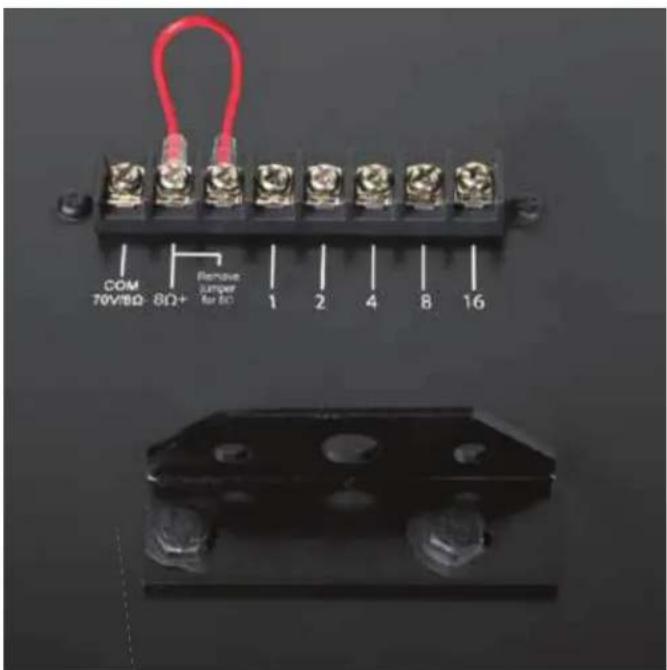

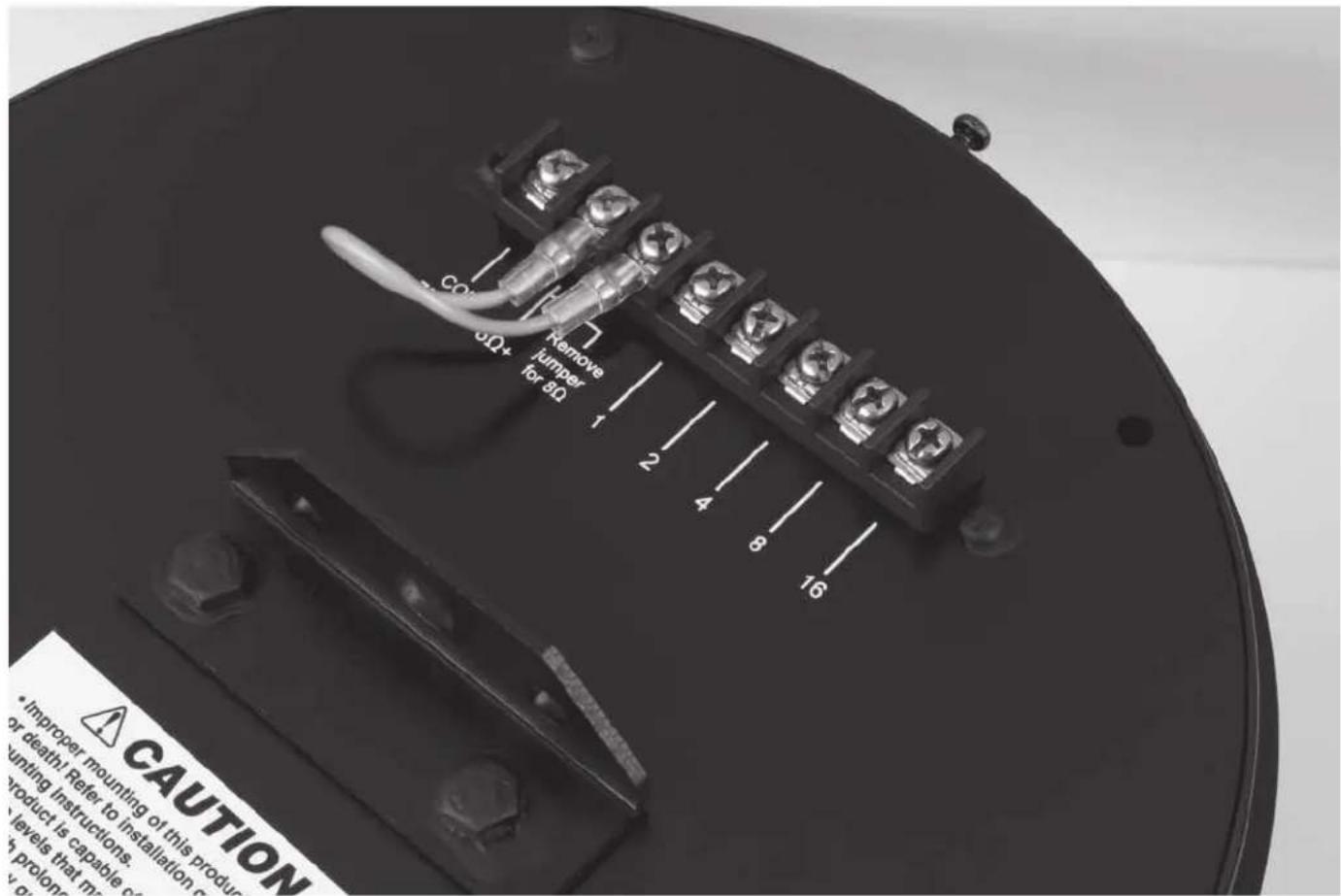

Tap Selection Terminal

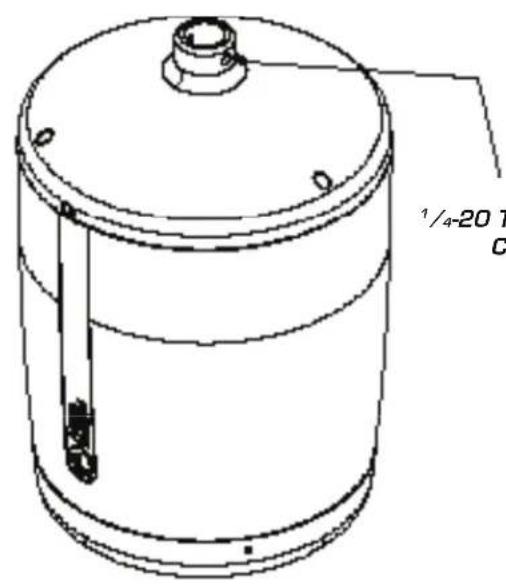

^1/_4 -20 Thread Hole for Securing Conduit Installation

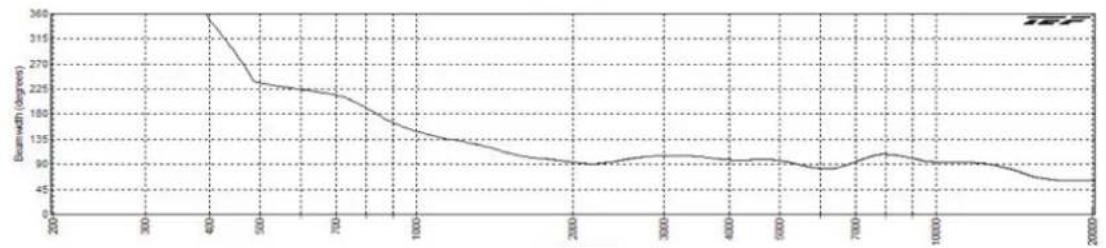

PM4FA Beamwidth

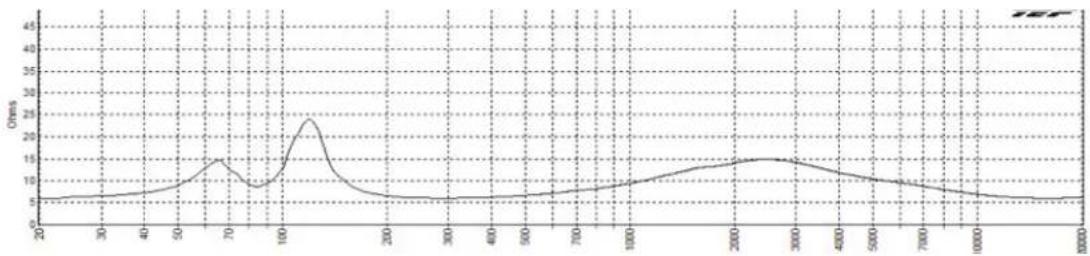

PM4FA Impedance

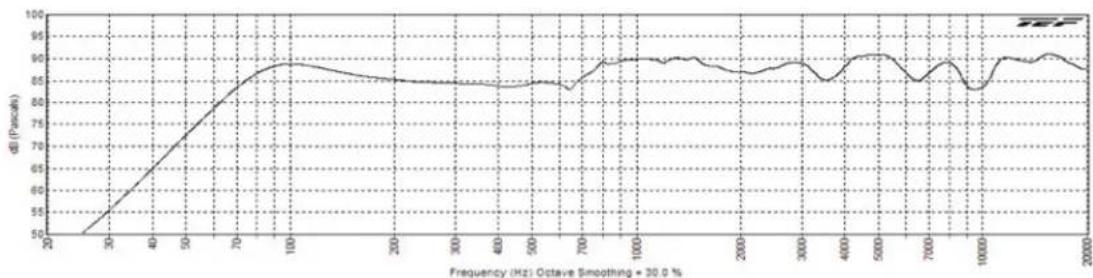

PM4FA Frequency Response

500 Hz

1000 Hz

2000 Hz

4000 Hz

8000 Hz
PM4FA Polar Charts

Complex

Problems

Architects, consultants, and interior designers require loudspeaker solutions with good aesthetics for open ceiling applications – a pendant system has to look and sound good!

Ceiling materials vary – a good installation system is imperative to accommodate beam mounting as well as flat or angled hard ceiling materials.

Pendant mount speaker systems must have "real world" coverage patterns.

Atlas Solutions

Pendant Mount Speakers from Atlas Sound

• Equipped with Atlas Sound's most popular drivers in a down firing configuration – no weird dispersion cones, no tweeter banks, no attempts to break the inverse square law!
• Cable mounting system included! Optional down pipe installation is made easy with either standard ceiling fan hardware or 34 " MPT tubing / suspension hardware. (Available at most electrical supply outlets)
• Three different 8" loudspeaker options match performance of Atlas Sound's CX Series, FA Series, and GD Series. The FA134 driver utilized in the 4" model provides nearly identical performance to the popular FAP42T ceiling speaker system.

Black cylindrical container with a small blue label and 'E' logo, no visible text or symbols on the object itself.

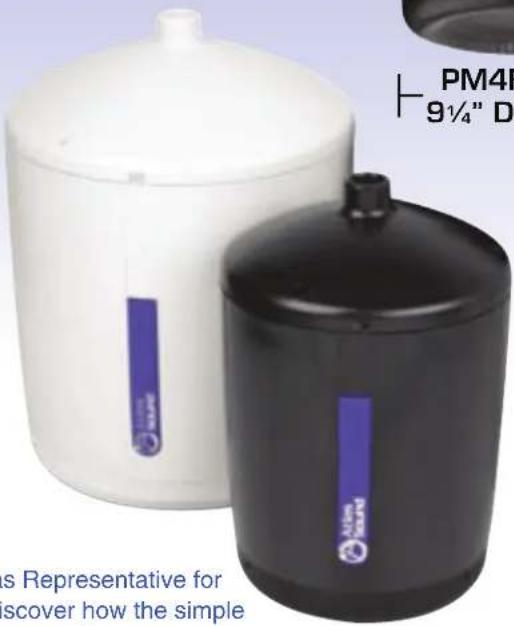

PM4FA Only 9¼" Diameter!

Ask your Atlas Representative for details and discover how the simple solution is the Atlas Solution!

Atlas Sound

VARIZONE DIGITAL PUBLIC ADDRESS SYSTEM

ISO9001-CERTIFIED-

PM Series Pendant Mount Speakers

• N Easy Installation Via Suspended Cable Mounting (Included), or Optional Pipe Mount Systems
• NAttractive Cylindrical Enclosure will Complement Any Décor
  • N Top Cover Blends Perfectly with Enclosure to Conceal Interconnect - Providing a Very Clean Appearance
• NInput Terminal Connection with 70.7V Taps and 8 Ω
• NIntegrated High Performance Atlas Sound Loudspeakers in Pendant Mount Enclosures
• NAvailable in White or Black

The PM4FA uses the familiar response and dispersion of Atlas Sound's FA134 high performance 4" Strategy Series® driver. This loudspeaker is the same FA Series driver used in Atlas Sound's successful FAP42T ceiling speaker package. Mounted down-firing in an attractive enclosure, the PM4FA provides natural sounding, wide coverage for low height installations while retaining very impressive full range frequency response for both music and paging applications.

For higher ceiling applications, Atlas Sound Pendant Mount series answers the need for a variety of budget and performance requirements with three different 8" driver offerings.

PM8GD utilizes the economical GD87 coaxial driver to provide familiar response and high efficiency while retaining economy when high density speaker counts are required in page only applications.

For upscale performance in retail and hospitality applications, the PM8FA system employs the popular FA138 loudspeaker in a specifically tuned and ported enclosure to provide impressive music and page reproduction. For high ceilings up to 30', the PM8CX employs the Atlas Sound 8CXT60 compression driver coaxial loudspeaker which provides excellent efficiency exceeding 96 dB 1 W / 1 M and a desirable 90° conical coverage pattern in the 2 kHz octave band.

All models include a suspension cable system and concealment top cover to provide optimal aesthetics. Under this cover, connection is made via terminal block for 70.7V / 100V transformer or direct coupled 8 Ω operation.

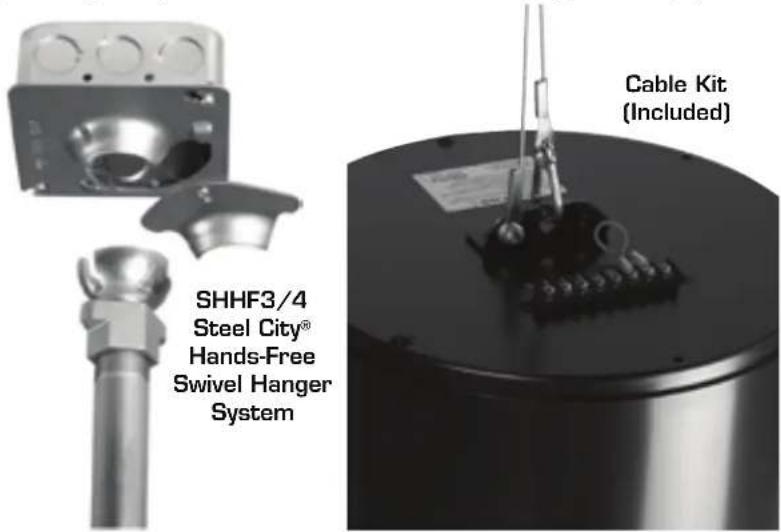

Optional Steel City® Hands-Free Swivel Hanger system allows quick install of the Atlas Sound PM Series without the need for an extra set of hands. The patented hanger design allows the fixture to be set in place while giving users access to the conductors while wiring is being completed. The Hands-Free Swivel Hanger can support a

fixture up to 50 pounds and is ideal for gyms or other commercial sites. Use with any length of 34 MPT pipe.

Specify model SHHF3/4 for 4 square enclosures or SHHFR3/4 for round / octagon enclosures.

SHHF3/4 & SHHFR3/4 NOT AVAILABLE DIRECT FROM ATLAS SOUND.

Available from any electrical supply warehouse.

Model	Transformer Taps	Power Handling	Sensitivity	Frequency Response	Dimensions
PM4FA	70.7V: 1, 2, 4, 8, & 16 watts/8 Ω Bypass		25 wattsN88 dBN75 Hz - 20 kHz (±7 dB)Diameter - 9.25" (235 mm)				Height - 13.87" (352 mm)
PM8GD	70.7V: 1, 2, 4, 8, & 16 watts/8 Ω Bypass		25 watts		96 dB	55 Hz - 15 kHz (±5 dB)	Diameter - 12.25" (311 mm)Height - 16.62" (422 mm)
PM8FA	70.7V: 1.9, 3.8, 7.5, 15, 30, & 60 watts / 8 Ω Bypass		100 watts		90 dB	55 Hz - 20 kHz (±5 dB)	Diameter - 12.25" (311 mm)Height - 16.62" (422 mm)
PM8CX	70.7V: 7.5, 15, 30, & 60 watts /8 Ω Bypass		150 watts		92 dB	48 Hz - 18 kHz (±10 dB)	Diameter - 12.25" (311 mm)Height - 16.62" (422 mm)
