Type de produit	Freestanding Electric Cooker
Marque	Indesit
Modèle	K6C51(X)/EX
Largeur	60 cm
Profondeur	60 cm
Hauteur	85-90 cm (adjustable)
Poids	Approx. 50 kg
Alimentation	230 V ~ 50/60 Hz
Puissance électrique maximale	Around 10.5 kW
Nombre de foyers de cuisson	4 (ceramic hob)
Type de four	Electric, multifunction
Capacité du four	Approx. 65 litres
Fonctions du four	Grill, fan-assisted, conventional, pizza, etc.
Nettoyage du four	Easy-clean enamel interior
Sécurité	Child lock, automatic shut-off, indicator lights
Classe énergétique	A (typical)
Pièces détachées	Available via Indesit service or authorized dealers
Réparabilité	Repairable with standard tools; spare parts available
Informations générales	Includes manual, warranty card, installation guide

Frequently Asked Questions - K6C51(X)/EX INDESIT

How do I install the cooker?

Ensure the cooker is placed on a level, heat-resistant surface. Connect to a suitable power outlet (230V, 16A). For gas models, professional installation is recommended. Refer to the installation manual for detailed steps.

How do I clean the ceramic hob?

Use a ceramic hob cleaner and a soft cloth. Avoid abrasive sponges. For stubborn residue, gently scrape with a razor blade scraper while the surface is cool.

The oven is not heating properly.

Check that the oven is set to the correct function and temperature. Ensure the door is fully closed. If the problem persists, the heating element may be faulty and require replacement.

How do I set the clock?

Press the clock button, then use the + and - buttons to adjust the time. Confirm by pressing the clock button again. Refer to the user manual for exact steps.

What should I do if the hob turns off automatically?

The cooker has an auto-shutoff safety feature. If no buttons are pressed for a certain time, it may turn off. Simply restart the hob according to the instructions.

Can I use aluminum foil in the oven?

Avoid covering the oven floor with foil as it can damage the heating elements. Use only in a oven-safe dish and keep away from walls.

How do I replace the oven light?

Disconnect the cooker from power. Pry off the light cover, remove the old bulb, and replace with a new 25W/300°C oven bulb. Reattach the cover.

What are the dimensions for cutout installation?

For built-in installation, typical dimensions are 560x590 mm (WxD). Check the manual for exact cutout requirements.

How do I adjust the oven temperature calibration?

Press and hold the oven function button for 5 seconds until the display flashes. Use +/- to adjust offset (e.g., +10°C). Press again to confirm. See manual for details.

Where can I find spare parts?

Authorized Indesit service centers and online spare parts retailers sell certified spare parts. Use the model number K6C51(X)/EX to ensure compatibility.

USER MANUAL K6C51(X)/EX INDESIT

Operating Instructions COOKER AND OVEN

Contents

Operating Instructions,1

Description of the appliance-Control Panel,1

Description of the appliance-Overall view,2

Installation,3

Start-up and use,5

Cooking modes,6

Using the hob,9

Precautions and tips, 10

Care and maintenance,11

Assistance,11

Ελληνικά

Description of the appliance Control panel

1. SELECTOR knob

2.THERMOSTAT knob

1. Electric HOTPLATE control knob

4.THERMOSTAT indicator light

5.TIMER knob

6.ELECTRIC HOTPLATE indicator light

Description of the appliance

Overall view

1 Glass ceramic hob
2. Control panel
3.Sliding grill rack
4.DRIPPING pan
5.Adjustable foot
6.GUIDE RAILS for the sliding racks
7.position 5
8.position 4
9.position 3
10.position 2
11.position 1

GR

! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe installation and operation of the appliance.
! Please keep these operating instructions for future reference. Make sure that the instructions are kept with the appliance if it is sold, given away or moved.
! The appliance must be installed by a qualified professional in accordance with the instructions provided.
! Any necessary adjustment or maintenance must be performed after the cooker has been disconnected from the electricity supply.

Positioning and levelling

! It is possible to install the appliance alongside cupboards whose height does not exceed that of the hob surface.
! Make sure that the wall in contact with the back of the appliance is made from a non-flammable, heat-resistant material (T 90°C).

To install the appliance correctly:

• Place it in the kitchen, the dining room or the bed-sit (not in the bathroom).

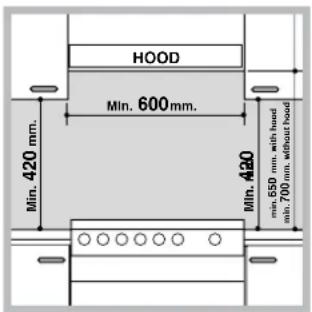

• If the top of the hob is higher than the cupboards, the appliance must be installed at least 600 mm away from them.

- If the cooker is installed underneath a wall cabinet, there must be a minimum distance of 420mm between this cabinet and the top of the hob. This distance should be increased to 700mm if the wall cabinets are flammable (see figure).

• Do not position blinds behind the cooker or less than 200 mm away from its sides.
• Any hoods must be installed according to the instructions listed in the relevant operating manual.

Levelling

If it is necessary to level the appliance, screw the

adjustable feet into the places provided on each corner of the base of the cooker (see figure).

The legs* fit into the slots on the underside of the base of the cooker.

Electrical connection

Fitting the power supply cable

To open the terminal board:

- Insert a screwdriver into the side tabs of the terminal board cover.

- Pull the cover to open it.

To install the cable,

follow the instructions below:

• Loosen the cable clamp screw and the wire contact screws.
  ! The jumpers are pre-set at the Factory for 230 V single-phase connection (see figure).

230V \~ H05RR-F 3x4 CEI-UNEL 35363 H05VV-F 3x4 CEI-UNEL 35746

- To carry out the electrical connections as shown in the figures, use the two jumpers inside the box (see figure - labelled "P").

* Only available in certain models.

- Secure the power supply cable by fastening the cable clamp screw then put the cover back on.

Connecting the supply cable to the electricity mains

Install a standardised plug corresponding to the load indicated on the appliance data plate (see Technical data table).

The appliance must be directly connected to the mains using an omnipolar switch with a minimum contact opening of 3 mm installed between the appliance and the mains. The switch must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the switch). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point.

Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated by the data plate.
• The voltage is in the range between the values indicated on the data plate.
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only.
! The manufacturer declines any liability should these safety measures not be observed.

TABLE OF CHARACTERISTICS
Oven dimensions (HxWxD)	32x43.5x40 cm
Volume	56 l
Useful measurements relating to the oven compartment	width 42 cmdepth 44 cmheight 8.5 cm
Voltage and frequency	220-230V/380-400V 3N ~ 50/60Hz (see data plate)
Ceramic hob
Front Left	1700 W
Back Left	1200 W
Back Right	2100 W
Front Right	1200 W
Max. ceramic hob consumption	6200 W
ENERGY LABEL	Directive 2002/40/EC on the label of electric ovens.Standard EN 50304Natural convection energy consumptionheating mode: —ConvectionDeclared forced convection energy consumptionheating mode: Fan assisted
This appliance conforms to the following European Economic Community directives: 2006/95/EC dated 12/12/06 (Low Voltage) and subsequent amendments - 04/108/EC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. 2002/96/EEC

! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away.

! Before operating the product, remove all plastic film from the sides of the appliance.

Starting the oven

1. Select the desired cooking mode by turning the SELECTOR knob.
2. Select the recommended temperature for the cooking mode or the desired temperature by turning the THERMOSTAT knob.
   A list detailing cooking modes and suggested cooking temperatures can be found in the relevant table (see Oven cooking advice table).

During cooking it is always possible to:

• Change the cooking mode by turning the SELECTOR knob.
• Change the temperature by turning the THERMOSTAT knob.
• Set the total cooking time and the cooking end time (see below).
• Stop cooking by turning the SELECTOR knob to the "0" position.

! Never put objects directly on the bottom of the oven; this will prevent the enamel coating from being damaged. Only use position 1 in the oven when cooking with the rotisserie spit.

! Always place cookware on the rack(s) provided.

THERMOSTAT indicator light

When this is illuminated, the oven is generating heat. It switches off when the inside of the oven reaches the selected temperature. At this point the light illuminates and switches off alternately, indicating that the thermostat is working and is maintaining the temperature at a constant level.

Oven light

This is switched on by turning the SELECTOR knob to any position other than "0". It remains lit as long as the oven is operating. By selecting ⚙ with the knob, the light is switched on without any of the heating elements being activated.

Timer

To activate the Timer proceed as follows:

1. Turn the TIMER knob in a clockwise direction for almost one complete revolution to set the buzzer.
2. Turn the TIMER knob in an anticlockwise direction to set the desired length of time.

Cooking modes

! A temperature value can be set for all cooking modes between 60°C and Max, except for the following modes

• GRILL (recommended: set only to MAX power level).
  • DEFROSTING (recommended: any).

"Defrosting" Mode

The fan located on the bottom of the oven makes the air circulate at room temperature around the food. This is recommended for the defrosting of all types of food, but in particular for delicate types of food which do not require heat, such as for example: ice cream cakes, cream or custard desserts, fruit cakes. By using the fan, the defrosting time is approximately halved. In the case of meat, fish and bread, it is possible to accelerate the process using the “multi-cooking” mode and setting the temperature to 80° - 100° C.

Convection Mode

On this setting, the top and bottom heating elements come on. This is the classic, traditional type of oven which has been perfected, with exceptional heat distribution and reduced energy consumption. The convection oven is still unequalled when it comes to cooking dishes made up of several ingredients, e.g. cabbage with ribs, Spanish style cod, Ancona style stockfish, tender veal strips with rice, etc. Excellent results are achieved when preparing veal or beef-based dishes as well (braised meats, stew, goulash, wild game, ham etc.) which need to cook slowly and require basting or the addition of liquid. It nonetheless remains the best system for baking cakes as well as fruit and cooking using covered casserole dishes for oven baking. When cooking in convection mode, only use one dripping pan or cooking rack at a time, otherwise the heat distribution will be uneven. Using the different rack heights available, you can balance the amount of heat between the top and the bottom of the oven. Select from among the various rack heights based on whether the dish needs more or less heat from the top.

Fan Assisted Mode

The heating elements, as well as the fan, will come on. Since the heat remains constant and uniform throughout the oven, the air cooks and browns food uniformly over its entire surface. With this mode, you can also cook various dishes at the same time, as long as their respective cooking temperatures are the same. A maximum of 2 racks can be used at the same time, following the instructions in the section entitled: "Cooking On More Than One Rack".

This fan assisted mode is particularly recommended for dishes requiring a gratin finish or for those requiring considerably prolonged cooking times, such as for example: lasagne, pasta bakes, roast chicken and potatoes, etc... Moreover, the excellent heat distribution makes it possible to use lower temperatures when cooking roasts. This results in less loss of juices, meat which is more tender and a decrease in the loss of weight for the roast. The fan assisted mode is especially suited for cooking fish, which can be prepared with the addition of a limited amount of condiments, thus maintaining their flavour and appearance.

Desserts: the fan assisted mode is also perfect for baking leavened cakes.

Moreover, this mode can also be used to thaw quickly white or red meat and bread by setting the temperature to 80\ °C . To thaw more delicate foods, set the thermostat to 60\ °C or use only the cold air circulation feature by setting the thermostat to 0\ °C .

"Top" oven |—|

The top heating element comes on.

This mode can be used to brown food at the end of cooking.

Grill |

The top heating element and the turnspit come on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking in the juices to keep them tender. The grill is also highly recommended for dishes that require a high temperature on the surface: such as beef steaks, veal, rib steak, filets, hamburgers etc...

Always leave the oven door shut during cooking, except when using the turnspit.

Some grilling examples are included in the “Practical Cooking Advice” paragraph.

Fan Assisted Grill

The top central heating element and the fan come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Excellent results are achieved with kebabs made with meats and vegetables, sausages, ribs, lamb chops, chicken in a spicy sauce, quail, pork chops, etc.

All “gratin” cooking must be done with the oven door shut.

This mode is also ideal for cooking fish steaks, like swordfish, tuna, grouper, stuffed cuttlefish etc.

! The GRILL and GRATIN cooking modes must be performed with the oven door shut.

! When using the TOP OVEN and GRILL cooking modes, place the rack in position 5 and the dripping pan in position 1 to collect cooking residues (fat and/or grease). When using the GRATIN cooking mode, place the rack in position 2 or 3 and the dripping pan in position 1 to collect cooking residues.

Cooking on several shelves simultaneously

If it is necessary to use two racks, use the MULTILEVEL cooking mode, as this is the only cooking mode suited to this type of cooking. We also recommend that:

• Positions 1 and 5 are not used. This is because excessive direct heat can burn temperature sensitive foods.
• Positions 2 and 4 are used and that food that requires more heat is placed on the rack in position 2.
• When cooking foods that require different cooking times and temperatures, set a temperature that is halfway between the two recommended temperatures (see Oven cooking advice table) and place the more delicate food on the rack in position 4. Remove the food that requires a shorter cooking time first.
• When cooking pizzas on several racks with the temperature set to 220°C, the oven is preheated for 15 minutes. Generally speaking, cooking on the rack in position 4 takes longer: we recommend that the pizza cooked on the lowest rack position is removed first, followed by the pizza cooked in position 4 a few minutes later.
• Place the dripping pan on the bottom and the rack on top.

Turnspit

To operate the rotisserie (see diagram) proceed as follows:

1. Place the dripping pan in position 1.

2. Place the rotisserie support in position 4 and insert the spit in the hole provided on the back panel of the oven.

3. Activate the rotisserie

by selecting |with the SELECTOR knob.

Oven cooking advice table

Selector knob setting	Food to be cooked	Weight (in kg)	Cooking rack position from bottom	Preheating time (minutes)	Thermostat knob setting	Cooking time (minutes)
Defrosting	All frozen food
Convection	Duck	1	3	15	200	65-75
	Roast veal or beef	1	3	15	200	70-75
	Pork roast	1	3	15	200	70-80
	Biscuits (short pastry)	-	3	15	180	15-20
	Tarts	1	3	15	180	30-35
Fan assisted	Pizza (on 2 racks)	1	2-4	15	220	15-20
	Lasagne	1	3	10	200	30-35
	Lamb	1	2	10	180	50-60
	Roast chicken + potatoes	1	2-4	10	180	60-75
	Mackerel	1	2	10	180	30-35
	Plum-cake	1	2	10	170	40-50
	Cream puffs (on 2 racks)	0.5	2-4	10	190	20-25
	Biscuits (on 2 racks)	0.5	2-4	10	180	10-15
	Sponge cake (on 1 rack)	0.5	2	10	170	15-20
	Sponge cake (on 2 racks)	1.0	2-4	10	170	20-25
	Savoury pies	1.5	3	15	200	25-30
Top Oven	Browning food to perfect cooking	-3/4 15 220 -
Grill	Soles and cuttlefish	1	4	5	Max	8-10
	Squid and prawn kebabs	1	4	5	Max	6-8
	Cod filet	1	4	5	Max	10
	Grilled vegetables	1	3/4	5	Max	10-15
	Veal steak	1	4	5	Max	15-20
	Cutlets	1	4	5	Max	15-20
	Hamburgers	1	4	5	Max	7-10
	Mackerels	1	4	5	Max	15-20
	Toasted sandwiches	n.° 4	4	5	Max	2-3
Fan assisted grill	Grilled chicken	1.5	3	5	200	55-60
	Cuttlefish	1.5	3	5	200	30-35

NB: cooking times are approximate and may vary according to personal taste. When cooking using the grill or fan assisted grill, the dripping pan must always be placed on the 1st oven rack from the bottom.

! The glue applied on the gaskets leaves traces of grease on the glass. Before using the appliance, we recommend you remove these with a special non-abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly.

Switching the cooking zones on and off

To switch on a cooking zone, turn the corresponding knob in a clockwise direction.

To switch it off again, turn the knob in an anticlockwise direction until it is in the "0" position.

If the COOKING ZONE ON indicator light is lit, this shows that at least one pf the cooking zones on the hob is switched on.

Cooking zones

The hob is equipped with electric radiant heating elements. When they are in use the following items on the hob become red.

A. The cooking zone with radiant heating elements. B. The residual heat indicator light: this indicates that the temperature of the corresponding cooking zone is greater than 60° C, even when

the heating element has been switched off but is still hot.

Cooking zones with radiant heating elements.

The circular radiant heating elements become red 10 - 20 seconds after they have been switched on.

Setting N	Normal or Fast Plate
0	Off
1	Cooking vegetables, fish
2	Cooking potatoes (using steam) soups, chickpeas, beans.
3	Continuing the cooking of large quantities of food, minestrone
4	For roasting (average)
5	For roasting (above average)
6	For browning and reaching a boil in a short time.

Practical advice on using the hob

- Use pans with a thick, flat base to ensure that they adhere perfectly to the cooking zone.

- Always use pans with a diameter that is large enough to cover the hotplate fully, in order to use all the heat produced.

• Always make sure that the base of the pan is completely clean and dry: this ensures that the pans adhere perfectly to the cooking zones and that both the pans and the hob remain effective for a longer period of time.
• Avoid using the same cookware that is used on gas burners: the heat concentration on gas burners may have warped the base of the pan, causing it not to adhere to the surface correctly.
• Never leave a cooking zone switched on without a pan on top of it, as doing so may cause the zone to become damaged.

Precautions and tips

! This appliance has been designed and manufactured in compliance with international safety standards.

The following warnings are provided for safety reasons and must be read carefully.

General safety

• These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate located on the appliance.
• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
• The instruction booklet accompanies a class 1 (insulated) or class 2 - subclass 1 (recessed between 2 cupboards) appliance.
• Do not touch the heating elements or certain parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance.
• Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
• The openings used for the ventilation and dispersion of heat must never be covered.
• Do not use unstable or misshapen pans on the cooking zones; this will help to avoid accidental spills. Make sure pan handles are turned towards the centre of the hob in order to avoid accidental burns.
• Always use oven gloves when placing cookware in the oven or when removing it.
• Do not use flammable liquids (alcohol, petrol, etc...) near the appliance while it is in use.
• Do not place flammable material in the lower storage compartment or in the oven itself. If the appliance is switched on accidentally, it could catch fire.
• Always make sure the knobs are in the • position when the appliance is not in use.
• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.
• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.

• If the appliance breaks down, under no circumstances should you attempt to perform the repairs yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact Assistance.

• Do not rest heavy objects on the open oven door.

• The internal surfaces of the compartment (where present) may become hot.
• The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if hit with a sharp object such as a tool. If this happens, disconnect the appliance from the electricity mains immediately and contact a Service Centre.
• If the surface of the hob is cracked, switch off the appliance to prevent electric shocks from occurring.
• Remember that the cooking zones remain relatively hot for at least thirty minutes after they have been switched off.
• Keep any object which could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Be especially careful when using plastic film and aluminium foil or packaging: if placed on surfaces that are still hot, they may cause serious damage to the hob.
• Do not place metal objects (knives, spoons, pan lids, etc.) on the hob as they may become hot.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.
• Do not let children play with the appliance.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of reusing and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.
  For further information relating to the correct disposal of exhausted household appliances, owners may contact the public service provided or their local dealer.

Respecting and conserving the environment

• You can help to reduce the peak load of the electricity supply network companies by using the oven in the hours between late afternoon and the early hours of the morning.
• Always keep the oven door closed when using the TOP OVEN, GRILL and GRATIN modes: This will achieve improved results while saving energy (approximately 10%).
• Check the door seals regularly and wipe them clean to ensure they are free of debris so that they adhere properly to the door, thus avoiding heat dispersion.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the oven

! Never use steam cleaners or pressure cleaners on the appliance.

• Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack.
• The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge which has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.
• The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.
• The accessories can be washed like everyday crockery, and are even dishwasher safe.
• Dirt and grease should be removed from the control panel using a non-abrasive sponge or a soft cloth.
• Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents that contain phosphorus. We recommend that the steel surfaces are rinsed well then dried thoroughly.

Inspecting the oven seals

Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest After-sales Service Centre. We recommend that the oven is not used until the seals have been replaced.

Replacing the oven light bulb

1. After disconnecting the oven from the electricity mains,

remove the glass lid covering the lamp socket (see figure).

1. Unscrew the light bulb and replace it with a similar one: voltage 230 V, wattage 25 W, cap E 14.

2. Replace the lid and reconnect the oven to the electricity supply.

Cleaning the glass ceramic hob

! Do not use abrasive or corrosive detergents (for example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

• It is usually sufficient simply to wash the hob using a damp sponge and dry it with absorbent kitchen roll.
• If the hob is particularly dirty, rub it with a special glass ceramic cleaning product, then rinse well and dry thoroughly.
• To remove more stubborn dirt, use a suitable scraper (this is not supplied with the appliance). Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can obtain excellent results by using a rustproof steel wire sponge - specifically designed for glass ceramic surfaces - soaked in soapy water.
• If plastic or sugary substances have accidentally been melted on the hob, remove them immediately with the scraper, while the surface is still hot.
• Once it is clean, the hob may be treated with a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance should be carried out while the appliance is warm (not hot) or cold.
• Always remember to rinse the appliance well with clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes.

Glass ceramic hob cleaners	Available from
Window scraper Razor blade scrapers	DIY Stores
Replacement blades DIY Stores	supermarkets, chemists
COLLO lunetaHOB BRITEHob CleanSWISSCLEANER	Boots, Co-op stores, department stores, Regional Electricity Company shops, supermarkets

Assistance

! Never use the services of an unauthorised technician.

Please have the following information to hand:

• The type of problem encountered.
  • The appliance model (Mod.).
  • The serial number (S/N).
  The latter two pieces of information can be found on the data plate located on the appliance.

المحتويات

التركيب
