Exodus 360 - Roof box Halfords - Free user manual and instructions

Product Type	Roof Box
Brand	Halfords
Model	Exodus 360
Capacity	360 liters
External Dimensions (approx.)	180 x 80 x 40 cm
Weight	15 kg
Maximum Load Capacity	50 kg (including box weight)
Material	ABS Plastic
Color	Black
Locking Mechanism	Central locking system with keys
Mounting System	Universal quick-mount for square or aerodynamic crossbars
Opening	Dual side opening (left and right)
Aerodynamic Design	Yes, with wind deflector
Security	Key lockable, tamper-resistant
Maintenance	Clean with mild soap and water; avoid abrasive cleaners
Cleaning	Use a soft cloth or sponge
Spare Parts	Keys, mounting hardware, and replacement parts available from Halfords
Warranty	2 years
Included Accessories	Mounting kit, 2 keys, instruction manual
Reparability	Repairable; contact Halfords for service

Frequently Asked Questions - Exodus 360 Halfords

What is the capacity of the Halfords Exodus 360 roof box?

The Halfords Exodus 360 has a capacity of 360 liters, ideal for storing luggage, camping gear, or sports equipment.

What are the external dimensions of the roof box?

The approximate external dimensions are 180 cm (length) x 80 cm (width) x 40 cm (height). Always measure your vehicle's roof space before purchasing.

What is the maximum load capacity of the roof box?

The maximum load capacity is 50 kg, which includes the weight of the box itself (15 kg). So you can load up to 35 kg of cargo. Ensure your vehicle's roof rail limit is not exceeded.

How do I install the Halfords Exodus 360 roof box?

The box uses a universal quick-mount system compatible with square and aerodynamic crossbars. Secure the box by tightening the clamps onto the bars and lock with the provided keys. Always follow the instruction manual for correct positioning.

Does the roof box open from both sides?

Yes, the Exodus 360 features dual side opening, allowing you to load and unload from either side of the vehicle for convenience.

Is the roof box lockable?

Yes, it comes with a central locking system and two keys to secure your belongings. Always lock the box before driving.

How do I clean and maintain the roof box?

Clean the box with mild soap and water using a soft cloth or sponge. Avoid abrasive cleaners or pressure washers. Check the locks and mounting hardware regularly for wear.

Will the roof box affect my car's fuel economy?

Yes, roof boxes increase aerodynamic drag, which may reduce fuel economy. To minimize impact, remove the box when not in use and drive at moderate speeds. The aerodynamic design of the Exodus 360 helps reduce wind resistance.

Can I get spare parts for the roof box?

Yes, spare parts such as keys, mounting hardware, and replacement parts are available through Halfords. Contact customer service or visit a store for assistance.

What is the warranty on the Halfords Exodus 360 roof box?

The roof box comes with a 2-year warranty against manufacturing defects. Retain your purchase receipt for warranty claims.

USER MANUAL Exodus 360 Halfords

Fitting instructions

Halfords Exodus 360, 470, 580 roof boxes

Exodus boxes

x4 x4 x4 x1 x2

Roof bar types

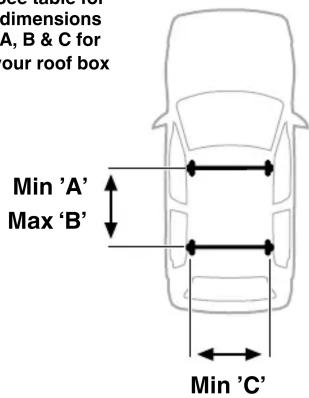

See table for dimensions A, B & C for your roof box

Ensure that the roof box you have purchased will fit your car and that your roof bars are of a suitable size to fit the fitting kit supplied with this roof box.

Which roof box will fit your vehicle?

	Dimension A Dimension B Dimension C
Exodus 360	550mm 980mm 465mm
Exodus 470	550mm 980mm 700mm
Exodus 580	550mm 980mm 750mm

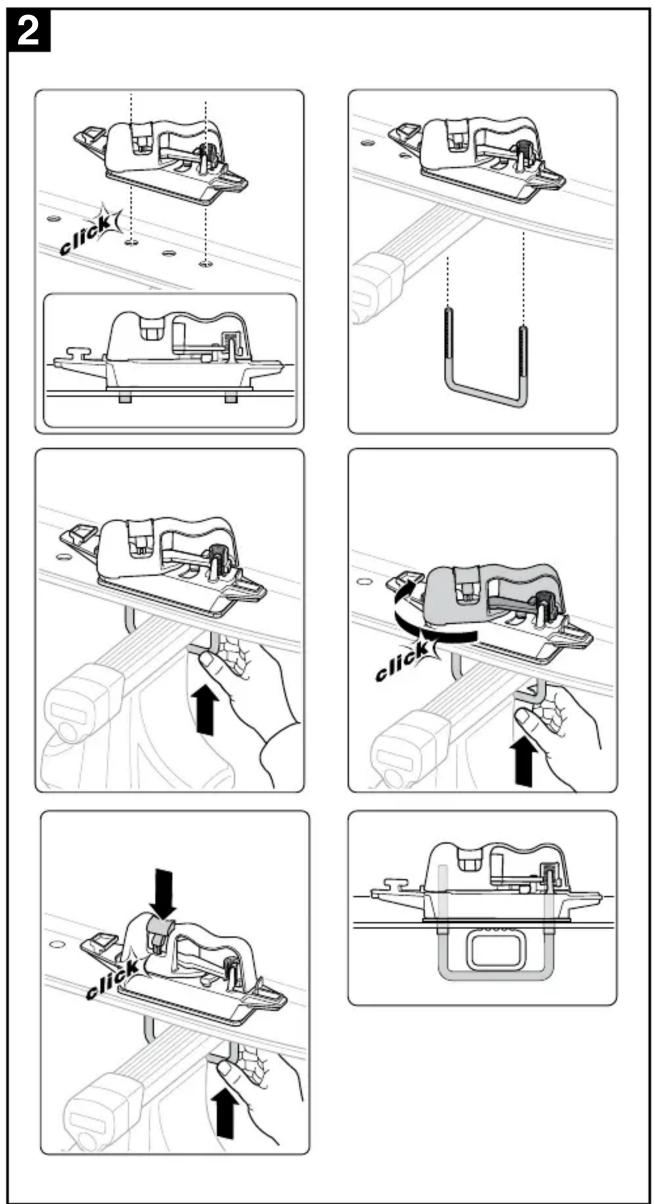

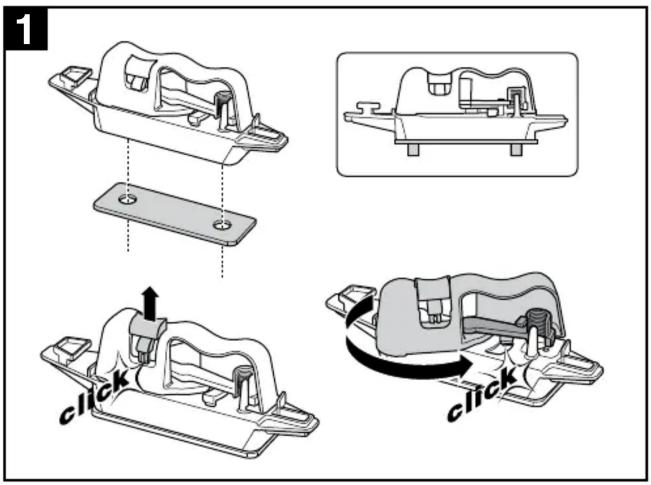

Mounting instructions for the quick fit system supplied with the Exodus roof boxes.

Important information

1. Check at regular intervals (depending on the state of roads) both before and during each journey that the roof box is firmly fixed to the roof bars, the load is adequately secured and the roof box is locked with the key removed
2. Inadequately secured loads and incorrectly mounted roof bars and roof boxes can come loose during a journey and cause serious accidents.
3. Ensure you give due consideration to the change in height and drive behaviour (side-wind sensitivity, corner and braking behaviour) of your vehicle when a roof box is mounted and, above all, loaded. No further loads may be attached to the outside of the roof box.

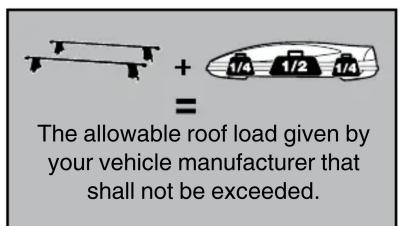

4. The total permissible laden weight of your vehicle may not be exceeded. The instructions of the motor vehicle manufacturer in respect of the maximum roof weight must be observed.
5. The speed driven must be suited to the load to be transported and, of cause, to all relevant official speed limits. In the absence of any speed limits to the contrary, we recommend a maximum speed of 70 mph. When transporting any type of load, the speed of your vehicle must however take into account all prevailing conditions such as the state of the road, the surface of the road, traffic conditions, wind, etc.
6. Do not use bleach, alcohol or ammonia based cleaning liquids on the roof box otherwise the surface of your roof box could suffer damage.

7. Please note the following when using a roof box: -

8. The height of your vehicle can increase by up to 70cm (dependant on the roof bars).

9. Beware of low garage entrances, low clearances in general, low-hanging branches, etc.
   • Wind noise may be generated.
10. When using an automatic car-wash facility, the roof box and roof bars must first be removed.
11. In addition to these usage instructions, due consideration should also be given to mounting instructions for your roof bars and the operating instructions of your vehicle.
12. For reasons of fuel economy and the safety of other road users, the roof box and roof bars should be removed when not in use.
13. For your safety, you should only use tested (e.g. GS-tested) roof bars that are authorised for usage in conjunction with your vehicle.

14. In order to avoid generating excessive lifting forces, the roof box should be mounted parallel to the line of the road and not at an angle.

15. These usage instructions should be kept together with your vehicle's operating instructions and carried in the vehicle when in use and en route. Any changes made to the mounting sets and roof box as well as the use of spare parts or accessories other than those supplied by the manufacturer will lead to the manufacturer's warranty and liability for any material damage or accidents lapsing. You should therefore observe these usage instructions to the letter and only use the original parts supplied. In the event of you losing parts or parts wearing out, you should only replace them with original spare parts that can be obtained from a specialist stockist or the manufacturer.

16. In order to ensure that you are able to replace any lost or defective keys as quickly as possible, we would advise you to note down the key number below.
17. The manufacturer is not liable for any damage or accident that may occur as a result of non-compliance with these usage instructions, changes made to parts or usage of any parts other than the manufacturer's original parts.
