SubSeries 150 - Subwoofer PSB - Free user manual and instructions

Product Type	Powered Subwoofer
Driver Size	8 inches
Amplifier Power (RMS)	150 Watts
Frequency Response	25 Hz - 150 Hz
Dimensions (W x H x D)	13.4 x 13.4 x 13.4 inches (340 x 340 x 340 mm)
Weight	13.2 kg (29 lbs)
Power Supply	100-240 V AC, 50/60 Hz
Inputs	LFE (RCA), Line Level (RCA)
Outputs	None
Phase Control	0 or 180 degrees
Low-Pass Filter	40 - 150 Hz variable
Auto Power On/Off	Yes
Enclosure Type	Bass reflex (ported)
Finish	Black Ash Vinyl
Maintenance	Wipe with a dry, soft cloth; do not use solvents
Safety	Do not expose to rain or moisture; unplug during storms
Spare Parts	Contact PSB customer service for authorized parts
Reparability	Service by authorized technicians only

Frequently Asked Questions - SubSeries 150 PSB

How do I connect the SubSeries 150 to my receiver?

Use an RCA cable to connect the receiver's subwoofer output to the LFE input on the subwoofer. If your receiver lacks a dedicated sub out, use the line level inputs.

What is the recommended crossover setting?

Set the low-pass filter to around 80 Hz for typical home theater setups. Adjust based on your main speakers and room acoustics.

Why does the subwoofer not turn on?

Check that the power cord is securely connected and the rear power switch is on. Ensure the Auto On/Off is enabled and the signal is present. If it still fails, try a different power outlet.

Can I place the subwoofer in a corner?

Yes, corner placement can increase bass output. However, experiment with placement for optimal balance and to avoid boomy sound.

How do I adjust the phase control?

Play a bass-heavy track and toggle the phase switch between 0 and 180. Choose the setting that produces the loudest and most solid bass at your listening position.

What is the power consumption?

The subwoofer consumes up to 300 watts at maximum output. Standby power is less than 0.5 watts.

Does the subwoofer have a limiter?

Yes, the SubSeries 150 includes a built-in limiter to protect the driver from excessive signal and distortion.

Can I use the subwoofer with a stereo system?

Absolutely. Connect the left and right line-level inputs to your stereo preamp outputs or use a Y-splitter from one preamp output.

How to clean the subwoofer cabinet?

Wipe gently with a dry microfiber cloth. For stubborn marks, slightly dampen the cloth with water. Avoid any abrasive cleaners.

What warranty does the SubSeries 150 have?

PSB provides a limited warranty — typically 2 years for electronics and 5 years for drivers. Check your region for specific terms.

USER MANUAL SubSeries 150 PSB

3

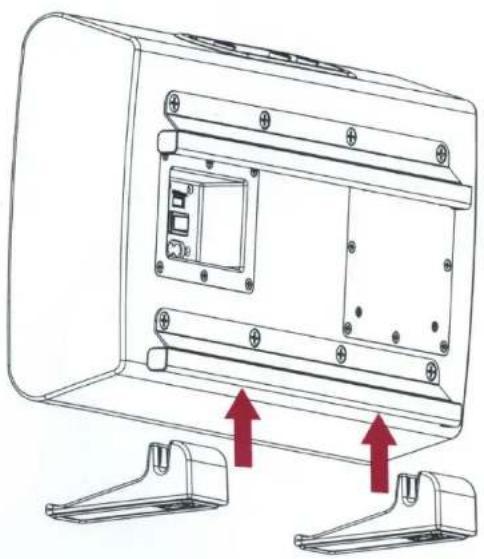

Technical line drawing of a computer monitor with two mounting brackets and a central display unit (no text or symbols)

OR / OU / O BIEN / ODER / OPPURE

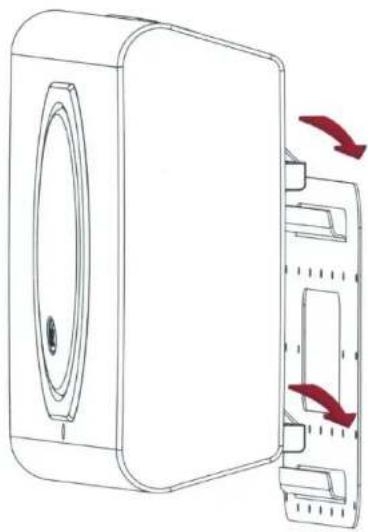

Technical line drawing of a door panel with directional arrows indicating movement (no text or symbols)

4

©PSB Speakers. All rights reserved. Tous droits réservés. Todos los derechos reservados. Alle Rechte vorbehalten. Tutti i diritti riservati.

PSB QSG-SSE150 Rev 1 14/1

psb SPEAKERS

A Member of The Lenbrook Group of Companies | 633 Granite Court, Pickering, Ontario, L1W 3K1 www.psbspeakers.com

PSB SubSeries 150 Powered Subwoofer Deep Bass and Deeply Versatile

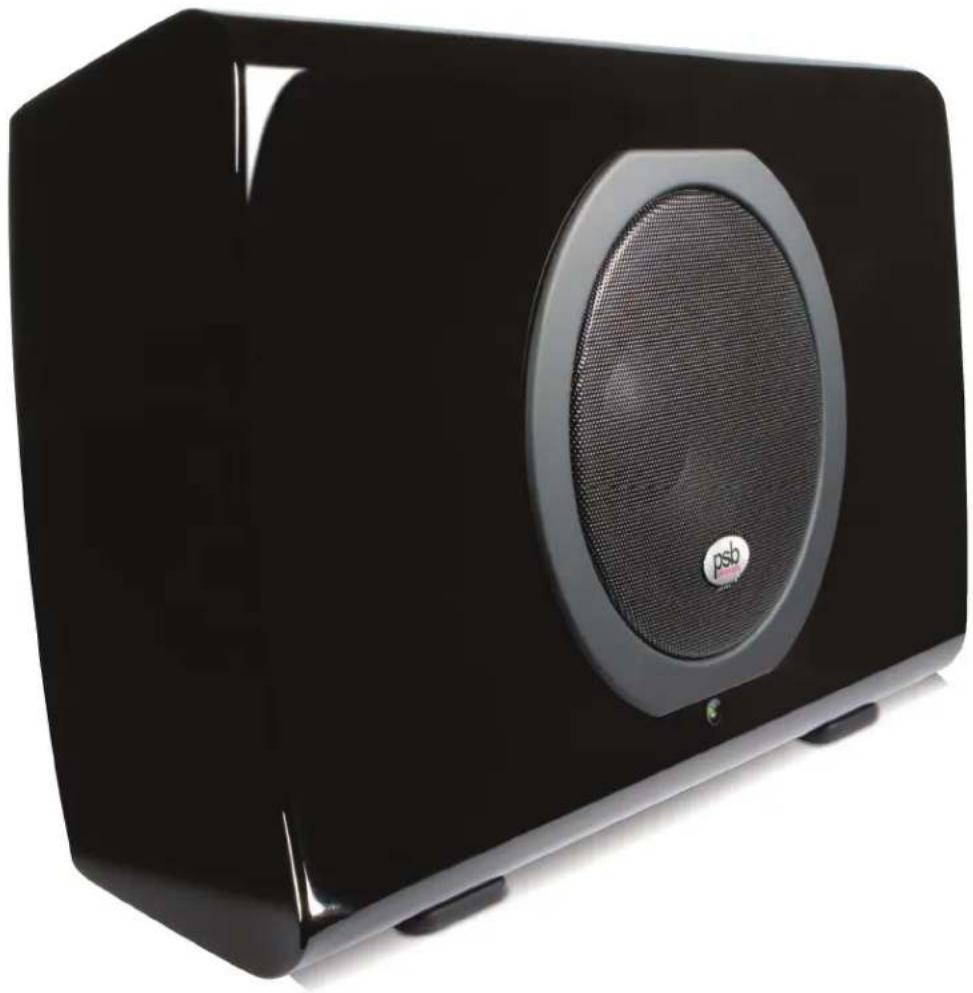

Black portable electronic device with a speaker grille and 'psb' logo on the front panel (no visible text or symbols beyond branding)

Small, Slim, and Easy to Live With.

With the SubSeries 150, PSB has reimagined the subwoofer. Most subwoofers are large cubic forms that don't often fit very well in your living room. The SubSeries 150 on the other hand, is a compact, slim, rectangular shape, allowing it to slip in easily beside, behind, or underneath living room furniture. This versatile and decor-friendly design with a beautiful curved gloss black cabinet also offers several clever installation options.

Features

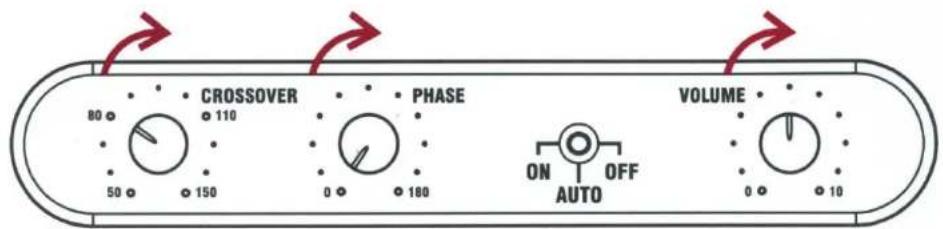

• Top Mounted Volume, Crossover and Variable Phase 0-180°
  • Auto On/Standby
  • LFE Input and Output
  • NA & EU Power Cords Supplied
  • > 0.5W Standby Power Consumption
• Wall Mountable
• Place upright with feet or flat with the driver facing up

Get off the floor!

When you really want to get down with some bass, get up off the floor! The SubSeries 150 has a very flat profile suitable for mounting discreetly on a wall, which also frees up valuable floor space. We've included a convenient wall mount bracket to allow the SubSeries 150 to be located on almost any wall of your room.

Go ahead, take it lying down!

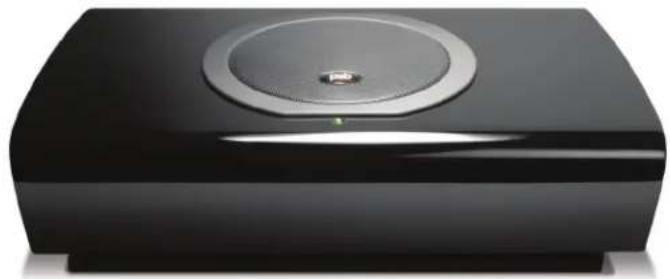

While the SubSeries 150 can stand up vertically or horizontally for placement behind or beside a sofa or chair, thanks to its innovative bracket, you can also lay it down and slide it out-of-sight under a couch or end table.

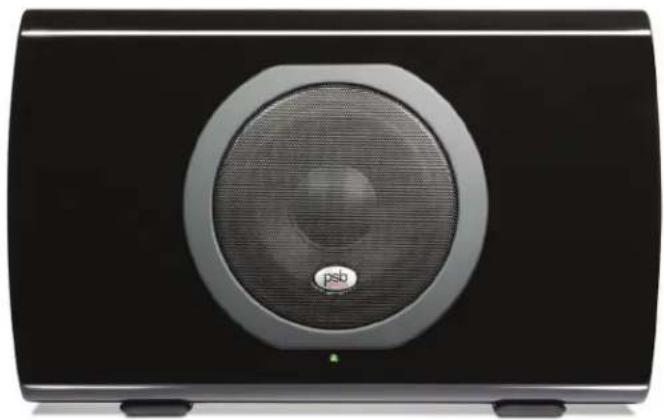

Black rectangular electronic device with a speaker grille and 'psb' logo on the front panel (no readable text beyond branding)

Exterior view of a black electronic device with a circular top and reflective surface (no text or symbols visible)

Dig Deep and Play Loud.

The SubSeries 150 may be small and room-friendly, but it is a full-fledged PSB subwoofer carefully engineered to pump out prodigious quantities of well-defined, low distortion bass. With 100W of power from its cool running and highly efficient amplifier, there is plenty of power on tap to add weight to your favourite music and excitement to your movies. The custom designed 6.5" woofer utilizes a polypropylene cone and high temperature voice coil with a vented pole piece.

SubSeries 150

Frequency Response (Anecholt Chamber)
On Axis @ 0°±3dBLF Cutoff -10dB	26-150Hz20Hz
Amplifier Power (Internal Amplifier)
ContinuousDynamicDynamic Peak	100 Watts100 Watts200 Watts
Acoustic Design
Woofer (Nominal)	6 1/2" (165mm)Polypropylene ConeRubber Surround
Crossover	Variable 50-150Hz, LR2Low Pass Filter
Design Type	Sealed
Size (W x H x D) (Gross Dimensions)
	17 1/8 x 10 7/8 x 3 7/8" *(432 x 266 x 98mm)* Non-Metric measurements are approximate.
Weight
NetShipping	13.3lb (6.1kg)/each19lb (8.6kg)/each
Finish
	High Gloss Black

SubSeries

Powered Subwoofers
