Product Type	Juice Extractor
Model	WF1000
Brand	ElectriQ
Power Supply	220-240V ~ 50Hz
Rated Power	700 W
Dimensions (H x W x D)	40 x 20 x 30 cm
Weight	5 kg
Material	Stainless steel and ABS plastic
Juice Container Capacity	1 L
Pulp Container Capacity	1.5 L
Feeding Tube Diameter	4 cm
Motor Speed	80 RPM
Extraction Type	Cold press (low-speed masticating)
Reverse Function	Yes
Safety Features	Overload protection, safety lock
Cleaning	Removable parts dishwasher safe
Spare Parts Availability	Replacement filters, auger, and pusher available
Repairability	Repairable with standard tools
Warranty	Limited 1 year

Frequently Asked Questions - WF1000 ElectriQ

How do I assemble the juicer?

Ensure all parts are clean. Insert the auger into the bowl, place the filter and end cap, then lock the housing. Refer to the manual for details.

Can I juice leafy greens?

Yes, the WF1000 handles leafy greens like spinach and kale efficiently.

Is the pulp dry?

Yes, the cold press technology extracts maximum juice, leaving relatively dry pulp.

How do I clean the juicer?

Disassemble and rinse parts immediately. Use the cleaning brush. Most parts are dishwasher safe (top rack).

What should I do if the motor stops?

Check for overload: the unit has a safety switch. Let it cool for 15 minutes and restart after clearing any jam.

Can I juice frozen fruits?

Partially thaw frozen fruits. Do not put hard frozen items directly.

How do I use the reverse function?

Press the reverse button for 2-3 seconds if the auger gets stuck. Release and press forward to resume.

What is the warranty period?

ElectriQ offers a 1-year limited warranty. Contact customer service for claims.

Can I buy replacement parts?

Yes, replacement parts like filters and augers are available from ElectriQ’s website or authorized retailers.

Is the juicer BPA free?

Yes, all plastic parts are BPA-free.

USER MANUAL WF1000 ElectriQ

Modern kitchen brush unit with strawberry topping and red liquid in a clear container (no text or symbols visible)

Thank you for choosing 7lectrIQ3 Please read this user manual before using this power juicer and keep it safe for future reference3 Visit our page www3electrIQ3co3uk for our entire range of Intelligent 7electricals

Contents

S>FETY INSTRU% TIONS 3

Quick Reference Guide 4

assembly and Operation 5

Fruits and Vegetables Nutrition Tables 9

%leaning and maintenance 13

Troubleshooting 14

SAFETY INSTRUCTIONS

Important

• Carefully read the instructions before operating the unit
• This appliance is for indoor use only.
• Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. Always check the rating label against your electrical supply.

- If you are in any doubt about the suitability of your electrical supply have it checked and, if necessary, retested by a qualified electrician.

- This juicer has been tested and is safe to use. However, as with any electrical appliances - use it with care.

- Disconnect the power plug from socket before dismantling, assembling or cleaning.

- Do not clean the unit by spraying it or immersing it in water.

- Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not stretched or exposed to sharp object/edges.

- Do not pull the mains cable to disconnect the mains plug from the mains.

- Do not use the appliance if any part or any accessory is damaged or defective.

- A damaged supply cord or plug should be replaced by the manufacturer or a qualified electrician in order to avoid a hazard.

- Avoid touching any moving parts of the appliance.

- Never insert fingers, or any other objects apart from the food pusher though the feeder

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities. It is also not intended for use by those with a lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

- Do not leave children unsupervised with this appliance.

- Any service other than regular cleaning should be only performed by an authorized service representative. Failure to comply could result in a voided warranty.

- Do not use the appliance for any other purposes than its intended use.

• Always place the unit on a dry and stable surface.

- Do not use the appliance in places where humidity is very high (>80%RH)

- Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids by mistake, do not touch the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, discard it

Unit Safety Protection and Performance Tips

• Make sure the unit is correctly assembled and the safety locks engaged
• When juicing take regular breaks to avoid motor overheating
  • Always clean the juicer immediately after use

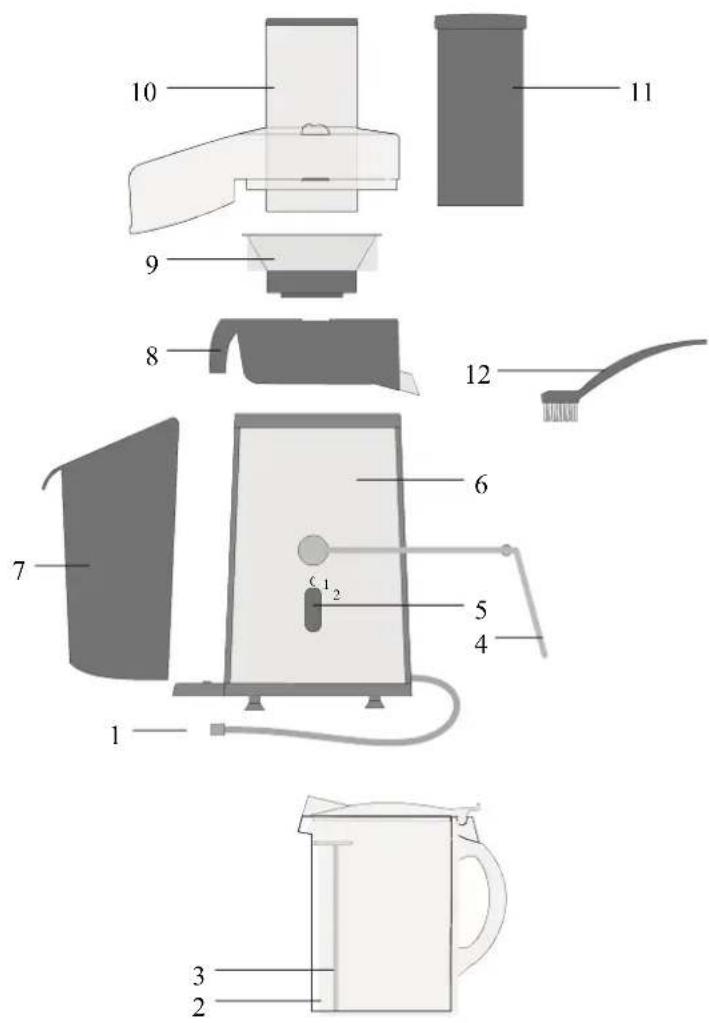

Quick Reference Guide

1. Power cord
2. Juice jug
3. Juice foam separator

4. Safety lock

5. Power switch with speed control

6. Juicer main body

7. Pulp container

8. Juice collector

9. Juicing blade

10. Lid with feeding tube

11. Pusher

12. %leaning brush

Your ElectrIQ juicer has been designed for extracting juice from fruits and vegetables. It is recommended for power juicing. This juicer is suitable exclusively for domestic use.

Initial use

Preparation

• %lean the appliance before first use
• %lean the accessories.

Refer to the section "Cleaning and maintenance"

Assembly and Operation

Before assembly or disassembly, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.

		1	Place the base of the appliance on a stable and flat surface.
		9	>ttach the pulp container (7) to the base. Pay attention to the recess on the base of the pulp container.
		3	Insert the Juice collector (8) into the matching recesses in the base. Press the collector insert firmly downwards, in order to make contact with the motor.
		4	Place the juicing blade (9) on the juice collector (8). Ensure that the blade (9) clicks in and is not just sitting above the collector insert.
		5	Firmly attach the lid with the feed tube (10). Pay attention to the catch on the juice collector (8).
		6	Raise the safety lock (4) firmly upwards until it engages in the two catches on the lid (10). Make sure the safety lock is properly installed securing the juice collector (8) and the lid with feeding tube (10) in place.
		7	>align the pusher (11) with the feed tube (10). The feed tube has a catch that guides the feeder. The pusher can only be inserted in this way.
		8	Open the lid of the juice container (2) and insert the foam separator (3) if you want to remove the foam from the juice. The juicer is ready to use now
		9	Insert the mains plug into the wall socket.
		10	WF1000 is a whole fruit juicer. You can juice whole apples, carrots and peeled oranges. If the fruits or vegetables are larger than the feeding tube please cut them into pieces that fit into the feed tube (10).
		11	Switch on the appliance with the desired setting (see Switching On/ Off)
		19	Use the pusher (11) to press the pieces of fruit and vegetables through the feeding tube (10). Do not exert too much pressure on the pusher.
		13	If necessary, empty the juice collector (8) and the pulp jug (7).
		14	>fter use, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down before cleaning

Switching On ) Off

Notes:

- 60 not leave the appliance switched on continuously for more than one minute. >fter one minute, switch off the appliance and allow it to cool down for two minutes before switching it on again. >llow the appliance to cool down completely after every three cycles of "one minute on / two minutes off".

- If the appliance stops working, possibly due to its thermal protection system, switch off the appliance and allow it to cool down for 94-34 minutes before switching it on again.

• To switch on the appliance to continuous low speed mode, turn the speed control knob (5) to the "5" position. The setting is suitable for processing soft fruits and vegetables (e.g. peaches, seedless watermelons, seedless grapes, raspberries, tomatoes and cucumbers).
• To switch on the appliance to continuous high speed mode, turn the speed control knob (5) to the "9" position. The setting is suitable for processing hard fruits and vegetables (e.g. apples, pears, carrots, cauliflower and broccoli).
• To switch off the appliance, turn the speed control knob (5) or (9) to the "O" position.

Notes:

• 60 not insert hands or any objects into the feeding tube to press food ingredients. >lways use the provided pusher. 60 not exert too much pressure on the pusher.
• If the appliance starts to vibrate strongly, switch off the appliance and clean the juicing blade.
• Only operate the appliance when the pulp jug is placed under the pulp outlet. Regularly empty the pulp jug when processing larger quantities of fruit or vegetables. 7mpty the pulp jug when it is full.
• Only operate the appliance when the juice jug is placed under the juice outlet. Regularly empty the juice jug when processing larger quantities of fruit or vegetables. 7mpty the juice jug when it is full.

Juicing

- Preferably use fresh fruits and vegetables, as they contain more juice. Cold fruits and vegetables will produce more and better quality juice.

- Do not use fruits or vegetables with hard seeds or thick skins. >lways remove hard seeds or thick skins.

- When processing harder fruits or vegetables (e.g. carrot), use very small pieces only and do not exert more pressure on the pusher to prevent jamming of the appliance.

- Very hard fruits, fibrous fruits and fruits with starch (e.g. pineapple cores, bananas, mangos, papayas, avocados, dates and figs) are not suitable for the juice extractor.

- Use a slow juicer, food processor, blender or hand blender to process very hard fruits, fibrous fruits and fruits with starch. Very hard vegetables, fibrous vegetables and vegetables with starch (e.g. potatoes and sugar cane) are not suitable for the juice extractor. Use a slow juicer, food processor, blender or hand blender to process very hard vegetables, fibrous vegetables and vegetables with starch. It is recommended to drink the juice immediately after extraction, as the juice will quickly lose its colour and nutritional value. >dd a little lemon juice or lime juice to slow down the oxidation process. Refer to the following tables for the nutritional values of a wide range of fruits and vegetables.

Vegetables

Nutrition Facts

Raw, edible weight portion. Percent Daily Values (%DV) are based on a 2,000 calorie diet.

Vegetables Serving Size (gram weight/ ounce weight)	Calories	Calories from Fat	Total Fat		Sodium Potassium		Total		Carbo-hydrate		Dietary Fiber		Sugars	Protein Vitamin A		Vitamin C	Calcium	Iron
			(g)	(%DV)	(mg)	(%DV)	mg)	(%DV)	(g)	(%DV)	(g)	(%DV)	(g)	(g)	(%DV)	(%DV)	(%DV)	(%DV)
Asparagus 5 spears (93 g/3.3 oz)	20	0	0	0	0	0	230	7	4	1	2	8	2	2	10	15	2	2
Bell Pepper 1 medium (148 g/5.3 oz)	25	0	0	0	40	2	220	6	6	2	2	8	4	1	4	190	2	4
Broccoli 1 medium stalk (148 g/5.3 oz)	45	0 0.5	1 80		3	460		13	8	3	3	12	2	4	6	220	6	6
Carrot 1 carrot, 7" long, 1 1/4"	30	0	0	0	60	3	250	7	7	2	2	8	5	1	110	10	2	2

diameter(78 g/2.8 oz)
Cauliflower1/6 mediumhead(99 g/3.5 oz)	25 0	0 0 30	1 270					8 5	2 2	8 2 2 0	100	2 2
Celery2 mediumstalks(110 g/3.9 oz)	15 0	0 0 115				5 260		7 4	1 2	8 2 0	10 15	4 2
Cucumber1/3 medium(99 g/3.5 oz)	10 0	0 0 0 0	140					4 2	1 1	4 1 1 4	10	2	2
Green (Snap)Beans3/4 cup cut(83 g/3.0 oz)	20 0	0 0 0 0	200					6 5	2 3	12	2 1	4 10	4	2
GreenCabbage1/12 mediumhead(84 g/3.0 oz)	25 0	0 0 20	1 190					5 5	2 2	8 3 1 0	70	4	2
Green Onion1/4 cupchopped(25 g/0.9 oz)	10	0	0	0	10	0	70	2	2	1	1	4	1	0	2	8	2	2
IcebergLettuce1/6 mediumhead(89 g/3.2 oz)	10 0	0 0 10	0 125					4 2	1 1	4 2 1 6		6	2	2
Leaf Lettuce1 1/2 cupsshredded(85 g/3.0 oz)	15 0	0 0 35	1 170					5 2	1 1	4 1 1	130	6		2	4
Mushrooms5 medium(84 g/3.0 oz)	20 0	0 0 15	0 300					9 3	1 1	4 0 3 0		2	0	2
Onion1 medium(148 g/5.3 oz)	45 0	0 0 5 0	190					5	11	4	3	12	9	1	0	20	4	4
Potato1 medium(148 g/5.3 oz)	110	0 0	0 0 0	620				18	26	9 2 8 1	3 0	45	2 6
Radishes7 radishes(85 g/3.0 oz)	10 0	0 0 55	2 190					5 3	1 1	4 2 0 0	30		2 2
SummerSquash1/2 medium(98 g/3.5 oz)	20 0	0 0 0 0	260					7 4	1 2	8 2 1 6	30		2 2
Sweet Cornkernels from 1medium ear(90 g/3.2 oz)	90	20 2.5	4	0	0	250		7	18	6 2 8 5	4	2	10 0	2

Sweet Potato1 medium, 5" long, 2" diameter(130 g/4.6 oz)	100 0	0 0 70	3 440					13 2	3 8 4	16 7	2 120	30 4	4
Tomato1 medium(148 g/5.3 oz)	25 0	0 0 20	1 340					10 5	2 1	4 3	1 20	40 2	4

Most vegetables provide negligible amounts of saturated fat, trans fat, and cholesterol.

Fruits

Nutrition Facts

Raw, edible weight portion. Percent Daily Values (%DV) are based on a 2,000 calorie diet.

Fruits Serving Size (gram weight/ ounce weight)	Calories	Calories from Fat	Total Fat		Sodium		Potassium		Total Carbo- hydrate		Dietary Fiber		Sugars	Protein	Vitamin A	Vitamin C	Calcium	Iron
			(g)	(%DV)	(mg)	(%DV)	(mg)	(%DV)	(g)	(%DV)	(g)	(%DV)	(g)	(g)	(%DV)	(%DV)	(%DV)	(%DV)
Apple 1 large (242 g/8 oz)	130	0	0	0	0	0	260	7	34	11	5	20	25	1	2	8	2	2
Avocado California, 1/5 medium (30 g/1.1 oz)	50	35	4.5	7	0	0	140	4	3	1	1	4	0	1	0	4	0	2
Banana 1 medium (126 g/4.5 oz)	110	0	0	0	0	0	450	13	30	10	3	12	19	1	2	15	0	2
Cantaloupe 1/4 medium (134 g/4.8 oz)	50	0	0	0	20	1	240	7	12	4	1	4	11	1	120	80	2	2
Grapefruit 1/2 medium (154 g/5.5 oz)	60	0	0	0	0	0	160	5	15	5	2	8	11	1	35	100	4	0
Grapes 3/4 cup (126 g/4.5 oz)	90	0	0	0	15	1	240	7	23	8	1	4	20	0	0	2	2	0
Honeydew Melon 1/10 medium melon (134 g/4.8 oz)	50	0	0	0	30	1	210	6	12	4	1	4	11	1	2	45	2	2
Kiwifruit 2 medium (148 g/5.3 oz)	90	10	1	2	0	0	450	13	20	7	4	16	13	1	2	240	4	2
Lemon 1 medium (58 g/2.1 oz)	15	0	0	0	0	0	75	2	5	2	2	8	2	0	0	40	2	0
Lime 1 medium (67 g/2.4 oz)	20	0	0	0	0	0	75	2	7	2	2	8	0	0	0	35	0	0
Nectarine 1 medium (140 g/5.0 oz)	60	5	0.5	1	0	0	250	7	15	5	2	8	11	1	8	15	0	2

Orange1 medium(154 g/5.5 oz)	80 0	0 0 0 0 250						7	19	6	3	12	14	1	2	130	6	0
Peach1 medium(147 g/5.3 oz)	60 0	0.5 1 0 0 230						7	15	5	2	8	13	1	6	15	0	2
Pear1 medium(166 g/5.9 oz)	100 0	0 0 0 0 190						5	26	9	6	24	16	1	0	10	2	0
Pineapple2 slices,3" diameter,3/4" thick(112 g/4 oz)	50 0	0 0 10 0 120						3	13	4	1	4	10	1	2	50	2	2
Plums2 medium(151 g/5.4 oz)	70 0	0 0 0 0 230						7	19	6	2	8	16	1	8	10	0	2
Strawberries8 medium(147 g/5.3 oz)	50 0	0 0 0 0 170						5	11	4	2	8	8	1	0	160	2	2
Sweet Cherries21 cherries; 1cup(140 g/5.0 oz)	100 0	0 0 0 0 350						10	26	9	1	4	15	1	2	15	2	2
Tangerine1 medium(109 g/3.9 oz)	50 0	0 0 0 0 160						5	13	4	2	8	9	1	6	45	4	0
Watermelon1/18 mediummelon;2 cups dicedpieces(280 g/10.0 oz)	80 0	0 0 0 0 270						8	21	7	1	4	20	1	30	25	2	4

Most fruits provide negligible amounts of saturated fat, trans fat, and cholesterol; avocados provide 0.5 g of saturated fat per ounce.

Provided by http://www.fda.gov

Cleaning and maintenance

The appliance must be cleaned after each use.

Notes8

• Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or other liquids.
• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.
• Do not clean the appliance in the dishwasher. It is not recommended to clean the accessories in the dishwasher.
• Do not sterilize any accessories with water with a temperature higher than 80 °C or in the microwave to prevent deformation or damage. The materials of all parts that come into contact with food must be clean and hygienic.
• Regularly check the appliance for possible damage and do not use if any damage.
• Clean the outside of the appliance with a soft, damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth.
• Clean the accessories:
  • Disassemble the appliance.
• Clean the accessories in soapy water. Rinse the accessories under running water. Thoroughly dry the accessories.
• Assemble the appliance. Refer to the section "3assembly".

Put the appliance and the accessories in the original packaging.

- Store the appliance with the accessories in a dry and frost-free place, out of the reach of children.

Troubleshooting

Fault Cause	Troubleshooting
Not starting	Improper installation. Juice collector or blade not properly in place	Reinstall the appliance following assembly instructions
8urnt smell coming from unit	Normal for first time use. Should disappear over the time.	Return the appliance to retailer for repair or exchange if unpleasant smell persists after repeated use.
Stopping during use	5. Excessive ingredients blocking the juicing blade2. The pusher is forced down3. Motor thermal control protection	5. Disconnect power, remove the surplus then reassemble.2. Use less force on pusher3. Restarts after pausing 20-30 minutes.
Too much pulp in the pulp container and low quantity of juice	5. Pulp in the2. Juice extraction blade is damaged3. Pulp in the central ring	5. Clean the central ring.2. Replace the juicing blade.3. Use less force on pusher
Abnormal vibration or noise	5. Improper installation of Juicing blade or juice collector.2. Juicer is not stable3. Excessive ingredients	5. Reinstall according to assembly instructions2. Install on flat surface making sure legs are not missing3. Remove surplus

Note:

For any other faults please contact the service centre.

ElectrIQ UK SUPPORT www.ElectrIQ.co.uk/support

Please, for your own convenience, make these simple checks before calling the service line.

If the unit still fails to operate call: 0871 620 1057 or complete the online form

1. Is the unit plugged into the mains?
2. Is the fuse OK?
3. Switch the unit off. Restart the unit.

Office hours: 9AM - 5PM Monday to Friday

www.ElectrlQ.co.uk

Unit 2, The Nursery

Berristow Lane

South Normanton

Derbyshire, DE55 2FX
