Product Type	Digital Photo Frame
Brand	LG
Model	F7010S
Display Size	7 inches
Display Resolution	800 x 480 pixels
Aspect Ratio	16:9
Supported Memory Cards	SD, SDHC, MMC
Internal Memory	128 MB
Supported Image Formats	JPEG, BMP, GIF, PNG
Slideshow Effects	Yes, multiple transition effects
Clock & Calendar	Yes
Remote Control	Yes, included
Power Supply	AC adapter, 5V DC
Dimensions (W x H x D)	6.7 x 4.3 x 1.2 inches (170 x 110 x 30 mm)
Weight	1.1 lbs (0.5 kg)
Color	Black
Stand Type	Tilt stand, also wall-mountable
Auto Power On/Off	Yes, scheduled
Brightness Adjustment	Yes, multiple levels
Cleaning Instructions	Wipe with soft dry cloth; avoid liquids
Repairability	User-replaceable parts: none; contact LG support

Frequently Asked Questions - F7010S LG

How do I load photos onto the LG F7010S digital photo frame?

Insert an SD, SDHC, or MMC memory card loaded with JPEG, BMP, GIF, or PNG images into the card slot. The frame will automatically detect and display them. You can also transfer photos via USB if supported.

What memory card types are supported?

The LG F7010S supports SD, SDHC, and MMC memory cards. Maximum capacity is typically 32 GB.

How do I set up a slideshow?

Press the slideshow button on the remote or frame. You can adjust transition effects and display time in the settings menu. The frame also supports random or sequential order.

Can I play music on this photo frame?

This model is primarily for displaying photos. It does not support music playback or audio output unless specified in the manual. Check the manual for any hidden features.

How do I adjust the brightness?

Go to the settings menu using the remote or touch buttons. Look for Brightness or Display settings and adjust to your preference. You can also enable auto-brightness if available.

How do I clean the screen?

Use a soft, dry cloth to gently wipe the screen. Do not use any liquids, sprays, or abrasive cleaners, as they may damage the display.

Can I mount the frame on a wall?

Yes, the LG F7010S has a removable stand and keyhole slots on the back for wall-mounting. Use appropriate screws and ensure the wall can support the weight.

How do I set the clock and calendar?

Navigate to the Clock/Calendar setting in the menu. Use the remote to set the date and time manually. Some frames can sync with your computer via USB.

What should I do if the frame does not turn on?

First, check the power adapter connection. Ensure the outlet works. If the frame still doesn't power on, try a factory reset (press and hold the reset button with a pin) or contact LG support.

How do I update the firmware?

Firmware updates are rarely needed. Check LG's support website for your model. If available, download the update file onto a memory card, insert it, and follow the on-screen instructions from the settings menu.

USER MANUAL F7010S LG

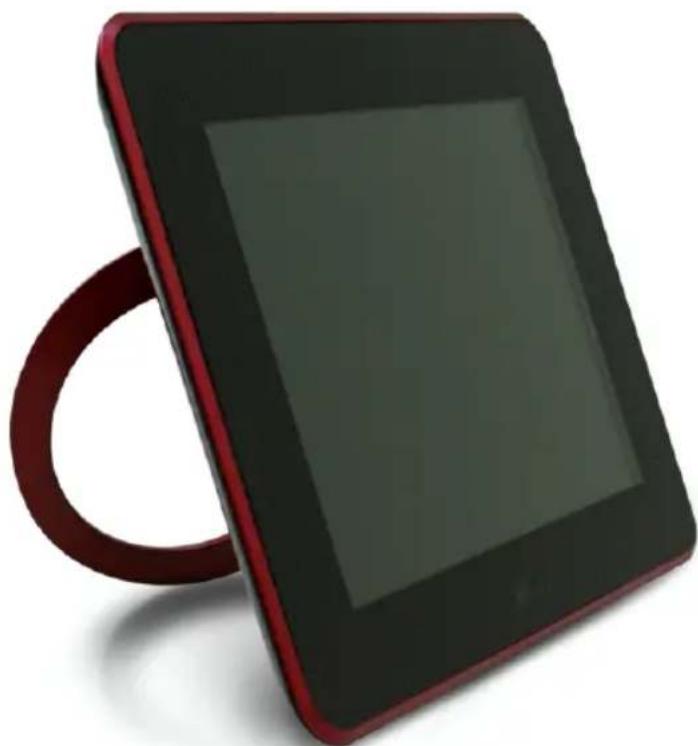

Digital Photo Frame User's Guide

F7010N

F7010S

F8010N

F8010S

Red and black tablet device with a red strap, shown against a white background (no text or symbols visible)

Make sure to read the Important Precautions before using the product.

Keep the User's Guide(CD) in an accessible place for future reference.

See the label attached on the product and give the information to your dealer when you ask for service.

Table of Contents

Preparation and Installation / Connection

Important Safety Precaution 1

Composition of product 3

Accessories 3

Names of parts 4

Remote Control Button Names and Functions 6

Remote Controller Sensor / Replacing the Remote Control Battery 7

Installation and connection of product 8

Installing Stand / Connecting Power Cord 8

Connecting USB / Connecting Memory card 9

Menu and Functions

Before beginning 11

Setting / Key-Help 11

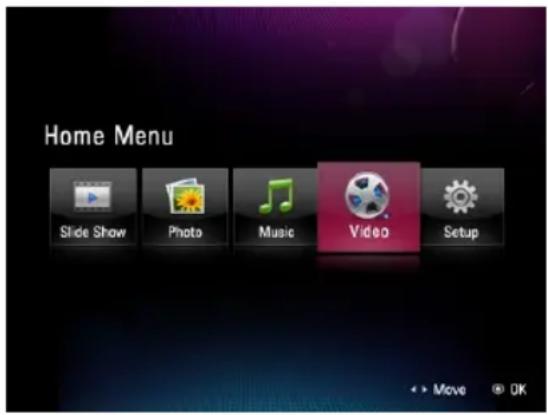

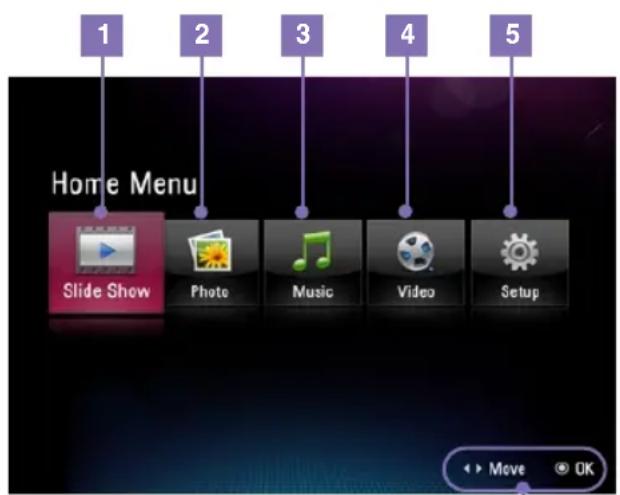

HomeMenu 12

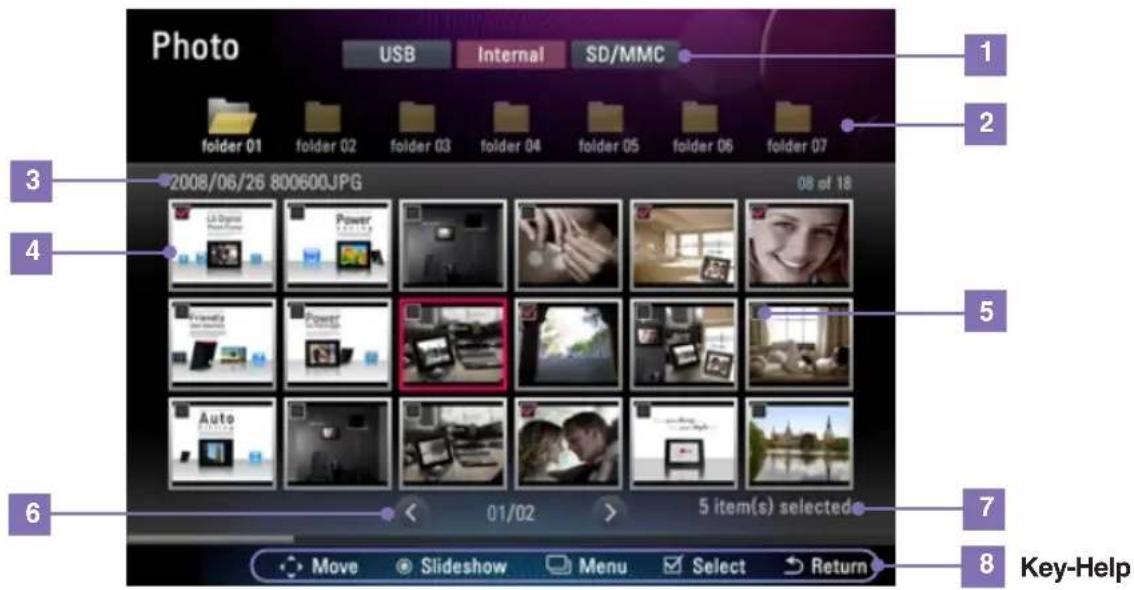

Screen composition and buttons 12

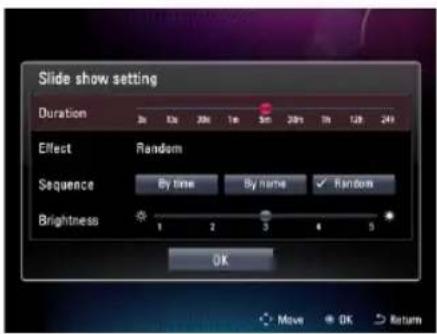

Slide Show 13

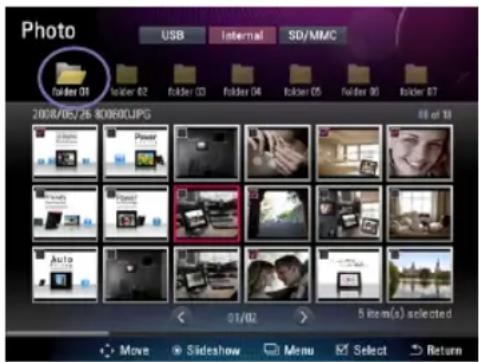

Playing photo and slide show menu 13

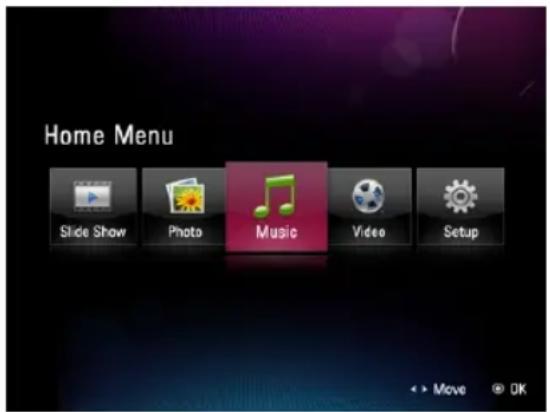

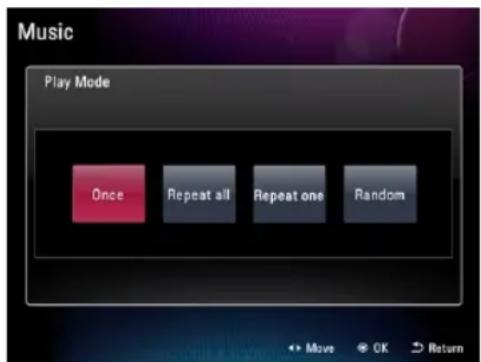

Music (Only F7010N/F8010N Model) 15

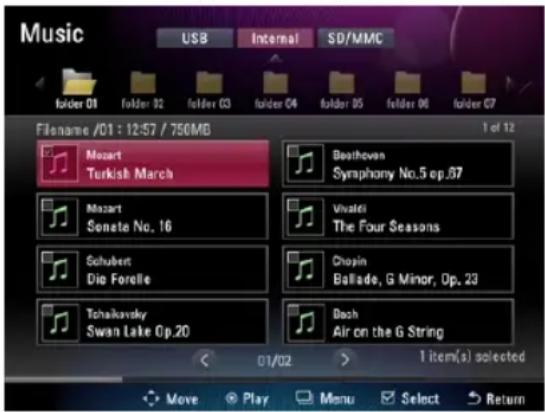

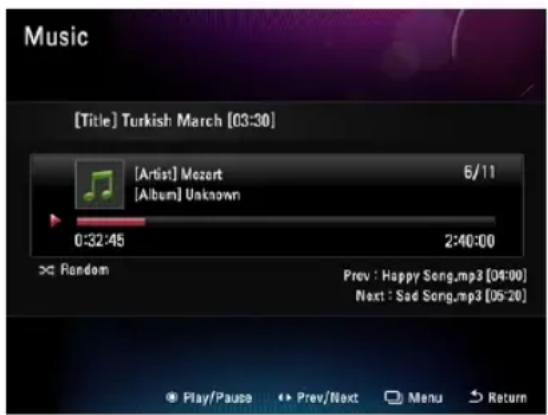

Playing music 15

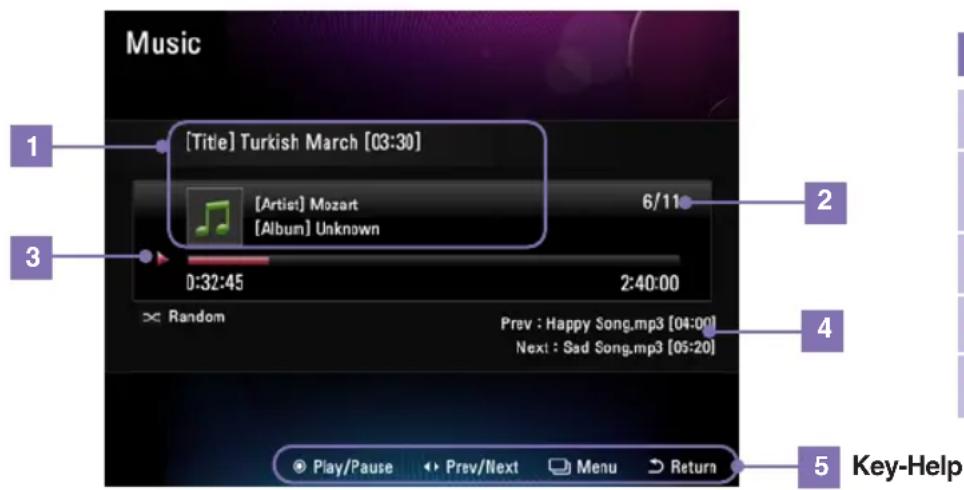

Playing screen composition and buttons 16

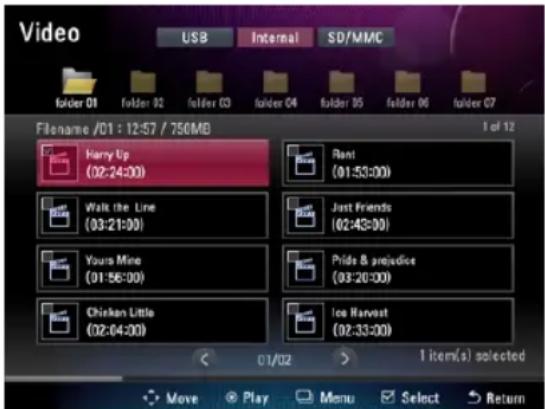

Video (Only F7010N/F8010N Model) 17

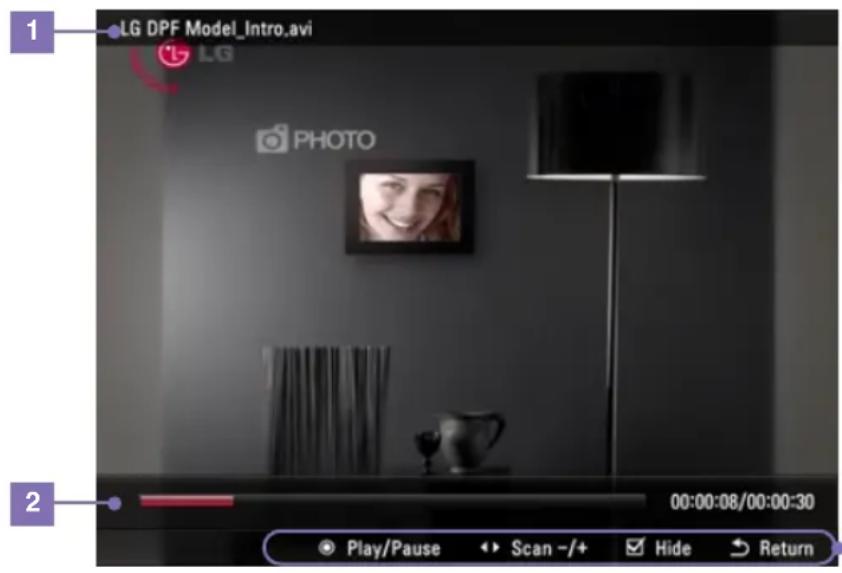

Playing video 17

Playing screen composition and buttons 18

File management 19

Screen composition and buttons 19

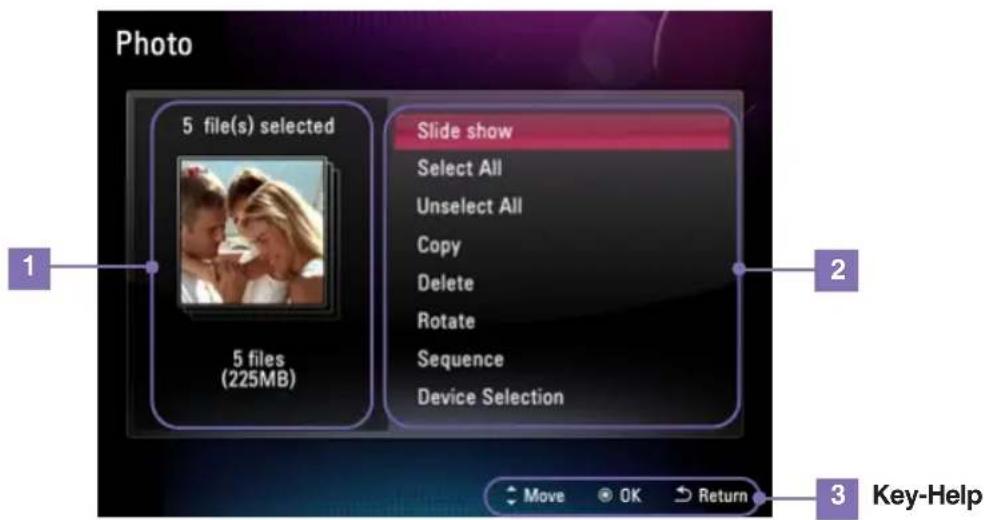

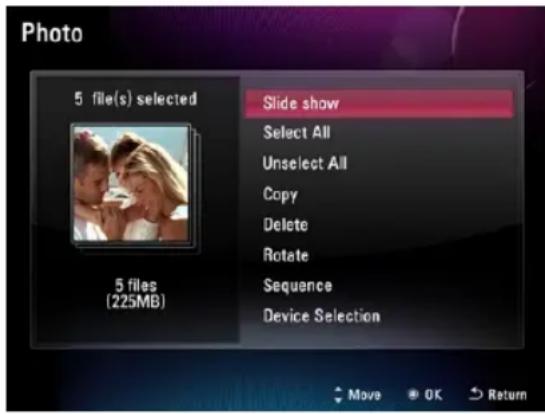

File management menu 20

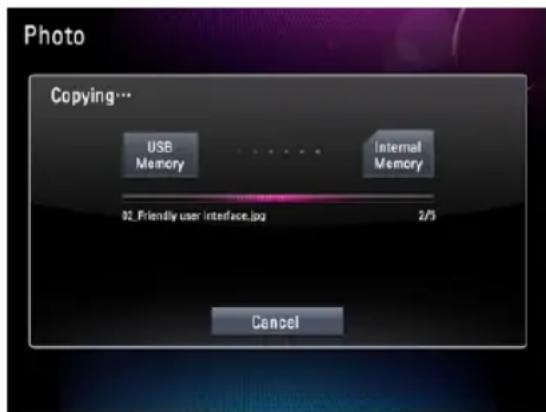

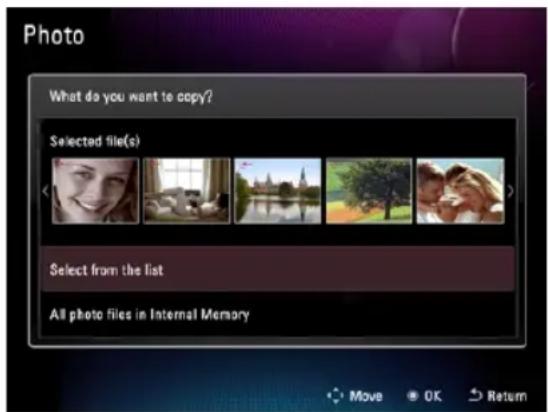

File copy/delete 21

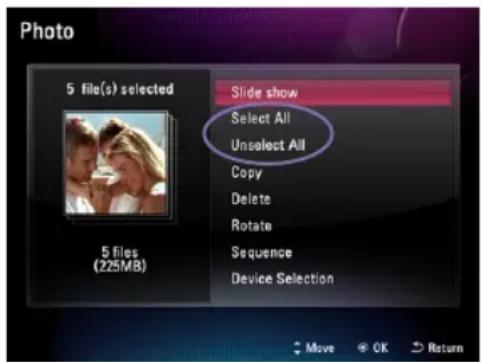

Selecting all file/Unselecting all file 22

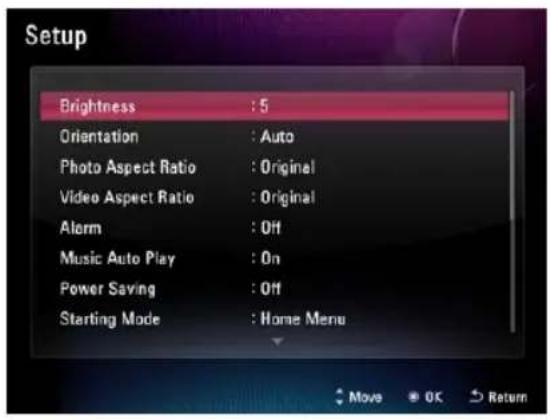

Setup 23

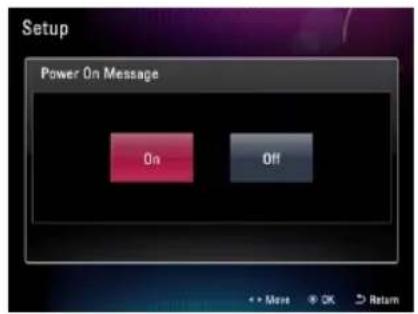

Power On Message function 25

Appendix

Troubleshooting 26

Specifications 28

Service information 30

Important Safety Precaution

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and service.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

Do not Open the Display:

■ There are no user serviceable components inside.
■ There are Dangerous High Voltages inside, even when the power is OFF.
■ Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

■ Do not place the display on a sloping shelf unless properly secured.
■ Use only a stand recommended by the manufacturer.
■ Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.
This can cause personal injury, and/or damage the product.

To Prevent Fire or Hazards:

■ Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house.
- Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages.
- Do not add accessories that have not been designed for this display.
- When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.
■ Never touch the power cord during periods of thunder and lightning. This can be very dangerous and can cause electric shock.

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER:

■ Place the display in a built-in enclosure unless proper ventilation is provided.
■ Place the display near or over a radiator or heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance.

Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image burn-in. Make sure to use a screen saver on the product. Burn-in and related problems are not covered by the warranty on this product.

Make sure the panel faces forward and hold it with both hands to move. If you drop the product, the damaged product can cause electric shock or fire. Contact an authorized the service center for repair.

Avoid high temperatures and humidity.

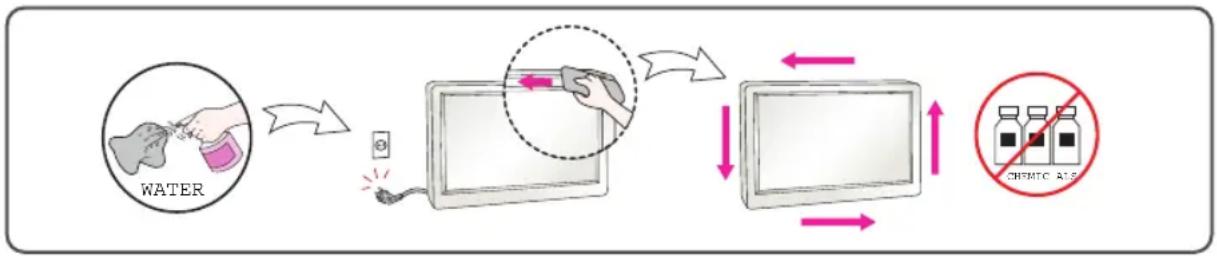

On Cleaning

■ Unplug the display before cleaning the face of the display screen.
■ Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock.
- When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not use chemicals such as benzene, paint thinners or alcohol)
- Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much moisture may cause staining.

On Repacking

- Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

On Disposal

■ The fluorescent lamp used in this product contains a small amount of mercury.
■ Do not dispose of this product with general household waste.
■ Disposal of this product must be carried out in accordance to the regulations of your local authority.

Composition of product

Accessories

■ Check the accessories.

Black and red tablet device with a strap, no visible text or symbols

Digital Photo Frame

CD User's guide / Cards

USB Cable to PC

Coiled electrical plug with terminal connector (no text or symbols visible)

Power Adapter

Note

■ The Digital Photo Frame and it accessories may look different from those shown here.

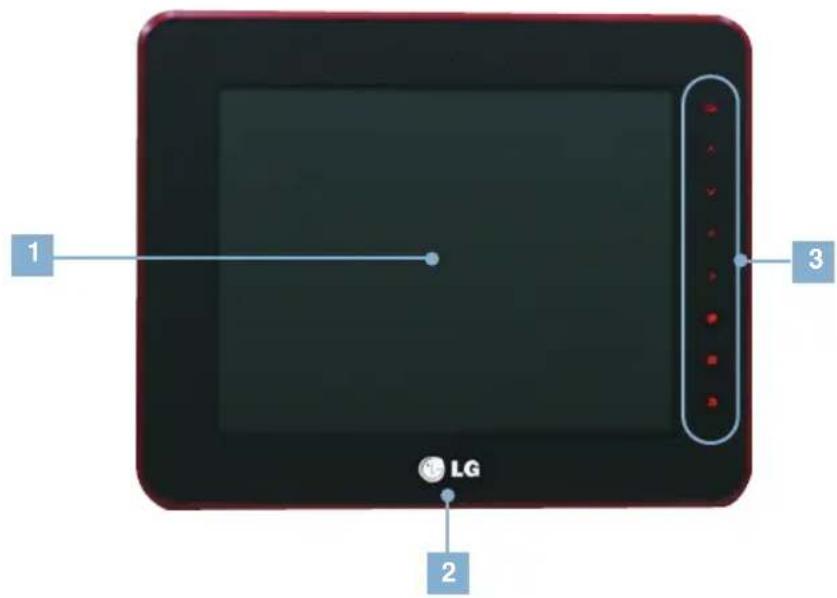

Names of parts

Front

1 Remote controller sensor

There is a remote controller sensor of the product at the center of the product. Please press toward remote controller sensor when using remote controller.

2 LG Logo

If connecting to the power, LG logo's light is on.

3 Touch Key Button

MENU Button It pops up menu

^ UP Button Go to Up

DOWN Button Go to Down

< LEFT Button Go to Left

RIGHT Button Go to Right

OK Button OK(The Play/Pause button is used to play Slide Show, Music, and Video files.)

SELECT Button Select the file

5 BACK Button Shortly: Going out / Long: Home menu

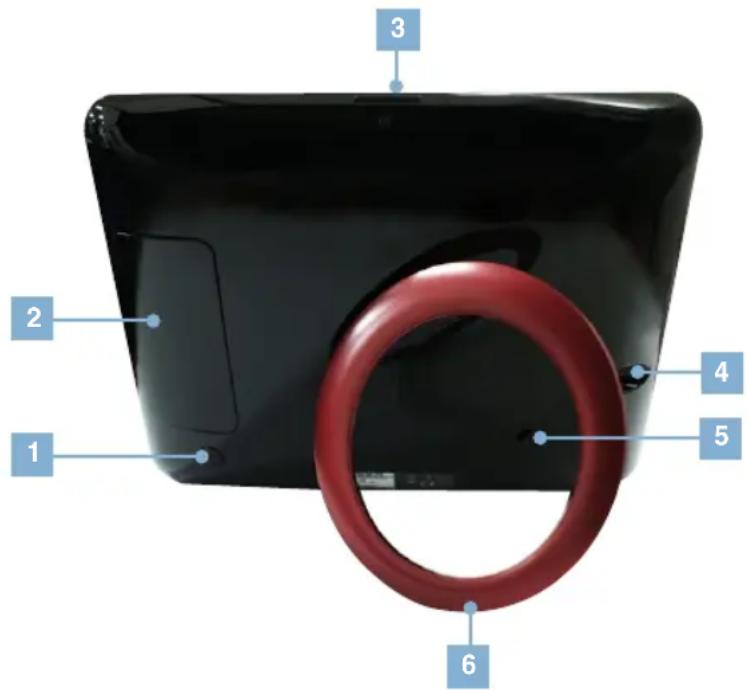

Back

1 POWER Button You can turn the power on and off.
2 Connecting part to external device ( 9 P )
3 Power saving button If pressing once, the screen goes to power saving mode, and if pressing once again, it goes back to default setting.
4 DC 9V IN terminal After connecting power adapter to DC 9V IN terminal, you can use it by connecting power cord.
5 Kensington Security Slot (Separate purchase required) Connected to a locking cable that can be purchased separately at most computer stores.
6 Stand

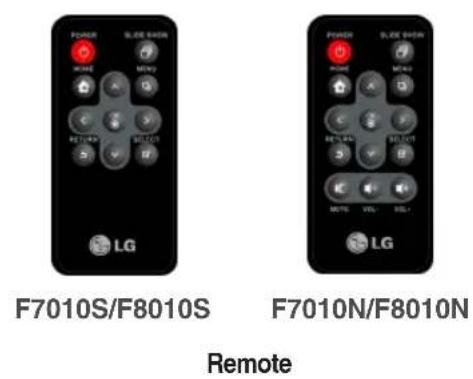

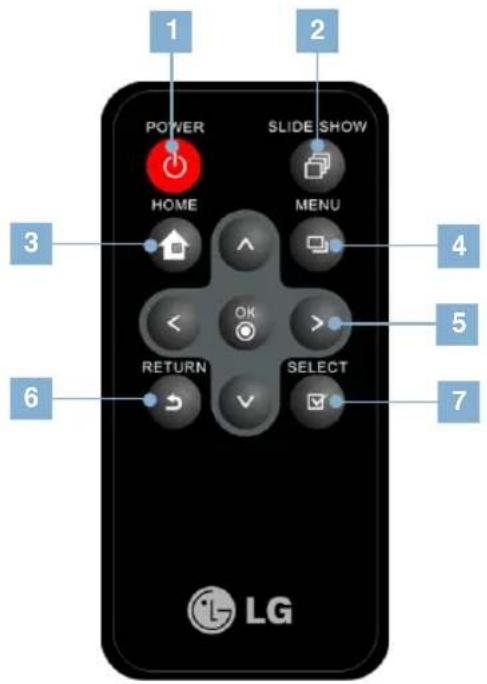

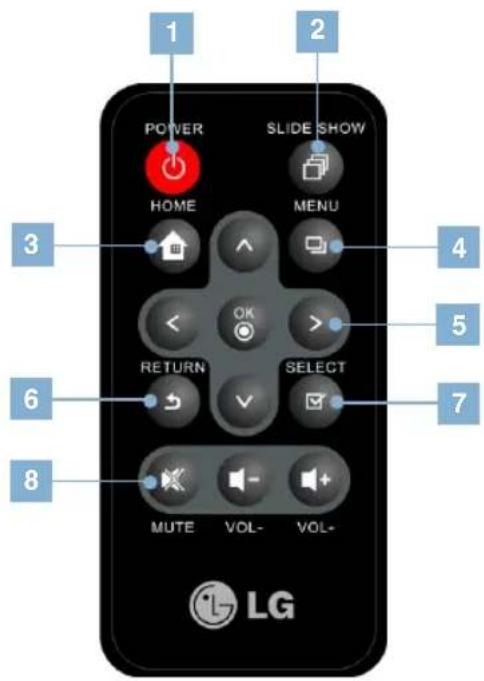

Remote Control Button Names and Functions

F7010S/F8010S

F7010N/F8010N

1 Turn ON/OFF

2 Go to Show Slide

3 Go to HomeMenu

4 It pops up menu

5 Go to Up

Go to Down

< Go to Left

Go to Right

OK(The Play/Pause button is used to play Slide Show, Music, and Video files.)

6 Go to previous screen

7 Select the file

8 It goes to mute

Note

■ Before using the remote control, please remove the safety film on the bottom of the remote control as shown in the picture.

Illustration of a device with a red arrow pointing to a document or paper inside (no text or symbols visible)

Composition of product

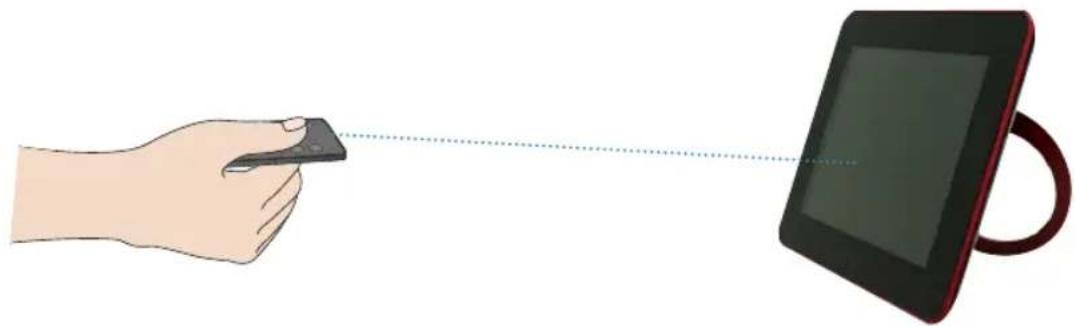

Remote Controller Sensor

- There is a remote controller sensor of the product at the center of the product. Please press toward remote controller sensor when using remote controller.

Illustration of a hand holding a card with a dotted line connecting to a tablet device (no text or symbols)

Replacing the Remote Control Battery

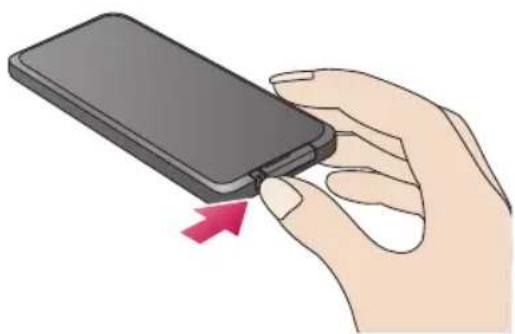

1 Push the tab of the battery holder on the rear bottom side of the remote controller.

Hand holding a smartphone with a red arrow pointing to the handle (no text or symbols visible)

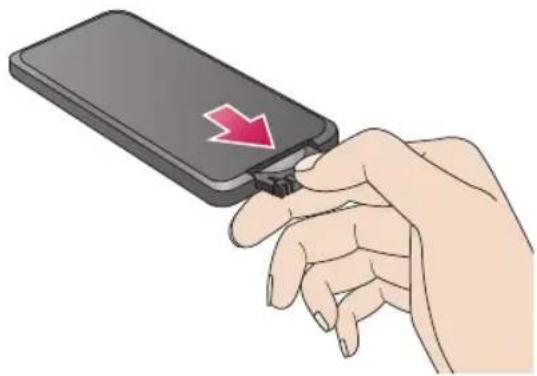

2 Pull the battery holder out.

Hand inserting a smartphone into a device with a red downward arrow (no text or symbols)

3 Replace the battery (Lithium Cell CR2025 3V) and push the holder in.

Illustration of a black rectangular device next to a small electronic component with a red arrow indicating rotation (no text or symbols)

Note

• Please use only assigned battery. Unless you do, the battery could explode.
• Please be careful that the foreign substance goes into inside of remote controller when changing battery.
  ■ Unless you use the battery correctly, it could be the cause of leakage or corrosion.

Installation and connection of product

Installing Stand

1 Please set up by gently pulling the product stand.

Black rectangular object with a red ring attached, showing a circular opening and a red arrow pointing left (no text or symbols)

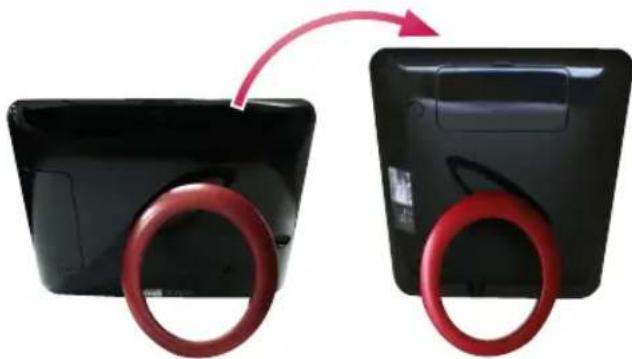

2 You can use by setting up horizontally or vertically.

Two black electronic devices with red ring handles, one moving right and the other left (no text or symbols visible)

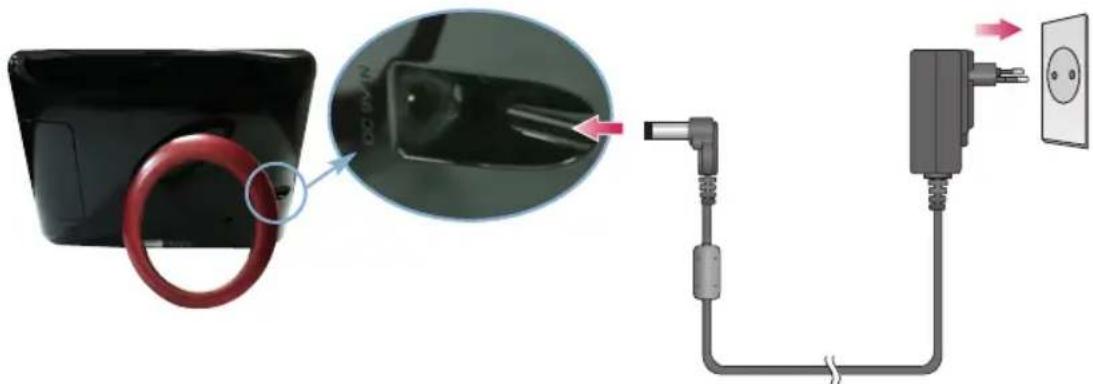

Connecting Power Cord

1 After connecting power adapter to DC 9V IN terminal at the product side, please connect power code.

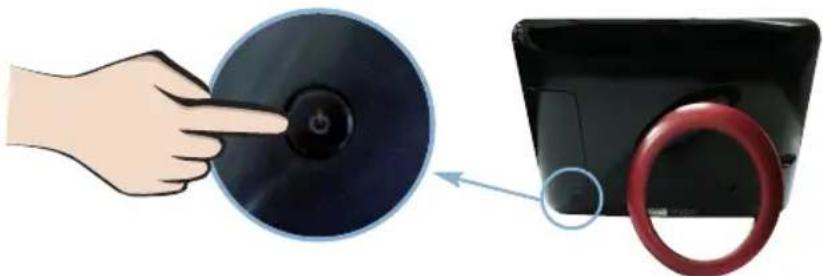

2 Press the POWER button ⏻ on the back of the product or remote to turn the power on. When turning off the power, press the POWER button for 2\~3 seconds until the screen goes off.

Illustration showing a hand pointing at a CD to press a power button next to a smartphone with a red ring (no text or symbols)

Note

■ After setting up the stand, please check if the product is stable. Unless the product is setup correctly, there could be possible danger of damage from the product's knocking or falling down.
- When Auto setting up Orientation menu of the Setup, the image automatically rotates as well. But Menu and Key-Help don't rotate.
■ The product and it accessories may look different from those shown here.

Installation and connection of product

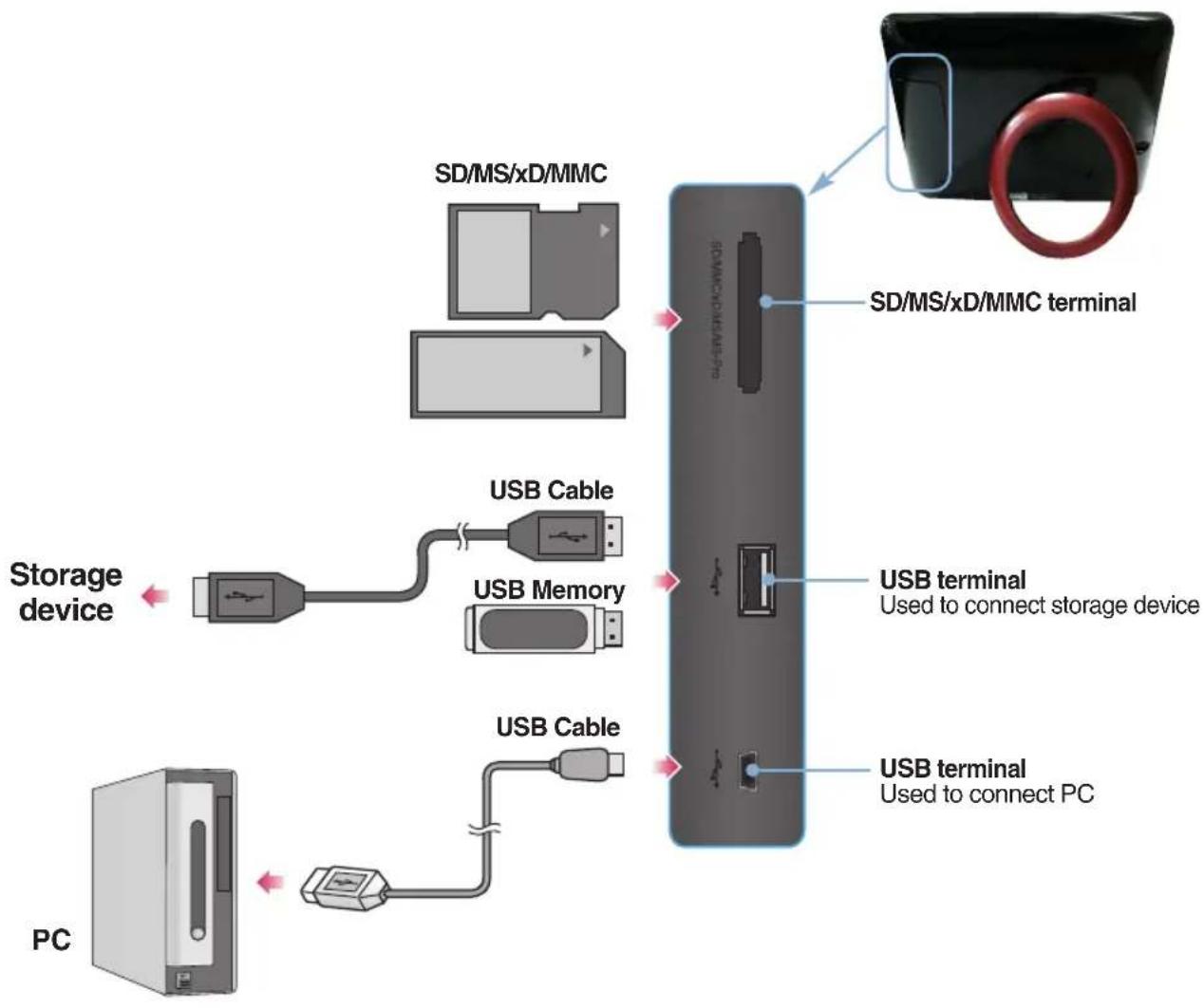

Connecting USB / Connecting Memory card


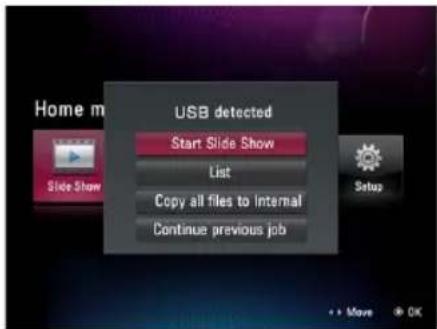

1 Storage device connection

1. Please connect to product's USB terminal.
2. Please connect to USB terminal of external storage device.
3. If external storage device is read, a window pops up as below. Please select an operation you want.

Installation and connection of product

2 PC connection

1. Please connect to product's USB terminal using a provided USB cable.

2. Please connect to PC's USB terminal.

3. If PC is read, a window pops up as below. Please select use mode you want between a Mass storage and Mini monitor.

3 Memory card slot (SD/MS/xD/MMC)

1. Please pay attention to the direction of the memory card.

2. Please push into the slot.

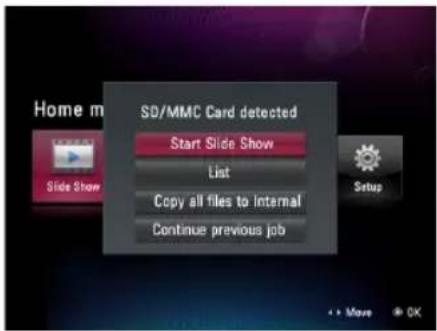

3. If external memory card is read, a window pops up as below. Please select an operation you want.

Note

• The internal memory of the product is 2GB. If the memory is full, no more files are saved.
  ■ Two or more external devices can be connected together.
• Do not turn the product off or remove external devices while moving, saving, playing or deleting files.
• If removing external storage devices while playing file, the product may abnormally operate. Please turn the power off and on again for this case.
• When connecting external storage devices to the product, use the cables included with the devices.
  (For more information on storage devices, and cable purchase, contact the relevant service centers for the devices.)
• This product doesn't support external hard and card reader.
• When connecting to PC by USB cable, the volume name(Ex: E:, F:, G:, and so on) of moving disk depends on computer circumstance.

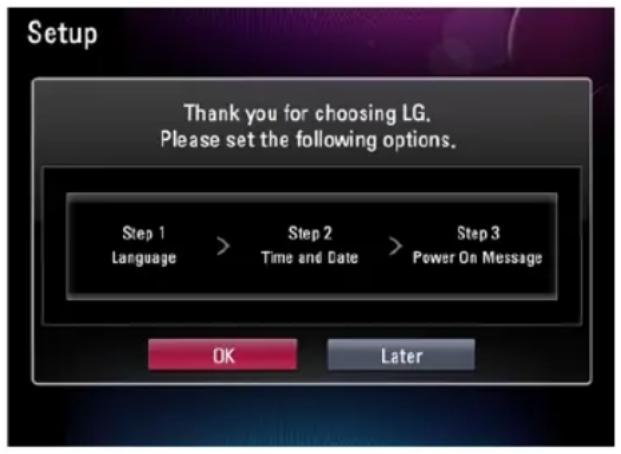

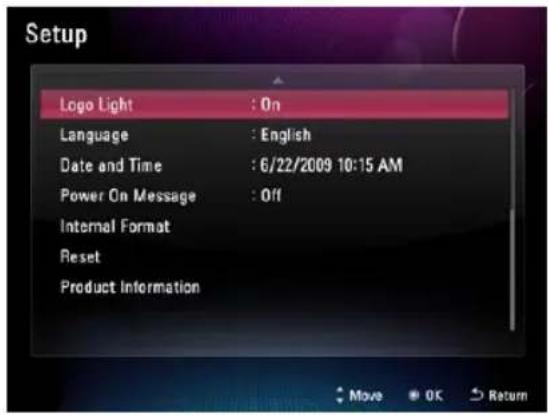

Setting

• When turning on the power at first, the setup window that you can set up Language, Date and Time, and Power on Message pops up. After finishing setup, it doesn't appear again, and if initializing, it reappears.
• Please refer to ⚙ Setup (23R) for details about each menu.
• You can change setup again at ⚙ Setup (23R).

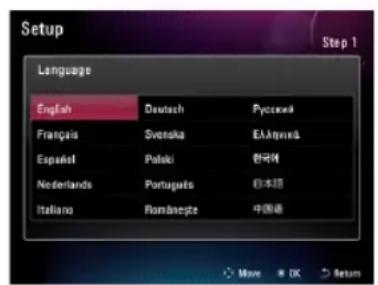

1Step Language

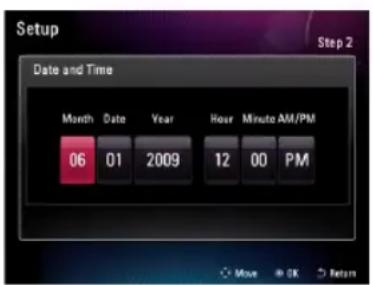

2Step Date and Time

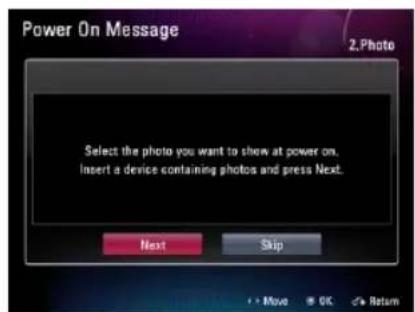

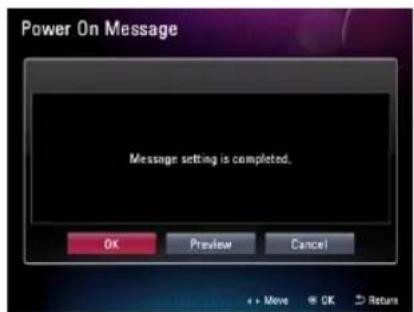

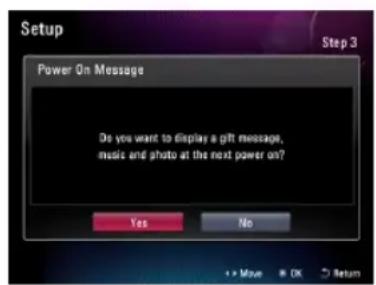

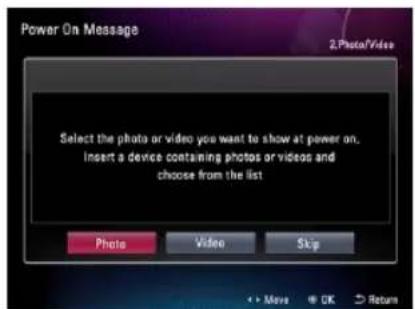

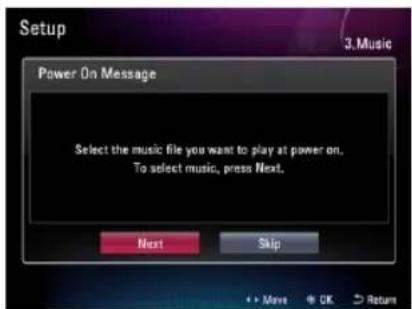

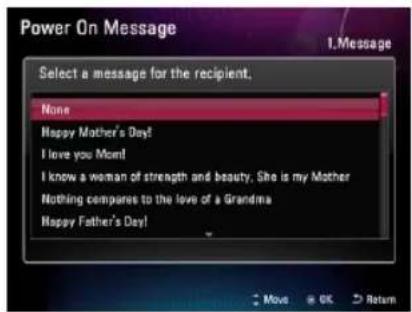

3Step Power on Message

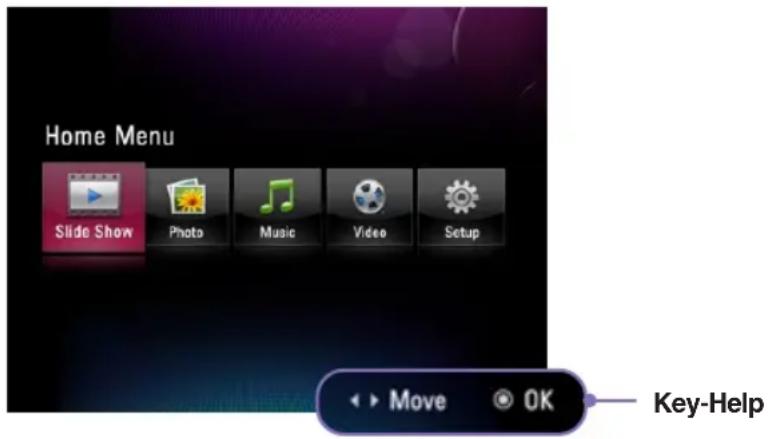

Key-Help

- Key-Help is indicated at the right lower part of each menu to help user for adjusting button. Please refer to it for adjusting products button.

Screen Display and Buttons

- Please select desired menu.

F7010S/F8010S

F7010N/F8010N
6 Key-Help

1

Slide Show

You can display the photo. ( P18)

2


You can select and manage the photo. ( P19)

3

Music

You can play the music. (P15)

(Only F7010N /

You can select and manage the music. (P19)

4

Video

You can play the video. (P17)

(Only F7010N /

You can select and manage the video. (P19)

5

Setup

You can set up other setting. ( P28)

Slide Show

• You can play photo files in Slide Show.
• To use a Slide Show, press the button on the remote control or select the HomeMenu.
• If selecting a 📋 Slide Show at home menu, it basically plays photo. If you want to play music or video, please begin at 🎯 Music and 😊 Video. ( Spotify Music, 😊 Video - Only F7010N/F8010N Model)

Slide Show Menu Function

Operating key

Open/close menu

Menu movement

Menu detailed adjustment

Selecting menu/setup

1 Rotate

You can rotate the photo at regular angle.

0^ - 90^ - 180^ - 270^

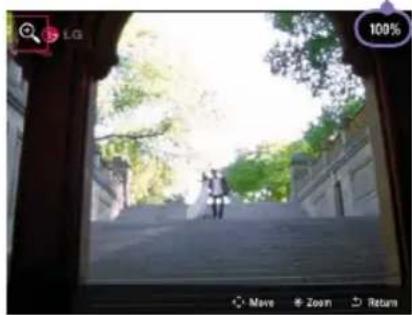

2 Zoom

You can extend the photo by button. It extends the photo in order from 100% to 400%, and if pressing button at 400%, it goes back to 100%.

100% - 150% - 200% - 300% - 400%

Extension rate indication

View through a wooden doorway showing a person walking on a stone path under trees, with no visible text or symbols.

3 List

It moves to Photo that you can manage the file. ( → 19P)

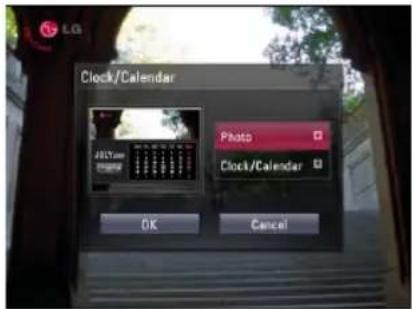

4 Clock/Calendar

You can set up clock and calendar.

- Photo

+ : Insert photo - : Delete photo

- Clock/Calendar

1\~4 : Select Theme - : Delete clock/calendar

5 Copy

It copies the photo being currently played. It is only possible to copy external device's photo into internal memory. When playing internal memory's photo, copy menu is deactivated.

6 Delete

It deletes the photo being currently played.

7 Slide show setting

Set up slide show's setting.

• Duration : Set up photo's switch time. 3s, 10s, 30s, 1m, 5m, 30m, 1h, 12h, 24h
- Effect : Set up effect when photo is switched. At random selection, all effect except multiple images is indicated randomly. * Multi image effect is only supported for the horizontal display.

Random, Multi image, Cross Comb, Door Open, Door Close, Mosaic Random, Mosaic Bar, Snail, Transition, Shutter, Sliding, Corner Sliding, Dissolve, Stairs

• Sequence : Set up photo play order. By Time, By Name, Random
• Brightness: Set up brightness of the screen. 1\~5

Tip

• Press the button to go to the previous photo in Slide Show. Press the button to go to the next photo.
• If pressing button at slide show, slide show pauses. If pressing once more, slide show starts again.
• If the size/capacity of the photo is large, photo switching time could be longer than the time that you originally set.
• If you want to appreciate photo and music together, please set up Music auto play at ⚙ Setup. (Only F7010N/F8010N Model)

Playing music

1 If you want to play the music, please selects Music at Home Menu.

2 Please select the file you want by button.

3 If pressing button, it plays the music you selected.

Playing screen composition and buttons

Operating key

Play mode setup

Playing previous song

Playing next song

Pause/play

Volume adjustment

1 File information indication It indicates file name, musician, and album title.
2 Playing order It indicates the total number of the file to be played and order of the file being currently played.
3 Play bar It indicates playing state of the file being currently played.
4 Previous/next file indication It indicates the previous and next file.

Play mode

• If pressing button at the screen of music playing, it moves to play mode.
• You can set up repetition configuration of selected music
• You can select among Once, Repeat all, Repeat one, and Random.

Playing video

1 If you want to play the video, please select 🤘 Video at Home Menu.

2 Please select the file you want by button.

3 If pressing button, it plays the video you selected.

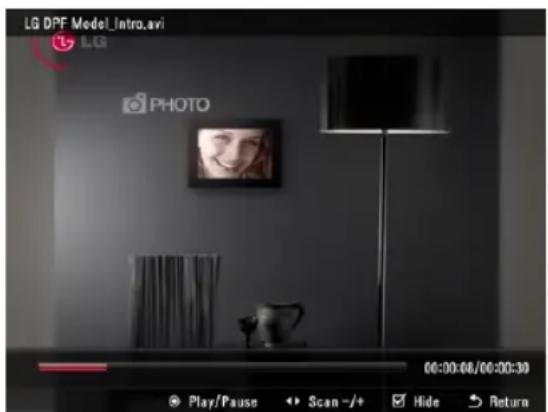

Playing screen composition and buttons

Operating key

Open/close play bar

Rewind

Fast rewind

Pause / play

Volume adjustment

3 Key-Help

1 File information indication It indicates name of the file being currently played.
2 Play bar It indicates playing state of the file being currently played.

Screen Composition and Buttons

• You can separately manage each file at Photo, Music, and Video.
• Below is an explanation by giving you an example of the Photo, and operation method of Music and Video is also identical. (Music, Video - Only F7010N/F8010N Model)

1 Device type selection Indicates inside memory and connected external memory apparatus. Please select desired type.
2 Folder Indicates folder at the device you selected. Please select desired folder.
3 File information Indicate file's name and capacity and so on.
4 File's table of contents All files within selected folder are indicated, and preview is possible for photo file. Information of corresponding file is indicated for file of music and video.
5 Selection indication To select any media file content. Press it to select content and press it again to unselect the content.
6 Page indication The number of current page and the whole page is indicated, and page movement is possible by using ◀, ➤ key. If pressing ◀, ➤ key long, each moves to the first and last page.
7 The number of selected file It indicates the total number of currently selected file.

Tip

- Recommend that you designate the file name as same language as the product current setup language. If different language, some letters could be broken.

File management menu

• If pressing 📄 button at 🎨 Photo, 🌐 Music, and 🌿 Video, it moves to each menu. (♪ Music, √Video - Only F7010N/F8010N Model)
• The usable menu could be different according to the format of the file.

1 Selected file indication Indicates the number and capacity of selected file.
2 Function Please select the function you want.

■ Slide Show Start Slide Show.
■ Select all Select all files within currently located device. ( P22)
■ Unselect all Unselect all selected files within currently located device. (P23)
■ Copy Copies file. (P21)
■ Delete Deletes file. (P21)
■ Rotate You can rotate the photo.
■ Sequence Set up photo play order.
■ Device Selection Select the connected other device.

File copy / delete

1 Selecting Copy/Delete menu

Pressing the 📷 button in 📋 Photo, 🌐 Music, or 😊 Video displays the menu. Select the Copy or Delete menu.

2 File selection

The file selected in Photo, Music, or Video appears automatically. Select the Select from of the list menu if you want to select another file. You can select all files on the device.

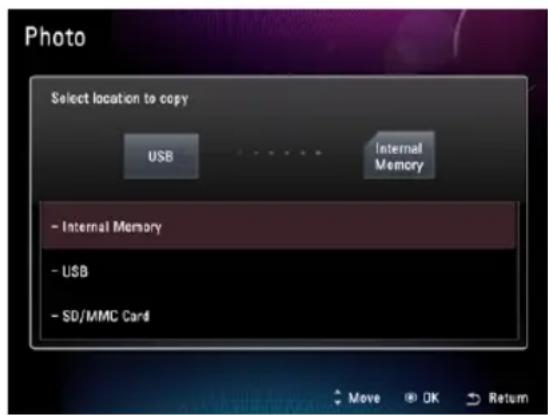

3 Designating copy location (Delete menu doesn't count.)

Please assign the device copying the file.

4 Copy/delete

It copies/deletes the file. If copy/deletion completes, please press button.

Note

• You can also use the Copy/Delete menu to copy/delete files after selecting either Photo, Music, or Video.
• You can't copy the file from internal memory to internal memory (between internal memories).
• You cannot copy/delete all 🎨 Photo, 📊 Music, or 😊 Video files at once. Use the Copy/Delete menu of 🎨 Photo, 📊 Music, or 😊 Video to copy or delete them individually.

Selecting all file / Unselecting all file

Select all files/Unselect all files within the device

If pressing 📋 button at 🎨 Photo, 🌐 Music, and 🌒 Video menu appears. Please select Select all or Unselect all.

Select all files/Unselect all files within folder

If pressing button at the location of corresponding folder, it performs select all. If pressing once more, it performs unselect all.

- Setup allows you to configure the basic Properties of the device. Select ⚙ Setup on the Home Menu.

■ Brightness

Set up the screen's brightness. It is possible to adjust from 1 to 5.

- Orientation Set the display direction of the product.

(* This product reads the photo information and the orientation value and rotates the photo accordingly.)

• Auto Sensor automatically shows in rotation by perceiving the product direction.
• Landscape Shows at breadth.
• Portrait Shows at length.

- Photo Aspect Ratio Adjust the aspect ratio of the screen.

• Width Custom It expands the photo size horizontally to fill the screen.
• Height Custom It expands the photo size vertically to fill the screen.
  • Full1 It shows the picture fit to the size of the screen regardless of the ratio of the picture.
  • Full2 It shows the picture fit to the size of the screen maintaining the ratio of the picture. The outer edges may be cut off depending on the size of the picture.

■ Video Aspect Ratio

(Only F7010N/F8010N Model)

Adjust video aspect ratio.

• Original It shows by automatically adjusting the screen ratio.
• 4:3 It shows as the ratio of 4:3.
• 16:9 It shows as the ratio of 16:9.

- Alarm

(Only F7010N/F8010N Model)

You can set up the alarm. Set up the time, repetition setup, sound, and so on.

■ Music Auto play(Only F7010N/F8010N Model)	If music file is detected at photo slide show, it sets up that both are automatically played together.
■ Power Saving	You can set up the time that power is turned on or off.
■ Starting mode	Set up the screen that initially shows up when turning on the power.
	Home Menu Start at Home Menu.Silde Show Start Slide Show.Last Mode Start from the last state that the power is off.
■ Logo light	Set up logo indication light at the product lower part
■ Language	Select a language used in the menu screen.
■ Date and Time Set up date and time.
■ Power on Message Set up present message. (P25) →
			On When giving present, you set up by selecting the photo and phrase proper to the objective.Off No setup for present message
■ Internal Format	Delete all data stored in internal memory.
■ Reset	Initialize all setups.
■ Product information	Verify product information.

Note

■ Language and Time are not initialized even when you execute Reset.

Power On Message Function

- Power On Message is the function to show setup function when other turns on the power by setting up message, photo, music, and video.

1 Selecting 'On'

Select On on the Power On Message menu.

2 Selecting message

Please select the message you will send.

3 Selecting Photo(Video)

Please select the Photo(Video). Please select Skip button unless you want to insert.

* If selecting video, you cannot insert the music.

F7010S/F8010S

F7010N/F8010N

4 Selecting music (Only F7010N/F8010N Model / It counts only for selecting the photo.)

Please select the music. If selecting Next button, you can select the music from the music list, and if selecting Skip button, it doesn't insert the music and goes into the next step.

5 Setup completion

You can preview the Power On Message by pressing the Preview button after setup.

Note

■ Even though you set up display direction vertically, the phrase of Power On Message isn't supported vertically.

Problems	Solutions
The screen does not work.	Check if the product is connected to the power adapter properly.Check if the power adapter is connected to the power outlet properly.Press the Power button to turn the product on.
The photo is not displayed on the screen.	There are some image file formats which are not supported.Please check the product specifications.
Video screen and sound doesn't operate.	The configuration of video file could not match. Please check product standard and then change the video configuration.
The music does not play back.	There are some music file formats that are not supported. Please check the product specifications.Press the 12 buttons to check if the volume is turned off.
The USB / memory card is not detected.	Check if the USB cable is connected to the product and the external device properly.There are some memory card formats which are not supported.Please check the product specifications.Check if the files stored in the external device are supported file formats.
The screen is black or none of the buttons work.	The product may not respond because of invalid file format, virus infection or unexpected situation.Turn DC Jack plug off and on to make it function normally.
I want to format the internal memory.	If you want to format internal memory, it is safe to use Setup -> Internal Format Format will delete all media file.Do not format internal memory using PC after connecting the product to PC because it may cause malfunctions.
It takes long for photo to come up.	When opening the file from external memory card, it could take time.The time that photo comes up could be different depending on file format type and size.

Troubleshooting

Problems	Solutions
The screen ration is not normal.	Please adjust the aspect ratio of the screen. You can adjust it in the Setup -> Photo Aspect Ratio or Setup -> Video Aspect Ratio.
The screen color is dim or dark.	Please adjust screen brightness. You can adjust at Setup -> Brightness or Slide show setting -> Brightness.

F7010S/F8010S
* Information in this document is subject to change without notice.

Model	F7010S	F8010S
Size	7"	8"
Dimension (Width x Height x Depth)	Fold Stand195.6 x 161.2 x 29.5 mm	Fold Stand221.8 x 178.3 x 29.5 mm
	Unfold Stand195.6 x 150.8 x 117.5 mm	Unfold Stand221.8 x 166.7 x 126 mm
Weight (excl.packing)	372 g	533 g
Resolution	800 x 600	800 x 600
Power Input	DC 9V 2.0A	DC 9V 2.0A
Power Consumption	General : 5WPower off : less than 1W	General : 5WPower off : less than 1W
USB	Version 2.0 X 2(up stream (host) X1, down stream (slave) X1)	Version 2.0 X 2(up stream (host) X1, down stream (slave) X1)
Internal Memory	2 GB	2 GB
Supported file format	JPEG, BMP, GIF, PNG	JPEG, BMP, GIF, PNG
Supported Memory Cards	SD ≤ 2GB / SDHC ≤ 32GB / MMC ≤ 2GB / MS ≤128MB / MS-PRO ≤32GB	SD ≤ 2GB / SDHC ≤ 32GB / MMC ≤ 2GB / MS ≤128MB / MS-PRO ≤32GB
AC-DC Adapter	ADS-18C-12N 09018GPG(EU)ADS-18C-12N 09018GPB(UK)ADS-18C-12N 09018GPCU(USA)	ADS-18C-12N 09018GPG(EU)ADS-18C-12N 09018GPB(UK)ADS-18C-12N 09018GPCU(USA)

F7010N/F8010N
* Information in this document is subject to change without notice.

Model	F7010N	F8010N
Size	7"	8"
Dimension (Width x Height x Depth)	Fold Stand195.6 x 161.2 x 29.5 mm	Fold Stand221.8 x 178.3 x 29.5 mm
	Unfold Stand195.6 x 150.8 x 117.5 mm	Unfold Stand221.8 x 166.7 x 126 mm
Weight (excl.packing)	382 g	539 g
Resolution	800 x 600	800 x 600
Power Input	DC 9V 2.0A	DC 9V 2.0A
Power Consumption	General : 5WPower off : less than 1W	General : 5WPower off : less than 1W
USB	Version 2.0 X 2(up stream (host) X1, down stream (slave) X1)	Version 2.0 X 2(up stream (host) X1, down stream (slave) X1)
Internal Memory	2 GB	2 GB
Supported file format	JPEG, BMP, GIF, PNG, MP3, Motion JPEG, MPEG1, MPEG4(SD)	JPEG, BMP, GIF, PNG, MP3, Motion JPEG, MPEG1, MPEG4(SD)
Supported Memory Cards	SD ≤ 2GB / SDHC ≤ 32GB / MMC ≤ 2GB / MS ≤128MB / MS-PRO ≤32GB	SD ≤ 2GB / SDHC ≤ 32GB / MMC ≤ 2GB / MS ≤128MB / MS-PRO ≤32GB
AC-DC Adapter	ADS-18C-12N 09018GPG(EU)ADS-18C-12N 09018GPB(UK)ADS-18C-12N 09018GPCU(USA)	ADS-18C-12N 09018GPG(EU)ADS-18C-12N 09018GPB(UK)ADS-18C-12N 09018GPCU(USA)

Service center

- LG Electronics Service center web site : http://www.lgservice.com

Software Update

- For software update, please refer to www.lge.com

Product Registration

• Visit www.lge.com and register the Serial No. on the product package or the back of the product.
• The Serial No. is a combination of 12 digits with English letters and numbers.
• If you register the Serial No., you can enjoy free A/S service and various events.

LG
