TBS3164X - Blender BEKO - Free user manual and instructions

Product type	Blender
Brand	Beko
Model	TBS3164X
Power	800 W
Bowl capacity	1.5 L
Number of speeds	5 speeds + pulse
Bowl material	Shock-resistant glass
Blades	4-notch stainless steel blades
Dimensions (L x D x H)	20 x 18 x 42 cm
Net weight	2.8 kg
Power supply	220-240 V, 50-60 Hz
Color	Brushed stainless steel
Pulse function	Yes
Crushed ice function	Yes
Safety	Safety lock if bowl is mispositioned
Non-slip feet	Yes
Maintenance and cleaning	Bowl and lid are dishwasher safe
Spare parts and repairability	Replacement bowl available, repairability index 8.2/10
Included accessories	Spatula, recipe book
Warranty	2 years

Frequently Asked Questions - TBS3164X BEKO

How to use the pulse function?

To use the pulse function, briefly press the Pulse button. This allows precise mixing control for preparations like crushed ice or sauces.

Can the bowl go in the dishwasher?

Yes, the glass bowl and lid are compatible with the dishwasher. Remove the blades before washing them by hand.

What to do if the blender does not start?

Check that the bowl is correctly positioned on the base and the lid is tightly closed. The safety lock prevents starting if the parts are not in place.

Can I blend hot foods?

It is not recommended to blend hot liquids (above 60°C) as pressure may cause the lid to pop off. Allow to cool before blending.

How to clean the blades?

The blades are not dishwasher safe. Clean them with warm soapy water using a soft brush. Dry immediately to avoid rust.

What is the maximum liquid capacity?

The maximum capacity is 1.5 liters for liquids and 1 liter for thick preparations. Do not exceed the MAX marking.

The blender makes abnormal noise, what to do?

Check that the blades are not blocked by a piece that is too large. If the noise persists, stop the appliance and contact Beko after-sales service.

How to get crushed ice pieces?

Use the Pulse function for crushed ice. Add ice cubes, press in 2-3 second pulses until desired consistency is reached.

Where to find spare parts?

Spare parts (bowl, lid, seal) are available online on the official Beko website or from authorized dealers. The TBS3164X model has a good repairability index.

What is the motor power?

The Beko TBS3164X blender is equipped with an 800-watt motor, enough to blend fruits, vegetables, and ice.

USER MANUAL TBS3164X BEKO

Line drawing of a blender with handle and side panel (no text or symbols)

TBS3164X

EN FR E\$ TR

DE PL RO IT

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Suitable for contact with food.

Do not immerse the appliance, the power cable, or the power plug in water or any other liquid.

Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

1. Measuring cap
2. Lid
3. Leak-proof gasket
4. Measuring jug
5. Blending shaft
6. Jug placement feet
7. Motor unit
8. On(I) / OFF(O) Speed adjustment knob

9. Pulse button

10. Non-slip feet

11. Cable winding bay
12. Smoothie button
13. Ice button
14. Sauce button
15. Auto clean button
16. Blending accessory

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

In case of lose, break or need replacement for the parts below:

• Jug with top cover - complete set (2,3,4)
• Plunger - black part that you use to shovel fruits/veggies in to the jug from top cover hole (1)
• Set of 4 rubber feet (10)

Technical data

Voltage:220-240V\~50/60 Hz

Power consumption:

1600 W

Rights to make technical and design changes are reserved.

CONTENTS

ENGLISH	6-18
FRANÇAIS	19-33
ESPAÑOL	34-50
TÜRKÇE	51-63
DEUTSCH	64-80
POLSKI	81-100
ROMÂNĂ	101-117
ITALIANO	118-134

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or material damage.

Failure to follow these instructions voids any granted warranty.

1.1 General safety

• Read all instructions.
• This appliance may be used by people whose physical, perceptive or mental skills are impaired or who are inexperienced or not knowledgeable about the appliance as long as they are supervised or informed and made understood the safe use of the appliance and the encountered dangers. Children should not play with the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.

1 Important safety and environmental instructions

• The use of attachments, including canning jars, not recommended by the manufacturer may cause a risk of injury to persons.
• Do not attempt to dismantle the appliance.
• Do not operate or place any part of this appliance or its parts on or near hot surfaces.
• Do not use the device for hot food.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cable.
• Do not touch the plug of the appliance with damp or wet hands.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Hold the blending shaft of the appliance carefully during transportation and cleaning.
• Never touch blades while using the appliance. There is the possibility of injury due to incorrect usage.
• Avoid contacting moving parts.

1 Important safety and environmental instructions

• Do not use outdoors.
• Do not let cord hang over edge of table or counter.
• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running
• Blades are sharp. Handle carefully.
  • Always operate blender with cover in place.
• Do not blend hot liquids.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.
  • After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.

1 Important safety and environmental instructions

• Do not immerse the appliance, the power cable, or the power plug in water or any other liquid.
• If you keep the packaging materials, store them out of the reach of children.
• Children shall not use the appliance. Keep the appliance out of the reach of children.

- SAVE THESE INSTRUCTIONS

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1 Important safety and environmental instructions

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Use

2.1 Initial use

Clean the parts of the appliance prior to initial use (see 3.1).

2.2 Operation

WARNING: Do not operate the appliance when empty.

Maximum temperature allowed inside the appliance is 60^ C.

Line drawing of a modern blender with handle and control knob (no text or symbols)

Place your appliance on a solid and flat surface.

Simple line drawing of a blender with leaves inside, pouring into a container (no text or symbols)

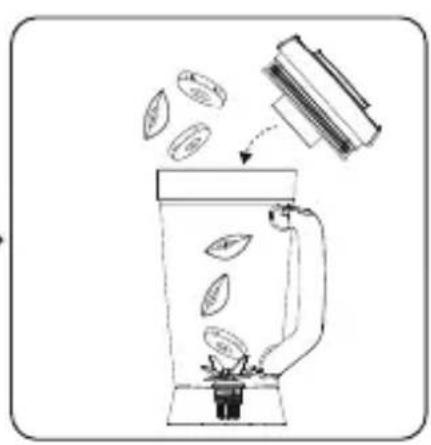

Put the ingredient you want to process into the jug (4) and place the lid (2) on it.

Illustration of a blender with leafy contents inside, showing a lid and control panel (no text or symbols)

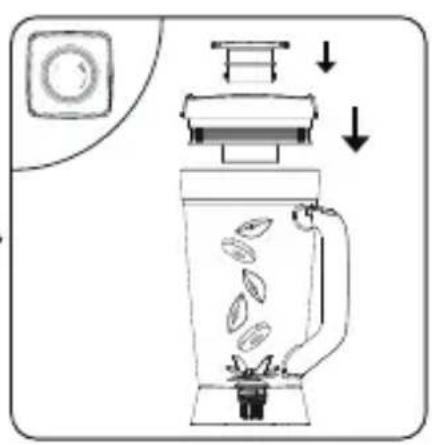

Place the measuring cap (1) on the lid (2) so that the tab on it seats on the slots of the lid, turn it to the "Lock" position and secure.

Put soft foods or liquids before adding hard foods or ice.

2 Use

Adding some water into the appliance will allow it run smoothly (e.g. 40ml water for 60gr solid food). Add the water before the ingredients.

If you want to add food into the jug (4) during the blending process, use the measuring cap (1) inlet. Raise this cap and feed the food in through this opening.

WARNING: Do not insert any foreign objects into the jug (4) when the appliance is in use.

Plug in the appliance and rotate the ON/OFF button (8) to ON (1) position.

Process the ingredients at the desired speed using the speed adjustment knob (8). When the process is complete, rotate the ON/OFF button (8) OFF (0) position and unplug the appliance.

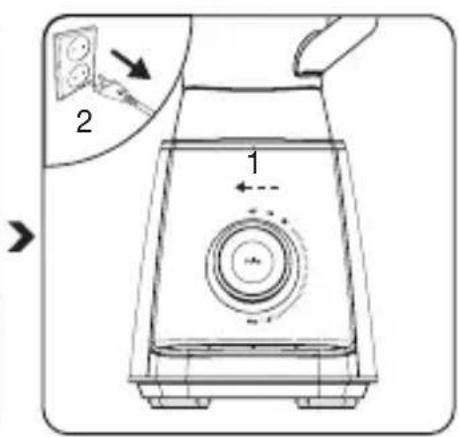

Pull up the jug (4) without turning it to remove it from the motor unit (7). Open the lid (2) and take out the food.

2 Use

You can use the measuring cap (1) or the measuring cap inlet to add ingredients into the jug (4) during the process. To remove the measuring cap, slightly turn it to the "Open" direction and pull gently.

WARNING: Gradually increase the speed of the appliance. Do not operate it at the highest speed suddenly. Otherwise the motor may overheat.

WARNING: Do not run the appliance continuously for more than 2 minutes. Let it cool for 5 minutes before operating it again.

2 Use

2.2.1 Automatic programs

The appliance is equipped with three automatic programs that you can use: Smoothie (12), Ice (13), Sauce (14) and Auto Clean (15).

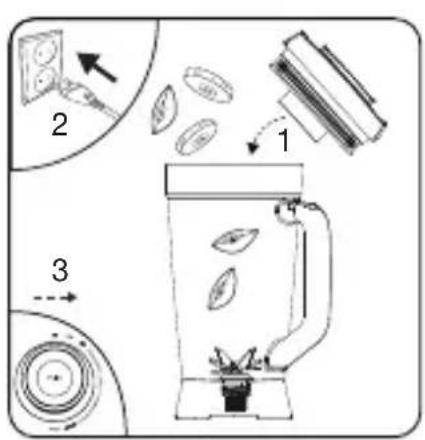

Put the ingredients in the jug (4) and close the lid (2). Rotate the ON/OFF button (8) to ON (1) position.

Select the desired automatic program. The selected program will turn on and the program will start to operate at dierent speeds. It will stop about 26 or 42 seconds later. The light will blink.

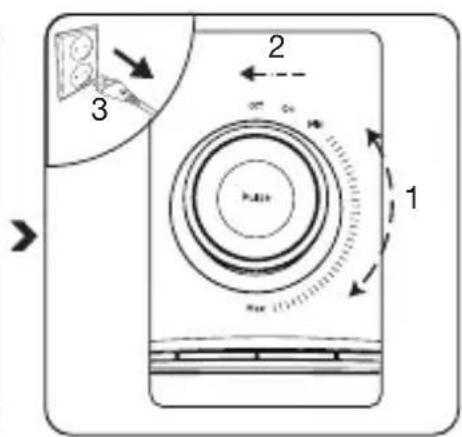

When the process is complete, rotate the ON/OFF knob (8) to OFF (0) position and unplug the appliance.

2.3 "Pulse" position

Press "Pulse" (9) while the speed adjustment knob (9) is in ON (1) position for mixing with high-speed short pulses. The appliance will stop when you release the button.

2.4 Blending accessory

You can use this accessory to put in the jug (4) the ingredients that remain on the sides and have not been blended in the blending process.

2 Use

WARNING: Make sure that the appliance is in OFF (8) OFF (0) position and at full stop while using the blending accessory (16).

If you want to stop the appliance at any time during the operation, rotate the ON/OFF button (8) to OFF (0) position.

2.5 Motor protection

Automatic motor protection will get activated and stop the appliance when the appliance overheats. In this case;

1. Rotate the ON/OFF button (8) to OFF (0) position.
2. Unplug the appliance.
3. Let it cool for 15-20 minutes.

4. Pull up and remove the jug (4).

5. Turn the motor unit (7) upside down and press the "Reset" button on the bottom side of it.

Top-down schematic of a mechanical or electronic component with labeled parts (no text or symbols)

2 Use

If the "Reset" button does not work, let the appliance cool for a bit longer time and try again.

After using the "Reset" button, you can set up and resume using the appliance again.

3 Cleaning and care

3.1 Cleaning

Line drawing of a blender with three handles and a water droplet inside (no text or symbols)

Add 1 or 1 12 cups of lukewarm water and some drops of dish-washing liquid into the jug (4) and use Auto Clean program to operate it for 26 seconds.

Unplug the appliance before cleaning.

Wait for the accessories used to stop completely.

Line drawing of a blender with an arrow indicating motion (no text or symbols)

Pull up the jug (4) to remove it from the motor unit (7).

Simple line drawing of a blender with a faucet and water droplets (no text or symbols)

Then rinse it.

You can wash the jug (4) and the caps/lids (2) in your dishwasher. It is recommended to clean the appliance immediately after using.

3 Cleaning and care

WARNING: Do not immerse the motor unit (7) in water. You can wipe it with a damp cloth.

3.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance and wait for it to cool completely before storing it.
• Keep the appliance and its accessories in their original packages.
• Store it in a cool, dry place.
  • Always keep the appliance out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Line drawing of a modern blender with handle and control knob (no text or symbols)

Illustration of a blender with leaves being poured into it (no text or symbols)

Illustration of a blender with a lid and leafy contents, showing a step-down process (no text or symbols)

Top-down schematic of a mechanical or electronic component with labeled parts (no text or symbols)

Line drawing of a blender with three blades and a handle, no text or symbols present

Line drawing of a blender with an arrow indicating the process (no text or symbols)

Simple line drawing of a blender with a faucet and water droplets (no text or symbols)

Puis rincez-le.

Symbol of a waste bin crossed out by a diagonal line, with no text or numbers present.

Line drawing of a modern blender with handle and control knob (no text or symbols)

Illustration of a blender with leaves being poured into it, showing the lid and base (no text or symbols)

Top-down schematic of a mechanical or electronic component with no visible text, numbers, or symbols.

2 Uso

Simple line drawing of a blender with a faucet and water droplets (no text or symbols)

Luego enjuáguela.

Line drawing of a modern blender with handle and control knob (no text or symbols)

Line drawing of a blender with leaves being poured into it (no text or symbols)

Illustration of a blender with a lid and leafy contents, showing a drop in the funnel (no text or symbols)

Top-down schematic of a mechanical or electronic component with no visible text, numbers, or symbols.

2 Kullanım

Line drawing of a blender with three handles and a handle, no text or symbols present

Diagram of a blender with an arrow indicating motion, no text or symbols present

Simple line drawing of a watermelon being heated by a faucet (no text or symbols)

Symbol of a waste bin crossed out by a diagonal line, with no text or numbers present.

Line drawing of a modern blender with handle and control knob (no text or symbols)

Simple line drawing of a blender with leaves inside, showing a drop from the top to the side (no text or symbols)

Illustration of a blender with leafy contents inside, showing a lid and control panel (no text or symbols)

Top-down schematic of a mechanical or electronic component with symmetrical slots and mounting holes (no text or symbols)

2 Verwendung

Line drawing of a blender with two handles and a side-mounted blade (no text or symbols)

Diagram of a blender with an arrow indicating rotation (no text or symbols present)

Simple line drawing of a water tap pouring liquid into a blender (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Line drawing of a modern blender with handle and control knob (no text or symbols)

Simple line drawing of a blender with leaves inside, showing a drop from the top to the side (no text or symbols)

Illustration of a blender with leaves inside, showing a lid and control panel (no text or symbols)

Top-down schematic of a mechanical or electronic component with labeled parts (no text or symbols)

2 Użytkowanie

Line drawing of a blender with two handles and a handle, no text or symbols present

Line drawing of a blender with an arrow indicating rotation (no text or symbols)

Simple line drawing of a blender with a faucet and water droplets (no text or symbols)

Symbol of a waste bin crossed out by a diagonal line, with no text or numbers present.

Line drawing of a modern blender with handle and control knob (no text or symbols)

Simple line drawing of a blender with leaves inside, pouring into a container (no text or symbols)

Illustration of a blender with leafy contents inside, showing a lid and control panel (no text or symbols)

Top-down schematic of a mechanical or electronic component with labeled parts (no text or symbols)

2 Utilizare

Line drawing of a blender with three handles and a water droplet inside (no text or symbols)

Line drawing of a blender with an arrow indicating motion (no text or symbols)

Simple line drawing of a blender with a faucet and water being poured into it (no text or symbols)

Apoi clătiți-l.

CERTIFICAT DE GARANTIE

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Line drawing of a modern blender with handle and control knob (no text or symbols)

Simple line drawing of a blender with leaves inside, pouring liquid from a container (no text or symbols)

Illustration of a blender with leafy contents and directional arrows indicating process (no text or symbols)

Top-down schematic of a mechanical or electronic component with labeled parts (no text or symbols)

2 Uso

Line drawing of a blender with two handles and a handle, no text or symbols present

Line drawing of a blender with an arrow indicating motion (no text or symbols)

Simple line drawing of a blender with a faucet and water droplets (no text or symbols)

Poi sciacquare.

Line drawing of a blender with an arrow indicating motion (no text or symbols)

Line drawing of a blender with two handles and a base, no text or symbols present

Simple line drawing of a water tap pouring liquid into a glass pitcher with a small pot nearby (no text or symbols)

ثم اشطفه.

Top-down schematic of a mechanical or electronic component with no visible text, numbers, or symbols.

Line drawing of a blender with two directional arrows labeled 1 and 2 (no text or symbols on the device itself)

Simple line drawing of a steamer with leaves inside, pouring from a container (no text or symbols)

Line drawing of a blender with handle and control knob (no text or symbols)

Line drawing of a modern blender with handle and control panel (no text or symbols)

TBS3164X

AR
