Product Type	Air Vented Tumble Dryer
Brand	Beko
Model	DA 7011 PA
Dimensions (Height Min/Max)	85.6 cm / 86.6 cm
Dimensions (Width)	59.7 cm
Dimensions (Depth)	58.4 cm
Net Weight	32 kg (±4 kg)
Rated Capacity	7 kg
Energy Efficiency Class	C
Annual Energy Consumption	519.5 kWh
Power Consumption (Off-mode)	0.5 W
Power Consumption (Left-on mode)	1.0 W
Voltage	230 V (typical, see type label)
Programs	Cottons Iron Dry, Cottons Eco, Cottons Cupboard Dry, Cottons Extra Dry, Synthetics Iron Dry, Synthetics Cupboard Dry, Jeans, Refresh, Time Programs, Sports, Mix, Hygiene+, Gentle Care/Shirts, Express
Delay Start	3, 6, or 9 hours
Child Lock	Yes
Audible Warning	Adjustable (can be turned off)
Lint Filter	Clean after each use; wash with warm water if clogged

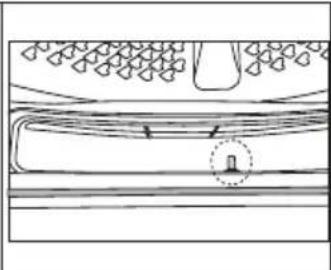

Sensor Cleaning	Clean metal sensors 4 times a year
Condenser	Not applicable (air vented)
Safety Features	Overheating protection, child lock, automatic cool-down
Warranty	10 years availability of spare parts
User Manual Languages	English, Russian, and others available online

Frequently Asked Questions - DA 7011 PA BEKO

What should I do if the drying operation takes too long?

Check if the lint filter is clogged; wash it with warm water. Ensure the ventilation grills are not blocked and the room is well-ventilated. Also, verify that the laundry was spun at a high speed and not overloaded.

Can I dry all types of laundry in this dryer?

No. Only dry laundry with a label indicating it is suitable for tumble drying. Do not dry items with foam rubber, rubber reinforcements, or those soiled with flammable substances.

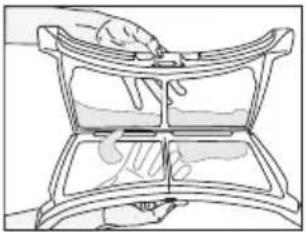

How do I clean the lint filter?

Open the filter cover, remove the filter, and clean lint by hand or with a soft cloth. If clogged, wash with warm water and dry before replacing. Always clean after each drying cycle.

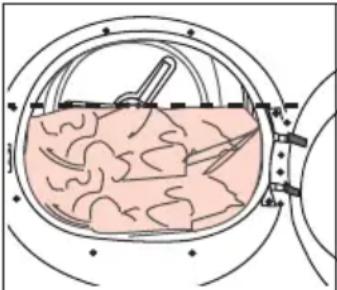

What is the maximum capacity of the dryer?

The maximum dry laundry capacity is 7 kg. Overloading can lead to poor drying results and longer times.

How do I activate the Child Lock?

Press and hold the End Time and Buzzer buttons simultaneously for 3 seconds. The child lock indicator will turn on. To deactivate, repeat the same steps.

Can I open the door during a cycle to add laundry?

Yes. Press Start/Pause to put the machine in standby, then open the door. Add or remove laundry, close the door, and press Start/Pause again. Note that this may increase drying time and energy consumption.

What does the 'Filter Cleaning' warning mean?

It indicates that the lint filter needs cleaning. Clean the filter and check for blockages. If the light remains on, wash the filter with warm water.

How do I use the End Time delay function?

Select a drying program, then press the End Time button repeatedly to choose a delay of 3, 6, or 9 hours. Press Start/Pause to begin the countdown. The program will start at the set time.

What should I do if the dryer does not start?

Check that the power cord is plugged in, the loading door is securely closed, and a program is selected. Also ensure the child lock is not activated. If the problem persists, contact an authorized service.

How do I change the illumination lamp in the dryer?

The lamp is not user-serviceable. Contact an authorized service agent to replace it. The lamp is designed for durability but may require professional replacement.

USER MANUAL DA 7011 PA BEKO

Simple line drawing of a washing machine with no text or symbols

DA 7011 PA

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

- Read the instructions.

Explanation of symbols

Throughout this user manual the following symbols are used:

DANGER!

- Warning against electric shock.

DANGER!

- Warning against fire hazard.

WARNING!

- Warning for hazardous situations with regard to life and property.

WARNING!

- Warning against hot surfaces.

WARNING!

- Warning against scalding hazard.

NOTE

- Important information or useful hints about usage.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Important instructions for safety and environment

NOTE

- This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

WARNING!

The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone. Children of less than 3 years should be kept away unless continuously supervised.

- Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.

WARNING!

Always have the installation and repairing procedures carried out by the Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

- Never wash the dryer by spraying or pouring water onto it! There is the risk of electric shock!

For the products with a steam function:

WARNING!

• Use only distilled water or water condensed in the water tank of the machine in steam programs. Do not use mains water or additives. When using condensed water in the water tank, it should be filtered and cleared of fibres.
• Do not open the door when steam programs are running. Hot water may be expelled.
• Before putting laundry in a steam program, stains on it should be removed.
• You may only put laundry that is not dirty or stained but permeated with unpleasant odour in steam (odour removal) program.
• Do not use any dry cleaning sets or additional materials in a steam program or in any program.

1.1.1 Electrical safety

DANGER!

• Electrical safety instructions should be followed while electrical connection is made during the installation.
• The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by utility.
• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.

DANGER!

• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
• Power cable plug must be easily accessible after installation.
• Damaged mains cable should be changed notifying the Authorized Service.
• If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

1.1.2 Product safety

DANGER!

• Superheating of the clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running, this concentration of heat can cause self-combustion and fire so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat.

DANGER!

Points to be taken into consideration for fire hazard:

Below specified laundry or items must not be dried in the dryer considering fire hazard.

• Unwashed laundry items
• Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.
  For this reason especially the items containing the above specified stains must be washed very well, to do this use adequate detergent and choose a high washing temperature.

Below specified laundry or items must not be dried in the dryer due to the fire hazard:

- Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.

Clothing cleaned with industrial chemicals.

Items such as lighter, match, coins, metal parts, needle etc. may damage the drum set or may lead to functional problems. Therefore check all the laundry that you will load into your dryer.

DANGER!

• Never stop your dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to dissipate the heat.
  • Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.
• You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

WARNING!

- Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.

NOTE

- Use softeners and similar products in accordance with the instructions of their manufacturers.

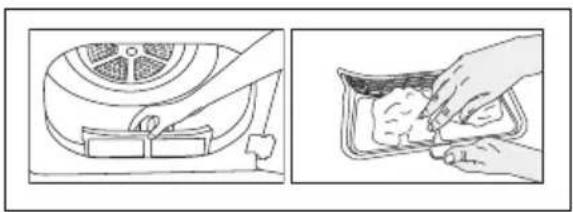

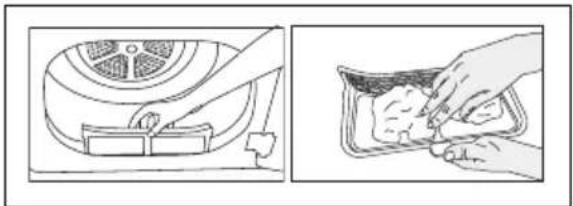

Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

WARNING!

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
  • Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Fabric softeners, or similar products. should be used as specified by the fabric softener instructions.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

1.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

WARNING!

- Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62 cm	60 cm	54 cm	50 cm v
54 cm	Can be installed			Cannot be installed
60 cm	Can be installed		Cannot be installed

1.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

1.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.

NOTE

Child-proof lock is on the control panel. (See Child lock)

- Keep loading door closed even when the dryer is not in use.

1.5 Compliance with the WEEE regulation and disposing of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality

parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.6 Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.7 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.8 Technical Specifications

EN

Height (Min. / Max.)	85,6 cm / 86,6 cm*
Width 59,7 cm
Depth 58,4 cm
Capacity (max.) 7 kg**
Net weight (± 4 kg)	32 kg
Voltage	See type label***Ra
Model code

ted p

* Min. height: Height with adjustable feet are closed.
Max. height: Height with adjustable feet are opened maximum.
** Dry laundry weight before washing.
*** Type label is located behind the loading door.

NOTE

• Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
• Figures in this manual are schematic and may not match the product exactly.
• Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

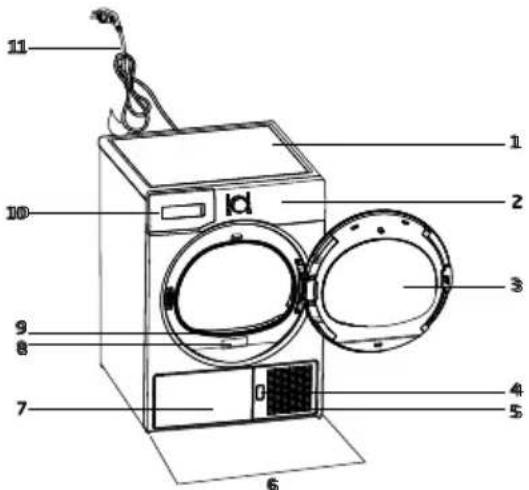

2.1 Overview

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. In models where the tank is placed below, the water tank is inside the toe board
8. Type label
9. Lint filter
10. Water tank drawer (in models where the tank is placed above)
11. Power cord

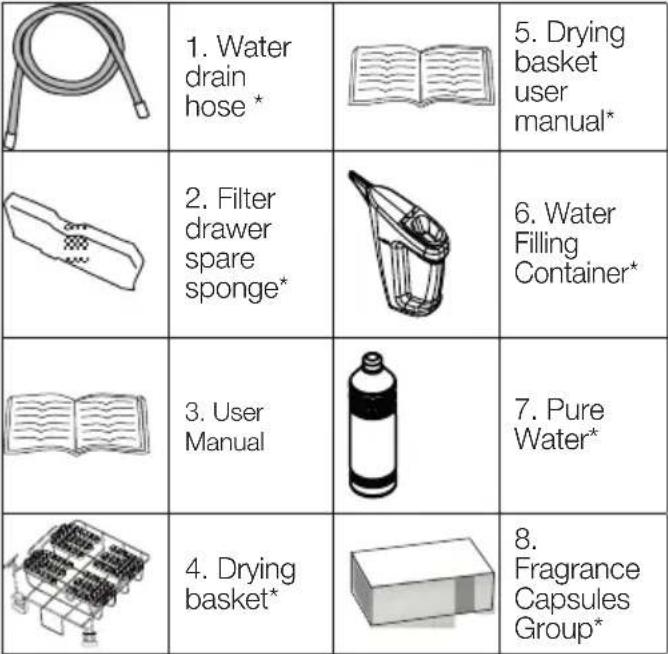

2.2 Package Contents

*Optional - may not be included, depends on model.

3 Installation

Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user's manual. If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

NOTE

- Preparation of location and electrical installation for the product is under customer's responsibility.

DANGER!

• Installation and electrical connections must be carried out by a qualified personnel.

WARNING!

- Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products will cause risks for your safety.

3.1 Appropriate installation location

• Install the product in an environment which has no risk of freezing and is in a stable and level position.
• Operate your product in a well ventilated, dust-free environment.
• Do not block the air ducts in front of and under the product with materials such as long pile rugs and wooden bands.
• Do not place your product on a long pile rug or on similar surfaces.
• Do not install the product behind a door with a lock, sliding door or a hinged door which can strike the product.
• Once the product is installed, it should stay at the same place where its connections have been made. When installing the product, make sure that the rear wall of it does not touch anywhere (tap, socket, etc.) and also pay attention to install the product at a place where it will stay permanently.

DANGER!

• Do not place the product on top of the power cable.
• Keep at least 1.5 cm distance to walls of other furniture.
• The rear surface of the tumble dryer shall be placed against a wall

3.2 Ventilation hose and connection (for products equipped with an outlet vent)

Ventilation hose allows exhaust air from inside the machine

Vented dryer has 1 air outlet.

Stainless sheet metal or aluminum pipes can be used instead of a hose. The pipe diameter should be minimum 10 cm.

Maximum hose and pipe lengths are given in the table below.

	Hose Pipe
Maximum length 4 m 5 m
1 elbow 45° -1.0 m -0.3 m
1 elbow 90° -1.8 m -0.6 m
1 elbow 90° short -2.7 m
1 wall passage -2.0 m	-2.0 m

NOTE

• Each elbow and other passages should be subtracted from the maximum length stated above.

To connect a ventilation hose;

1. Connect the air outlet hose to the hose spacer piece by turning it counterclockwise.

2. Make the hose passages as shown below.

NOTE

• Exhaust of humid air from the dryer into the room is inconvenient. It may damage the walls and furniture in the room.
• The ventilation hose can be routed outdoors via a window or it can be connected to the air outlet in the bathroom.
• Air outlet hose must be routed directly to the outdoors. There must be a limited number of elbows as not to hinder ventilation.
• To prevent water accumulation in the hose, make sure that it is not folded on the floor.

Hand holding a cylindrical mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a car, with motion arrows indicating speed (no text or symbols)

Pure mechanical diagram showing a circular component with arrows and hatched sections, no text or symbols present.

DANGER!

• The ventilation hose should not be connected to the chimney of a stove or a fireplace.
• Do not operate your product at the same time with heaters such as a coal or gas stove. Airflow may cause the chimney to flare up.

3.3 Adjusting feet

In order to ensure that your product operates more silently and vibration-free, it must stand level and balanced on its feet. Front feet of your product can be adjusted. Balance the machine by adjusting the feet.

Diagram showing a mechanical or electrical component with rotational arrows, no text or symbols present

1. Loosen the feet by hand.
2. Adjust the feet until the product stands level and firmly on the floor.

NOTE

• Do not use any tools to loosen the adjustable feet, otherwise, they can be damaged.
• Never remove the adjustable feet from their housings.
• You may supply 2 plastic pieces from an Authorized Service with 2951620100 part number. These parts prevent your machine from slipping when the machine locates on wet and slippery surfaces. You may assemble mentioned parts to the front adjustable feet by fitting and pressing them to snap into ground of feet.

3.4 Transportation of the machine

1. Unplug the machine from the mains.
2. Remove the water drain (if any) and chimney connections.
3. Drain water remained in the machine completely before transportation.

3.5 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer. To change the Bulb/LED used for illumination of your tumble dryer, call your Authorized Service. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place laundry in the tumble dryer in a comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as vibrations and temperatures above 50 °C

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer.

4.2 Laundry not suitable for drying in the dryer

Items with this symbol dried in the dryer.

should not be

NOTE

- Delicate embroidered fabrics, woollen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

4.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

4.4 Things to be done for energy saving

- Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.

- Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and tableclothes dries earlier than thick bathroom towels.

- Follow the instructions in the user manual for programme selection.

- Do not open the loading door of the machine during drying unless necessary. If you must open the loading door, do not keep it open for a long time.

- Do not add wet laundry while the dryer is in operation

• For models with a condenser unit: clean the condenser once in a month or after every 30 operations regularly.
• Clean the filter periodically. Read the Maintenance and cleaning of filters for detailed information.
• For models with flue unit: comply with the flue connection instructions and clean the flue.
• During the drying process, air the room well where your tumble dryer is operating.

4.5 Correct load capacity

Diagram of a biological or medical procedure inside a circular chamber, showing internal tissue and surgical instruments (no text or labels)

Follow the instructions in the “Programme selection and consumption table”. Do not load more than the capacity values stated in the table.

Following weights are given as examples.

Laundry	Approximate weights (g)*	Laundry	Approximate weights (g)*
Cotton quilt covers (double)	1500 Blouses	150
Cotton quilt covers (single)	1000 Cotton shirts	300
Bed sheets (double)	500 Shirts	250
Bed sheets (single)	350	Cotton dresses	500
Large tablecloths	700 Dresses	850
Small tablecloths	250 Jeans	700
Tea napkins	100	Handkerchiefs (10 pieces)	100
Bath towels	700 T-Shirts	125
Hand towels	350

*Dry laundry weight before washing.

5 Operating the product

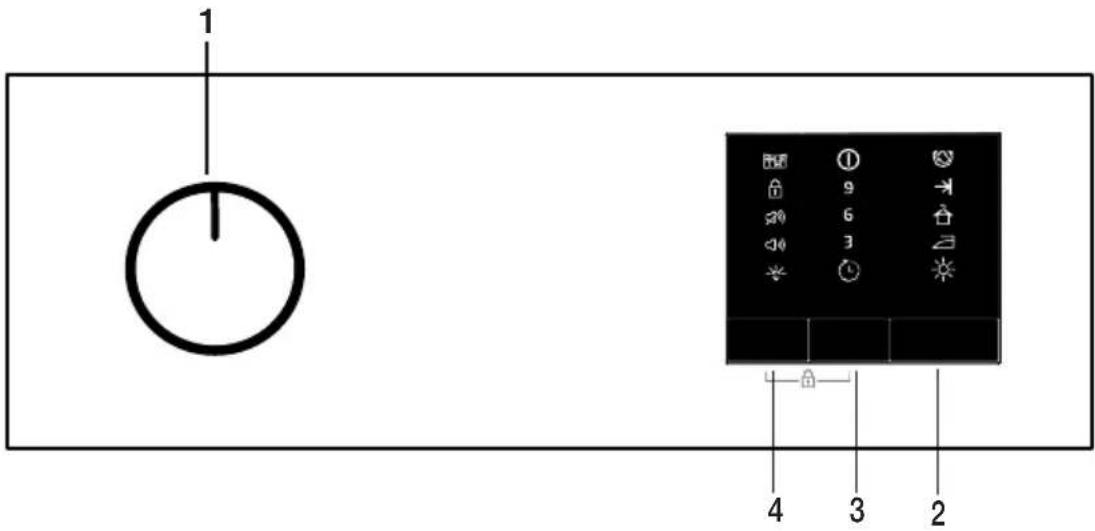

5.1 Control Panel

1. On/Off/Programme selection button

2. Start/Pause button

3. End Time button

4. Audio warning level button

5.2 Symbols

5.3 Preparation of drying machine

- Plug the drying machine.

- Open the loading door.

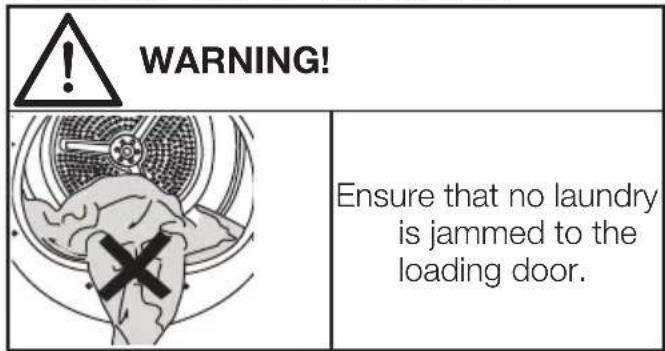

- Place the laundry to the drying machine without jamming them.

- Push and close the loading door.

Select the desired programme using the On/Off/Programme selection knob, the machine will turn on.

NOTE

- Selecting a programme using the On/Off/Programme selection button does not mean that the programme started. Press the Start / Stand-by button to start the programme.

5.4 Programme selection and consumption table

EN
Programmes Programme Description		Capacity (kg)	Spin speed in washing machine (rpm)	Drying Time (minutes)
Cottons Iron Dry		You may dry your cotton laundry to be ironed in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	7 1000	100
Cottons Eco		You may dry all your cotton laundry in this program. (T-shirt, pants, pyjamas, baby clothes, underwear, linen, etc.) You can put your laundry in the wardrobe without ironing.	7 1000	135
Cottons Cupboard Dry		You may use this program for extra dryness in thick laundry such as pants, tracksuit. You can put your laundry in the wardrobe without ironing.	7 1000	140
Cottons Extra Dry		You may dry your thick cotton laundry in this program such as towels, bathrobe, etc. You can put your laundry in the wardrobe without ironing.	7 1000	145
Synthetics Iron Dry		You may dry your synthetic laundry to be ironed in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	3,5 800	40
Synthetics Cupboard Dry		You may dry all your synthetic laundry in this program. (Shirt, T-shirt, underwear, tablecloth, etc.) You can put your laundry in the wardrobe without ironing.	3,5 800	50
Jeans		You may dry denim pants, skirts, shirts or jackets in this program.	4 1200	90
Refresh		Ventilates for 10 minutes without blowing hot air. You can ventilate the cotton and linen clothes that have been enclosed for a long time with this program to remove their odour. You can use this program to ventilate and soften wool laundry that can be washed in a washing machine. Do not use for full drying.	-- 10
Time Proggammes		You may select from time programmes between 10 and 30 minutes to achieve the desired drying level at low temperature. In this programme, tumble drier's operation lasts for the set time independently from the dryness of laundry.	---
Sports		Use it to dry your clothes made of synthetics, cotton or mixed fabrics or waterproof products such as functional jacket, raincoat etc. Turn them inside out prior to drying.	2 1000	50
Mix		You can dry both cotton and synthetic laundry with this programme.Sports and fitness clothes may be dried with this program.	4 1000	85
Hygiene +		It is a long-term program that you can use for the clothes (baby clothes, towels, underwear, etc. cotton) you require hygiene. Hygiene is provided with high temperature. It is especially suitable for durable fabrics. ((This program is identified and approved by England's "The British Foundation" (Allergy UK).))	5 800	170
Gentle Care / Shirts		It dries the shirts in a more sensitive manner, and causes less creasing and easier ironing.	1,5 1200 28
Express		You can use this program to dry your cotton laundry that you have spun at high speeds in your washing machine.	0,5 1200 35
Energy consumption values
Programmes Capacity (kg)			Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons Eco * 7 1000 60% 4,25
Cottons Iron dry 7 1000 60% 3,40
Synthetics cupboard dry 3,5 800 40% 1,99
		"Cottons Eco programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet Cottons laundry and that it is the most efficient programme in terms of energy consumption for Cottons.

* : Energy Label standard programme (EN 61121:2012)
All the values on the chart are identified according to EN 61121:2012 standard. Consumption values may vary from the values in the chart depending on laundry type, wringing speed, ambient conditions and voltage levels.

Allergy UK is the brand of the British Allergy Association. Seal of Approval is created to guide people that require recommendation about a product that the related

product restricts / reduces / eliminates the allergens or reduces the allergen content significantly in the ambient where allergy patients exist. It aims to provide assurance that the products are tested scientifically or examined in a way to provide measurable results.

5.5 Auxiliary functions Audible warning

Drying machine makes an audible warning when the programme is completed. If you don't want it to make an audible warning, press the "Buzzer" button. When you press the Buzzer button, a light will illuminate and no audible warning will be made when the programme ends.

NOTE

- You can select this function before or after the programme starts.

End time

If you prefer to dry your laundry at a later time, you can delay start time of the programme up to 3 hours, 6 hours or 9 hours using the Delay function.

Open the loading door and place the laundry. Select the drying programme.

Press the End Time selection button and set the delay time you wish. When the End Time button is pressed once, 3 hours delay is selected and the delay indicator will light up. If you press the same button again, 6 hours delay will be selected and when you press for the third time, 9 hours delay will be selected. If you press the End Time button once again, the delay will be cancelled.

After the End Time selection is made, start delayed running for the programme selected pressing the "Start/Stand-by" button.

NOTE

- You can add or remove laundry within end time. At the end of the Time Delay countdown, the Time Delay warning indicator turns off and drying begins

Changing the end time

If you want to change the duration during the countdown:

Cancel the programme by turning the On/Off/Programme selection knob. Select the programme you want and repeat the End Time selection process.

Cancelling the end time function

If you want to cancel the end time countdown and start the programme immediately:

Cancel the programme by turning the On/Off/Programme selection knob. Select the programme you want and press the Start/Stand-by button.

5.6 Warning indicators

NOTE

- Warning indicators may vary depending on the model of your dryer.

Filter cleaning

When the programme is completed, the warning indicator for filter cleaning turns on.

5.7 Starting the programme

Press the Start/Stand-by button to start the programme.

Drying indicator will light up, indicating that the programme has started.

5.8 Child Lock

The drying machine has a child lock which prevents the programme flow from being interrupted when the buttons are pressed during a programme. When the child lock is activated, all buttons on the panel except the On/Off/Programme selection knob are deactivated.

Press the End Time and Buzzer buttons simultaneously for 3 buttons to activate the child lock.

The child lock has to be deactivated to be able to start a new programme after the current programme is finished or to be able to interfere with the programme. To deactivate the child lock, keep the same buttons pressed for 3 seconds.

NOTE

• When the child lock is activated, the child lock warning indicator on the screen turns on.
• Child lock deactivates when the drying machine is turned off and on by the On/Off/Cancel knob.

When the child lock is active:

When the drying machine runs, or in stand-by state, the indicator symbols won't change upon changing the position of the programme selection knob.

NOTE

• When the drying machine runs and the child lock is active, it beeps twice when the programme selection knob is turned. If the child lock is deactivated without returning the programme selection knob to its previous position, programme will terminate due to the change in the programme selection knob position.

5.9 Changing the programme after it is started

You can change the programme you selected to dry your laundry with a different programme after the drying machine starts running

• For instance, select Extra Dry programme by turning the On/Off/Programme selection knob to select Extra Dry instead of Iron Dry.
• Press the Start/Stand-by button to start the programme.

Adding and removing clothes during stand-by

If you want to add or remove clothes to/from the drying machine after the drying programme starts:

• Press the Start/Stand-by button to put the drying machine in Stand-by state. The drying operation stops.
• Open the loading door while in Stand-by state, and close the door after you remove or add laundry.
• Press the Start/Stand-by button to start the programme.

NOTE

• Adding laundry after the drying operation starts may cause the dried laundry inside the machine to mix with wet laundry and leave the laundry damp at the end of operation.
• Adding or removing laundry during drying may be repeated as many times as you wish. But this operation continuously interrupts the drying operation, and thus increases programme duration and energy consumption. So, it is recommended to add laundry before the programme starts.
• If a new programme is selected by turning the programme selection knob while the drying machine is in stand-by, the running programme terminates.

WARNING!

- Do not touch the inner surface of the drum while adding or removing clothes during a continuing programme. The drum surface is hot.

5.10 Cancelling the programme

If you want to cancel the programme and terminate the drying operation for any reason after the drying machine starts running, turn the On/Off/Cancel knob, the programme will be cancelled.

WARNING!

- The inside of the drying machine shall be extremely hot when you cancel the programme during machine operation, so run the refresh programme to allow it to cool down.

5.11 End of programme

When the program ends, the Last/Anti-Wrinkle and Fibre Filter Cleaning Warning LEDs on the program follow up indicator will illuminate. Loading door may be opened and the dryer machine becomes ready for another run. Bring the On/Off/Programme selection knob to On/Off position to turn the drying machine off.

NOTE

- If the laundry is not removed after the programme is completed, the wrinkle prevention function activates for 2 hours to prevent the laundry inside the machine to get wrinkled. The programme tumbles the laundry with 10-minute intervals to prevent them from wrinkling.

6 Maintenance and cleaning

Lint filter

Lint and fibres released from the laundry to the air during the drying cycle are collected in the "Lint Filter".

NOTE

• Such fibre and lint are generally formed during wearing and washing.
  • Always clean the filter after each drying process.
• You can clean the filter and filter area by vacuum cleaner.

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

Illustration of hands holding a cylindrical device with red arrows indicating rotation or movement (no text or symbols)

Line drawing of a hand holding a curved object with a handle, no text or symbols present

Line drawing of hands cleaning a car air conditioner cover (no text or symbols)

Figure 1

Illustration showing a hand cleaning a kitchen appliance and cleaning a food item (no text or symbols present)

Figure 2

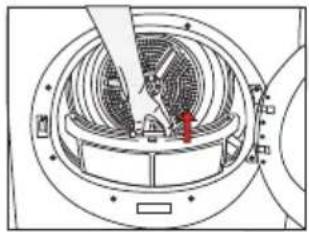

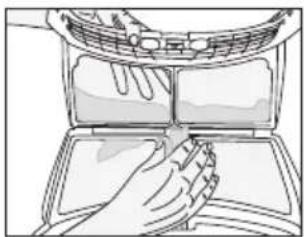

To clean the filter:

1. Take out the cover.
   2.a) If the product's lint filter can be opened as shown in Figure 1, remove the filter by pulling it up and open the filter.
   2.b) If the product's lint filter is as shown in Figure 2, remove the filter by pulling it up.
2. Clean lint, fibre, and cotton raveling on the filter and in the filter housing by hand or with a soft piece of cloth.
3. Close the filter and place it back into its seat.

NOTE

- Clogging may arise on the filter surface after using your machine for some time; if this occurs, wash the filter with water and dry it before using again.

Cleaning the sensors

Technical diagram of a mechanical device with internal components and a red arrow indicating a specific part (no text or symbols present)

Diagram of a vehicle's rearview and side profile with a highlighted section (no text or symbols)

- There are temperature sensor in the dryer that detect whether the laundry is dry or not.

To clean the sensors:

• Open the loading door of the dryer.
• Remove the lint filter by pulling it up.
• Clean the sensor with your hand if any fluff accumulation on it.

NOTE

• Clean metal sensors 4 times a year.
• Do not use metal tools when cleaning the sensor.
• Allow the machine to cool down if it is still hot due the drying process.

WARNING!

- Never use solvents, cleaning agents or similar substances when cleaning since these materials can cause fire and explosion!

7 Troubleshooting

Drying operation takes too long.

Fibre filter pores might be clogged. >>> Wash the filter with warm water.

Filter drawer might be clogged. >>> Clean the sponge and filter cloth (if any) in the filter drawer. (for the products with a heat pump) The condenser might be blocked. >>> Wash the condenser.(for the products with a condenser)

The ventilation grills in front of the machine may be closed. >>>

Remove any objects in front of the ventilation grills that blocks air.

Ventilation may be inadequate because the area the machine is installed in is too small. >>> Open the door or windows to prevent the room temperature from rising very high.

A lime layer may have accumulated on the humidity or temperature sensors. >>> Clean the humidity or temperature sensors.

Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively.

Laundry might not have been wrung adequately. >>> Perform a higher speed wringing on the washing machine.

Clothes come out damp after drying.

A program not suitable for the laundry type may have been used.>>> Check the maintenance labels on the clothes and select a program suitable for the clothes' type or use time programs as extra.

Fibre filter pores might be clogged. >>> Wash the filter with warm water.

The condenser might be blocked. >>> Wash the condenser. (for the products with a condenser)

Filter drawer might be clogged. >>> Clean the sponge and filter cloth (if any) in the filter drawer.(For the products with a heat pump) Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively.

Laundry might not have been wrung adequately. >>> Perform a higher speed wringing on the washing machine.

Drying machine does not turn on or program cannot be started. Drying machine does not run after it is configured.

Power plug might be unplugged. >>> Make sure the power cord is plugged in.

Loading door might be open. >>> Ensure that the loading door is properly closed.

A program might not be set or Start/Stand-by button might not be pressed. >>> Check that the program is set and it is not in Stand-by position.

Child lock may be activated. >>> Turn off the child lock.

Program terminated prematurely for no reason.

Loading door might not be closed completely. >>> Ensure that the loading door is properly closed.

There might be a power outage. >>> Press the Start/Stand-by button to start the program.

Water tank may be full. >>> Empty the water tank.

Clothes have shrunk, hardened or spoiled.

A program not suitable with the laundry type might have been used. >>> Check the maintenance labels on the clothes and select a program suitable for the clothes.

The lighting inside the drying machine does not turn on. (For models with a lamp)

Drying machine might not be turned on with the On/Off button or program might not be selected for machines without an On/Off button. >>> Make sure that the drying machine is turned on. Lamp might be malfunctioning. >>> Contact Authorized Service to replace the lamp.

Filter cleaning warning symbol/LED is on/flashing.

Fibre filter might not be cleaned. >>> Clean the filter.

The filter slot might be clogged with lints. >>> Clean the filter slot. A layer of fluff might have accumulated clogging up the lint filter pores. >>> Wash the filter with warm water.

The condenser might be blocked. >>> Wash the condenser.

Water drips from the loading door.

Fibres might have gathered on the inner sides of the loading door and the loading door gasket. >>> Clean the inner surfaces of the loading door and the loading door gasket surfaces.

Loading door opens by itself.

Loading door might not be closed completely. >>> Push the loading door until the closing sound is heard.

Water tank warning symbol / led is on/flashing.

Water tank may be full. >>> Empty the water tank.

Water discharge hose might have collapsed. >>> If the product is connected directly to the water drain check the water discharge hose.

Steam symbol is flashing.(For the products with a steam function)

Steam tank may be empty => Fill the steam tank with distilled or condensed water.

Steam programs do not start (For the products with a steam function)

Steam tank may be empty, steam tank warning icon may light up on the screen => Fill the steam tank until the steam icon goes off.

Wrinkles are not removed with wrinkle removing program. (For the products with a steam function)

Excess amount of laundry may have been placed => Place specified amount of laundry.

Steam application time may be selected in low level => Choose a program with high amount of steam.

After completion of the program, the laundry may have stayed in the machine for a long time => Take the laundry out as soon as the program finishes, and hang it out.

Laundry odour not lessened with the odour removal program.(For the products with an odour removal program)

Excess amount of laundry may have been placed => Place specified amount of laundry.

Steam application time may be selected in low level => Choose a program with high amount of steam.

WARNING!

- If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself.

NOTE

- In an event that you encounter an issue on any part on your appliance, you can ask for a replacement by contacting the authorized service with the appliance model number.

- Operating the appliance with non-authentic parts may lead the appliance to malfunction.

- Manufacturer and distributor are not liable for malfunctions resulting from using non-authentic parts.

PRODUCT FICHE
Complying Commission Delegated Regulation (EU) No 392/2012
Supplier name or trademark		Beko
Model name		DA7011PA7185901180
Rated capacity (kg)		7.0
Type of Tumble Dryer	Air Vented	●
	Condenser	-
Energy efficiency class (1)		C
Annual Energy Consumption (kWh) (2)		519,5
Type of Control	Automatic	●
	Non-automatic	-
Energy consumption of the standard cotton programme at full load (kWh)		4,25
Energy consumption of the standard cotton programme at partial load (kWh)		2,45
Power consumption of the off-mode for the standart cotton programme at full load, P_0 (W)		0,5
Power consumption of the left-on mode for the standart cotton programme at full load, P_L (W)		1,0
The duration of the left on mode (min)		30
Standard cotton programme (3)
Programme time of the standard cotton programme at full load, T_dry (min)		135
Programme time of the standard cotton programme at partial load, T_dry1/2 (min)		75
Weighted programme time of the standard cotton programme at full and partial load ( T_t )		101
Sound power level for the standard cotton programme at full load (4)		67
Built-in		-

• : Yes - : No

(1) Scale from A+++ (most efficient) to D (least efficient)
(2) Energy consumption based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
(3) "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton
(4) Weighted average value — LWA expressed in dB(A) re 1 pW

Line drawing of a hand holding a coiled pipe or pipe fitting with an arrow pointing to the center (no text or symbols)

Line drawing of a hand holding a car with an arrow indicating motion (no text or symbols)

Pure mechanical diagram showing a circular component with arrows and hatched sections, no text or symbols present.

ОПАСНО!

Diagram of a mechanical or electrical component with curved lines and a central circular component, showing rotational motion (no text or symbols)

Diagram of a human brain inside a circular device with a cross mark, no text or symbols present

Four-step line drawings showing hand tool application on a device, including disc opening and cleaning steps (no text or symbols)

Рисунок 1

Two-step line drawings showing a kitchen appliance being cleaned with food, no text or symbols present.

Рисунок 2

Для чистки фильтра:

Technical diagram of a mechanical component with internal structure and side view (no text or symbols)

Illustration of various kitchen appliances and appliances arranged in a grid, with no visible text or symbols.
