USER MANUAL SL-PJ325A PANASONIC

Operating Instructions

COMPACT DISC DIGITAL AUDIO

Compact Disc Player SL-PJ325A

Panasonic

Before operating this unit, please read these instructions completely.

Dear Stereo Fan

We want to thank you for selecting this product and to welcome you to the growing family of satisfied Panasonic product owners around the world.

We feel certain you will get maximum enjoyment

from this new addition to your home.

Please read these operating instructions carefully, and be sure to keep them handy for convenient reference.

Contents

Accessories 2

Suggestions for Safety 3

Placement 4

Connections 5

Location of Controls 6

Basic Operation 8

Program Play.... 10

Convenient Functions 12

Recording from Compact Discs 14

About Compact Discs 16

Maintenance 17

Technical Specifications 17

Troubleshooting Guide 18

Accessories (Refer to page 5.)

AC power supply cord ..... 1

Stereo connection

cable 1

L-type cable

Cabinet extender 2

Screws 4

Note: The configuration of the AC power supply cord differs according to area.

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

DANGER

INVISIBLE LASER

RADIATION WHEN OPEN

AVOID DIRECT

EXPOSURE TO BEAM

(Inside of product)

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN THE CABINET AND DO NOT ATTEMPT TO REPAIR IT YOURSELF. REPAIRS SHOULD ONLY BE PERFORMED BY QUALIFIED TECHNICIANS.

WARNING: INVISIBLE LASER RADIATION

WHEN OPENING, IF SAFETY

INTERLOCKS ARE DEFEATED.

AVOID EXPOSURE TO RADIATION.

(Inside of the device)

FINNISH

WARNING!

DO NOT OPEN THE COVER.

THE DEVICE CONTAINS A LASER DIODE

THAT EMITS INVISIBLE

LASER RADIATION HAZARDOUS

TO THE EYES.

BEWARE WHEN OPENING AND

BYPASSING THE SAFETY LOCK

you are exposed to

invisible

laser radiation

Suggestions for Safety

Use a standard AC wall outlet

1. Use from an AC power source of high voltage, such as for an air conditioner, is very dangerous. There is the possibility that a fire might be caused by making such a connection.
2. A DC power source cannot be used. Be sure to check the power source carefully, especially on a ship or other place where DC is used.

■ Grasp the plug when disconnecting the power supply cord

1. Wet hands are dangerous. A dangerous electric shock may result if the plug is touched by wet hands.
2. Never place heavy items on top of the power supply cord, and never force it to bend sharply.

AC outlet on rear panel

(not equipped for some countries)

1. Any equipment connected here should have the specified power consumption or less. This outlet is exclusively for the connection of other audio equipment, such as a tape deck. Be sure the power consumption does not exceed the wattage specified near the AC outlet.
2. Never connect other electrical appliances, such as an iron or toaster. If appliance with a large power consumption is connected, an accident might occur as a result of overheating.

Place the unit where it will be well ventilated

Place this unit at least 10 cm (4") away from wall surfaces, etc.

■ Avoid places such as the following:

In direct sunlight or in other places where the temperature is high.

In places where there is excessive vibration or humidity.

Such conditions might damage the cabinet and/or other component parts and thereby shorten the unit's service life.

■ Be sure to place the unit on a flat, level surface.

If the surface is inclined, a malfunction may result.

■ Never attempt to repair or reconstruct this unit.

A serious electric shock might occur if this unit is repaired, disassembled or reconstructed by unauthorized persons, or if the internal parts are accidentally touched.

Take particular care if children are present.

Never permit children to put anything, especially metal, inside this unit. A serious electric shock or malfunction could occur if articles such as coins, needles, screwdrivers, etc. are inserted through the ventilation holes, etc. of this unit.

If water is spilled on the unit.

Be extremely careful if water is spilled on the unit, because a fire or serious electric shock might occur. Immediately disconnect the power cord plug, and consult with your dealer.

■ Avoid spray-type insecticides.

Insecticides might cause cracks or "cloudiness" in the cabinet and plastic parts of this unit. The gas used in such sprays might, moreover, be ignited suddenly.

■ Never use alcohol or paint thinner

These and similar chemicals should never be used, because they might cause flaking or cloudiness of the cabinet finish.

■ Disconnect the power supply cord if the unit will not be used for a long time

If the unit is left for a long time with the power ON, this will not only shorten its useful operation life, but may also cause other troubles.

If trouble occurs

If, during operation, the sound is interrupted or indicators no longer illuminate, or if abnormal odor or smoke is detected, immediately disconnect the power cord plug, and contact your dealer or an Authorized Service Center.

Placement

Before placement

Two transport security devices are secured to prevent the optical pickup from damage during transport.

Be sure to release them before use.

Note:

When transporting the unit, be sure to remove the compact disc from inside the unit. And replace the transport security devices again following the reverse order not to damage the optical pickup.

Notes of placement

This unit is a precision instrument. Be sure to place it on a flat surface. Avoid places such as the following: - Near any equipment or device that generates strong magnetism. *On any heat-generating equipment or device, or in any place where the temperature is high (35°C or higher). - Extremely cold places (5°C or below). - Near a tuner or TV (It may cause noise in the broadcast, or disturbance of the TV picture.) When carrying or storing the unit, handle it with care so it is not subjected to any strong bumps.

Always remove the disc before storing the unit for any period of time.

To avoid problems due to vibration, do not place a book or similar object under this unit. Do not route the connection cables (of this or other units) across the operation panel, across the top, or under the unit.

Connections

Notes:

• Turn power off on all components before making connections.
• See the operating instructions of the compact audio system for details.

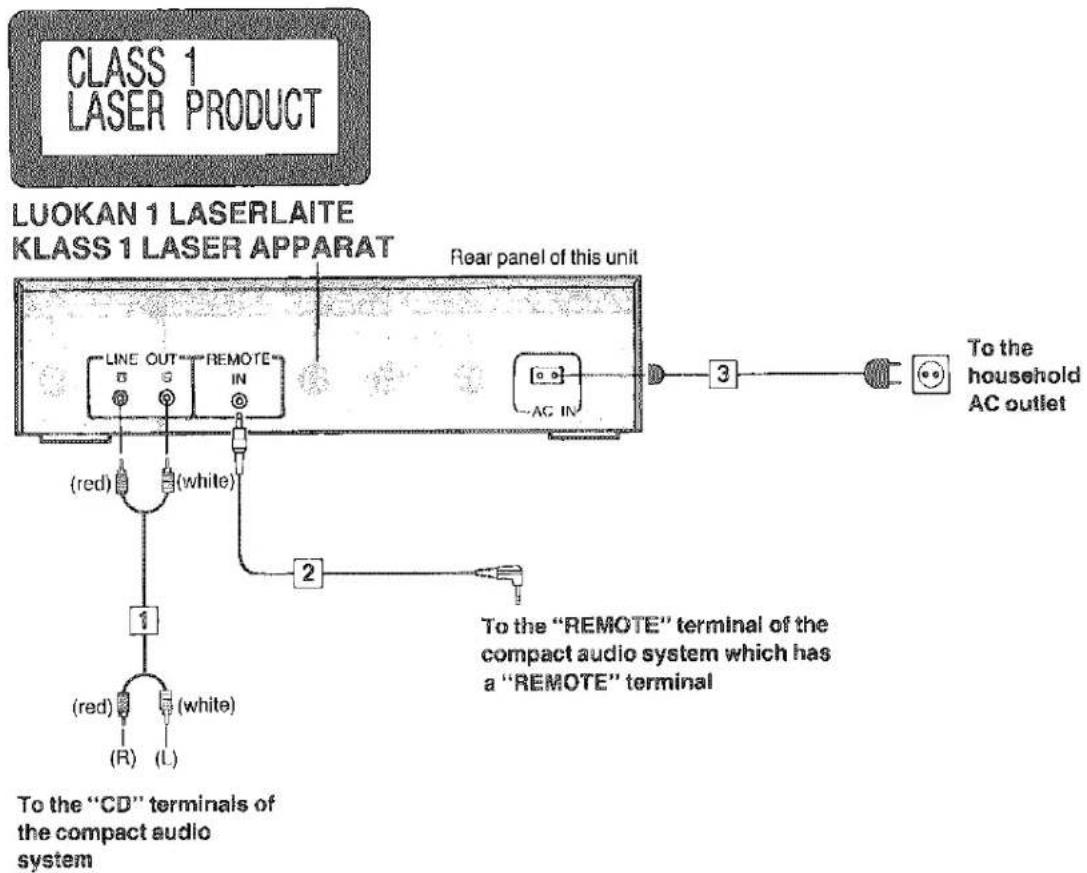

1 Stereo connection cable (included) 2 L-type cable (included)

This cable can be used only with a Panasonic compact audio system having the appropriate "REMOTE" terminal.

3 AC power supply cord (included)

Note:

The configuration of the AC outlet and AC power supply cord differs according to area.

Location of Controls

Control section

① Power switch (POWER) ② Disc holder Time mode select button (TIME MODE) Use this button to select the desired time display mode. Buttons for program function Program play button (PROGRAM)

Pressing this button initiates the program play mode.

You can then enter specific tracks using the skip buttons.

- Clear button (CLEAR)

Each pressing of this button clears one track from the programmed sequence.

⑤ Search buttons (◀◀ SEARCH ▶▶)

These buttons can be used to move rapidly forward or backward on the disc during play. The search speed is slow when the button is pressed at first and becomes faster if the button is pressed and held continuously.

⑥ Skip buttons (◀◀ SKIP ▶▶)

These buttons can be used to specify the number of the desired track and the desired recording time of the tape.

⑦ Repeat button (REPEAT)

⑧ Buttons for CD edit function (CD EDIT)

- Edit tape length button (EDIT TAPE LENGTH)

When compact discs are to be recorded to tape, this button can be used to calculate the number of tracks that can be recorded on each side of the tape, depending on the length of the cassette tape used, so that as little tape as possible is wasted.

• Tape-side select button (TAPE SIDE A/B)

When recording compact discs to tape, this button can be used to check the number of tracks and amount of tape left over for side A or B.

⑨ Auto cue button (AUTO CUE)

Pressing this button causes the unit to skip automatically to the beginning of the next track on the disc and switch to the play standby mode.

⑩ Play button (▶ PLAY)

Pause button (II PAUSE)

⑫ Stop button (☐ STOP)

This button can be used to stop disc playback, as well as to cancel the various play modes.

⑱ Disc holder open/close button (▲ OPEN/CLOSE)

Indicators section

Auto cue indicator (A.CUE) ⑮ Program play indicator (PGM) ⑯ Track number display (TRACK) ⑰ Index/Program number display (INDEX, NO.) ⑱ Time display (MIN, SEC) 19 Repeat indicator (☐) 20 Pause Indicator (III) ② Play indicator (▷) ②2 "Over" mark (▷)

This indicator lights if the total number of tracks on the disc is 17 or more.

Track number indicator (1-16)

②4 Tape side indicator (→A, →B)

25 Compact disc edit indicator (EDIT)

If this unit is connected with a Panasonic compact audio system whose remote control transmitter has ▶/□ button for compact disc operation, the pause function may not be activated by pressing the ▶/□ button during compact disc play.

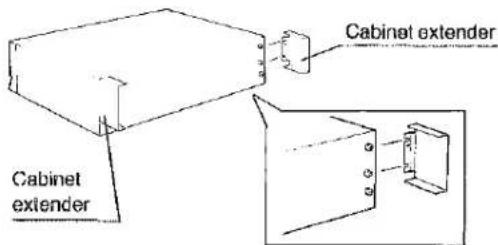

To use the cabinet extenders

If other audio equipment placed on this unit is too large (i.e., the back insulators do not rest on this unit), affix the cabinet extenders to the rear panel.

1. Insert the four screws (included) and tighten them lightly.

1. Secure the cabinet extenders using the four screws.

Basic Operation

Have both of transport security devices been released? (Refer to page 4.)

Normal play

Playing an entire disc from the first track to the last.

Basic operations such as open/close, turning the power ON and OFF are the same for the other play modes as well.

1 Reduce the volume level (at the amplifier), and then switch On the power. 2 Press the open/close button to open the disc holder and Insert a disc. 3 Press the open/close button again to close the disc holder.

Do not stick your finger through the hole in the middle of the disc holder. (It could get caught when the holder closes.)

The total number of tracks on the disc and the total playing time are displayed.

4 Press the play button.

Disc play begins from the first track on the disc.

The unit stops automatically when the last track on the disc finishes playing. (The display returns to the total number of tracks and total playing time indications.) Switch power OFF when finished.

Notes:

• Attempting the change discs while the disc holder is in the process of opening can scratch or damage your discs. The total playing time displayed includes the silent sections between tracks. For this reason, it may differ by a few seconds from the playing time printed in the disc's liner notes.

To stop disc play

Press the stop button.

The unit switches to stop mode and the total number of tracks and total playing time are displayed.

To temporarily stop disc play

Press the pause button.

Press the play button to resume playback.

Time mode display

Each time the time mode select button is pressed during play or when the unit is in pause mode, the display changes as follows.

While the track number 21 or higher is playing:

The "----:" indication will be shown on display ③.

Program Play

This function allows you to program up to 20 tracks on the disc in any order you choose.

1. Press the program button.

2. Specify the desired tracks using the skip button(s).

For example, to specify track 3: Press the skip button (▶▶) three times.

3. Press the program button.

Repeat steps 2 and 3 to add track numbers.

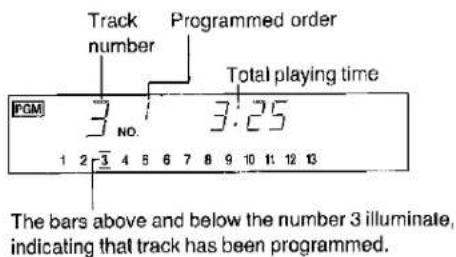

The programmed order counts up and the playing time for each new track is added to the total playing time.

• If the total playing time exceeds 99 minutes or the track number 21 (or higher) has been specified, the display reads "——:——".
• When the 21st program has been performed, “-F” (full) appears on the display, indicating that no more tracks can be added to the programmed sequence.
• Track numbers not actually on the disc cannot be programmed.

4 Press the play button.

The programmed sequence is played beginning from the first track you entered.

●The unit stops automatically when all the programmed tracks have finished playing.

To cancel program play, press the program button.

You can also cancel program play by pressing the stop button in the stop mode.

To specify the same track number successively

Press the skip button (▶▶| or ◀◀) to move to the other track than the desired one. Then press the skip button (▶▶| or ◀◀) again to return to the desired track.

For example, to play tracks 3, 12 and 2 in that order.

To clear programmed tracks, press the clear button in the stop mode.

The last track in the play sequence is canceled each time you press the clear button.

■ Special operations using program play

The following functions operate differently during program play than during normal play.

Total elapsed time display/ Total remaining time display	The total elapsed time and remaining time of the tracks in the programmed sequence only are displayed.
Skip play	Skipping is between the numbers in the programmed sequence.(Press 2 times)
Search play	Searching is only possible within the track currently in play.
Repeat play	The programmed sequence only is repeated.

Convenient Functions

Skip play

This function allows you to skip to the beginnings of tracks preceding or following the track in play and begins play immediately. It is a good idea to keep an eye on the track number display when using this function.

To skip forward, press the skip button (▶▶▶). The unit skips ahead one track each time the button is pressed.

For example, to skip from track 3 to track 5:

To skip backward, press the skip button (◀◀). The first time the button is pressed, the unit skips back to the beginning of the track in play. Then it skips back one track for each additional press.

For example, to skip from track 5 to track 3 during play:

*You can also skip tracks when the unit is in the pause mode. The unit skips to the track selected and remains in the pause mode.

Search play

This function allows you to search rapidly forward or backward on the disc for specific sections.

To search forward, press the search button (▶▶).

The unit begins searching in a forward direction.

To search backward, press the search button (◀◀).

The unit begins searching in a reverse direction.

*Sound from the disc can be heard as the pickup moves. The output level at this time is decreased by 12 dB (1/4) compared with the normal level. The search speed is slow when the button is pressed at first and becomes faster if you keep it pressed down. Release the button when you reach the desired point on the disc. *You can also search when the unit is in the pause mode. When the search button is released, the unit returns to the pause mode.

Repeat play

This function allows you to repeat the entire disc or the tracks in the programmed sequence.

Press the repeat button.

- Pressing the repeat button again cancels the repeat play.

Auto cue

The auto cue function allows the unit to wait in the standby condition at the beginning of each track so as to start play right when you are ready.

When each track finishes playing the unit skips to the beginning of the next track and switches to the play standby mode. This function is especially convenient when used together with program play.

1 Press the auto cue button. 2 Press the play button.

The unit switches to the play standby mode.

3 Press the play button again to start play.

- Pressing the auto cue button again cancels auto cue.

Note:

The auto cue function may not function at the beginning of track properly if a selection begins with a very soft passage or if there is a lot of background noise.

Recording from Compact Discs

If the edit function of this unit is used when recording from compact discs to tape, the tracks can be recorded on the two sides (sides A and B) of the tape, considering the length of the tape used, so that there is no interruption of tracks at the end of one tape side.

Automatic edit (calculation)

The unit automatically calculates how many tracks will fit on a given tape side and programs them for you automatically.

- When you want to record programmed tracks, first program tracks in memory using the program play procedure (see page 10.) Then press the edit tape length button.

1 Press the edit tape length button to select the tape length.

Each time the button is pressed the tape length indicator changes as follows. Choose the length of the tape you will use.

To see the data of side B, press the tape-side select button.

2 Press the play button at the same time you begin recording on the cassette deck.

The recording begins from side A.

When the tracks programmed for tape side A have finished playing, the unit searches for the beginning of the first track to be recorded on side B and switches to the pause mode. Turn over the tape and start recording for side B.

*During recording, silent gaps of approximately 3 seconds are inserted between tracks automatically (auto space function).

Note:

According to the discs, the little sound of the beginning of the next track may be recorded onto the end of the track.

Notes:

- The maximum allowable playing time for editing is 99 minutes. - When the track number 21 (or higher) is specified, the edit function does not work.

To cancel the edit mode, press the stop button after recording is finished.

To select your desired recording time

Press the edit tape length button 4 times to select "C----". Then keep pressing the skip button(s) to specify the tape's total recording time in minutes (1–99).

For example:

When the total recording time of the tape to be used is 52 minutes, keep pressing the skip button (▶▶) until the display shows "C-52".

If you go past the desired number, return the number using the skip button (◀◀).

Manual edit (calculation)

This function allows you to add selections one by one to each tape side and check the time remaining after each entry in order to minimize wasted tape.

1 Press the edit tape length button to select the tape length.

The automatic editing functions and the tracks are programmed on the both tape sides A and B.

Then you can perform the clearing or adding to the programmed tracks as well as in the program play mode.

2 Press the clear button until "0" appears in the track number display.

3 Enter the desired track numbers for side A following the programming procedure.

(See Page 10.)

For example, if you enter tracks 3, 10 and 7:

Bars for tracks reserved for side A illuminate.

• If the remaining tape is not sufficient to hold the last track programmed, a negative number will be displayed. In this case, press the clear button to cancel the last track in the sequence from memory and enter a track which better matches the remaining time. The -3-second silent gaps which are automatically inserted between tracks are included in the remaining time.

4 Press the tape-side select button to switch to tape side B.

5 Press the clear button until "0" appears in the track number display. 6 Enter the desired track numbers for side B following the programming procedure. (See page 10.) 7 Press the play button at the same time you begin recording on the cassette deck.

Notes:

The maximum allowable playing time for editing is 99 minutes. More than 20 programs cannot be edited. When the track number 21 (or higher) is specified, the edit function does not work.

About Compact Discs

Noise can be caused if the disc is dirty, scratched, warped, etc. Please note the following points.

Compact Disc Identification...

Use compact discs bearing this mark.

Storage hints

Be sure to use the special case.

Avoid storing discs in the following places:

• Near heating equipment and places where the temperature is high.
• Places where there is high humidity or excessive dust.
• Places exposed to direct heat from heating equipment, etc.

Be especially careful not to leave discs near the front or rear windows in a vehicle, or inside the dashboard.

Handling cautions

On the label of compact discs

Do not write with a ballpoint pen, etc. on the label. - Do not attach any type of paper, label, etc.

Handling notes

Take care not to scratch the disc surface by a fingernail etc. when handling the disc.

Removal of the disc from the

case

① Holding the top at both sides, ② Gently press the sides of the top to open. ③ Press the center holder. ④ Lift by the edges. (Don't touch the recorded surface.)

Center holder

How to hold the disc

Hold the disc at its

edges. (Don't touch the surface, because fingerprints will remain.)

Label

When storing the case

① Insert with the label facing up.

② Press down at the center.

Maintenance

If discs are dirty...

Clean with a soft, damp cloth, and wipe until dry.

Always wipe from the center outward.

Noise can be caused by scratches.

If condensed moisture is on the disc surface...

If condensed moisture forms on the disc surface (such as when it is brought from a cold place to a warm place), wipe the moisture away using a soft, dry cloth.

Don't use the following...

• Anti-static cleaners, etc., such as those used on ordinary phonograph records. ● Benzine, paint thinner, or any other solvents. ● Never dry using a hair dryer, etc.

Maintenance

To clean this unit, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped into a soap-and-water solution or a weak detergent solution. Wring the cloth well before wiping the unit. Wipe once again with a soft, dry cloth.

Never use alcohol, paint thinner, benzine, nor a chemically treated cloth to clean this unit.

Such chemicals may damage the finish of your unit.

Technical Specifications

Audio

No. of channels

Frequency response

Output voltage

Dynamic range

S/N ratio

Total harmonic distortion

Wow and flutter

Output impedance

Load impedance

2 (left and right, stereo)

2-20,000 Hz, ±0.8 dB

2 V (at 0 dB)

92 dB

96 dB

0.01% (1 kHz, 0 dB)

Below measurable limit

Approx. 600Ω

More than 10 kΩ

Pickup

Wavelength

780 nm

General

Power supply

AC 50/60 Hz, 230 V

Power consumption

10 W

Dimensions (W×H×D)

360 × 96 × 280 mm

Weight

3.3 kg

Note:

Specifications subject to change without notice.

Weight and dimensions shown are approximate.

Troubleshooting Guide

Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.

If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized Service Centers (enclosed with this unit) to locate a convenient service center, or consult your dealer for instructions.

Problem	Probable cause(s)	Suggested remedy
The disc holder does not open smoothly when the open/close button is pressed.	The transport security devices are locked.	●Release them.
The disc is inserted but the total number of tracks and total playing time are not displayed.	The disc is upside down.	●Check to be sure the label is facing upward.
	The disc is dirty.	●Wipe it with a soft cloth.
	The disc is scratched.	●Replace with a new disc.
	The disc is warped.
	The disc is not within specified standards.	●Exchange the disc for another one.
	Moisture has condensed in the unit.	●Switch ON the unit and wait about one hour before using the unit.
	Disc of the 8-cm size and 12-cm size are in the tray together.	●Take out a disc of one size or the other.
A certain MUSIC PASSAGE can't be played correctly.	The disc is dirty.	●Wipe it with a soft cloth.
	The disc is scratched.	●Replace it with a new disc.
There is noise from the tuner or disturbance on the TV screen.	Caused by high-frequency signals of this unit.	●Use this unit farther away from the tuner or TV.●If the tuner's or TV's antenna is the indoor type, use an outdoor antenna.

About moisture

Moisture may form on the lens in the following cases...

Immediately after a heater has been turned on.

In a steamy or very humid room.

When the unit is suddenly moved from a cold environment to a warm one.

If moisture forms inside this unit, it may not operate properly. To correct this problem, turn on the power and wait about one hour for the moisture to evaporate.
