Product Type	Central heating boiler (gas-fired, wall-mounted)
Brand	Baxi
Model	Solo 3 PFL 60
Heat Output	24 kW (approx. 82,000 Btu/h)
Dimensions (H x W x D)	780 x 450 x 330 mm
Weight	35 kg
Power Supply	230 V ~ 50 Hz
Electrical Power Consumption	150 W
Gas Type	Natural gas (G20) or LPG (G31) with conversion kit
Functions	Central heating only (no domestic hot water production)
Energy Efficiency Class	C (typical for older models)
Flue Type	Room-sealed concentric flue (optional flue kits available)
Water Pressure	1.0 - 2.0 bar (operating)
Safety Features	Overheat protection, frost thermostat, pressure relief valve, flame failure device
Maintenance	Annual service by a qualified engineer; check system pressure, clean heat exchanger and burner
Spare Parts Availability	Widely available through Baxi distributors and online retailers
Repairability	Repairable with common tools; many parts user-replaceable (e.g., thermocouple)
Warranty	Typically 2 years (subject to registration and annual servicing)

Frequently Asked Questions - Solo 3 PFL 60 Baxi

How do I reset the Baxi Solo 3 PFL 60 after a fault?

Press the reset button on the boiler control panel (usually a red or black button) for 3 seconds. If the fault persists, consult the manual or call a technician.

What does the error code 'E01' mean?

Error code E01 typically indicates a flame failure. Check the gas supply, ensure the gas valve is open, and the igniter is working. If the problem continues, contact a qualified engineer.

How often should I service my Baxi Solo 3 PFL 60?

It is recommended to have your boiler serviced annually by a Gas Safe registered engineer to ensure efficient operation and safety.

Can I adjust the heating output of the boiler?

Yes, the heating output can be adjusted using the central heating temperature control dial. Refer to the manual for the correct setting for your system.

What is the correct water pressure for this boiler?

The correct water pressure is between 1.0 and 2.0 bar when cold. If the pressure is too low, repressurize the system using the filling loop.

How do I repressurize the boiler?

Locate the filling loop (usually a flexible hose with two valves). Slowly open both valves until the pressure gauge reads 1.5 bar, then close them. Check for leaks.

Is the Baxi Solo 3 PFL 60 suitable for a sealed system?

Yes, this model is designed for sealed central heating systems. Ensure the system is properly vented and the expansion vessel is checked during service.

What type of flue does this boiler use?

The boiler uses a room-sealed concentric flue (60/100 mm) for balanced flue operation. Different flue kits are available for specific installations.

Can I use this boiler with underfloor heating?

Yes, but you need to install a mixing valve or low-loss header to protect the underfloor system from high temperatures. Consult a heating engineer.

Where can I find spare parts for the Baxi Solo 3 PFL 60?

Spare parts are available from Baxi approved distributors, online parts retailers, and some heating merchants. Use the part number from the manual.

USER MANUAL Solo 3 PFL 60 Baxi

User's Operating Instructions

Baxi Solo 3 PFL Range

Wall Mounted Powered Flue Gas Fired Central Heating Units

Please keep these instructions in a safe place. If you move house, please hand them over to the next occupier.

Natural Gas

Baxi Solo 3 PFL 30

G.C.No. 41 075 20

Baxi Solo 3 PFL 40

G.C.No 41 075 21

Baxi Solo 3 PFL 50

G.C.No. 41 075 22

Baxi Solo 3 PFL 60

G.C.No 41 075 23

Baxi Solo 3 PFL 70

G.C.No. 41 075 24

Baxi Solo 3 PFL 80

G.C.No. 41 075 30

The boiler meets requirements of Statutory Instrument “The Boiler (Efficiency) Regulations 1993 N° 3083” and is deemed to meet the requirements of Directive 92/42/EEC on the efficiency requirements for new hot water boilers fired with liquid or gaseous fuels:-

Type test for purpose of Regulation 5 certified by:

Notified Body 0086.

Product/Production certified by:

Notified Body 0086.

For GB / IE only.

The Benchmark Scheme

Baxi Heating UK Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance.

Benchmark is managed and promoted by the Heating and Hotwater Industry Council. For more information visit www.centralheating.co.uk

© Baxi Heating UK Ltd 2009 All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, or stored in any retrieval system of any nature (including in any database), in each case whether electronic, mechanical, recording or otherwise, without the prior written permission of the copyright owner, except for permitted fair dealing under Copyrights, Designs and Patents Act 1988.

Applications for the copyright owner's permission to reproduce or make other use of any part of this publication should be made, giving details of the proposed use, to the following address:

The Company Secretary, Baxi Heating UK Ltd, The Wyvern Business Park, Stanier Way, Derby, DE21 6BF.

Full acknowledgement of author and source must be given.

WARNING: Any person who does any unauthorised act in relation to a copyright work may be liable to criminal prosecution and civil claims for damages.

0086

Codes of Practice, most recent version should be used

In GB the following Codes of Practice apply: Standard Scope

BS 6891 Gas Installation.

BS 5546 Installation of hot water supplies for domestic purposes.

BS 5449 Part I Forced circulation hot water systems.

BS 6798 Installation of gas fired hot water boilers.

BS 5440 Part I Flues.

BS 5440 Part 2 Ventilation.

BS 7593 Treatment of water in domestic hot water central heating systems.

BS 4814 Expansion vessels for hot water systems.

BS 6283 Safety and control devices for use in hot water systems.

In IE the following Codes of Practice apply:

Standard Scope

I.S. 813 Domestic Gas Installations.

The following BS standards give valuable additional information;

BS 5546 Installation of hot water supplies for domestic purposes.

BS 5449 Part I Forced circulation hot water systems.

BS 7593 Treatment of water in domestic hot water

central heating systems.

IMPORTANT - The addition of anything that may interfere with the normal operation of the appliance without express written permission from the manufacturer or his agent could invalidate the appliance warranty. In GB this could also infringe the GAS SAFETY (Installation and Use)

REGULATIONS.

IMPORTANT - Installation, Commissioning, Service & Repair

This appliance must be installed in accordance with the manufacturer's instructions and the regulations in force. Read the instructions fully before installing or using the appliance.

In GB, this must be carried out by a competent person as stated in the Gas Safety (Installation & Use) Regulations.

Definition of competence: A person who works for a Gas Safe registered company and holding current certificates in the relevant ACS modules, is deemed competent.

In IE, this must be carried out by a competent person as stated in I.S. 813 "Domestic Gas Installations".

Lifting - This product should be lifted and handled by two people. Stooping should be avoided and protective equipment worn where necessary. Carrying & lifting equipment should be used as required, e.g. when installing in a loft space.

All Gas Safe registered engineers carry an ID card with their licence number and a photograph. You can check your engineer is registered by telephoning 0800 408 5500 or online at www.GasSafeRegistered.co.uk

ISO 9001

FM 00866

1.0 Warnings

WARNING: If it is either known or suspected that a fault exists on the appliance, it must not be used until the fault has been corrected by a competent person.

Benchmark Commissioning Checklist

Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation instructions supplied with the product and that you have signed it to say that you have received a full and clear explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of complying with the appropriate Building Regulations (England and Wales).

All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme. A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the Notification Number on the Benchmark Checklist.

This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer should complete the relevant Service Record on the Benchmark Checklist after each service.

The Benchmark Checklist may be required in the event of any warranty work and as supporting documentation relating to home improvements in the optional documents section of the Home Information Pack.

I.1 e Installation

The appliance is suitable only for installation in GB and IE and should be installed in accordance with the rules in force.

In GB, the installation must be carried out by a Gas Safe Registered Installer. It must be carried out in accordance with the relevant requirements of the:

• Gas Safety (Installation & Use) Regulations.
• The appropriate Building Regulations either The Building Regulations, The Building Regulations (Scotland), Building Regulations (Northern Ireland).
• The Water Fittings Regulations or Water Byelaws in Scotland.
• The Current I.E.E. Wiring Regulations.

Where no specific instructions are given, reference should be made to the relevant British Standard Code of Practice.

In IE, the installation must be carried out by a competent Person and installed in accordance with the current edition of I.S. 813 'Domestic Gas Installations', the current Building Regulations and reference should be made to the current ETCI rules for electrical installation.

Read the instructions before installing or using this appliance.

WARNING: Sealed components must not be interfered with.

Never hang clothes or other items over the appliance.

1.2 case of gas leaks

1. If a gas leak is found or suspected, turn off the gas supply at the meter immediately and call your gas supplier.

1.3 2vicing your boiler

I. We strongly recommend that your Boiler is serviced annually by a competent person for economic and safety reasons. Your Installer will be able to advise you.

1.4 Electricity supply

I. THIS APPLIANCE MUST BE EARTHED

A standard 230 volt \~ 50Hz supply is required. The appliance must be protected by a 5 amp fuse.

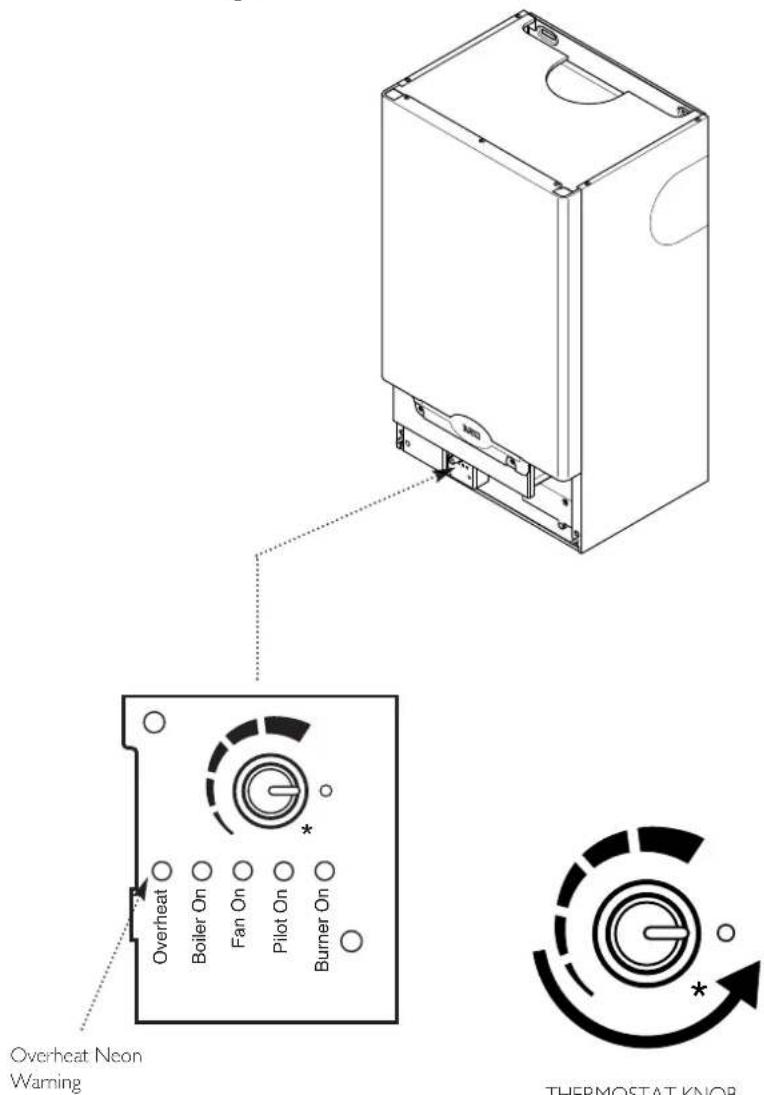

Fig. I

Your Baxi Solo is a gas fired, room sealed, fan-assisted, central heating boiler providing heating for your home and domestic hot water where required.

Fig. 3

Abstract circular graphic with concentric rings and an arrow, no text or symbols present

THERMOSTAT KNOB

To shut down the boiler turn fully anti-clockwise

Fig. 2

2.0 Operating the Boiler

2.1 Operating the Boiler

1. Remove lower door panel as shown (Fig. 1).
2. Turn the boiler thermostat knob to the '0' position fully anti-clockwise (Fig. 2).

3. Turn on the main gas and electricity supplies to the appliance.

4. Set the thermostat control knob to the required setting. (The optimum boiler setting depends upon type of system, external controls and your requirements. Your installer will be able to advise you on this matter.)

5. The fan will start to run and after a short period of time the ignition spark will commence. Sparking will continue until the pilot flame is established then stop automatically. The main gas will then come on and the burner will light from the pilot flame. Check that both the main burner and the pilot are alight by looking through the viewing window. The bottom four indicator lights should also be illuminated (Fig. 3).

2.2 shut down the boiler

1. Turn off the electricity supply to the appliance at the mains.
2. Turn the thermostat knob to zero (Fig. 2) then turn off the gas supply at either the appliance gas cock or the meter.

2.3 st Protection

1. The appliance incorporates a frost protection thermostat that will light the appliance when it's temperature falls to near freezing. Note that this is designed to protect the boiler only - the system pipework may require the protection of an additional stat.
2. To set the appliance to frost protection but without normal heating. Set the control knob to the * position (Fig. 2).
3. The frost protection will only operate if gas and electrical supplies are switched on.

Fig. 6Fig. 5

3.0 Overheat Cut-Off Device

3.1 Overheat Cut-Off Device

I. Your boiler is fitted with an additional safety device which shuts down the appliance should the system overheat. The "overheat" indicator light will be illuminated if the appliance needs resetting.

NOTE: Any interruption to the electricity supply may cause the device to operate. In the case of persistent operation of the device, turn off the boiler and consult your service engineer as an appliance or system fault is indicated.

3.2 etting

I. To reset the device follow these instructions.
2. Allow the boiler to cool if hot.
3. Remove the lower door panel by following the sequence of diagrams (Fig. 4).
5. Turn the boiler thermostat control knob fully anticlockwise to the OFF position marked '0' (Fig. 5).
6. Wait 10 seconds.
7. Turn the control knob clockwise to the required thermostat setting, the overheat light will go out and the boiler will commence sparking and fire up automatically when the boiler has sufficiently cooled (Fig. 6).
8. No adjustments to the gas controls or boiler thermostat are required.

Fig. 7

4.0 Clearances

4.1 Arances around the boiler (Fig. 7)

1. The minimum clear spaces needed around the boiler are:

Top: 50mm (2 in)

Bottom: 100mm (4 in)

Sides: 5mm ( ^3/_16 in)

Front: 5mm ( ^31 in)

1. These clearances must not be obstructed in any way. Blocking the clearance spaces will result in the appliance overheating and possible damage may occur.

2. The boiler may be installed in a cupboard if these minimum clearances are kept. Note that the label affixed to the front of the boiler must be left in place to ensure future servicing is successfully undertaken.

3. The compartment should be large enough to house the boiler and ancillary equipment only.

4. IT SHOULD NOT BE USED AS A STORAGE CUPBOARD.

5. The gas burning compartment of your boiler is completely sealed from the room in which it is fitted. Products from the combustion of gas are vented to the outside through the flue terminal which must be kept free from obstruction as this would interfere with the correct operation of the boiler.

5.0 Cleaning, Spares

5.1 aning the case

I. The painted panels should be wiped with a damp cloth and then dried completely. DO NOT USE ABRASIVE CLEANING AGENTS.

5.2 re Parts

I. Any repairs to the appliance will usually be the responsibility of the Installer during the guarantee period after which spare parts may be obtained through approved Baxi stockists if required.

1. Quote the appliance name, model number and where possible the part number when ordering spares. An abbreviated data plate with this information is inside the removable door (A parts list is included in the Installation and Servicing Instructions.)

Please complete the boxes below

Serial Number

Blank white image with a thin black border (no text, symbols, or markings)

Date of Installation

Installer Details (name, address and contact number(s))

All descriptions and illustrations provided in this leaflet have been carefully prepared but we reserve the right to make changes and improvements in our products which may affect the accuracy of the information contained in this leaflet. All goods are sold subject to our standard Conditions of Sale which are available on request.

BAXI

A Trading Division of Baxi Heating UK Ltd

Brooks House, Coventry Road, Warwick. CV34 4LL

After Sales Service 0844 871 1525 Technical Enquiries 0844 871 1555

Website www.baxi.co.uk

e&oe

9.0 Warranty & Service

Standard Warranty Term & Conditions

12 Months Free Warranty - register today

To receive your 12 months free warranty please complete the form supplied with the boiler or simply call heateam, the service of Baxi Heating UK Ltd on 0800 013 7990.

Our promise to you

If you experience a fault with your new boiler, we aim to provide a safe and high quality repair service supported by our dedicated national network of highly skilled engineers. If your installer can't resolve the problem for you, we will do everything we can to get an engineer out to you as quickly as possible. Nothing in this warranty will affect your statutory consumer rights.

What you need to do if you experience a problem with your heating system or the operation of the boiler

You should always contact your installer first, because the fault may not be related to the boiler. If your installer confirms that the fault is within the boiler it self and he/she can't repair it, our friendly customer service team is on hand to help. Simply call our service division heateam on 0844 871 1525 to book an engineer visit or for any general advice that you may need. Our contact centre is open Monday to Friday 8am - 6pm, weekends and Bank Holidays 8.30am - 2pm, excluding Christmas Day and New Years Day.

When calling heateam it would be helpful if you could have the following information to hand:-

I boiler serial number (see opposite).
2 boiler make and model number.
3 Your installer name and address details.
4 Proof of purchase (if you do not have the boiler serial number).

What this warranty covers

Free of charge repair or replacement of components found to be faulty from manufacture.

Free of charge replacement of the complete unit provided always that the failure is related to a manufacturing fault that cannot be repaired or is uneconomic to repair.

The warranty runs for 12 months from the date your product is installed.

What this warranty does not cover

Repairs to boilers which haven't been installed and commissioned properly, and as set out in the installation instructions (this includes the need to flush the system effectively and add a suitable corrosion inhibitor).

Any damage caused by hard water scale deposits and/or aggressive water resulting from corrosion.

Any other defects or failures, either in the connected heating system or outside of the boiler itself.

Faults caused by inadequate supply of electricity, gas or water to the property.

Installations within commercial settings for which this boiler was not designed.

Reimbursement of any third party repair or replacement costs that we haven't been told about or agreed with you in advance.

Compensation for consequential losses (e.g. loss of earnings, business losses, stress and inconvenience) arising from a production breakdown, including repair delays caused by factors outside our reasonable control.

Annual Service

To ensure you receive the maximum efficiency from your boiler we recommend your boiler has an annual service so you and your family can continue to enjoy heating and hot water comfort.

To arrange an annual service from one of our Baxi Heating UK Ltd heating experts, please call 0844 871 1545.
