Product Type High Chair
Brand Brother
Model Scoop
Dimensions (approx.) 60 x 50 x 90 cm (L x W x H)
Weight 8 kg
Material Plastic and metal frame
Maximum User Weight 15 kg
Age Range 6 months to 3 years
Seat Height Adjustment Multiple positions
Recline Positions 3 positions
Tray Removable and dishwasher safe
Safety Harness 5-point harness
Footrest Adjustable
Safety Features Anti-tip design, locking castors
Cleaning Instructions Wipe with damp cloth; mild soap
Assembly Required Yes (tools included)
Spare Parts Available Tray, harness, seat pad
Reparability Spare parts available; user-serviceable

Frequently Asked Questions - Scoop BROTHER

How do I assemble the Brother Scoop high chair?
Assembly is straightforward. Follow the included instruction manual step by step. All tools are provided. Ensure all screws are tightened securely before use.
What is the weight limit for this high chair?
The maximum user weight is 15 kg (approx. 33 lbs). Do not exceed this limit to ensure safety.
Can the tray be removed for cleaning?
Yes, the tray is removable and dishwasher safe for easy cleaning. Alternatively, you can wash it with warm soapy water.
How do I clean the seat pad?
The seat pad can be wiped with a damp cloth and mild detergent. Do not machine wash or immerse in water unless specified in the manual.
Is the high chair suitable for newborns?
No, this high chair is designed for children who can sit upright unassisted, typically from 6 months old.
Does the high chair have a recline feature?
Yes, the Scoop high chair offers 3 recline positions to ensure your child's comfort.
How do I adjust the height?
The seat height can be adjusted to multiple positions using the mechanism under the seat. Refer to the manual for specific instructions.
Are replacement parts available?
Yes, spare parts such as the tray, harness, and seat pad are available. Contact Brother customer service or check online.
How do I ensure the high chair is stable?
Always lock the castors after positioning. Ensure the chair is on a flat surface. The anti-tip design provides additional safety.
What should I do if the harness is damaged?
Replace the harness immediately with a genuine Brother spare part. Do not use the chair until it is repaired.

User questions about Scoop BROTHER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your High chair in PDF format for free! Find your manual Scoop - BROTHER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Scoop by BROTHER.

USER MANUAL Scoop BROTHER

① Crotch Harness, Seat Strap and Waist Restraint Correctly installed ② Using Buckle Press firmly on centre button to release harness buckle

BROTHER Scoop - 2

4 Re-installing Crotch Harness Follow the 'removing clutch harness' instructions in reverse and please take care when clipping table cover rocket back into place - if you place your fingers too low down on the sides you might catch your fingers. press on front sides whilst pushing down on the top until it clicks into place. Ensure clutch buckle is facing outwards when re-installing.

Re-instaling Seat Strap Locate hole in seat shell, fold plastic T section at end of strap and push through hole. Ensure padlock symbol faces up so can be seen Use allen key (supplied) to help push T section until it will go no further Pull up on end of strap to ensure it is fixed securely

8 Using Seat insert Ensure correct placement of seat insert inside seat 9 Adjusting Height of Seat The height of the seat is adjusted on a gas strut, similar to an office chair. To raise the seat, simply press down on the foot pedal and the seat will raise by itself (Please note - As your little one becomes heavier, the seat will not rise by itself if he/she is sitting in the high chair)

BROTHER Scoop - 6

5 Removing Seat Strap Locate padlock symbol on strap and pull just this part of the strap upwards firmly to remove

⑦ Using Waist Restraint with Seat Insert Ensure seat insert is corneely placed inside seat and check that the hole in the seat insert lines up with the hole in the high chair seat Feed chair strap through hole in seat insert, then follow above Insert waist restraint through chair strap, checking it is properly in place by pulling towards you Click onto crotch harness buckle for correct use

To lower the seat press down on the foot pedal and at the same time push down on the seat until it reaches the required height You may prefer to push down on either side of the seat To lower the seat with table off, follow the same instructions

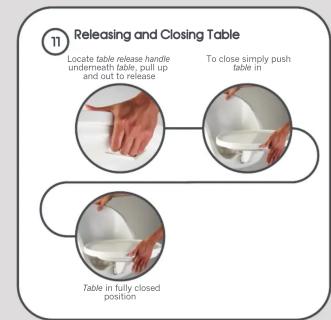

Releasing and Closing Table Locate table release handle underneath table, pull up and out to release To close simply push table in Table in fully closed position

12 Adjusting Foot Rest Select required heightTurn to looser Turn to tighten To remove foot rest entirely, refer to "attaching seat assembly" instructions above. With the seat removed the foot rest can be slid off the gas strut pole attached to the seat. You may wish to remove the foot rest if your little one is more comfortable without one, or when you turn the Scoop from a high chair to a stool. WARNING: never try to fix foot rest to bottom half of gas strut

13 Converting Scoop from High Chair to Stool Removing Seat from the The Scoop can be used as a stool, either with or without the foot rest, up to the age of 5 years. Remove table from seat. Turn table over, locate clip and remove table cover with flat head screw driver. Insert table cover into seat. Press firmly until it clicks in. Please Note-complies with BS EN 1468B:2006 Complies to this standard in high chair mode from 6 months to 3 years, but Brother Max has taken care to ensure safe for use in stool mode by children up to the age of 5 years up to a weight of 23kg. It is always the responsibility of an adult to ensure that children over 3 years are safely using the scoop high chair in stool mode.

asShut Pole 14 To remove, simply follow in reverse step① overleaf in the 'Assembly Instructions' Hold open rotation release handle IRRH at rear and hold seat at front. turn 90° just past 90° lift and continue turning until seat lifts off
