USER MANUAL C 515BEE NAD

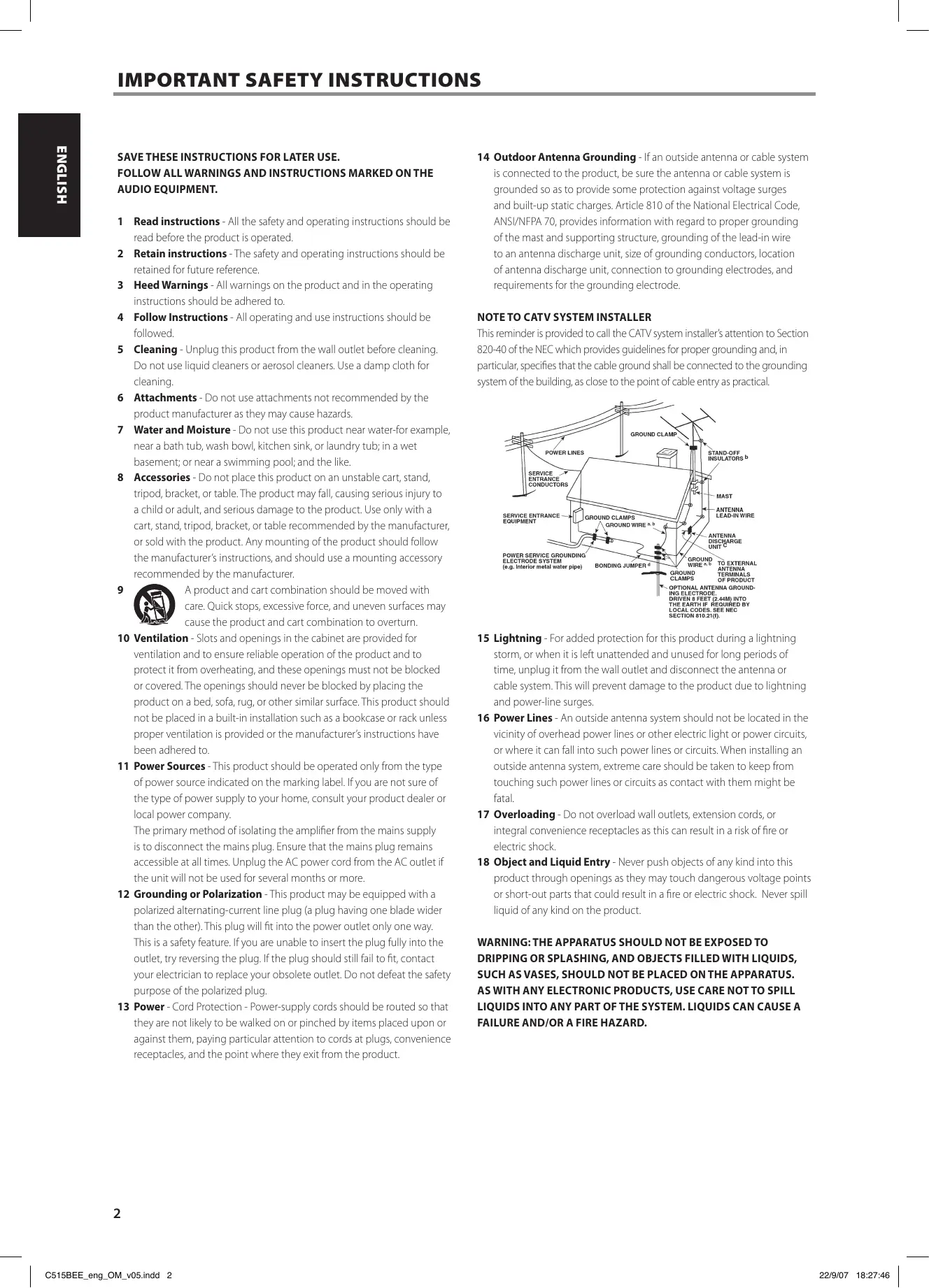

SAVE THESE INSTRUCTIONS FOR LATER USE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE AUDIO EQUIPMENT. 1 Readinstructions - All the safety and operating instructions should be read before the product is operated 2 Retain instructions - The safety and operating instructions should be retained for future reference. 3 Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. 4° Follow instructions - All operating and use instructions should be followed

5. Cleaning- Unplug this product from the wall outlet before cleaning

Do not use liquid cleaners or aerosol cleaners. Use à damp cloth for cleaning 6 Attachments- Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture - Do not use this product near water for example,

near à bath tub, wash bowi, kitchen sink, or laundry tub: in a wet basement: or near a swimming pool: and the like 8 Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall causing serious injury to à child or adult, and serious damage to the product. Use only with a cart, stand tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting ofthe product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer. 9° À product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 10 Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation ofthe product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a baokcase or rack unless proper ventilation is provided or the manufacturer‘s instructions have been adhered to. 11 Power Sources - This product should be operated only from the type of power source indicated on the marking label If you are not sure of the type of power supply to your home, consult your product dealer or local power company. The primary method ofisolating the amplifier from the mains supply is to disconnect the mains plug. Ensure that the mains plug remains accessible at all times. Unplug the AC power cord from the AC outlet if the unit will not be used for several months or more. 12 Grounding or Polarization - This product may be equipped with à polarized alternating-current line plug (a plug having one blade wider than the other. This plug will fi into the power outlet only one way. This is à safety feature. fyou are unable to insert the plug fully into the outlet, try reversing the plug. IFthe plug should stil fai to fi, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug 13 Power- Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptaces, and the point where they exit from the product. CS1SBEE eng OM_vOS.indd 2 14 Outdoor Antenna Grounding - fan outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and buit-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding ofthe mast and supporting structure, grounding ofthe lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer$ attention to Section 820-40 ofthe NEC which provides guidelines for proper grounding and in particular, specifies thatthe cable ground shall be connected to the grounding system ofthe building, as close to the point of cable entry as practical. PouER sereE crounoe (8 etant pipe) BONDING JUNPER &

DFPodLer DETIQNAL ATEN GROUND. ÉSCTtETS 15 Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 16 Power Lines - An outside antenna system should not be located in the icinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal 17 Overloading - Do not overload wall outlets, extension cord, or integral convenience receptacles as this can result in a risk offre or electric shock. 18 Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fre or electric shock. Never spill liquid of any kind on the product.

19 Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damagedl b) Ifliquid has been spilled, or objects have fallen into the product. € lfthe product has been exposed to rain or water. d) IFthe product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiied technician to restore the product to its normal operation. e)_IFthe product has been dropped or damaged in any way. f) when the product exhibits a distinct change in performance-this indicates à need for service. 20 Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 21 Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition 22 Wall or Ceiling Mounting - The product should be mounted to a wall or cailing only as recommended by the manufacturer. 23 Heat-The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. CAUTION The C 515BEE employs a Laser System. To ensure proper use of this product, please read this owners manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location. Use of controls, adjustments or the performance of procedures other than those specified may result in exposure to laser radiation. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when the enclosure is opened! DO NOT STARE INTO BEAM. FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in à residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference wil not occur in à particular installation. this equipment does cause harmful interference to radio or television reception, which can be determined by tuming the equipment off andon, the user is encouraged to try to correct the interference by one or more ofthe following measures + Reorient or relocate the recelving antenna + Increase the separation beteen the equipment and recever. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected + Consult the dealer or an experienced radio/TV technician for help CS1SBEE eng OM_vOS.indd 3 FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment.

QUALIFIED SERVICE PERSONNEL. The equipment draws its nominal non-operational power from the AC outlet with its POWER switch in the STANDBY position. The socket-outlet shall be installed near the apparatus and shall be easily accessible. CAUTION Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the users authority to operate this equipment

CAUTION REGARDING PLACEMENT

To maintain proper ventilation, be sure to leave a space around the unit {from the largest outer dimensions including projections) that is equal to or greater than shown below. Left and Right Panels: 10 cm Rear Panel: 10 cm Top Panel: 50 cm 22/9107 18:27:47

DO NOT cut off the mains plug from this equipment. IFthe plug fitted is not suitable for the power points in your hame or the cable is too short to reach à power point, then obtain an appropriate safety approved extension lead or consult your dealer. I, nonetheless, the mains plug is cut off, REMOVE THE FUSE and dispose of the PLUG immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. Ifthis product is not provided with a mains plug, or one has to be fitted, then follow the instructions given below IMPORTANT DO NOT make any connection to the larger terminal which is marked with the letter'E'or by the safety earth symbol or colored GREEN or GREEN AND YELLOW, The wires in the mains lead on this product are colored in accordance with the following code:

BROWN — LIVE AS these colors may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: The BLUE wire must be connected to the terminal marked with the letter'N'or colored BLACK. The BROWN wire must be connected to the terminal marked with the letter’ L'or colored RED. When replacing the fuse, only a correctly rated and approved type should be used, and be sure to re-fit the fuse cover. IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN. NAD isa trademark of NAD Electronics 1 Copyright 2007, NAD Electronis Inter CS1SBEE eng OM_vOS.indd 4

NOTES ON ENVIRONMENTAL PROTECTION

Atthe end of its useful Ife, this product must not be disposed of with regular household waste but must be returned to à collection point for the recycling of electrical and electronic equipment. The symbol on the product, users manual and RS bcging point this out. The materials can be reused in accordance with their markings. Through re-use, recycling of raw materials or other forms of recycling of old products, you are making an important contribution to the protection of our environment. Your local administrative office can advise you of the responsible waste disposal point. NOTE: THE C 515BEE IS NOT AN AUTO VOLTAGE CD PLAYER. CONNECT ONLY TO THE PRESCRIBED AC OUTLET, LE. 120V 60HZ OR 230V 50HZ. RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new C 515BEE are located on the back ofthe cabinet. For your future convenience, we suggest that you record these numbers here: Model no. Serial no. sional a division of Lenbrook Industries Limited al a division of Lenbrock Industries Limited 22/9107 18:27:47

UNPACKING AND SETUP 6

PROGRAMMING 10 THANK YOU FOR CHOOSING NAD. The C 5158EE CD Player is a technologically advanced and highiy capable product - yet we have invested great effort in making it simple and easy to use. We have been careful to ensure that the C 515BEE is as musically transparent and spatially accurate as possible, incorporating much of what weve learned from a quarter-centurys experience designing audio and home-theater components. As with all our products, NAD's*Music First design philosophy guided the C 515BEE design, such that it can confidently promise you both state-of-the-art and audiophile-quality music listening for years to come. CS1SBEE eng OM _vOS.ndd 5

RANDOM LL DIMMER LL TIME LL INDEX LL REFERENCE TROUBLESHOOTING NOTES ON DISCS.. SPECIFICATIONS We encourage you to take a few minutes now to read right through this manual. Investing a little time here at the outset might save you a good deal of time later, and is by far the best way to ensure that you make the most of your investment in the € 515BÈE. One more thing: We urge you to register your C 515BEE ownership on the NAD Worldwide Web site: http://NADelectronics.com/warranty For warranty information contact your local distributor. 22/9107 18:27:48

Packed with your C 515BEE you will find + An audio cable connector + The CD 7 remote control with 2 (two) AAA batteries + This owners manual

Please save the box and all of the packaging in which your € 515BEE arrived. Should you move or otherwise need to transport your € 515BÉE, this is by far the safest container in which to do so.Weve seen too many otherwise perfect components damaged in transit for lack ofa proper shipping carton, so please: Save that box! CHOOSING À LOCATION Choose a location that is well ventilated (with at least several inches to both sides and behind), and that will provide à clear line of sight, within 25 feet/8 meters, between the C 515BEES front panel and your primary listening/viewing position. This will ensure reliable infrared remote control communications. The C 515BEE generates a modest amount of heat, but nothing that should trouble adjacent components. is perfectly possible to stackthe C 515BEE on top of other components.

NOTE ON INSTALLATION

IMPORTANT! Install the € 515BEE Compact Disc player on a level, vibration- free surface. Severe vibration or operation in a tilted position may cause the player to mis-track. The player may be stacked with other stereo components, as long as there is adequate ventilation around it. IFthe C 515BEE is placed in close proximity to a radio tuner (AM or FM), a VCR or a television set, the operation of its digital circuits may produce static that would interfere with reception of weak broadcast signals.IFthis occurs, move the C 5158EE away from other devices or switch it off when viewing or listening to broadcasts. CS1SBEE eng OM _vOS.indd 6 QUICK START In case you simply cannot wait to experience the performance of your new NAD C 515BEE, we provide the following Quick Start'instructions to get you underwaÿ. Please make all the connections to your € S158EE with the unit unplugged I is also advisable to power-doun or unplug all associated components while making or breaking any signal or AC power connections. PLAY À CD 1 Connect a twin RCA-to-RCA lead from the L (left) and R (right) Line Output jacks to the corresponding CD inputs on your amplifier. Plug in the AC power cord. Press the POWER button to turn ON the player. Press [OPEN/CLOSE] to open the disc drawer. Place à CD), label side up, in the try circuler recess. Be certain that the usewn disc is centered within the recess. Press [PLAY]. The drawer closes automatically, and the disc begins to Play. 7 Atany time you may press [SKIP BB or Hd to select different tracks on the disc 8 Press [PAUSE] if you want to stop play temporarily while keeping the pickup at its current position on the disc. Press [PAUSE] again or [PLAY] when you want to resume playback. Press STOP if you want to end play and reset the pickup to the beginning of the disc.

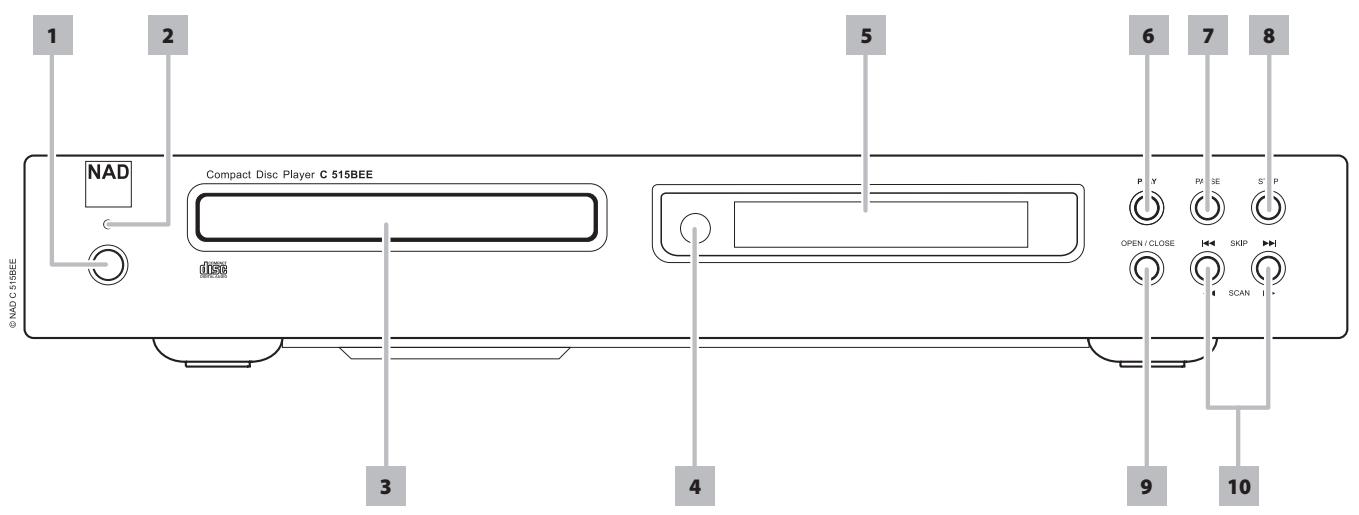

FRONT PANEL POWER: Press this button to switch ON the C 515BEE. The Standby LED indicator will turn from amber to blue and illuminate the Vacuum Fluorescent Display (VD). Pressing the power button again turns the unit back to standby mode. The C S15BEE can also be switched ON from standby mode by pressing [OPEN/CLOSE] or [PLAY] button on the front panel as well as on the remote control. Ifthe disc tray is open and the C 515BEE is powered OFF, the disc tray will draw close and the unit powered OFF. INDICATOR: This indicator will light up amber when the C 515BEE is in standby state. When the C S15BEE is at ON state, this indicator will illuminate blue. DISC TRAY: With the DISC TRAY open, insert a CD or other compatible media disc face down onto the tray. “No Disc” appears on the C 515BEES VFD ifthe disc is placed upside down REMOTE SENSOR: Point the CD 7 at the remote sensor and press the buttons. Do not expose the remote sensor ofthe CD 7 to a strong light source such as direct sunlight or ilumination. I you do so, you may not be able to operate the C S15BÈE with the remote control Distance: About 23ft (7m) from the front of the remote sensor. Angle: About 300 in each direction of the front of the remote sensor. VFD: The Vacuum Fluorescent Display (VFD) provides playback information, settings and other indicators. CS1SBEE eng OM_vOS.indd 7 6 PLAY:Press to start play or to resume play after Pause. IFthe disc tray is open, press this button to automatically close the tray and start playback ifa disc is loaded

7. PAUSE: During playback, press this button to stop playback

temporarily, keeping the optical pickup at its current position on the disc. To resume playback at the exact point where it stopped, press [PLAY] or [PAUSE] again. 8 STOP: Press the [STOP] button once to stop playback and re-set the pickup to the beginning ofthe disc. The display reverts to showing the number of tracks and total playing time on the disc. IFthe C S15BEE was programmed to play a selection oftracks, the program will be retained in the players memory. Pressing [STOPI twice at program mode will delete the program. 9 OPEN/CLOSE: Press this button to open and close the disc tray. When in standby, this button will also power ON the C 5158ÈE and at the same time open the disc traÿ. 10 SKIP/SCAN: Press æ1to skip forward or to skip backward a track or file. Press and hold bb or 44 for more than 2 seconds to search up or doun a track The SCAN 44 button causes the optical pickup to scan backwards through the recording at high speed. The SCAN > button causes the optical pickup to scan rapidiy forward through the music. 22/9107 18:27:48

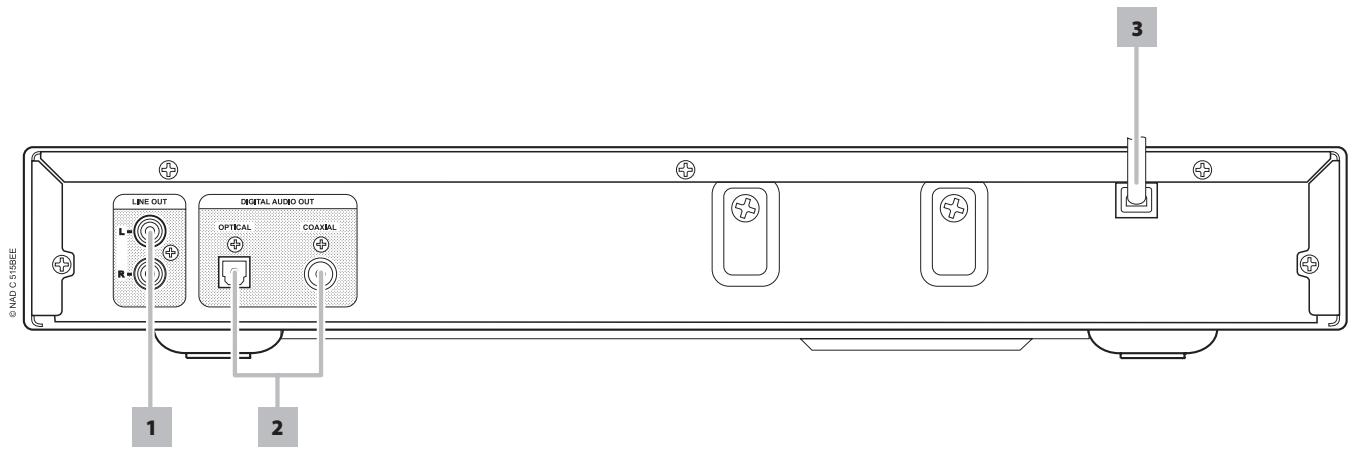

— œ e| Ù — é Ki) — L— © Caps) ATTENTION! Please make sure that the C 5 15BEE is powered off or unplugged before making any connections. is also advisable to power-down or unplug all associated components while making or breaking any signal or AC power connections. 1 LINEOUT: Connect to the corresponding analog audio input of an 3 ACPOWER CORD: Plug the AC power cord into a live AC wall socket. amplifier receiver or stereo system Make sure all connections have been made before connecting to the mains. 2 DIGITAL OUT (COAXIAL, OPTICAL}: Connect the optical or coaxial digital OUT ports ta the corresponding S/PDIF digital input of an amplifier receiver, computer soundcard or other digital processors. CS1SBEE eng OM_vOS.indd 8 22/9107 18:27:50

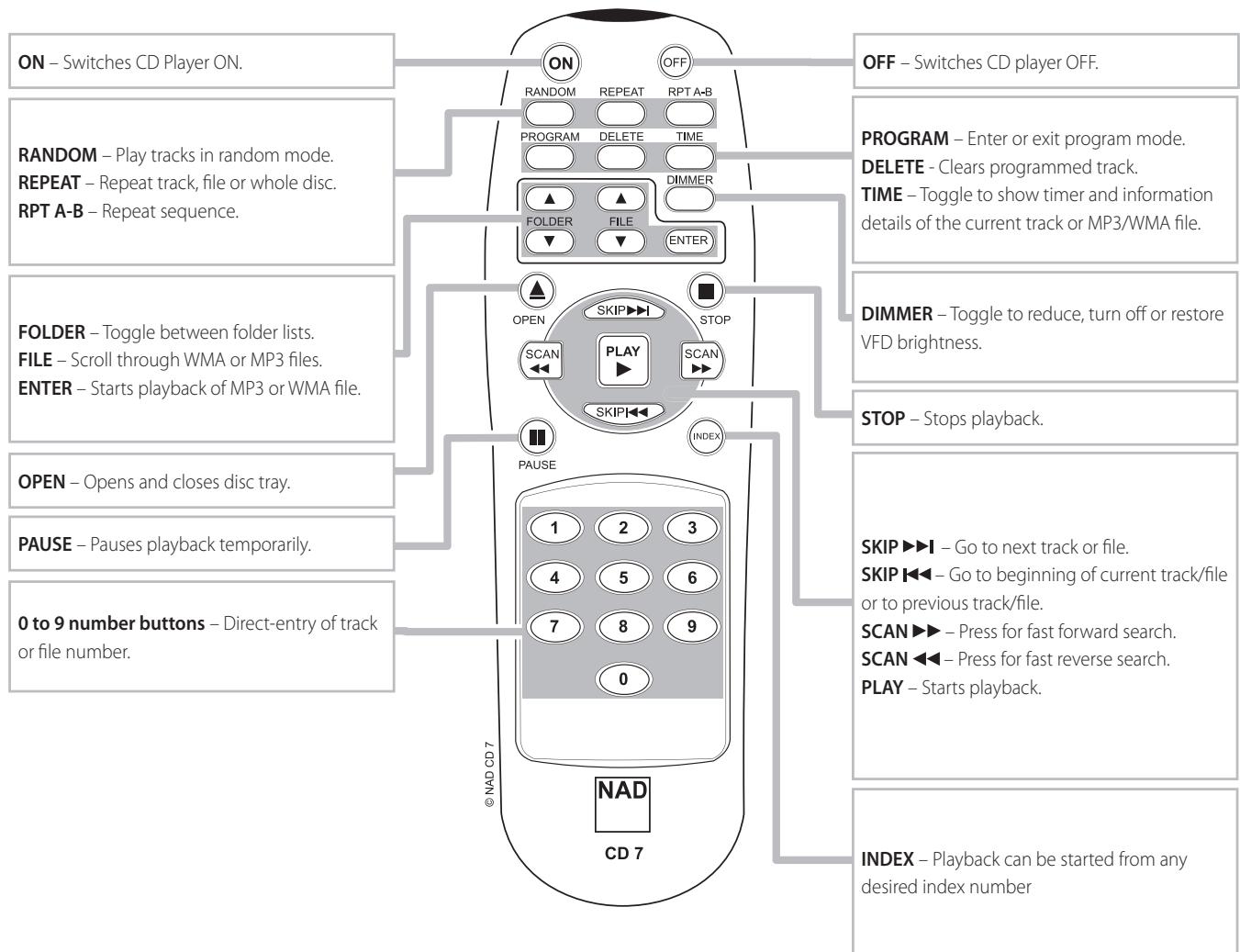

ON - Switches CD Player ON. OFF - Switches CD player OFF. PROGRAM - Enter or exit program mode DELETE - Clears programmed track TIME - Toggle to show timer and information details ofthe current track or MP3/WMA file. RANDOM - Play tracks in random mode: REPEAT - Repeat track flle or whole disc RPT A-B - Repeat sequence. DIMMER - Toggie to reduce, turn of or restore FOLDER - Toggle between folder lists VFD brightness. FILE - Scroll through WMA or MP3 files. ENTER - Starts playback of MP3 or WMA fle STOP - Stops playback OPEN - Opens and closes disc traÿ. PAUSE - Pauses playback temporarily. SKIP 1 — Go to next track or file. SKIP H4- Go to beginning of current track/file or to previous track/file. SCAN > - Press for fast forward search SCAN 4 Press for fast reverse search. PLAY - Starts playback. 0 to 9 number buttons - Direct-entry of track or file number. enoco7 INDEX - Playback can be started from any desired index number Press in and lift tab to remove battery cover out Press batteries into opening. Ensure correct Replace battery cover by aligning and inserting of recess. fiting is observed the two tabs into the holes. Press battery cover into place until'clicks'closed. CS1SBEE eng OM_vOS.indd 9 22/9107 18:27:51

The C 5158£E can play back CD-R or CDRW audio discs that have been recorded on a computer or CD recorder. The quality of CD-R, CD-RW audio discs varies widely which may affect playability. Some factors that affect playability + The quality ofthe disc itself Generally speaking, CD-R, CD-RW blanks from wel-renowned companies give better results than unbranded ones. + The quality of CD-recorder or computer CD re/writer. Some recorders and'writers produce better results than others + The CD-R and CD-RW were created with high-speed writing. In general, the quality of a CD-R or CD-RW is better when produced at à lower speed against a higher speed on the same recorder or re/writer.

PLAYING MP3/WMA FILES

The C 515BEÈE can play MP3/WMA formatted recordings on CD-R or CD-RW discs. You may mix any of the file types on the disc. Using the CD 7 remote control, one can select through the MP3/WMA folders and files as well as start playback through the following steps 1 Load the applicable disc. 2 Press [FOLDER 4/1] to select desired folder. Press [ENTER]. 3 Press [FILE A/] to select desired file number. You must be at STOP or playback mode to access both folders. 4 Press [ENTER] to start playback For each file type being played, the CS15BÈE wil display the file type at the VFD and a corresponding icon atthe VFD. Information about the Song Title Album and Artist name, if available, will scroll through the VFD during playback NOTES + Thefllenumberis recognized per disc, not per folder - that is, the number assigned to each file corresponds to their sequence in the disc. + lfyouwant to select file number "9" in a disc where there are 100 or more MP3/WMA files, press “0” twice and then "9!" PROGRAMMING The program function enables you to store your favorite tracks from any disc in the player memory. When programming a sequence of tracks, the C 515BEE must be in STOP mode. Using the CD 7 remote control, enter your desired program sequence through the following steps 1 Press [PROGRAM] The display indicates"PO1 T00". The *00'in the*TO0" keeps on blinking, meaning that the player is awaiting the first Program entry. 2 Use the Direct-Entry numeric keypad buttons to enter the first track in your planned sequence. Upon entering the track number, the VFD will brief show the total number and total time of the currently programmed tracks like"TTL O1 3:25" 3 The display will revert to showPO2TO0/indicating that the player is ready for your second program entry. Upon entering the second track, the VFD will again briefly show the total number and total time ofthe currently programmed tracks like “TTL O2 6:45"-*TTL O2"indicates that there are now a total of two programmed tracks and“6:45"is the total playback time of both programmed tracks. 4 Repeat steps 2 and 3 to select and store other track numbers in memory, up to a maximum of 40 entries. If you attempt to program more than 40 tracks or files, “P-FULL'will be displayed in the VFD. 5 Press [PROGRAM] to end or finalize the program -— the VFD will show the lest programmed number and track 6 Press to start program playback. CS1SBEE_eng_OM_vOS.indd 10 NOTES + Theprocedure for programming MP3/WMA files is the same as above with an exception at step 2 and 3 - the total number of programmed files and total playback time will not be displayed during programming. Ifyou want to select file number “9' in a disc where there are 100 or more MP3/WMA files, press “0” twice and then "9." Pressing STOP key at any time during the programming procedure will put to a STOP the sequence and clear all the currently programmed tracks or iles. VFD will revert back to displaying the total number of tracks and total playback time for audio CD and total number offiles for MP3/WMA. Pressing STOP key twice during program playback will result to having the whole program list deleted.

REVIEW / EDIT PROGRAM LIST

1 initiate review or edit of your program entries through either ofthe following initial steps + lfyou are stillin programming mode, press [PROGRAM] + lÉduring program playback, press [STOP] once then [PROGRAM]

2. The VFD will show the fist Program Number and the corresponding

“blinking' programmed track 3 To change the programmed track of a particular sequence, use the Direct-Entry numeric keypad buttons. Press [SKIP +1 or td] to move forward or backward the programmed tracks as well as review the list and change if so desired. 4 fyou want to delete a particular program sequence during program reviews press [DELETE] key.

5. After finalizing your program changes or completing your review, press

[PROGRAM] again. PROGRAM PLAYBACK 1 Toplaythe stored program, press [PLAY] while you are in “PROGRAM mode.*PROG' icon will appear in the display, indicating that a stored program is being played. During Program Play, the SKIP buttons will access only the tracks in the program list. 2 lfyou want to play only a portion of a stared program initiate play and press SKIP to jump over the programmed tracks that you don't want to hear.

STOP OR DELETE PROGRAM

1 To terminate Program play, press [STOP] once. The stored track list remains in memory. If you want to play the program again, simply press IPLAY].

2. To clear the program memory, perform any of the following steps

+ Press [STOP] twice during program playback + Press [OPEN] to open the disc tray. + Switch OFF the power. 22/9107 18:27:51

OPERATION Awireless remote control is provided with your compact disc player, enabling you to operate playback functions from the comfort of your chair or from virtually anywhere in the room. For reliable operation there should be à clear line-ofsight path from the remote control to the front of the CD player. IFthe player does not respond to remote command, it may be that this line-ofssight path is obstructed by clothing, paper, or furnishings. Most of the buttons on the remote control handset have the same effect as the corresponding buttons on the front panel ofthe player. In addition, the handset is equipped with some extr buttons like the following function keys. RISK RISK Using the direct-entry numeric keypad (0 to 9) causes the C S15BÈE to jump directly to the beginning of a numbered track and commence play. Thus, to play Track 5, simply press “5° To play Track 20, press "2" and "0" To repeat the playback of a particular track or fl, press the CD 75 [REPEAT] key once. Toggle the [REPEATI key to repeat all the tracks, files, folder (blinking) or until repeat mode is turned OFF. To repeat a sequence, implement the following procedures: 1 Press [RPT A-B] at your chosen starting point.

2. Press [RPT A-8] again at your chosen end point. The repeat sequence

begins 3 Press [RPT A-B] again to cancel the sequence. Press [RANDON key during playback or stop mode. Playback of the first randomiy selected track or file automatically begins. À corresponding “RANDOM'icon is illuminated at the VFD. Press [RANDOM] again to return to normal playback. Toggle to reduce, turn off and restore VD brightness. CS18BEE_eng OM_vOSindd 11

USING THE CD 7 REMOTE CONTROL

Toggle to display the following disc information during playback

INFORMATION AUDIO CD COTEXT

Elapsedtime ofthe current track Le Le MP3/WMA Remaining time ofthe current track the disc

Total playback time of

Remaining time ofthe disc Disc title - Track name - Artist name - Songtitle - Elapsedtime ofthe curentfile Remaining time ofthe current file File name - - Album name - - Year - - SISIRIR LKORIRIS Comment - - NOTES + Some information may notbe displayed on some discs. Display is dependent on the disc information content. + Information about the Song Title, Album and Artist name, if available, wil scroll through the VFD during playback. Ifthe file has no available information about the artist or album, the display will show “No artist” or “No album"! + For audio CD) the default information display is the elapsed time ofthe current track. The index system is a method of subdividing tracks into smaller divisions for easier location of those parts. Ifa disc includes index numbers, playback can be started from any desired index number through the following steps 1 Press [INDEX] during playback.

REFERENCE TROUBLESHOOTING ION No power. The power is on, but the C 515BEE does not work. The C 515BEE does not start playback. No sound. Sound skips. The remote control does not work property. POSSIBLE CAUSES + The power cord is disconnected + No disc is inserted. - The disc is loaded upside down: - The discis too dirty. - The equipment connected with the audio cable is not set to receive CD signal output + The power of the equipment connected with the audio cable is turned off. + The C 5158EE is subject to vibration or physical shock from external sources. + The remote control is not pointed atthe remote sensor on the CD player. + The remote control is too far from the CD player. + The remote control batteries are dead. POSSIBLE SOLUTIONS + Plug the power cord into the wall outlet securel. + Insert a disc. + Reload the disc with the label side UP. + Clean the disc. + Select the correct input mode of the audio receiver so you can listen to the sound from the C SISBEE. : Turn on the equipment connected with the audio cable + Change the installation location. + Point the remote control at the remote sensor ofthe CD player. + Operate the remote control closer to the CD player. + Replace the remote control batteries.

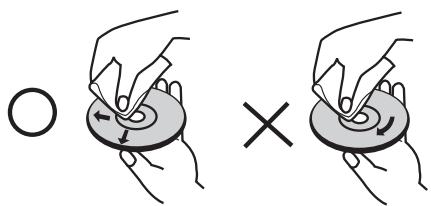

HANDLING DISCS Do not touch the playback side ofthe disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc. STORING DISCS CLEANING DISCS from the center out.

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in à parked car exposed to direct sunlight CS1SBEE eng OM_vOS.indd 12 Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or ant-static spray intended for older vinyl recorck. 22/9107 18:27:52

REFERENCE SYSTEM Output level Frequency response (ref. OdB 20Hz-20kHz) Total harmonic distortion (ref. 1kHz) Signal/Noise ratio (A-weighted, ref. 1kHz) Channel balance (ref. dB 1kHz) Dynamic range Channel separation De-emphasis (ref. dB) Linearity (ref. OdB) PHYSICAL SPECIFICATIONS Dimensions (W x H x D) Net weight Shipping weight Note: Gross dimensions include feet, extended buttons and rear panel terminals. SPECIFICATIONS 22V +05d8 <0.003% 110d8 +05d8 95d8 95dB (1kHz) 95d8 (10kHz) -453 + 0.5dB (5kH2) -9.04 + 0.5dB (16kHz) +0.01dB (0 to -60dB) 435x60x241mm (Net) 435x65%249mm (Gross) 352kg 47kg Specifications are subject to change without notice. For updated documentation and features, please log anto www.NADelectronics.com for the latest information about C 515BEE. CS1SBEE eng OM_vOS.indd 13

www.NADelectronics.com

©2007 NAD ELECTRONICS INTERNATIONAL

ed, stored or transmited in any form without ten permission of NAD Electronic International (CS1SBEE Manual 09/0 CS1SBEE eng OM_vOS.indd 14 22/9107 18:27:52
