C8 Pilot - Watch Christopher Ward - Free user manual and instructions

Product Type	Men's Pilot Watch
Brand	Christopher Ward
Model	C8 Pilot
Movement	Quartz (or Automatic, depending on variant)
Case Diameter	44 mm
Case Thickness	11.5 mm
Case Material	316L Stainless Steel
Weight	Approximately 100 g (including strap)
Power Source	Battery (for quartz) or Self-winding (for automatic)
Battery Type	SR626SW (for quartz models)
Functions	Hours, Minutes, Seconds, Date
Crystal	Sapphire with anti-reflective coating
Water Resistance	50 meters (5 ATM)
Strap Material	Leather (standard) or available options
Strap Width	22 mm
Lume	Super-LumiNova on hands and markers
Warranty	60 months (5 years) from date of purchase
Care Instructions	Clean with soft cloth; avoid water if not water-resistant; service every 3-5 years
Safety	Keep away from strong magnetic fields; do not operate crown in water
Spare Parts & Repairability	Authorized service centers for parts; battery replacement by professional

Frequently Asked Questions - C8 Pilot Christopher Ward

How do I set the date on my C8 Pilot watch?

Pull the crown out to the first position. Turn the crown clockwise until the correct date appears. Avoid setting the date between 9 pm and 3 am to prevent damage.

What type of battery does the quartz C8 Pilot use?

The quartz model uses a SR626SW silver oxide battery. Replacement should be done by a qualified watchmaker.

Is the C8 Pilot water resistant? Can I swim with it?

Yes, it has 50 meters (5 ATM) water resistance. Suitable for splashes and brief immersion, but not for swimming or diving.

How do I wind the automatic version of the C8 Pilot?

If the watch has stopped, wind the crown clockwise in the normal position (pushed in) about 30-40 times. Then set the time and date. The watch will self-wind with daily wear.

The watch is running fast or slow. What can I do?

Quartz watches are highly accurate; if it's running fast/slow, the battery may be low or there is a movement issue. Automatic watches may need regulation. Contact Christopher Ward customer service.

Can I replace the strap myself?

Yes, the strap uses a standard 22 mm spring bar. Use a spring bar tool to remove the old strap and attach a new one. Ensure the bar snaps securely.

How do I clean the sapphire crystal and case?

Use a soft, lint-free cloth slightly dampened with water or mild soap. Dry immediately. Avoid abrasive cleaners that may damage the coating.

What is the warranty period for Christopher Ward watches?

Christopher Ward offers a 60-month (5-year) warranty from the original purchase date. It covers manufacturing defects but not battery, strap, or normal wear.

The crown feels stiff. Is that normal?

A slight resistance is normal, especially for screw-down crowns. If it's excessively stiff or loose, have it checked by an authorized service center.

How often should I service my C8 Pilot?

For quartz models, battery replacement every 2-3 years and a full service every 5-7 years. For automatic models, service every 3-5 years to ensure longevity.

USER MANUAL C8 Pilot Christopher Ward

Your Christopher Ward watch has been designed and engineered by highly talented craftspeople to ensure not only accurate and precise timekeeping but also to bring a real pride of ownership that only luxury items of the highest quality can ever hope to deliver.

You have made an investment, a good one, and the aim of this handbook is to help you make the most of that investment during what I hope will be a lifetime of ownership.

Christopher Ward

THE CW360 WATCH CARE PROGRAMME

Your C8 Pilot watch is constructed from the finest components and materials available including one of Switzerland's finest automatic movements. As with all watches of this quality, with the right care and attention, your new Christopher Ward watch has the potential to become an heirloom piece giving further joy to future generations. It's for this reason we have created our industry leading approach to after-sales care which we term the CW360 Watch care Programme. It's designed to deliver you complete peace of mind and the best support possible throughout the lifetime of your ownership and has three key elements, namely:

1. 60 DAY FREE RETURNS

Our success depends on you being completely happy with your new Christopher Ward watch. If for any reason you aren't, you have up to 60 Days to return your watch, absolutely free of charge, and receive a replacement or full refund by return - and without any quibbles from us!

2. FREE 5 YEAR MOVEMENT GUARANTEE

Your watch, at its heart, has a top quality precision engineered Swiss movement – so it's very unlikely to give you problems with the minimum amount of care and attention, including a regular service. We recommend you return your watch to us every 3/4 years for a service, so our expert technicians can keep your fine timepiece in the peak of condition.

3. SERVICING & REPAIRS...THE CHRISTOPHER WARD WAY...

Our innovative approach to servicing and repairing your Christopher Ward watch means that having your watch serviced or repaired doesn't mean months of waiting followed by an exorbitant bill - which is pretty much the experience guaranteed by every other luxury watch brand. We have developed an easy, quick and affordable expert service and repairs programme that doesn't cost the earth and has your watch back where it belongs - on your wrist - in double-quick time.

Visit our website for more details about the CW360 Watch Care Programme.

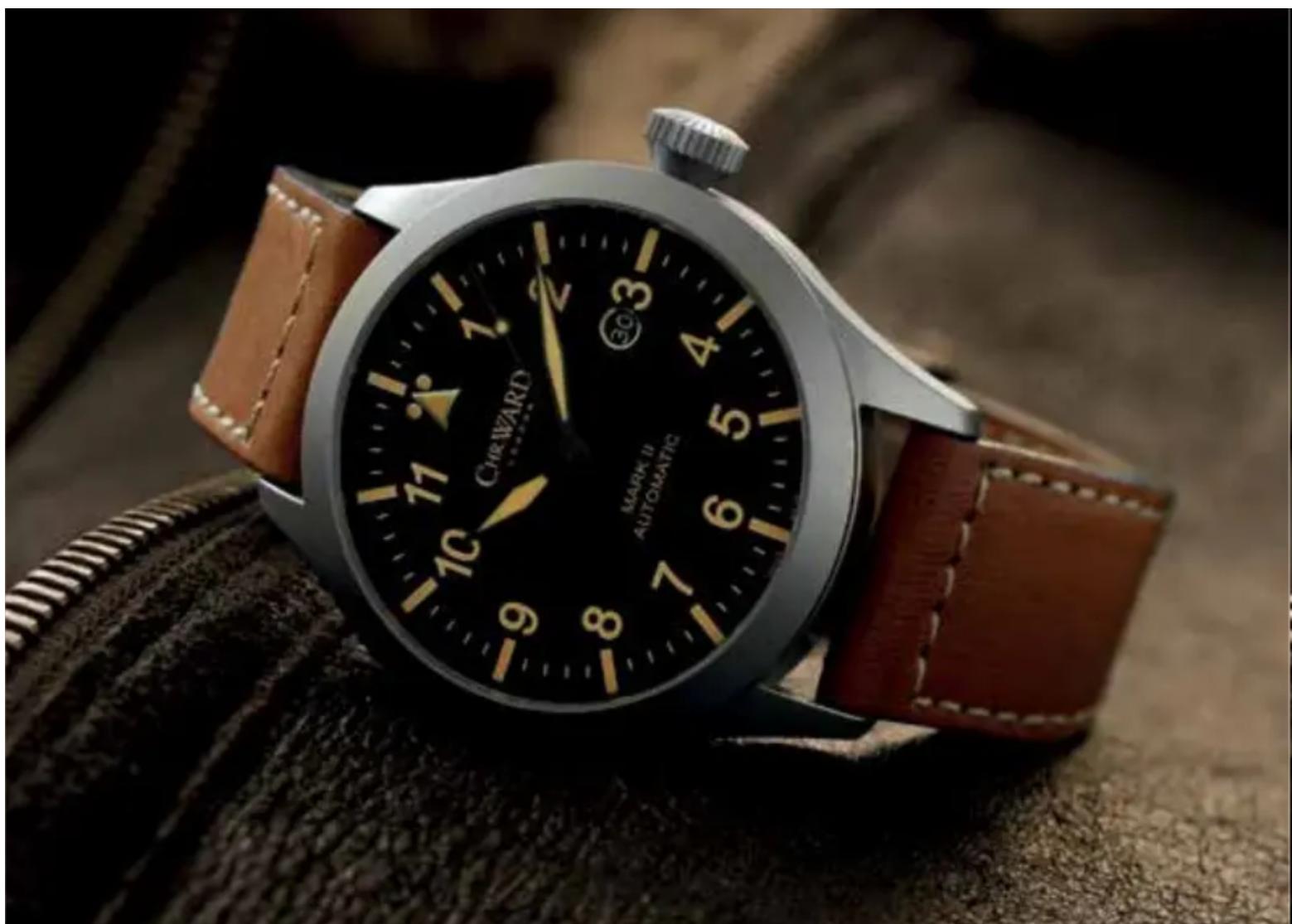

Close-up of a modern wristwatch with engraved markings, resting on a textured surface (no readable text or symbols beyond branding)

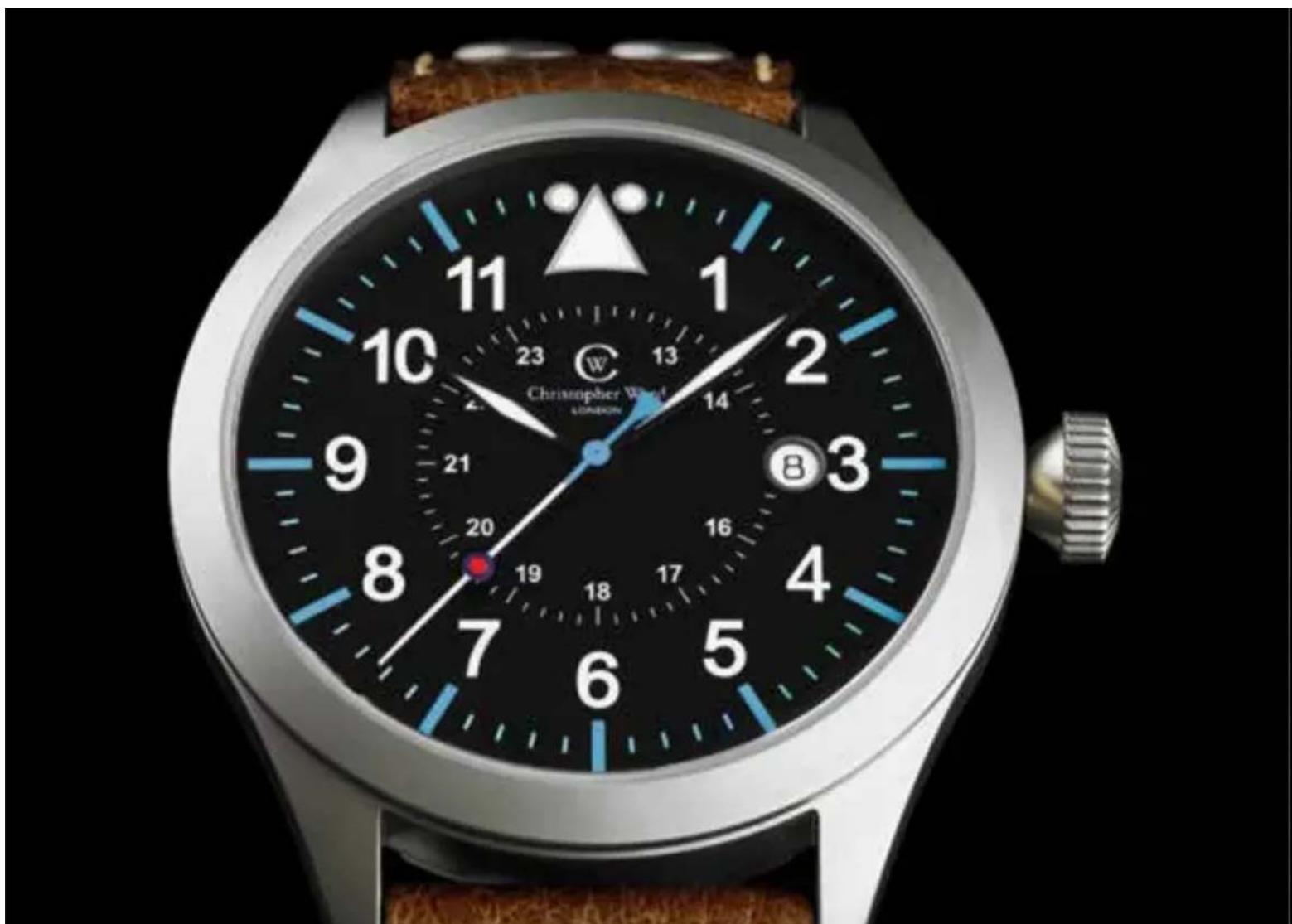

Close-up of a modern wristwatch with black dial, blue dials, and silver casing (no readable text or symbols)

And here's a few tips to help keep your watch working perfectly...

• Never change the date between the hours of 8pm and 2am – it's a little like changing gears in a car without using the clutch - Never a good idea.
  • Thoroughly rinse your watch in fresh water after immersion in salt water.
  • Always ensure the crown is fully tightened before use in any water.
  • Always adhere to the water resistance rating of your watch which you will find later in this handbook.
• Never fully wind your watch if it stops; 5-10 revolutions should suffice to have it restart.
• Wear your watch every day if possible as this will enable it to keep better time as well as preventing the lubricants in the movement from solidifying.
• Consider buying one of our automatic watch winders, which replicates the wearing of your watch, if you can't wear your watch every day and/or own more than one watch.
• Although your watch is fitted with the finest Incabloc anti-shock system it is best to avoid hard surfaces or sharp knocks. You may not want to wear your watch playing racquet sports, for instance.

THE C8 PILOT AUTOMATIC

TECHNICAL DATAFEATURES

*25 or 26 jewel Swiss mechanical movement

Self winding (automatic)

Date indicator

Convex sapphire crystal with anti-reflective coating

Water resistant to 5 ATM

38 hours maximum power reserve

Soft iron anti-magnetic inner casing

Exhibition balance wheel window

Engraved Spitfire blueprint on case back

Diameter: 44mm

Height: 9.7mm

Case: 316L Stainless steel

Calibre: *ETA 2824-2 or Sellita SW200-1

Vibrations: 28,800 per hour (4 Hz)

Accuracy: +20 / -10 seconds per day

Strap: 22mm

DESCRIPTION OF THE DISPLAY AND CONTROL BUTTONS

The C8 Pilot Automatic model has a maximum power reserve of 38 hours when fully wound. To re-power the watch after a period of non-use, simply unscrew the crown and wind in approximately 20 revolutions. Normal wearing will very quickly allow the rotor to start re-powering the watch over time after putting it on your wrist.

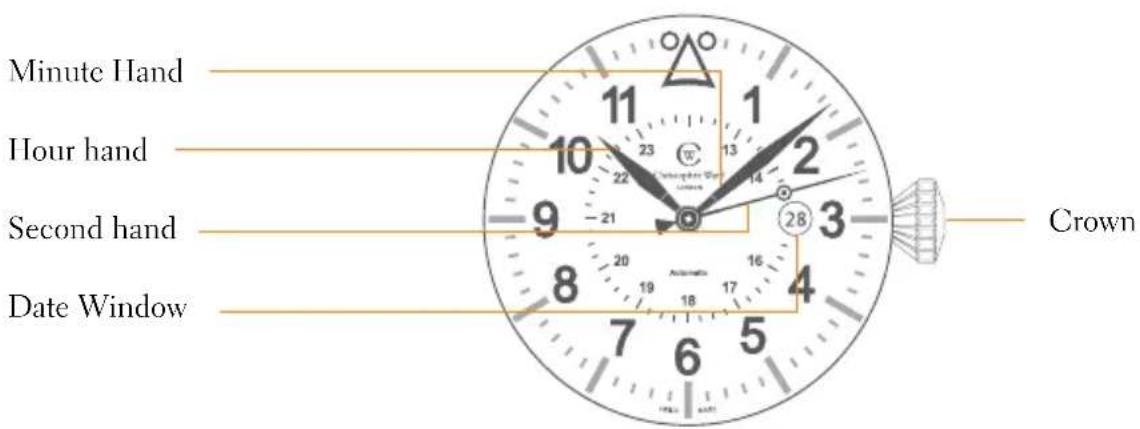

DISPLAY ELEMENTS

CONTROL BUTTONS

C8 Pilot MKI illustrated

C8 Pilot MKI illustrated

SETTING THE TIME/DATE

• Position 1 is for winding in power. Wind in a clockwise direction to re-power the watch.
• Pull gently into position ②. For rapid date correction, turn in a clockwise direction.
• Pull gently into position ^3 . This position is used for handsetting, and stopping of the second hand. For precise time setting it is recommended to pass beyond the desired minute and to set the hand backwards.

Please note: Date correction should not be carried out between 20.00 hrs and 02.00 hrs as the watch gearing will already be aligning itself to change the date. The crown should always be pushed in after adjustment, and it is best to do so from position 3 to avoid advancing beyond the desired date.

1 ATM (10 METRES)

Safe to wear your watch while washing your hands with tap water.

3 ATM (30 METRES)

Washing your car and/or general hosepipe usage.

5 ATM (50 METRES)

Water resistant to most household shower units.

10 ATM (100 METRES)

Safe to use while snorkelling in open water.

30 ATM (300 METRES)

Ideal for experienced divers and those practising scuba-diving.

50 ATM (500 METRES)

Professional divers, experiencing prolonged exposure underwater.

100 ATM (1000 METRES)

Professional deep sea diving.

WATER RESISTANCE

Although your watch has been through vigorous static pressure testing, it is worth remembering that there are many variables that can affect the water resistance of your watch.

For instance, arm movements during swimming and the sudden impact of diving and watersports will drastically increase the pressure the watch is under. Wearing your watch in the bath, shower, or sauna can also have an effect as a rapid increase in temperature can cause seals to expand and in extreme cases, malfunction or create condensation.

For these reasons, the water resistance rating of your watch (as shown) should only ever be considered a guideline and we strongly recommend they are always adhered to.

STRAPS & BRACELETS

As you would expect, we place as much emphasis on the quality of our straps and bracelets as we do our watches. We only use the finest leathers for our straps and our premium alligator straps are all ethically sourced from CITES approved farms in Louisiana. Similarly, we only use the finest metals in the construction of our bracelets, all of which are precision engineered for durability, efficiency and comfort.

The following guidelines explain how easy it is to use and adjust your Christopher Ward strap or bracelet:

LEATHER STRAP WITH EASY RELEASE BUTTERFLY CLASP

Close-up of a metallic connector with multiple slots, no visible text or symbols

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a hand holding a metallic mechanical component (no visible text or symbols)

Close-up of a firearm with visible grip and body part (no text or symbols)

Close-up of a hand holding a dark, curved object with a black border (no visible text or symbols)

Close-up of a mechanical component with curved surfaces and a small brown object, labeled '6' (no text or symbols on the main subject)

Close-up of a mechanical component with no visible text or symbols

Close-up of a brown leather wrist strap with metal clamps (no visible text or symbols)

Step 1 The butterfly clasp

Step 2 Locate quick-release

Step 3 Press the quick-release

Step 4 Pull open the clasp

Step 5 Thread strap through

Step 6 Secure the strap

Step 7 Close the clasp

Step 8 Complete

BRACELET WITH MICRO-ADJUSTMENT

Close-up of a finger pressing a button with a black circle highlighting the area (no text or symbols visible)

Close-up of a metallic mechanical component with a curved handle and internal structure (no visible text or symbols)

Close-up of a metallic object with a curved surface and small markings (no visible text or symbols)

Step 1 Press to release

Step 2 Expand adjustment

Step 3 Adjust pin position

Step 4 Close the clasp

DIVER'S EXTENSION (WHERE APPLICABLE)

Close-up of a metallic mechanical component with no visible text or symbols

Close-up of a mechanical component with no visible text or symbols

Step 1 Press to release

Step 2 Expand adjustment

Step 3 Adjust pin position

Step 4 Close the clasp

QUICK-RELEASE PINS (WHERE APPLICABLE)

Close-up of a metallic electronic component with a circular logo and a stylized symbol (no readable text or numbers)

Close-up of a hand holding a smartwatch with a circular logo on the screen (no visible text or symbols)

Close-up of a mechanical component with a circular emblem and a numbered label '3' (no readable text or symbols)

Close-up of a metallic electronic component with a circular emblem on its surface (no visible text or symbols)

Step 1 Locate the release

Step 2 Drag button back

Step 3 Detach strap

Step 4 Align holes to click a new strap in position

KEEPING IN TOUCH WITH CHRISTOPHER WARD...

From small beginnings just a few short years ago (our first workshop was actually a refurbished chicken shed!), Christopher Ward has won a worldwide following for his eponymous watch brand and can justifiably claim to manufacture the most affordable luxury watches in the world.

For many, the philosophy behind the brand, of trying to put luxury watches within the reach of everyone, is as attractive as the watches themselves, as is the very open approach of the business which means that Chris and the team spend a lot of time communicating personally with our customers - many of whom have become friends.

As the owner of a Christopher Ward watch, if ever you need to get hold of us we are at your service. We have listed some useful contact details on the back cover.

There is also always something new going on at our website at www.christopherward.co.uk and, if you haven't already discovered the independent forum dedicated to our brand at www.christopherwardforum.com we would recommend a visit. Informative and fun, it's a great place to hear the unexpurgated view of Christopher Ward of London!

CHR.WARD

LONDON

HEAD OFFICE

Christopher Ward (London) Limited, 1 Park Street, Maidenhead, Berkshire SL6 1SL United Kingdom [phone]

CUSTOMER SERVICES

[phone] (United Kingdom) or 1.877.226.8224 (United States of America)

[e-mail]

[e-mail]

WEBSITE

www.christopherward.co.uk (United Kingdom)

www.christopherward-usa.com (United States of America)
