Product Type	Automatic mechanical watch
Brand	Christopher Ward
Model	C9 Pulsometer Limited Edition Chronometer
Case Diameter	40 mm
Case Height	11.35 mm
Case Material	316L surgical grade stainless steel
Movement	Sellita SW200-1 (COSC certified chronometer)
Jewels	26
Power Reserve	38 hours
Vibrations	28,800 vph
Crystal	Anti-reflective sapphire
Water Resistance	5 ATM (50 meters)
Strap Width	20 mm
Dial Color	Optic White
Functions	Hours, minutes, hacking seconds, date at 3 o'clock, pulsometer scale (30 pulses)
Hands	Blued steel hour and minute hands, central second hand with caduceus counterbalance

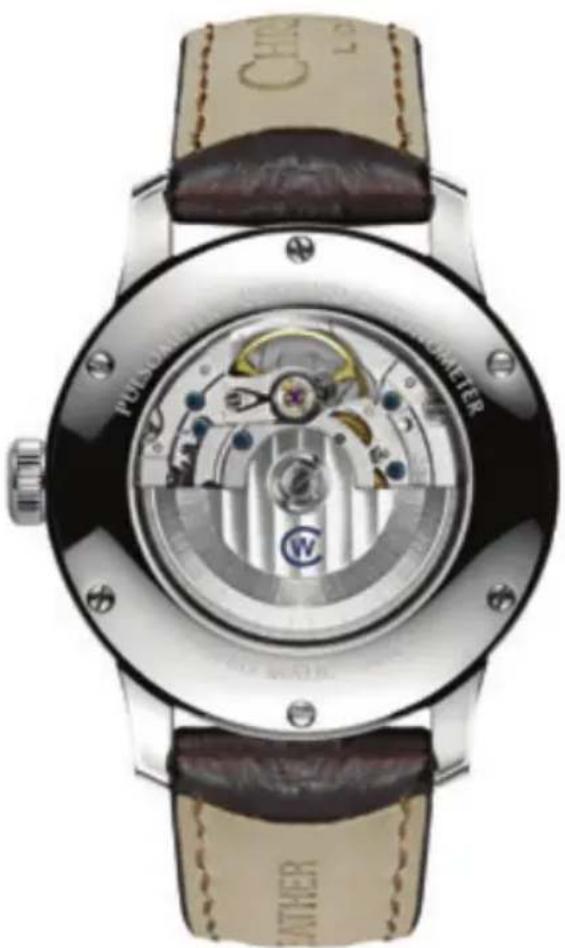

Case Back	Screw-in transparent (display)
Limited Edition	250 pieces
Care	Service every 3-4 years; avoid extreme temperature changes; rinse after saltwater exposure
Safety Notes	Do not operate crown or buttons underwater; avoid rapid temperature changes; water resistance diminishes over time
Spare Parts & Repairability	Authorized service by Christopher Ward; genuine straps and bracelets available

Frequently Asked Questions - C9 Pulsometer Christopher Ward

What is the water resistance of the C9 Pulsometer?

The watch is water resistant to 5 BAR (50 meters). This is suitable for household shower units but not for swimming or diving.

How do I set the time and date?

Pull the crown to position 2 to adjust the date clockwise. Pull to position 3 to set the time (clockwise or anti-clockwise). Avoid date adjustments between 8 pm and 2 am. Always screw the crown back in.

How do I use the pulsometer scale?

Start the second hand at 12 o'clock. Count 30 heartbeats. The scale shows the pulse rate directly. For example, if 30 pulses take 22 seconds, the pulse rate is 80 bpm.

What is the power reserve of the watch?

The watch has a 38-hour power reserve when fully wound. If not worn for a while, wind the crown about 20 revolutions to restart.

Is the C9 Pulsometer a chronometer?

Yes, the movement is COSC certified, meaning it meets stringent accuracy standards of -4 to +6 seconds per day.

What is the guarantee for this watch?

Christopher Ward offers a 60-day free returns and a 60-month movement guarantee (5 years). Additional service and repair programs are available.

Can I shower or swim with the watch?

No. The 5 BAR rating is for household shower units only. Avoid swimming, diving, and hot water exposure as seals may fail.

How should I clean the watch?

Wipe with a soft cloth. For straps, avoid water exposure. Leather straps should be kept dry. Metal bracelets can be cleaned with mild soap and water.

What material is the case made of?

The case is crafted from 316L surgical grade stainless steel, which is hypoallergenic and durable.

How many pieces of the C9 Pulsometer were made?

This is a limited edition of only 250 pieces worldwide.

USER MANUAL C9 Pulsometer Christopher Ward

C9 PULSOMETER LIMITED EDITION CHRONOMETER

OWNER'S HANDBOOK

CHR.WARD

LONDON

Your Christopher Ward watch has been designed and engineered by highly talented craftspeople to ensure not only accurate and precise timekeeping but also to bring a real pride of ownership that only luxury items of the highest quality can ever hope to deliver.

You have made an investment, a good one, and the aim of this handbook is to help you make the most of that investment during what I hope will be a lifetime of ownership.

CONTENTS

C9 PULSOMETER LE CHRONOMETER 2-5

TECHNICAL INFORMATION 6

HOW TO OPERATE YOUR FORUM LE 7–14

OUR WATCH CARE PROGRAMME 15

GENERAL INFORMATION 16

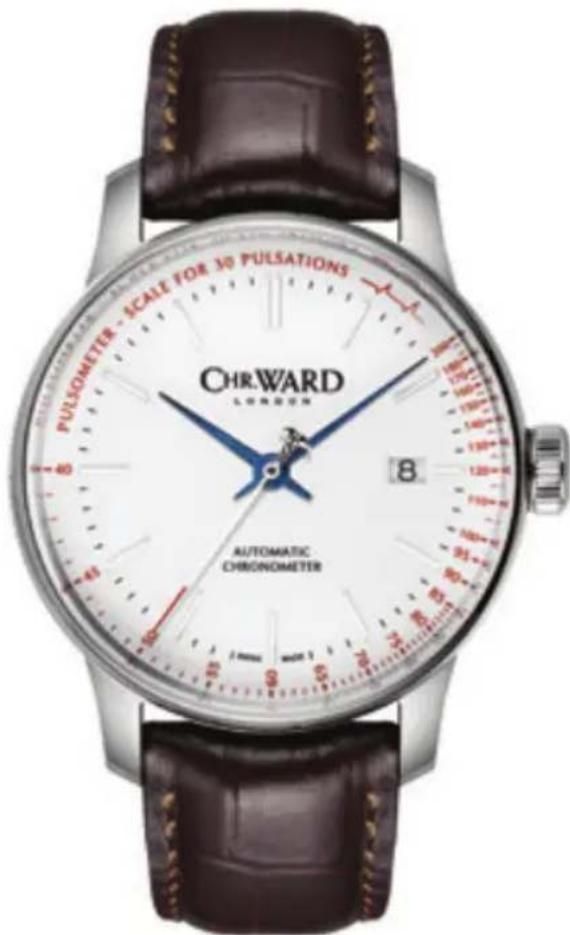

C9 PULSOMETER LIMITED EDITION CHRONOMETER

English physician, Sir John Floyer (1649-1734) first introduced the practice of pulse rate measurement and asked clockmaker Samuel Watson to adapt a watch for this precise purpose some 300 years before smart phones and watches started to monitor our every function.

It was the early 20th Century, however, before the Pulsometer (sometimes called a Pulsograph) watch became widely used by the medical profession to measure a patient's heart beat rate and the C9 Pulsometer is the latest addition in the long tradition of these timepieces.

We have chosen not to go down the chronograph route for our first Pulsometer, instead choosing to use a COSC certified version of the self-winding Sellita SW200-1 as the movement, which guarantees accuracy to within -4 to +6 seconds a day. The beautifully engineered, 40mm C9 case, is constructed, rather aptly, of surgical grade stainless steel and the SW200 movement can be seen working through the screw-down transparent back-plate.

The tachymeter style pulsometer scale of the dial is calibrated for 30 heart beats and both its red colour and the corresponding simplicity of the remainder of the dial make for especially easy reading. The watch has precision blued steel hour and minute hands but it is the hacking second hand, with its caduceus counter-balance design, that exemplifies the usual Christopher Ward attention to the fine details. In Greek mythology Asclepius represents medicine and healing, but it's Hermes staff, caduceus, which has become widely used as the symbol of medicine worldwide, and especially in North America.

Whether you are a member of the medical profession, or just think a fine mechanical watch that can help you monitor your health is a great idea, the C9 Pulsometer is a special watch made even more special as only 250 pieces will ever be released. It's enough to set one's pulse racing!

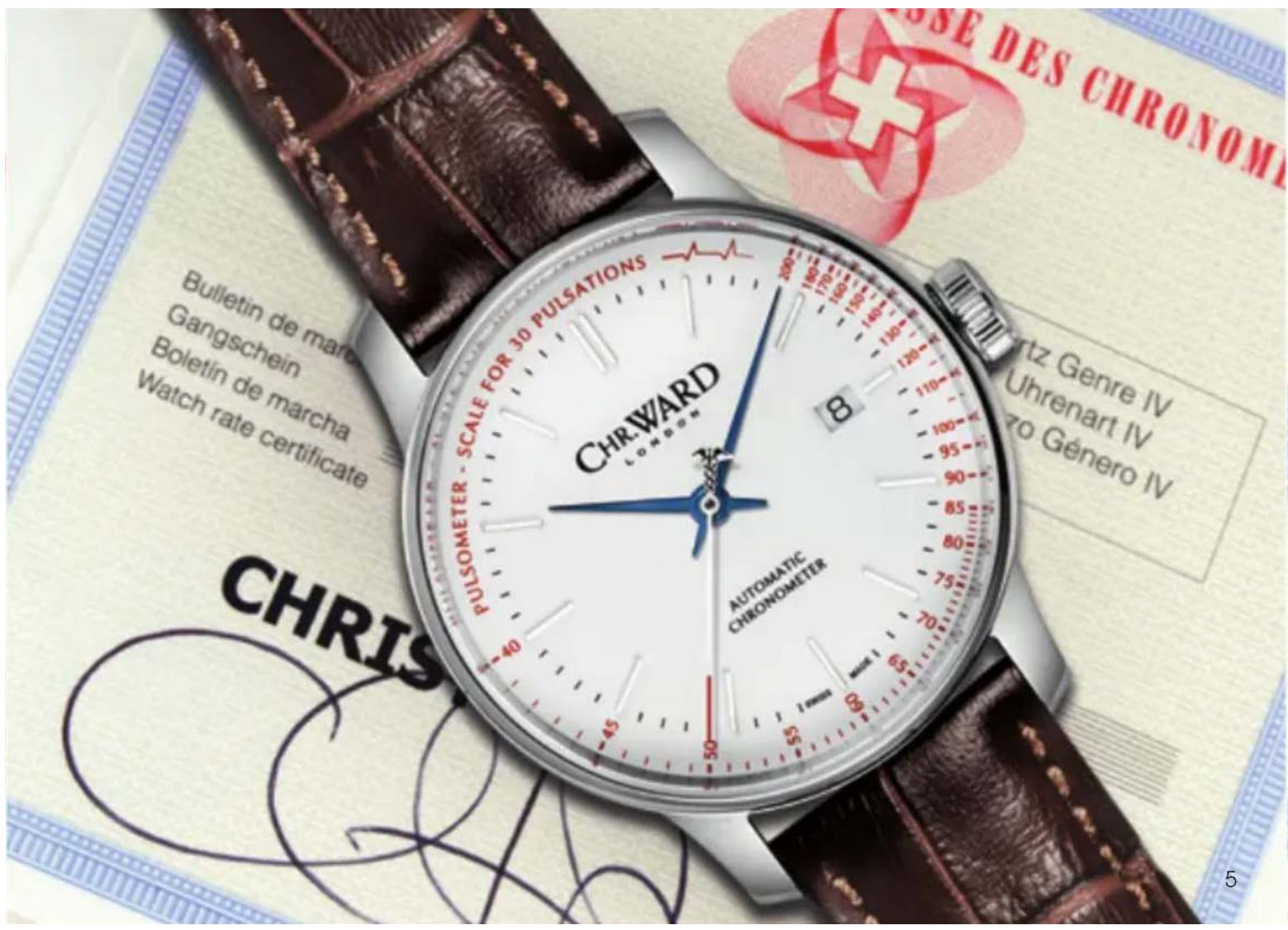

THE COSC CERTIFIED CHRONOMETER

To gain chronometer status, watchmakers submit their Swiss movements to COSC, an independent, non-profit making watch accuracy verification organisation based in Geneva, to be tested against the international standards of ISO and DIN.

Certification follows exhaustive testing. In achieving the coveted status of Certified Chronometer, a movement must not only be made from the highest quality components, but also be the object of special care on part of the finest horologists and technicians as it is painstakingly assembled.

Only movements which meet the precision criteria are granted an official certificate. Each uncased movement is individually tested for fifteen days, in five positions, at three different temperatures.

Movements are fitted with a second hand for tests and measurements are made daily with the aid of cameras. Based on all of these measurements, seven eliminatory criteria are calculated, each of which must be met.

The exacting and rigorous nature of the COSC certification process means that the achievement of Certified Chronometer status is extremely rare. In fact, of all the watches produced in Switzerland each year, just 3% bear the coveted COSC 'bulletin de marche' or certificate of watch performance. Which is why, when you read the words 'Certified Chronometer' on a Swiss watch you can be sure that the movement behind the elegant dial is a rare example of fine Swiss watchmaking which is accurate, precise... and extremely rare.

TECHNICAL INFORMATION

FEATURES

• Swiss made
• Limited edition of 250 pieces
• 26 jewel self-winding movement
• 38 hour power reserve
• COSC certified chronometer
• Hand finished, surgical grade, stainless steel case
• One-piece dial with 30 pulse measurement scale
• Blued steel central hour and minute hands
• Caduceus counter-balance central second design
• Date calendar at 3 o'clock
• Anti-reflective sapphire crystal
• Screw-in transparent case back
• Stop-second hacking mechanism

TECHNICAL INFORMATION

Diameter: 40mm

Height: 11.35 mm

Calibre: Sellita SW200-1(COSC)

Vibrations: 28.800 vph

Case: 316L stainless steel

Water resistance: 5 BAR (50 METRES)

Strap width: 20mm

Dial Colour: Optic White

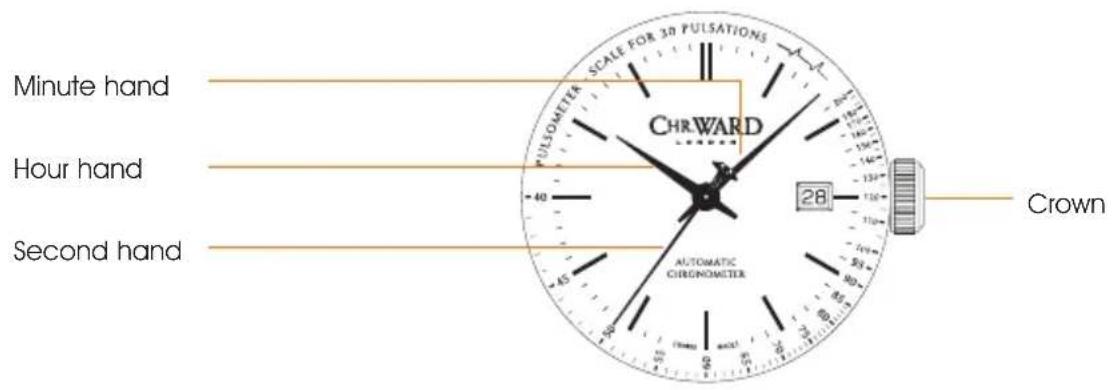

DISPLAY AND CONTROL BUTTONS

The C9 Pulsometer Limited Edition Chronometer has a maximum power reserve of 38 hours when fully wound. To re-power the watch after a period of non-use, simply pull out the crown and wind in approximately 20 revolutions. Normal wearing will very quickly allow the rotor to start re-powering the watch over time after putting it on your wrist.

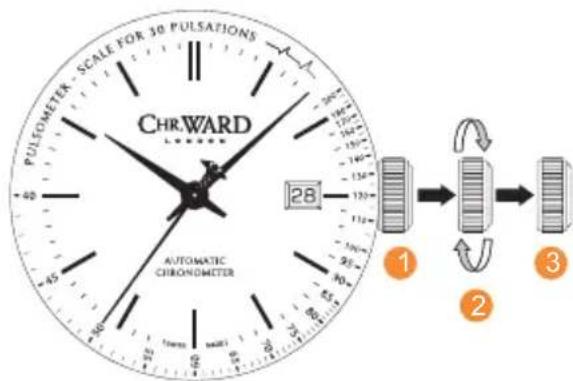

SETTING THE TIME

• From position ①, pull the crown to position ② and adjust the calendar display in a clockwise direction.
• Pull the crown to position ③ and adjust the time setting in either a clockwise or anti-clockwise direction.
  • After adjusting to the correct time ensure that the crown is flush with the case in order that water resistance is maintained.

Please note: Date correction should not be carried out between 20.00 hrs and 02.00 hrs as the watch gearing will already be aligning itself to change the date. The crown should always be screwed in after adjustment, and it is best to do so from position 3 to avoid advancing beyond the desired date.

Close-up of a luxury wristwatch with mechanical gear and leather strap (no visible text or symbols)

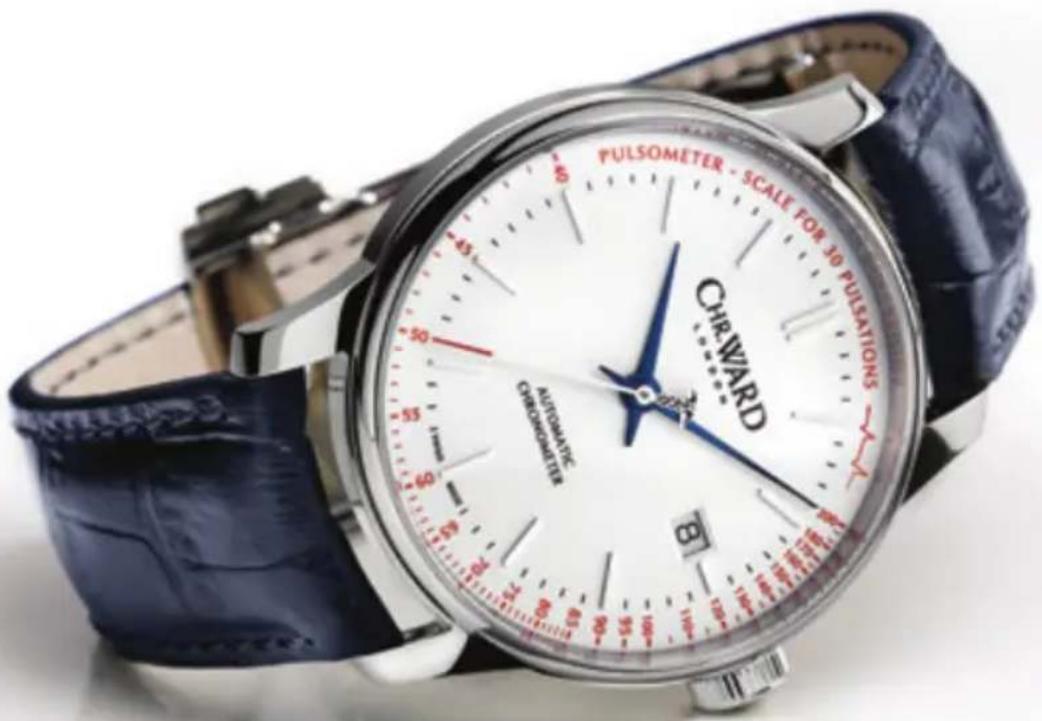

WHAT IS A PULSOMETER?

The Pulsometer, also known as the Pulsograph is, ordinarily, a tool used by those in the medical profession to simplify the process of taking a pulse through a convenient scale marked on a watch.

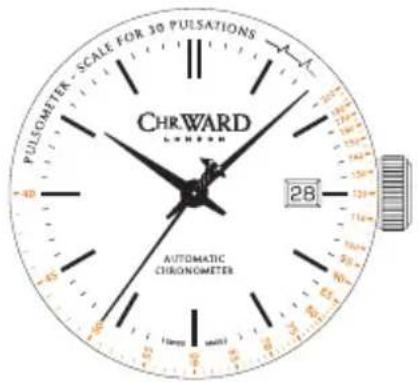

With tachymeter style markings, the watch dial is graduated for a certain number of pulsations (as shown). The scale allows the direct reading of the rate without needing to do any multiplication in your head.

READING YOUR PULSOMETER

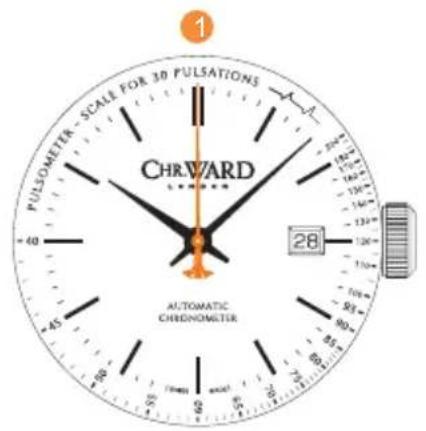

• Wait for the second hand to align with 12.00 as shown on position 1.
• As the second hand sweeps clockwise start to take a pulse reading.

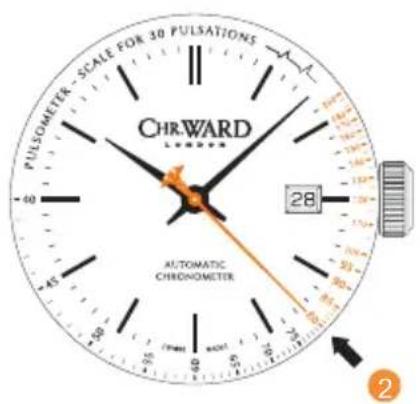

  • After 30 pulses take a reading, see 2 if 30 pulses take 22 seconds then the pulse rate is 80 beats per minute.

Close-up of a luxury wristwatch with silver frame and dark leather strap (no visible text or symbols)

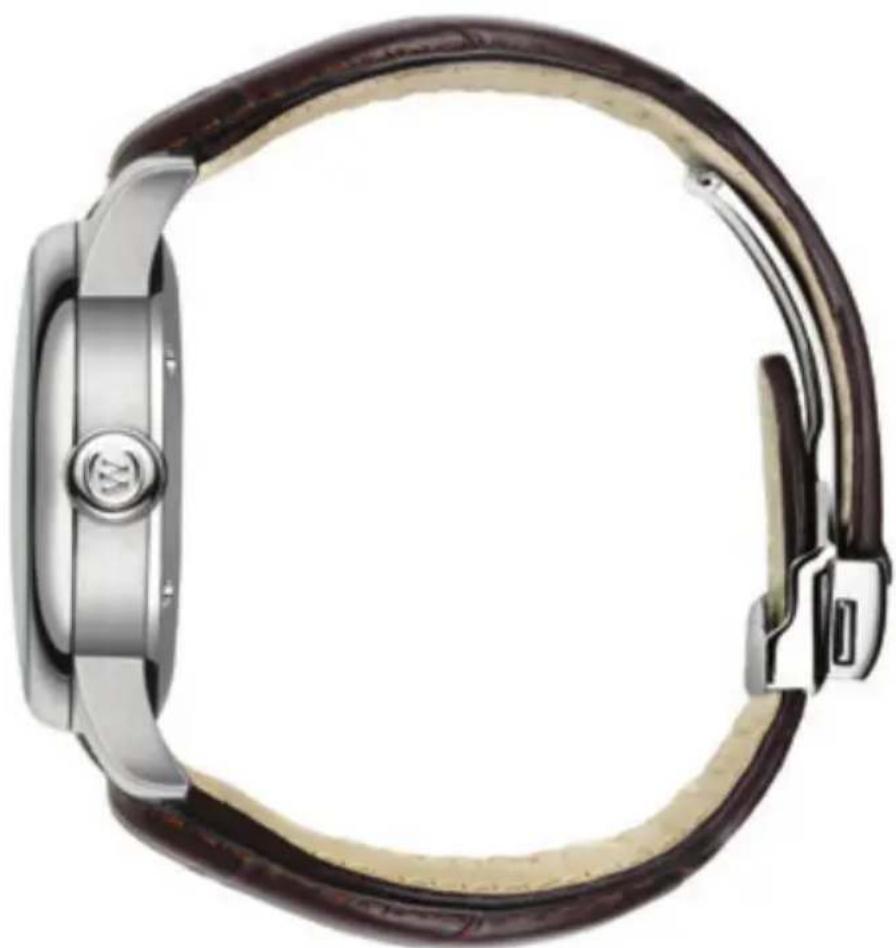

STRAPS & BRACELETS

As you would expect, we place as much emphasis on the quality of our straps and bracelets as we do our watches. We only use the finest leathers for our straps. Similarly, we only use the finest metals in the construction of our bracelets, all of which are precision engineered for durability, efficiency and comfort. The following guidelines explain how easy it is to use and adjust your Christopher Ward strap.

LEATHER STRAP WITH BADER DEPLOYMENT

Close-up of a hand holding a small black object, possibly a device or sensor, with no visible text or symbols.

Close-up of two USB connectors with black wires, no visible text or symbols

Close-up of a hand holding a thin, dark object with curved lines (no visible text or symbols)

Close-up of a hand holding a black cable with a white connector, labeled '4' (no text or symbols on the object itself)

1. Press to release
2. Pull open the clasp
3. Locate the opening and thread the strap through
4. Close the clasp

WATER RESISTANCE

Although your watch has been through vigorous static pressure testing, it is worth remembering that there are many variables that can affect the water resistance of your watch.

For instance, arm movements during swimming and the sudden impact of diving and water sports will drastically increase the pressure the watch is under. Wearing your watch in the bath, shower, or sauna can also have an effect as a rapid increase in temperature can cause seals to expand and in extreme cases, malfunction or create condensation.

For these reasons, the water resistance rating of your watch (as shown) should only ever be considered a guideline and we strongly recommend they are always adhered to.

1 BAR (10 METRES)

Safe to wear your watch while washing your hands with tap water.

3 BAR (30 METRES)

Washing your car and/or general hose pipe usage.

5 BAR (50 METRES)

Water resistant to most household shower units.

10 BAR (100 METRES)

Safe to use while snorkelling in open water.

30 BAR (300 METRES)

Ideal for experienced divers and those practising scuba-diving.

50 BAR (500 METRES)

Professional divers, experiencing prolonged exposure underwater.

100 BAR (1000 METRES)

Professional deep sea diving.

OUR WATCH CARE PROGRAMME

Your watch is constructed from the finest components and materials available including one of Switzerland's finest mechanical movements. As with all watches of this quality, with the right care and attention, your new Christopher Ward watch has the potential to become an heirloom piece giving further joy to future generations. It's for this reason we have created our industry leading approach to after-sales care, starting with our famous 60/60 Guarantee which remains the most comprehensive guarantee in the world of watchmaking.

Visit our website for more details about our 60/60 Guarantee and Service and Repair Programme.

Christopher Ward's 60/60 Guarantee is designed to deliver you complete peace of mind and the best support possible throughout the lifetime of your ownership. The guarantee has two key elements and sits alongside our Servicing and Repairs Programme:

60/60 GUARANTEE

1. 60 DAY FREE RETURNS

Our success depends on you being completely happy with your new Christopher Ward watch. You have up to 60 days to return your watch, absolutely free of charge, and receive a replacement or full refund by return – so long as it has not been worn and is returned in box-perfect condition.

2.60 MONTH MOVEMENT GUARANTEE

Your watch, at its heart, has a top quality precision engineered Swiss movement – so it's very unlikely to give you problems with the minimum amount of care and attention, including a regular service. We recommend you return your watch to us every 3/4 years for a service, so our expert technicians can keep your fine timepiece in the peak of condition.

SERVICING & REPAIRS...THE CHRISTOPHER WARD WAY...

Our innovative approach to servicing and repairing your Christopher Ward watch means that having your watch serviced or repaired doesn't mean months of waiting followed by an exorbitant bill – which is pretty much the experience guaranteed by every other luxury watch brand. We have developed an easy, quick and affordable expert service and repairs programme that doesn't cost the earth and has your watch back where it belongs – on your wrist – in double-quick time.

KEEPING IN TOUCH WITH CHRISTOPHER WARD

From small beginnings just a few short years ago (our first workshop was actually a refurbished chicken shed!), Christopher Ward has won a worldwide following for his eponymous watch brand and can justifiably claim to manufacture the most affordable luxury watches in the world.

For many, the philosophy behind the brand, of trying to put luxury watches within the reach of everyone, is as attractive as the watches themselves, as is the very open approach of the business which means that Chris and the team spend a lot of time communicating personally with our customers – many of whom have become friends.

As the owner of a Christopher Ward watch, if ever you need to get hold of us we are at your service. We have listed some useful contact details on the back cover.

There is also always something new going on at our website at www.christopherward.co.uk and, if you haven't already discovered the independent forum dedicated to our brand at www.christopherwardforum.com we would recommend a visit. Informative and fun, it's a great place to hear the unexpurgated view of Christopher Ward of London!
