C2 Lido - Watch Christopher Ward - Free user manual and instructions

Product Type	Analog Watch
Brand	Christopher Ward
Model	C2 Lido
Movement	Quartz (battery-powered)
Case Diameter	40 mm
Case Thickness	10 mm
Weight	80 g (approx.)
Water Resistance	50 meters (5 ATM)
Dial	Sunray blue with date window
Crystal	Sapphire with anti-reflective coating
Strap	Leather or stainless steel bracelet
Power Source	SR626SW battery (1.55V)
Battery Life	Approximately 2-3 years
Functions	Hours, minutes, seconds, date
Accuracy	±20 seconds per month
Maintenance	Wipe with soft cloth; avoid magnetic fields
Cleaning	Use microfibre cloth; no chemicals
Safety	Keep away from strong magnets and extreme temperatures
Spare Parts	Battery, strap, crown available from authorized dealers
Repairability	Serviceable by certified watchmaker
Warranty	60-month warranty

Frequently Asked Questions - C2 Lido Christopher Ward

How do I set the time on my Christopher Ward C2 Lido?

Pull the crown out to position 2 (time-setting). Turn it clockwise to set the hands. Avoid setting the date between 9 PM and 3 AM to prevent damage.

How do I change the date on my C2 Lido?

Pull the crown to position 1 (date-setting). Turn it clockwise until the correct date appears. Quick date change is possible; ensure not to use it between 9 PM and 3 AM.

What is the water resistance of the C2 Lido?

It has a water resistance rating of 50 meters (5 ATM). Suitable for swimming but not for diving.

How do I replace the battery?

Take the watch to a professional watchmaker. The battery is a SR626SW (1.55V). Do not attempt yourself as it may damage the case gasket.

Is the C2 Lido sapphire crystal?

Yes, it features a sapphire crystal with anti-reflective coating, highly scratch-resistant.

How often should I service my watch?

Every 3-5 years for a quartz movement to replace battery, clean, and lubricate.

Can I wear the watch in the shower?

Not recommended. While 50m water resistant, hot water and steam can damage seals.

How do I clean the strap?

Leather strap: wipe with a damp cloth and dry. Metal bracelet: use a soft brush with mild soapy water, then rinse.

What is the accuracy of the C2 Lido?

Typically ±20 seconds per month for the quartz movement.

Where can I buy a replacement strap?

Authorized Christopher Ward dealers or the official website. The lug width is 20 mm.

USER MANUAL C2 Lido Christopher Ward

Time on your side...

Your Christopher Ward watch has been designed and engineered by highly talented craftspeople to ensure not only accurate and precise timekeeping but also to bring a real pride of ownership that only luxury items of the highest quality can ever hope to deliver.

You have made an investment, a good one, and the aim of this handbook is to help you make the most of that investment during what I hope will be a lifetime of ownership.

Christopher Ward

Close-up of a modern wristwatch with silver casing and black leather strap, showing no visible text or symbols on the dial.

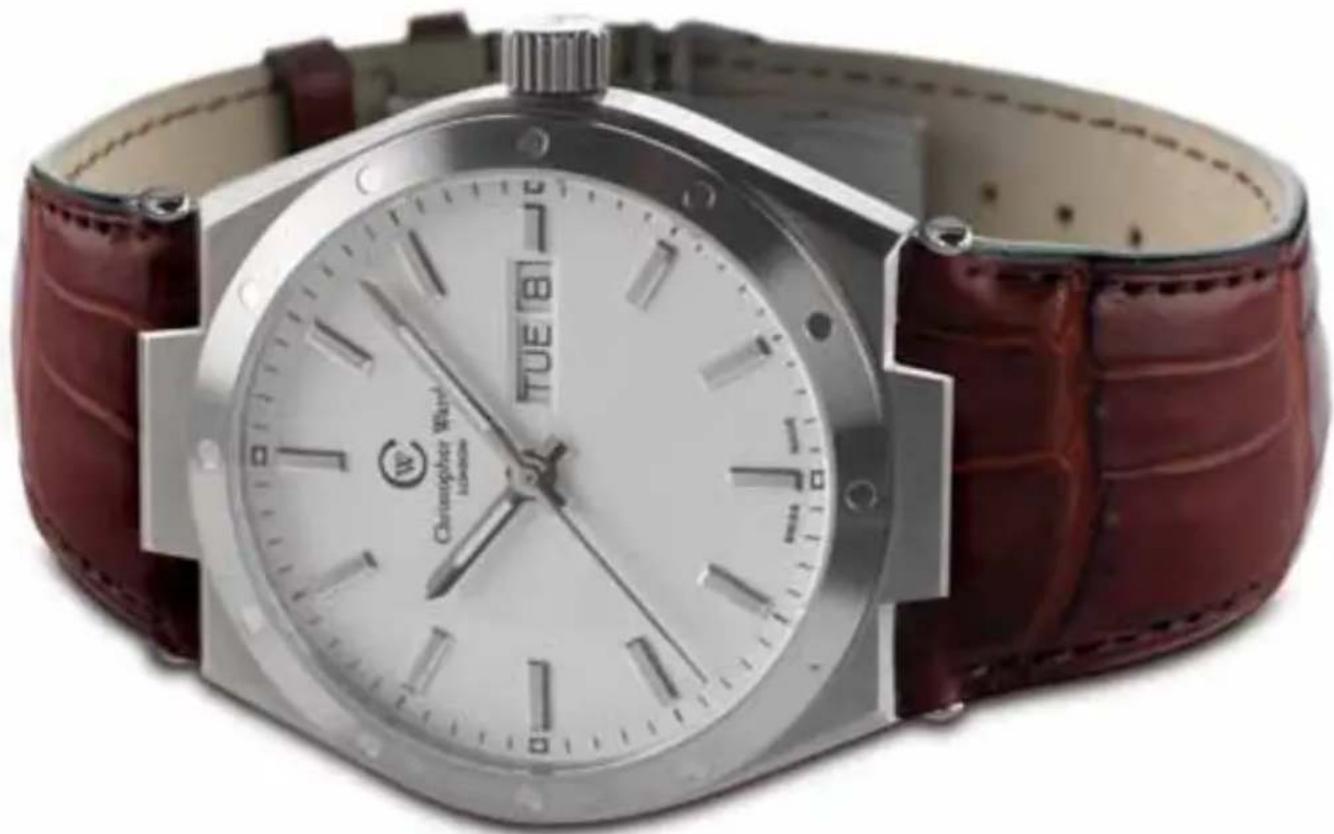

Caring for your Christopher Ward quartz watch

Your C2 Lido is constructed from the finest components and materials available including one of Switzerland's finest quartz movements.

As with all watches of this quality, with just a little care, it has the potential to become an heirloom piece giving further joy to future generations.

Here are a few hints to help keep your watch working perfectly over the years:

• Although the battery in your watch may last longer, we recommend you have it changed every 2/3 years by a reputable watch repairer.
• At the same time as having the battery changed it makes sense to have the watch repairer clean and lubricate your watch as necessary.
• Make sure the crown is screwed down fully before putting the watch into water. Adhere to the water resistance ratings towards the end of the handbook to prevent water getting to the movement which could result in a very costly repair or the need for a replacement movement.
• Your watch is shock resistant to minor impacts but dropping from height onto a hard surface may damage the movement.

Should you need a replacement part - don't worry, we keep stocks of spare parts for years, even for discontinued models. It's all part of the Christopher Ward service.

Finally, don't forget our famous 60:60 Guarantee allows you to return your watch absolutely free, for any reason, and with no quibbles, for up to 60 days after purchase and we also guarantee your movement for up to 60 months.

After all, why shouldn't you enjoy peace of mind as much as you enjoy your watch?

Close-up of a luxury wristwatch with silver frame and red leather strap (no visible text or symbols)

The C2 Lido

Features

7 jewel Swiss quartz movement

Convex sapphire crystal with anti-reflective coating

Water resistant to 10 atm

Adjustable quick-release butterfly clasp

Screwdown case with unique serial number

Day/date window

Retro-styled guilloché dial

Screw-in crown

End-of-life battery indicator

Technical Data

Diameter: 40mm

Height: 8.5mm

Weight: 80g - 140g

Case: 316L Stainless steel

Calibre: ETA 955.122

Accuracy: +20 / -10 seconds per month

Description of the display and control buttons

Display elements

Control buttons

Minute Hand

Hour hand

Second hand

Day/Date Window

Crown

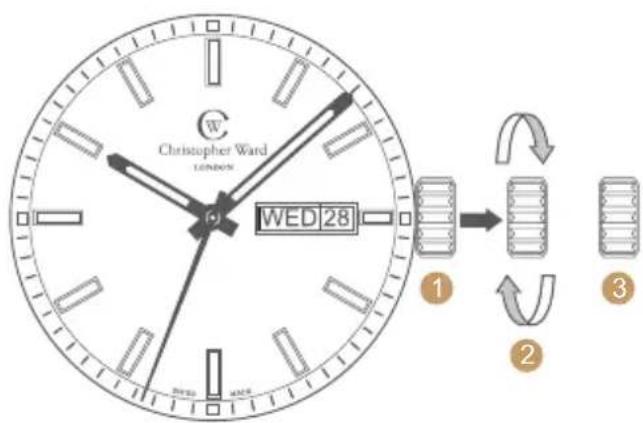

Setting the time and date

To get to position 1, turn the crown anti-clockwise until it releases itself.

- From position 1, pull the crown to position and adjust the calendar display in a clockwise direction and the day in an anti-clockwise direction

2

- Pull the crown to position ③ and adjust the time setting in either a clockwise or anticlockwise direction.

• After adjusting to the correct time ensure that the crown is screwed back in until flush with the case in order that water resistance is maintained.

Fitting the bracelet

If you find the bracelet needs adjusting to your wrist we recommend you have it re-sized by a reputable watch repairer or jeweller. Most local jewellers will either do this for free or perhaps make a nominal charge for what is a job that should only take a few minutes. It is always best to be present so a comfortable fit is achieved.

Establishing the length of the bracelet

Place the watch with its separated bracelet on your wrist and estimate the number of links you need to remove. If you need to remove several links, try to keep the numbers removed from both halves of the bracelet as equal as possible to ensure that the clasp remains roughly in the middle of your wrist.

To open your bracelet simply press either side of the clasp to release as shown.

The quick-release butterfly clasp

The strap versions of the C2 Lido use quick-release butterfly clasps. If you are unfamiliar with the butterfly clasp system just follow our 8 step guide below.

Close-up of a black and silver buckle buckle (no text or symbols visible)

Step 1 Locate the clasp

Close-up of a hand holding a small electronic component (no visible text or symbols)

Step 2 Click quick-release

Close-up of a white plastic mechanical component with a small inset showing internal structure (no visible text or symbols)

Step 3 Pull open clasp

Close-up of a hand holding a small metallic clip (no visible text or symbols)

Step 4 Prise cover open

Close-up of a mechanical clamp or bracket component (no visible text or symbols)

Step 5 Thread strap through

Close-up of a white mechanical device with a metallic bracket and circular components (no visible text or symbols)

Step 6 Snap back

Close-up of a hand holding a small electronic device with visible components (no text or symbols)

Step 7 Close clasp

Close-up of a black wrist strap with silver metal clip (no text or symbols visible)

Step 8 Complete

Abstract black-and-white icon depicting a hand holding a device, enclosed in a partial circular frame (no text or symbols)

1 ATM (10 Metres)

Icon showing a car with a streetlamp and a light beam, symbolizing surveillance or navigation (no text)

3 ATM (30 Metres)

Black and white icon of a showerhead showerhead with no text or symbols

5 ATM (50 Metres)

Safe to wear your watch while washing your hands with tap water.

Washing your car and or general hosepipe usage.

Water resistant to most household shower units.

Black circular icon with white stylized graphic of a diving gear and waveforms (no text or symbols)

10 ATM (100 Metres)

Black and white circular icon depicting a diver swimming with waves (no text or symbols)

30 ATM (300 Metres)

Black and white circular icon depicting a submarine with water waves (no text or symbols)

50 ATM (500 Metres)

Safe to use while snorkelling in open water, it is not advisable to dive with your watch.

Ideal for experienced divers and, in general, anybody practising scuba-diving.

Professional divers, experienced prolonged exposure underwater.

Water resistance

Please note. these are only guidelines but we strongly urge you to adhere to them to retain the integrity of your watch. If you have any queries regarding this please contact us direct.

NB. To safeguard watch movement please ensure the crown is, at all times, screwed in correctly.
