Product Type	Swiss made chronometer, limited edition watch
Model	C30 Malvern COSC
Brand	Christopher Ward
Diameter	39 mm
Height	11.3 mm
Weight	58 g
Case Material	316L surgical grade stainless steel
Crystal	Sapphire crystal
Dial Color	Optic white with Superluminova hands and indexes
Movement	ETA 251.233 COSC, 27 jewels, thermo-compensated quartz
Power Source	Quartz battery (replaceable)
Functions	Chronograph (12h, 60min, 60s, 1/10s), date display, time setting
Water Resistance	5 ATM (50 meters)
Crown Type	Screw-in crown for enhanced water resistance
Strap Width	18 mm
Strap Options	Italian leather with Bader deployment or stainless steel bracelet
Limited Edition	500 pieces worldwide, individually engraved serial number
Certification	COSC Certified Chronometer
Warranty	60-day free returns, 60-month movement guarantee
Recommended Service	Every 3-4 years; battery change and service recommended simultaneously
Care Instructions	Avoid extreme temperatures, water sports beyond rating; rinse with fresh water after saltwater exposure
Country of Origin	Swiss made

Frequently Asked Questions - C30 Malvern COSC Christopher Ward

How do I set the time on my C30 Malvern COSC?

Unscrew the crown by turning it anti-clockwise until it releases. Pull to position ③ (the watch stops). Turn the crown to the correct time. Push back to position ① and screw in clockwise to maintain water resistance.

How do I set the date quickly?

Pull the crown to position ② (watch continues running). Turn clockwise to advance the hour hand in one-hour increments until the correct date appears. Then pull to position ③, set time if needed, and push back to position ①.

How do I use the chronograph?

Press push-button A to start timing. Press A again to stop. Press B to reset all chronograph hands to zero. For accumulated timing, press A to start/stop and B to reset. For interval timing, press B to display intermediate times while timing continues.

What is the water resistance rating?

The watch is water resistant to 5 ATM (50 meters). It is safe for washing hands and light splashes but not for swimming, diving, or showering. Always ensure the crown is screwed in tightly.

How do I adjust the chronograph hands to zero?

If the chronograph hands are not at zero, pull the crown to position ②. Press A to adjust the hour chronograph hand and B to reset the minute counter. Then pull to position ③ and press A for the stop-second hand and B for the tenths hand.

What movement does the C30 Malvern COSC use?

It uses the Swiss-made ETA 251.233 COSC quartz movement, which is thermo-compensated and has 27 jewels. It is certified as a chronometer by COSC.

How long is the warranty?

Christopher Ward offers a 60-day free return policy and a 60-month (5-year) movement guarantee. The guarantee covers the movement but requires regular servicing every 3-4 years.

Can I change the strap myself?

Yes, the strap width is 18 mm. The watch comes with either a leather strap with Bader deployment or a stainless steel bracelet. Instructions for adjusting the bracelet are in the manual, but for leather straps, you may need a spring bar tool.

How often should I service my watch?

It is recommended to have your watch serviced every 3-4 years. When the battery needs changing, it is advisable to have the watch serviced at the same time to maintain peak condition.

Is the C30 Malvern COSC a limited edition?

Yes, it is limited to 500 pieces worldwide. Each watch has an individually engraved serial number on the case back, adding exclusivity.

USER MANUAL C30 Malvern COSC Christopher Ward

C30 MALVERN CHRONOMETER

OWNER's HANDBOOK

CHR.WARD

LONDON

Your Christopher Ward watch has been designed and engineered by highly talented craftspeople to ensure not only accurate and precise timekeeping but also to bring a real pride of ownership that only luxury items of the highest quality can ever hope to deliver.

You have made an investment, a good one, and the aim of this handbook is to help you make the most of that investment during what I hope will be a lifetime of ownership.

Christopher Ward

CONTENTS

C30 MALVERN CHRONOMETER 2-3

THE COSC CERTIFIED CHRONOMETER 4-5

TECHNICAL INFORMATION 6-7

HOW TO OPERATE YOUR

C30 MALVERN CHRONOMETER 8-21

OUR WATCH CARE PROGRAMME 22-23

GETTING IN TOUCH 24

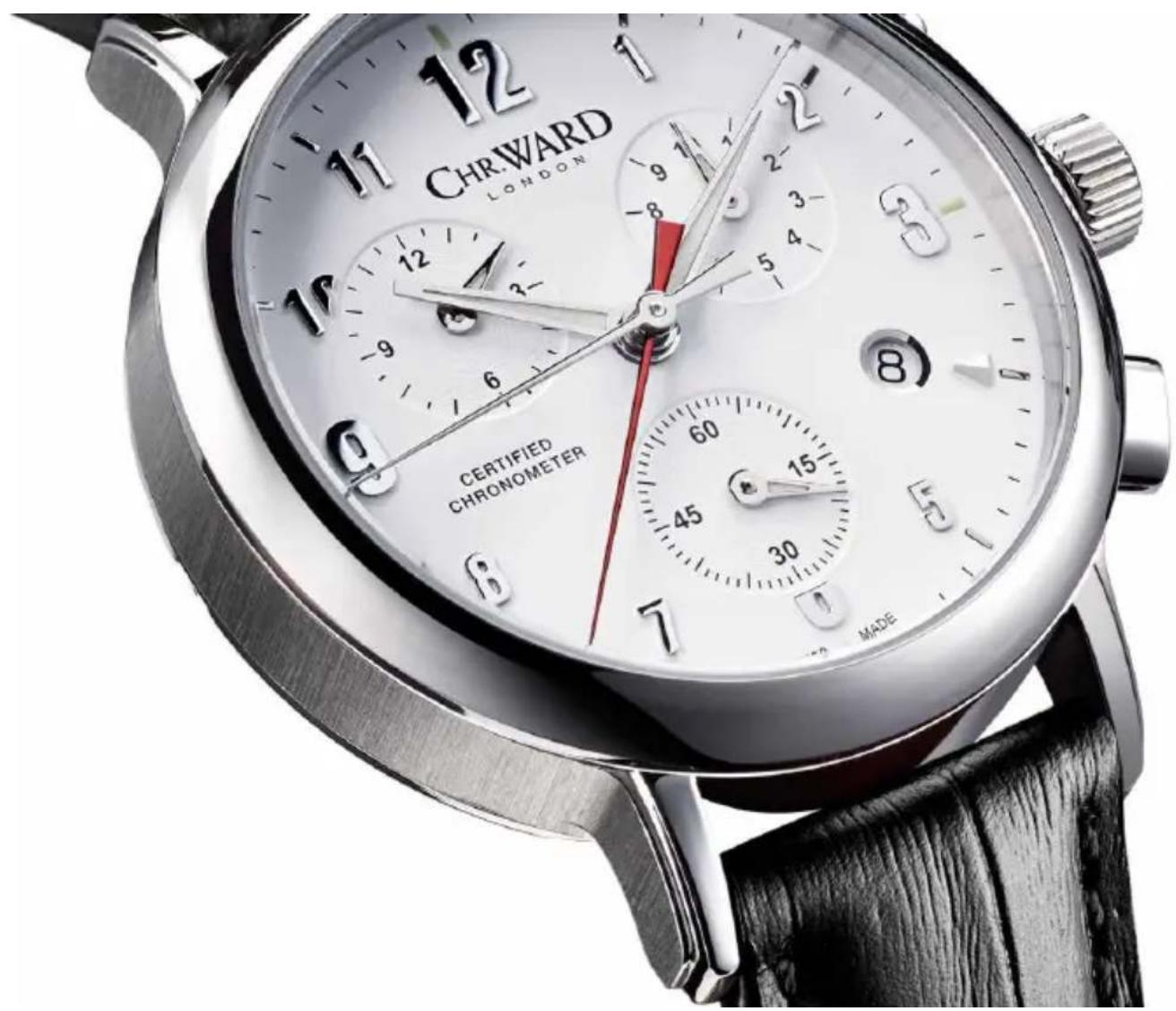

C30 MALVERN CHRONOMETER

It seems odd that it took us so long to create a chronometer version of the much-cherished C3 Malvern Chronograph, and it was only our 10th Anniversary that prompted us in the end. However, the long wait has at least been worthwhile.

The C30 has the very recognisable optic white dial details of the Aston Martin inspired C3 MK II, although the deep red of the additional stopwatch hand adds a sporting touch to this classic dress chronograph.

Under the bonnet of this newest Malvern is the same 27 Jewel, thermo-compensated ETA 251.233 quartz movement that has become our go-to chronometer for the highly regarded C70 Motorsport series and, those familiar with the movement will know that it means the C30 now becomes one of the most accurate watches in the world as well as one of the most beautiful.

There will only ever be 500 pieces of this version of the C30 Malvern Chronometer, which adds highly valued exclusivity to this very special watch.

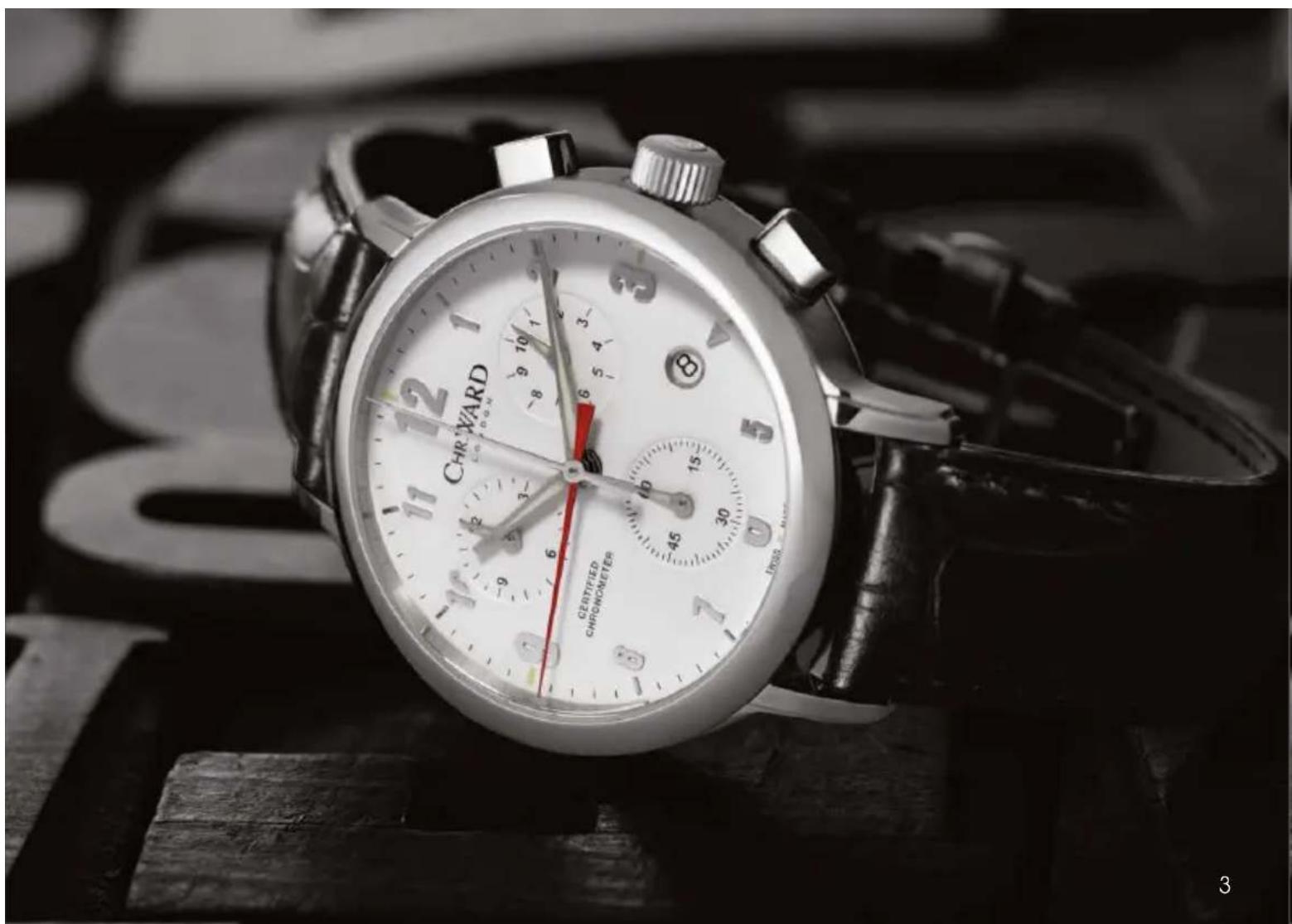

Close-up of a modern wristwatch with dual dials and a red dial, resting on a wooden surface (no visible text or symbols)

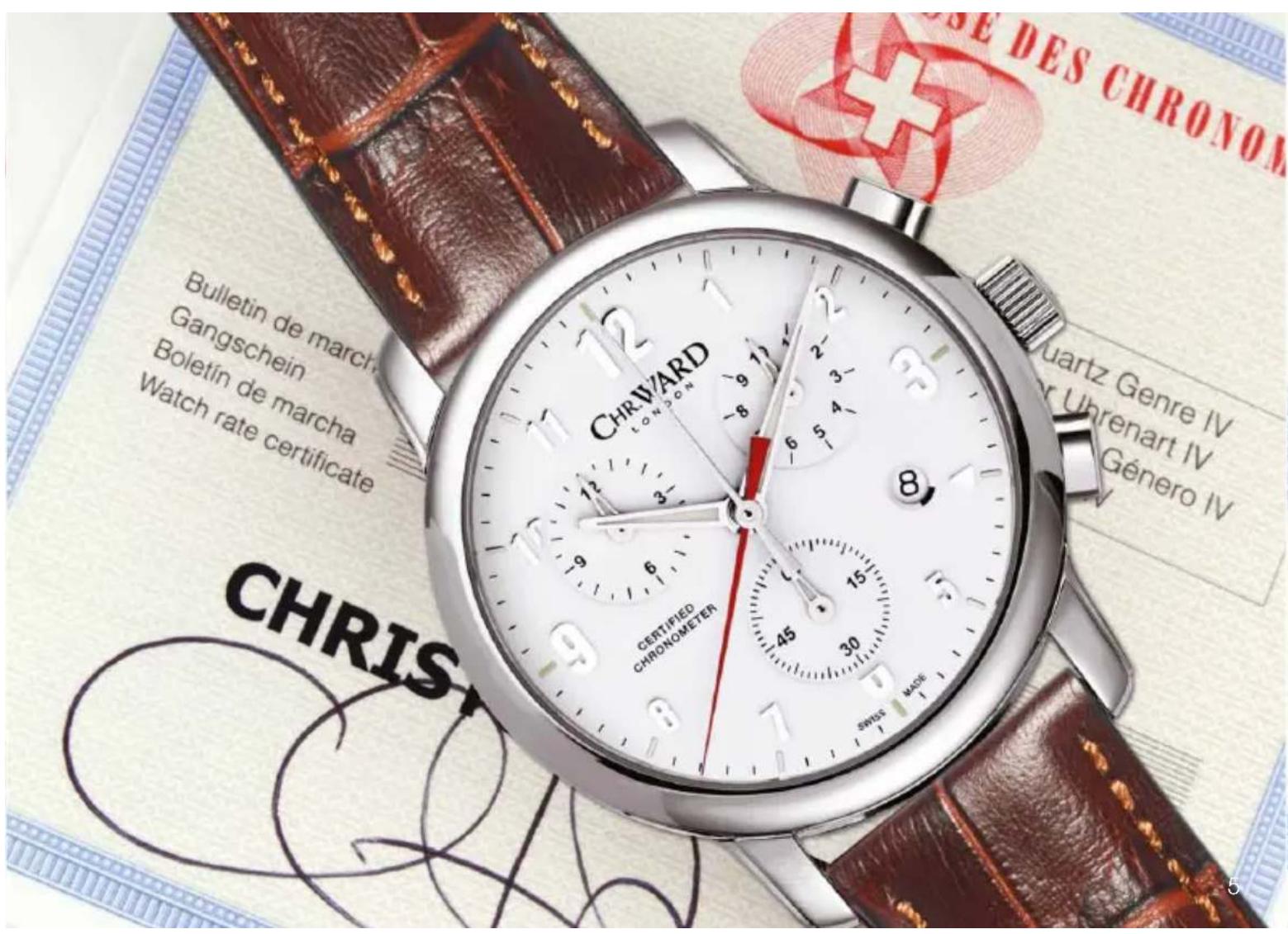

THE COSC CERTIFIED CHRONOMETER

To gain chronometer status, watchmakers submit their Swiss movements to COSC, an independent, non-profit making watch accuracy verification organisation based in Geneva, to be tested against the international standards of ISO and DIN.

Certification follows exhaustive testing. In achieving the coveted status of Certified Chronometer, a movement must not only be made from the highest quality components, but also be the object of special care on part of the finest horologists and technicians as it is painstakingly assembled.

Only movements which meet the precision criteria are granted an official certificate. Each uncased movement is individually tested for fifteen days, in five positions,

at three different temperatures. Movements are fitted with a second hand for tests and measurements are made daily with the aid of cameras. Based on all of these measurements, seven eliminatory criteria are calculated, each of which must be met.

The exacting and rigorous nature of the COSC certification process means that the achievement of Certified Chronometer status is extremely rare. In fact, of all the watches produced in Switzerland each year, just 3% bear the coveted COSC 'bulletin de marche' or certificate of watch performance. Which is why, when you read the words 'Certified Chronometer' on a Swiss watch you can be sure that the movement behind the elegant dial is a rare example of fine Swiss watchmaking which is accurate, precise... and extremely rare.

TECHNICAL INFORMATION

FEATURES

• Swiss made chronometer
• Limited Edition of 500 pieces worldwide
• 27 jewel Swiss quartz movement and COSC Certification
• Chronograph dials with split minutes / seconds / 1/10th seconds
• Thermo-compensated
• Surgical grade stainless steel case and crown and pushers
• Sapphire crystal
• Optic white, one piece metal dial with Superluminova hands and indexes
• Engraved back plate with individual serial number
• Deluxe presentation box and owner's handbook

- Embossed alligator pattern, Italian leather strap with Bader deployment / Surgical grade stainless steel bracelet versions

TEcHnicAI inFoRmATion

Diameter: 39mm

Height: 11.3mm

Weight: 58g

Calibre: ETA 251.233 COSC

Case: 316L stainless steel

Water Resistance: 5 ATM (50 metres)

Strap: 18mm

Dial Colour: Optic White

HOW TO OPERATE YOUR C30 MALVERN CHRONOMETER

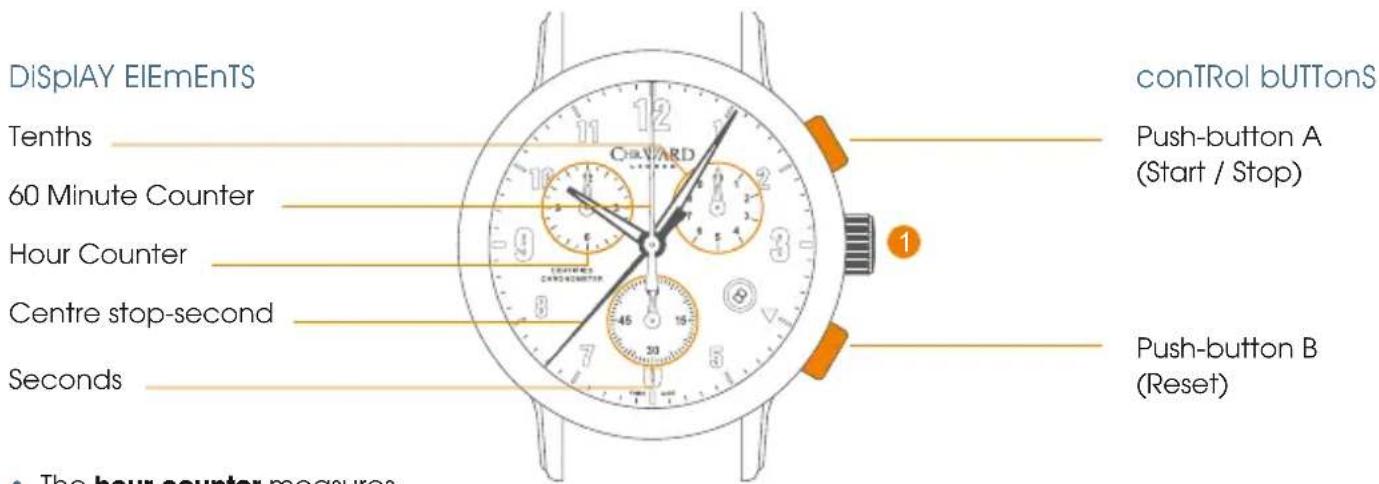

DISPLAY AND CONTROL BUTTONS

DiSpIAY EIEmEnTS conTRol bUTTonS

Minute Hand

Tenths

60 Minute Counter

Hour hand

Hour Counter

Centre stop-second

Seconds

Date Window

Push-button A

Crown

Push-button B

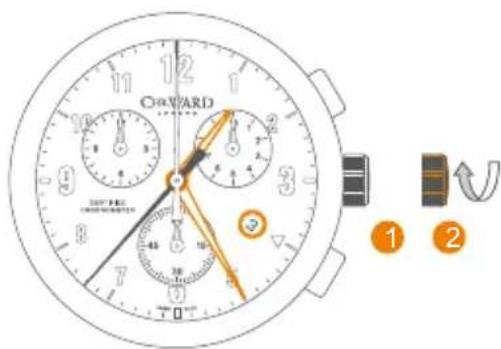

SETTING THE TIME

For a superior water resistance your crown is of the screw-in type. To get to position 1 turn the crown anti-clockwise until it releases itself.

• Pull out the crown to position ③ (the watch stops).
• Turn the crown until you reach the correct time e.g. 08.45 hr.
• Push the crown back into position ① and screw the crown in a clockwise direction in order to maintain water resistance. The crown should sit flush to the case.

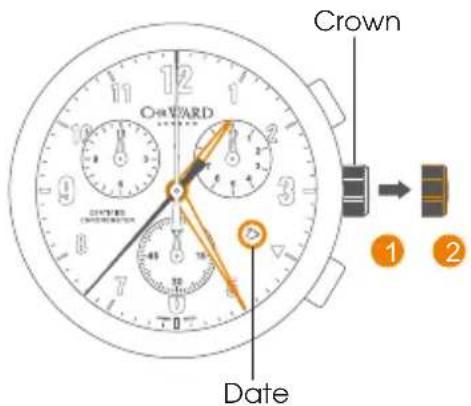

SETTING DATE (QUICK MODE)

• Pull out the crown to position ② (the watch continues to run).
• Turn the crown clockwise, the hour hand moves in one hour increments until the correct date appears.
• Pull the crown to position ③
• Push the crown back into position 1 until flush with the case and screw in.

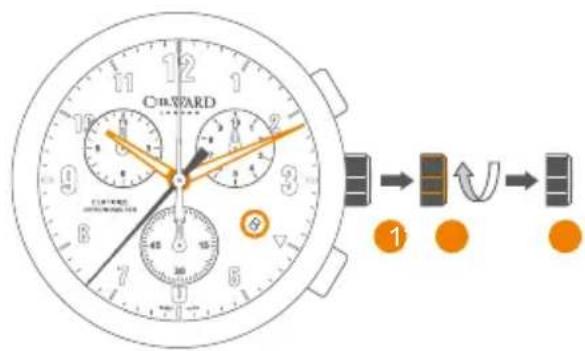

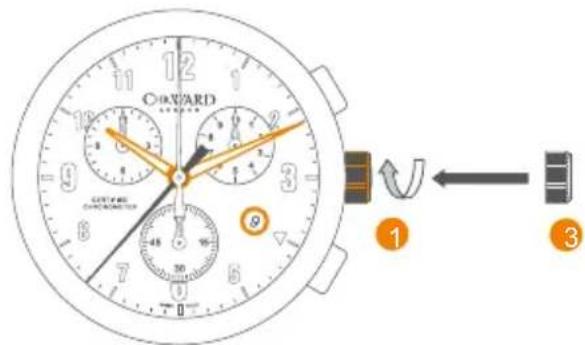

SETTING THE DATE/TIME

Example:

Date / time on the watch: 17th / 01.25 hr

Present date / time: 4th / 21.25 hr

• Pull out the crown to position (the watch continues to run).
• Turn the crown clockwise until yesterday's date appears ie. 3rd.

• Pull out the crown to position (the watch stops).
• Turn the crown clockwise until the correct date ie. 4th appears (after passing through midnight).
• Continue to turn the crown until the correct time 21.30 hr appears.
• Push the crown back into position 1 until flush with the case and screw in.

CHRONOGRAPH FUNCTIONS:

• The hour counter measures 12 hours per rotation.
• The minute counter measures 60 minutes per rotation.
• The centre stop-second measures 60 seconds per rotation.
• The 1/10 second counter measures 1 second per rotation.

PLEASE NOTE: Before using the chronograph functions, please ensure that:

• The crown is in position 1 (screwed in).
- The 4 chronograph hands are at zero position. Should this not be the case, the positions of the hands must be adjusted (see the chapter entitled 'Adjusting the chronograph hands to zero position').

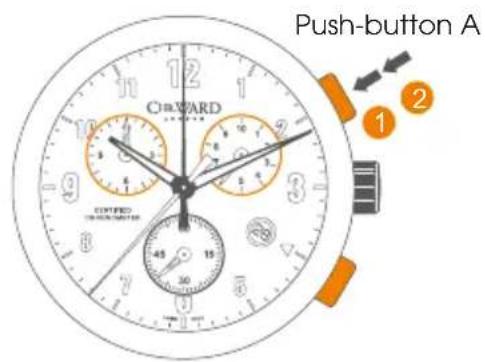

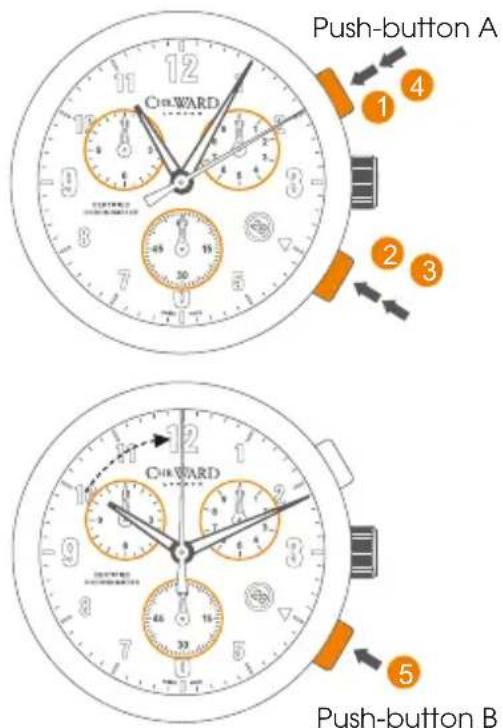

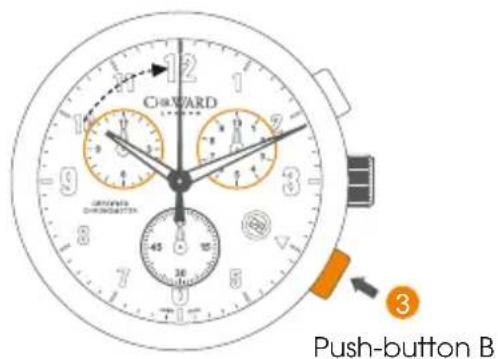

BASIC FUNCTIONS

(START / STOP / RESET)

Example:

1 Start: Press push-button A.
② Stop: to stop the timing, press push-button A once more and read the 4 chronograph counters: 4 min / 38 sec / 7/10 sec.
3 Zeropositioning:

Press push-button B. (The 4 chronograph hands will be reset to their zero positions).

Example of use:

Timing a runner over 100m.

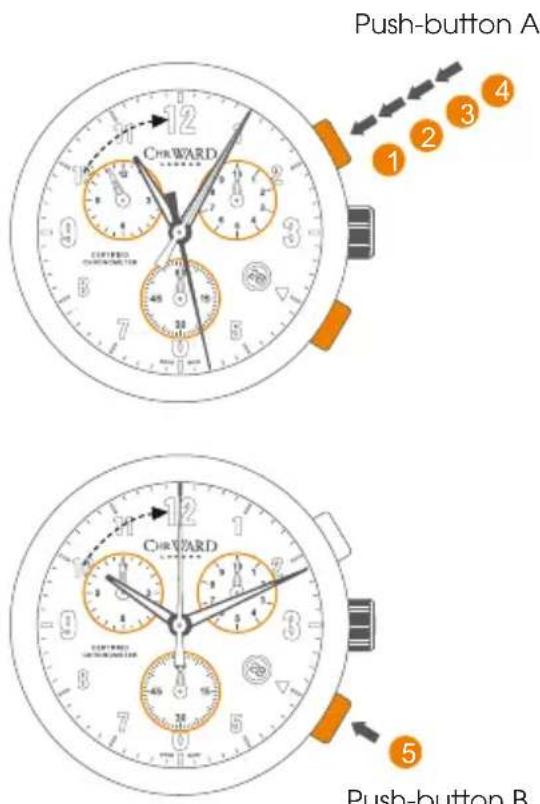

ACCUMULATED TIMING

Example:

1 Start: (start timing).
2 Stop: (e.g. 15 min 5 sec following 1).
3 Restart: (timing is resumed).

4 Stop: (e.g. 13 min 5 sec following ③). = 28 min 10 sec (accumulated measured time is shown)

5 Reset: The 4 chronograph hands are returned to their zero positions.

6 Repeat: as necessary.

Example of use:

Overall time to complete a journey less the coffee breaks.

INTERMEDIATE OR INTERVAL TIMING

Example:

1 Start: (start timing).

2 Display interval:

e.g. 10 minutes 10 seconds (timing continues in the background).

3 Making up the measured time:

(the 4 chronograph hands are quickly advanced to the ongoing measured time).

4 Stop: (final time is displayed).

5 Reset: The 4 chronograph hands are returned to their zero positions.

Please note:

*Following 3, further intervals or intermediates can be displayed by pressing push-button B.

Example of use: 4 x 100m relay.

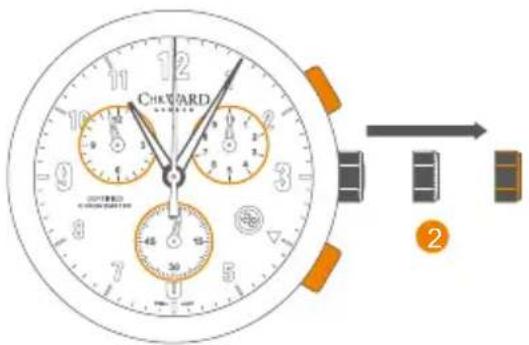

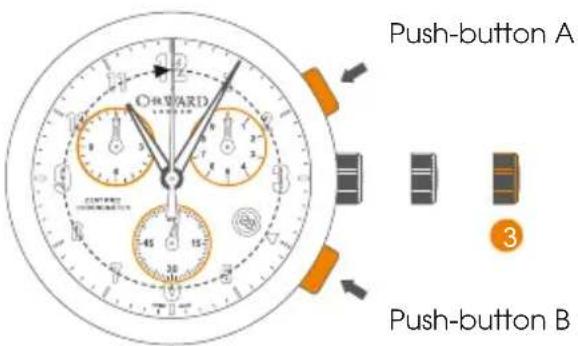

ADJUSTING CHRONOGRAPH HANDS TO ZERO POSITION

Example:

One or several chronograph hands are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

• Pull out the crown to position ② press Button A to adjust the hour chronograph hand and Button B to reset the 60 minute counter to zero
• Pull out the crown to position ③. Push Button A to adjust the stop second hand and Button B to adjust the tenths seconds hand.

WATER RESISTANCE

Although your watch has been through vigorous static pressure testing, it is worth remembering that there are many variables that can affect the water resistance of your watch.

For instance, arm movements during swimming and the sudden impact of diving and water sports will drastically increase the pressure the watch is under. Wearing your watch in the bath, shower, or sauna can also have an effect as a rapid increase in temperature can cause seals to expand and in extreme cases, malfunction or create condensation.

For these reasons, the water resistance rating of your watch (as shown) should only ever be considered a guideline and we strongly recommend they are always adhered to.

1 ATM (10 mETRES)

Safe to wear your watch while washing your hands with tap water.

3 ATM (30 mETRES)

Washing your car and/or general hose pipe usage.

5 ATM (50 mETRES)

Water resistant to most household shower units.

10 ATM (100 mETRES)

Safe to use while snorkelling in open water.

30 ATM (300 mETRES)

Ideal for experienced divers and those practising scuba-diving.

50 ATM (500 mETRES)

Professional divers, experiencing prolonged exposure underwater.

100 ATM (1000 mETRES)

Professional deep sea diving.

STRAPS & BRACELETS

As you would expect, we place as much emphasis on the quality of our straps and bracelets as we do our watches. We only use the finest leathers for our straps and our premium alligator straps are all ethically sourced from CITES approved farms in Louisiana.

Similarly, we only use the finest metals in the construction of our bracelets, all of which are precision engineered for durability, efficiency and comfort. The following guidelines explain how easy it is to use and adjust your Christopher Ward strap or bracelet.

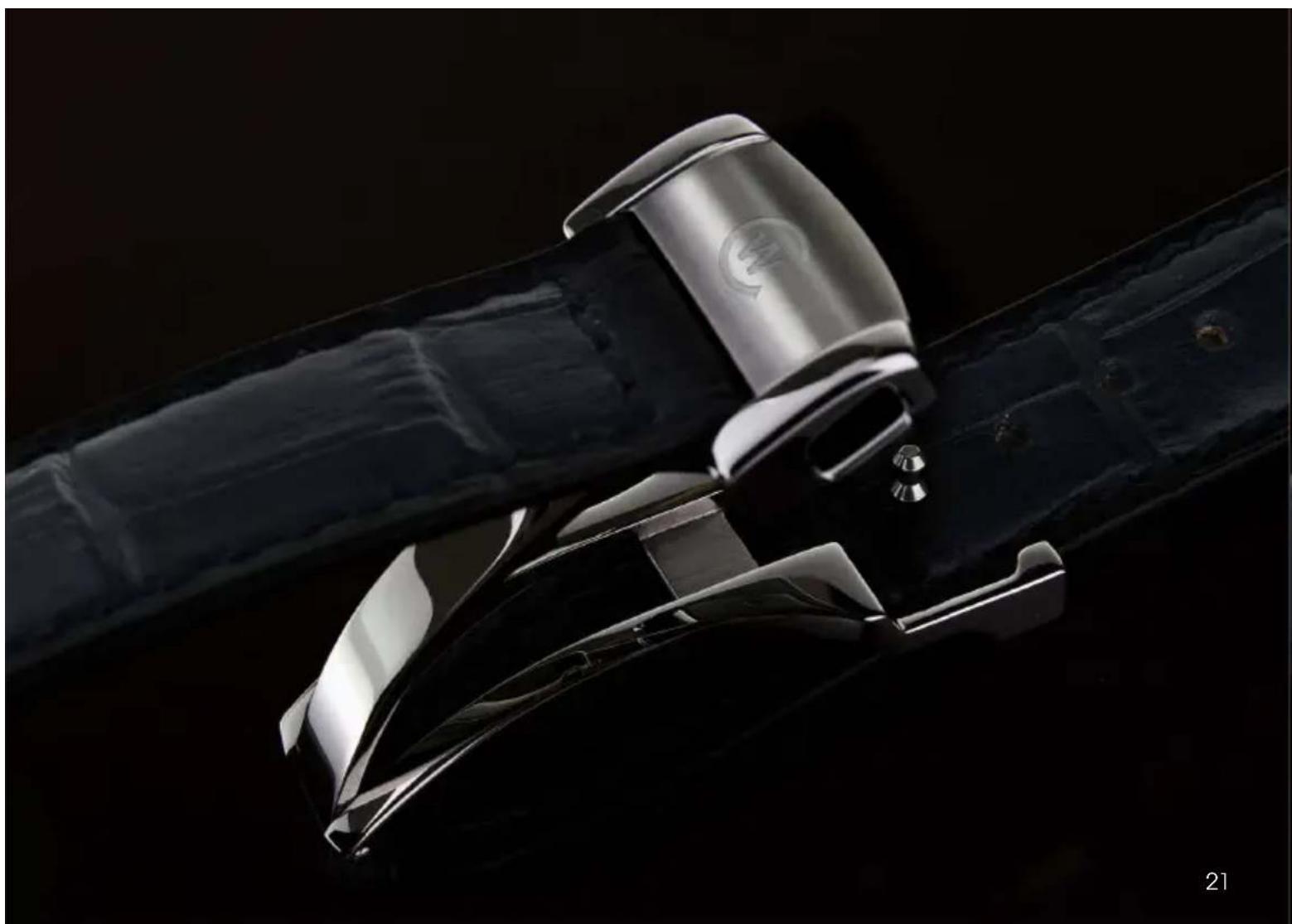

LEATHER STRAP WITH BADER DEPLOYMENT

Close-up of a hand holding a small electronic device (no visible text or symbols)

Close-up of metallic clamps with wires, no visible text or symbols

Close-up of a hand holding a pair of small pliers (no text or symbols visible)

Close-up of a hand holding a tool with a white plastic clip attached (no visible text or symbols)

INTEgRATED BRACELET

Close-up of a hand holding a metallic mechanical component (no visible text or symbols)

Close-up of a hand holding a metallic wristband with visible joints and adjustment knobs (no text or symbols)

1. Press to release
2. Pull open the clasp
3. Locate the opening and thread the strap through

4. Close the clasp

5. Press to release

6. Pull open the clasp

Close-up of a metallic mechanical component with glossy finish, displayed against a dark background (no visible text or symbols)

OUR WATCH CARE PROGRAMME

Your watch is constructed from the finest components and materials available, including one of Switzerland's finest quartz movements. As with all watches of this quality, with the right care and attention, your new Christopher Ward watch has the potential to become an heirloom piece giving further joy to future generations. It's for this reason we have created our industry leading approach to after-sales care, starting with our famous 60/60 Guarantee which remains the most comprehensive guarantee in the world of watchmaking.

Christopher Ward's 60/60 Guarantee is designed to deliver complete peace of mind and the best support possible throughout the lifetime of your ownership. The guarantee has two key elements and sits alongside our Servicing and Repairs Programme:

Visit our website for more details about our 60/60 Guarantee and Service and Repair Programme.

60/60 GUARANTEE

1. 60 DAY FREE RETURNS

Our success depends on you being completely happy with your new Christopher Ward watch. You have up to 60 days to return your watch, absolutely free of charge, and receive a replacement or full refund by return – so long as it has not been worn and is returned in box-perfect condition.

2.60 MONTH MOVEMENT GUARANTEE

Your watch, at its heart, has a top quality precision engineered Swiss movement – so it's very unlikely to give you problems with the minimum amount of care and attention, including a regular service. We recommend you return your watch to us every 3/4 years for a service, so our expert technicians can keep your fine timepiece in peak condition. (We recommend that whenever your quartz battery needs changing you consider having the watch serviced at the same time to keep it in perfect working order.)

SERVICING & REPAIRS...THE CHRISTOPHER WARD WAY...

Our innovative approach to servicing and repairing your Christopher Ward watch means that having your watch serviced or repaired doesn't mean months of waiting followed by an exorbitant bill – which is more or less the experience guaranteed by every other luxury watch brand. We have developed an easy, quick and affordable expert service and repairs programme that doesn't cost the earth and has your watch back where it belongs – on your wrist – in double-quick time.

KEEPING IN TOUCH WITH CHRISTOPHER WARD

From small beginnings just a few short years ago (our first workshop was actually a refurbished chicken shed!), Christopher Ward has won a worldwide following for his eponymous watch brand and can justifiably claim to manufacture the most affordable luxury watches in the world.

For many, the philosophy behind the brand, of trying to put luxury watches within the reach of everyone, is as attractive as the watches themselves, as is the very open approach of the business which means that Chris and the team spend a lot of time communicating personally with our customers – many of whom have become friends.

As the owner of a Christopher Ward watch, if ever you need to get hold of us we are at

your service. We have listed some useful contact details on the back cover.

There is also always something new going on at our website at www.christopherward.co.uk and, if you haven't already discovered the independent forum dedicated to our brand at www.christopherwardforum.com we would recommend a visit. Informative and fun, it's a great place to hear the unexpurgated view of Christopher Ward of London!
