USER MANUAL C7 Rapide Christopher Ward

C7 Rapide Chronograph

OWNER'S HANDBOOK

Time on your side...

Your Christopher Ward watch has been designed and engineered by highly talented craftspeople to ensure not only accurate and precise timekeeping but also to bring a real pride of ownership that only luxury items of the highest quality can ever hope to deliver.

You have made an investment, a good one, and the aim of this handbook is to help you make the most of that investment during what I hope will be a lifetime of ownership.

Christopher Ward

Caring for your Christopher Ward quartz watch

Your C7 Rapide Chronograph is constructed from the finest components and materials available including one of Switzerland's finest quartz movements.

As with all watches of this quality, with just a little care, it has the potential to become an heirloom piece giving further joy to future generations.

Here are a few hints to help keep your watch working perfectly over the years:

• Although the battery in your watch may last longer, we recommend you have it changed every 2/3 years by a reputable watch repairer.
• At the same time as having the battery changed it makes sense to have the watch repairer clean and lubricate your watch as necessary.
• Make sure the crown is screwed down fully before putting the watch into water. Adhere to the water resistance ratings towards the end of the handbook to prevent water getting to the movement which could result in a very costly repair or the need for a replacement movement.
• Your watch is shock resistant to minor impacts but dropping from height onto a hard surface may damage the movement.

Should you need a replacement part - don't worry, we keep stocks of spare parts for years, even for discontinued models. It's all part of the Christopher Ward service.

Finally, don't forget our CW360° Care Programme allows you to return your watch absolutely free, for any reason, and with no quibbles, for up to 60 days after purchase and we also guarantee your movement for up to 60 months, so long as it is regularly serviced. After all, why shouldn't you enjoy peace of mind as much as you enjoy your watch?

Please note. Continuous use of the chronograph function will shorten battery life.

Close-up of a luxury wristwatch with black dials and silver strap, showing no visible text or symbols on the watch face.

The C7 Rapide Chronograph

Features

22 jewel Swiss quartz movement

Multi-function chronograph

Date window

Convex sapphire crystal glass with ant-reflective coating

Water resistant to 10 atm

Adjustable quick-release butterfly clasp

Screw-in crown

Screw-down case with unique serial number

Chronographic dials with split

minutes / seconds / 1/10 seconds

Tachymeter bezel and engraved gilt disc backplate

Technical Data

Diameter: 42mm

Height: 10.7mm

Weight: 80g - 160g

Case: 316L Stainless steel

Calibre: ETA 251.272

Accuracy: +20 / -10 seconds per month

Description of the display and control buttons

Display elements

Control buttons

Minute Hand

Tenths

Hour hand

Minutes

Centre stop-second

Push-button A

Crown

Push-button B

Seconds

Date Window

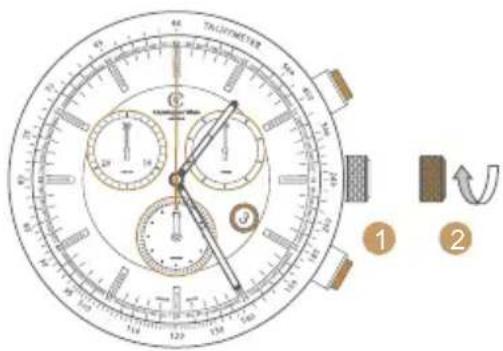

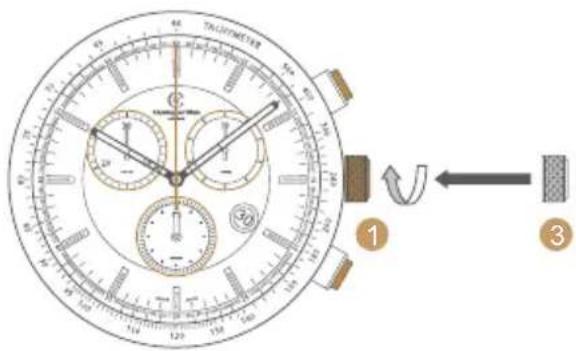

Setting the time

For a superior water resistance your crown is of the screw-in type. To get to position 1 turn the crown anti-clockwise until it releases itself.

- Pull out the crown to position ③(the watch stops).

- Turn the crown until you reach the correct time e.g. 08.45 hr.

- Push the crown back into position 1 and screw the crown in a clockwise direction in order to maintain water resistance. The crown should sit flush to the case.

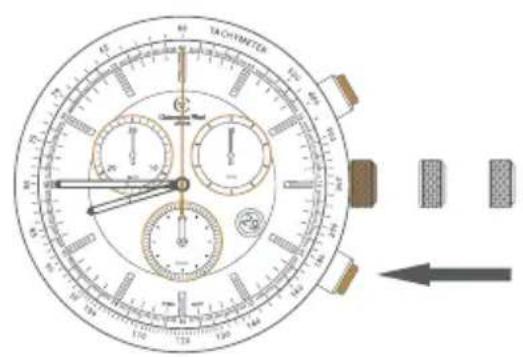

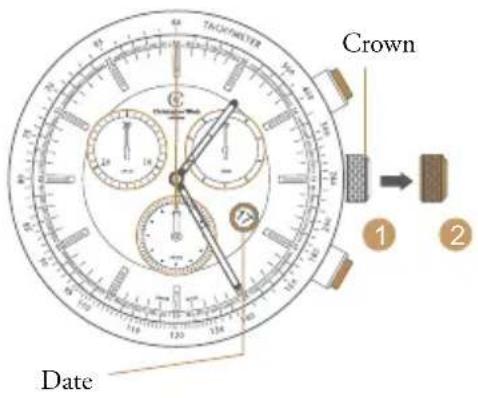

Setting the date (quick mode)

• Pull out the crown to position 2(the watch continues to run).
• Turn the crown clockwise until the correct date appears. The hour hand moves in one hour increments.
• Pull the crown to position 3

Push the crown back into position 1 until flush with the case and screw in.

Please note:

The date can not be changed during the date changing phase between 21.00 hr and 02.00 hr as the watch gearing will already be aligning itself to change the date.

The crown should always be screwed in after adjustment, and it is best to do so from position 3 to avoid advancing beyond the desired date.

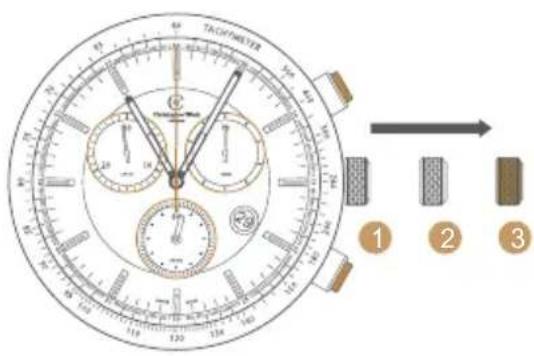

Setting the date/time

Example:

Date / time on the watch: 17th / 01.25 hr Present date / time: 4th / 20.30 hr

- Pull out the crown to position ② (the watch continues to run).

- Turn the crown clockwise until yesterday's date appears ie. 3rd.

- Pull out the crown to position ③(the watch stops).

- Turn the crown clockwise until the correct date ie. 4th appears (after passing through midnight).

- Continue to turn the crown until the correct time 21.30 hr appears.

- Push the crown back into position 1 until flush with the case and screw in.

Chronograph:

• The minute counter measures 30 minutes per rotation.
• The centre stop-second measures 60 seconds per rotation.
• The 1/10 second counter measures 1 second per rotation.

Display elements

Tenths

Minutes

Centre stop-second

Seconds

Control buttons

Push-button A (Start / Stop)

Push-button B (Reset)

Please note:

Before using the chronograph functions, please ensure that:

• The crown is in position 1(screwed in).
•The 3 chronograph hands are at zero position.

Should this not be the case, the positions of the hands must be adjusted (see the chapter entitled ‘Adjusting the chronograph hands to zero position’).

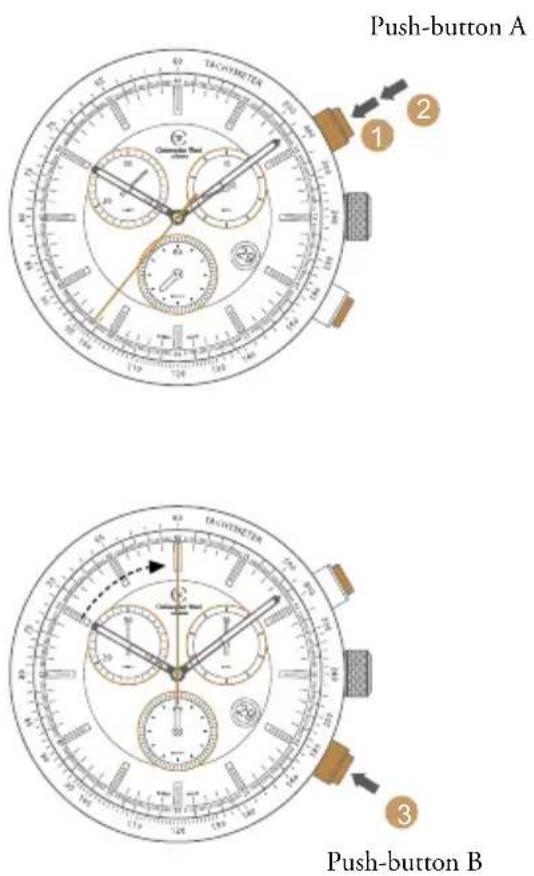

Chronograph: Basic function

(Start / Stop / Reset)

Example:

Start: Press push-button A.

② Stop: to stop the timing, press push-button A once more and read the 3 chronograph counters: 4 min / 38 sec / 7/10 sec.

3Zero positioning:

Press push-button B.

(The 3 chronograph hands will be reset to their zero positions).

Example of use:

Timing a runner over 100m.

Push-button A

Push-button B

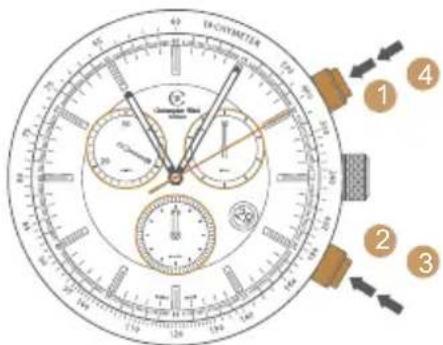

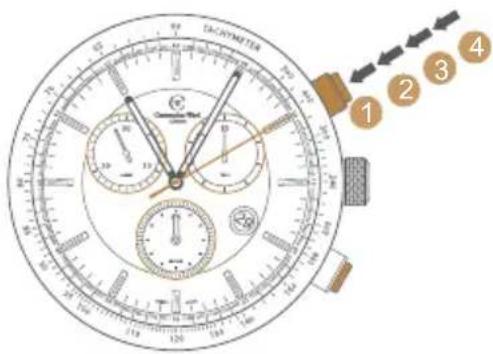

Chronograph: Accumulated timing

Example:

Start: (start timing).

2Stop: (e.g. 15 min 5 sec following ). 1

3Restart: (timing is resumed).

4 top: (e.g. 13 min 5 sec following ) 3

$$ = 2 8 \min 1 0 \sec $$

(the accumulated measured time is shown)

5Reset:

The 3 chronograph hands are returned to their zero positions.

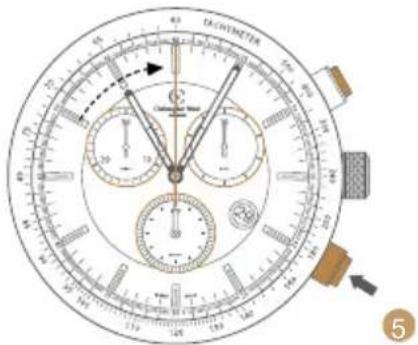

6Repeat: as necessary.

Example of use:

Overall time to complete a journey less the coffee breaks.

Push-button A

Push-button B

Chronograph:

Intermediate or interval timing

Example:

Start: (start timing).

^2 Display interval:

e.g. 10 minutes 10 seconds (timing continues in the background).

③Making up the measured time:

(the 3 chronograph hands are quickly advanced to the ongoing measured time).

4 * Stop: (final time is displayed).

5Reset:

The 3 chronograph hands are returned to their zero positions.

Please note:

* Following ③, further intervals or intermediates can be displayed by pressing push-button B.

Example of use: 4 x 100m relay.

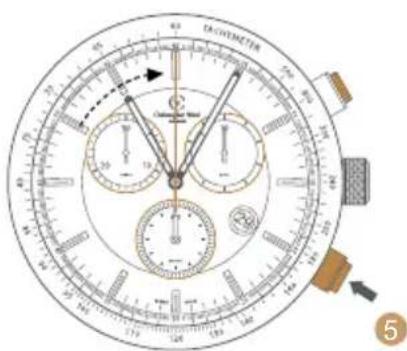

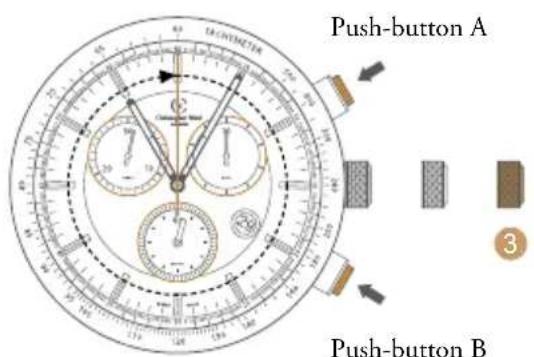

Adjusting the chronograph hands to zero position

Example:

One or several chronograph hands are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

- Pull out the crown to position 2 press Button B to reset the 30 minute counter to zero

- Pull out the crown to position 3. Push Button A to adjust the stop second hand and Button B to adjust the tenths seconds hand.

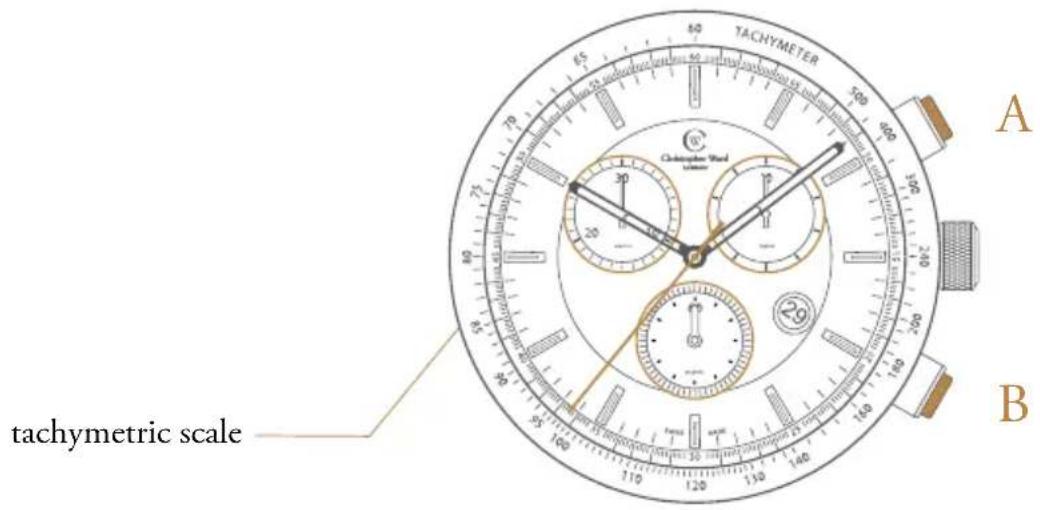

Using the tachymetric scale to calculate speed

Example: calculating the speed of a racecar over the course of a mile.

Record the time the racecar takes to cover a known distance of 1 mile. Read off the speed on the tachymetric scale indicated by the central seconds hand. In this case, the racecar is travelling at 98mph.

Fitting the bracelet

If you find the bracelet needs adjusting to your wrist we recommend you have it re-sized by a reputable watch repairer or jeweller. Most local jewellers will either do this for free or perhaps make a nominal charge for what is a job that should only take a few minutes. It is always best to be present so a comfortable fit is achieved.

Establishing the length of the bracelet

Place the watch with its separated bracelet on your wrist and estimate the number of links you need to remove. If you need to remove several links, try to keep the numbers removed from both halves of the bracelet as equal as possible to ensure that the clasp remains roughly in the middle of your wrist.

To open your bracelet simply press either side of the clasp to release as shown.

The quick-release butterfly clasp

The strap versions of the C7 Rapide Chronograph use quick-release butterfly clasps. If you are unfamiliar with the butterfly clasp system just follow our 8 step guide below.

Close-up of a black and silver buckle buckle (no text or symbols visible)

Step 1 Locate the clasp

Close-up of a finger holding a small electronic component (no visible text or symbols)

Step 2 Click quick-release

Close-up of a metallic mechanical component with curved and stepped surfaces (no visible text or symbols)

Step 3 Pull open clasp

Close-up of a hand holding a small metallic clip (no visible text or symbols)

Step 4 Prise cover open

Close-up of a mechanical clamp or bracket with metallic components and a small circular feature (no visible text or symbols)

Step 5 Thread strap through

Close-up of a white mechanical device with a metallic bracket and circular components (no visible text or symbols)

Step 6 Snap back

Close-up of a hand holding a small electronic device with visible components (no text or symbols)

Step 7 Close clasp

Close-up of a black wrist strap with silver metal clip (no text or symbols visible)

Step 8 Complete

Water resistance

Please note. these are only guidelines but we strongly urge you to adhere to them to retain the integrity of your watch. If you have any queries regarding this please contact us direct.

1 ATM (10 Metres)

3 ATM (30 Metres)

5 ATM (50 Metres)

10 ATM (100 Metres)

30 ATM (300 Metres)

50 ATM (500 Metres)

Safe to wear your watch while washing your hands with tap water.

Washing your car and or general hosepipe usage.

Water resistant to most household shower units.

Safe to use while snorkelling in open water, it is not advisable to dive with your watch.

Ideal for experienced divers and, in general, anybody practising scuba-diving.

Professional divers, experienced prolonged exposure underwater.

NB. To safeguard watch movement please ensure the crown is, at all times, secured correctly.
