Product Type	Stick Vacuum Cleaner
Brand	G-Technology
Model	HyLite SV100
Dimensions (L x W x H)	Approx. 25 x 10 x 15 in (63.5 x 25.4 x 38.1 cm)
Weight	Approx. 5.5 lbs (2.5 kg)
Power Supply	Rechargeable lithium-ion battery, 22.2V, 2500 mAh
Charging Time	Approx. 4 hours
Run Time	Up to 30 minutes (normal mode), 15 minutes (turbo mode)
Suction Power	120 Air Watts
Dust Capacity	0.5 liters
Filtration	Washable HEPA filter
Main Functions	Carpet, hard floor, upholstery; convertible to handheld
Accessories Included	Crevice tool, brush tool, motorized floor head
Maintenance	Clean dust bin after each use; wash filter every 1-2 months
Filter Cleaning	Rinse with cold water and air dry completely before reuse
Battery Care	Do not expose to extreme temperatures; charge fully before first use
Safety Features	Overheat protection, automatic shut-off when blockages detected
Spare Parts Available	Filters, batteries, charging adapter, brush roll, accessories
Repairability	Modular design; user-replaceable battery and filter; authorized service centers
Warranty	2 years limited warranty
Country of Origin	China
User Manual	Available for free download in PDF format

Frequently Asked Questions - HyLite SV100 G-TECHNOLOGY

How do I charge the battery for the first time?

Connect the charger to the vacuum and a power outlet. Charge for 4 hours before first use. The LED indicator will turn green when fully charged.

How often should I clean the filter?

Clean the filter every 1-2 months depending on usage. Rinse with cold water and let it air dry completely for at least 24 hours before reinstalling.

What should I do if the vacuum loses suction?

Check for blockages in the floor head, hose, or dust bin. Also ensure the filter is clean and the dust bin is not full. Empty the bin and clean the filter if needed.

Can I use the HyLite SV100 on hardwood floors?

Yes, the vacuum has a hard floor mode or brush roll that can be turned off to avoid scratching delicate surfaces. Use the appropriate setting.

How do I convert the vacuum to a handheld unit?

Press the release button on the handle to detach the main body from the pole. Attach the desired tool directly to the handle for handheld use.

The vacuum stops working during use. What's wrong?

The vacuum may have overheated or a blockage triggered the safety shut-off. Turn it off, remove any obstructions, and let it cool for about 10 minutes before restarting.

Where can I purchase replacement filters or batteries?

Visit the G-Technology official website or contact customer support for authorized spare parts distributors. Use only genuine parts.

How long does the battery last on a full charge?

In normal mode, up to 30 minutes. In turbo mode, approximately 15 minutes. Actual runtime may vary based on floor type and attachments.

Can I wash the dust bin?

Yes, remove the dust bin and wash it with mild soap and water. Ensure it is completely dry before reattaching. Do not wash the HEPA filter.

How do I store the vacuum?

Store in a dry place, preferably with the wall mount (sold separately) or standing upright. Avoid exposing to extreme temperatures.

USER MANUAL HyLite SV100 G-TECHNOLOGY

IMPORTANT SAFEGUARDS:

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Do not use in rain or leave outdoors whilst raining.

WARNING: basic safety precautions should always be observed when using an electrical appliance in order to reduce the risk of fire, electric shock or injury. These include the following:

Personal safety:

• Store indoors in a dry place out of the reach of children.
  • Always use responsibly. This appliance can only be used by the following individuals if they have been given supervision or instruction concerning use of the appliance in a safe way, and understand the hazards involved: children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge.
• Don't let children play with the appliance; supervise children using or maintaining the appliance.
• Only use manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment, other than those recommended, may present a risk of personal injury.
  • Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliance openings or hinder air flow; keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body).
• Keep loose clothing, fingers and other body parts, particularly hair, away from the brush-bar, openings and other moving parts.

Electrical safety:

• Only use batteries and chargers supplied by Gtech.
• Never modify the charger in any way.

• The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.

• A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.

• Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the charger cord to disconnect it from a socket; grasp the plug and pull to disconnect.
• Do not wrap the charger cord around the charger when storing.
• Keep the charger cord away from hot surfaces and sharp edges.
• The charger cord cannot be replaced. If the charger cord is damaged, the charger should be discarded and replaced.
• If charging the battery through an extension cord, use only CE-approved 13amp extension cords, as non-approved extension cords may overheat. Care should be taken to arrange the extension cord and charger cord as they can be a trip hazard.
• Do not handle the charger or the appliance with wet hands.
• Do not store or charge the appliance outdoors.
• Unplug the charger from the mains socket before removing the battery and before cleaning and maintaining the appliance.
• Ensure the appliance is off before connecting or disconnecting the accessories and motorised brush-bar.

Battery safety:

• This appliance includes Li-ion batteries; do not incinerate batteries or expose to high temperatures, as they may explode.
• Liquid ejected from the battery may cause irritation or burns.
• In an emergency situation, seek professional help immediately.
• Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin, wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Shorting the battery terminals may cause burns or fire.
• When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
• When you dispose of the appliance, remove the battery and dispose of the battery safely and in accordance with local regulations.

Service:

• CAUTION – to reduce the risk of injury from moving parts, remove battery before servicing.
• Before using the appliance, and after any impact, check for signs of wear or damage. If repairs are needed, go to www.gtech.co.uk/support or call 01905 345 891
• Do not use the appliance if any part is damaged or defective.
• Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous and will render the warranty void.
• The Gtech HyLite can be used in hand-held mode.

• Never modify the appliance in any way, as this may increase the risk of personal injury.

• Only use replacement parts or accessories provided or recommended by Gtech.

• If the appliance is not working as it should, has been dropped, damaged, left outdoors or dropped into water, contact Gtech on 01905 345891.

Intended use:

• This appliance has been designed for domestic dry vacuum cleaning only.
• Do not attempt to vacuum up liquids or use on wet surfaces.
• Do not pick up anything that is flammable, burning or smoking.
• Use only as described in this manual.
• Do not use on concrete, tarmacadam or other rough surfaces.
• The brush-bar may damage certain floor surfaces. Before vacuuming flooring, rugs or carpets, check the flooring manufacturer's recommended cleaning instructions.
• This product may damage delicate fabrics or upholstery. Care should be taken with loose-weave fabrics, or where there are loose threads. If in doubt, please test on an inconspicuous area first.
• The Gtech HyLite has a constantly rotating brush-bar. Never leave the cleaning head in one spot for an extended period of time as this may damage the surface.

WARNING:

• Do not use water, solvents or polishes to clean the outside of the appliance; wipe clean with a dry cloth.
• Never immerse the unit in water and do not clean in a dishwasher.
• Only use authentic Gtech bags, batteries, charger etc.
• Do not use without a bag fitted.
• For domestic use only.
• Turn off after brush-bar has ejected.
• Allow to cool down if battery has overheated (see Troubleshooting - p.13).

Thank you for choosing a Gtech HyLite

"I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us and we will use your feedback to improve our products and services and let other people know what it's like to be part of the Gtech family."

Nick Grey – Inventor, Owner of Gtech

Please take the time to write a review of the HyLite by visiting www.gtech.co.uk/product-reviews or, if you didn't purchase directly from Gtech, please leave a review with the retailer.

Make a note of your product serial number for future reference. You can find this on the underside of item 1

Diagram of a device casing with internal components and a highlighted green circular area (no text or symbols)

What's in the box

Technical line drawing of a mechanical device with ventilation slots and a handle (no text or symbols)

1 Main unit (with 1 x bag fitted)
2 Battery (fitted)
3 Steering module
4 Handle
5 3 x replacement bags
6 Charger
7 Hair removal tool

Battery removal

Line drawing of a hand inserting a device into a device casing, with a green arrow indicating direction (no text or symbols)

Press the latch on the top of the battery and slide it out of the battery-housing.

Line drawing of a hand inserting a device into a device casing, with a green arrow indicating the process (no text or symbols present)

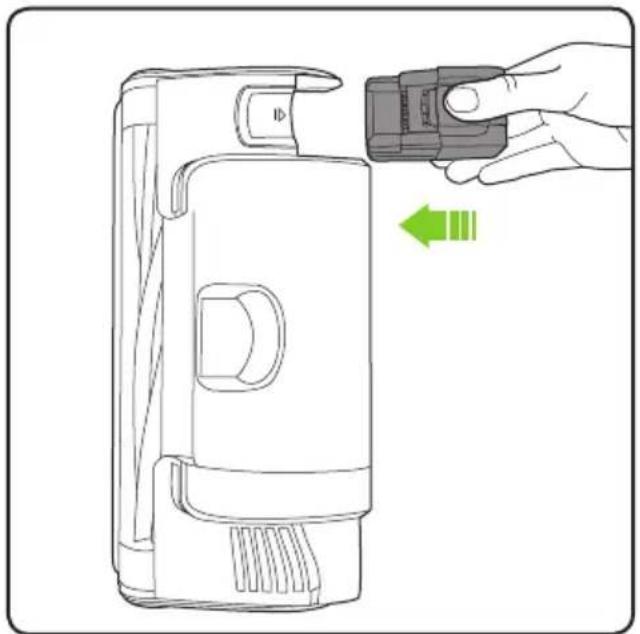

To refit the battery, line it up and slide it into the battery-housing. The battery will click into place when correctly fitted.

WARNING: remove battery before carrying out any form of assembly.

Assembly

Diagram showing a device with a green arrow pointing to a component, no text or symbols present

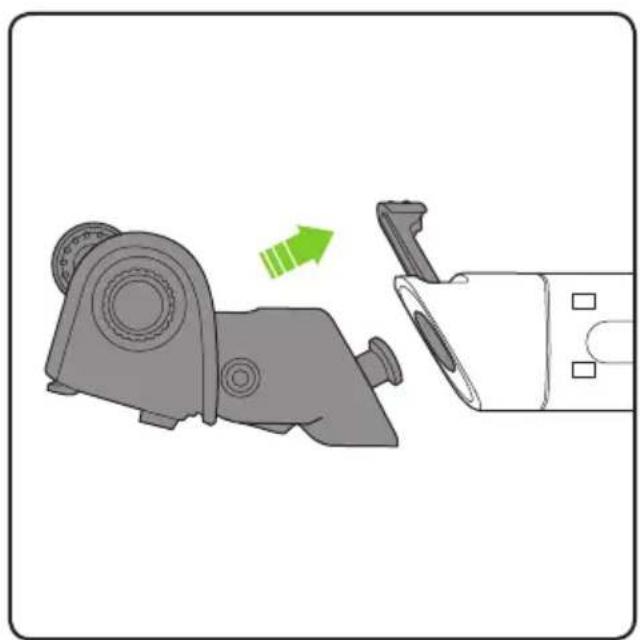

Make sure the locking clip is open. Insert the metal pin on the steering module into the handle.

Diagram of a mechanical device with a green arrow indicating a downward motion (no text or symbols present)

Make sure the handle is fully engaged with the steering module and push the locking clip into the handle. This will lock the handle into place.

Assembly (continued)

Illustration of a hand inserting a cable into a device component with a green arrow indicating the cable (no text or symbols present)

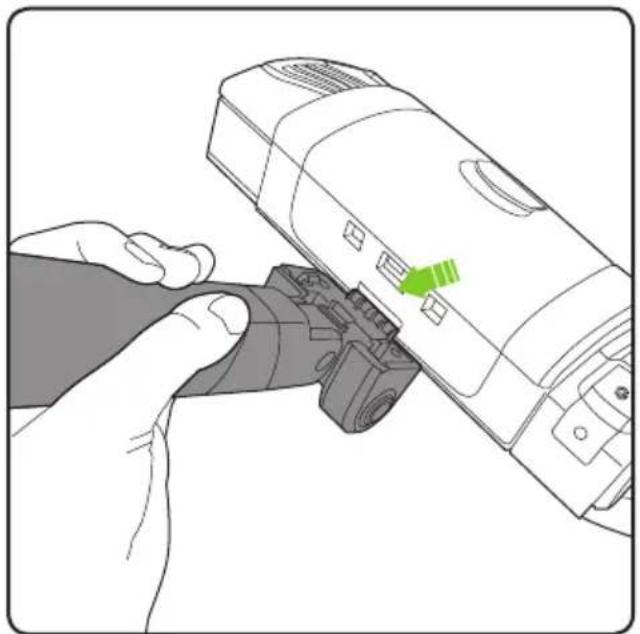

Holding the unit from the right-hand side, line the steering module up with the locking tabs on the main unit. You can't do this while the main unit is on the floor.

Technical diagram of a mechanical assembly with a green rotation indicator (no text or symbols)

Lift the handle up to a 90° angle. The locking tabs on the steering module will slot in and you'll hear a 'click' when it's locked into place.

Illustration of a hand holding a vacuum cleaner with a green downward arrow indicating motion (no text or symbols)

Press the green button and pull the handle upwards to extend.

Illustration of a vacuum cleaner with a green upward arrow indicating motion (no text or symbols)

When the handle is fully extended, you'll hear a 'click'.

Illustration of a handheld vacuum cleaner with green handle and green grip, showing a hand holding the device (no text or symbols)

To compress the handle, simply press and hold the green button while pushing downwards, releasing the green button towards the bottom. The handle will lock into place.

Operation

Diagram showing a hand holding a device with a close-up of its internal components, no text or symbols present.

Place your foot on the left side of the unit and recline the handle. Press the power button to turn it on. You can also do this with your hand when it is in hand-held mode - be careful of the rotating brush-bar.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

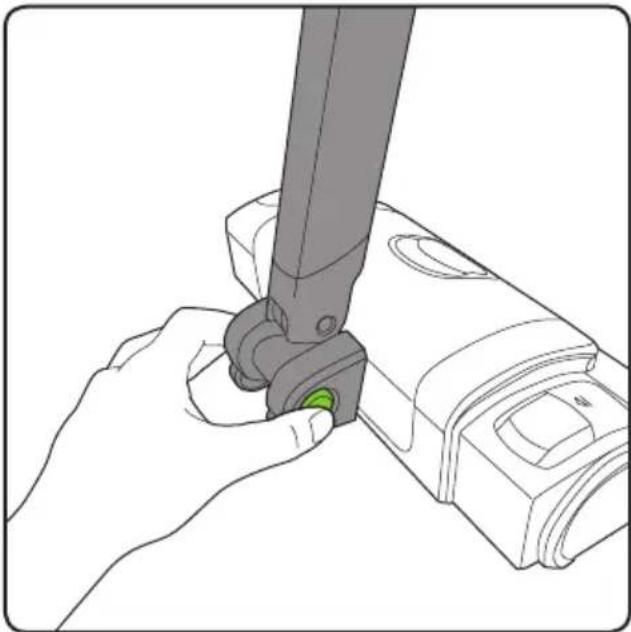

To detach the handle, squeeze the two green buttons on each side of the steering module. The handle will now unlock and can be removed from the main unit.

Hand-held operation

Line drawing of a hand inserting a smartphone into a device (no text or symbols)

When cleaning surfaces such as carpets and upholstery, hold the vacuum and slide it back and forth. Please be aware of the constantly rotating brush-bar while using this product in its hand-held mode.

Line drawing of a hand holding a handheld device (no text or symbols)

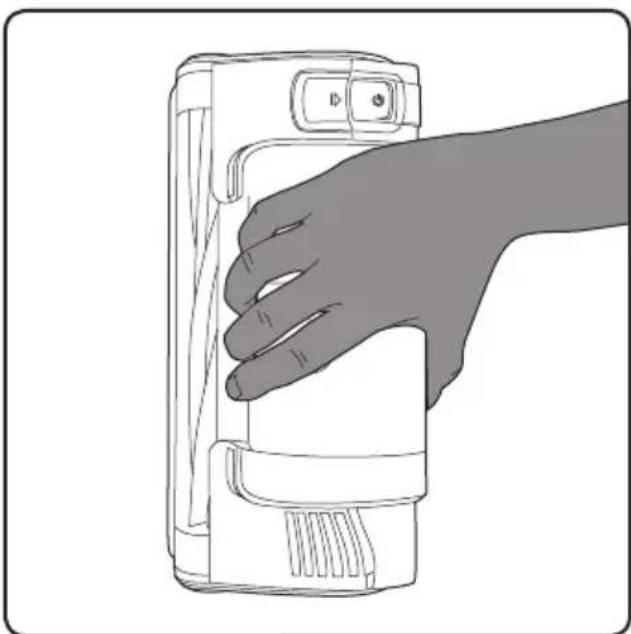

For use on stairs, grip and move the vacuum over each step. Extra care should be taken when vacuuming stairs.

Brush-bar eject system

Line drawing of a vacuum cleaner blade with a green arrow indicating motion direction (no text or symbols)

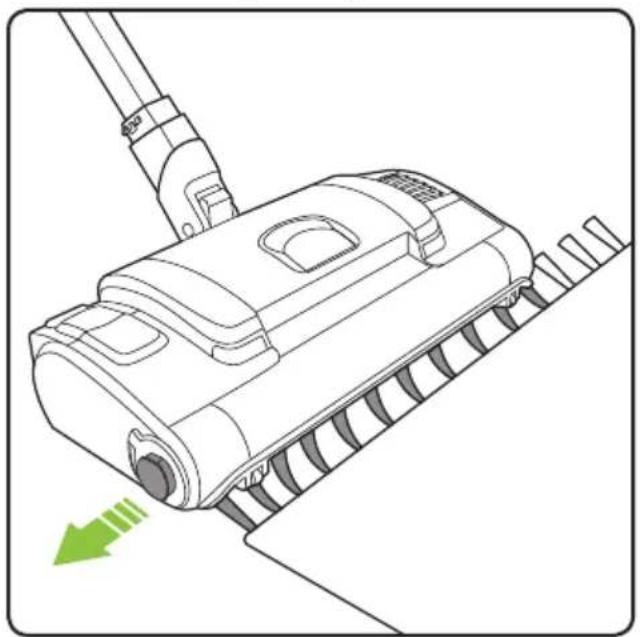

In the case of a jam, the brush-bar will automatically eject itself to allow you to remove any obstructions and prevent damages.

Diagram showing a hand holding a device with a close-up of its internal components, no text or symbols present.

Once the brush-bar ejects, turn the unit off.

Illustration of hands using a tool to adjust or install a cylindrical object, no text or symbols present

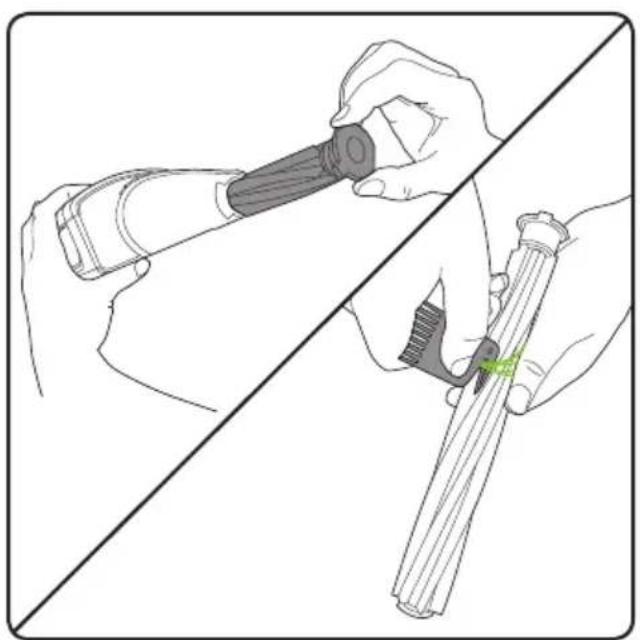

Assess the blockage. If necessary, remove the brush-bar, running the blade of the hair removal tool between the brushes to cut the strands (see p.12-13 for more information).

Illustration of a hand holding a device with a circular button, accompanied by an inset showing a device with a green arrow (no text or symbols)

After clearing the jam, slide the brush-bar back into place and turn the latch to the 'locked' position. Ensure the brush-bar button is pushed back in. The vacuum is now ready to use again.

Recharging the battery

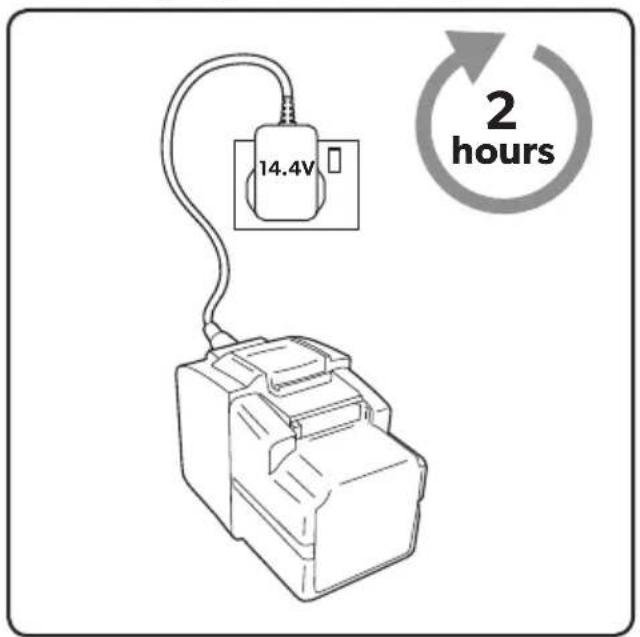

Plug the charger into the mains and connect it to the battery. Switch the power on at the mains.

The battery can be charged on or off the main vacuum unit.

For optimum battery performance, we recommend turning the plug socket off once the battery is fully charged.

Battery state-of-charge indicator

The battery indicator shows how much charge remains in the HyLite battery.

Technical line drawing of a mechanical component with a green 'G' symbol on its body (no text or labels)

Whilst charging, the 'G' on the battery will pulsate green. When fully charged, it will show a solid green colour.

Removing the bag

Illustration of a hand pressing down on a device component with a green handle (no text or symbols)

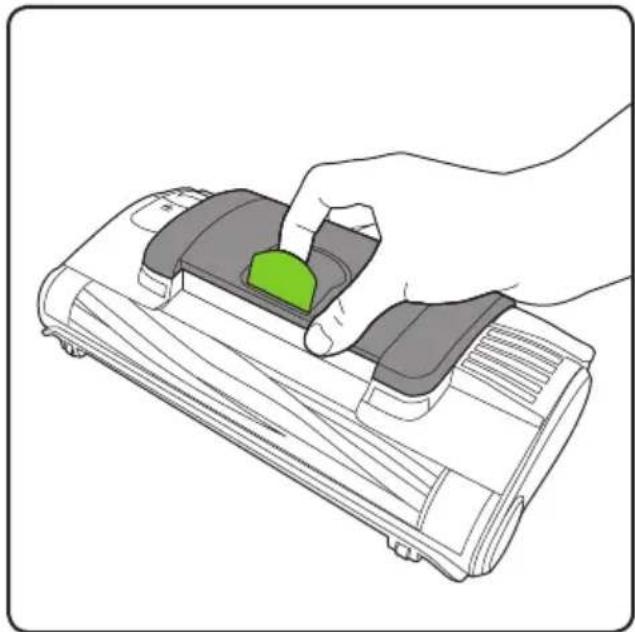

Remove the battery before removing the bag. Open the bag-chamber by lifting the latch on top of the lid.

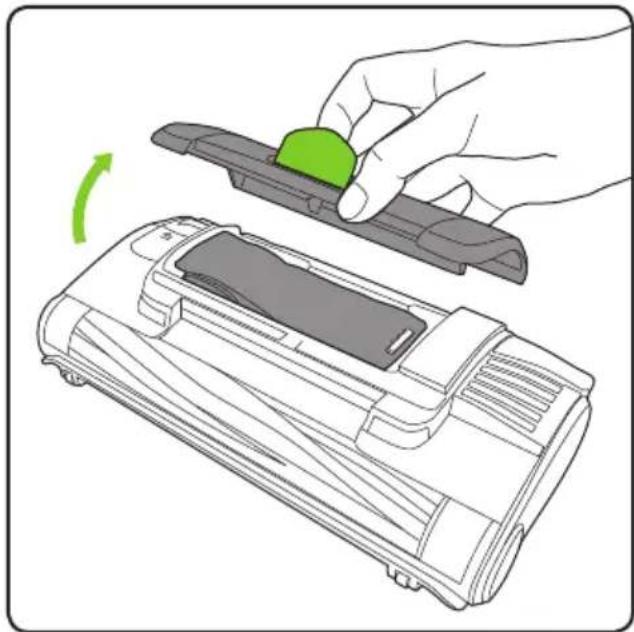

Illustration of a hand holding a green pushpin next to a device component, with a green arrow indicating rotation (no text or symbols present)

Lift and remove the bag-chamber lid.

Line drawing of a hand inserting a card into a device (no text or symbols)

Turn the product onto its back, unhook the end of the bag and disconnect the collar from the inlet. You can then remove the bag.

Line drawing of a hand holding a cleaning tool over a circular object (no text or symbols)

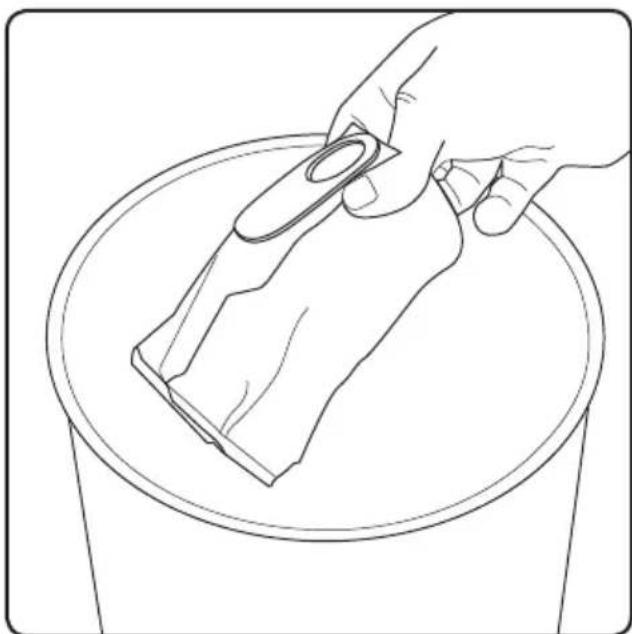

Dispose of the bag safely and replace with a new one.

(You can get more bags at www.gtech.co.uk) Do not reuse bags as this could damage and reduce the performance of the HyLite.

Replacing the bag

Illustration of a hand holding a small mechanical component, possibly a tool or device, with no visible text or symbols.

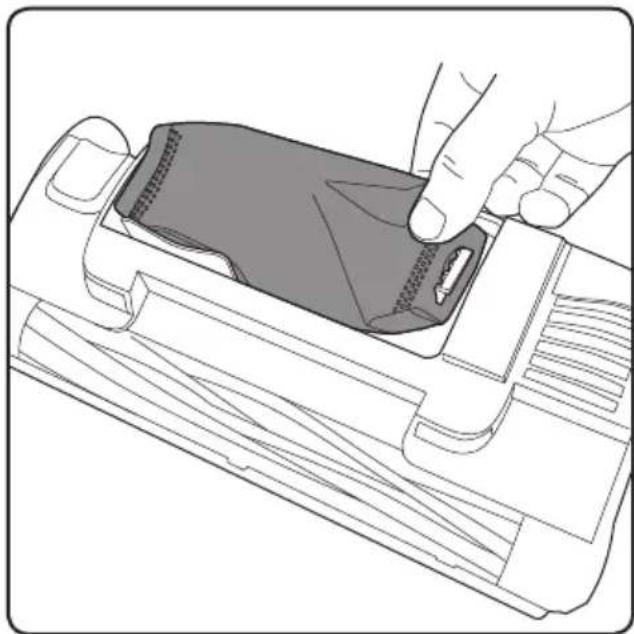

Put the new bag in the bag-chamber, fitting the collar over the inlet.

Line drawing of a hand inserting a dark object into a device tray (no text or symbols)

To expand the bag, pull the hoop at the end of the bag over the hook at the edge of the chamber.

Illustration of a hand placing a green circular component onto a device, with a green curved arrow indicating rotation (no text or symbols present)

Place the lid back onto the chamber and press down. It will click into place once it is secure.

Brush-bar removal

Illustration of a hand holding a device with a circular component, showing a close-up of the device's top view (no text or symbols present)

Remove the battery before maintaining any part of your HyLite. Rotate the latch from the 'locked' position to the 'unlocked' position.

Brush-bar removal (continued)

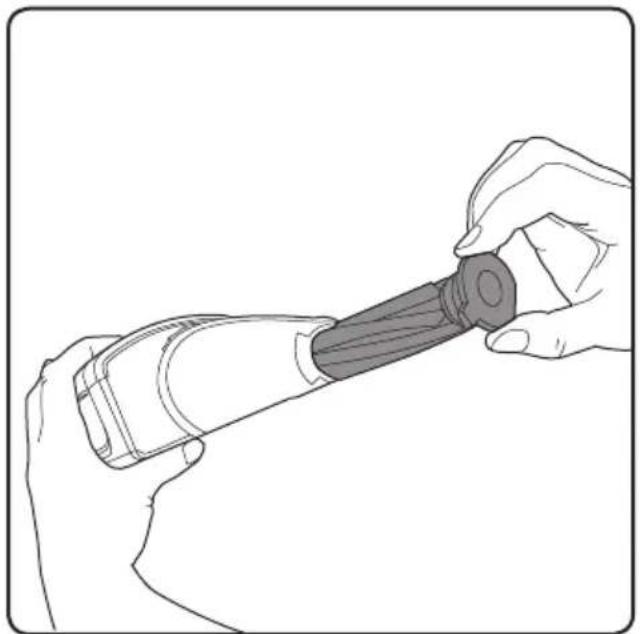

Line drawing of hands holding a cylindrical object with a dark handle, no text or symbols present

Technical line drawing of a mechanical device with internal components and a green arrow indicating a specific part (no text or symbols present)

Pull the latch out to remove the brush-bar. When replacing the brush-bar, ensure that it locates onto the steel pin at the other end of the head, then turn the latch to the 'locked' position.

Brush-bar hair removal

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

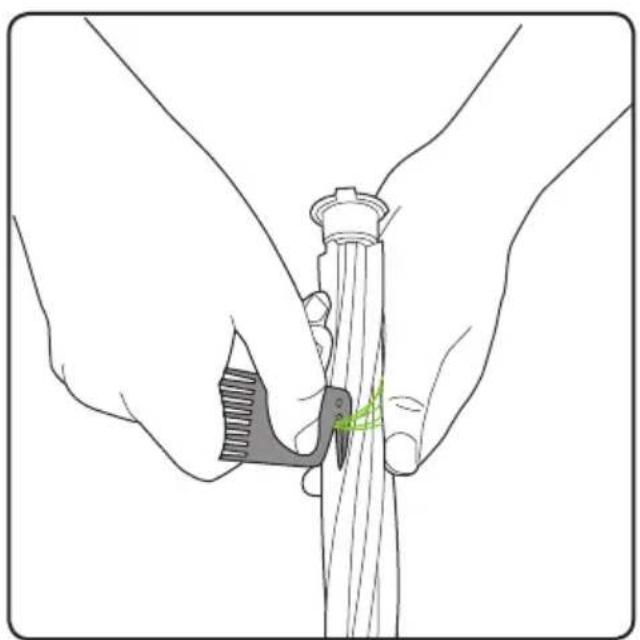

To remove hair from the brush-bar, run the blade of the hair removal tool between the brushes to cut the strands.

Illustration of two hands holding a tool with a green tool inserted, no text or symbols present

You can then use the comb end of the hair removal tool to pull the hair from the brush-bar. Never operate the HyLite without the brush-bar in place.

Product care

Your Gtech HyLite doesn't need much maintenance: just keep the filters clean, keep the brush-bar tangle-free and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin.

Before maintaining any part of the HyLite, remove the battery.

Troubleshooting

Reduced suction 1. Check for blockages.2. Clean the brush-bar.3. Check if the bag is full and needs emptying.4. Check the lid is closed properly.

Unexpectedly short battery life 1. Check the battery is fully charged.2. Clean the brush-bar.3. The run-time will vary depending on the surfaces you are cleaning.

Battery will not charge1. Check the charger is correctly connected to the battery and mains supply.2. Check the wall socket is switched on.3. Try another plug socket.4. Check the charger cord for signs of wear or damage.

My HyLite won’t switch on 1. Check the battery is connected.2. Check the battery is fully charged.

Brush-bar has ejected 1. Check for blockages.2. Clean the brush-bar.

‘G’ on battery shows amber for 5 seconds when the battery button is pressedThe brush-bar is jammed:1. Turn off the HyLite, remove the battery and clear the blockage.The unit has over-heated:1. Leave to cool down.

‘G’ on battery shows red Contact Gtech.

Product support

If these initial tips don't solve your problem, we have various other ways to help.

Visit: www.gtech.co.uk/support

Simple icon of a computer monitor inside a black circle (no text or symbols)

Black circular icon with a white speech bubble symbol (no text or numbers)

Black circular icon with a white envelope and @ symbol (no text or numbers)

Circular play button icon with white triangle (no text or symbols)

[e-mail] chat supportOnline How-to vic

HYLITE TECHNICAL SPECIFICATION

Battery model 165A0005
Battery 14.4V 2000mAh Li-Ion
Charging period 2 hours
Battery charger output 17.3V DC 1.0A
Weight 1.5KG

The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC)

When the vacuum has reached the end of its life, it and the Li-ion battery it contains should not be disposed of with general household waste. The battery should be removed from the vacuum and both should be disposed of properly at a recognised recycling facility.

Call your local council, civic amenity site, or recycling centre for information on the disposal and recycling of electrical products.

Alternatively, visit www.recycle-more.co.uk for advice on recycling and to find your nearest recycling facilities.

Visit www.gtech.co.uk/warrantyregistration to register your product and ensure that we have all the information required to provide you with quick and efficient support.

You will need your product's serial number.

Diagram of a device casing with internal components and a highlighted green circle (no text or symbols)

If you purchased directly from Gtech, your details are already registered and your 2-year warranty will start automatically.

If you purchased from an authorised Gtech retailer, please register your warranty within 3 months. You will need to provide proof of purchase to support any claim(s) against your warranty.

WARRANTY - TERMS AND CONDITIONS

Your Gtech HyLite is guaranteed against material or manufacturing faults for 2 years from the date of purchase, subject to the following terms and conditions:

WHAT ISN'T COVERED SUMMARY

Gtech does not guarantee the repair or replacement of a product as a result of:

• Normal wear and tear (e.g. bags, brush-bar).
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Gtech HyLite operating manual.
- Use of the vacuum cleaner for anything other than the normal domestic household purposes.
- Use of parts and accessories which are not Gtech genuine components.
- Faulty installation (except where installed by Gtech).
• Repairs or alterations carried out by parties other than Gtech or its authorised agents.
- If you are in doubt as to what is covered by your guarantee, please call the Gtech Customer Care Helpline on 01905 345 891.

• The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery/ purchase before any work can be carried out on the vacuum cleaner. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your vacuum cleaner is under guarantee and will not extend the warranty period.
• The guarantee provides benefits which are additional to, and do not affect, your statutory rights as a consumer.

Gtech

Grey Technology Limited

Brindley Road, Warndon, Worcester WR4 9FB

email: [e-mail]

telephone: [phone]

www.gtech.co.uk
