AFE635CHJW - Freezer HAIER - Free user manual and instructions

Product Type	Freezer (Refrigerator-Freezer combo)
Model	AFE635CHJW (Color: Deep Space Gray)
Dimensions (W x D x H)	595 x 657 x 1905 mm
Net Volume	325 L (Freezer: 97 L, Refrigerator: 228 L)
Energy Efficiency Class	A+
Annual Energy Consumption	337 kWh
Freezing Capacity	12 kg/24h
Power Cut Safe	13 h
Refrigerant	R600a (Isobutane)
Noise Level	40 dB(A)
Climate Class	SN/N/ST/T (10°C to 43°C)
Voltage / Frequency	220-240 V, 50 Hz
Current	0.7 A
Frost-Free System	Yes
Control Panel	Electronic with touch keys, lock function
Special Functions	Super-Freeze, Holiday, MyZone box, Multi-air-flow
Water Dispenser	Yes, 2.5 L tank
Interior Light	LED
Door Reversibility	Yes (from right to left)
Shelves	Adjustable glass, removable door racks
Drawers	Removable freezer drawers with pre-freezing rack
Defrosting	Automatic (no frost)
Net Weight	Approx. 70 kg (estimate)

Frequently Asked Questions - AFE635CHJW HAIER

How to set the refrigerator and freezer temperature?

Unlock the panel by touching key 'D' for 3 seconds. Then touch key 'A' (Fridge) or 'B' (Freezer) repeatedly until the desired temperature flashes. The optimum temperatures are 5°C for the fridge and -18°C for the freezer. After a few seconds, the setting is confirmed.

What is the Super-Freeze function and when to use it?

Super-Freeze accelerates freezing of fresh food to preserve quality. Activate it by unlocking the panel, then touch key 'B' for 3 seconds until indicator 'b2' lights up. It automatically switches off after 56 hours. Use it 24 hours before freezing large quantities.

How to clean the appliance properly?

Disconnect the appliance from power. Clean interior and exterior with a sponge dampened in warm water and mild detergent. Do not use harsh cleaners, sprays, steam, or hot water on glass shelves. Rinse and dry with a soft cloth. Clean the water tank and door gaskets regularly.

Can the door be reversed?

Yes, the door swing can be changed from right to left. You need two persons. Unplug the appliance, follow the step-by-step instructions in the manual (section 10.9). Tools are required. Do not tilt the appliance more than 45°.

Why does the alarm sound?

The door opening alarm sounds if the refrigerator door is open for more than 1 minute. Close the door to silence it. If the door is left open for over 7 minutes, the interior light and panel illumination switch off automatically.

How to use the water dispenser?

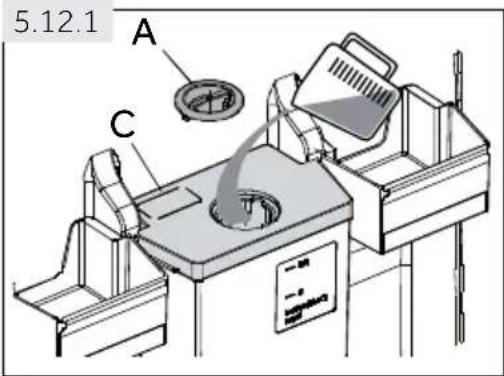

Fill the water tank with fresh drinking water up to the 2.5 L mark. Ensure the spout is firmly screwed and the O-ring is in place. Use the cover (C) to save energy when not in use. Clean the tank regularly with warm water and dish soap.

What is the MyZone box and how to adjust it?

The MyZone box is a temperature-adjustable compartment in the fridge. Slide the air duct pick to the right for chiller mode (lowest temperature) or to the left for fruit & vegetable mode (highest temperature). It can be used to store different types of food optimally.

What to do during a power outage?

Keep the door closed as much as possible. Food should remain cold for about 13 hours. Do not add new food. If the outage exceeds 13 hours, check food condition and consume or cook defrosted food quickly. The appliance remembers settings after power is restored.

How to lock the control panel?

Touch key 'D' for 3 seconds to lock the panel. The indicator 'd' lights up. Unlock by touching key 'D' again. The panel auto-locks after 30 seconds of inactivity.

What refrigerant is used and is it safe?

The refrigerant is R600a (Isobutane), which is flammable. Keep the refrigerant circuit intact. If a leak occurs, avoid open flames, ventilate the room, and do not plug/unplug the appliance. Contact customer service.

USER MANUAL AFE635CHJW HAIER

Refrigerator-Freezer

AFE635C*J

AFE735C*J

AFE635C*JW

CFE635C*J

CFE735C*J

*=Colour code

H,G,M,W,S,R,B,C

H:deep space gray

G:gentle silver

M:stainless steel

W:white

S:silver

R:red

B:black

C:cream

GB

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

Warning – Important Safety information

General information and tips

Environmental information

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

1- Safety information....4
2- Intended use 8
3- Product description .... 9
4- Control panel....12
5- Use....13
6- Energy saving tips....20
7- Equipment 21
8- Care and Cleaning....24
9- Troubleshooting....26
10- Installation....29
11- Technical Data....33
12- Customer Service ....36

Before switching on the appliance for the first time read the following safety hints!:

RNING!

Before first use

▶Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.

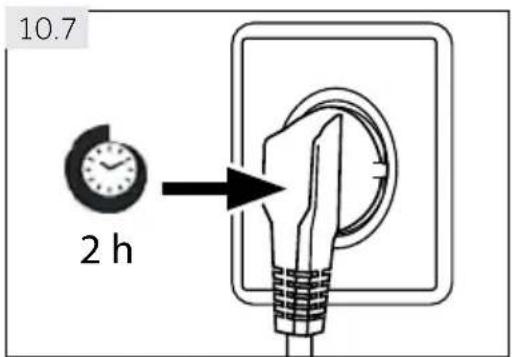

▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.

- Handle the appliance always with at least two persons because it is heavy.

Installation

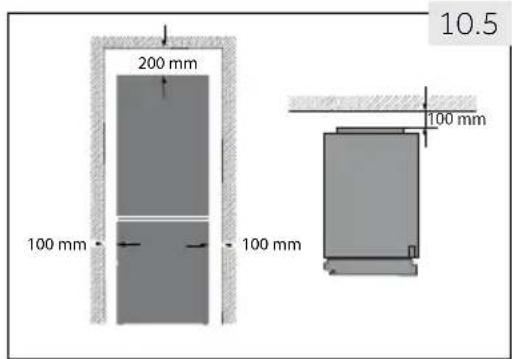

The appliance should be placed in a well-ventilated place. Ensure a space of at least 20 cm above and 10 cm around the appliance.
▶Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.

▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).

▶ Install and level the appliance in an area suitable for its size and use.

- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.

▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.

The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.

▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

- Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶Do not use multi-plug adapters and extension cables.

▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

▶Do not damage the refrigerant circuit.

RNING!

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised.
▶Children shall not play with the appliance.
▶ If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.
▶ Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.
▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.
▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.
▶Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
▶ Check the condition of food if a warming in the freezer has taken place.

RNING!

Daily use

▶Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst.

▶ Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
▶ Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Maintenance / cleaning

▶ Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

▶Hold the plug, not the cable, when unplugging the appliance.

▶ Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

RNING!

Maintenance / cleaning

▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

RNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

WARNING!

▶Taking care to avoid causing a fire by igniting flammable material.
▶WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
▶WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

2- Intended use

GB

2.1 Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in dry-interior house-holds. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Notice

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

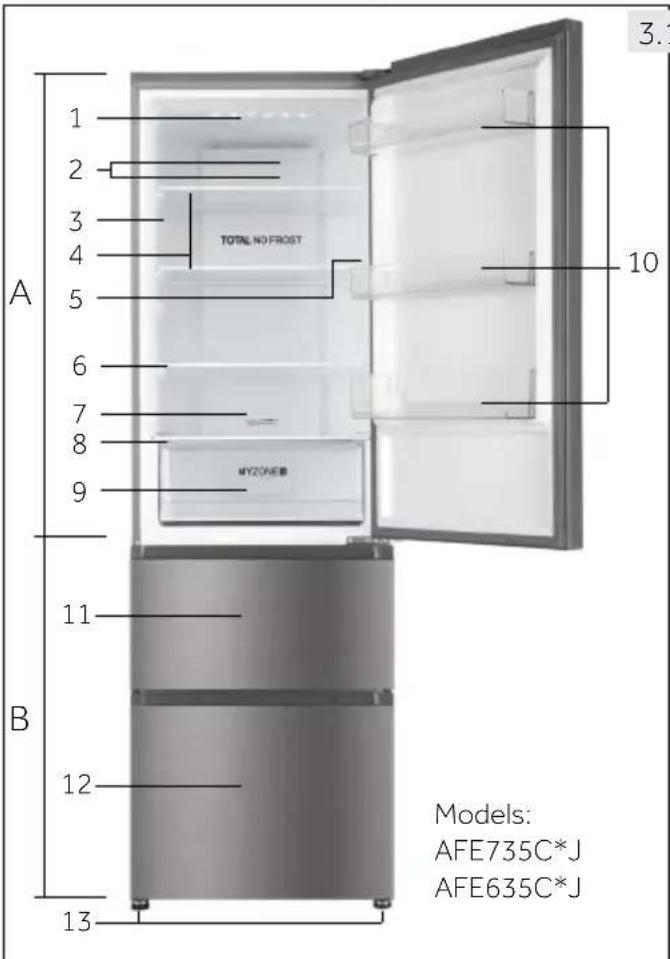

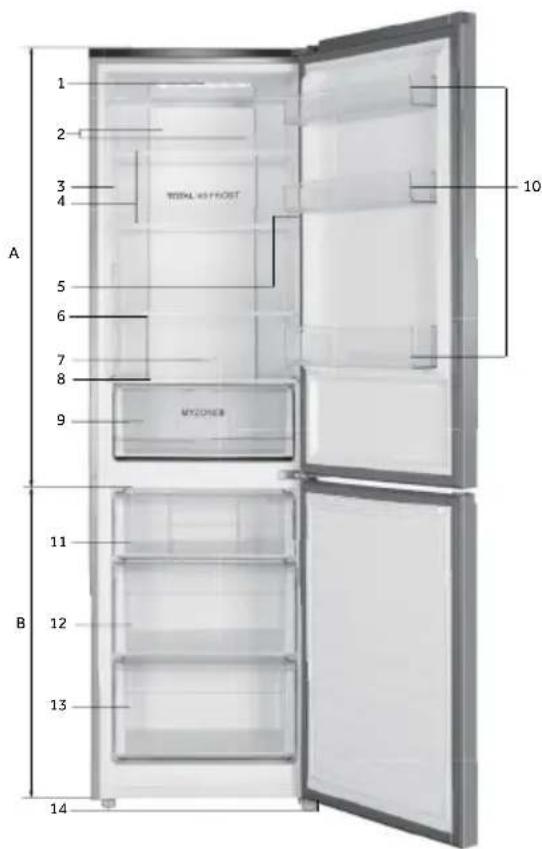

3.1.1 Pictures of appliances (AFE series Fig. 3.1.1)

^* = Colour code

A: Refrigerator compartment

1 Refrigerator LED lamp
2 Air duct and sensor (behind panel)
3 Rating plate
4 Glass shelves
5 O.K.-temperature indicator
6 Glass Shelve
7 Air Duct
8 My Zone box cover

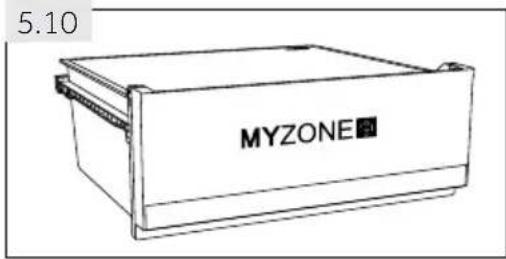

9 My Zone box
10 Door rack

B: Freezer compartment

11 Upper freezer storage drawer with pre-freezing rack
12 Lower freezer storage drawer
13 Adjustable feet

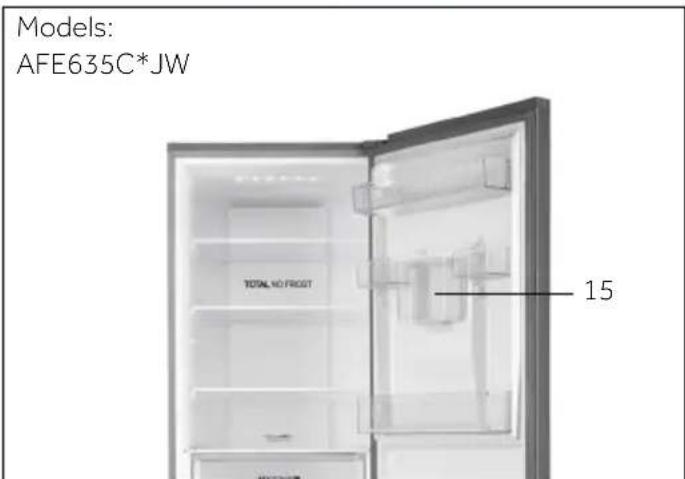

Water dispenser (if available)

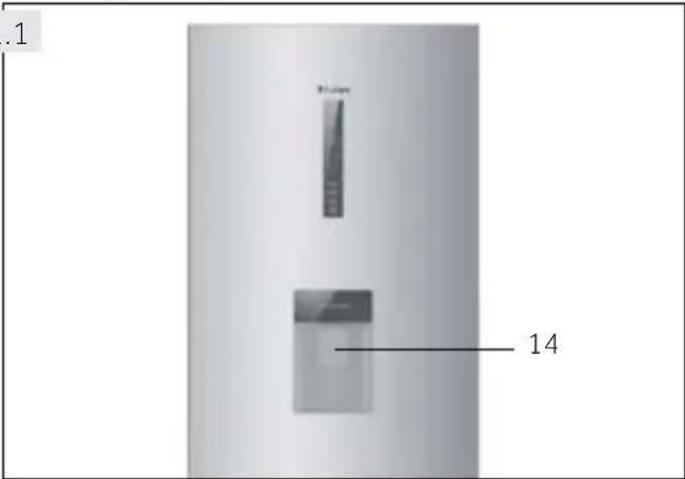

14 Water dispenser
15 Water tank

3- Product description

Notice

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

3.1.2 Pictures of appliances (CFE series Fig. 3.1.2)

Model: CFE635C*J CFE735C*J

3.1.2

Model: CFE735C*JW

^* = Colour code

A: Refrigerator compartment

1 Refrigerator LED lamp
2 Air duct and sensor (behind panel)
3 Rating plate
4 Glass shelves

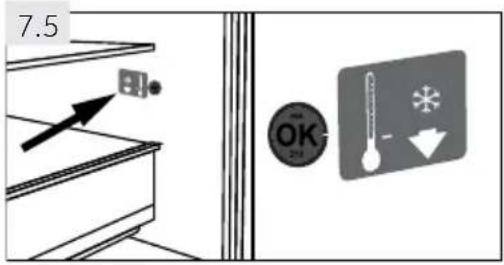

5 O.K.-temperature indicator
6 Gass Shelve
7 Air Duct
8 My Zone box cover
9 My Zone box
10 Door rack

B: Freezer compartment

11 Upper Freezer Box
12 Middle Freezer Box
13 Lower Freezer Box
14 Adjustable feet
15 Water dispenser

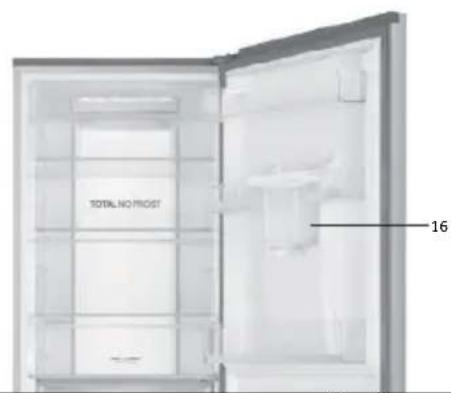

16 Water tank

3.2 Accessories

Check the accessories and literature in accordance with this list (Fig.:2.2):

Please keep the accessories and literature for installation and maintenance.

3.2

with cover

Technical line drawings of various mechanical components (no text or symbols)

Door hinges Ice cube trays

Door stopper

Egg trays

Energy-label

Warranty card

User manual

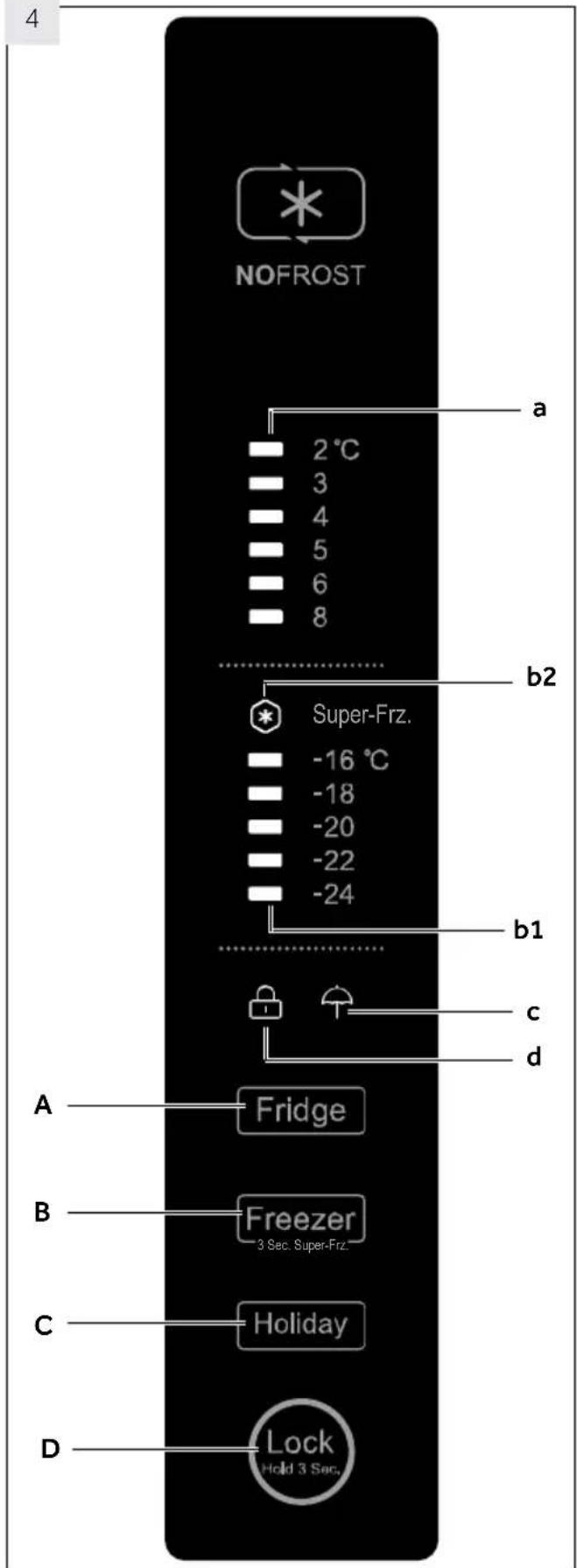

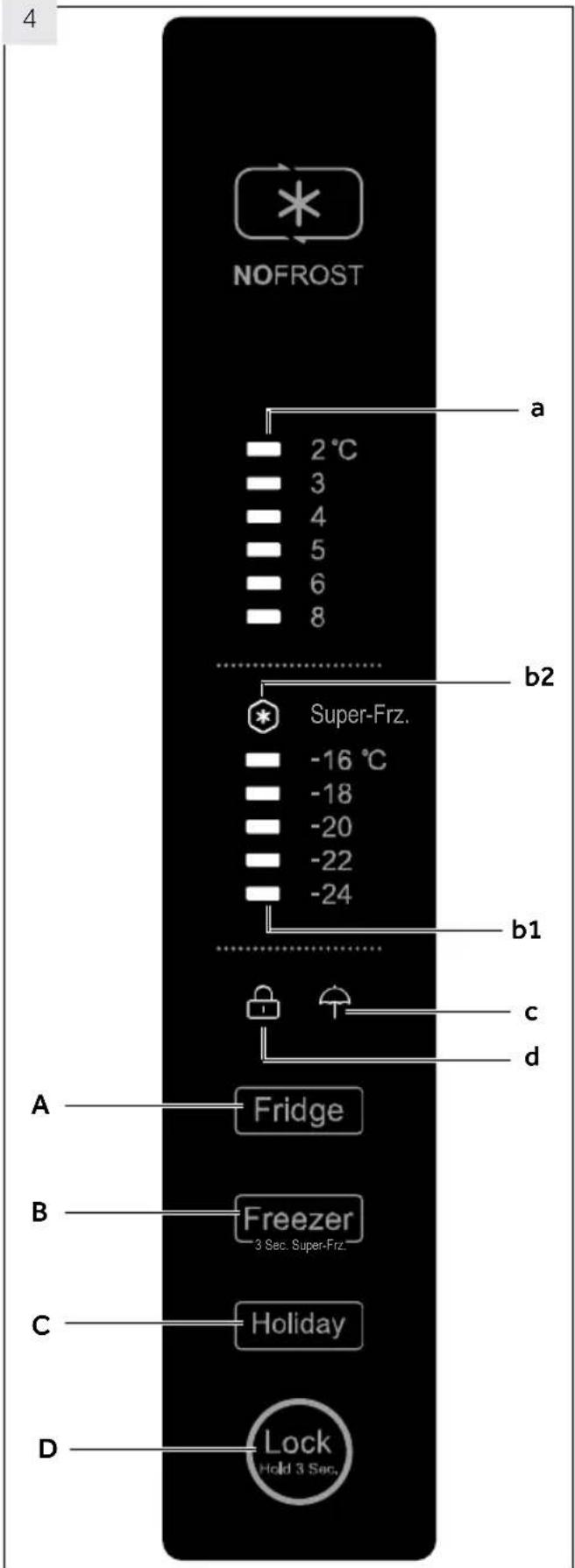

Control panel (Fig. 4)

Keys:

A Refrigerator temperature setting
B Freezer temperature setting and

Super-Frz. function on/off

C Holiday function on/off
D Panellock/unlock

Indicators:

a Temperature refrigerator compartment
b1 Temperature freezer compartment
b2 Super-Freeze function ("Super-Frz.")
c Holiday function
d Panellock

5.1 Before first use

Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner.
- Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.
▶ After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartments at high settings before loading with food. The function Super-Freeze helps to cool down the freezer compartment quickly.
The refrigerator temperature and freezer temperature are automatically set to 5^ C and -18^ C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

5.2 Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

5.3 Switch on /off the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the appliance is powered on for the first time, temperature indicators "a" and "b1" show the presetting values (refer to NOTICE).

Notice: Presettings

The appliance is preset to the recommended temperature of 5^ C (refrigerator) and -18^ C (freezer). Under normal ambient condition you need not to set a temperature.
When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out off the power socket.

5.4 Standby-mode

The display screen turns off automatically 30 seconds after pressing a key. The display will be automatically locked. It lights up automatically by touching any key or opening the door.

5.5 Lock/unlock panel

Notice: Panel lock

The control panel is automatically blocked against activation if 30 seconds no key is touched. For any settings the control panel must be unlocked.

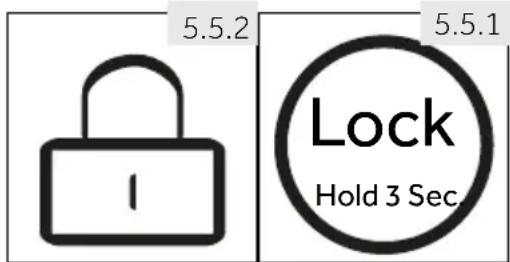

▶ Touch key "D" for 3 seconds to block all panel elements against activation (Fig. 5.5.1).
▶The related indicator "d" is now displayed (Fig. 5.5.2).
▶For unlocking touch again the key.

5.6

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

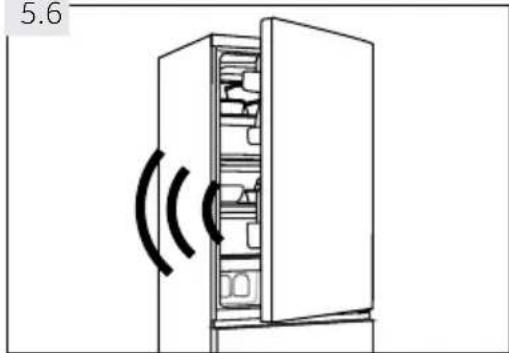

5.6 Door opening alarm

When the refrigerator door is opened for more than 1 minute, the door opening alarm will sound (Fig. 5.6). The alarm can be silenced by closing the door. If the door is left open for more than 7 minutes, the light inside the refrigerator and control panel illumination will automatically switch off.

5.7 Adjust the temperature

The indoor temperatures are influenced by the following factors:

▶Ambient temperature
▶Frequency of door opening
▶Amount of stored foods
▶Installation of the appliance

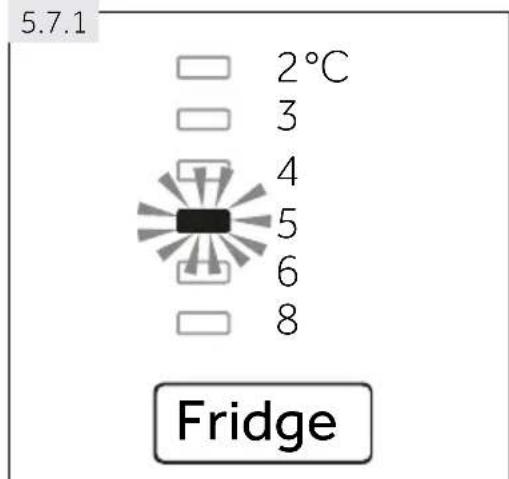

5.7.1 Adjust the temperature for fridge

1. Unlock the panel by touching key "D" if it is locked (Fig. 5.5.1).
2. Touch sequentially key "A" (Fridge) until the desired value of temperature indicator "a" is flashing (Fig. 5.7.1).
   The optimum temperature in the refrigerator is 5°C. Colder temperatures mean unnecessary energy consumption.
3. After a few seconds temperature indicator "a" will shine permanently and the setting is confirmed.

5.7.2 Adjust the temperature for freezer

1. Unlock the panel by touching key "D" if it is locked (Fig. 5.5.1).

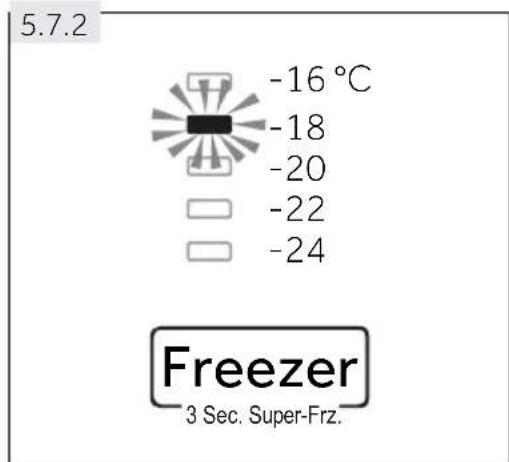

2. Touch sequentially key "B" (Freezer) until the desired value of temperature indicator "b1" is flashing. (Fig. 5.7.2).
   The optimum temperature in the freezer is -18°C. Colder temperatures mean unnecessary energy consumption.
3. After a few seconds temperature indicator "b1" will shine permanently and the setting is confirmed.

Notice: Conflict with other functions

The temperature in the corresponding compartment cannot be adjusted if any other function (Super-Freeze or Holiday) is activated or the display is locked. The corresponding indicator will flash accompanying.

5.8 Super-Freeze function

Fresh food should be frozen as quickly as possible to the core. This preserved the best nutritional value, appearance and taste. The Super-Freeze function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If you need to freeze a large amount of food once, it is recommended to set the Super-Freeze function on ahead for 24h before the usage of frozen room.

1. Unlock the panel by touching key "D" if it is locked (Fig. 5.5.1).
2. Touch key „B“ (Freezer) for 3 seconds; indicator „b2“ illuminates and the function is activated (Fig. 5.8).
3. The same operation can exit Super-Freeze function.

Notice: Automatically switch off

The Super-Freeze function will automatically switch off after 56 hours. The appliance is then operated at the previously set temperature.

5.9 Holiday function

This function sets the refrigerator temperature permanently to 17^ C.

This allows to keep the door of the empty refrigerator closed without causing an odour or mold - during a long absence (e.g. during holiday). The freezer compartment is free for your setting.

1. Unlock the panel by touching key "D" if it is locked (Fig. 5.5.1).
2. Touch key "C" (Holiday); indicator "c" illuminates and the function is activated (Fig. 5.9).
3. The same operation can exit Holiday function.

WARNING!

During the Holiday function no goods must be stored in the refrigerator compartment. The temperature of +17 °C is too high for storing food.

Notice: Automatic fault display

When Indicator "a" or "b1" keep blinking due to fault, Please contact professional after sales service personnel as soon as possible.

Super-Frz.

5.8

Holiday

5.9

5.10 MyZone box

The fridge compartment is equipped with a MyZone box (Fig.5.10). In accordance with the food's storage demands, the most suitable temperature can be selected to get the optimal nutritional value of the food from Chiller to Fruit&Vegetable.(Fig.5.11.)

5.11 Adjusting MyZone box function

This Myzone box can be used as Chill compartment and Fresh-food storage compartment and also can be preserved for different kinds of food which achieved by the control of the fridge air duct pick.

Notice: MyZone box

The temperature in this box is from Chill compartment to Fresh-food storage compartment.
When the fridge air duct pick locates in the right Chiller position, the box will get the lowest temperature. While the fridge air duct pick locates in the left Fruit&Vegetable position, the box will get the highest temperature.
It may be slightly changed due to the different ambient temperature or refrigerator working style.
▶ Sometime the temperature in this box may dip below zero, so before you put fruit & vegetable into it, please make right setting.

5.12 Water dispenser

With the water dispenser cool drinking water can be tapped.

The water tank should be cleaned before first use (see CARE AND CLEANING)

5.12.1 Filling the water tank

RNING!

Use drinking water only.

Ensure that the water tank is properly inserted (see EQUIPMENT) Rotate and lift the round lid (A) and pour fresh drinking water into the water tank (Fig.5.12.1).

Fill water only up to the mark (2.5 l); as it could over flow when the door opens and closes.

Close the round lid (A) until it clicks into place.

Notice: Water dispenser

▶Before refilling dispose residual water and clean the water tank.

- When you don't need water for a long time, please empty the water tank and insert the cleaned tank.

The cover (C) on the water tank (Fig.5.12.1) is additionally used to save energy. If you do not want to get water from the water dispenser for a long period, please still install the cover because of better insulating and saving energy.

5.13 Tips on storing fresh food

5.13.1 Storing into the refrigerator compartment

- Keep your fridge temperature below 5°C.

Hot food must be cooled to room temperature before storing in the appliance.
▶ Foods stored in the refrigerator should be washed and dried before storing
▶ Food to be stored should be properly sealed to avoid odour or taste alterations.
▶ Do not store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogeneous cooling.

▶Foods eaten daily should be stored at the front of the shelf.

Leave a gap between foods and the inner walls, allowing air flowing. In special way don't store foods against the rear wall: foods could freeze against rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.
▶ Frozen food can be gently defreezed in the refrigerator compartmentor with defrost function in the MyZone box. This saves energy.
The ageing process of fruit and vegetables such as courgettes, melons, papaya, banana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advisable to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.
▶ Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See CARE AND CLEANING.

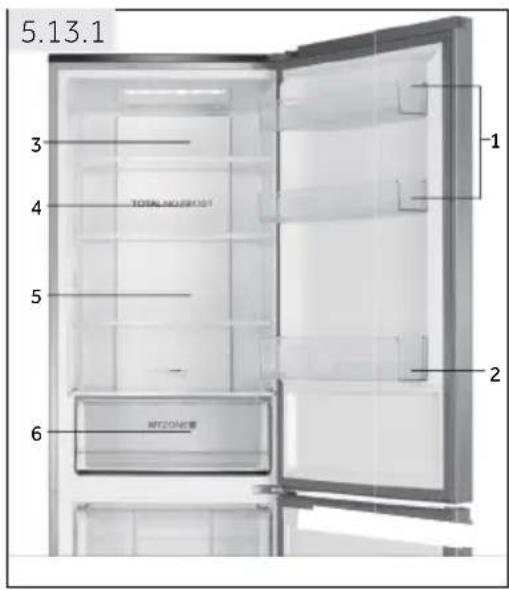

▶ Different foods should be placed in different areas according to their properties (Fig.: 5.13.1).

1 Butter, cheese, eggs, spices, etc. Jam, cheese, tomato sauce, etc.
2 Drinks and bottled foods.
3 Pickled foods, canned food, etc.
4 Meat products, snack foods, pasta, milk, tofu, dairy, etc.
5 Cooked meat, sausages, etc.
6 MyZone box: Fruit, vegetables, salad, etc.

5.13.2 Storage into the freezer compartment

- Keep the freezer temperature at- 18°C.

▶ 24 hours before freezing switch on the Super-Freeze function; -for small quantities of food 4-6 hours are sufficient.
Hot food must be cooled to room temperature before storing in the freezer compartment.
▶ Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg
It is better to pack food before putting it into the freezer. The outside of the packaging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic.
In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.
▶ WARNING!: Acid, alkali and salt etc. could erode the internal surface of the freezer. Do not place the food having these substances (e.g. sea fish) directly on the internal surface. Salt water in the freezer should be cleaned up immediately.
▶ Do not exceed the food storage times recommended by the manufacturers. Only take the required amount of food out of the freezer.
▶ Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is first cooked, otherwise it may bless edible.
- Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer – See TECHNICAL DATA or data at the type plate.
▶ Food can be stored in the freezer at a temperature of at least -18^ C for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months)
When freezing fresh food, avoid bringing it in contact with already frozen food. Risk of thawing!

When storing commercially frozen foods, please follow these guidelines:

▶ Always follow manufacturers' guidelines for the length of time you should store food for. Do not exceed these guidelines!
▶ Try to keep the length of time between purchase and storage as short as possible to preserve food quality.
▶ Buy frozen foods, which have been stored at a temperature of -18^ or below.
- Avoid buying food which has ice or frost on the packaging – This indicates that the products might have been partially defrosted and refrozen at some point – temperature rises affect the quality of food.

rgy saving tips

▶Make sure the appliance is properly ventilated (see INSTALLATION).
- Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶Functions like SUPER-FREEZE consume more energy.
▶Allow warm food to cool down before placing it in the appliance.
▶Open the appliance door as little and as briefly as possible.
▶Do not overfill the appliance to avoid obstructing the air flow.
▶Avoid air within the food packaging.
▶Keep door seals clean so that the door always closes correctly.
▶Defreeze frozen food in the fridge storage compartment

Notice: Differences depending on model

Due to different models, your product may not have all of the following features. Please refer to chapter PRODUCT DESCRIPTION.

7.1 Multi-air-flow

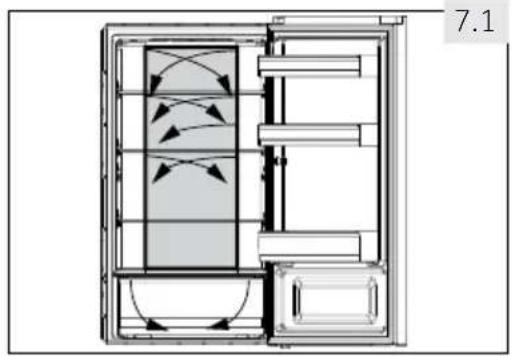

The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level (Fig. 7.1). This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

7.2 Adjustable shelves

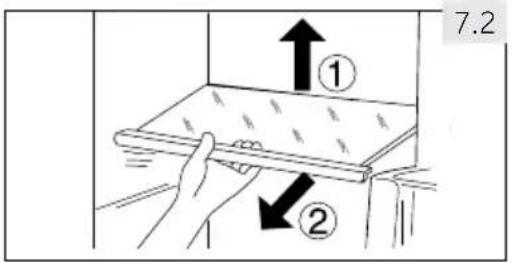

The height of the shelves can be adjusted to fit your storage needs.

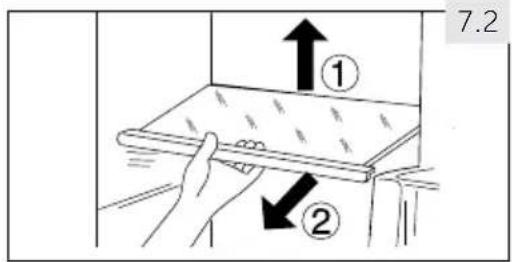

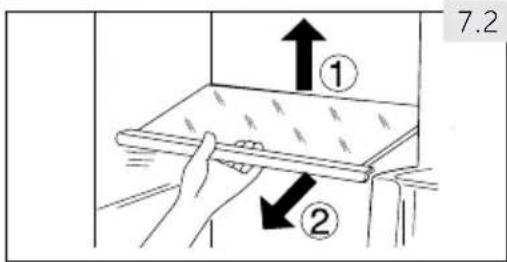

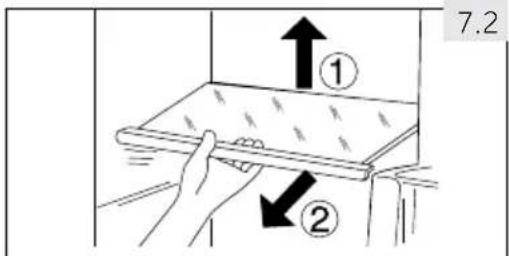

1. To relocate a shelf, remove it first by uplifting its hind edge (1) and pulling it out (2) (Fig. 7.2).
2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

Diagram of a refrigerator interior showing airflow patterns and door compartments (no text or symbols)

Notice: Shelves

Ensure that all ends of a shelf are level.

7.3 Removable door racks

The door racks can be removed for cleaning:

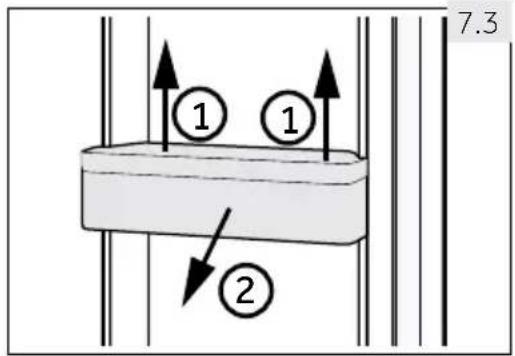

Place hands on each side of the rack, lift it upwards (1) and pull it out (2) (Fig. 7.3).

In order to insert the door rack, the above steps are carried out in reverse order.

7.4 MyZone box

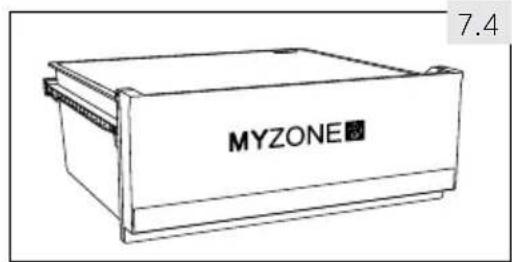

For use and setting of the Myzone compartment (Fig.7.4) please check section USE (Myzone box).

RNING!

Do not store things that need precision storage temperature such as medicine and food therapy articles, to prevent them deteriorating

7.5 OK-temperature indicator

The OK-temperature (Fig. 7.5) indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate "OK".

Notice:OK-sticker

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

7.6 The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliances other settings.

7.7 The Water tank

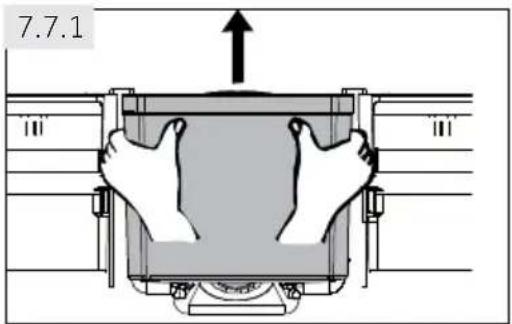

7.7.1 Remove water tank

The water tank can be removed and reinstalled for cleaning in the same way as the door racks (Fig.7.7.1)

7.7.2 Insert water tank

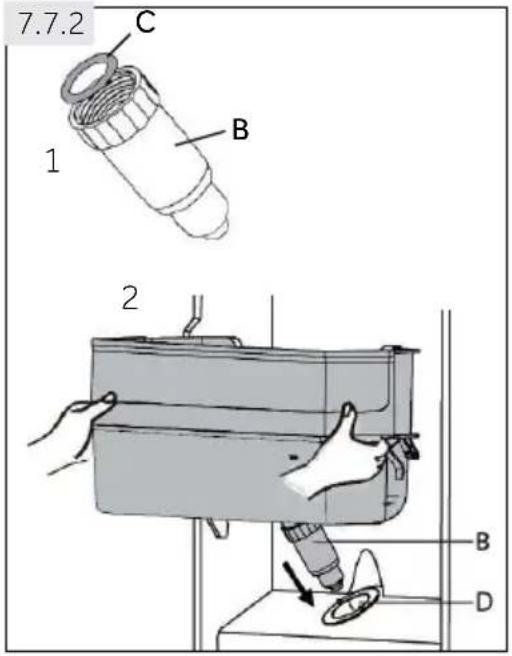

1. Make sure the dispenser spout (B) is firmly screwed to the water tank and the white O-ring (C) is in position (Fig.7.7.2-1).

2. Place the water tank in the position that the dispenser spout (B) fits into the opening of the door (D) (Fig.7.7.2-2)

Notice: Water tank

▶Make sure the spout is firmly screwed to the water tank

▶ and the white O-ring (C) is in position. If the water tank is not properly inserted, water can drip from the connection.

▶ Do not use excessive force when removing or installing the water tank. to avoid damaging the tank.

7.8 Removable freezer drawer

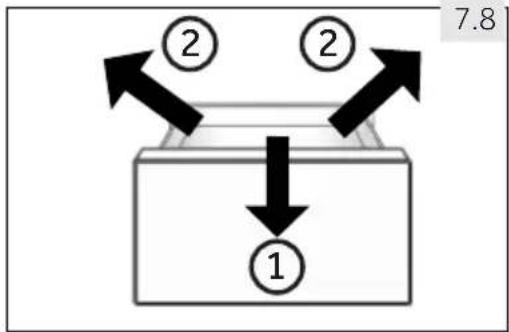

To remove the drawer out, pull out to the maximum extent (1), lift and remove (2) (Fig. 7.8).

In order to insert the drawer, the above steps are carried out in reverse order.

RNING!

Do not overload the drawers: Max. load of each drawer: 35 kg!.

7.9 Pre-freezing rack

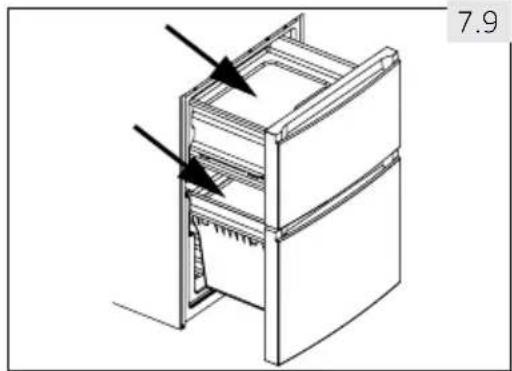

The upper drawer is equipped with pre-freezing rack, which can be also placed to the lower drawer if needed. (Fig. 7.9). Fresh frozen food can be separated from already frozen, so that a smooth freezing process can take place and freezing food will not defrosted. After rearrangement of frozen food these compartments can be used for easy storage of small parts such as herbals, ice cream or for the ice cube tray.

Line drawing of a refrigerator interior with two arrows pointing to the door frame (no text or symbols)

Disconnect the appliance from the power supply before cleaning.

8.1 General

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odours.

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
▶In case of heating check the condition of frozen goods.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

▶Always keep the door gasket clean.

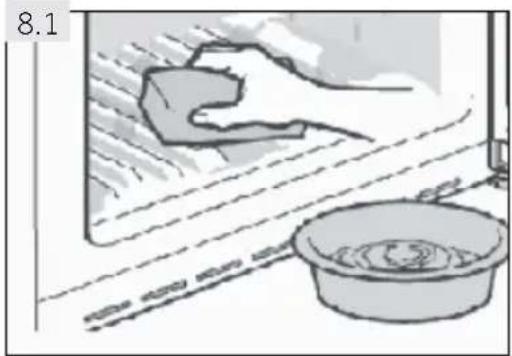

▶Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent (Fig. 8.1).
▶Rinse and dry with soft cloth.
▶Do not clean any of the parts of the appliance in a dishwasher.
▶Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

8.2 Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

8.3 Replacing the LED-lamps

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamp adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Parameter
Voltage in V 13.2
Max power in W 2
LED Spec	WHITE-5050
Usage temperature -30 °C TO +85 °C

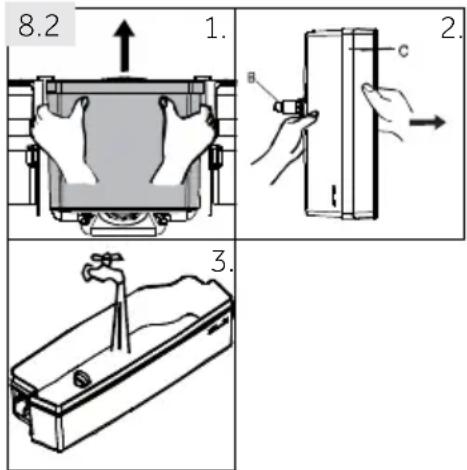

8.4 Cleaning the water tank (Fig.8.2)

1. Take off the water tank out of the appliance.
2. Removethe cover (C) and unscrew the dispenper spout (B) gently.
3. Clean the water tank and the dispenser spout with warm running water and liquid dishwashing detergent. Make sure all soap is rinsed off.

8.5 Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use the Holiday-function for the refrigerator:

▶Take out the food.
▶Unplug the power cord.
▶Clean the appliance as described above.

- Keep the door and freezer drawers/door open to prevent the creation of bad odours inside.

Notice: Switch off

Turn the appliance off only if strictly necessary.

8.6 Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.

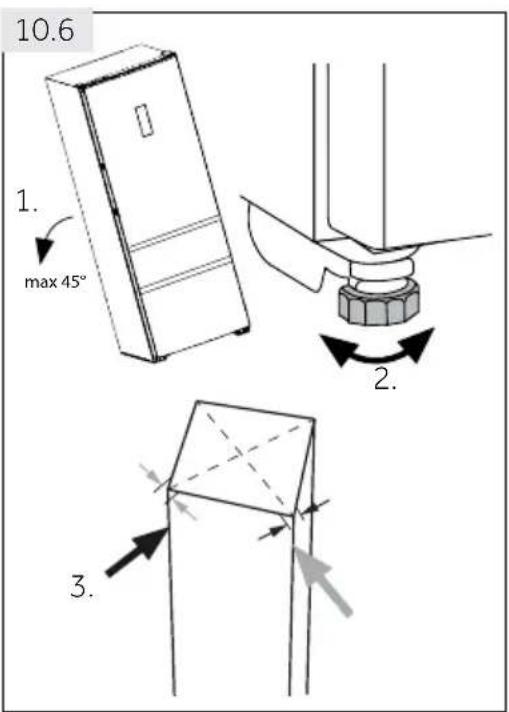

3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

RNING!

▶Do not lift the appliance by its handles.
▶Never place the appliance horizontally on the ground.

9- Troubleshooting

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

NING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9.1 Troubleshooting table

Problem Possible Cause Possible Solution
The compressor does not work.	· Mains plug is not connected in the mains socket.· The appliance is in the defrosting cycle.	· Connect the mains plug.· This is normal for an automatic defrosting.
The appliance runs frequently or runs for a too long period of time.	· The indoor or outdoor temperature is too high.· The appliance has been off power for a period of time.· A door/drawer of the appliance is not tightly closed.· The door/drawer has been opened too frequently or for too long.· The temperature setting for the freezer compartment is too low.· The door/drawer gasket is dirty, worn, cracked or mismatched.· The required air circulation is not guaranteed.	· In this case, it is normal for the appliance to run longer.· Normally, it takes 8 to 12 hours for the appliance to cool down completely.· Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.· Do not open the door/drawer too frequently.· Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.· Clean the door/drawer gasket or replace them by the customer service.· Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	· The inside of the refrigerator needs cleaning.· Food of strong odour is stored in the refrigerator.	· Clean the inside of the refrigerator.· Wrap the food thoroughly.

Problem Possible Cause Possible Solution

It is not cold enough inside the appli-ance.	·The temperature is set too high. ·Reset the temperature.·Too warm goods has been stored. ·Always cool down goods before storing them.·Too much food has been stored at one time.·The goods are too close to each other.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.	·Always store small quantities of food.·Leave a gap between several foods allowing air flowing.·Close the door/drawer.·Do not open the door/drawer too frequently.
It is too cold in-side the appli-ance.	·The temperature is set too low. ·Reset the temperature.·The Power-Freezer function is ac-tivated or is running too long.	·Switch off the Power-Freezer function.
Moisture forma-tion on the inside of the refrigerator compartment.	·The climate is too warm and too damp.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.·Food containers or liquids are left open.	·Increase the temperature.·Close the door/drawer.·Do not open the door/drawer too frequently.·Let hot foods cool to room tem-perature and cover foods and li-quids.
Moisture accu-mulates on the refrigerators out-side surface or be-tween the doors/door and drawer.	·The climate is too warm and too damp.·The door/drawer is not closed tightly. The cold air in the appliance and the warm air outside it con-densates.	·This is normal in damp climate and will change when the humidity de-creases.·Ensure that he door/drawer is tightly shut.
Strong ice and frost in the freeze-er compartment.	·The goods were not adequately packaged.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.·The door/drawer gasket is dirty, worn, cracked or mismatched.·Something on the inside prevents the door/drawer to close properly.	·Always pack the goods well.·Close the door/drawer.·Do not open the door/drawer too frequently.·Clean the door/drawer gasket or replace them by new ones.·Reposition the shelves, door racks, or internal containers to al-low the door/drawer to close.
The appliance makes abnormal sounds.	·The appliance is not located on level ground.·The appliance touches some ob-ject around it.	·Adjust the feet to level the appli-ance.·Remove objects around the appli-ance.
Problem Possible Cause Possible Solution
A slight sound is to be heard similar to that of flowing water.	· This is normal. · -
You will hear an alarm beep.	· The fridge storage compartment door is open.	· Close the door or silence the alarm manually.
You will hear a faint hum.	· The anti-condensation system is working.	· This prevents condensation and is normal.
The interior lighting or cooling system does not work.	· Mains plug is not connected in the mains socket.· The power supply is not intact. · Check the electrical supply to the room. Call the local electricity company!· The LED-lamp is out of order. · Please call the service for changing the lamp.	· Connect the mains plug.
The sides of the cabinet and door strip get warm.	· This is normal. · -

9.2 Power interruption

In the event of a power cut, food should remain safely cold for about 16 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶Open the door/drawer as few times as possible.

▶ Do not put additional food into the appliance during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than 16 hours, make some ice and put it in a container in the top of the refrigerator compartment.
An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Notice: Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

10.1 Unpacking

RNING!

▶The appliance is heavy. Always handle with at least two persons.

- Keep all packaging materials out of children’s reach and dispose them in an environmentally friendly manner.

▶Take the appliance out of the packaging.

▶Remove all packaging materials.

10.2 Environmental conditions

The room temperature should always be between 10^ C and 43^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

10.3 Door reversibility

Before the appliance is permanently installed, check the correct position of the door hinge. If necessary see section the DOOR REVERSIBILITY.

10.4 Space requirement

Required space when door is opened (Fig. 10.4):

Appliance width in mm Appliance depth in mm W1 W2 D1 D2

595 925 580 1200

10.5 Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed (Fig. 10.5).

10.6 Aligning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the appliance slightly backwards (Fig. 10.6).
2. Set the feet to the desired level.
3. The stability can be checked by alternately bumping on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door.

10.7 Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait 2 hours (Fig.10.7) so that the oil runs back into the capsule.

10.8 Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.
▶the power socket is earthed and no multi-plug or extension.
▶the power plug and socket are strictly according.
Connect the plug to a properly installed household socket.

NING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

10.9 Door Reversibility

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability.

RNING!

The appliance is heavy. You need two persons to carry out the door reversibility.
▶Before any operation, first unplug the appliance from the mains.
▶ Do not tilt the appliance more than 45^ to prevent damage of the cooling system.

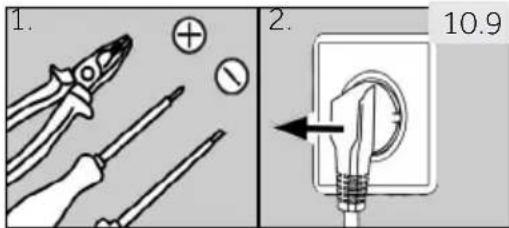

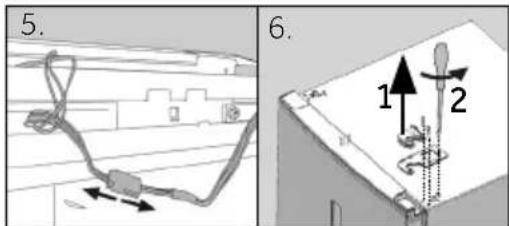

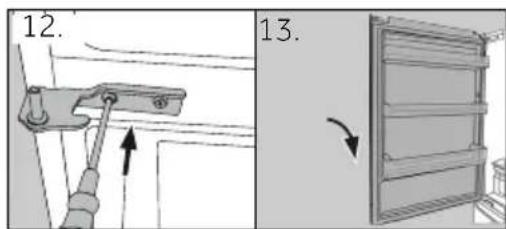

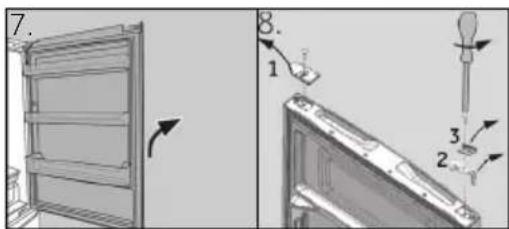

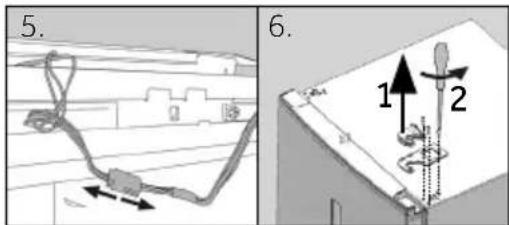

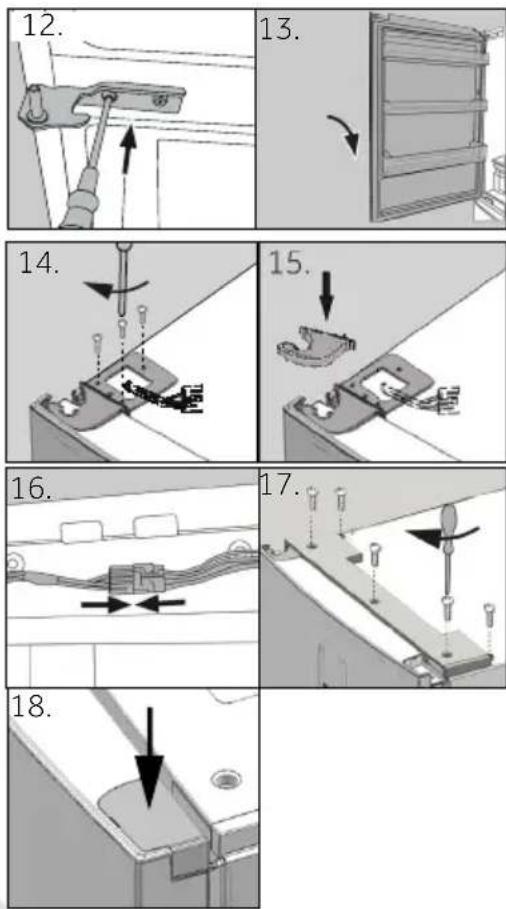

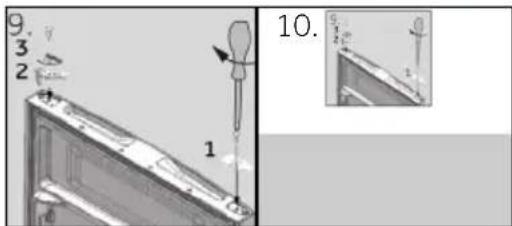

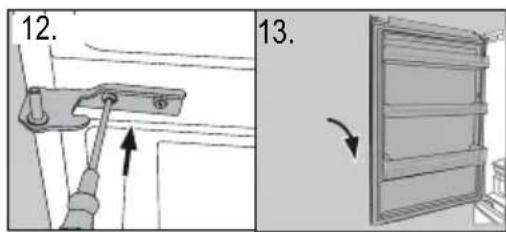

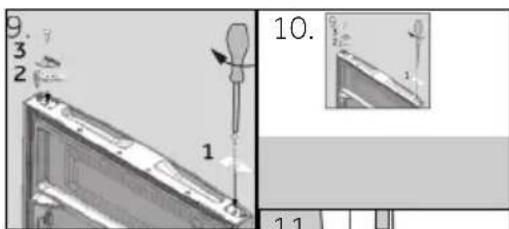

Assembly steps (Fig. 10.9):

1. Provide necessary tool.
2. Unplug the appliance.
3. Provide necessary tool.
4. Unplug the appliance.

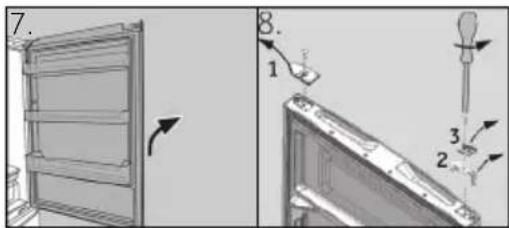

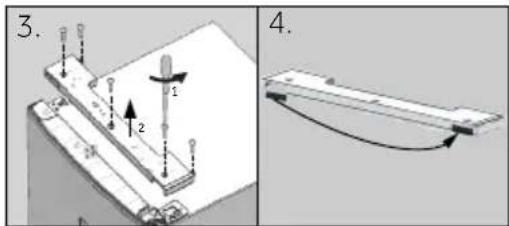

5. Remove the five screws which fix the front panel (1) and remove the panel (2).
6. Remove the small cover of the front panel from left to right side.

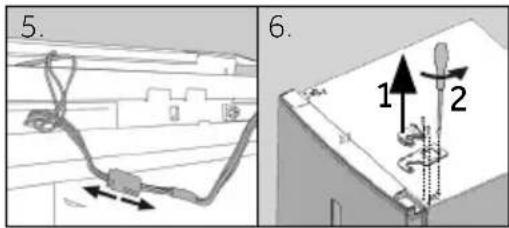

7. Unplug the connection cable

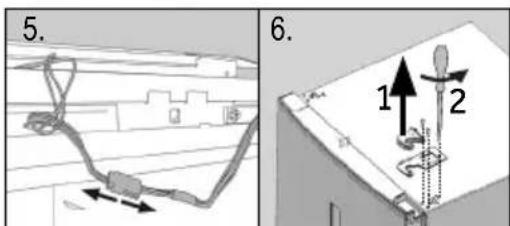

8. Remove the upper hinge cover (1) and unscrew the upper hinge (three screws) on right side (2).
9. Lift the loose refrigerator door carefully off the lower hinge.

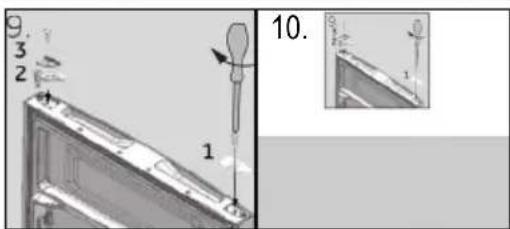

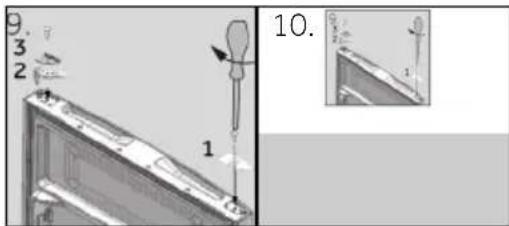

10. Turn the door upside down, unscrew the cover (1) and the door stop (2) with fixing part (3).
11. Take out new cover (1) and door stop (2) with fixing part (3) from the accessory bag and screw them to opposite side.
12. Remove the lower hinge of the upper door.
13. Change the positions of the blanking plugs and the screw on the side.

10- Installation

3D wireframe diagram of a vertical shelf or cabinet with horizontal shelves and a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Diagram of a mechanical setup with light bulbs and a lever, no visible text or symbols

Close-up of a mechanical component with a black arrow pointing to a curved surface (no text or symbols visible)

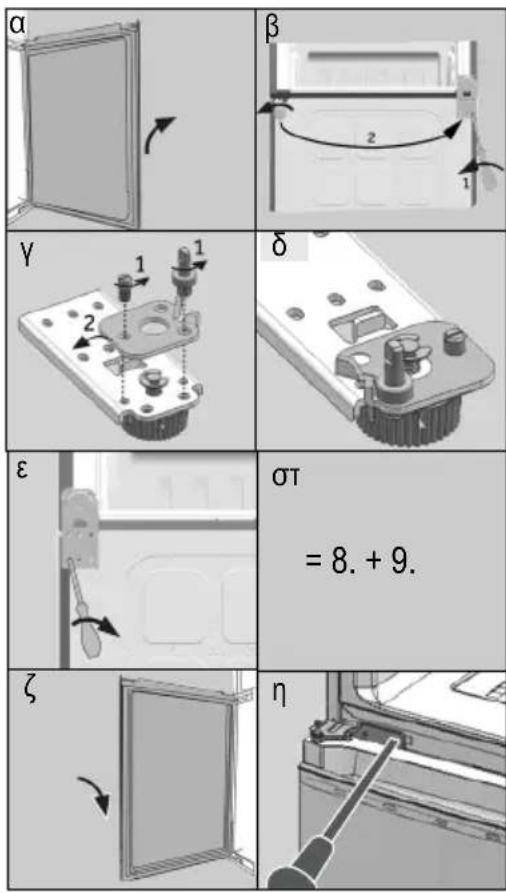

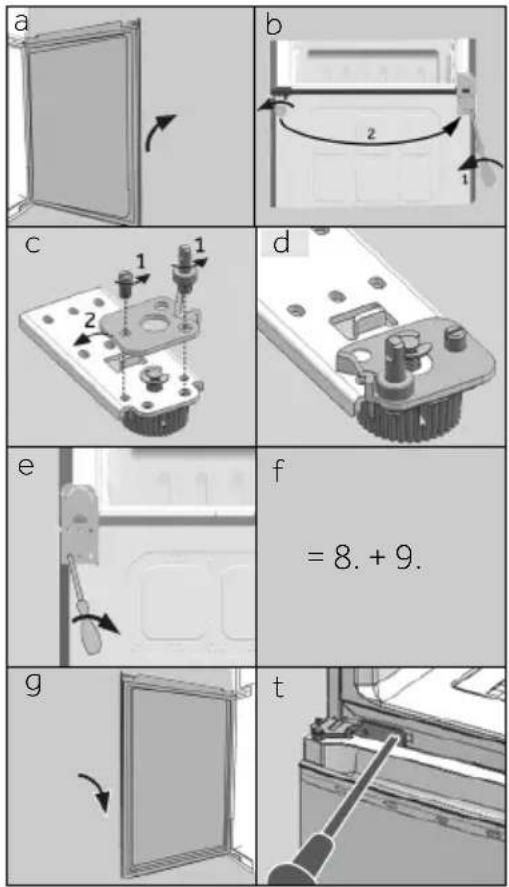

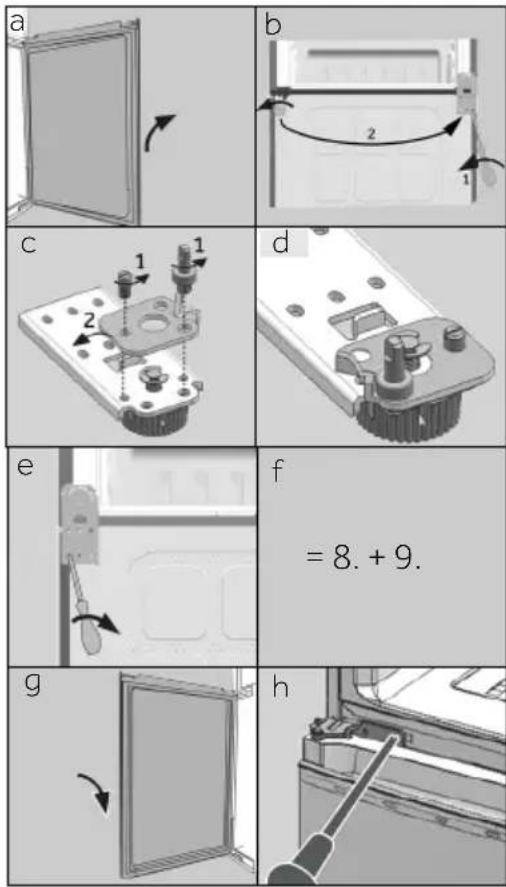

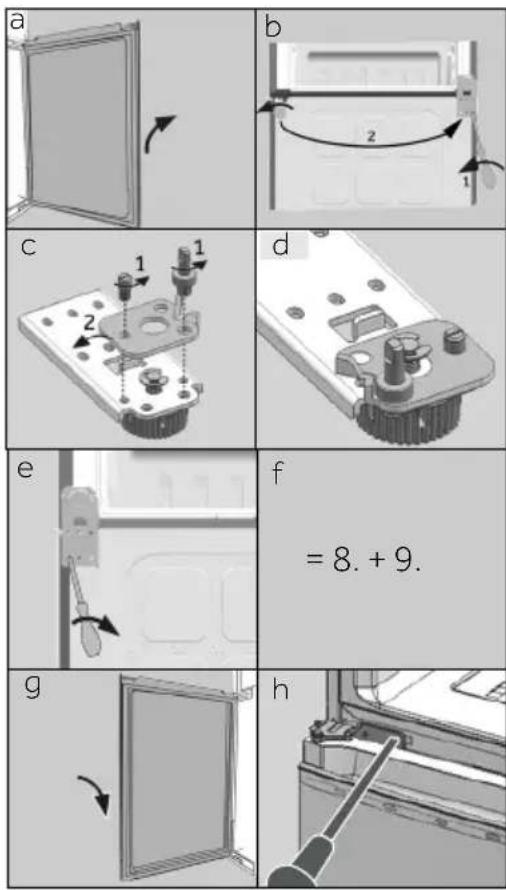

Next steps (a-h) are only necessary for models with two doors:

a Remove lower door
b This step needs two persons; one who holds the appliance in place and one who carries out the assembly steps!
Tilt the appliance slightly backwards and remove the lower hinge with the feet (1). Change also position of the other feet (2).
c Unscrew the two grub screws (1), remove the lower hinge, rotates through 180^ (2) and
d refix the lower hinge with the 2 grub screws
e Screw the lower hinge to the left side of the appliance.
f Follow steps 8 and 9.
g Lift the lower door carefully on to the lower hinge so that the pivot fits into the hinge barrel.
Be sure the pivot fits into the hinge barrel of lower door.

h Take out the new hinge from the accessory bag and screw it to the left side of the appliance.

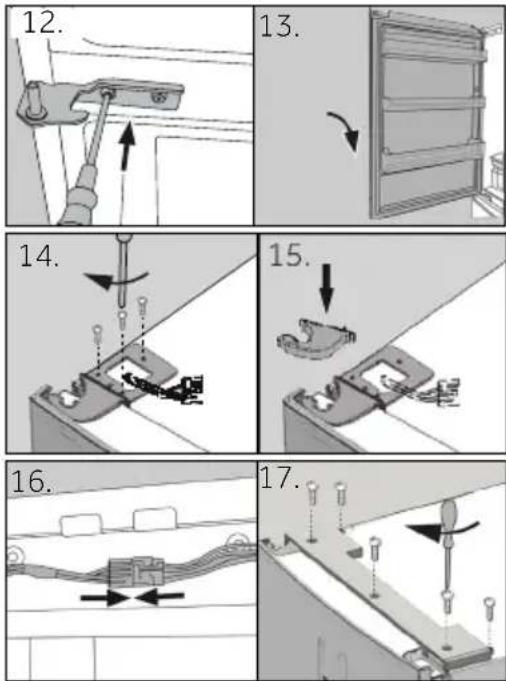

1. Take out the new lower hinge of upper door from the accessory bag and screw it to the left side of the appliance.
2. Lift the upper door carefully on to the lower hinge so that the pivot fits into the hinge barrel.

Be sure the pivot fits into the hinge barrel of lower door.

1. Take out the upper hinge from the accessory bag. Put the connection cable through the upper hinge and fix the upper hinge with the three screws on left side of appliance.

15 Put the hinge cover (delivered in the accessory bag) over the hinge.

1. Plug in the connection cable and fit it into the opening.

2. Replace front panel and fix it with the five screws.

18 Take out the cover from the accessory bag and fix it to the right side of upper door.

After the change of the door check that the door seals are located properly on the housing and all screws are tightened well.

11.1 Product fiche according to regulation EU No. 1060/2010

Trade mark Haier
Model identifier	AFE635C*J	AFE635C*JW	AFE735C*J
Category of the model	Refrigerator-freezer
Energy efficiency class A+ A+ A++
Annual energy consumption (kWh/year)1)	337 337 265
Storage volume cooling (L) 233 228 233
Storage volume freezing (L)2)* 97 97 97
Star rating
Temperature of other compartments >14°C	Non applicable
Frostfree system	Yes
Power cut safe (h)	13
Freezing capacity (kg/24h)	12
Climate classThis appliance is intended to be used at an ambient temperature between x °C and x °C.	SN/N/ST/T
Airborne acoustical noise emissions (db(A) re 1pW)	40
Construction type	Freestanding

^1) based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
^2) the cover can be removed to increase the volume of the fridge compartment.

11- Technical data

Trade mark Haier
Model identifier	CFE635C*J CFE735C*J
Category of the model	Refrigerator-freezer
Energy efficiency class A+ A++
Annual energy consumption (kWh/year)1)	350 275
Storage volume cooling (L) 233 233
Storage volume freezing (L)2)* 108 108
Star rating
Temperature of other compartments > 14°C Non applicable
Frostfree system	Yes
Power cut safe (h)	13
Freezing capacity (kg/24h)	12
Climate classThis appliance is intended to be used at an ambient temperature between 10 °C and 43°C.	SN/N/ST/T
Airborne acoustical noise emissions (db(A) re 1pW)	40
Construction type	Freestanding

^1) based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
^2) the cover can be removed to increase the volume of the fridge compartment.

11.2 Additional technical data

Model	AFE635C*J	AFE635C*JW	AFE735C*J
Voltage / Frequency 220-240V ~/ 50Hz
Input current (A)	0.7	0.7	1.4
Main fuse (A)	5.0
Coolant	R600a
Total volume (L)	370	365	370
Net volume (L)	330	325	330
Dimensions (D/W/H in mm)	657
Depth
Width	595
Height	1905

Model	CFE635C*J CFE735C*J
Voltage / Frequency 220-240V ~/ 50Hz
Input current (A)	1.2 1.4
Main fuse (A)	5.0
Coolant	R600a
Total volume (L)	375
Net volume (L)	341
Dimensions (D/W/H in mm)	657
Depth
Width	595
Height	1905

11.3 Standards and directives C€

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

12 - Customer Service

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶your local dealer or

the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find below our addresses in Europe:

European Haier addresses
Country*	Postal address	Country* Postal address
Italy	Haier Europe Trading SRLVia De Cristoforis, 1221100 VareseITALY	France	Haier France SAS3-5 rue des Graviers92200 Neuilly sur SeineFRANCE
Spain Portugal	Haier Iberia SLPg. Garcia Faria, 49-5108019 BarcelonaSPAIN	Belgium-FRBelgium-NLNetherlandsLuxembourg	Haier Benelux SAAnderlechtRoute de Lennik 451BELGIUM
Germany Austria	Haier Deutschland GmbHHewlett-Packard-Str. 4D-61352 Bad HomburgGERMANY	PolandCzechiaHungaryGreeceRomaniaRussia	Haier Poland Sp. zo.o.Al. Jerozolimskie 181B02-222 WarszawaPOLAND
United Kingdom	Haier Appliances UK Co.Ltd.One Crown SquareChurch Street EastWoking, Surrey, GU21 6HRUK

*For more information please refer to www.haier.com

AFE_CFE*35C*J_EN-V03_190103

Haier

Kühl-Gefriergerät

AFE635C*J

AFE735C*J

AFE635C*JW

CFE635C*J

CFE735C*J

*= Farbcode:

H: Weltall grau

G:Sanftes Silber

M:Rostfreier Stahl

W:Weiss

S:Silber

R:Rot

B: Schwartz

C:Creme

DE

Symbol of a trash bin crossed with no text or labels

Entsorgung

Technical line drawing of two mechanical components: a bracket and a housing (no text or symbols)

Türscharniere

Technical line drawings of three mechanical component parts (no text or symbols)

Abdeckungen

Türstopper

Eierablagen

Energie Lable

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Architectural diagram of a refrigerator interior showing internal compartments and ventilation patterns (no text or symbols)

RNUNG!

Technical line drawing of a refrigerator with two arrows pointing to the door frame (no text or symbols)

WARNING!

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

Diagram of a mechanical setup with light bulbs and a rotating component (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a curved surface (no text or symbols visible)

AFE_CFE*35C*J_DE-V03_190103

Haier

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

Desecho

Technical line drawing of two mechanical components: a handle and a rectangular housing (no text or symbols)

Three technical line drawings of mechanical components or brackets, no text or symbols present.

tapas

Tope de puerta

Huevera

Etiqueta de energía

Tarjeta de garantía

Manual del usuario

Panel de control (II. 4)

Teclas:

Line drawing of an open refrigerator with a sound wave icon indicating sound or vibration (no text or symbols)

Diagram of a refrigerator interior showing internal compartments and ventilation patterns (no text or symbols)

Aviso: Estantes

Technical line drawing of a refrigerator with two arrows pointing to the door frame (no text or symbols)

¡ADVERTENCIA!:

Illustration of a hand cleaning a surface with a soap block and a basin (no text or symbols)

8.2 Descongelación

10- Instalación

3D wireframe diagram of a refrigerator with an arrow indicating rotation (no text or symbols)

Technical diagram showing mechanical assembly with no visible text or symbols

Close-up of a mechanical component with a black arrow pointing to a curved surface (no text or symbols visible)

AFE_CFE*35C*J_ES-V03_190103

Haier

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

5.2 Touches sensitives

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

RTISSEMENT!

Technical line drawing of a refrigerator with two arrows pointing to the interior frame (no text or symbols)

AVERTISSEMENT!

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

8.2 Dégivrage

Diagram of a mechanical assembly with light bulbs and a lever, no visible text or symbols

Close-up of a mechanical component with a black arrow pointing to a curved feature (no text or symbols visible)

AFE_CFE*35C*J_FR-V03_190103

Haier

Hűtő-Fagyasztó

AFE635C\*J AFE735C\*J AFE635C\*JW CFE635C\*J CFE735C\*J

*= Színkód:

H,G,M,W,S,R,B,C

H:mélytér szürke

G:enyhe ezüst

M:rozsdamentes acél

W:fehér

S:ezüst

R:piros

B:fekete

C:krém

HU

Symbol of a trash bin crossed with no text or labels

Hulladékkezelés

Technical line drawing of two mechanical components (no text or symbols)

Ajtópántok

Three technical line drawings of mechanical components (no text or symbols)

Fedelek

Ajtómegállító

Tojástartó

Energia címke

Jótállási jegy

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Diagram of a refrigerator interior showing airflow patterns and door compartments (no text or symbols)

Megjegyzés: Polcok

YELMEZTETÉS!

Line drawing of a refrigerator interior with two arrows pointing to the door frame (no text or symbols)

ELMEZTETÉS!

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

3D model of a refrigerator with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical setup with light bulbs and a lever, no visible text or symbols

Close-up of a mechanical component with a black arrow pointing to a curved surface (no text or symbols visible)

AFE_CFE*35C*J_HU-V03_190103

Haier

Frigorifero-Congelatore

AFE635C*J

AFE735C*J

AFE635C*JW

CFE635C*J

CFE735C*J

*= Codice colore:

H,G,M,W,S,R,B,C

Symbol of a trash bin crossed with no text or labels

Technical line drawing of two mechanical components (no text or symbols)

Cerniere porta

Three technical line drawings of mechanical components (no text or symbols)

Coper-chi

Fermaporta

Portauova

Line drawing of an open refrigerator with a sound wave indicator (no text or symbols on the refrigerator itself)

Technical line drawing of a refrigerator with an open door and two arrows pointing to the interior (no text or symbols)

ERTENZA!

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

AFE_CFE*35C*J_IT-V03_190103

Haier

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Technical line drawing of two mechanical components: a bracket and a housing (no text or symbols)

Zawiasy drzwiowe

Technical line drawings of four mechanical component parts (no text or symbols)

Pokrywy

Ogranicznik drzwi

Pojemniki najaja

Line drawing of an open refrigerator with a sound wave indicator (no text or symbols on the refrigerator itself)

Diagram of a refrigerator interior showing internal compartments and directional arrows (no text or symbols)

aga: Półki

TRZEŻENIE!

Technical line drawing of a refrigerator with two arrows pointing to the interior (no text or symbols)

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

3D wireframe diagram of a vertical panel or cabinet with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with multiple components and a directional arrow (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a curved feature (no text or symbols visible)

AFE_CFE*35C*J_PL-V03_190103

Haier

Symbol of a trash bin crossed with no text or labels

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Architectural diagram of a refrigerator with internal compartments and directional arrows indicating flow (no text or symbols)

VERTÊNCIA!

Line drawing of a refrigerator interior with two arrows pointing to the door frame (no text or symbols)

ADVERTÊNCIA!

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

8.2 Descongelar

Diagram of a mechanical setup with light bulbs and a lever, no visible text or symbols

Close-up of a mechanical component with a black arrow pointing to a curved feature (no text or symbols visible)

AFE_CFE*35C*J_PT-V03_190103

Haier

Interior view of a refrigerator with shelves filled with food items (no visible text or labels)

Lednička-Mraznička

AFE635C*J

AFE735C*J

AFE635C*JW

CFE635C*J

CFE735C*J

*= Barevní kód:

H,G,M,W,S,R,B,C

H:hluboká šedá

G:jemná stříbrná

M:ocelová

W:bílá

S:stříbrná

R:červená

B:černá

C:krémová

CZ

Symbol of a trash bin crossed with no text or labels

Likvidace

Technical line drawing of two mechanical components (no text or symbols)

Technical line drawings of three mechanical component parts (no text or symbols)

Line drawing of an open refrigerator with sound waves indicating ventilation or sound disturbance (no text or symbols)

Architectural diagram of a refrigerator interior with directional arrows indicating flow or movement (no text or symbols)

oznámka: Poličky

7.4 MyZone box

Technical line drawing of a refrigerator with two arrows pointing to the interior frame (no text or symbols)

UROZORNĚNÍ!

Illustration of a hand cleaning a surface with a cloth and a basin (no text or symbols)

8.2 Rozmrazování

Close-up of a mechanical component with a black arrow pointing to a curved surface (no text or symbols visible)

AFE_CFE*35C*J_CS-V03_190103

Haier

Ψυγειοκαταψύκτης

AFE635C*J

AFE735C*J

AFE635C*JW

CFE635C*J

CFE735C*J

*=Κωδικός χρώματος:

H,G,M,W,S,R,B,C

Η: βαθύς χώρος γκρι

G:απαλό ασήμι

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Τελική διάθεση

Technical line drawing of two mechanical components: a handle and a rectangular base (no text or symbols)

Μεντεσέδες πόρτας

Technical line drawings of three mechanical component parts (no text or symbols)

Καλύμματα

Στοπ πόρτας

Αυγοθήκες

Ενεργειακή ετικέτα

Κάρτα εγγύησης

Οδηγίες χρήσης

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Diagram of a refrigerator interior showing airflow patterns and door compartments (no text or symbols)

iδοποίηση: Ράφια

ΟΕΙΔΟΠΟΙΗΣΗ!

Technical line drawing of a refrigerator with two arrows pointing to the interior frame (no text or symbols)

ΠΡΟΕΙΔΟΠΟΙΗΣΗ!

Illustration of a hand cleaning a tiled surface next to a basin with a water bath (no text or symbols)

8.2 Απόψυξη

Diagram of a mechanical setup with light bulbs and a lever, no visible text or symbols

Close-up of a mechanical component with a black arrow pointing to a curved surface (no text or symbols visible)
