FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Safety Certifications

UL, CUL, TÜV, NOM, IRAM

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room or auditorium.

Declaration of Conformity

Manufacturer: InFocus Corporation

27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA

European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands

We declare under our sole responsibility that the LP500 and LP530 projectors conform to the following directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 1992 + A1 + A2 + A3 + A4: 1997

June, 2001

Australian Certification C-tick mark

ACN 001 528 954

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. Digital Light Processing is a trademark or registered trademark of Texas Instruments. InFocus and LP are trademarks or registered trademarks of InFocus Corporation.

TABLE OF CONTENTS

Safety Instructions iii

Introduction

Image Resolution T1

Compatibility T2

Unpacking the Projector T2

Usage Guidelines T5

If You Need Assistance T5

Warranty T6

Setting up the Projector 7

Connecting a Computer T9

Connecting a Video Device T10

Using the optional enhanced connectivity module T12

Powering up the Projector T14

Turning Off the Projector T18

Using the Projector 19

Basic Image Adjustment 19

Adjusting the Projector T19

Using the Remote Control 21

Using the Keypad and Remote Buttons 22

Using the On-Screen Menus 25

Display Menu 26

Audio Menu 28

Image Menu 29

Color Management Menu 32

Control Menu 33

Advanced Menu 34

Language Menu 35

Status Menu 36

Projector Manager Software 37

Installing the Software 37

Using the Software 38

Maintenance & Troubleshooting 45

Cleaning the Lens T45

Replacing the Projection Lamp T45

Cleaning the Projection Lamp Filter Screens T48

Replacing the Batteries in the Remote Control T49

Using the Security Lock T49

Troubleshooting T50

Appendix 55

Specifications T55

Accessories T56

Portable and Laptop Activation Chart T58

Using Video Mirroring with a PowerBook Computer T63

Projected Image Size T64

Index 65

SAFETY INSTRUCTIONS

Please read and follow all safety instructions provided BEFORE using your new projector. Failure to comply with safety instructions may result in fire, electrical shock, or personal injury and may damage or impair protection provided by equipment. Please save all safety instructions.

Safety Definitions:

• Warning: Statements identify conditions or practices that could result in personal injury.
• Caution: Statements identify conditions or practices that could result in damage to your equipment.

Safety Symbols:

Attention: For information about usage of a feature, please refer to the User's Guide.

Warning: Hot surface. Do not touch.

An arrow pointing to the lamp door on the projector.

Safety Terms:

- Warning: Don't look directly into the lens when the lamp is turned on.

- Warning: To replace the lamp, turn off the projector and unplug the power cord. To avoid burns, wait 30 minutes before opening the lamp door. Follow all instructions provided in this User's Guide.

- Warning: Please use the power cord provided. Connect the power cord to a receptacle with a protective safety (earth) ground terminal.

- Warning: Refer all service to qualified service personnel. Servicing your own projector will void the warranty. See the following page for the Technical Support contact information.

- Caution: Don't block ventilation openings.

• Caution: Don't set liquids on the projector. Spilled liquids may damage your projector.
• Caution: Don't place the projector on a hot surface or in direct sunlight.
• Caution: Do not drop the projector. Transport the projector in an InFocus-approved case; see pageT56 for a list of cases.

Important Operating Considerations

Do not place the projector on a tablecloth or other soft covering that may block the vents. In the unlikely event of the bulb rupturing, thoroughly clean the area in front of the projector and discard any edible items placed in that area.

Technical Support

If you need assistance, call InFocus Corporation's Technical Support directly at 1-800-799-9911. Support is free between 6 a.m. and 6 p.m. PST, Monday through Friday. Support is available in North America after hours and weekends for a fee at 1-888-592-6800.

Or, send us an e-mail at [e-mail].

In Europe, call InFocus in The Netherlands at (31) 20 579-2820.

In Asia, call InFocus in Singapore at (65) 6353-9449.

Or, send us an e-mail at [e-mail]

Our World Wide Web address is http://www.infocus.com.

INTRODUCTION

The InFocus ^® LP500 ^TM and LP530 ^TM multimedia projectors are specifically designed for multipurpose use. They generate crisp, clear images using Digital Light Processing ^TM (DLP) technology. They are easy to connect, easy to use, easy to transport, and easy to maintain. The LP500 has native SVGA 800x600 resolution, the LP530 has XGA 1024x768 resolution. The user interfaces of the two products are identical except where noted; information in this user's guide applies to both products.

Image Resolution

LP500

The SVGA resolution of the LP500's projected image is 800x600. The projector is compatible with screen resolutions up to 1280x1024. If your computer's screen resolution is higher than 1280x1024, reset it to a lower resolution before you connect the projector.

LP530

The XGA resolution of the LP530's projected image is 1024x768. The projector is compatible with screen resolutions up to 1280x1024. If your computer's screen resolution is higher than 1280x1024, reset it to a lower resolution before you connect the projector.

NOTE: The LP500 automatically expands 640x480 images to 800x600. You can display these images at their native resolutions by turning off the Auto Resize feature. See “Resize” on page 29 for more information.

NOTE: The LP530 automatically expands 640x480 and 800x600 images to 1024x768. You can display these images at their native resolutions by turning off the Auto Resize feature. See “Resize” on page 29 for more information.

NOTE: The projector is compatible with 1080i and 720P HDTV formats.

Compatibility

The projector is compatible with a wide variety of computers and video devices, including:

• IBM-compatible computers, including laptops, up to 1280x1024 resolution.
• Apple ^ Macintosh ^ and PowerBook ^ computers up to 1280x1024 resolution.
• Most standard VCRs, DVD players, HDTV sources, camcorders and laser disc players.

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to make sure all are included. Contact your InFocus dealer immediately if anything is missing.

If you are experienced in setting up presentation systems, use the Quick Start card that was included in the shipping box. For complete details on connecting and operating the projector, refer to this User's Guide. User's Guides are also available for download from our website at www.infocus.com.

A registration card is included in the box. Register to receive product updates, announcements, and special offers from InFocus. Or, register online at www.infocus.com/service/register and you will be automatically entered to win free merchandise.

FIGURE I

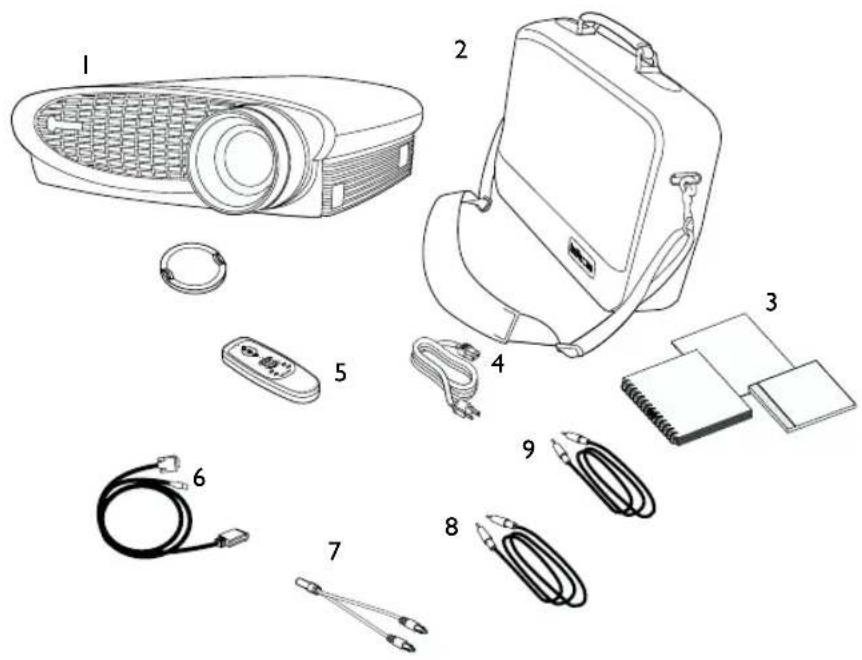

Shipping box contents

1. Projector + lens cap 6. Computer cable
2. Soft carry case 7. Audio cable adapter
3. User's Guide, quick start 8. Audio cable card and User Guide CD
4. Power cord 9. Composite video cable
5. Remote control

FIGURE 2

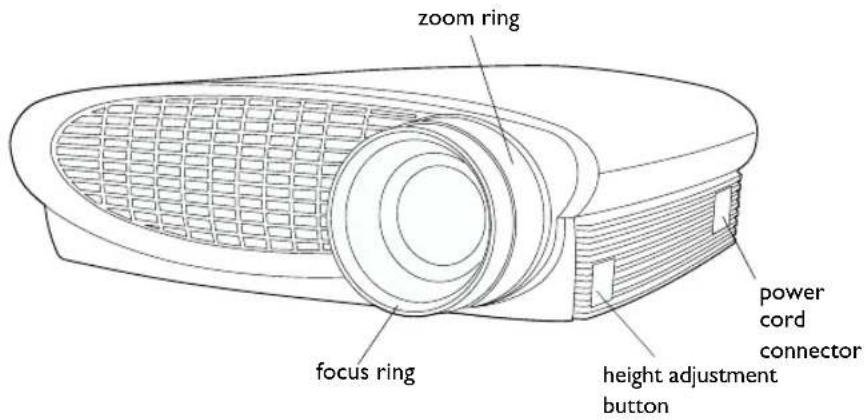

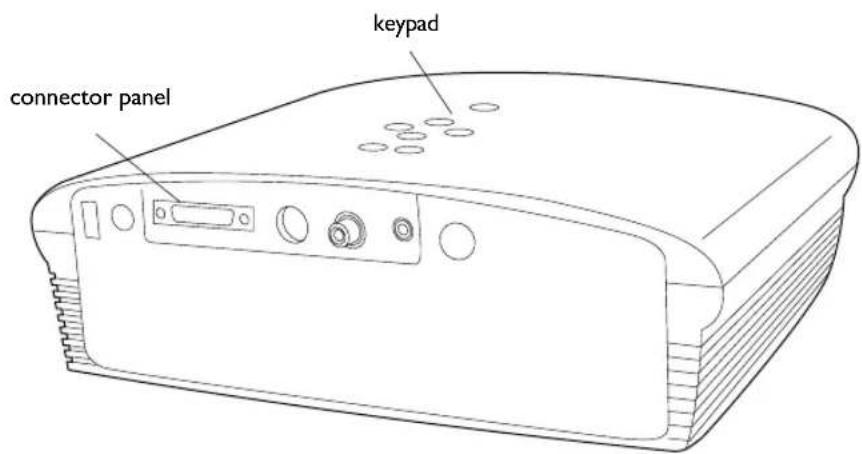

Front view of projector

FIGURE 3
Back view of projector

Usage Guidelines

• Do not look directly into the projection lens when the lamp is turned on. The bright light may harm your eyes.
• Do not block the grills on the projector. Restricting the air flow can cause it to overheat and turn off. If this happens, you must wait a minute before attempting to turn it back on.
• Handle the projector as you would any product with glass components. Be especially careful not to drop it.
• Avoid leaving the projector in direct sunlight or extreme cold for extended periods of time. If this happens, allow it to reach room temperature before use.
• Transport the projector in a vendor-approved hard or soft case. Part numbers for these cases are listed on pageT56.

If You Need Assistance

The first place to look for help is in this manual. Be sure to check the guidelines in “Troubleshooting” on pageT50. Or, check the Service and Support section of our website at

http://www.infocus.com/service. You'll find a Technical Library, FAQs, and support contacts including a technical support e-mail form.

If those sources don't answer your question, call your InFocus dealer. You can also call InFocus Technical Service directly at 1-800-799-9911. Call between 6 a.m. and 6 p.m. PST, Monday through Friday. Service is available in North America after hours and on weekends for a fee at 1-888-592-6800.

In Europe, call InFocus in The Netherlands at (31) 20 579-2820. In Asia, call InFocus in Singapore at (65) 6353-9449.

Or, send us an e-mail at [e-mail]

Our World Wide Web address is http://www.infocus.com.

NOTE: For general product information, please call 1-800-294-6400.

Warranty

This product is backed by a limited two-year warranty. The details of the warranty are printed at the back of this manual. A longer term warranty can be purchased from your InFocus dealer. Refer to pageT57 for the part number.

When sending your projector in for repair, InFocus recommends shipping the unit in its original packing material, or having a professional packaging company pack the unit for shipping. Do not ship your projector in the enclosed soft case. Please insure your shipment for its full value.

SETTING UP THE PROJECTOR

I Place the projector on a flat surface.

• The projector must be within 10 feet (3 m) of your power source and within 6 feet (1.8 m) of your computer.
• If you want to project from behind a translucent screen, set up the projector behind your screen. See "Rear Project" on pageT34 to reverse the image.
• If you are installing the projector on the ceiling, refer to the installation guide that comes with the Ceiling Mount Kit for more information. To turn the image upside down, see "Ceiling Project" on pageT34. The Ceiling Mount Kit is sold separately, see "Optional Accessories" on pageT56.

2 Position the projector the desired distance from the screen.

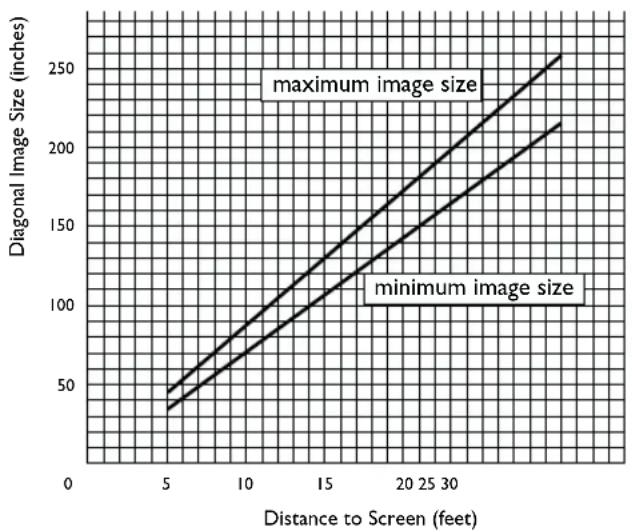

- The distance from the lens of the projector to the screen and the zoom setting determine the size of the projected image. Figure 4 shows three projected image sizes. For more information about image size, see "Projected Image Size" on pageT64.

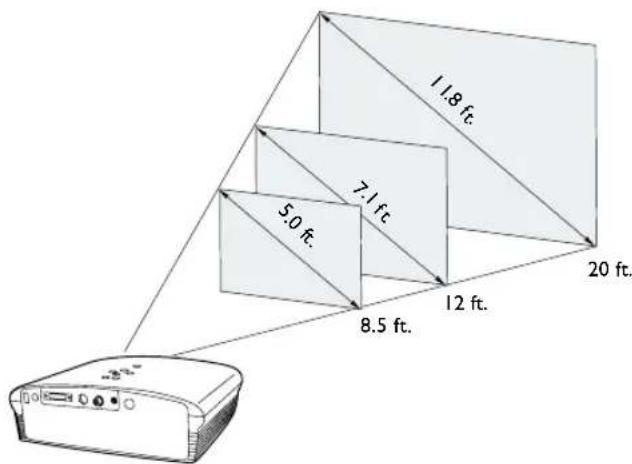

FIGURE 4

Projected image size at minimum zoom

3 Make sure the projector is unplugged and your computer is turned off.

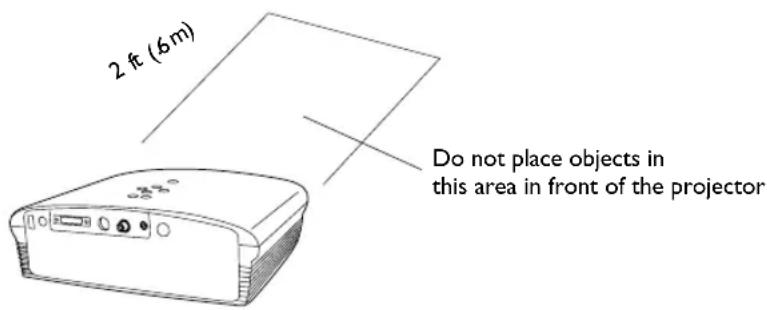

NOTE: The projector must be at least 5.6 feet (1.7 m) from the projection screen.

NOTE: Before you continue, make sure the projector is unplugged and your equipment is turned off. If you're connecting a computer, make sure the distance between it and the projector is 6 feet or less.

FIGURE 5

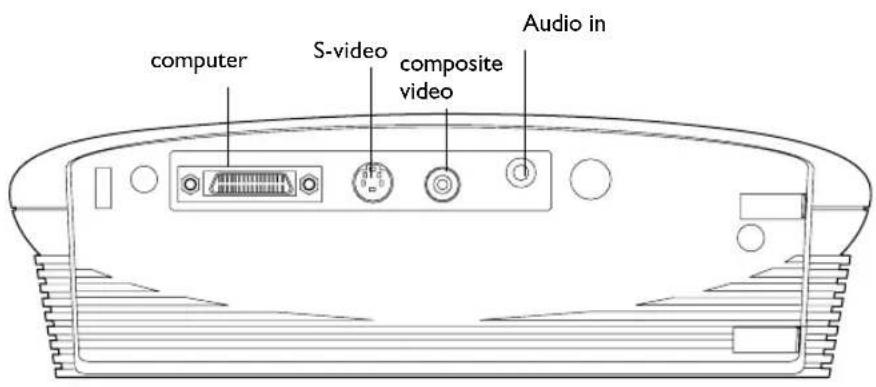

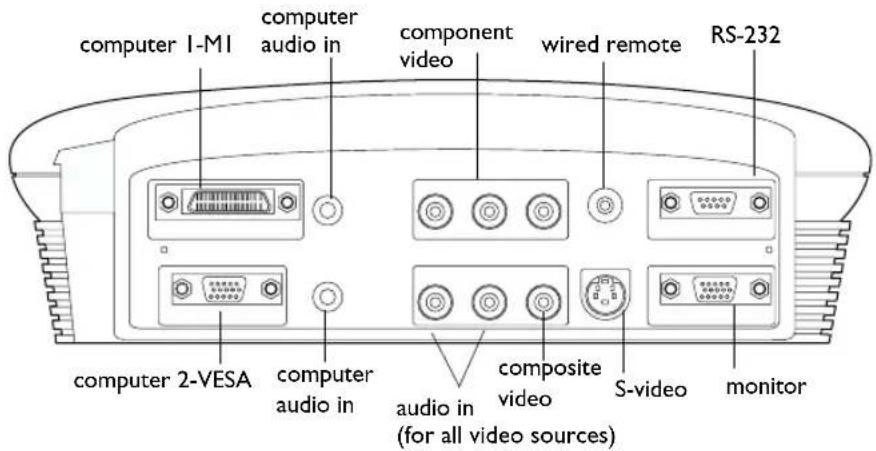

Connector panel

NOTE: The enhanced connectivity module is an optional accessory that provides RS-232, component video, VESA computer, MI computer, and monitor loop through capabilities. See “Optional Accessories” on page 56 for ordering information.

FIGURE 6

Connector panel on optional enhanced connectivity module

FIGURE 7

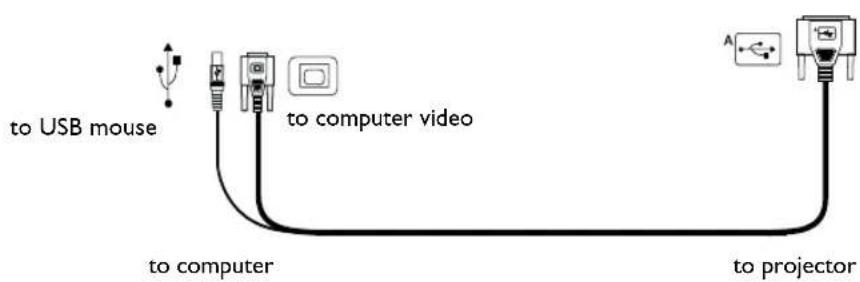

Computer cable

Connecting a Computer

The projector ships with an analog computer cable. If your computer has a digital output, you can order the optional digital computer cable. Using a digital source generates the highest quality and brightest image possible. See “Optional Accessories” on pageT56.

• Plug the end of the computer cable with one cable into the PCT1 connector on the projector.
  2 Plug the blue end of the computer cable into the video connector on your computer.

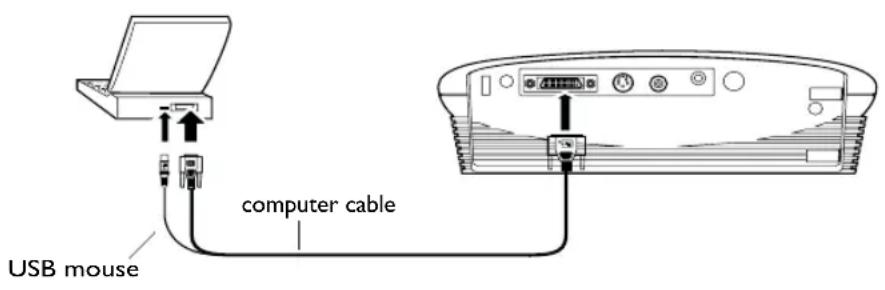

FIGURE 8

Connecting the projector to a computer

Do you want to advance slides in a PowerPoint ^TM presentation using the projector's remote?

Plug the USB cable into the USB mouse connector on your computer. To use the USB functionality, you must install the USB drivers. See pageT16 for details.

Do you want to play your computer's audio on the projector?

• Plug either end of the audio cable into the audio connector on your computer.
  2 Plug the other end of the audio cable into the Audio In connector on the projector.

Now you're ready to power up the projector and your laptop. Skip to "Powering up the Projector" on pageT14.

NOTE: Many laptop computers do not automatically turn on their external video port when a secondary display device such as a projector is connected. Refer to your computer manual for the command that activates the external video port. Activation commands for some laptop computers are listed in the Appendix of this manual on page 58 and in the Service section of our website.

NOTE: The USB functionality is supported for use with Windows 98, Windows ME, Windows 2000, and Apple OS 8.5 and higher only.

NOTE: You do not need to restart your computer after connecting a USB mouse to use it (it is hot-pluggable).

NOTE: HDTV sources are connected to the projector using the computer cable. See the previous pages for details.

Connecting a Video Device

If your video player uses a round, one-prong composite video connector, you'll need only the audio cable, audio adapter, and composite video cable that shipped with the projector.

- If your video player uses a round, four-prong S-video connector, you'll need an S-video cable in addition to the audio cable and audio adapter. The S-video cable is sold separately. (See "Optional Accessories" on pageT56.)

2 Plug the composite video cable's yellow connector into the "video-out" connector on your video player (Figure 9). This connector may be labeled "To Monitor."

- If you're using an S-video cable, connect it to the "S-video out" connector on the video player (Figure 10).

3 Plug the other yellow connector into the composite video connector ☐ on the projector.

- If you're using S-video, plug the other end of the cable into the "S-video" connector [s] on the projector (Figure 10).

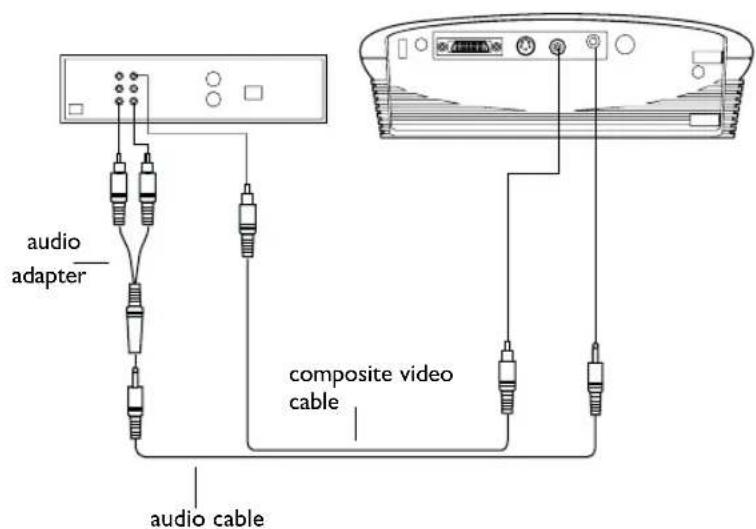

FIGURE 9

Connecting the projector to a video player using the standard video cable (with composite video connector) and the audio cable and adapter

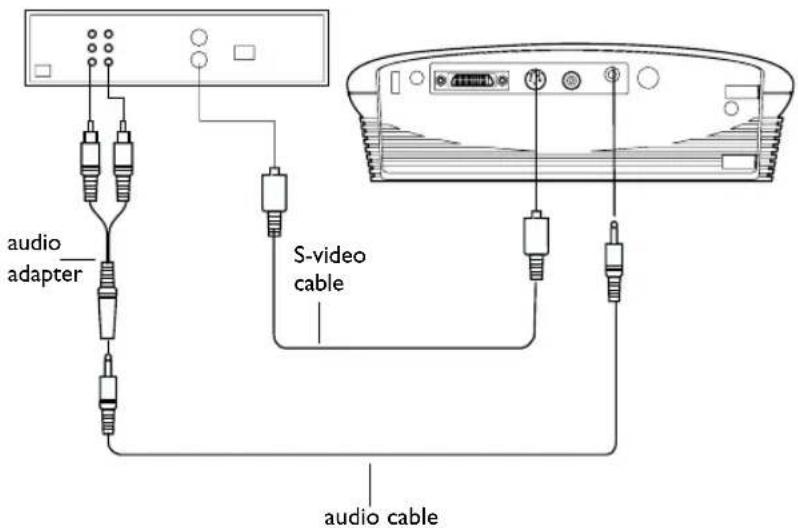

FIGURE 10

Connecting the projector to a video player using an S-video cable and the audio cable and adapter

4 Plug the audio adapter's white connector into the left "audio out" connector on your video player. Plug the adapter's red connector into the right "audio out" connector on the video player (Figure 9 and Figure 10).

5 Plug the audio adapter's other end into the audio cable.

6 Plug the audio cable into the "audio in" connector on the projector.

The projector is compatible with these major broadcast video standards: NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL-60, and SECAM. It automatically adjusts to optimize its performance for the incoming video.

NOTE: The audio adapter is provided so that the same audio cable used to connect a computer can be used with the adapter to connect a video device.

CAUTION: Your video player may also have a "Video Out" connector for a coaxial cable connection. DO NOT use this to connect to the projector.

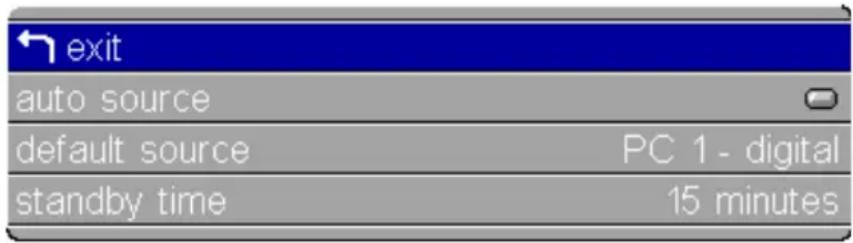

NOTE: If you have turned Auto Source off (page 33), you may need to press the source button on the keypad more than once to display an active source. The sources switch in this order: PC 1-Analog, PC 1-Digital, PC 2-VESA, Video 3-Component, Video 1 S-Video, and Video 2-Composite.

Using the optional enhanced connectivity module

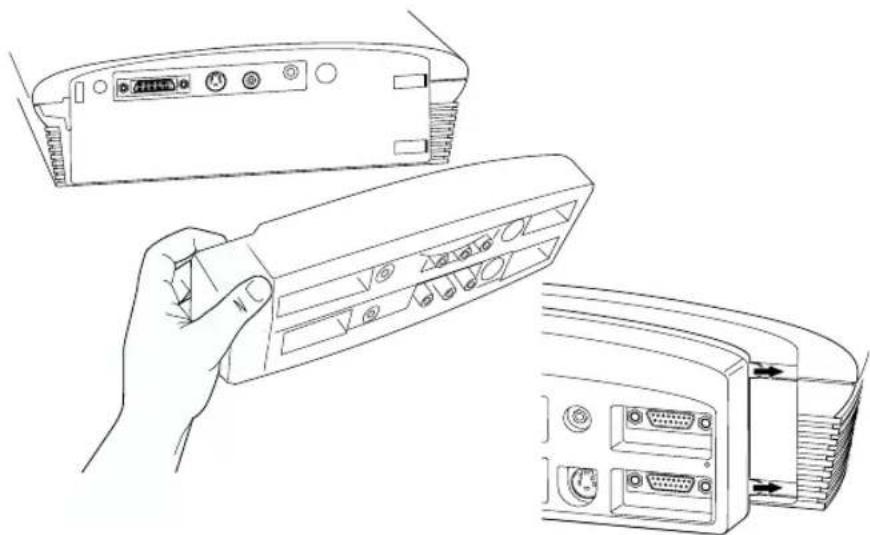

This module connects to the projector via the projector's computer connector. Slide the tabs in the module into the grooves on the back of the projector, then press the computer connector into the projector. To remove the module, press down on the textured lever on the top left of the module to release the latch, then slide the module off.

Line drawing of a hand holding a device panel with ports and connectors, showing internal components (no text or symbols)

FIGURE II

Connecting the optional connectivity module to the projector

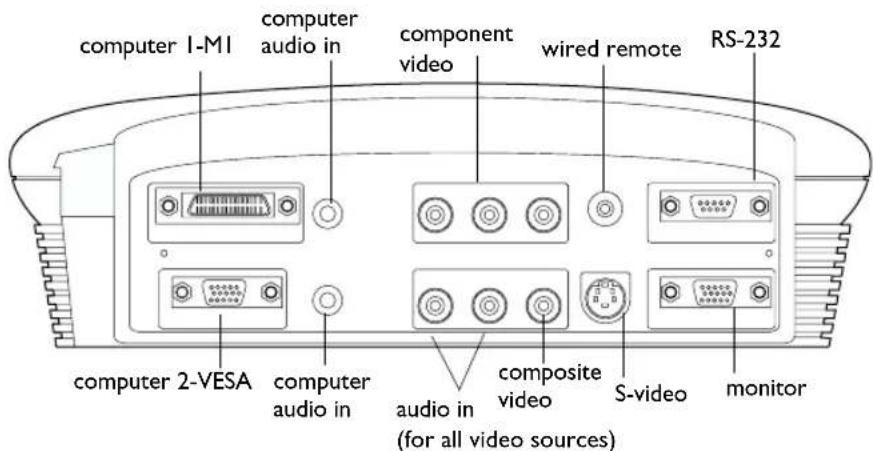

FIGURE 12

Connector panel on optional enhanced connectivity module

The module provides the following audio/video inputs:

Source Video Audio
Computer2 VESA	VESA Single-ended analog RGB (HD-15)	mini jack
Computer1 M1-DA	M1-DA Single-ended analog or digital	mini jack
Component Video	Base-band component video (RCA)	Left and right line-level (2TRCAs)
Composite Video	Base-band composite video (RCA)	Left and right line-level (2TRCAs)
S-VideoTS-video Y/C (4-pin circular)		Left and right line-level (2TRCAs)

The module also provides wired remote input (used with an optional remote), monitor out (used to display images on your desktop computer's monitor as well as on the projection screen), and RS-232 input (to control the projector from an LCD control panel).

NOTE: Specific RS-232 commands can be found in the Service and Support section of our website at www.infocus.com.

NOTE: Always use the power cord that shipped with the projector.

Powering up the Projector

I Remove the lens cap.

2 Plug the power cord into the side of the projector, then plug it into your electrical outlet. A surge-protected power strip is recommended.

- The LED on the top of the projector (Figure 17 on page 22) lights green.

3 Turn on the lamp by pressing the green power button on the keypad or remote.

- A tone sounds when you press the button, and the LED blinks green while the software initializes. When initialization is complete, the LED lights solid green and the InFocus startup screen appears.

4 If you connected a video player, turn it on.

- The video image should display on the projection screen. If it doesn't, press the source button on the keypad or the video button on the remote to display your video image. You can select a default source to determine which source the projector examines first during power-up for active video; see "Default Source" on pageT42.

- Use the volume buttons to adjust the volume.

5 Turn on your computer.

For Windows 98:

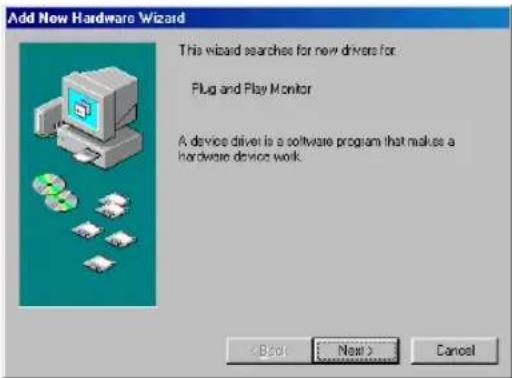

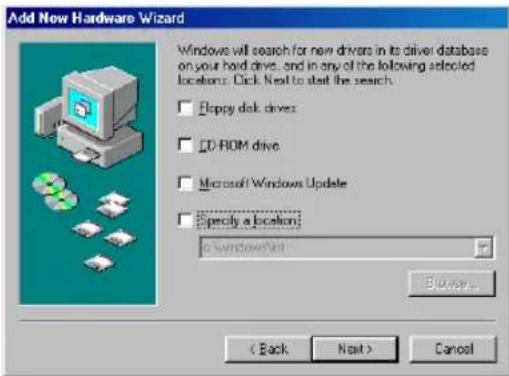

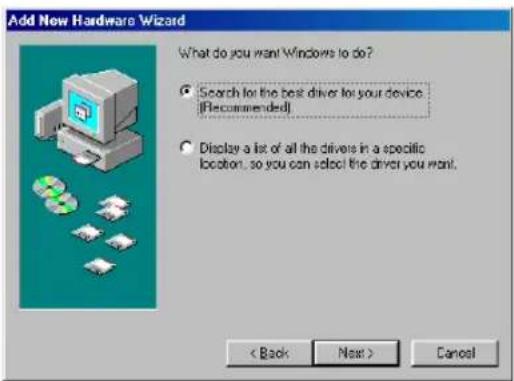

a The first time you connect a particular computer to the projector, the computer recognizes the projector as “new hardware” and the Add New Hardware Wizard appears. Follow these instructions to use the Wizard to load the correct driver (which was installed with your Windows operating system).

Click Next. Make sure "Search for the best driver" is selected, then click Next.

Uncheck any checked boxes, then click Next. Windows automatically locates the driver. If this driver has been removed, reload the driver using your Windows operating system CD.

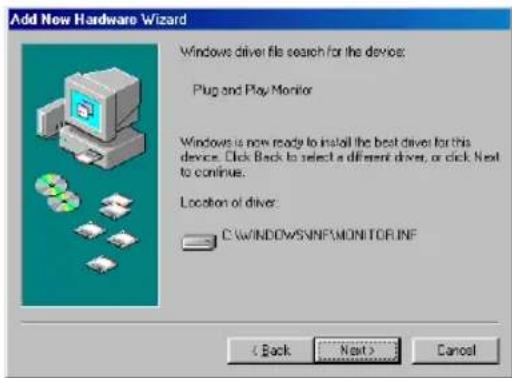

When Windows finds the driver, you are ready to install it. Click Next.

NOTE: The USB functionality is supported for use with Windows 98, Windows ME, Windows 2000, and Apple OS 8.5 and higher only. Windows NT is not supported.

Click Finish when installation is complete.

b If you connected the USB cable (pageT9), the Add New Hardware Wizard appears again. Drivers must be installed to use the USB functionality.

The Wizard is launched four times. The first time it detects a USB Composite Device, the second time a USB Human Interface Device (for the keyboard), the third time a USB Human Interface Device (for the mouse), and the last time an InFocus-specific driver used for Projector Manager, a software program included on the CD. The required drivers for the first 3 Wizards are located on your Windows operating system and on the Window operating system CD. If you do not want to use Projector Manager, you can simply cancel the final Wizard that asks for the InFocus LP500/530 driver.

If you want to install the Projector Manager driver, insert the InFocus CD into your CD-ROM drive. Make sure the "CD-ROM disk" checkbox is checked so the Wizard can locate the appropriate driver on the CD. (If you do not have the CD, you can download the driver from our website at www.infocus.com/service/software.) See pageT37 for details on installing Projector Manager software.

For Windows 2000 and Windows ME:

a The USB drivers are automatically installed. You only need to install an additional driver if you want to install the Projector Manager application. When the Add New Hardware Wizard appears asking for the InFocus LP500/530 driver, insert the InFocus CD into your CD-ROM drive. Make sure the "CD-ROM disk" checkbox is checked so the Wizard can locate the appropriate driver on the CD. (If you do not have the CD, you can download the driver from our website at www.infocus.com/service/software). See pageT37 for details on installing Projector Manager software.

For a Macintosh computer running Mac OS X:

a A Mac OS X driver and Control Panel will be available soon. The USB driver on the CD will not work in the Classic Mac OS environment provided in Mac OS X. You should boot OS 9.1 and follow the Mac OS 9.1 instructions.

For a Macintosh computer running Mac OS 9.1:

a A dialog box appears stating that software is needed for the USB device. Click Cancel. We recommend installing Projector Manager software. See pageT37 for details.

6 The computer image should display on the projection screen. If it doesn't, press the source button on the keypad or the data button on the remote to display your computer's image. Make sure your laptop's external video port is activated; see "Portable and Laptop Activation Chart" on pageT58 for details.

- If necessary, make adjustments to the image using the projector's on-screen menus. To open the menus, press the menu/select button on the keypad or remote, then select the Display or Image sub-menu. For more information about the menus, see pageT25.

NOTE: With some computers, the order in which you power up the equipment is very important. Most computers should be turned on last, after all other peripherals have been turned on. Refer to your computer's documentation to determine the correct order.

NOTE: Lamp life will be extended if you turn the power off, then wait 1 minute while the lamp cools before unplugging the projector. The Lamp LED will light green when the lamp has cooled.

Turning Off the Projector

If you want to turn off the projector for a short period of time, press the standby button on the keypad or remote. This blanks the screen for fifteen minutes, but keeps the projector running. (You can change the amount of time the projector stays in standby mode; see pageT33 for details.) After 15 minutes, the lamp goes out. To exit standby mode, press the standby button again. (It may take several seconds for the projection lamp to reach full power and project the image again.) See pageT24 for details on standby mode.

To turn off the projector, press the power button. The lamp turns off and the LED blinks orange for a minute while the fans continue to run to cool the lamp. When the lamp has cooled, the LED lights green and the fans stop. Unplug the power cord to completely power off the projector.

USING THE PROJECTOR

This section describes how to use and make adjustments to the projector. It also provides a reference to the keypad and remote buttons and the options available from the on-screen menus.

Basic Image Adjustment

I Make sure you have powered up your equipment in the right order (pageT14).
2 If the image doesn't display completely, zoom the image (pageT19), adjust the height of the projector (pageT20) or center the image by adjusting its horizontal or vertical position (pageT31). Be sure the projector is at a 90 degree angle to the screen.
3 If the image is out of focus, rotate the focus lens (pageT19).
4 If the colors don't look right, adjust the brightness, contrast, tint, or color (pageT26).

Adjusting the Projector

To focus the image, rotate the focus ring (Figure 13) until the image is clear. To zoom the image, rotate the zoom ring. This adjusts the image size. You can also zoom in on part of the image, see pageT24.

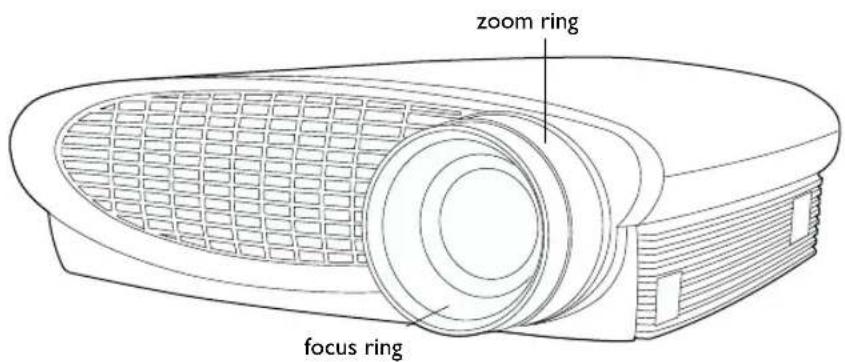

FIGURE 13
Focus ring and zoom ring

NOTE: To obtain the best overall focus quality, open the menu and focus on the text. This will ensure that the best overall image quality is achieved.

The projector is equipped with a self-locking, quick-release elevator foot and button.

To raise the projector:

I Press and hold the elevator button (Figure 14).
2 Raise the projector to the height you want, then release the button to lock the elevator foot into position.

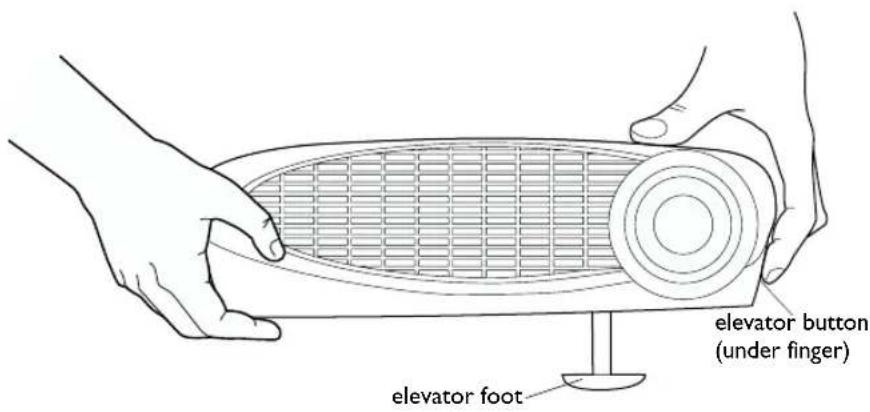

FIGURE 14

Adjusting the height of the projector

3 If necessary, turn the leveling knob to adjust the angle of the projected image.

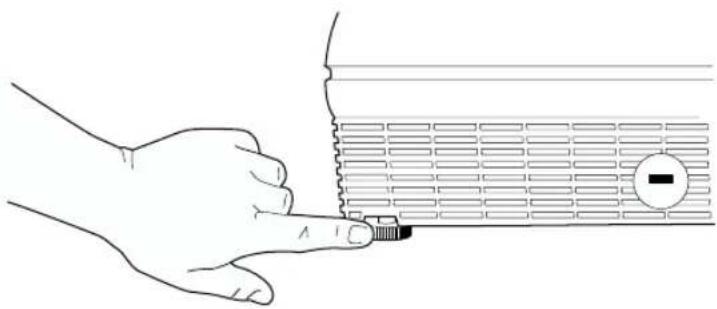

Line drawing of a hand adjusting a grid-patterned object with a control knob (no text or symbols)

FIGURE 15

Turning the leveling knob

Using the Remote Control

To use the forward and backward buttons on the remote to advance slides in PowerPoint, you must connect the USB connector on the computer cable to the computer. See pageT9 for details.

Point the remote control at the projection screen or at the front or back of the projector (not at the computer). The range for optimum operation is about 25Tfeet. If you point the remote at the projection screen, the distance to the screen and back to the projector must be less than or equal to 25 feet. For best results, point the remote directly at the projector.

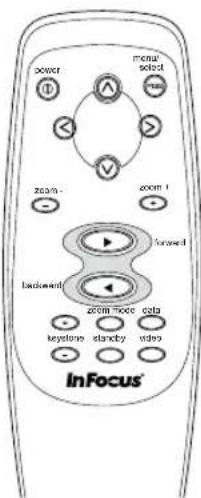

FIGURE 16

Remote control

Using the Keypad and Remote Buttons

While the menus are displayed, the volume, source, and standby buttons on the keypad act as menu navigation buttons. See "Using the On-Screen Menus" on pageT25 for details.


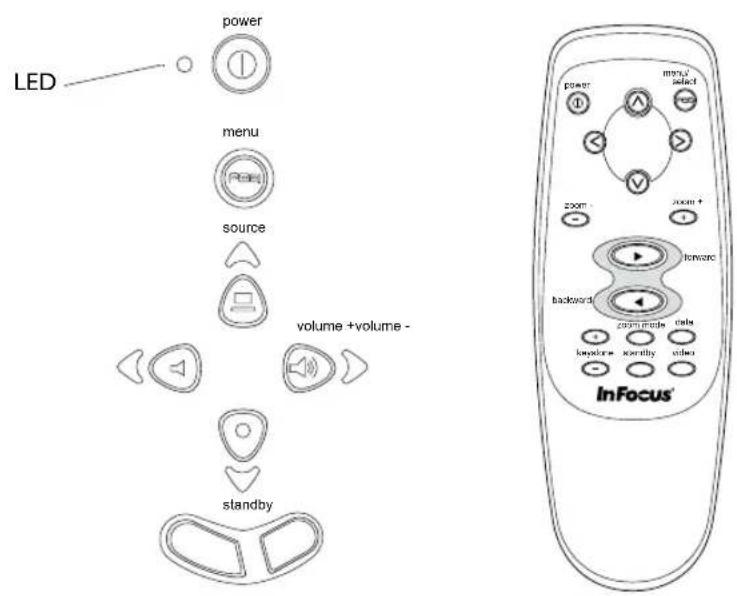

FIGURE 17

Keypad and remote buttons

Menu/select

Press the menu/select button to open the on-screen menus. Press menu/select again (while Exit is highlighted) to close the menus. (The menus automatically close after 30 seconds if no buttons are pressed.) When you close the menus, the projector saves any changes you made. For more information about the on-screen menus, see pageT25.

Mouse buttons (keypad only)

Use the mouse buttons to zoom in and out on the image. See "Zoom mode" on pageT24 for details.

Source (keypad only) or Data and Video (remote only)

When you have more than one source (computer and video) connected to the projector, select between them by pressing the source button on the keypad or the data or video button on the remote.

Keystone + - (remote only)

Use this feature to adjust the image vertically and make a squarer image.

Press the keystone + button to reduce the upper part of the image, and press the keystone - button to reduce the lower part. You can also adjust keystone from the Display menu (see pageT26 for details on the menu).

FIGURE 18

Adjusting the keystone

Forward/back buttons (remote only)

These buttons act like the page up and page down buttons on your computer's keyboard. You can use them to advance through a slide show in PowerPoint™ presentations. To use this feature, you must connect the USB mouse connector on the computer cable to your computer. See pageT9 for details.

Up/down/left/right arrow buttons (remote only)

Use these buttons to navigate through and make adjustments to the on-screen menus. See “Using the On-Screen Menus” on pageT25 for details.

Power button

①

This turns the lamp on and off. See pageT14 for startup and shutdown details.

Zoom mode

This activates the zoom feature. When you press this button, the zoom icon appears in the lower right corner of the screen. Press the zoom + button to zoom in on part of the image, press the zoom - button to zoom out. When the image is zoomed, you can use the up/down/left/right arrow buttons to display a different part of the zoomed image (pan the image). Press zoom mode again to exit the mode and return the image to normal size.

You can also turn Zoom mode on using the Image menu and zoom and pan the image using the mouse buttons and arrows on the keypad. See pageT30 for details.

Zoom +/-

This allows you to zoom in and out on a part of the image.

Standby ○

When you press standby, the display and audio turn off and a blank screen is displayed for 15 minutes. You can change the amount of time the projector stays in standby mode; see pageT33 for details. The LED lights orange while the projector is in standby.

• If you press standby again within 15 minutes, the projector returns to normal operations immediately. The LED changes from orange to green.
• If you don't press standby again, the lamp turns off after 15 minutes. The LED blinks orange and the fans run while the projector cools down, then the projector shuts off and the LED lights solid green.

Volume (keypad only)

To increase the volume, press volume + 🔊 To decrease the volume, press volume - 🔊.

Using the On-Screen Menus

The projector has menus that allow you to make image adjustments and change a variety of settings. These adjustments aren't available directly from the keypad.

To open the on-screen menus, press the menu/select button on the keypad or remote. (The menus automatically close after 60 seconds if no buttons are pressed.) This displays the Main menu and changes the volume, source, and standby buttons on the keypad to menu navigation and adjustment buttons (the arrow LEDs around the buttons light green to indicate the change). Press the corresponding buttons to move the cursor up and down, or use the arrow buttons on the remote. The selected menu is highlighted.

← exit

display

audio


color management

control

advanced

language

status

FIGURE 19

Main menu

To change a menu setting, use the up and down arrow buttons to move the cursor up and down to the item you want to change (the selected item is highlighted), then press menu/select. When an item is selected, its button appears depressed to provide a visual indication of selection. Use the left and right arrows to adjust the setting or turn it on and off. Press menu/select when you are done. Press the up and down arrows to move to another setting. When you have completed your adjustments, navigate to Exit, then press menu/select. You are returned to the top of the Main menu. Press menu/select again to exit the Main menu, or navigate to another submenu.

NOTE: Some menu items may be grayed out (dimmed) at certain times. This indicates the item is not applicable to your setup or the item is not enabled until another selection is made.

Display Menu

To access the Display menu settings, press the menu/select button to display the Main menu, press the down arrow to highlight Display, then press menu/select again to access the Display menu.

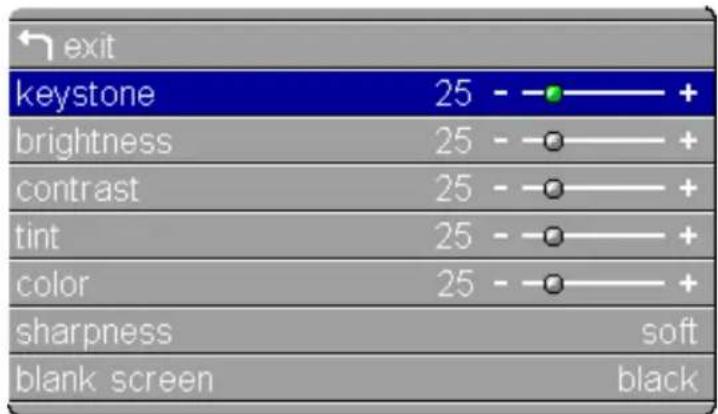

FIGURE 20

Display menu

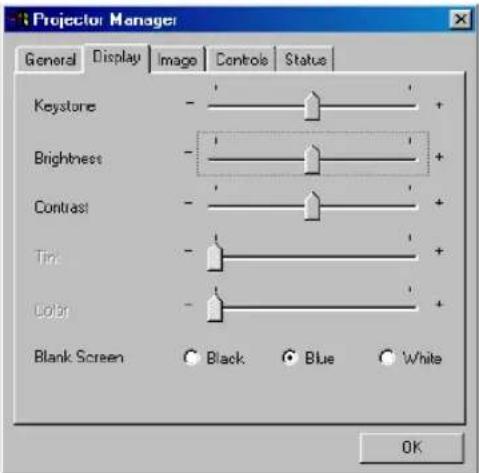

Keystone

This option helps to keep the image square as the angle of projection is changed. Use this feature to adjust the image vertically and make a squarer image. See pageT23 for details on keystone adjustments.

I Press the down button to highlight Keystone, then press menu/select. Use the left and right arrows to adjust the keystone setting. Press menu/select to accept your changes.

Brightness

Adjusting the brightness changes the intensity of the image.

I Use the up and down arrows to highlight Brightness, press menu/select, use the arrows to adjust the brightness, then press menu/select to accept your changes.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

I Use the up and down arrows to highlight Contrast, press menu/select, use the arrows to adjust the contrast, then press menu/select to accept your changes.

Tint

The tint adjusts the red-green color balance in the projected image.

I Use the up and down arrows to highlight Tint, press menu/select, use the arrows to adjust the tint, then press menu/select to accept your changes.

Color

The color setting adjusts a video image from black and white to fully saturated color.

I Use the up and down arrows to highlight Color, press menu/select, use the arrows to adjust the color, then press menu/select to accept your changes.

Sharpness

This setting adjusts sharpness of a video image.

I Use the up and down arrows to highlight Sharpness, press menu/select, use the arrows to cycle through the options soft, med-soft, medium, med-hard, and hard, then press menu/select to accept your selection.

Blank screen

Blank Screen determines what color is displayed when there is no active source and when the projector is in standby.

I Use the up and down arrows to highlight Blank screen, press menu/select, use the arrows to cycle through the options blue, black, and white, then press menu/select to accept your selection.

NOTE: The color setting applies to video sources only. The tint setting applies to NTSC video sources only.

Audio Menu

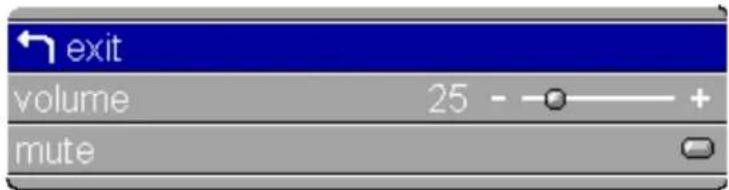

FIGURE 21

Display menu

Volume

You can also adjust the volume directly from the projector's keypad.

I Use the up and down arrows to highlight Volume, press menu/select, use the arrows to adjust the volume, then press menu/select to accept your changes.

Mute

This mutes the sound.

I Use the up and down arrows to highlight Mute, press menu/select, use the left or right arrow to turn mute on and off (a green dot indicates a feature is on), then press menu/select to accept your changes.

Image Menu

To access the Image menu settings, press the menu/select button to display the Main menu, press the down arrow to highlight Image, then press menu/select again to access the Image menu.

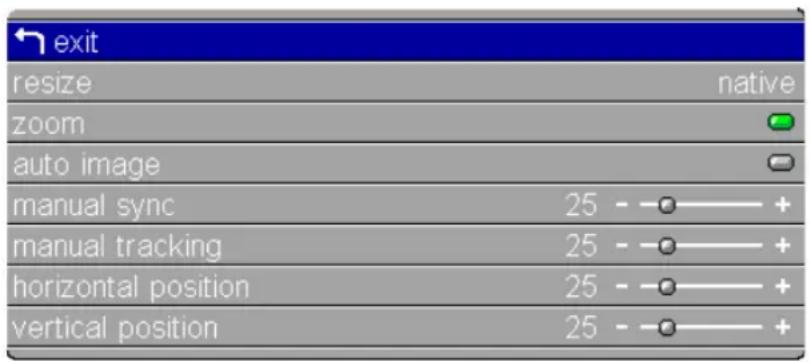

FIGURE 22

Image menu for computer sources

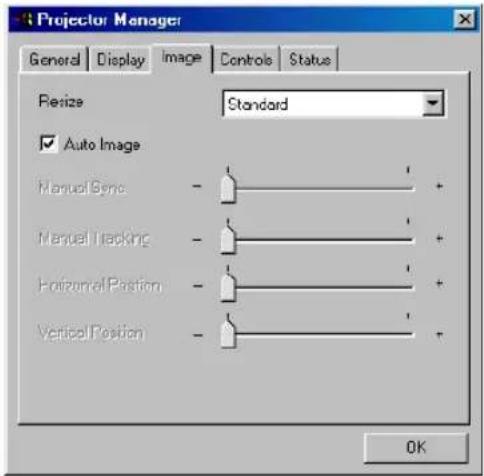

Resize

Resize allows you to select from among four different re-sizing options. The default is Standard, which resizes the image from its original version to fit a standard 4x3 aspect ratio screen. Wide-screen Letterbox preserves the 16x9 aspect ratio of the original theater version, but the image is placed in a 4x3 space, so black bars appear at the top and bottom of the image. Enhanced Wide-screen also preserves the aspect ratio of the original theater version and is designed to be used with content that is Enhanced for Widescreen TVs. This option yields more detail than Widescreen Letterbox. Native displays the image with no resizing.

Highlight Resize, press menu/select, use the left or right arrow buttons to cycle through the options, then press menu/select to select.

Zoom

This allows you to enter zoom mode without using the remote. Highlight Zoom, press menu/select, use the left or right arrow buttons to turn zoom mode on, then press menu/select. Exit the menus to use the zoom feature. The zoom icon appears in the lower right corner. Use the right mouse button to zoom in and use the left mouse button to zoom out. Use the keypad navigation buttons on the keypad to pan the zoomed image. To exit zoom mode, either turn the feature off in the Image menu or press the zoom mode button on the remote.

Auto Image

The projector automatically adjusts tracking, signal synchronization and vertical and horizontal position for most computers. If you want to adjust these features manually, you must turn off

Auto image first.

Highlight Auto image, press menu/select, then press the left or right arrow buttons to turn this feature off and on.

Manual Sync

The projector adjusts signal synchronization automatically for most computers. But if the projected computer image looks fuzzy or streaked, try turning Auto image off then back on again. If the image still looks bad, try adjusting the signal synchronization manually:

I Turn Auto Image off.

2 Highlight Manual sync, press menu/select, use the arrow buttons to adjust Manual sync until the image is sharp and free of streaks, then press menu/select.

Manual Tracking

The projector adjusts tracking automatically to match the video signal from your computer. However, if the display shows evenly spaced, fuzzy, vertical lines or if the projected image is too wide or too narrow for the screen, try turning Auto Image off then back on again. If the image is still bad, try adjusting the tracking manually:

I Turn Auto image off.

2 Highlight Manual tracking, press menu/select, use the arrow buttons to adjust Manual tracking until the fuzzy vertical bars are gone, then press menu/select

NOTE: The Manual Sync, Manual Tracking, Horizontal Position and Vertical Position

options are available only for analog computer sources. The projector sets these options automatically for digital computer and video sources, with no manual override.

Horizontal Position

Follow these steps to manually adjust the horizontal position:

I Turn Auto image off.
2 Highlight Horizontal position, press menu/select, use the arrow buttons to adjust the Horizontal position, then press menu/select.

Positioning adjustments are saved when you turn off the projector.

Vertical Position

Follow these steps to manually adjust the vertical position.

I Turn Auto image off.
2 Highlight Vertical position, press menu/select, use the arrow buttons to adjust the Vertical position, then press menu/select.

Positioning adjustments are saved when you turn off the projector.

Overscan (video sources only)

This option crops all the edges of the image to remove noise generated on the edges by your source. This option is available for video sources only.

Video Standard (video sources only)

When Video is set to Auto, the projector attempts to pick the video standard (NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60 or SECAM) automatically based on the input signal it receives. (The video standard options may vary depending on your region of the world.) If the projector is unable to detect the correct standard, the colors might not look right or the image might appear "torn." If this happens, manually select a video standard.

Highlight Video standard, press menu/select, use the left or right arrows to cycle through the options, then press menu/select to select.

Color Management Menu

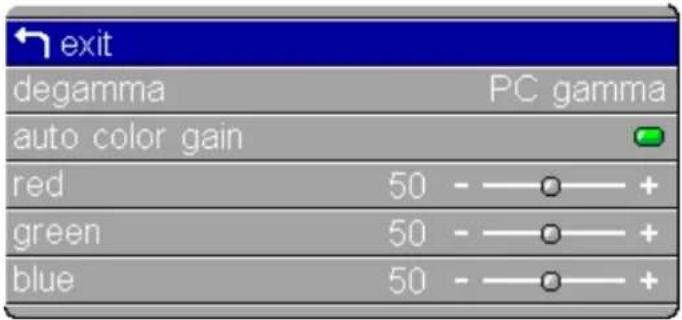

FIGURE 23

Color Management menu

Degamma

This allows you to select a gamma table that has been specifically tuned for either computer, video, or film input.

Highlight Degamma, press menu/select, use the left or right arrows to cycle through the options, then press menu/select to select.

Auto Color Gain

When this feature is On, the projector automatically sets the red, green, and blue color gains for each source. When it is off, you can manually adjust the color gains.

Red, Green, Blue

To manually adjust the color gains:

I Turn Auto Color Gain off.
2 Highlight Red, Green, or Blue, press menu/select, use the arrow buttons to adjust the gain, then press menu/select.

The settings are saved for each source.

Control Menu

To access the Control menu settings, press the menu/select button to display the Main menu, press the down arrow to highlight Control, then press menu/select again to access the Control menu.

FIGURE 24

Control menu

Auto Source

When this feature is On, the projector automatically finds the active source, checking the default source first. When this feature is Off, the projector defaults to the source selected in Default Source. To display another source, you must manually select one by pressing the source button on the keypad or the data or video button on the remote.

Highlight Auto source, press menu/select, then press the left or right arrow buttons to turn this feature off and on.

Default Source

This determines which source the projector checks first for active video during power-up. Select among PC 1-Analog, PC 1-Digital, Video1 S-Video, and Video 2-Composite (also PC 2-VESA and Video 3-Component when using the optional connectivity module).

Highlight Default source, press menu/select, use the left or right arrows to cycle through the options, then press menu/select to select.

Standby Time

This option lets you select how long the lamp stays on and the blank screen is displayed when the projector enters standby mode before the projector turns off. Select among 1, 5, 10, 15 and 30 minutes and 1 and 2 hours by clicking the left or right arrow buttons and cycling through the options.

Advanced Menu

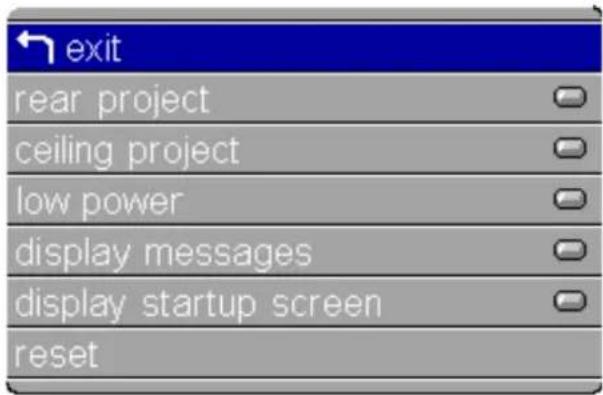

FIGURE 25

Advanced menu

Rear Project

When you turn Rear Project on, the projector reverses the image so you can project from behind a translucent screen.

Highlight Rear Project, press menu/select, then press the left or right arrow buttons to turn this feature off and on.

Ceiling Project

When you turn Ceiling Project on, the projector turns the image upside down for ceiling-mounted projection. Highlight Ceiling Project, press menu/select, then press the left or right arrow buttons to turn this feature off and on.

Low Power

This setting toggles between on and off. Turn it on to lower the light output of the lamp, thus extending its life. This also lowers the fan speed, making the projector quieter.

Display Messages

This setting toggles between On and Off. When this feature is On, status messages such as "No signal detected" or "Standby Active" appear in the lower-right corner of the screen.

Display Startup Screen

This setting toggles between On and Off. When this feature is On, the startup screen appears when the projector starts up and remains until an active source is detected. The startup screen contains contact information. When it is off, a plain black or blue screen is displayed instead of the startup screen.

Reset

Highlight Reset then press menu/select to reset the options in the menus (except Language, Video Standard, Video Format, Ceiling and Rear Project, and Standby Time) to their original settings.

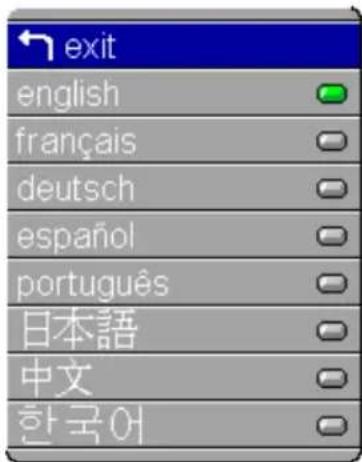

Language Menu

You can display the on-screen menus in English, French, German, Spanish, Portuguese, Chinese, Japanese, or Korean.

I Press the menu/select button to display the Main menu, press the arrow buttons to highlight Language, then press menu/select again to access the Language menu.

2 Press the arrow buttons to highlight the desired language, then press menu/select. Press menu/select to exit this menu and return to the Main menu.

Status Menu

This is a read-only menu for informational purposes. To display the Status menu, highlight Status from the Main menu, then press menu/select.

← exit
lamp hours used	39
computer resolution	1024x768 - 75Hz
source	PC 1 - analog
software version	1013101310

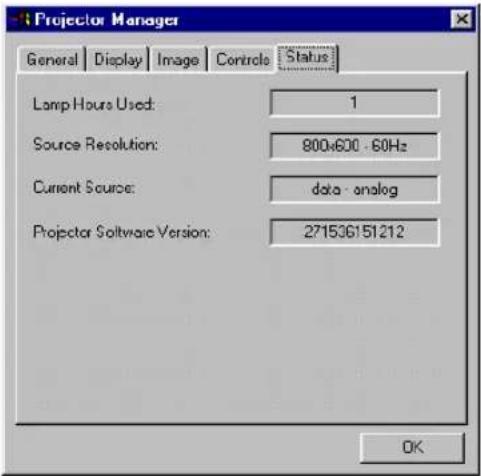

FIGURE 27

Status menu

Lamp Hours Used

Indicates how many hours the current lamp has been in use. The counter starts at zero hours and counts each hour the lamp is in use. Replace the bulb when the brightness is no longer acceptable. See “Replacing the Projection Lamp” on pageT45 for details.

Computer Resolution (computer sources only)

Shows your computer's resolution setting. To change this, go to your computer's Control Panel and adjust the resolution in the Display tab. See your computer's user's guide for details.

Video Format (video sources only)

Shows the video format being displayed.

Source

Indicates the active source, PC 1-Analog, PC 1-Digital, Video1 S-Video, and Video 2-Composite (also PC 2-VESA and Video 3-Component when using the optional connectivity module).

Software Version

Indicates the projector's software version. This information is useful when contacting Technical Support.

PROJECTOR MANAGER SOFTWARE

This software is included on the Online CD. It allows you to adjust some projector settings directly from your computer, rather than from the projector's menus. The CD also contains a software driver that must be installed to use Projector Manager software.

Installing the Software

To install:

Connect the projector to your computer. Be sure to also connect the USB mouse connector. See pageT9 for details.
2 Turn on the projector, then your computer.
3 Insert the Online CD into your computer's CD drive. The Registration page appears.
4 Click Register Later/Already Registered to advance to the next window, then choose your projector model from the pulldown menu.
5 Click the "Projector Manager" text to install the application. Follow the Installer's instructions to install Projector Manager software on your computer.
6 When installation is complete on a PC, click Exit to close the Online CD application.

The Projector Manager icon is added to the computer's system tray. A green dot on the icon indicates a projector is connected to the computer, while a red dot indicates no projector is connected or there is an error. Double-click this icon to launch Projector Manager software.

NOTE: Projector Manager software requires Windows 98, Windows ME, or Windows 2000 or higher or Mac OS 9.1 and a USB port.

NOTE: When using a Mac, you must restart the computer after installation. The Projector Manager icon is added to the Control Strip, and is launched by clicking the icon and selecting "Configure Projector".

Using the Software

To launch the software, double-click the Projector Manager icon in the Control Panel or in the system tray. The Projector Manager software opens to the General menu.

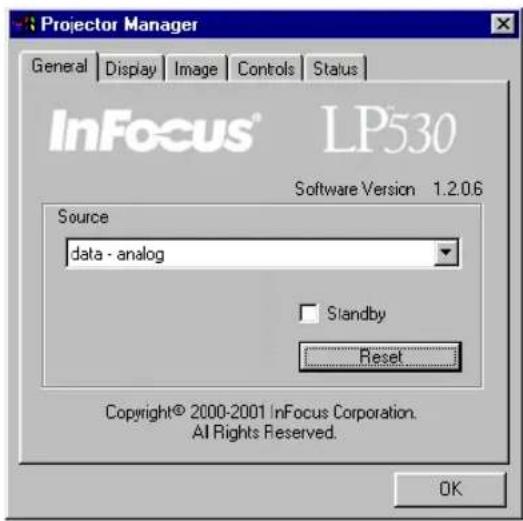

FIGURE 28

General menu

General menu

Choose the desired source from the Source pull-down menu to change the active source.

Click Standby to display a blank screen. You can select a black, blue, or white screen from the Display tab (see pageT39).

Click Reset to reset the options in the menus (except Language, Video Standard, and Ceiling and Rear Project) to their original settings.

Display menu

FIGURE 29

Display menu

Keystone

Use the slider bar to adjust the keystone setting. See pageT23 for details on keystone.

Brightness, Contrast, Tint and Color

Use the slider bars to adjust Brightness, Contrast, Tint, and Color. See pageT26 for a description of these settings.

Blank Screen

Blank Screen determines what color is displayed when there is no active source and when the projector is in standby. Click Blue, Black or White to specify the color.

Image menu

FIGURE 30

Image menu

Resize

Resize allows you to select from among four different re-sizing options. The default is Standard, which resizes the image from its original version to fit a standard 4x3 aspect ratio screen. Wide-screen Letterbox preserves the 16x9 aspect ratio of the original theater version, but the image is placed in a 4x3 space, so black bars appear at the top and bottom of the image. Enhanced Wide-screen also preserves the aspect ratio of the original theater version and is designed to be used with content that is Enhanced for Widescreen TVs. This option yields more detail than Widescreen Letterbox. Native displays the image with no resizing.

Auto Image

Click the check box to turn Auto Image on or off. The projector automatically adjusts tracking, signal synchronization and vertical and horizontal position for most computers. If you want to adjust these features manually, you must turn off Auto Image first.

Manual Sync

The projector adjusts signal synchronization automatically for most computers. But if the projected computer image looks fuzzy or streaked, try turning Auto Image off then back on again. If the image still looks bad, try adjusting the signal synchronization manually:

I Turn Auto Image off.
2 Move the slider to adjust Manual sync until the image is sharp and free of streaks.

Manual Tracking

The projector adjusts tracking automatically to match the video signal from your computer. However, if the display shows evenly spaced, fuzzy, vertical lines or if the projected image is too wide or too narrow for the screen, try turning Auto Image off then back on again. If the image is still bad, try adjusting the tracking manually:

I Turn Auto Image off.
2 Move the slider to adjust Manual tracking until the fuzzy vertical bars are gone.

Horizontal position

Follow these steps to manually adjust the horizontal position:

I Turn Auto Image off.
2 Move the slider to adjust the Horizontal position.

Positioning adjustments are saved when you power off the projector.

Vertical position

Follow these steps to manually adjust the vertical position.

I Turn Auto Image off.
2 Move the slider to adjust the Vertical position.

NOTE: The Manual Sync, Manual Tracking, Horiz. Position and Vert. Position options are available only for analog computer sources. The projector sets these options automatically for digital computer and video sources.

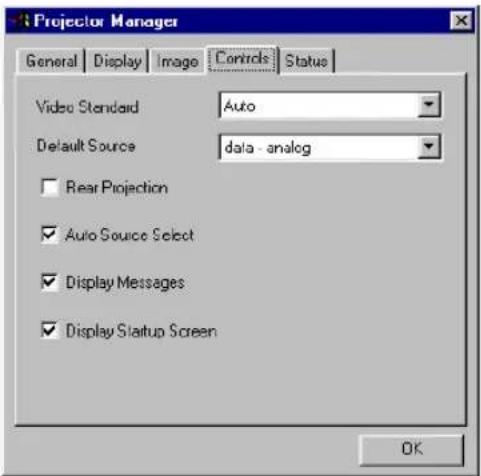

Controls menu

FIGURE 31

Controls menu

Video Standard

When Video standard is set to Auto, the projector attempts to pick the video standard (NTSC, PAL, PAL-M, PAL-N, or SECAM) automatically based on the input signal it receives. (The video standard options may vary depending on your region of the world.) If the projector is unable to detect the correct standard, the colors might not look right or the image might appear "torn." If this happens, manually select a standard from the pull-down menu.

Default Source

This determines which source the projector checks first for active video during power-up. Select among Data-Analog, Data-Digital, Composite Video and S-Video from the pulldown menu.

Rear Projection

When you turn Rear Projection on, the projector reverses the image so you can project from behind a translucent screen. Click the check box to turn this feature on and off.

NOTE: If you already know the video standard used in your geographical area, it's often best to manually select it.

Auto Source Select

When this feature is Off, the projector defaults to the source selected in Default Source. To display another source, you must manually select one by pressing the source button on the keypad or the data or video button on the remote, or by using the Source option in Projector Manager. When this feature is On, the projector automatically finds the active source, checking the default source first. Click the check box to turn this feature on and off.

Display Messages

When this feature is On, status messages appear in the lower-right corner of the screen. Click the check box to turn this feature off and not see status messages.

Display Startup Screen

When this feature is On, the InFocus startup screen appears when the projector starts up and remains until an active source is detected. The startup screen contains information on contacting InFocus. Click the check box to turn this feature off and display a plain black, blue, or white screen instead of the startup screen.

Status menu

FIGURE 32

Status menu

Lamp Hours Used

Indicates how many hours the current lamp has been in use. The counter starts at zero hours and counts each hour the lamp is in use. Replace the bulb when the brightness is no longer acceptable. See “Replacing the Projection Lamp” on pageT45 for details.

Source Resolution

Shows your computer's resolution setting. To change this, go to your computer's Control Panel and adjust the resolution in the Display tab. See your computer's user's guide for details.

Current Source

Indicates the active source, Data-Analog, Data-Digital, Composite Video and S-Video.

Projector Software Version

Indicates the projector's software version. This information is useful when contacting Technical Support.

MAINTENANCE & TROUBLESHOOTING

This section describes how to:

• clean the lens
• replace the projection lamp
• clean the projection lamp filter screens
• replace the batteries in the remote
  • use the security lock feature
  • troubleshoot the projector

Cleaning the Lens

Follow these steps to clean the projection lens:

I Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
- Avoid using an excessive amount of cleaner, and don't apply the cleaner directly to the lens.
- Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.
2 Lightly wipe the cleaning cloth over the lens in a circular motion.
3 If you don't intend to use the projector immediately, replace the lens cap.

Replacing the Projection Lamp

The lamp hour counter in the Status menu counts the number of hours the lamp has been in use. After 1,980 hours of use, the message “Change Lamp” temporarily appears on the screen when the projector is turned on. Change the lamp within the next 20 hours. After 2,000 hours, the lamp will not light. You can order new lamp modules from your InFocus dealer. See “Accessories” on pageT56 for information.

Follow these steps to replace the projection lamp:

I Turn off the projector and unplug the power cord.
2 Wait 30 minutes to allow the projector to cool thoroughly.

WARNING: To avoid burns, allow the projector to cool for at least 30 minutes before you open the lamp module door. Never extract the lamp module while the projector is operating.

WARNING: Be extremely careful when removing the lamp module. In the unlikely event that the bulb ruptures, small glass fragments may be generated. The lamp module is designed to contain these fragments, but use caution when removing the lamp module.

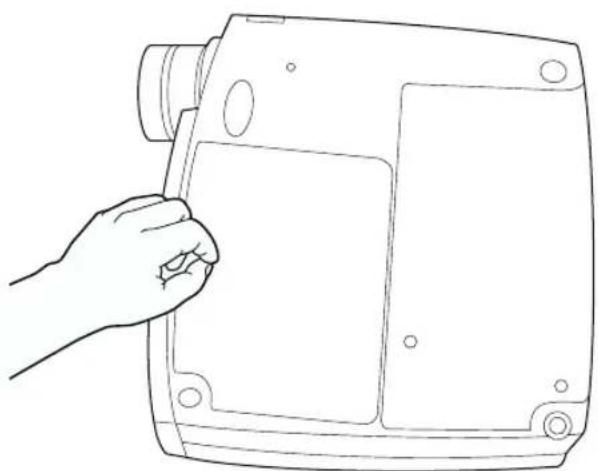

3 Invert the projector on a soft flat surface, then push the ridge on the lamp door toward the back (Figure 33). The arrow on the lamp door should point to the unlock icon on the bottom of the projector. Lift the door up.

Line drawing of a hand holding a camera module (no text or symbols)

CAUTION: Never operate the projector with the lamp door open or removed. This disrupts the air flow and causes the projector to overheat.

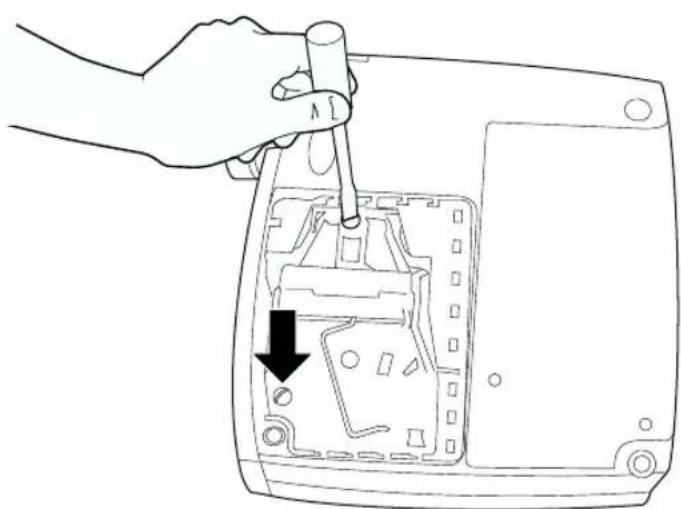

FIGURE 33

Removing the lamp door

4 Loosen the two non-removable screws on the outside of the module (Figure 34).

Line drawing of a hand using a screwdriver to adjust internal components on a device casing (no text or symbols)

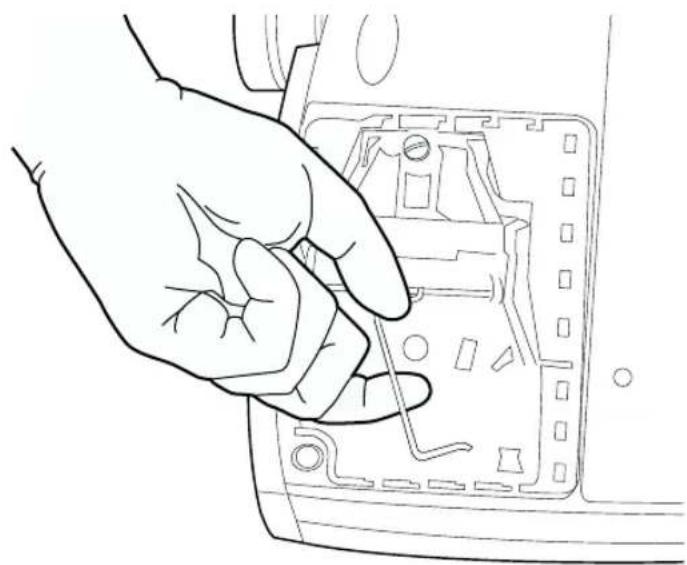

FIGURE 34

Loosening the screws on the lamp module

5 Lift and grasp the metal bail wire and lift the module out (Figure 35). Dispose of the lamp module in an environmentally proper manner.

Line drawing of a hand inserting a component into a device housing (no text or symbols)

FIGURE 35

Removing the lamp module

6 Install the new lamp module, being sure to align the connectors properly.

7 Push the module in until it is flush with the bottom case of the projector.

8 Tighten the screws on the outside of the module.

9 Replace the lamp door by inserting the hooks on the lamp door into the slots on the projector and pressing the lamp door into place. The arrow on the lamp door should point to the lock icon on the bottom of the projector. If the lamp door does not fit properly or bulges out, remove the door and re-seat the lamp module.

10 Plug in the power cord and press the green power button to turn the projector back on.

II To reset the lamp hour counter in the Status window, press and hold the volume - button, then press the source button (while still holding down the volume - button) for 5 seconds. Verify that the counter was reset by viewing the counter in the Status window.

WARNING: Do not drop the lamp module or touch the glass bulb! The glass may shatter and cause injury.

Cleaning the Projection Lamp Filter Screens

In dirty or dusty environments, the dust filter screens on the lamp module can become clogged, causing high temperatures inside the lamp module. These high temperatures can cause premature lamp failure. Routine maintenance to remove dust and dirt from the screens lowers the lamp operating temperature and prolongs lamp life. To maximize lamp life you may want to clean the screen every 250 hours.

I Remove the lamp module. Refer to "Replacing the Projection Lamp" on pageT45 for instructions.

2 Examine the dust filter screens on each side of the lamp module. If necessary, use compressed or canned air to clean the screens. Then use a cotton swab dipped in isopropyl alcohol to lightly wipe each screen. After you've wiped each screen, use the compressed or canned air to blow away remaining contaminants.

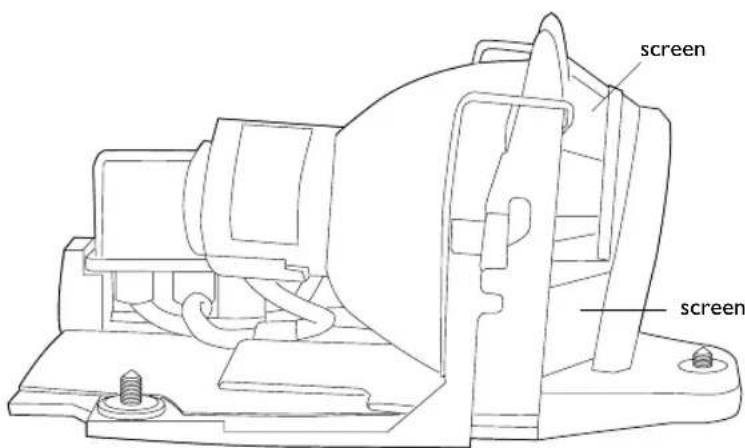

FIGURE 36

Lamp module screens

3 Before you replace the lamp, use the compressed or canned air to clean the lamp housing in the projector.

4 Replace the lamp and lamp door.

Replacing the Batteries in the Remote Control

The life of the batteries depends on how often and how long you use the remote. Symptoms of low battery charge include erratic responses when using the remote and a reduced range of operation.

Follow these steps to replace the batteries:

I Turn the remote face down in your hand.
2 Push the tab on the battery door toward the top of the remote and lift the door off.
3 Remove the old batteries and dispose of them in an environmentally proper manner.
4 Install two new AAA alkaline batteries. Make sure you install each in the correct direction.
5 Insert the hooks on the battery door into the remote and press the tab to re-install the door.

Using the Security Lock

The projector has a security connector for use with a PC Guardian Cable Lock System (Figure 37). See “Optional Accessories” on pageT56 for ordering information. Refer to the information that came with the lock for instructions on how to use it to secure the projector.

Line drawing of a portable air conditioner unit with a cable and indicator dial (no text or symbols)

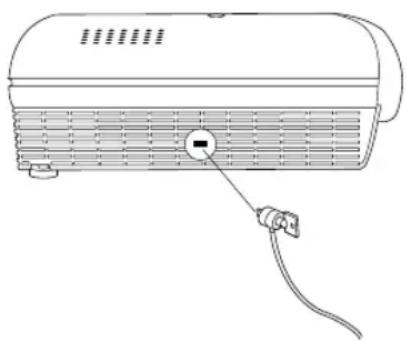

FIGURE 37

Installing the security lock

Troubleshooting

Problem: The projector is not running

• Make sure that the power cord is properly connected to a fully functional AC electrical outlet. Make sure that the power cord is also properly connected to the projector.
• If the projector is plugged into a power strip, make sure the power strip is turned on.
  • Make sure the projector is turned on.

Problem: Projector is running, but nothing appears on projection screen

• Make sure you have removed the lens cap on the projection lens at the front of the projector.
• Check the projector's lamp to ensure that it is securely connected in the lamp module. Make sure the lamp door is installed. Make sure the lamp has not been in use for over 2,000 hours. The lamp automatically shuts off at 2,000 hours. See “Replacing the Projection Lamp” on pageT45. A series of three fast blinking red LEDs indicates a lamp or fan failure.

Problem: Only the start-up screen displays

- Verify that the cables are connected correctly. See pageT9 through pageT10 for connection procedures.

- Make sure that the cables do not have any bent pins.

- Verify that the proper input source is connected. See "Source (keypad only) or Data and Video (remote only)" on pageT22.

- You might need to turn everything off and power up the equipment again in the proper order. Refer to your computer's documentation to determine the correct order.

- Make sure your laptop's external video port is turned on. See the "Portable and Laptop Activation Chart" on pageT58 or your computer's manual for details.

- Make sure your computer's video board is installed and configured correctly.

If you're using Windows 98:

I Open "My Computer" icon, the Control Panel folder and then the Display icon.
2 Click the Settings tab.
3 Verify that the Desktop area is set to 1280x1024 or less.

Problem: Color or text not being projected

- You might need to adjust the brightness up or down until the text is visible. Refer to “Brightness” on pageT26 for more information.

Problem: The screen resolution is not right

- Make sure the computer's video card is set for a resolution of no greater than 1280x1024.

Problem: Image isn't centered on the screen

• Move the projector to reposition the image.
• Reposition the image using the menu. Refer to "Horizontal Position" on pageT31 and "Vertical Position" on pageT31.
• Be sure the projector is at a 90 degree angle to the screen.

Problem: Image is too wide or narrow for screen

• Adjust the zoom or projector placement.
• Adjust the resolution of your video card if it's greater than 1280x1024.

Problem: Image is out of focus

• Turn the projection lens to focus the image.
• Make sure the projection screen is at least 5.6 feet (1.7 m) from the projector.
• Check the projection lens to see if it needs cleaning.

Problem: Image and menus are reversed left to right

- Rear projection mode is probably turned on. Turn Rear Projection off in the Controls menu. The image should immediately return to forward projection. See “Rear Project” on pageT34.

Problem: the projector displays vertical lines, "bleeding" or spots

• Adjust the brightness. See "Brightness" on pageT26.
• Check the projection lens to see if it needs cleaning.

Problem: no sound

• Adjust volume.
• Turn off "mute" in the menu. See pageT28.
• Verify audio/input connections.
• Adjust audio source.

Problem: Image is "noisy" or streaked

Try these steps in this order.

I Deactivate the screen saver on your computer.
2 Turn Auto Image off and then back on again. See "Auto Image" on pageT30.
3 Turn Auto Image off and adjust the synchronization and tracking manually to find an optimal setting. See "Manual Sync" on pageT30 and "Manual Tracking" on pageT30.
- The problem could be with your computer's video card. If possible, connect a different computer.

Problem: Projected colors don't match the computer or video player's colors

- Just as there are differences in the displays of different monitors, there are often differences between the computer image and the projected image. Adjust the brightness, tint and/or contrast from the Display menu. See “Brightness” on pageT26, “Tint” on pageT27 and “Contrast” on pageT27.

Problem: Lamp seems to be getting dimmer

- The lamp begins to lose brightness when it has been in use for a long time. Replace the lamp as described in “Replacing the Projection Lamp” on pageT45.

Problem: Lamp shuts off

• A minor power surge may cause the lamp to shut off. Unplug the projector, wait at least a minute, then plug it back in.
• Make sure the vents are not blocked.
• Make sure the lamp has not been in use for over 2000 hours. The lamp automatically shuts off after 2000 hours.

The most current troubleshooting information can be found in the Service and Support section of our website at

http://www.infocus.com/service. You'll also find a Technical Library, FAQs, and support contacts including a technical support e-mail form.

Before calling your dealer or InFocus Technical Support for assistance, please have the following information available:

• the model name of the projector
- the projector's serial number (located on the bottom label)
• the resolution of your computer.

Call InFocus Technical Support at 1-800-799-9911 between 6 a.m. and 6 p.m. PST, Monday through Friday. Service is available in North America after hours and on weekends for a fee at 1-888-592-6800.

In Europe, call InFocus in The Netherlands at (31) 20 579-2820 between 8 a.m. and 6 p.m. Central European Time.

In Asia, call (65) 6353-9449 between 9 a.m. and 6 p.m.

Or, send us an e-mail at [e-mail]

APPENDIX

Specifications

The projector must be operated and stored within the temperature and humidity ranges specified.

Temperature

Operating	50 to 104° F (10 to 40° C) at sea level
	50 to 95° F (10 to 35° C) at 10,000 feet
Non-operating	-4 to 158° F (-20 to 70° C)

Altitude

Operating 0 to 10,000 feet (3,048 meters)

Non-operating 0 to 20,000 feet (6,096 meters)

Humidity

Operating and non-oper. 10% to 95% relative humidity, non-condensing

Dimensions

10.25 × 3.34 × 11 inches (26 × 8.5 × 28 cm)

with module 10.25 x 3.34 x 12 inches (26 x 8.5 x 30.5 cm)

Weight

5.7 lbs. (2.6 kg) unpacked

with module 6.5 lbs. (2.9 kg)

Optics

Focus Range 5.6 - 16 feet (1.7-5 m)

Lamp

Type 270-watt SHP lamp

Input Power Requirements

100-120VAC 5A;50/60Hz

200-240VAC 3A; 50Hz

Accessories

Standard Accessories

(ship with the projector) Part Number

Quick Start card 009-0581-xx

User's Guide 010-0286-xx

Soft Case 110-0423-xx

Shipping Box 110-0421-xx

Analog Computer Cable 6 ft (1.8 m) 210-0185-xx

Composite Video Cable 6 ft (1.8 m) 210-0176-xx

Computer Audio Cable 6 ft (1.8 m) 210-0118-xx

Audio Adapter (RCA to 3.5mm) 210-0177-xx

Remote 590-0409-xx

Projection Lamp Module (included in projector) SP-LAMP-LP5E

Lens Cap 505-0841-xx

Online CD-ROM 010-0293-xx

NOTE: Use only InFocus-approved accessories. Other products have not been tested with the projector.

Power Cords (one ships with projector, type depends on country)

North American Power Cord 210-0023-xx

Australian Power Cord 210-0027-xx

UK Power Cord 210-0028-xx

European Power Cord 210-0029-xx

Danish Power Cord 210-0030-xx

Swiss Power Cord 210-0031-xx

NOTE: You can purchase these items by contacting your dealer or InFocus Catalog Sales at 1-800-660-0024. For general product information, please call 1-800-294-6400.

Optional Accessories

LP500/530 Enhanced Connectivity Module	HW-ECM
LP500/530 ATA Case	CA-ATA-005
Deluxe Carry Case	CA-C132
Deluxe Travel Case	CA-WHL-002
Audio/Video Cable (30';9m)	SP-AV30
Digital Computer Cable with USB	SP-DVI-D

50' Mac Cable-Domestic SP-MAC50-D

50' Mac Cable-International SP-MAC50-I

15' VGA Extension Cable SP-VGA15

50' VGA Cable-Domestic SP-VGA50-D

50' VGA Cable-International SP-VGA50-I

USB Ranger 400 System HW-USBRNGR4

HW-USBRNGR4-I

LP500/530 LM+ Ceiling Mount SP-CEIL-LMP5

Black LiteMount Pipe Tubing Extension SP-LTMT-EXT

LiteMount False Ceiling Plate SP-LTMT-PLT

Component Video Adapter Cable 210-0206-xx

Appian Traveler (Digital/Analog CardBus PC SP-DVI-CARD Card)

PC Guardian Projector Cable Lock SP-LOCK

Executive Plus Remote HW-EXPLUS

Executive Remote IR Receiver HW-EXRCVR

Full-Feature LaserPro Remote Control HW-LASERPRO

Remote Point RF Remote with Laser Pointer (US, HW-RF-POCKTPNT Mexico, Canada, UK only)

GyroMouse Presenter RF Remote Control (US, HW-RF-GPRES Mexico, Canada, UK only)

GyroMouse Pro RF Remote (US, Mexico, Canada, HW-RF-GPRO UK only)

Remote Point RF Remote with LaserPointer (US HW-RF-REMLSR and Canada only)

I-in-2-out VGA Distribution Amplifier HW-VGA2OUT

Deluxe Wheeled Projector and Computer Cart HW-CART

Macintosh Adaptor SP-MACADPT

40" Portable Projection Screen HW-PORTSCR40

50" Portable Projection Screen HW-PORTSCR50

60" Deluxe Insta-Theatre Screen HW-DLXSCRN

Portable Projector Stand SP-STND

eBeam (Web Enabled Electronic Meeting Assistant) HW-EBEAM

Projection Lamp Module SP-LAMP-LP5E

3 ^rd Year Extended Warranty (1 year extension) EW-1YEAR

4^th Year Extended Warranty (2 year extension) EW-2YEAR

NOTE: Visit our website at www.infocus.com for the most current activation chart. It is located in the Technical Library in the Service and Support section.

NOTE: Usually, pressing the key commands once activates the external video port, pressing it again activates both the external and internal ports, and pressing it a third time activates the internal port. Refer to your computer's documentation for details on your specific model.

Portable and Laptop Activation Chart

Many laptop computers do not automatically turn on their external video port when a projector is connected. Activation commands for some laptop computers are listed in the following table. (If your computer is not listed or the given command does not work, refer to the computer's documentation for the appropriate command.) On many laptops, the activation function key

is labeled with an icon, for example T or the text CRT/LCD.

Computer	Key command to activate port	Key command to de-activate port
Acer Ctrl-Alt-Esc (for setup) Ctrl-Alt-Esc (for setup)
AST* ** FN-D or Ctrl-D FN-D or Ctrl-D
Ctrl-FN-D Ctrl-FN-D
FN-F5 FN-F5
type from A:/IVGA/CRT type from A:/IVGA/CRT
FN-F12 FN-F12
AMS FN-F2 FN-F2
AMT setup screen setup screen
AT&T	FN-F3	FN-F3
	FN-F6	FN-F6
Advanced Logic Research	Ctrl-Alt-V	Ctrl-Alt-V
Altima	Shift-Ctrl-Alt-C	Shift-Ctrl-Alt-L
	setup VGA/Conf.Simulscan	setup VGA/Conf.Simulscan
Ambra**	FN-F12 FN-F12
	FN-F5 FN-F5
	F2/Choose Option/F5	F2/Choose Option/F5
Amrel* **	setup menu	setup menu
	Shift-Ctrl-D	Shift-Ctrl-D
Apple	see Mac Portable and Mac PowerBook
Aspen automatic	automatic
Award	FN-F6 FN-F6
BCC*	automatic	reboot computer

Computer	Key command to activate port	Key command to de-activate port
Bondwell LCD or CRT options after bootup		reboot for LCD or CRT options to appear
Chaplet** setup screen setup screen
FN-F6 FN-F6
FN-F4 FN-F4
Chembook FN-F6 FN-F6
Commax Ctrl-Alt-#6 Ctrl-Alt-#5
Compaq* ** Ctrl-Alt-< Ctrl-Alt->
FN-F4 FN-F4
automatic automatic mode/? (for setup option) mode/? (for setup option)
Compuadd* ** automatic automatic
Alt-F for screen setup option	Alt-F for screen setup option
Data General Ctrl-Alt-Command Ctrl-Alt-Command
Data General Walkabout	2 CRT/X at DOS prompt	reboot
Datavue	Ctrl-Shift-M	Ctrl-Shift-M
DEC**	FN-F5 FN-F5
	FN-F4 FN-F4
Dell**	Ctrl-Alt-< Ctrl-Alt->
	Ctrl-Alt-F10	Ctrl-Alt-F10
	FN-F8 (CRT/LCD)	FN-F8
	FN-D	FN-D
	FN-F12	FN-F12
Digital*	automatic reboot
	FN-F2 FN-F2
Dolch	dip switch to CRT	dip switch to LCD
Epson	dip switch to CRT	dip switch to LCD
Everex*	setup screen option	setup screen option
For-A	Ctrl-Alt-Shift-C	Ctrl-Shift-Alt-L
Fujitsu	FN-F10
Gateway FN-F3		FN-F3
	FN-F1/FN-F1 again simultaneous	FN-F1
Grid* ** FN-F2, choose auto or simultaneous		FN-F2
		Ctrl-Alt-Tab Ctrl-Alt-Tab
Hitachi FN-F7 FN-F7
Honeywell FN-F10 FN-F10
Hyundai setup screen option setup screen option
IBM 970* automatic warm reboot
IBM ThinkPad** reboot, enter setup menu FN-F2
	FN-F7, select choice from setup menu
	FN-F1, select choice
	FN-F5, select choice
	PS/2 SC select choice (CRT, LCD, etc.)
Infotel	FN-F12 FN-F12
Kaypro	boot up, monitor plugged in	unplug monitor
Kris Tech	FN-F8 FN-F8
Leading Edge	FN-T	FN-T
Mac Portable 100	no video port: not compatible
Mac PowerBook
140, 145, 150, 170	no video port: requires a 3rd-party interface
160, 165, 180, 520, 540, 5300	Control Panel folder, PowerBook Display folder; Activate Video Mirroring	warm reboot
210, 230, 250, 270, 280, 2300	requires Apple Docking Station or Mini Dock
Magitronic FN-F4 FN-F4
Mastersport FN-F2 FN-F1
Micro Express* automatic warm reboot
Micron FN-F2 FN-F2
Microslate* automatic warm reboot
Mitsubishi SW2 On-Off-Off-Off SW2 Off-On-On-On
NCR setup screen option setup screen option
NEC** setup screen option setup screen optionCRT at the DOS prompt LCD at the DOS promptFN-F3 FN-F3
Olivetti*	automatic automatic
	FN-O/*	FN-O/*
Packard Bell**	FN-F0 FN-F0
	Ctrl-Alt-<	Ctrl-Alt->
Panasonic	FN-F2 FN-F2
Prostar	Ctrl-Alt-S at bootup	Ctrl-Alt-S at bootup
Samsung*	setup screen option setup screen option
Sanyo	setup screen option setup screen option
Sharp	dip switch to CRT	dip switch to LCD
Sun SPARC-Dataview	Ctrl-Shift-M	Ctrl-Shift-M
Tandy**	Ctrl-Alt-Insert	Ctrl-Alt-Insert
	setup screen option setup screen option
Tangent	FN-F5 FN-F5
Texas Instruments*	setup screen option setup screen option
Top-Link**	setup screen option setup screen option
	FN-F6 FN-F6
Toshiba** Ctrl-Alt-End		Ctrl-Alt-Home
	FN-End	FN-Home
	FN-F5 FN-F5
	setup screen option setup screen option
Twinhead*	FN-F7 FN-F7
	FN-F5 FN-F5
	Automatic	Automatic
WinBook Ctrl-Alt-F10 Ctrl-Alt-F10
Wyse software driven software driven
Zenith** FN-F10 FN-F10
	FN-F2 FN-F2
	FN-F1 FN-F1
Zeos** Ctrl-Shift-D		Ctrl-Shift-D
	FN-F1	FN-F1

* These manufacturers have models that automatically send video to the external CRT port when some type of display device is attached.
** These manufacturers offer more than one key command depending on the computer model.

Using Video Mirroring with a PowerBook Computer

When you turn video mirroring (called SimulScan in newer PowerBooks—see below) on, the projector displays the same information that appears on your PowerBook's built-in screen. When video mirroring is off, the projector acts like a separate display.

To turn on video mirroring for the first time:

• Open the Monitors control panel; click on Monitor 2.
  2 Set the number of colors you want.
  3 Open the Control Strip, then click on the monitor icon.
  4 Select "Turn Video Mirroring On."

Now you can turn video mirroring on and off from the Control Strip without having to open the Monitors control panel again.

When using video mirroring and high color graphics such as slide shows, the projected image occasionally might turn black and white. If this happens, perform the following steps:

I Turn off video mirroring.
2 Open the Monitors control panel.
3 Move the white menu bar to Monitor 2 to set the projector as the primary monitor.
4 Restart the PowerBook.

Using SimulScan

Some newer PowerBooks display images on an external monitor or projector differently than previous ones. When using SimulScan, the projector displays the same information that appears on your PowerBook

To select SimulScan:

• Open the Control Panel, then double-click Monitors and Sound.
  2 In the Resolution list, choose the SimulScan mode, then click OK.
  3 If this changes your display settings, a dialog box appears. Click OK to confirm the change.

NOTE: Use the graph and table to help you determine projected image sizes.

Projected Image Size

FIGURE 38
Projected image size

NOTE: Visit our website at www.infocus.com for an interactive image size calculator. It is located in the Technical Library in the Service and Support section.

Table 1: Range of distance to the screen for a given screen size

DiagonalScreen Size(inches)	Image Width(inches)	Distance to screen
		Maximumdistance(feet)	MinimumDistance(feet)
60 48 8.5 6.9
72 58 10.2 8.3
84 67 11.9 9.7
90 72 12.7 10.4
100 80 14.1 11.6
120 96 17.0 13.9
150 120	21.2 17.4

INDEX

A

accessories, ordering 56

activation commands for laptop com- puters 58

Add New Hardware Wizard 14

adjusting

brightness 26

color 27

color gain 32

contrast 27

height of the projector 20

keystone 26

tint 27

volume 24

Advanced menu options

Ceiling Project 34

Display Messages 34

Display Startup Screen 35

Low Power 34

Rear projection 34

Reset 35

altitude limits 55

assistance. See Technical Support

audio cable, connecting 9

Audio menu options

Mute 28

Volume 28

Auto color gain 32

auto image 30

auto source 33

B

brightness, adjusting 26

buttons on keypad

Menu/select 22

Power 23

Source 22

Standby 24

Volume 24

C

cables

audio 9

composite video 10

computer cable 3, 8, 9

ordering 56

power 56

S-video 10

cases, ordering 56

ceiling projection 34

centering the image 20, 31, 41

cleaning the lamp filter screens 48

cleaning the projection lens 45

Color Management menu options

Auto color gain 32

Degamma 32

color, adjusting 27

colors

don't match monitor colors 52

not displayed 51

compatibility

IBM-compatible 2

Macintosh 2

component video 12

composite video 10

computers

compatible 2

connecting 9

connecting

audio cable 9

computers 9

power cord 14

remote 9

USB mouse 9

video device 10

connectivity, enhanced 12

contrast, adjusting 27

Control menu options

Auto source 33

Default Source 33

Standby Time 33

D

Default Source 33

Degamma 32

Display menu options

Blank screen 27, 39

Brightness 26

Color 27

Contrast 27

Keystone 26

Sharpness 27

Tint 27

Display Messages 34

Display Startup Screen 35

displaying on-screen menus 22

drivers, installing 14

E

elevator button/foot 20

enhanced connectivity module 12

F

focusing the image 19

forward/back buttons 23

fuzzy lines 30, 41

H

HDTV 2, 10, 27

height adjustment 20

|

IBM-compatible computers 2


adjusting 14, 19

centering 31, 41

colors don't match computer's 52

focusing 19

fuzzy lines 30, 41

has lines or spots 52

not centered 51

not displayed 50

out of focus 51

quality 51-52

resolution 1

reversed 34, 42, 51

size 7, 64

streaked 52

too wide or too narrow 51

zooming 19

Image menu options

Auto Image 30

Horiz. Position 31, 41

Manual Sync 30, 41

Manual Tracking 30, 41

Overscan 31

Resize 29

Vert. Position 31, 41

Video Standard 31

Zoom 30

installing drivers 14

installing Projector Manager software

37

K

keypad 22

L

lamp

cleaning filter screens 48

ordering 56, 57

replacing 45

turns off unexpectedly 53

lamp hour counter 36, 44, 45, 47

Language menu 35

language, selecting for menus 35

laptop computers

activation sequence to allow secondary display 58

compatibility 9

connecting 9

LED 22, 24

lens

cap 56

cleaning 45

low power mode 34

LP500/530

cases 56

project from behind the screen 34

setting up 7

specifications 55

turning off 18

turning on 14

M

M1-DA analog computer cable 3, 8

Macintosh computers

compatibility 2

installing drivers 17

menus. See on-screen menus

monitor loop-through 12

monitor, projected colors don't match 52

mouse buttons 22

mouse, connecting 9

mute 28

N

NTSC video 31, 42

0

on-screen menus

changing language of 35

displaying 25

overscan 31

P

PAL video 31, 42

Power button 14, 23

power cord

connecting 14

ordering 56

power up sequence 17, 50

PowerPoint slides, advancing with the remote 9, 23

project from behind the screen 34, 42

project from the ceiling 34

Projector Manager software 37

R

rear projection 34

remote control

advancing PowerPoint slides with 9, 23

connecting 9

controlling the computer with 9

replacing the batteries 49 using 21, 22

replacing projection lamp module 45

re-positioning the image on the screen 31, 41

resetting adjustments 35

resetting the lamp hour counter 47

resizing the image 29

resolution 1

RS-232 control 13

s

safety guidelines iii

SECAM video 42

security lock 49, 57

sharpness 27

SimulScan, using with PowerBooks 63

Source button 22

specifications 55

standby 18, 24

standby time 33

Status menu 36

S-video, connecting 10

T

Technical Support

in Europe 5

in USA 5

information to have on hand

before you call 53

temperature limits 55

test pattern 50

text not visible 51

tint, adjusting 27

troubleshooting 50

turning off the projector 18

turning on the projector 14

U

USB mouse

connecting 9

installing drivers 14

v

vertical lines displayed 30, 41, 52

VESA connector 12

video mirroring on a PowerBook 63

video resize 31

video standards 31, 42

Volume buttons 24

volume, adjusting 24

w

widescreen video 29, 40

Z

Zoom mode 24

zooming the image 19, 24, 30

Limited Warranty

Subject to the Limitations, Exclusions and Disclaimers hereof, InFocus Corporation (“InFocus”) warrants that the Projector, Lamps and Accessories (hereinafter collectively or individually referred to as “Product” as appropriate) purchased from InFocus, an InFocus distributor, or an InFocus reseller will conform to InFocus’ specifications and be free from defects in material or workmanship for the respective Limited Warranty period provided below. InFocus does not warrant that the Product will meet the specific requirements of the end-user customer.

If the Product while subject to this Limited Warranty, is defective in material or workmanship during the warranty period, then InFocus, at its option, will REPAIR or REPLACE the Product.

All exchanged parts and Products replaced under this Limited Warranty will become property of InFocus. InFocus' sole obligation is to supply (or pay for) all labor necessary to repair the Product found to be defective within the Limited Warranty period and to repair or replace defective parts with new parts or, at the option of InFocus serviceable used parts that are equivalent or superior to new parts performance. Limited Warranty periods are as follows:

• Projector Product Limited Warranty Period (Excluding Lamps): Two (2) years from date of purchase.
• Lamp Product Limited Warranty Periods: From the date of Projector Product purchase, the original installed lamp shall have a 90-day or 500 hours usage Limited Warranty Period, whichever comes first, and replacement Lamps purchased at the time of Projector Product purchase will have a 500 hours usage Limited Warranty period.
• TAccessory Product Limited Warranty Period : one (1) year from date of purchase.

WARRANTY LIMITATION AND EXCLUSION

THIS WARRANTY SETS FORTH INFOCUS' MAXIMUM LIABILITY FOR ITS PRODUCT. THIS WARRANTY EXTENDS ONLY TO PRODUCTS PURCHASED FROM INFOCUS OR AN INFOCUS AUTHORIZED RESELLER. InFocus shall have no further obligation under the foregoing Limited Warranty if the Product has been damaged due to abuse, misuse, neglect, smoke exposure (cigarette or otherwise), accident, unusual physical or electrical stress, unauthorized modifications (including use of an unauthorized mount), tampering, alterations, or service other than by InFocus or its authorized agents, causes other than from ordinary use or failure to properly use the Product in the application for which said Product was intended.

This Limited Warranty excludes Product cleaning, repair, or replacement of plastics due to cosmetic damage and damage as a result of normal wear. Product repair outside of the terms of the Limited Warranty will be on a time and materials basis. Prolonged Product “demonstration” causes unusual Product wear and is not considered normal use under the terms of this Limited Warranty.

The Accessory Product Limited Warranty covers the accessory item only and excludes normal wear. The Lamp Product Limited Warranty excludes expected lamp degradation.

Remanufactured Products and Software Products are exempt from the foregoing Limited Warranty. Please refer to the appropriate Remanufactured Product Limited Warranty or Software Product Limited Warranty for applicable Warranty information.

DISCLAIMER OF UNSTATED WARRANTIES

THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE ARE DISCLAIMED. THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF AND THE FOREGOING WARRANTY SHALL NOT BE EXTENDED, ALTERED OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY INFOCUS. SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT APPLY TO YOU.

Limited Warranty Period

The Limited Warranty periods hereof commence on the date of purchase by the end-user customer. These Limited Warranty provisions shall apply only to the end-user purchaser (first person or entity that purchased a new Product for personal or business use and not for the purpose of distribution or resale). SOME JURISDICTIONS MAY GRANT YOU CONSUMER RIGHTS WITH MINIMUM WARRANTY DURATION THAT DIFFER FROM THE DURATIONS PROVIDED HEREIN, AND INFOCUS WILL HONOR ALL SUCH CONSUMER RIGHTS.

To Be Eligible For Limited Warranty Coverage

Any person exercising a claim under this Limited Warranty must establish to the satisfaction of InFocus both the date of purchase and that the Product was purchased new. The sales receipt or invoice, showing the date of purchase of the Product is the proof of the date of purchase.

To Obtain Warranty Service

During the Limited Warranty period, to exercise this Limited Warranty, the purchaser must first contact 1) InFocus, 2) a service facility authorized by InFocus or 3) the place of original purchase.

InFocus Customer Service - 1-800-799-9911 or [e-mail]

For Warranty service, the purchaser will be advised to return or deliver the defective Product freight and all fees prepaid, to an InFocus Service Center or to a service facility authorized by InFocus. When returning Product to InFocus, a Return Material Authorization Number (RMA); is required and must be clearly displayed on the outside of the shipping carton or a similar package affording an equal degree of protection. InFocus or the service facility authorized by InFocus will return the repaired/replaced Product freight prepaid to the purchaser.

Products returned for Warranty service must be accompanied by a written letter that: (i) explains the problem; (ii) provides proof of date of purchase; (II) provides the dealer's name; and (I) provides the model and serial number of the Product.

Upon request of InFocus Corporation or an authorized repair center for InFocus, proof of legal import must accompany the warranty repair Product, otherwise the Product must be returned to the place of original purchase, to the manufacturer (Purchaser must bear all tax, duty and freight), or the Purchaser must bear charges for the warranty repair.

No repair or replacement of Product or part thereof shall extend the Limited Warranty period as to the entire Product. Warranty on the repair part and workmanship shall only be effective for a period of ninety (90) days following the repair or replacement of that part or the remaining period of the Product Limited Warranty whichever is greater.

LIMITATION OF LIABILITY

IT IS UNDERSTOOD AND AGREED THAT INFOCUS' LIABILITY WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE PURCHASE PRICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES SHALL INFOCUS BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS, LOST REVENUES OR LOST SAVINGS. THE PRICE STATED FOR THE PRODUCTS IS A CONSIDERATION IN LIMITING INFOCUS' LIABILITY.

Limitation on Bringing Action - No action, regardless of form, arising out of the agreement to purchase the Product may be brought by purchaser more than one year after the cause of action has accrued.

Governing Law - Any action, regardless of form, arising out of the agreement to purchase the Product is governed by Oregon law.

Mandatory Arbitration - Any action, regardless of form, arising out of the agreement to purchase the Product is subject to mandatory arbitration.

SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, DEPENDING ON JURISDICTION.
