Product Type	Built-in Dishwasher
Brand	Bertazzoni
Model	DW60BI
Dimensions (H x W x D)	820 x 598 x 570 mm
Weight	45 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Efficiency Class	A++
Capacity	14 place settings
Noise Level	44 dB(A)
Number of Programs	6
Programs	Eco, Intensive, Normal, Quick 45°C, Glass 45°C, Pre-wash
Drying System	Condensation drying with heat exchanger
Interior Material	Stainless steel
Control Type	Electronic touch control with LED display
Water Consumption	9.5 L per cycle (Eco program)
Energy Consumption	0.92 kWh per cycle (Eco program)
Safety Features	Child lock, water protection system, overflow protection
Spare Parts Available	Filters, spray arms, detergent dispenser, rinse aid dispenser, salt container, door seals, hinges
Warranty	2 years
Installation Type	Fully built-in, integrated control panel

Frequently Asked Questions - DW60BI BERTAZZONI

How do I install the DW60BI dishwasher?

Ensure the appliance is placed in a stable, level cabinet. Connect the water inlet hose to a cold water supply, and the drain hose to a suitable waste connection. Electrical connection must be done by a qualified electrician. Refer to the installation manual for detailed steps.

What detergents can I use?

Use only dishwasher-specific detergents such as tablets, powder, or gel. For best results, use a combined detergent with rinse aid and salt. Do not use hand dish soap as it causes excessive foam.

How do I clean the filters?

Remove the lower basket and unscrew the filter assembly. Rinse the filters under running water and use a soft brush to remove debris. Reinstall the filters securely. Clean them weekly to maintain performance.

Why is my dishwasher not drying dishes properly?

Check if rinse aid is filled and the dispenser is set correctly. Select a program with drying (e.g., Intensive or Eco). Ensure the heat exchanger is clean. If using plastic items, they retain moisture; use the extra drying option if available.

What does the error code E4 mean?

Error code E4 typically indicates a water drainage issue. Check the drain hose for kinks or clogs, and clean the pump filter. Restart the dishwasher after resolving the blockage.

Can I use the DW60BI with a salt dispenser?

Yes, the dishwasher has a built-in water softener with a salt reservoir. Use dishwasher salt to prevent limescale buildup. Refill when the salt indicator light turns on.

How do I adjust the rinse aid dosage?

Open the rinse aid dispenser cap and turn the dial to adjust the dosage (1-6). Higher settings increase the amount for better drying and shining. Set it based on water hardness and desired results.

What is the recommended maintenance schedule?

Clean the filters weekly, check spray arms for blockages monthly, run a cleaning cycle (e.g., with a dishwasher cleaner) every 3 months, and clean the door seals regularly. Also, leave the door slightly open after use to prevent odor.

My dishwasher is noisy during operation. What should I do?

Ensure the dishwasher is level and not touching surrounding cabinets. Check for loose items in the baskets or foreign objects (e.g., bones, pits) in the spray arms. Noise may also occur if the drain pump is clogged.

How do I activate the child lock?

Press and hold the Child Lock button (often indicated by a lock icon) for 3 seconds until a lock symbol appears on the display. To deactivate, repeat the same operation.

USER MANUAL DW60BI BERTAZZONI

- Conformity with the standards and Test data .... 5

Safety information and Recommendations.... 6

• Recycling 6
• Safety information 6
• Recommendations 9
• Items not suitable for dishwashing 9

Installing the machine 10

• Positioning the machine 10
  • Water connections ...... 11
• Water inlet hose 12
• Water outlet hose 12
• Electrical connection.... 13

Preparing the machine for use 14

• Prior to using the machine 14
• Detergent usage ....14
• Filling the detergent compartment.... 14
• Combined detergent.... 15
• Filling with rinse aid and making the setting.... 16

Loading your dishwasher 17

• Alternative basket loads 22

Programme descriptions 23

- Programme items 23

Getting familiar with your machine 24

• Switching on the machine.... 27
• Programme follow-up 27
• Changing a programme 28
• Changing a programme with resetting 28
• Switching the machine off 29

Maintenance and Cleaning 32

• Filters 32
• Spray arms 33
• Hose filter 33

Failure codes and what to do in case of failure 34

Practical and useful information.... 37

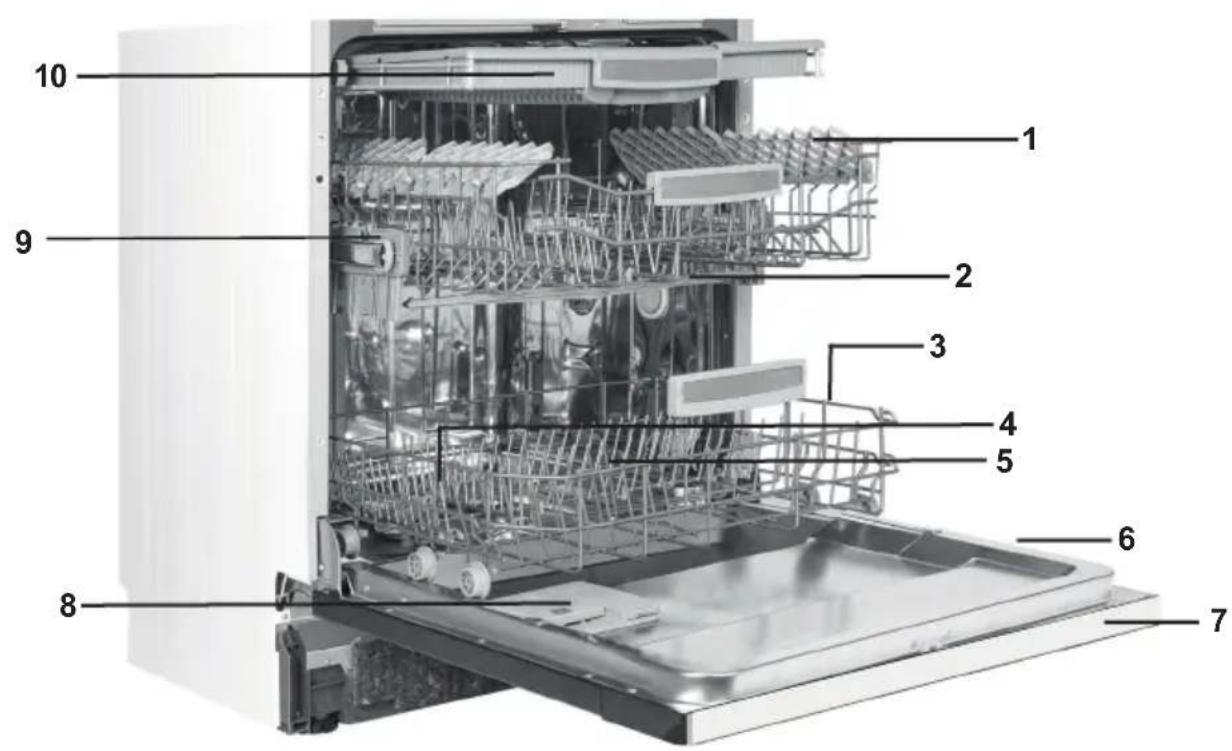

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control Panel
8. Detergent and rinse-aid dispenser
9. Upper basket track latch

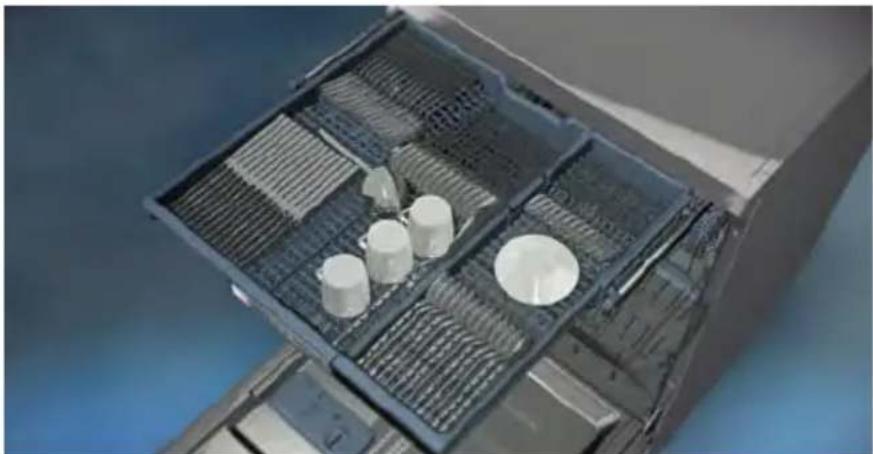

10. Upper Cutlery Basket
11. Ceiling Spray Arm: It provides a better wash for the dishes in the upper basket.
12. Turbo Drying Unit: This system provides a better drying performance for the dishes.
13. Interior light : Provides illumination to give a better view when placing dishes in the unit.

Technical specifications

Capacity 15 place settings
Height 820 mm - 870 mm
Width 598 mm
Depth 550 mm
Net Weight 38 kg
Electricity input 220-240	V, 50 Hz
Total Power 1900 W
Heating Power 1800 W
Pump Power 100 W
Drain Pump Power 30 W
Water supply pressure 0.03 MPa (0,3 bar)-1 MPa (10 bar)
Current 10 A

SAFETY INFORMATION AND RECOMMENDATIONS Recycling

• Recyclable materials are used in certain components and packaging.
- Plastic parts are marked with international abbreviations: (>PE<, >PS<, >POM<, >PP<,)
- Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling.
- Such materials are not suitable for garbage bins. They should be delivered to recycling centres instead.
- Contact the relevant centre in order to obtain information on methods and points of disposal.

Safety Information

When you take delivery of your machine

• If you see any damage on your machine’s packaging, please notify your retailer.
• Unwrap the packaging materials as indicated and dispose of them in accordance with the rules.

Points to pay attention to during machine installation

• Choose a suitable, safe and level place to install your machine.
• Carry out the installation and connection of your machine by following the instructions.
• We recommend that the machine is installed by an authorised installer, and should only be serviced by an approved technician.
• Only original spare parts should be used with the machine.
• Before installing, be sure that the machine is unplugged.
• Check whether the indoor electrical fuse system is connected according to regulations.
• All electrical connections must match values on the rating

plate.

• Be sure that the machine does not stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after installation.
  • After installation, run it unloaded for the first time.

In daily use

• This machine is for domestic use; do not use it for any other purpose. Commercial usage of the dishwasher see warranty card.
• Do not get up, sit or place a load on the open door of thedishwasher, it may fall over.
• Never put into the detergent and rinse aid dispensers of your machine anything other than those detergents and rinse aids which are produced specifically for dishwashers. Our company will not be responsible for any damage that might occur in your machine otherwise.
• The water in the machine's washing section is no drinking water do not drink it.

Warning: Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle.

• Due to danger of explosion, do not put into the machine's washing section any chemical dissolving agents such as solvents.
• Check whether plastic items are heat-resistant before washing them in the machine.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Our company will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.
• Especially because hot water may flow out, the machine door should not be opened under any circumstances while the machine is in operation. In any case, a safety devices ensures that the machine stops if the door is opened.
• Do not leave the dishwasher's door in the open position since this could present a tripping hazard.

Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

- If the supply cord is damaged, it must be replaced by themanufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- If EnergySave option is selected as “Yes”, The door will be opened at the end of the program. Do not force the door closed to avoid harm to the auto door mechanism for one minute. The door must be open for 30 minutes to get effective drying.(in models with auto door opening system)

Warning: Do not stand in front of the door after the signal sounds belonging auto-open.

For your children's safety

• After removing the machine’s packaging, make sure that the packaging material is out of reach of children.
• Do not allow children to play with or start the machine.
• Keep children away from detergents and rinse aids.

- Keep children away from the machine while it is open because there may still be residues of cleaning substances inside the machine.

- Be sure that your old machine does not pose any threat to your children. Children have been known to get themselves locked in old machines. To prevent such a situation, break your machine’s door lock and tear off the electrical cables.

In case of malfunctioning

- Any repairing performed by anyone other than authorized service personnel will invalidate your warranty.

- Prior to any repair work on the machine, be sure that the machine is isolated from the mains. Switch off the fuse or unplug the machine. Do not pull by the cable when unplugging. Make sure to turn off the water tap.

Recommendations

- For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it.

- Use the pre-wash programme only when necessary.

- Place such hollow items as bowls, glasses and pots into the machine in such a way that they will face down.

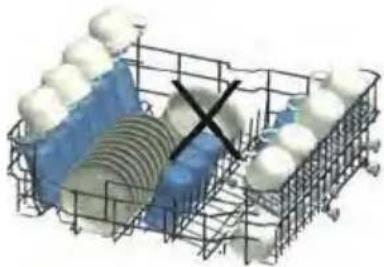

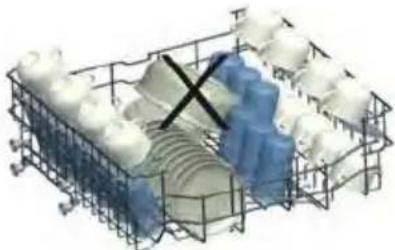

- You are not recommended to overload your machine or load it in a way other than that which is indicated.

Items not suitable for dishwashing:

- Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials;

- Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items, items soiled with abrasive, acidic or base chemicals.

- Plastic items that are not heat-resistant, copper or tin-coated containers.

- Aluminium and silver objects (they may discolour, become dull).

• Certain delicate glass types, porcelains with ornamental printed patterns as they fade even after the first wash; certain crystal items as they lose their transparency over time, adhered cutlery that is not heat-resistant, lead crystal glasses, cutting boards, items manufactured with synthetic fibre;
• Absorbent items as sponges or kitchen rags are not suitable for dishwashing.

Warning: Take care to buy dishwasher-proof sets in your future purchases.

INSTALLING THE MACHINE

Positioning the machine

When determining the installation place, choose an accessible place for easy loading and unloading of the dishes.

Do not put your machine in any location where there is the probability for the room temperature to fall below 0^ C.

Before positioning, take the machine out of its packaging by following the warnings located on the package.

Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made.

Do not grip the machine by its door or panel in order to move it.

Take care to leave a certain clearance from all sides of the machine for moving comfortably back and forth during cleaning.

Make sure that the water inlet and outlet hoses do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable.

Adjust the machine's adjustable feet so that it can stand level and balanced. Proper positioning of the machine

ensures problem-free opening and closing of the door. If the door of machine does not close properly, check if the machine is stable on the floor; if not, adjust the feet and ensure its stable position.

Water connection

Indoor plumbing must be suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to prevent such complaints as yellowing and formation of deposits after washing.

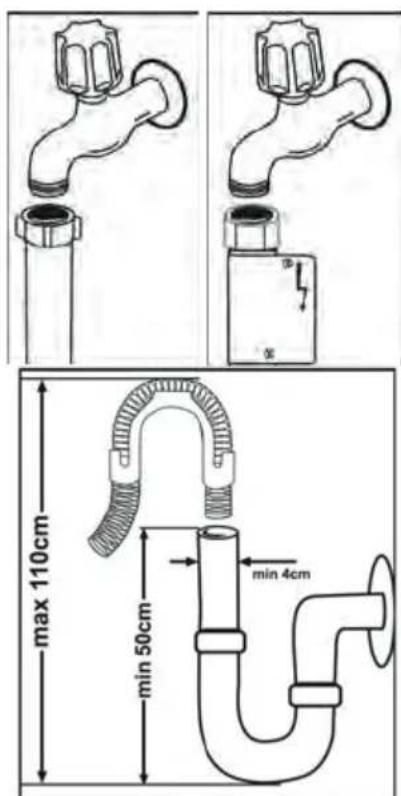

Water inlet hose

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Do not use the water inlet hose of your old machine. Use the new one supplied with your machine instead. If you will connect a new or long - unused water inlet hose to your machine ,run water through it for a while before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 Mpa and and at a maximum of 1 Mpa.If the water pressure is above 1 Mpa,a pressure-relief valve should be fitted inbetween.

After making connections, the tap should be turned on fully and checked for water tightness. For the safety of machine, turn off the water inlet tap after finishing each wash programme.

NOTE: Aquastop water etc. spout is used in some models. In case of using Aquastop, a dangerous tension exists. Do not cut the Aquastop water spout. Do not let it get folded or twisted.

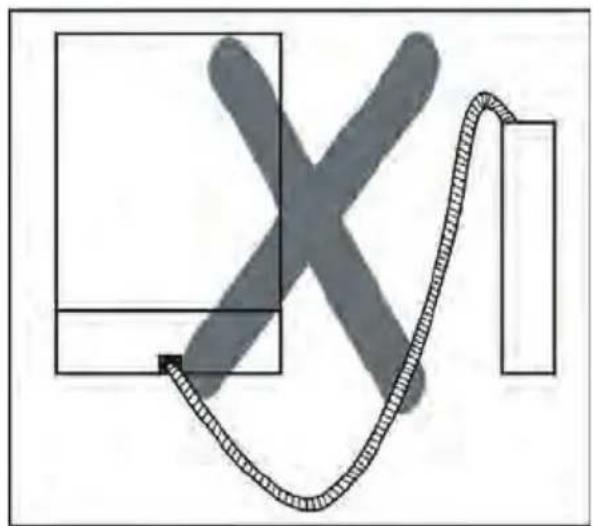

Water outlet hose

The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink. This connection should be between 50 and 110 cm from the floor plane.

Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, our company will not accept responsibility.

Abstract diagram with a curved line and shaded X shape, no text or symbols present

Electrical connection

The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician to carry out it. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

The indoor fuse current value should be 10-16 A.

Your machine is set according to 220-240 V. The machine should not be plugged in during positioning.

Always use the coated plug supplied with your machine.

Running in low voltage will cause a decline in washing quality.

The machine's electrical cable should be replaced by an

authorised service or an authorised electrician only. Failure to do so may lead to accidents.

For safety purposes, always make sure to disconnect the plug when a wash In order not to cause an electric shock, do not unplug when your hands are wet.

When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself.

PREPARING THE MACHINE FOR USE

Prior to using the machine for the first time

• Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine.
• Remove all packaging materials inside the machine.
• Fill the rinse aid compartment.

Detergent usage

Use a detergent specifically designed for use in domestic dishwashers.

You can find powder, gel, and tablet detergents in the market that have been designed for household dishwashers.

Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

Do not fill detergent into the detergent compartment more than required; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent.

Should you need more information concerning the detergent you will use, contact detergent manufacturers directly.

3D model of a rectangular electronic component with a hand pointing to a small component, no visible text or symbols

Filling the detergent compartment

Push the latch to open the detergent container as shown in the image. 1 Detergent pod has level lines inside. It is possible to

measure the right detergent amount using these lines. Detergent pod can take totally 40 cm ^3 detergent.

Open the dishwasher detergent and pour into

the larger compartment 25 ~cm^3 if your dishes are heavily soiled or 15 ~cm^3 if they are less soiled. If your dishes have been kept dirty for a very long time, if there are dried food wastes on them, and if you have overly

loaded the dishwasher, pour 15 cm ^3 detergent into the pre-wash compartment and start your machine.

You may have to add more detergent into your machine, depending on the deer of soil and on the water hardness level in your area.

Combined detergent

Detergent manufacturers also produce combined detergents called "2 in 1", "3 in 1" or "5 in 1" etc.

"2 in 1" detergents contain detergent + or rinse aid. When using "2 in 1" detergents make sure to check the specifications of the tablet.

Other tablet detergents contain detergent + rinse aid + various extra functions.

Generally, combined detergents produce sufficient results under certain usage conditions only. Such detergents contain rinse aid and/or in preset amounts

When you stop using combined detergents

• Fill the rinse aid compartment.
• Make the suitable rinse aid setting.

1.11. Filling the rinse-aid and setting

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps before turning on the machine:

• Touch the programme button and hold it down.
• Turn on the machine.
• Hold down the programme button until "rA" disappears. Rinse aid set follows water hardness set.
  • The machine will display the current setting.
• Set the level by touching the programme button.
• Switch off the machine to save the setting.

The factory setting is "4".

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration showing a hand inserting a component into a device, with no visible text or symbols

Level	Brightener Dose Indicator
1 Rinse-aid not dispensed r1 is shown on the display
2 1 dose is dispensed r2 is shown on the display
3 2 doses are dispensed r3 is shown on the display.
4 3 doses are dispensed r4 is shown on the display.
5 4 doses are dispensed r5 is shown on the display.

LOADING YOUR DISHWASHER

If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, w drying performance.

There are two separate baskets for you to load your dishes into your machine. You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets.

The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not – against other items. Do not lean long glasses against one another or they cannot remain steady and may receive damage. It is more appropriate to locate the thin narrow parts into the middle sections of baskets.

You can place spoons among the other cutlery sets in order to prevent them from sticking to one another. You are recommended to use the cutlery grid in order to obtain the best result.

To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as serving fork, bread knife etc. wi sharp points facing down or horizontally on the baskets.

Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning.

Top basket

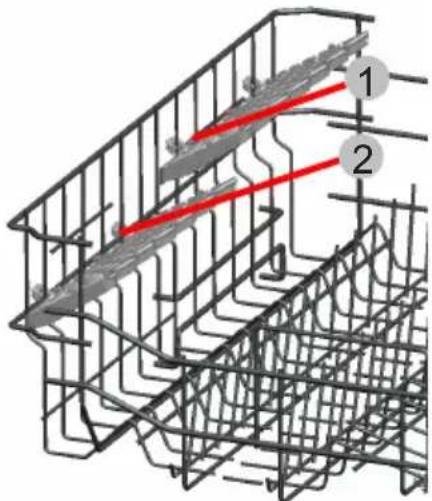

Height Adjustable Rack

These racks are designed to increase the capacity of the top basket. You can place your glasses and cups on the racks. You can adjust the height of these racks. Thanks to this feature, you can place different sizes of glasses under these racks.

Thanks to height adjustment plastics mounted on the basket, you can use your racks in 2 different heights. In addition, you can place long forks, knives and spoons on these racks laterally, so that they do not block the revolution of propeller.

Top basket height adjustment while it is full

Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your when it is full, and create large spaces at the top or bottom area of your machine as needed. Basket of your machine is set to upper position in factory settings.

In order to raise your basket, hold it from both side upwards. In order to lower it, hold it from both side leave it.

In loaded basket adjustment mechanism, make sure that both sides are in the same position (up or down).

Three technical diagrams showing 3D structural components and assembly steps, labeled ① and ② (no text or symbols on the diagrams themselves)

Lower Basket

Folding Racks

Folding racks consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding racks by raising them upwards, or by folding.

Two technical diagrams showing a 3D wireframe model of a mechanical or electronic assembly with internal components and directional arrows (no text or symbols present)

Upper Cutlery Basket

The upper cutlery basket is designed for you to place forks, spoons and knives, long dippers and small items.

Top-down view of a mechanical device with a grid tray containing white plastic cups and a white bowl, against a blue background (no text or symbols visible)

Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing.

3D rendering of a white industrial machine with internal components and ventilation grilles (no visible text or symbols)

The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper basket, you can take out the left or right part of the upper cutlery basket in order to obtain more space.

Two-panel illustration of a kitchen appliance interior showing internal compartments and fixtures (no text or symbols)

Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket.

Alternative basket loads Lower Basket

Two-panel illustration showing a cutaway view of kitchen utensils and cooking pots in a grid (no text or symbols)

Top basket

3D rendered diagram of mechanical components arranged in a grid, including gears, springs, and housing (no text or symbols)

Faulty loads

Diagram showing a grid of white and blue spheres with a black 'X' symbol overlay (no text or labels)

Illustration of industrial equipment components including fans, pipes, and a machine (no text or symbols)

3D wireframe model of a grid structure with blue and white components, no visible text or symbols

3D wireframe model of a mechanical assembly with blue components and a black X mark (no text or symbols)

Program items

Programme names and temperatures	Mini 14' (P1) Quick	30' 40°C (P2)	Eco (reference) 45°C Wash (P3)	* Dual Pro Wash 60°C (P4)	Super 50' 65°C (P5)	Hygiene 60°C (P6)	Auto Delicate 30-50°C	Auto intensive 50-70°C
Type of food waste	Pre-wash to rinse and loosen residue awaiting full load then select a programme	Coffee, milk, tea, cold meats, vegetables, not kept for long	Coffee, milk, tea, cold meats, vegetables, not kept for long	For both lightly soiled delicate glassware and heavily soiled crockery at the same time.	Soups, sauces, pasta, eggs, pilaf, potato and oven dishes, fried foods	Dishes with dense dirt waiting for a long time or requiring hygienic washing	Auto program for normally soiled delicate dishes.	Auto program for heavily soiled dishes.
Level of soil light medium medium medium heavy medium heavy
Detergent amount B:25cm3/15cm3 A:5cm3		A+B A+B A+B	A+B A+B A+B	A+B
	35°C Wash 40°C Wash 45°C Wash			40°C Wash	65°C Wash	60°C Wash	Washing step are determined automatically according to the amount of contamination.
	45°C Rinse	Cold Rinse	Cold Rinse	65°C Wash	65°C Wash	65°C Wash
	End	55°C Rinse 45°C Rinse		45°C Wash	65°C Rinse	Cold Rinse
		End	Dry	65°C Rinse	End	50°C Wash
			End	Dry		65°C Rinse
				End		Dry
						End
Programme duration (min.)	14	30	138	112	50	154	77-91	124-179
Electricity consumption (kW hours)	0,57	0,88	0,65	1,43	1,29 1,75	0,81-0,96	1,22-1,8
Water consumption (liters)	7,7	10,9	12,2	15,4	10,7 18,5	10,6-17,7	12,3-24,6

Warning: Short programs do not include a drying step. The values declared above are the values obtained under laboratory conditions according to relevant standards. These values can change depending on conditions of product's use and environment (network tension, water pressure, water input temperature and environment temperature).
Warning: In Mini 14', Quick 30' and Super 50' 65°C programmes, there is no drying step. Values above have been tested according to related standards in lab condition. These values may vary due to environment conditions (mains voltage, water pressure, water inlet temperature and ambient temperature). **Eco 50°C values have been tested according to EnergySave option is selected. Open the door slightly 50mm to assist in drying of the dishes after everywash.
* Dual Pro Wash has advanced pump technology which allows for one wash to be cleaned at two separate water pressures. Baked on food doesn't stand a chance in the bottom while the delicate glasses in the top are gently being washed. I.E. the top rack is cleaned at a lighter wash pressure and the bottom rack at a higher water pressure.

Getting familiar with your machine

When the Power On/Off touch is pressed, until touching any button, two dashes appear in the program display. The perceptivity of "On/Off touch button" is to be exactly 1 sec when touched by fingertip.

2.) Program Touch Button

With the Program touch button, you can select a suitable program for your dishes.

3.) Program Display

Program display indicates the times of the programs and the remaining time during the program flow. You can also follow-up the selected programs by this display.

4.) Delayed Start Touch Button

You can delay the start time of a selected program for 1-2 ....19 hours by pressing the Delayed start touch button of your machine. When you press the Delayed start touch button, delay “1h” appears on the program display . If you continue pressing the delay timer touch , button, 1-2... 19 will be displayed respective activate the delayed start by selecting the delay time and the desired washing program with the Program touch button. It is also possible to select the program first and the delayed start afterwards. according to the last value entered.

You can also cancel Delayed start by choosing the delay timer as "0h" or hold the program touch button for 3 seconds. The display will inform you how many seconds you need to hold the button by "3-2-1..". This way, the delay countdown is cancelled.

Note: If user hold pressing continuously, delay timer starts counting faster (acceleration is proportiona I to the hold pressing time). In case of a long period of time pressed to Delayed start touch button, counter stops at “h:00”.

5.) Energy Save Touch Button

Energy save option activates door opening system at the end of the program. Auto door opening system provides required drying performance at low rinsing temperatures and reduces energy consumption.

6.) ^1/2 Half Load Touch Button

Using the function 12 , three sorts of washing up can be done those being lower basket, upper basket and both baskets.

If you have little amount of dishes in your machine and if you have to wash them, you can also activate the s function in some of the programs additionally . If you have dishes in both baskets, press the key ½ and select the position in which both lamps are highlighted.

If you have dishes only in the upper basket, pres the key 12 and select the position in which the upper lamp is illuminated. Thus, washing up shall be done only on the upper basket of your machine. No dishes should certainly be available in the lower basket while using this feature.

If you have dishes only in the lower basket, press the key 12 and select the position in which the lower lamp is illuminated. Thus, washing up shall be done only on the lower basket of your machine. In using this feature, make sure that there are no dishes in the upper basket.

Note :If you have used an extra feature on the latest washing program, this feature will remain active also on the next washing program until switch ON/OFF the machine. If you do not want to use this feature on the newly selected washing program, press theselected feature button again, and check that the lamp onthe button goes off.

7.) Extra Fast Touch Button

Washes the dishes with more pressure, thus shortens the time of the selected program and provides economical water usage.

Note: This option can be selected only at the beginning of the program.

8.) Extra Silent Touch Button

Washes the dishes with less pressure, thus provides more sensitive and silent washing.

Note: This option can be selected only at the beginning of the program.

Note: When you select an incompatible program with the silent & fast button, a buzzer sound is heard which indicates that theselected option is not compatible.

9.) Tablet Detergent Touch Button (3 in 1 button)

Press Tablet deterge nt touch button when you use combined detergents that include rinse aid.

10.) Rinse aid Warning Indicator

In order to check that there is sufficient rinse aid in your machine check Rince aid warning light on the display. When Rince aid warning light starts coming on, fill in rinse aid chamber.

End of Program

Your machine gives a buzzer sound for “5 times” when the program is completed. When the door is opened after the selected washing program is completed, the buzzer activation will be ended and ‘0’ character is showed on display.

Note: Each energized of the machine, Eco program and Energy save option are set to as default and the options that are chosen before is cancelled. When user switch from Eco to other programs, Energy save icon become Off directly.

Switching on the machine

1- Touch the power On/Off key.

Machine is energized when the On/Off touch button (1) is pressed two dashes appear in the program display.

2- Select the program suiting your dishes via the Program touch button. (2)

When you select a program with the program touch button, (2) the program you select (P1,P2,etc) appears on the program display, (3) from (P1 to P8) and the duration of the program are alternatively visualized as 3 sec. P, 1 sec. duration time.

3- If you prefer or wish to prefer, you can choose additional function. (4-9)

4- Close door. The program starts automatically.

Note: If you decide not to start to machine after selecting the program, just press the on/off touch button. (1) Your machine will become ready for the new program selection when you press on/off touch button (1) again. You can select the new program by pressing the program touch button. (2).

Program follow-up

- If you have a "InfoLED" function in your dishwasher model, you can follow the program via InfoLED. During machine is working you can see the light from InfoLED, when program is completed InfoLED turns off.

- When the door is opened after the selected washing program is completed, the buzzer activation will be ended and '0' character is showed on the display. (3)

- If the door is opened during washing cycle, remaining time of the selected program is also shown on the display. (3)

- Your machine also gives a buzzer sound for "5 times" when the program is completed.

Changing a program

If you would like to change programs while a washing program is continuing.

1- Open the door and select a new program by pressing the Program touch button. (2)
2- After closing the door, the selected new program will continue with the flux of the program but with the new parameters (temperature, cycles) of the new program.

Note: When the door of the machine is opened in order to stop the washing program before it is completed first open the door slightly in order to avoid water spillage.

Changing a program with resetting

If you would like to cancel a program while a washing program is resumed or standby position

1- Open the door of your machine. The last selected program will appear on the display. (3)
2- Keep the program touch button (2) pressed for 3 seconds. Meanwhile, Display (3) counts from “3 to 1” alternately and then shows “0:01” to indicate that cancelling is ready
3- Discharge process starts after closing the door of the machine. The machine discharges the water in it for about 30 seconds. When the program is cancelled, your machine gives a buzzer sound for “5 times”

Note: When the door of the machine is opened in order to stop the washing program before it is completed first open the door slightly in order to avoid water spillage.

Switching the machine off

After program is completed, you can switch your machine off by using the Power On/Off touch button. (1)

Note: After the buzzer sound which indicates the end of the program when the washing program comes to an end you can leave the door of your machine ajar in order to hasten the drying or you can select energy save option before starting a program to speed up your drying performance.

Note: If the machine door opens during washing or the power is cut off, the machine will go on to the program in case the door is shut or the power is back.

Program & option comparability

PROGRAMS\OPTIONS	Delayed Start	Half load (modes)	Tablet Extra rinse
Prewash	-	-	-	-
Quick 30' 40°C	X	X	-	X
Eco 50°C	X	X	X	X
Super 50' 65°C	X	X	X	X
Hygiene 60°C	-	-	-	-
Auto delicate 30°-50°C	X	X	X	X
Auto Normal 50°-60°C	X	X	X	X
Auto Intensive 60°-70°C	X	X	X	X

“-” Function cannot be selected “x” function can be selected. Extra fast and Extra silent can't be selected at the same time.

Turning on the Inner Light Option

1- Open the dishwasher door and press the Power On/Off touch button (1) to turn on the machine.
2- Press and hold both the "Tablet/Energy Save" and "Delayed start" (4) touch buttons simultaneously for 5 seconds
3-“IL0” will be shown on the display (3) for 2 seconds to indicate that the “Normal Mode” has been selected for the inner light option.
4- Once "Normal Mode" is selected, the inner light will be ON when the machine is powered on and the door is open.

Turning off the Inner Light Option

1- Open the dishwasher door and press the Power On/Off touch button (1) to turn on the machine.
2- Press and hold both the "Tablet/Energy Save" and "Delayed start" (4) touch buttons simultaneously for 5 seconds.
3- “IL1” will be shown on the display (3) for 2 seconds to indicate that the “Eco Mode” has been selected for the inner light option. Also the inner light turns OFF and ON again (blinks momentarily) to indicate that this selection is activated.
4- Once “Eco Mode” has been selected, the inner light will be ON for 4min and then turns OFF. If any user intervention occurs such as pressing touch buttons, Eco Mode cycle starts from beginning (inner light is ON for 4min and then turns OFF again)

Note: From the Factory the setting for the inner light is set to "IL1".

Buzzer sound set up

Buzzer set up can be adjusted arbitrarily.

1- Press the Power On/Off touch button".(1) (if it is in OFFposition).
2- Pressurize to "Tablet/Energy Save" (5) and "Half Load".

(7,8) touch buttons for 3 second at the same time to set the voice level.

3- While pressing "Tablet/Energy Save" (5) and "Half Load".
(6) touch buttons (during 3 second.), display shows character of countdowning from 3 to 1.

• If voice controlling is done at first time, at the end of 3 seconds, "S03" is shown in the display.
• If voice controlling is done before, At the end of 5 seconds, last setted level is shown on the display (from "S00" to "S03").

The user can increase or decrease the voice level with "Tablet" and "Half load".(6) touch buttons. The characters must be as follow;

- For increase the level of the buzzer sound

1) Press "Half load" touch button. (6)
2) Display (3) changes from "S00" to "S03"

- For decrease the level of the buzzer sound

1) Press "Tablet/Energy Save" touch button. (5)
2) Display (3) changes from "S03" to "S00". "S00" means that all buzzers are off

4- To exit voice control mode, switch off the machine.

The last voice level that user determined before is stored in memory.

Note: From level sound “3” to “1”, loudness level is reduced stages depending on level sound.

MAINTENANCE AND CLEANING

Cleaning the machine in regular intervals prolongs the machine's service life.

Oil and lime may accumulate in the machine's washing section. In case of such accumulation

-Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. In case of insufficiency, use special cleansing material available in the market. (Cleansing material produced special to machines by detergent producers.)

Cleaning the seals in the machine door

-To clean any accumulated residues in the door seals, wipe the seals regularly by using a dampened cloth.

Cleaning the machine

Clean the filters and spray arms at least once a week.

Unplug your machine and turn off its tap before starting the cleaning.

Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a dampened cloth.

Filters

Check if any food wastes have remained on the coarse and fine filters. If any food wastes are left, remove the filters and clean them thoroughly under the water tap.

a. Micro Filter
b. Coarse Filter
c. Metal/Plastic Filter

Close-up of a mechanical component with a circular dial indicator and numbered label (1), no readable text or symbols present.

To remove and clean the filter combination, turn it counter clockwise and take it out by lifting upwards.

Pull and remove the metal/plastic filter. Then pull the coarse filter out of the micro filter.2 Rinse it with lots of water under the tap. Refit the metal/plastic filter. Insert the coarse filter into the micro filter in a way that the marks will correspond to one another. Attach micro filter into the metal/plastic filter and turn to the direction of arrow and it is locked when the arrow on micro filter can be seen from across.4

Close-up of a mechanical component with a circular dial and arrow indicating rotation (no text or symbols)

• Never use your dishwasher without any filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are very important in terms of the proper running of the machine.

3D rendering of a stainless steel kitchen sink with a green handle and a circular vent (no text or symbols visible)

Spray arms

Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water.

You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

Be sure that the nut is perfectly tightened when refitting the upper spray arm.

Hose filter

Water is prevented by the inlet hose filter so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing. Check the filter and the hose from time to time and clean them if necessary. To clean the filter, first turn off your tap and then remove the hose. After removing the filter from the hose, clean it under the tap. Insert the cleaned filter back into its place inside the hose. Refit the hose.

FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE

ERROR CODE ERROR	DESCRIPTION CONTROL
F5	Inadequate water supply	Make sure the water input tap is totally open and that there is no water cut.Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose.Restart your machine, contact the service person if the error resumes.
F3	Error of continuous water input	Close the tap.Contact the service person.
F2	The waste water in the machine cannot be discharged.	Water discharge hose is clogged.The filters of your machine might be clogged.Power off-on your machine and activate the program cancellation command.If the error continues, contact the service person.
F8	Heater error	Contact the service person.
F1	Alarm is active against water overflow	Power off your machine and close the tap.Contact the service person.
FE	Faulty electronic card	Contact the service person.
F7	Overheating error (temperature in the machine is too high)	Contact the service person.
F9	Divisor position error	Contact the service person.
F6	Faulty heater sensor	Contact the service person.

If one of program monitor lights is on and start/Pause light is on and off,

Your machine's door is open, shut the door.

If the programme won't start

• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
• Be sure that you have closed the machine door.
• Be sure that you switched off the machine by pressing the Power On / Off button.
• Be sure that the water inlet filter and the machine filters are not clogged.

If the control lamps won't go out after a wash operation

The Power On/Off button is released yet.

If detergent residues are left in the detergent compartment

Detergent has been added when the detergent compartment was wet.

If water is left inside the machine at the end of the programme

• The water drain hose is clogged or twisted.
• The filters are clogged.
• The programme is not finished yet.

If the machine stops during a wash operation

• Power failure.
  • Water inlet failure.
  • Program can be on standby mode.

If shaking and hitting noises are heard during a wash operation

• Dishes placed incorrectly.

- Spray arm hitting the dishes.

If there are partial food wastes left on the dishes

• Dishes placed incorrectly into the machine, sprayed water did not reach related places.
• Basket overly loaded.
• Dishes leaning against one another.
  • Very small amount of detergent added.
• An unsuitable, rather weak wash programme selected.
• Spray arm clogged with food wastes.
• Filters clogged.
• Filters incorrectly fitted.
  • Water drain pump clogged.

If there are whitish stains on the dishes

• A very small amount of detergent is being used.
- Rinse aid dosage setting at a very low level.

If the dishes won't dry up

• A programme without a dry operation selected.
- Rinse aid dosage set too low
• Dishes unloaded too fast.

If there are rust stains on the dishes

• Stainless-steel quality of the dishes washed is insufficient.
• Unhealthy mains grounding.

Call an authorised service if the problem still persists after the controls or in case of any malfunction not described above.

PRACTICAL AND USEFUL INFORMATION

1. Whenever you will not be operating your machine

2. Unplug the machine and then turn the water off.

3. Leave the door slightly ajar in order to prevent the formation of unpleasant smells.

4. Keep the machine interior clean.

5. Eliminating water droplets

6. Wash the dishes with the intensive programme.
   • Take all of the metal containers in the machine out.

7. Do not add detergent.
8. If you properly place your dishes into the machine, you will be using it in the best way in terms
   of energy consumption, washing and drying performance.
9. Clean all rough waste before you place dirty dishes to the machine.
10. Operate the machine after it is completely full.
11. Use pre-washing program only when necessary.
12. Observe program information and average consumption values table when selecting a

program.

1. Since the machine will reach high temperatures, it should not be mounted near refrigerator.
2. If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose from the tap and allow the interior water to drain.
