LAM2503 - Range hood Lamona - Free user manual and instructions
Find the device manual for free LAM2503 Lamona in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Lamona |
| Model | LAM2503 |
| Width | 60 cm |
| Depth | 50 cm |
| Height (min-max) | 60-110 cm |
| Weight | 12 kg |
| Power Supply | 220-240 V, 50 Hz |
| Max Airflow | 320 m³/h |
| Noise Level (max) | 65 dB(A) |
| Number of Speeds | 3 |
| Lighting | 2 x 20 W halogen |
| Filter Type | Aluminum grease filter |
| Ducting | 150 mm diameter, recirculation possible |
| Control Type | Slider switch |
| Mounting | Wall-mounted, under cabinet |
| Annual Energy Consumption | 50 kWh/year |
| Energy Efficiency Class | B |
| Cleaning | Wipe with damp cloth; grease filter dishwasher safe |
| Safety Features | Overheat protection, anti-tilt bracket |
| Spare Parts | Grease filter, halogen bulbs, charcoal filter (optional) |
| Manual Languages | English, French, German, Spanish |
Frequently Asked Questions - LAM2503 Lamona
How do I install the Lamona LAM2503 range hood?

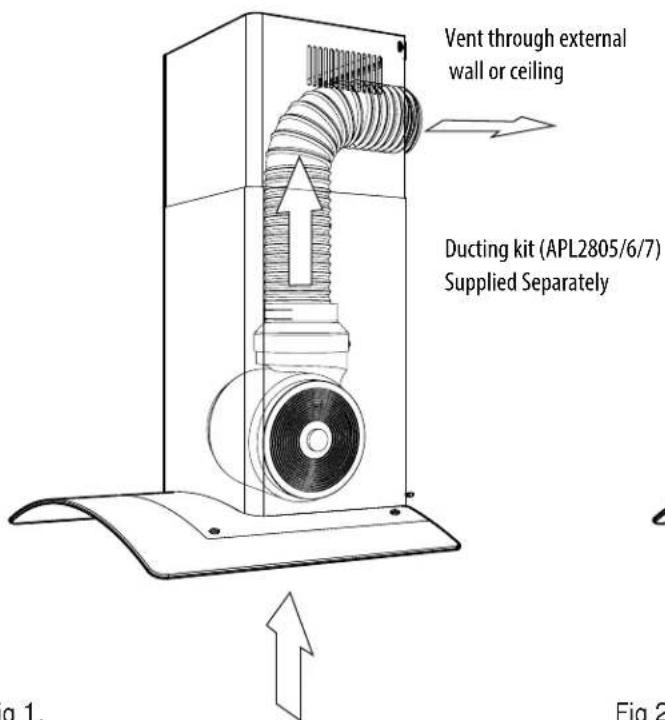

Refer to the installation manual for detailed steps. Generally, you need to secure the hood to the wall or under a cabinet, connect the ducting (or install a charcoal filter for recirculation), and wire it to a power supply. Ensure the hood is at least 65 cm above the hob.
What type of filter does the LAM2503 use?
It uses an aluminum grease filter that is washable and dishwasher safe. For recirculation mode, you need an optional charcoal filter (not included).
How often should I clean the grease filter?
Clean the grease filter every 2-3 months or more frequently if you cook heavily. You can wash it by hand with warm soapy water or in the dishwasher at low temperature.

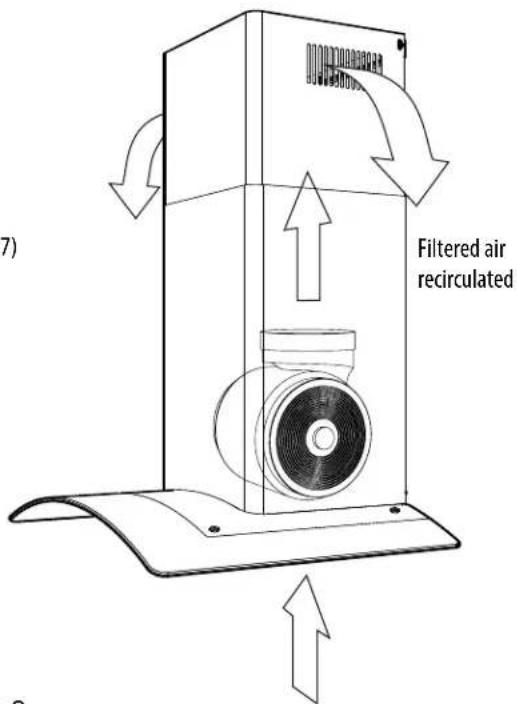

Can I use the hood without ducting?
Yes, the LAM2503 can be used in recirculation mode by installing a charcoal filter. The filtered air is then released back into the kitchen.
How do I replace the light bulbs?
The hood uses 20 W halogen bulbs (type G4). Switch off power, remove the old bulb, and insert a new one. Do not touch the glass with bare hands.
What is the noise level of this range hood?
The noise level reaches up to 65 dB(A) at maximum speed, which is comparable to a normal conversation.
My range hood is not working. What should I check?
First, check the power supply and ensure the plug is fully inserted. Verify the fuse/circuit breaker. Make sure the grease filter is clean and not blocked. If still not working, consult the manual or contact service.
What are the dimensions of the Lamona LAM2503?
The hood has a width of 60 cm, depth of 50 cm, and adjustable height from 60 to 110 cm.
Can I control the speed?
Yes, it has 3 speeds controlled by a slider switch on the front panel.
Where can I download the user manual?
The manual is available for free download from the notice-facile.com website in PDF format. Just search for Lamona LAM2503.
