Product Type	Range Hood
Brand	Lamona
Model	LAM2566
Width	60 cm
Height	15 cm
Depth	50 cm
Weight	10 kg
Power Consumption	200 W
Airflow	350 m³/h
Noise Level	50 dB
Number of Speeds	3
Controls	Mechanical push buttons
Lighting	LED, 2 x 1.5 W
Filter Type	Aluminum grease filter (washable)
Charcoal Filter	Optional (sold separately)
Ducting	Extraction or recirculation
Material	Stainless steel
Energy Class	A
Voltage / Frequency	220-240 V / 50 Hz
Installation	Under cabinet
Color	Silver
Certifications	CE

Frequently Asked Questions - LAM2566 Lamona

What are the dimensions of the Lamona LAM2566 range hood?

The Lamona LAM2566 has a width of 60 cm, a height of 15 cm, and a depth of 50 cm. Please verify exact measurements in the manual before installation.

How do I install the range hood?

Installation must be done by a qualified professional. The hood is designed for under-cabinet mounting. Ensure proper ducting for extraction mode or use the recirculation option with a charcoal filter. Refer to the manual for step-by-step instructions.

How do I clean the grease filter?

The aluminum grease filter is washable. Remove the filter and soak it in warm soapy water or clean it in a dishwasher at a low temperature. Dry thoroughly before reinstalling. Clean every month or more frequently with heavy use.

Does the hood require a charcoal filter?

A charcoal filter is optional and only needed if you use the recirculation mode (no external ducting). It needs to be replaced every 3-6 months depending on usage. The filter is not included with the hood.

What is the noise level of this range hood?

The noise level is approximately 50 dB on the highest setting, which is comparable to a normal conversation. Lower speeds are quieter.

How do I operate the controls?

The hood has mechanical push buttons. Use the buttons to select one of three fan speeds and to turn the LED lights on/off. Refer to the manual for a description of each button.

Can I use the hood without ducting?

Yes, the hood supports recirculation mode. You must install a charcoal filter (sold separately) to absorb odors and then recirculate the air back into the kitchen.

What size duct does the hood need?

For extraction mode, the hood requires a 150 mm diameter duct. Ensure the duct is as short and straight as possible for optimal performance.

How do I reset the filter indicator?

The Lamona LAM2566 does not have an electronic filter indicator. It is recommended to clean the grease filter manually every month and replace the charcoal filter every 3-6 months if used.

Is the hood energy efficient?

Yes, the hood is rated energy class A, meaning it has relatively low energy consumption. It consumes 200 W at maximum power.

USER MANUAL LAM2566 Lamona

Flat Glass Chimney Extractor

LAM2550

Instructions and Installation

Free 3 year guarantee

Call now ¹

Within the UK:

0333 010 0009

Within Republic of Ireland:

01525 5752

Alternatively, visit www.howdens.com/appliance-registration

LAMONA

3 year guarantee available.

Register your appliance within 90 days ²

By registering your appliance and creating an account, we will keep you up to date with the latest product information and notify you immediately of any important product updates

¹ Lines are open Monday to Friday 9am to 5pm. Calls will be charged at your local rate and may be recorded and monitored for training and quality purposes.

² So that in the event of an important product update, or recall, we can contact you.

Register √ my appliance

Dear Customer,

Congratulations on your choice of a LAMONA domestic appliance.

The user manual will help you use your product quickly and safely.

• Please read this user manual before installing and using the product.
  • Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful tips about usage.

Warning for possible hazards to health and property.

Warning possibility of electric shock.

Product information correct at the time of publication in May 2018.

The company has a policy of continuous product development and reserves the right to change any products and specifications given in this manual.

Figures in this manual are schematic and may not exactly match your product.

Energy Efficiency

In order to optimise efficiency of the product and reduce environmental impact we recommend the following:

• Product is installed in ducted configuration, using maximum ∅ of ducting advised in this manual, ducting as straight and as short as possible.
• Any filters are cleaned/replaced when necessary to maintain good airflow and grease filter efficiency.
• Switch on the hood at the minimum speed required to clear unwanted cooking odours.
• Switch off lighting when not in use or not required.

Metal Surfaces of the Extractor and Condensation

When cooking with pans using a large water content, large quantities of vapour and steam can be produced very quickly. This steam may condense onto the cold metallic surfaces of the extractor and even the splash back area if tiled, glazed etc.

(This is not a fault with either the hob or extractor if correctly installed.)

The amount of this condensation on any particular surface will depend on many factors including the ambient temperature in the kitchen, the related ambient temperature of the metal surfaces, the general ventilation within the kitchen, the type of food being cooked and the duration. Using lids on pans can help reduce the amount of steam being released and subsequent condensation.

This product's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. Your product also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. We thank you doing your part to protect the environment.

By placing the CE marking on this product, we declare, on our own responsibility, compliance to all of European safety, health and environmental requirements stated in the legislation for this product.

Index

Before Using the Extractor 04

Safety 04

General 04

Safety for Children 04

Safety When Working With Electricity 04

General Information and Operation 05

Extractor Layout 05

Control Panel Layout 05

Care and Maintenance 06

General Cleaning 06

Grease Filters 06

Carbon Filters 07

Replacing the Lamps 07

Installation 08

Methods of Extraction 08

Extraction Via Ducting 08

Extraction Via Recirculation 08

Parts Identification 09

Hanging Your Extractor 10

Decorative Chimney Fitting 12

Electrical Connections 13

Troubleshooting 14

Technical Specification 14

Your Guarantee 15

Before Using the Extractor

• Make sure that you have removed all packaging, wrappings, stickers and films from the extractor.
• It is recommended that you clean the extractor's surface before using for the first time.

Safety

This appliance is for domestic extraction purposes only. It must not be used for other purposes. Commercial use will void the guarantee.

The manufacturer shall not be liable for any damage caused by improper use, installation or handling errors

General

This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are supervised by a person who will be responsible for their safety or who will instruct them accordingly in the use of the product.

• Do not operate the product if the power cable is damaged. Call qualified service agent.
• Do not carry out any repairs or modifications on the product. However, you may remedy some the problems that do not require any repairs or modifications. See Troubleshooting, at the rear of this manual.
• Never wash down the product with excessive water, as there is the risk of electric shock!
• Never use the product when your judgment or coordination is impaired by the use of alcohol and/or drugs.
• Product must be disconnected from the mains during installation, maintenance, cleaning and repair procedures.

• Repair procedures must always be performed by qualified service agents. The manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised persons, which may also void the guarantee.

• Keep all ventilation slots clear of obstructions, as this may cause premature failure of the appliance

• Do not trap the mains cable and do not route it over surfaces which may become hot. The cable insulation may melt and cause a fire as a result of a short circuit.
• Make sure that the product function buttons are switched off after every use.
• Product must be installed by a qualified person in accordance with the regulations in force otherwise, the guarantee may become void.

Safety for children

Electrical products can be dangerous to children. Keep children away from the product when it is operating and do not allow them to play with or near the product.

The packaging materials will be dangerous for children. Keep the packaging materials away from children. Please dispose of all parts of the packaging according to environmental standards.

Safety When Working With Electricity

In case of any damage, switch off the product and disconnect it from the mains. To do this, turn off the fuse at the fuse box.

Make sure that fuse rating is compatible with the product.

General Information & operation

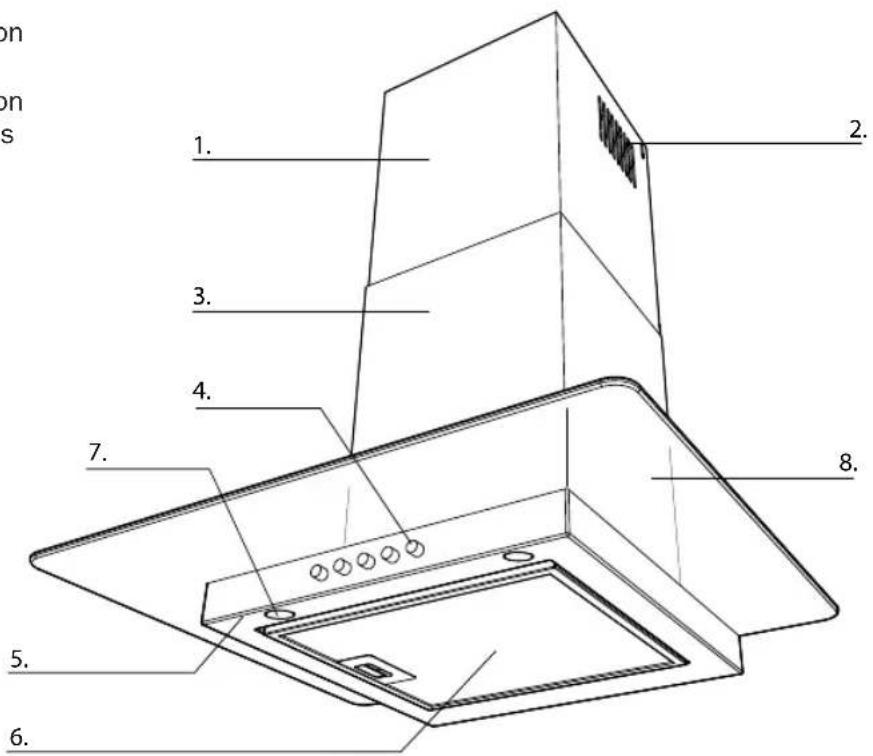

Extractor Layout

1. Upper Chimney Section
2. Recirculation Vent
3. Lower Chimney Section
4. Fan and Light Controls
5. Extractor Body
6. Grease Filters
7. Light
8. Glass Canopy

Control Panel Layout

1. Extractor Power off
2. Extractor Power Level 1
3. Extractor Power Level 2
4. Extractor Power Level 3
5. Extractor Light On/Off

1.2.3.4.5.

Care and Maintenance

Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected.

To avoid the possibility of fire, adhere strictly to all of the recommendations included in this booklet, paying particular attention to the grease filters to ensure grease deposits do not build up.

The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed.

If the power cable is cut or damaged in any way, disconnect the extractor from the electricity supply and call the service number on the rear cover of this booklet or a suitably qualified repairer.

General Cleaning

Wipe the external surfaces of the appliance regularly using warm water and a mild detergent. NEVER use abrasive cleaners.

The Grease Filters

The grease filse of a metallic material and should be cleaned regularly to maintain performance and avoid a potential overheating grease hazard. Wash using a neutral detergent and allow to dry.

To Remove the grease filters:

1 Push Latch
2 Low retliF re
3 Unhook and Remove

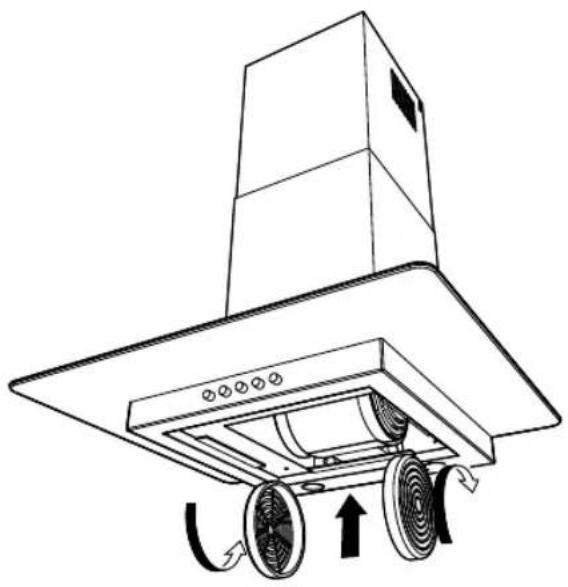

The Carbon Filters

Carbon filters a limited life. We advise you to change them when there is a noticeable drop in performance. The intervals between changing the filter will depend entirely upon the amount of cooking you do, but on average they will last about 6 months. Please quote the part reference number HJA2906 (pack of 2) when re-ordering.

• To gain access to the carbon filters, first of all remove the grease filters as above.
• Remove the old filters and install new charcoal filters by turning them gently

Replacing the Lamps

The extractor hood is fitted with 2W 3000k warm white LEDs which will give many years of reliable service. Lamps are service fix only and replacement should be carried out by an authorised service agent. In the event of the lamps failing please call the service number. This product contains a light source with energy efficiency of A.

Lamp ref: DBR-2/30-H-64

Round: 2W 220-240V AC

The lamps on this appliance should only be used during operation of the cooker hood. They should not be left on permanently and used as a main lighting source. The extractor is for domestic use only.

Installation

Methods of Extraction

The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. Suitable Ducting kits part ref: APL2805/6/7 may be purchased from the depot where you bought the extractor. You do not need charcoal filters when using the external Ducting mode.

Fig 1. Ducting mode (APL2805/6/7) ducting Kit (Supplied Separately)

Fig 2. Recirculation mode (Charcoal filters required)

Extraction Via Ducting

Never use the hood in areas where devices with exhaust pipes connected to the outside are already operating unless perfect ventilation can be guaranteed.

- Connect the external ducting kit to the outlet of the extractor.

Charcoal filas not required if the extractor is to be ducted out.

Tips for ducting:

• Keep duct work short and straight.
  • Do not reduce the size or diameter of the duct.
• Keep ductwork taut to minimise pressure loss.

Extraction Via Recirculation

For extraction via recirculation, attach 2 charcoal filters to the sides of the motor inside the hood. (Part reference HJA2906)

Before attempting to change or fit the charcoal filters ensure power to the extractor is switched off.

• Remove the grease filters
• Align the carbon filters over the pins located on either side of the fan motor.
• Turn the carbon filters gently, until you feel them click into postilion.
• Replace the grease filters before the power supply is turned back on.

Parts Identification

On opening your box you will file the extractor body, a two-piece telescopic decorative chimney, a bag of wall fixings and screws, two fix brackets, a ducting connector and reducer. The glass for this extractor will be packed separately.

Parts List Key

1. Main Extractor Body
2. Lower Chimney
3. Upper Chimney
4. Glass Canopy (supplied separate)
5. Ducting Outlet Reducer
6. Upper Wall Bracket

7. Lower Wall Bracket

8. Small Chimney Screw

9. Wall Fixing Screw
10. Rawl Plug
11. Glass Canopy Fixing Screw
12. Rubber Mounting Grommet
13. Cable Grid

Hanging Your Extractor

This instruction must be strictly adhered to. Failure to comply could result in overheating and serious damage to your appliance. It is recommended that the installation is carried out by two people.

Before drilling or chiselling the ceiling or wall, check for pipes and power cables.

• If ducting externally ensure the ducting tube is kept as short as possible and with the minimum of bends to permit the smoothest airflow. (Maximum length 3 metres.). Ducted air must not be discharged into a flue, which is used for exhausting fumes from appliances supplied with energy other than electricity. (E.g. gas boilers)
• Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust air.
• Ensure adequate room ventilation is provided when the extractor is used in the same room as appliances supplied with energy other than electricity.
• Never duct into a hot air flow such as a central heating duct

⚠️ We strongly advise that all exterior outlets be fitted with a non return flap or louvred slatting.

• Remove the grease before trying to install.
• The recommended fixing height for the hood is 750mm above the worktop. This can be reduced to a minimum of 700mm if required.
• Mark and drill the holes required to mount the extractor body.
• The principal securing point is the top keyhole slot; fix this screw fileaving approximately 5mm between the screw head and the wall.
• With the help of an assistant, level and secure in position through the lower two holes tightening the upper screws as necessary.

Decorative Chimney and Glass Fitting

DO NOT: Operate the extractor Without the grease filters in Position.

Fitting the Glass

• Once the extractor is firmly secured to the wall, the glass can then be slid into place.
• Using the rubber grommets '12' and the screws '11' secure the glass to the main body ensuring you do not over tighten the screws.
• Fit the chimney sections above the extractor glass and secure into the brackets above with the screws '8'.

Chimney Sections

• Connect the extractor to the electricity supply (see electrical connections page). We recommend an isolation switch that is accessible after installation.
• Attach the wall bracket '7' to the rear of the lower chimney section using the small screws '8' and slide both chimney sections together.
• Rest the chimney sections on the main extractor glass and mark up the lower bracket fixing point.
• Extend the upper section to the ceiling, using the extended chimney to mark-up the position of the upper fixing bracket '6'
• Remove both chimney sections, drill and secure the upper fixing bracket '7' into position with appropriate fixings.
• Fit the Appropriate ducting kit if venting externally (Outlet reducer '5' maybe required depending on your ducting kit.)
• Resit the chimney sections on to the extractor body and secure the lower wall bracket using the screws '9' provided.
• Extend the upper chimney to the ceiling and attach to the Upper bracket with the small screws '8'
  • Re-fit the grease filters

Electrical Connections

IMPORTANT: Ensure that the electricity supply is switched off before connecting.

Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation. The isolation switch must be accessible after installation. (See technical data for fuse rating).

We strongly recommend the appliance is connected by a suitably qualified person. The product must be installed in accordance with all local regulations.

The terminology DOUBLE POLE -/+ means that both the live and neutral supplies are switched and connected at the same time.

The terminations labelled SUPPLY are the connections for the internal house wiring and the terminations labelled LOAD are for connection to the appliance.

IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-

Blue......Neutral

Brown.....Live

Green / Yellow.....Earth

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your spur box, proceed as follows;

The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured BLACK. The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or coloured RED. The wire which is coloured GREEN / YELLOW must be connected to the terminal which is marked with the letter 'E' or Symbol.

.4 giF .3 giF

Troubleshooting

TROUBLESHOOTING GUIDE

Symptoms Possible Cause Solutions
Light functions but fan does not	Motor temp has exceeded and thermal fuse has tripped.	Switch off the extractor and allow it to cool down and the fuse will auto reset.Check the filter condition and clean or replace as required.
Lamps fail to operate?	Lamps internal fault.Power is cut (extractor will not function).Lamp has passed its usable life.	Call the authorised service agent.
Motor is on but fan does not seem to be as efficient as usual?	Clogged filters can reduce the product's efficiency. Check the grease and charcoal filters (if false) ensure any venting is not obstructed?	Clean the grease filters with warm water and mild detergent, and/or replace any charcoal filters
The extractor works normally but smells linger?	Clogged filters can reduce the product's efficiency and may cause unwanted smells.	Clean the grease filters with warm water and mild detergent, and/or replace any charcoal filters.
Product does not operate?	The mains fuse maybe defective or has tripped	Check fuses in the fuse box. If necessary, replace or reset them.
	Product is not connected properly. Check all power connections.

If you cannot eliminate the problem after following the instructions in this section, consult your not or the Authorised Service Agent. Never try to repair a nonfunctional product yourself.

Technical Specification

TECHNICAL INFORMATION

General
Total power consumption 129W
Fuse	3 A
Voltage /Frequency 220-240 V ~ 50 Hz
Cable type / section 0.75mm 2 , 2 core or equivalent
Cable length max. 1.3m
Lamps 2x 2W DBR-2/30-H-64, 3000K warm white LED

Metal Surfaces of the Extractor and Condensation

When cooking with pans using a large water content, large quantities of vapour and steam can be produced very quickly. This steam may condense onto the cold metallic surfaces of the extractor and even the splash back area if tiled, glazed etc (This is not a fault with either the hob or extractor if correctly installed). The amount of this condensation on any particular surface will depend on many factors including the ambient temperature in the kitchen, the related ambient temperature of the metal surfaces, the general ventilation within the kitchen, the type of food being cooked and the duration. Using lids on pans can help reduce the amount of steam being released and subsequent condensation.

Your guarantee

Product Guarantee Details (UK and Republic of Ireland only)

Your appliance has the benefit of a comprehensive manufacturer's guarantee which covers the cost of breakdown repairs. (Details of which are shown on your Proof of Purchase Document).

• Any claim during the period of the guarantee MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE.
• The product must be correctly installed and operated in accordance with the manufacturer's instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alterations which are likely to affect the product.
• The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person. (The guarantee in no way affects your statutory or legal rights).

What to do if you need to report a problem

Please ensure you have ready:

• The product's model and serial numbers.
• Howdens Proof of Purchase Document.
• Your full contact details.

Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen.

or

Call the LAMONA Service Line on:

Within the UK: 0344 460 0006

Within Republic of Ireland: 01525 5703

- Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance.

Where to find model and serial number on your appliance.

Inside the extractor cavity

Spare Parts availability – 10 years

Only fit Genuine Spare Parts

www.lamonaspares.co.uk (UK only)

Product serial number

(Place sticker here)

LAMONA

at the heart of the kitchen

Howden Joinery Ltd, Thorpe Road, Howden, East Yorkshire, DN14 7PA

Imported in EU by: Houdan Cuisines SAS, Z.A. du Bois Rigault Nord, 1 Rue Calmette, 62880 Vendin-le-Vieil, Cedex, France.

Product information correct at the time of publication in March 2022.

The company has a policy of continuous product development and reserves the right to change any products and specifications given in this manual. Subject to the Terms and Conditions of Trading, a copy of the Howdens Terms and Conditions is available upon request.

Copyright © 2022 Howden Joinery Ltd. All rights reserved.
