Product Type	Microwave
Brand	Kenwood
Model	K30GSS12
Capacity	30 liters
Microwave Power	900 W
Grill Power	1000 W
Convection	No
Control Type	Digital touch control
Display	LED display
Dimensions (W x D x H)	510 x 450 x 310 mm
Weight	14.5 kg
Voltage	230 V / 50 Hz
Number of Power Levels	10
Auto Cook Programs	8
Defrost Function	Yes, by weight or time
Child Lock	Yes
Turntable	Yes, removable
Interior Light	Yes
Timer	Up to 95 minutes
Door Type	Drop-down
Material	Stainless steel
Cleaning	Wipe with damp cloth, avoid abrasives
Spare Parts Availability	Contact Kenwood service center

Frequently Asked Questions - K30GSS12 KENWOOD

How do I set the clock on my Kenwood K30GSS12 microwave?

Press the Clock button, then use the numeric keypad to enter the time. Press Clock again to confirm.

How do I use the defrost function?

Press the Defrost button, then enter the weight of the food. The microwave will automatically set the time and power level.

What is the maximum cooking time?

The maximum cooking time is 95 minutes. Use the timer knob or numeric keypad to set.

How do I activate the child lock?

Press and hold the Stop/Cancel button for 3 seconds. The display will show a lock icon. Repeat to deactivate.

Can I remove the turntable for cleaning?

Yes, the turntable is removable. Lift it straight up and wash with warm soapy water. Wipe the turntable support.

What power levels are available?

There are 10 power levels, from 0 (defrost) to 100 (high). Use the Power Level button to adjust.

How do I clean the microwave interior?

Wipe with a soft damp cloth. For stubborn stains, use a mild detergent. Avoid harsh abrasive cleaners.

What does the error code E-01 mean?

Error code E-01 indicates a problem with the door switch. Ensure the door is fully closed and try again. If persists, contact support.

Does the K30GSS12 have a convection function?

No, this model is a microwave with grill but without convection. It uses microwave and grill modes.

Where can I find the serial number?

The serial number is located on the rear panel of the microwave, usually on a sticker.

USER MANUAL K30GSS12 KENWOOD

30 Litre Stainless Steel Microwave with Grill K30GSS12

instruction manual

contents

safety warnings 4

unpacking....9

getting ready....10

introducing microwave cooking ....11

cooking with a microwave....11

checking your cooking utensils....12

using aluminium foil in your microwave 12

materials that can be used in the microwave....13

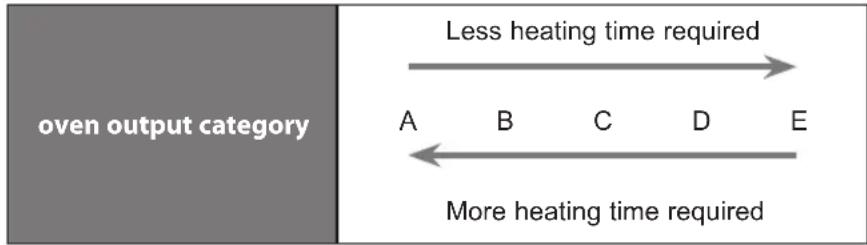

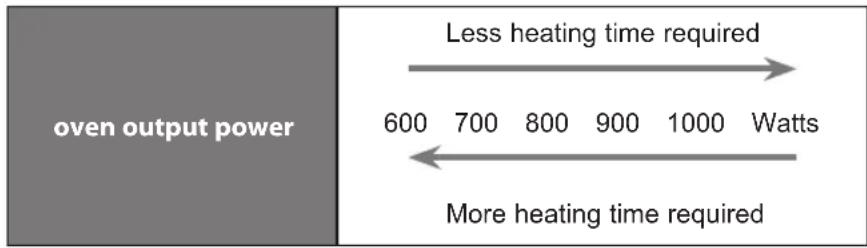

microwave heating categories ....14

steam 15

condensation ....15

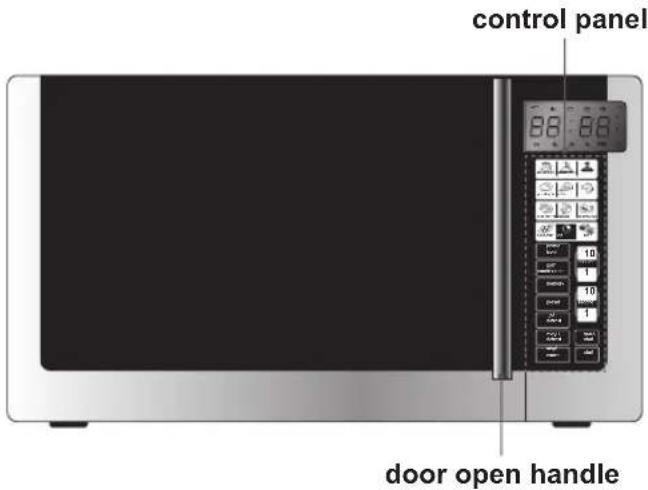

product overview.... 16

the main unit 16

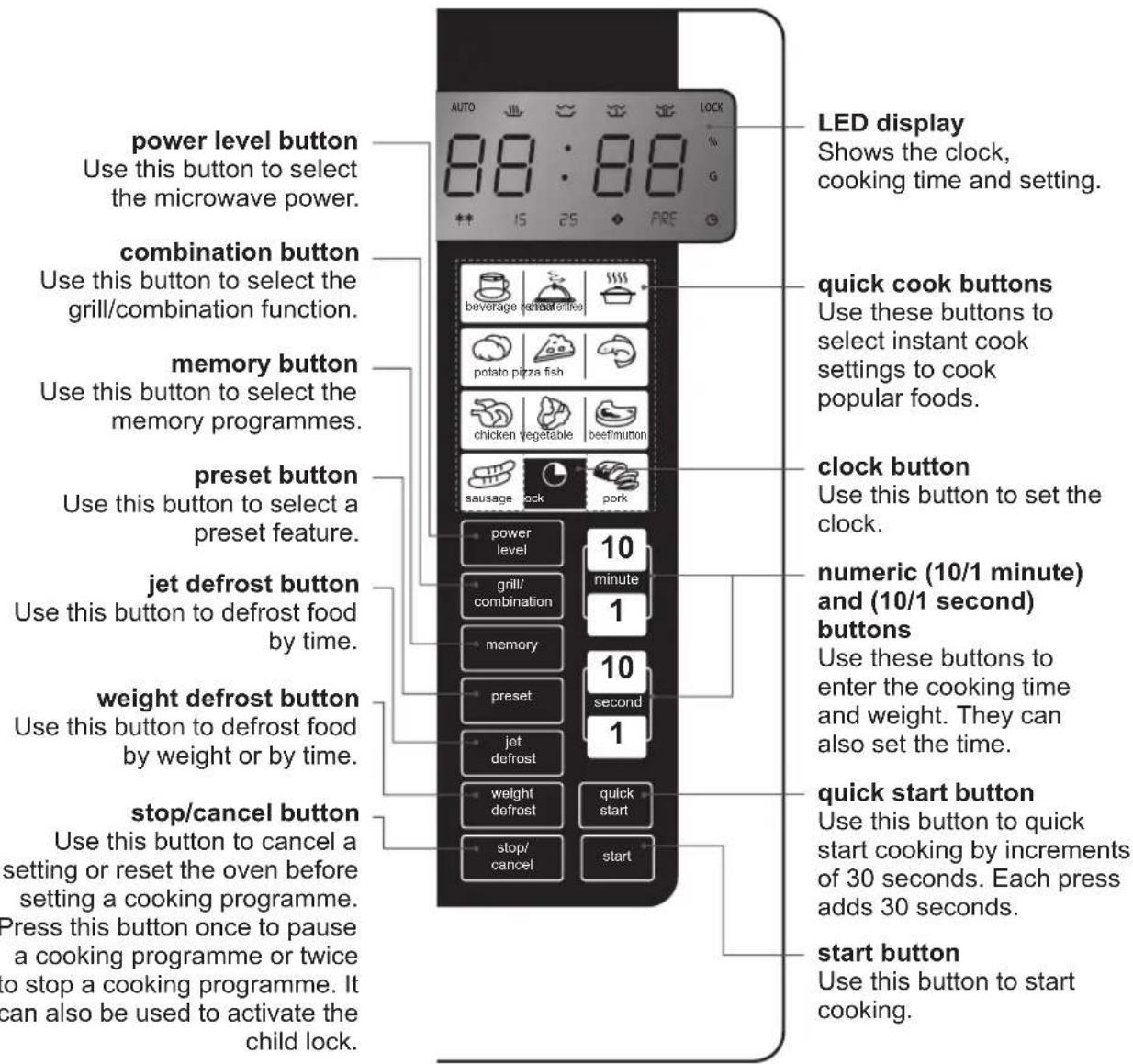

the control panel ....16

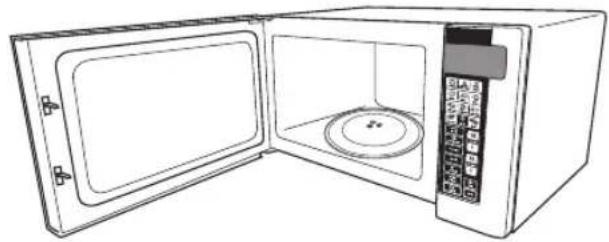

checking your microwave.... 17

clock setting.... 18

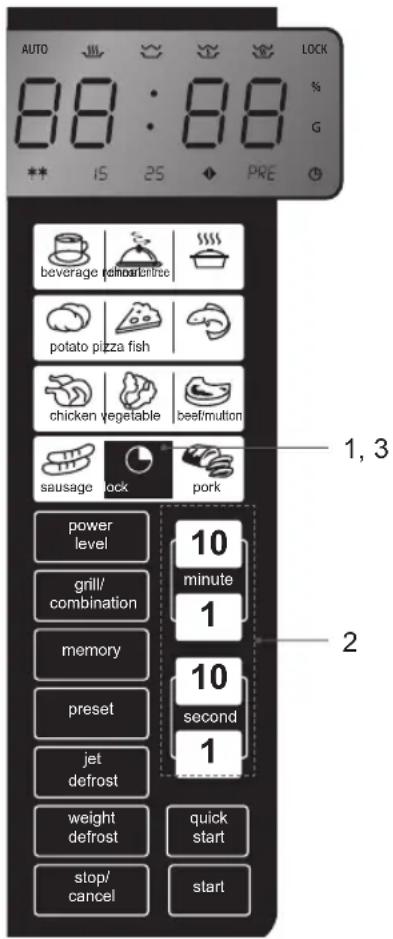

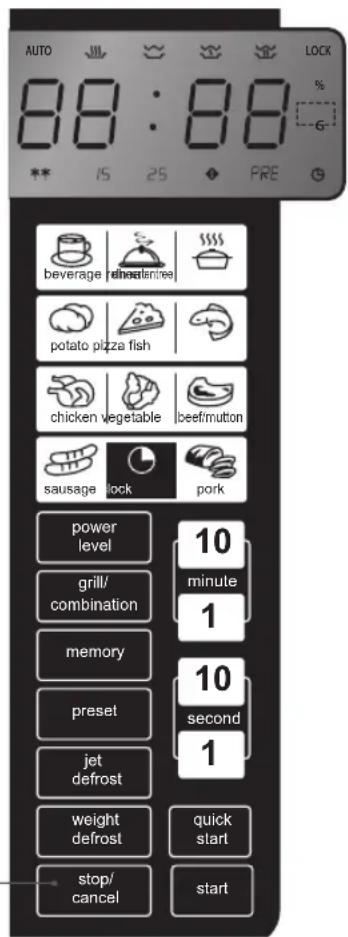

setting the child lock.... 19

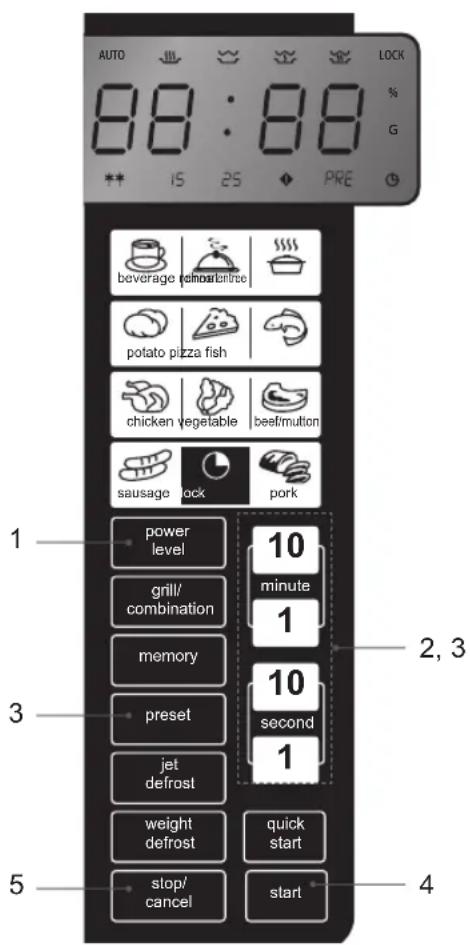

microwave cooking 20

grill or combination cooking 21

multi-stage cooking....23

auto cooking 24

auto-cook menu....24

auto-cook menu table 25

weight defrost....26

jet defrost 27

preset cooking (programme set in advance).... 28

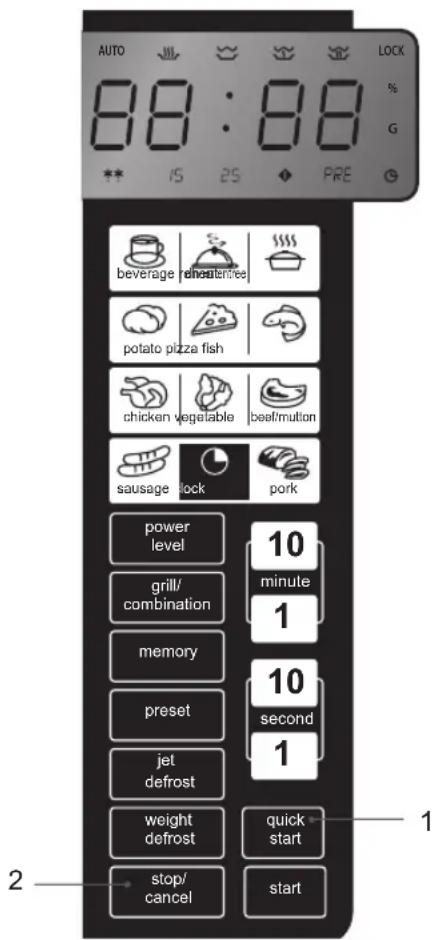

quick start cooking....29

querying the cooking function.... 30

to find out the current cooking setting....30

cleaning your microwave.... 31

frequently asked questions....32

specifications.... 33

safety warnings

general safety

- Switch off and unplug before fitting or removing tools/attachments, after use and before cleaning.

- Keep your fingers away from moving parts and fitted attachments.

- Never use a damaged appliance.

- Never operate the appliance when it is empty.

- Keep the mains cable out of reach from children.

- Keep the unit, mains cable and plug away from water.

- Never exceed the maximum capacities.

- When using an attachment, read the accompanying safety instructions.

• Take care when lifting this appliance as it is heavy.

- You should always have your appliance checked by a qualified service agent if it has been dropped or damaged to ensure it is safe to use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance is for indoor, domestic, household use only.

- Do not install the microwave in a cabinet.

maintenance of your microwave

warning : It is hazardous for anyone other than a qualified service agent to carry out any service or repair operation which involves the removal of a cover that gives protection against exposure to microwave energy.

warning : If the door or door seals are damaged, the microwave must not be operated until it has been repaired by a qualified service agent.

• If smoke is observed, switch off or unplug the microwave and keep the door closed in order to stifle any flames.
• If the mains cable is damaged, it must be replaced by a qualified service agent.
• If you have a pacemaker, please contact your doctor before using a microwave.

microwave Use

• This microwave is not intended for commercial use.
• It should never be used for drying clothes or for other non-food purposes.
• The microwave should not be left unattended when in use.
• The temperature of accessible surfaces may be high when the microwave is operating.
• To prevent high moisture content gathering inside the microwave cavity, open the door immediately after the cooking function has stopped to allow steam to escape.
• Only use utensils that are suitable for microwave use.
• Care should be taken when using paper, plastic, wooden or other combustible materials in the microwave as they can catch fire.
• Oil & fat for deep frying should not be heated in the microwave.
• Only use cling film designed for microwave use and take extra care when removing the film to avoid steam burns.
• Only heat popcorn that has been designed for microwave use.

cooking use

• As the power of different microwaves can vary considerably, care must be taken when first using this microwave as it may cook faster than expected.
• Do not leave the microwave unattended during use.
  • Take care when cooking food with a high sugar or fat content, such as Christmas pudding or fruitcake. The sugar or fat can overheat and in some cases catch fire.

warning : Only allow children to use the microwave without supervision when adequate instructions have given so that the child is able to use the in a safe way and understands the hazards of improper use; DO NOT assume that because a child has mastered one cooking skill he/she can cook everything without close supervision. The microwave MUST NOT be treated nor used like a toy.

fire!

In the event of fire:

• Keep the microwave door closed.
• Turn off the power.

- Unplug the microwave from the mains power.

first aid

Treat scalding by:

• Quickly placing the scald under cold running water for at least 10 minutes.
• Cover with a clean dry dressing. Do not use creams, oils or lotions.

cleaning your microwave

The microwave should be cleaned regularly and food deposits removed. Failure to maintain the microwave in a clean condition can affect the life of the microwave and possibly result in a hazardous situation. (See cleaning your microwave.)

do not use these in your microwave

- Metal objects are not to be used in the microwave. These include:

• Metal cooking utensils
• Metal plates or trays
• Wine twist ties
• Crockery with metal trim
• Meat thermometer

- Never use equipment made of metal, except aluminium foil in your microwave. The microwave energy cannot pass through metal so it bounces off and sparks against the inside of the microwave.

- Stop the microwave straight away if any item is causing sparks.

- Remember that some crockery has a metal trim. Even this trim can cause sparks.

containers

warning : Pressure will build up in sealed containers and can cause them to explode. Therefore, do not use the following in your microwave:

• Sealed containers - Capped bottles
• Vacuum containers - Sealed jars
• Hard-boiled eggs - Eggs in their shells
• Nuts

• Always pierce the skin of fruit and vegetables, such as potatoes.

- Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.

- When heating food in plastic or paper containers, keep an eye on the microwave due to the possibility of ignition.

delayed boiling

Liquids heated in a microwave can boil up when removing them from the microwave.

Take the following precautions:

• Always stir liquids, before and after cooking.
- Allow them to stand.
- Use containers that are wider at the top than at the bottom.

preparing food for babies

Extra care must be taken when preparing food or drink for babies and small children.

• Always test the food or liquid temperature before feeding it to the baby.
• When using a baby bottle, ensure the teat is removed before heating.
• When warming milk, ensure the bottle is shaken.

caution!

hot surface

During cooking the outer surface will become hot. Do not touch the outer casing of the microwave. Care should be taken not to store any items on top of your microwave.

earthing instructions

warning: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a mains cable having an earthed plug.
• The plug must be plugged into an appropriate mains socket that is installed and earthed in accordance with all local standards and requirements.

warning!

• Improper connection of the appliance-earthing conductor can result in a risk of an electric shock.
• Check with a qualified service agent if you are in doubt whether the appliance is properly earthed.
• Never modify the plug provided with the appliance.
• If the plug does not fit properly in the mains socket, have a qualified electrician install a proper mains socket.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
• The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Thank you for purchasing your new Kenwood Microwave.

These operating instructions will help you use it properly and safely.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

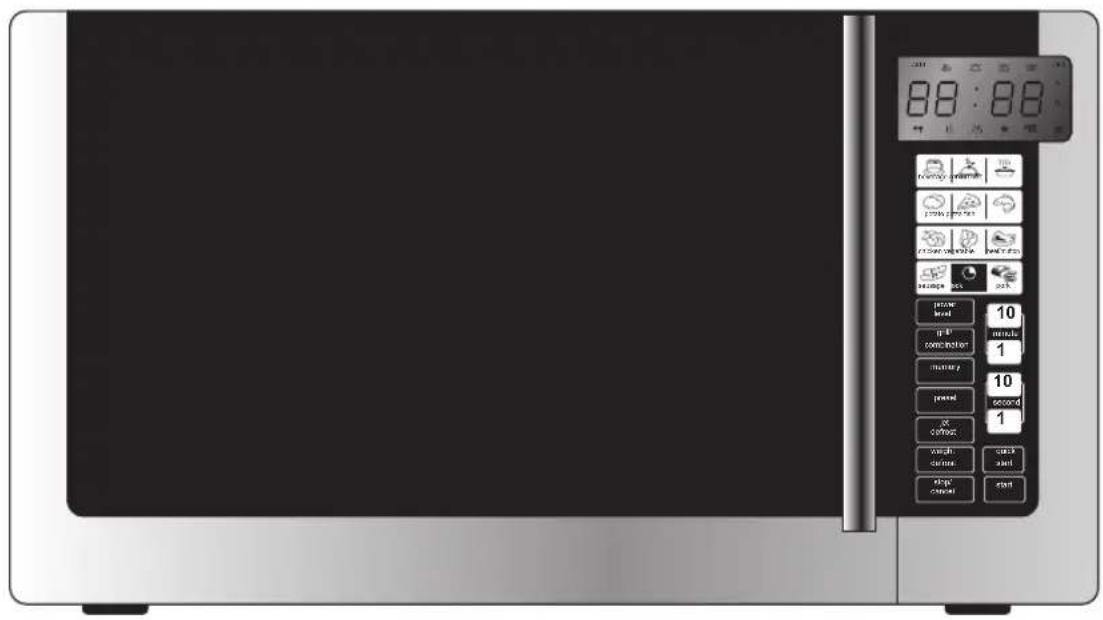

Front view of a microwave oven with digital display and control buttons (no visible text or symbols)

The Main Unit

Line drawing of a circular metal grate with two legs and a handle, no text or symbols present

Grill Rack x 1
P.N.: XGALK30GSS12P41

Simple line drawing of concentric ovals with small dots at the center (no text or symbols)

Glass Turntable Plate x 1
P.N.: XGALK30GSS12P12

Turntable Support x 1
P.N.: XGALK30GSS12P11

Instruction Manual x 1
IB-K30GSS12-RC-130808V1

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

getting ready

This microwave is designed for home use only. It should not be used for commercial catering.

1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents, and the door closes properly. A damaged microwave could allow microwave energy to escape. Make sure that you have taken out all the packaging from inside the microwave. Please dispose of the plastic wrappings / bags safely and keep out of the reach of babies and young children.

2. Choose a flat work surface for your microwave away from heat sources such as radiators or fires and away from cold areas. You should allow a 10cm space all around the microwave and 30cm above so that warm air can escape from the vents during cooking. This microwave is not designed to be built in.

3. Plug your microwave into a standard household electrical socket (230 volt, 13 amp rated). Avoid using a socket that also has an adaptor and other equipment plugged in. Do not use a multi-adaptor.

4. Put the turntable support inside the microwave and place the glass turntable plate on top of the support. The turntable support is shaped to sit securely on the spindle. You must always use the turntable plate and support whenever you use the microwave.

5. To protect your work surface, we recommend that you fix some non-slip cushion buttons (not included) to the underside of the microwave.

Remove the turntable plate and turntable support before turning the microwave upside down.

Line drawing of a microwave oven with open door and lid, showing internal components (no text or symbols)

Simple line drawing of a tilted rectangular object with a diagonal line and circular holes, no text or symbols present.

Underside View

introducing microwave cooking

Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food.

This page gives some of the basic guidelines for microwave cooking. If you are unfamiliar with using a microwave, there is more information at the back of this instruction manual.

cooking with a microwave

Cooking with a microwave is much faster than conventional cooking and, whilst you should make sure that food is fully cooked, you should be careful not to overcook it. Food can catch fire if excessive cooking times are used.

• Microwave energy can heat unevenly so stirring to distribute heat is very important. Always stir from the outside, inwards.
• If you are cooking a number of individual foods at the same time, such as baked potatoes or small cakes, arrange them evenly on the turntable plate so that they cook evenly. Never stack food in the microwave.
• Turn larger foods such as meat roasts and poultry during cooking so that the top and bottom cook evenly. It is also recommended to turn pieces of meat or poultry, especially if they have not been deboned.
• Meat and poultry which is cooked for 15 minutes or more will brown lightly in its own fat. Anything cooked for a shorter time can be brushed with a browning sauce to give an appetising colour.

If you are unsure how long the food should cook for, begin cooking at the lowest recommended time, then add more time if necessary. The moisture content of food can vary. Ensure food is thoroughly cooked all the way to the centre before serving.

• Strips of aluminium foil can be used to cover the thinner pieces of food to stop them overcooking before the thicker parts of the food have had a chance to cook. Use the aluminium foil sparingly and wrap around the food or container carefully to stop it touching the inside of the microwave which could cause sparks.
• Microwaves cook food using microwave energy that is similar to naturally occurring radio waves. Normally, these “waves” would fade as they disappear into the atmosphere but in a microwave they are concentrated on the food causing it to heat up.
• Microwave energy cannot pass through metal – so it can not escape from inside your microwave – but it can pass through materials like glass, porcelain, plastic, and paper. These are the things used to make microwave-safe cooking equipment.

- Microwave-safe cooking equipment will still get hot as the food it contains heats up.

- The microwave energy focuses on the moisture in the food causing lots of tiny vibrations. The vibrations get so great that the moisture – and the food – heat up.

Simple line drawing of a bowl with steam rising from it, no text or symbols present

checking your cooking utensils

Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If made of plastic or glass, utensils will be marked as “microwave safe” or similar.

If you are not sure and/or there is no microwave-safe marking on the utensil, do NOT use it in the microwave.

For the types of utensils you can use in the microwave, please see the "Materials That Can Be Used" section.

• Never use equipment made of metal, except aluminium foil in your microwave oven.
• The microwave energy can not pass through the metal so it bounces off and sparks against the inside of the oven.
• Stop the microwave straight away if any equipment does cause sparks.
• Remember that some crockery has a metal trim around the edge. Even this trim can cause sparks.
• Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.

using aluminium foil in your microwave

It is safe to use aluminium foil in your microwave as long as you follow these safety guidelines.

As with all metals, microwave energy cannot pass through aluminium foil, but provided you keep the aluminium foil away from the side of the microwave it will not cause sparks and there will not be any damage to your microwave.

Using aluminium foil is a good way of shielding parts of food that you do not want to cook as quickly as others – perhaps where the food is narrower and would otherwise overcook.

Place the aluminium foil over the area you want to shield, taking care that the aluminium foil will not touch the sides of the microwave when the turntable plate rotates. Only use one piece of aluminium foil at a time so that you do not get sparks between the separate pieces.

Follow these guidelines when using aluminium foil in your microwave:

• Remove aluminium foil lids from containers before using in the microwave. Some lids are made of card with a aluminium foil covering – these should be removed too. Use a microwave safe transparent lid if possible.
• Stir food during cooking if the container has a lid or film cover.
  • Always use the glass turntable plate.
• Use shallow containers with a large surface area. Do not use containers that are more than 1.25in (3.5cm) deep.
• Use gloves when handling hot aluminium foil containers.
• Do not completely cover food with aluminium foil. The microwave energy cannot pass through the aluminium foil so the food will not cook.
• Do not let aluminium foil touch the inside of the microwave.
• Do not use more than one piece of aluminium foil in the microwave at the same time.

utensils remarks
Aluminum foil Shielding	only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow m	manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave	safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glassware Heat-resistant	oven glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Oven cooking bags Follow	manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups Use	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Greaseproof paper Use	as a cover to prevent splattering or a wrap for steaming.
Plastic containers Micro	wave-safe only. Follow the manufacturer's instructions. Should be labelled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by the instructions on their packaging.
Plastic wrap Microwave	safe only. Use to cover food during cooking to retain moisture.Do not allow plastic wrap to touch food.

microwave heating categories

Your microwave has been tested and labelled to meet the UK government's voluntary agreement on the reheating of pre-cooked food.

The heating characteristics and output power levels of microwaves are usually calculated using a relatively large portion of food (a 1000 gram load, IEC 60705) but many packs of pre-cooked food are sold in smaller packs, often about 350 grams.

The UK government, in partnership with food companies and microwave manufacturers, has set up a system of heating categories to help you choose the reheating time for pre-cooked food.

900W is the output power of the microwave. (IEC 60705)

E is the heating category for your microwave. Check the cooking times for category E on the food's packaging to see how long it should be cooked for.

The category (a letter from A to E), is designed to help you reheat small quantities of food such as microwave ready meals.

The label given above and also on the oven door gives the heating category and output power of the oven.

Microwave ready meals weighing up to 500g (1lb 2oz) should have cooking instructions for heating categories A to E. Follow the instructions for the letter that corresponds to the heating category of the oven.

The higher the output power and heating category of the oven the less heating time is required. This is shown in the diagrams below:

Start cooking at the lowest recommended time, and add more time if necessary. The moisture content of food can vary, ensure food is cooked thoroughly all the way to the centre before serving.

steam

When you microwave food, steam is created as water in the food heats up and evaporates.

The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the microwave. It does this through the vents on the back of the microwave and from around the door.

condensation

As the steam cools, you may find that condensation gathers in small pools inside your microwave and on the work surface beneath the door and vents. Always dry the microwave after cooking foods with a high moisture content.

Your microwave is designed to let steam escape from the vents and around the door without microwave energy escaping. There is no danger of microwave energy escaping with the steam.

Illustration of a microwave oven with digital display and control panel, emitting cloud shapes (no text or symbols)

product overview

the main unit

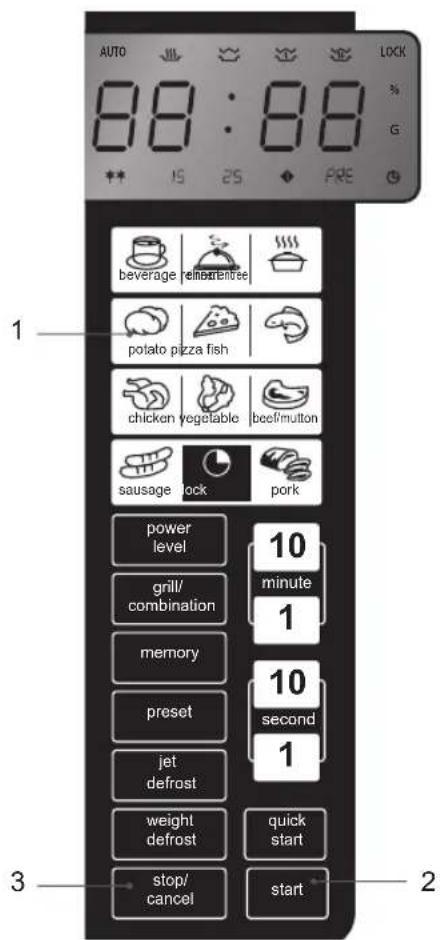

the control panel

checking your microwave

Check your microwave after unpacking.

For your safety, the microwave stops if the door is opened during cooking. Close the door and press the start button to continue the cooking cycle.

1. Pull the handle to open the door.
2. Place a cup of water on the glass turntable plate. Make sure the cup is microwave-safe (it should not have any decorative metal trim).
3. Close the door.
4. Press the stop/cancel button to clear any settings that have already been made.
5. Press the quick start button to start a simple 30-second microwave cooking cycle and that allows you to check the operation of the microwave.
6. When the cooking cycle has finished, the water should be hot (be careful when you take the cup out of the microwave).
7. Press the stop/cancel button to clear any settings.

Line drawing of a microwave oven with open door and control panel (no text or symbols)

clock setting

When the microwave is connected to the mains power, the LED display will show "1:01", and the microwave will sound once. Please ensure that you have set the clock prior to use.

Please follow the steps below to set the clock.

1. Press the clock button once and the LED display will show "12 H" (for 12-hour setting). Press the clock button again and the LED display will show "24 H" (for 24-hour setting).
2. Press the numeric buttons and enter the time. For example, to input the current time 1:30 in the afternoon:

In 12-hour setting, you need to press the 1 minute button once and then press the 10 second button three times. The LED display will show "1:30". In 24-hour setting, you need to press the 10 minute button once, 1 minute button three times and then press the 10 second button three times. The LED display will show "13:30".

1. Press the clock button again to complete the clock setting.

“:” will stop flashing and to confirm that the clock setting is complete.

• If the clock needs to be re-set, please repeat steps 1 to 3.
• To find out the current time while the microwave is in use, press the clock button. It will display the current time for 2-3 seconds, then return to the remaining cooking time.

setting the child lock

This feature prevents the microwave from operating by locking the control panel until you cancel it. Please follow the steps below to set the child lock.

1. Press the stop/cancel button for 3 seconds and a "beep" will sound. The child lock indicator LOCK will illuminate on the LED display to indicate that the microwave has set the child lock.
2. To release the child lock, press the stop/cancel button again for 3 seconds and a "beep" will sound. The child lock indicator LOCK will disappear from the LED display to indicate that the microwave has released the child lock.

1, 2

microwave cooking

For simple microwave cooking, follow the steps below.

For instance: If you want to use 60% microwave power to cook for 5 minutes.

1. Press the power level button once and the LED display will show "100%". Press the power level button repeatedly until the LED display shows "60%".
2. Press the numeric buttons to enter the cooking time until the LED display shows "05:00".
3. Press the start button to confirm and start cooking.
4. Press the stop/cancel button to pause the cooking. Press the stop/cancel button again to cancel the setting.

microwave button control
press order microwave power
1 100%
2 80%
3 60%
4 40%
5 20%
6 00%

When 00% is selected, no microwave power will be present. This setting is for deodorising purposes only.

• Stop the microwave before removing food.
• Operating the microwave without food in it can result in overheating and damage the magnetron.

grill or combination cooking

For grilling, follow the steps below.

We recommend that you use the supplied grill racks. Place your food on the grill rack then place on top of the glass turntable plate.

1. Press the grill/combination button once and the LED display will show "∞" & ":".
2. Press the numeric buttons to enter the cooking time.
3. Press the start button to confirm and start cooking.
4. Press the stop/cancel button to pause the cooking. Press the stop/cancel button again to cancel the setting.

grill/combination button control
press order	LED display	microwave power	grill power	cavity temperature
1		0% 100%		Approximately keeping at 160°C-170°C

For Combination Cooking (Microwave and Grill), follow the steps below.

1. Press the grill/combination button 3 times and the LED display will show "⌘" & ":".
2. Press the numeric buttons to enter the cooking time.
3. Press the start button to confirm and start cooking.
4. Press the stop/cancel button to pause the cooking. Press the stop/cancel button again to cancel the setting.

micro/combinaton button control
press order	LED display	microwave power	grill power suitable for cooking
2		35% 65%		Fish, potatoes or au gratin.
3		55% 45%		Pudding, omelettes, baked potatoes and poultry.

Please note there are only 2 modes of combination cooking and their microwave, and grill powers are shown on the table above.

For instance: If you want to do 55% microwave power and 45% grill power cooking for 10 minutes, please follow the steps below.

1. Press the grill/combination button three times and the LED display will show "☐" & "":
2. Press the 10 minute button once to enter the cooking time. The LED display will show "10:00".
3. Press the start button to confirm and start cooking.
4. Press the stop/cancel button to pause the cooking. Press the stop/cancel button again to cancel the setting.

In order to obtain better grilling performance for your food, please turn your food over periodically. Press the stop/cancel button once to stop cooking and open the door. Then, turn your food over and close the door. Press the start button to continue cooking.

multi-stage cooking

For multi-stage cooking, please follow the steps below.

For instance: If you want to defrost your food for 5 minutes, and then to cook it with 80% microwave power for 7 minutes and finally grill it for 5 minutes.

You can set a maximum of 3 stages for Multi-Stage Cooking. If defrosting is among one of the stages, then it will be set as the first stage. Auto Cooking is not available in multi-stage cooking.

1. Press the jet defrost button once to initiate the multi-stage cooking with time defrost as the first stage. The LED display will show ":" & "*".
2. Press the numeric buttons to enter the defrosting time. For example, to input 5 minutes you need to press the 1 minute button five times. The LED display will show "5:00". Then, press the memory button.

Do not press the Start button at this stage.

1. Press the power level button once and the LED display will show "100%". Press the power level button repeatedly until the LED display shows "80%".

Do not press the Start button at this stage.

1. Press the numeric buttons to enter the cooking time. For example, to input 7 minutes, press the 1 minute button seven times. The LED display will show "7:00". Then press the memory button.

2. Press the grill/combination button once and the LED display will show “∞” & “:”.

3. Press the numeric buttons to enter the cooking time. For example, to input 5 minutes you need to press the 1 minute button five times. The LED display will show "5:00".

1. Press the start button to confirm and start cooking.

2. Press the stop/cancel button to pause the cooking. Press the stop/cancel button again to cancel the setting.

To prevent excessive temperatures, the convection fan will continue to operate for 2 minutes after cooking has stopped.

auto cooking

This feature allows you to cook most of your food based on the food category and the weight. Select the category and choose the weight of your food. For quick reference of the cooking time and the weight, please refer to the auto-cook menu table on the following page.

For instance: If you want to cook 300g of potato.

auto-cook menu

1. Press the potato button repeatedly to select the weight option for your food. Please refer to the auto menu table for more information.
2. Press the start button to confirm and start cooking.
3. Press the stop/cancel button to pause the cooking. Press the stop/cancel button to cancel the setting.

• If the clock needs to be reset, please repeat steps 1 to 3.
• To find out the current time while the microwave is in use, press the clock button. It will display the current time for 2-3 seconds, then return to the remaining cooking time.

auto-cook menu table

menu weight display			cooking time
beverage	200ml per each	1 1'30"
	400ml per each	2 2'40"
	600ml per each	3 3'50"
dinner entree	250g per each	1 3'30"
	500g per each	2 6'30"
reheat	200g 200G 1'30"
	300g 300G 2'00"
	400g 400G 2'30"
	500g 500G 3'00"
	600g 600G 3'30"
	700g 700G 4'00"
	800g 800G 4'30"
potato * (at least 230g per potato)	230g 1 4'00"
	460g 2 8'00"
	690g 3 12'00"
pizza (cooked)	150g 150 0'50"
	300g 300 1'20"
	450g 450 1'50"
fish	200g 200G 3'00"
	300g 300G 4'20"
	400g 400G 5'40"
	500g 500G 7'00"
	600g 600G 8'20"

menu weight display		cooking time
chicken	800g 800G 33'00"
	1000g 1000G 36'00"
	1200g 1200G 39'00"
	1400g 1400G 42'00"
vegetable	200g 200G 3'30"
	300g 300G 4'30"
	400g 400G 5'30"
	500g 500G 6'30"
	600g 600G 7'30"
beef/mutton	200g 200G 12'00"
	300g 300G 15'00"
	400g 400G 18'00"
	500g 500G 21'00"
	600g 600G 24'00"
sausage	100g 100G 4'00"
	200g 200G 5'00"
	300g 300G 6'00"
	400g 400G 7'00"
	500g 500G 8'00"
pork	200g 200G 12'00"
	300g 300G 15'00"
	400g 400G 18'00"
	500g 500G 21'00"
	600g 600G 24'0O"

* It is recommended that when auto-cooking a potato, the potato should weight at least 230g. Note: potatoes will vary in water-content depending on age, type, weight, etc.

For best results, pierce the potato's skin before cooking. Once the potato is cooked, wrap it in aluminium foil for at least 5 minutes to ensure it is cooked thoroughly.

weight defrost

This feature allows you to defrost your frozen foods simply by entering the weight.

For instance: If you want to defrost 600g of prawns.

1. Press the weight defrost button several times until the LED display will show "d3".
2. Press the numeric buttons and enter the time. For example, to input 600g, you need to press the 1 minute button six times. The LED display will show "600g".
3. Press the start button to start defrosting. Upon completion the microwave will sound four times.
4. Press the stop/cancel button once to stop the defrosting. Press the stop/cancel button again to cancel the setting.

maximum allowable weight
food category	maximum weight	LED display
meat 2300g d1
poultry 4000g d2
seafood 900g d3

• Large items may be frozen in the centre. To ensure even thawing, turn them over from time to time and break them into smaller pieces during defrosting.
• You will need to press the stop/cancel button once to hold the defrosting programme and open the door. After you rotate the food, you need to press the start button to re-start defrosting.
• Place roasts fat-side down or whole poultry breast-side down.
• Drain liquids during defrosting as the juices from food can get hot and cook the food.

jet defrost

This feature allows you to defrost your frozen foods simply by entering the time. The longest defrosting time allowed for is 99 minutes and 99 seconds.

For instance: If you want to defrost the food for 5 minutes and 30 seconds.

1. Press the jet defrost button and then press the numeric buttons to enter the defrosting time of food. For example, to input 5 minutes by pressing the 1 minute button five times.
2. Press the start button to start defrosting. Upon completion the microwave will sound four times.
3. Press the stop/cancel button once to stop the defrosting. Press the stop/cancel button again to cancel the setting.

• Large items may be frozen in the centre. To ensure even thawing, turn them over from time to time and break them into smaller pieces during defrosting.
• You will need to press the stop/cancel button once to hold the defrosting programme and open the door. After you rotate the food, you need to press the start button to re-start defrosting.
• Place roasts fat-side down or whole poultry breast-side down.
• Drain liquids during defrosting as the juices from food can get hot and cook the food.

preset cooking (programme set in advance)

For preset cooking, please follow the steps below.

For instance: If the current time is 12 o'clock (noon) and you want to cook it with 80% microwave power for 5 minutes at 1:30 o'clock in the afternoon.

You can set a maximum of 2 stages for delay start cooking, defrost cannot be set as one of those stages. Ensure the clock is set and the door is closed prior to setting the programme.

1. Press the power level button once and the LED display will show "100%". Press the power level button repeatedly until the LED display shows "80%". Press the start button to confirm the microwave power level.

2. Press the numeric buttons and enter the time. For example, to input 5 minutes, you need to press the 1 minute button five times. The LED display will show "5:00".

Do not press the start button at this stage.

1. Press the preset button to preset the starting time for the cooking. Press the numeric buttons and enter the time. For example, to input 1:30 in the afternoon: In 12-hour setting, you need to press the 1 minute button once and then press the 10 second button three times. The LED display will show "1:30". In 24-hour setting, you need to press the 10 minute button once, 1 minute button three times and then press the 10 second button three times. The LED display will show "13:30".

2. Press the start button to complete the setting and "PRE" will flash. The microwave will sound when the count down reaches the starting time and cooking will start automatically.

3. Press the stop/cancel button once to stop the cooking. Press the stop/cancel button again to cancel the setting.

To find out the preset time, press the preset button once while the microwave is still in the preset state. It will last for 2-3 seconds and then return to its original display.

quick start cooking

This feature allows you to quickly cook your food for 30 seconds with 100% microwave power. Please follow the steps below.

1. Press the quick start button to start the quick start cooking. Press the quick start button again to add another 30 seconds.

2. Press the stop/cancel button once to stop the cooking. Press the stop/cancel button again to cancel the setting.

This feature is also applicable during microwave, grill, combination, convection cooking and defrosting.

querying the cooking function

This feature allows you to check and view the current cooking settings.

to find out the current cooking setting

1. Press the power level button once and the LED display will show the current cooking power while the microwave is cooking. It will last for 2-3 seconds and then return to its original display.

cleaning your microwave

Cleaning your microwave each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean.

Unplug your microwave from the mains and wait for it to completely cool down before cleaning.

On the right hand side wall of the cavity is the wave guide cover. Microwaves are passed through this to enable your food to cook. It is important that this wave guide cover is kept clean at all times. Wipe it with mild detergent and water and leave to dry.

The microwave walls have a special enamel coating which makes cleaning very easy. Use a soft damp cloth to wipe off any splashes or a paper towel to mop up any spills. Wipe off grease with a damp cloth and a little detergent. Dry thoroughly. If grease is left to accumulate, it can smoke and even catch fire.

2 Make sure you keep the outlet grids clean.

3 Keep the front of the microwave clean so that the door can close properly.

4 Be careful not to spill water into the vents.

5 Do not remove the wave guide cover: It is important to keep the cover clean in the same manner as the inside of the microwave. If grease is left to accumulate, it can smoke and even catch fire.

6 Keep the inside of the door clean with a damp cloth. Use warm soapy water for stubborn marks and dry thoroughly. The inside of the door has a special coating and must not be cleaned with abrasive pads or cleaning powders.

7 Clean behind the door ledge.

8 Use warm soapy water to clean the outside of the microwave. Do not use abrasive cleaners, pads or powders that could scratch the surface.
9 Unplug the microwave before cleaning the power cord and the microwave. Wipe with a damp cloth and leave to dry before plugging it back in.
10 Treat the glass turntable plate as you would any glass plate. After you have used it for more than 15 minutes, allow it to cool down before you use it again. Do not wash the glass turntable plate in very hot water, doing so could crack it. Wash the turntable support in warm water. Do not use very hot water which could warp it. Make sure the glass turntable plate and turntable support are dry before you put them back in the microwave.
11 Wash the racks in warm water. Do not use very hot water which could warp them.

Do not remove any fixed parts from the inside of your microwave during cleaning or at any other time.

frequently asked questions

If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the problem.

questions answers
why doesn't the food seem to cook?	Check that:·the cooking time has been set.·the door is closed.·the mains socket is not overloaded causing the fuse to blow.
Why does the food seem undercooked or overcooked?	Check that:·the correct cooking time has been set.·the correct power setting has been used.
How can I stop eggs from popping?	When you bake or poach eggs in the microwave, the yolk can sometimes pop as steam builds up inside it. You can stop the egg from popping by piercing the yolk with a toothpick before cooking. Never cook eggs that are still in their shells.
Why is it so important that I allow standing time after cooking?	With microwave cooking, many foods build up enough heat inside them to continue cooking even after they've been taken out of the microwave. Because microwave cooking works from the outside of food inwards, standing time lets you cook the centre of the food without the outside being overcooked.
Why does my microwave sometimes take longer to cook than it says in the recipe?	First check that the microwave was set just as the recipe said. Cooking times and heat settings are suggestions to help prevent overcooking but differences in the weight, size, shape and starting temperature of food will all affect how long it takes to cook – just as it does with a conventional oven. Use your judgement along with the recipe to check whether the food has been cooked properly.
Why do I get condensation on the inside of the door?	Condensation is perfectly normal, especially when you are cooking food with a high moisture content such as potatoes.
Does the microwave energy get through the window on the door?	No. The door has a special metal screen with holes in that lets you see inside but stops microwave energy from getting out.
Steam comes out of the side of the door and vents. Can microwave energy get out too?	No. The door and vents are carefully designed to let steam out during cooking but keep microwave energy in. The gaps are not big enough for microwave energy to escape.
What happens if the microwave is switched on while the microwave is empty?	The microwave will be damaged. Do not switch the microwave on when there's nothing inside the microwave. It is a good idea to keep a cup of water in the microwave just in case someone accidentally starts the microwave.
Why doesn't the microwave's light illuminate?	Open the door. If the light does not illuminate, the bulb has probably blown. Call a qualified technician – do not try to change the bulb yourself.
There are sparks inside the microwave when I use the microwave. Will this cause any damage?	Yes. Make sure that you are not using any metal utensils and that your containers don't have a metal trim. You must not use metal in your microwave when you cook (except aluminium foil).
Light is showing through the vents and door. Does this mean the microwave energy can escape?	No. It is normal for the light to be visible and is nothing to be concerned about.
Why do I get interference on my TV and radio when I use the microwave?	Microwaves use radio waves similar to those received by TVs and radios. You can lessen the interference by moving your microwave further away from the TV or radio.

specifications

model	K30GSS12
input	230 - 240V~ 50Hz
microwave output	850 - 900 Watts
microwave frequency	2450MHz
outside dimensions(width x deep x height)	539mm x 446mm x 300mm
power consumption
microwave input	1350 - 1400 Watts
grill input	1000 - 1100 Watts

Complies with EC directives 2004/108/EC and 2006/95/EC.

We continually strive to improve our products. Features and specifications may change without prior notice.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
replacement part part number
Grill Rack XGALK30GSS12P41
Glass Turntable Plate XGALK30GSS12P12
Turntable Support XGALK30GSS12P11

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can

deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Manufactured for DSG Retail Limited under a Trademark License from Kenwood Limited

DSG Retail Limited is responsible for after sales service.

If you have a query about the product please contact our product support line 0844 561 6263 (Currys).

DSG Retail Ltd. (co. no. 504877)

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK

kenwoodworld.com

KENWOOD

CREATE MORE
