K25MB12 - Microwave KENWOOD - Free user manual and instructions

Product Type	Microwave Oven
Brand	Kenwood
Model	K25MB12
Capacity	25 Liters
Power Output	900 W
Power Consumption	1400 W
Control Type	Electronic Touch & Dial
Display	LED Digital
Door Opening	Side Opening with Handle
Interior Light	Yes
Turntable	Glass Turntable (315 mm)
Number of Power Levels	10
Cooking Functions	Auto Cook, Defrost, Express, Timer
Child Lock	Yes
Dimensions (W x D x H)	48.5 x 38.5 x 29.5 cm
Cavity Dimensions (W x D x H)	34.0 x 34.0 x 21.0 cm
Weight	12.5 kg
Rated Voltage	230 V ~ 50 Hz
Cleaning Method	Wipe with damp cloth, mild detergent
Repairability Index	7.5 / 10
Spare Parts Availability	Magnetron, Turntable Motor, Door Switch, Fuse

Frequently Asked Questions - K25MB12 KENWOOD

How do I set the cooking time on my Kenwood K25MB12?

Press the Time/Weight button, then use the rotary dial to set the desired cooking time. Press Start to begin.

Can I use metal containers in the microwave?

No, metal containers can cause sparks and damage the microwave. Use microwave-safe glass or ceramic dishes only.

How do I defrost food using this microwave?

Press the Defrost button, enter the weight of the food using the dial, and press Start. The microwave will automatically set the time and power.

What does the child lock do and how do I activate it?

The child lock prevents accidental operation. To activate, press and hold the Stop button for 3 seconds until a beep sounds. Repeat to unlock.

Why is my microwave not heating?

Check that the door is fully closed, the timer is set, and the power cord is plugged in. If still not heating, the magnetron or fuse may need replacement.

How do I clean the interior of the microwave?

Wipe the interior with a damp cloth and mild detergent. For stubborn stains, heat a bowl of water with lemon juice for 2 minutes to loosen dirt.

Can I use the microwave without the turntable?

No, the turntable ensures even cooking. Always place the glass tray and roller ring correctly before use.

What is the maximum weight for auto cook programs?

The auto cook programs support weights from 100 g to 1500 g. For larger quantities, use manual cooking.

How do I adjust the power level?

Press the Power button repeatedly to cycle through levels (10-100%). Select the desired level and then set the time.

What should I do if the display shows 'E-1'?

Error code E-1 indicates a malfunction. Unplug the microwave for 1 minute, then restart. If error persists, contact Kenwood service.

USER MANUAL K25MB12 KENWOOD

contents

safety warnings 4

unpacking....9

getting ready....10

introducing microwave cooking ....11

cooking with a microwave....11

checking your cooking utensils....12

using aluminium foil in your microwave 12

materials that can be used in the microwave....13

microwave heating categories ....14

steam 15

condensation 15

product overview.... 16

the main unit 16

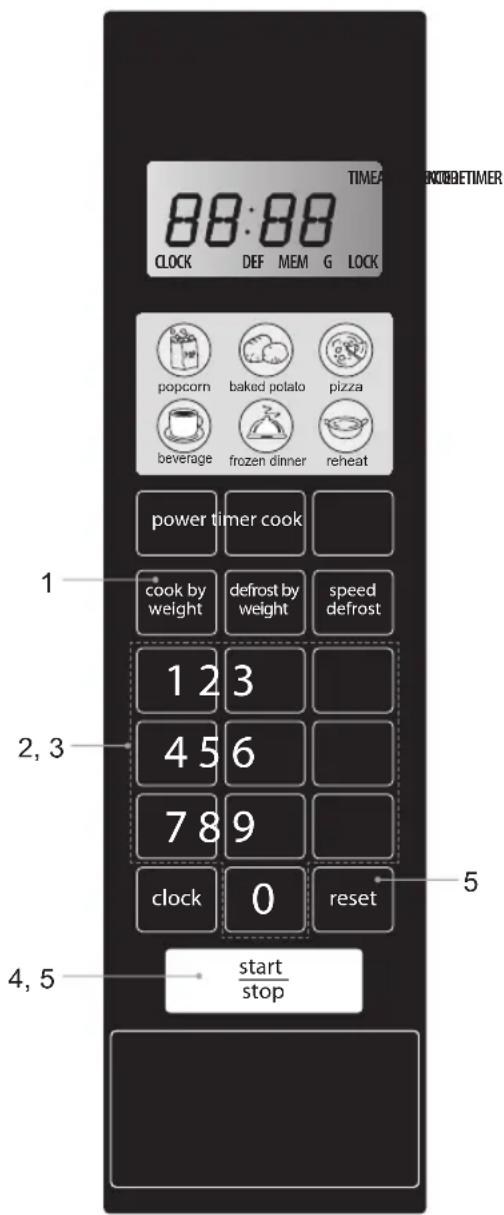

the control panel ....16

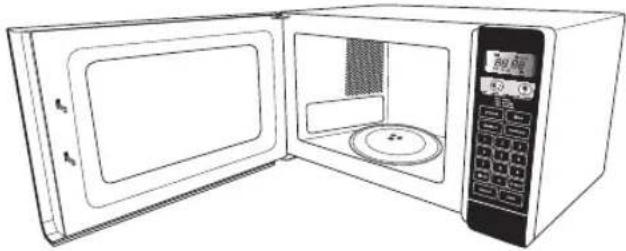

checking your microwave.... 17

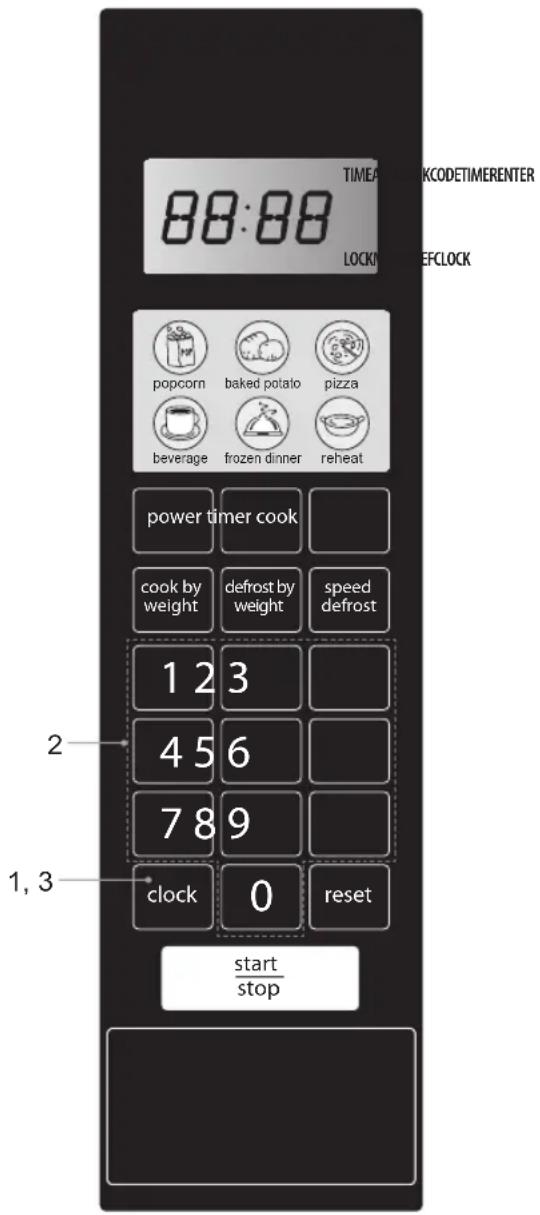

clock setting.... 18

oven timer 19

setting the child lock.... 20

microwave cooking 21

multi-stage cooking (standard) 22

multi-stage cooking (with defrost)....23

speed defrost....24

cook by weight....25

defrosting by weight 26

quick cook settings (auto-cook) 27

auto-cook menu 27

auto-cook menu table 28

cleaning your microwave.... 29

frequently asked questions.... 30

specifications.... 31

safety warnings

general safety

• Switch off and unplug before fitting or removing tools/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
  • Never use a damaged appliance.
  • Never operate the appliance when it is empty.
• Keep the mains cable out of reach from children.
• Keep the unit, mains cable and plug away from water.
  • Never exceed the maximum capacities.
• When using an attachment, read the accompanying safety instructions.
  • Take care when lifting this appliance as it is heavy.
• You should always have your appliance checked by a qualified service agent if it has been dropped or damaged to ensure it is safe to use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Children should be supervised to ensure that they do not play with the appliance.
  • This appliance is for indoor, domestic, household use only.
• Do not install the microwave in a cabinet.

maintenance of your microwave

warning : It is hazardous for anyone other than a qualified service agent to carry out any service or repair operation which involves the removal of a cover that gives protection against exposure to microwave energy.

warning : If the door or door seals are damaged, the microwave must not be operated until it has been repaired by a qualified service agent.

• If smoke is observed, switch off or unplug the microwave and keep the door closed in order to stifle any flames.
• If the mains cable is damaged, it must be replaced by a qualified service agent.
• If you have a pacemaker, please contact your doctor before using a microwave.

microwave Use

• This microwave is not intended for commercial use.
- It should never be used for drying clothes or for other non-food purposes.
• The microwave should not be left unattended when in use.
- The temperature of accessible surfaces may be high when the microwave is operating.
- To prevent high moisture content gathering inside the microwave cavity, open the door immediately after the cooking function has stopped to allow steam to escape.
• Only use utensils that are suitable for microwave use.
- Care should be taken when using paper, plastic, wooden or other combustible materials in the microwave as they can catch fire.
- Oil & fat for deep frying should not be heated in the microwave.
- Only use cling film designed for microwave use and take extra care when removing the film to avoid steam burns.
- Only heat popcorn that has been designed for microwave use.

cooking use

• As the power of different microwaves can vary considerably, care must be taken when first using this microwave as it may cook faster than expected.
• Do not leave the microwave unattended during use.
  • Take care when cooking food with a high sugar or fat content, such as Christmas pudding or fruitcake. The sugar or fat can overheat and in some cases catch fire.

warning : Only allow children to use the microwave without supervision when adequate instructions have given so that the child is able to use the in a safe way and understands the hazards of improper use; DO NOT assume that because a child has mastered one cooking skill he/she can cook everything without close supervision. The microwave MUST NOT be treated nor used like a toy.

fire!

In the event of fire:

• Keep the microwave door closed.
• Turn off the power.
  • Unplug the microwave from the mains power.

first aid

Treat scalding by:

• Quickly placing the scald under cold running water for at least 10 minutes.
  • Cover with a clean dry dressing. Do not use creams, oils or lotions.

cleaning your microwave

The microwave should be cleaned regularly and food deposits removed. Failure to maintain the microwave in a clean condition can affect the life of the microwave and possibly result in a hazardous situation. (See cleaning your microwave.)

do not use these in your microwave

• Metal objects are not to be used in the microwave. These include:
- Metal cooking utensils
- Metal plates or trays
- Wine twist ties
- Crockery with metal trim
- Meat thermometer

- Never use equipment made of metal, except aluminium foil in your microwave. The microwave energy cannot pass through metal so it bounces off and sparks against the inside of the microwave.

• Stop the microwave straight away if any item is causing sparks.
• Remember that some crockery has a metal trim. Even this trim can cause sparks.

containers

warning : Pressure will build up in sealed containers and can cause them to explode. Therefore, do not use the following in your microwave:

• Sealed containers - Capped bottles
• Vacuum containers - Sealed jars
• Hard-boiled eggs - Eggs in their shells
• Nuts

• Always pierce the skin of fruit and vegetables, such as potatoes.

- Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.

- When heating food in plastic or paper containers, keep an eye on the microwave due to the possibility of ignition.

delayed boiling

Liquids heated in a microwave can boil up when removing them from the microwave.

Take the following precautions:

• Always stir liquids, before and after cooking.
- Allow them to stand.
• Use containers that are wider at the top than at the bottom.

preparing food for babies

Extra care must be taken when preparing food or drink for babies and small children.

• Always test the food or liquid temperature before feeding it to the baby.
- When using a baby bottle, ensure the teat is removed before heating.
- When warming milk, ensure the bottle is shaken.

caution!

hot surface

During cooking the outer surface will become hot. Do not touch the outer casing of the microwave. Care should be taken not to store any items on top of your microwave.

earthing instructions

warning: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a mains cable having an earthed plug.
• The plug must be plugged into an appropriate mains socket that is installed and earthed in accordance with all local standards and requirements.

warning!

• Improper connection of the appliance-earthing conductor can result in a risk of an electric shock.
• Check with a qualified service agent if you are in doubt whether the appliance is properly earthed.
• Never modify the plug provided with the appliance.
• If the plug does not fit properly in the mains socket, have a qualified electrician install a proper mains socket.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
• The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Thank you for purchasing your new Kenwood Microwave.

These operating instructions will help you use it properly and safely.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Front view of a microwave oven with control panel and display screen (no visible text or symbols)

The Main Unit

Simple line drawing of concentric ovals with small circles at the center (no text or symbols)

Glass Turntable Plate x 1 P.N.: XGALK25MB12P12

Simple line drawing of an oval loop with two small dots at the ends (no text or symbols)

Turntable Support x 1 P.N.: XGALK25MB12P11

If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

getting ready

This microwave is designed for home use only. It should not be used for commercial catering.

1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents, and the door closes properly. A damaged microwave could allow microwave energy to escape. Make sure that you have taken out all the packaging from inside the microwave. Please dispose of the plastic wrappings / bags safely and keep out of the reach of babies and young children.
2. Choose a flat work surface for your microwave away from heat sources such as radiators or fires and away from cold areas. You should allow a 10cm space all around the microwave and 30cm above so that warm air can escape from the vents during cooking. This microwave is not designed to be built in.
3. Plug your microwave into a standard household electrical socket (230 volt, 13 amp rated). Avoid using a socket that also has an adaptor and other equipment plugged in. Do not use a multi-adaptor.

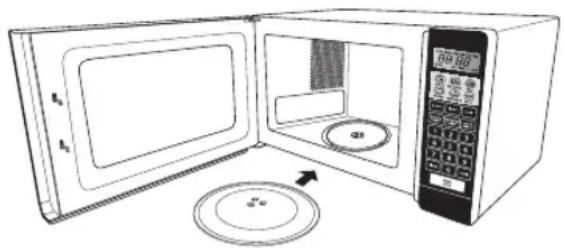

4. Put the turntable support inside the microwave and place the glass turntable plate on top of the support. The turntable support is shaped to sit securely on the spindle. You must always use the turntable plate and support whenever you use the microwave.
5. To protect your work surface, we recommend that you fix some non-slip cushion buttons (not included) to the underside of the microwave.

Remove the turntable plate and turntable support before turning the microwave upside down.

Line drawing of a microwave oven with open door and lid, showing internal components (no text or symbols)

Simple line drawing of a rectangular block with a diagonal line and a rotation arrow, no text or symbols present.

Underside View

introducing microwave cooking

Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food.

This page gives some of the basic guidelines for microwave cooking. If you are unfamiliar with using a microwave, there is more information at the back of this instruction manual.

cooking with a microwave

Cooking with a microwave is much faster than conventional cooking and, whilst you should make sure that food is fully cooked, you should be careful not to overcook it. Food can catch fire if excessive cooking times are used.

• Microwave energy can heat unevenly so stirring to distribute heat is very important. Always stir from the outside, inwards.
• If you are cooking a number of individual foods at the same time, such as baked potatoes or small cakes, arrange them evenly on the turntable plate so that they cook evenly. Never stack food in the microwave.
• Turn larger foods such as meat roasts and poultry during cooking so that the top and bottom cook evenly. It is also recommended to turn pieces of meat or poultry, especially if they have not been deboned.
• Meat and poultry which is cooked for 15 minutes or more will brown lightly in its own fat. Anything cooked for a shorter time can be brushed with a browning sauce to give an appetising colour.

If you are unsure how long the food should cook for, begin cooking at the lowest recommended time, then add more time if necessary. The moisture content of food can vary. Ensure food is thoroughly cooked all the way to the centre before serving.

• Strips of aluminium foil can be used to cover the thinner pieces of food to stop them overcooking before the thicker parts of the food have had a chance to cook. Use the aluminium foil sparingly and wrap around the food or container carefully to stop it touching the inside of the microwave which could cause sparks.
• Microwaves cook food using microwave energy that is similar to naturally occurring radio waves. Normally, these “waves” would fade as they disappear into the atmosphere but in a microwave they are concentrated on the food causing it to heat up.
• Microwave energy cannot pass through metal – so it can not escape from inside your microwave – but it can pass through materials like glass, porcelain, plastic, and paper. These are the things used to make microwave-safe cooking equipment.

- Microwave-safe cooking equipment will still get hot as the food it contains heats up.

- The microwave energy focuses on the moisture in the food causing lots of tiny vibrations. The vibrations get so great that the moisture – and the food – heat up.

Simple line drawing of a bowl with steam rising from it, no text or symbols present

checking your cooking utensils

Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If made of plastic or glass, utensils will be marked as “microwave safe” or similar.

If you are not sure and/or there is no microwave-safe marking on the utensil, do NOT use it in the microwave.

For the types of utensils you can use in the microwave, please see the "Materials That Can Be Used" section.

• Never use equipment made of metal, except aluminium foil in your microwave oven.
• The microwave energy can not pass through the metal so it bounces off and sparks against the inside of the oven.
• Stop the microwave straight away if any equipment does cause sparks.
• Remember that some crockery has a metal trim around the edge. Even this trim can cause sparks.
• Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.

using aluminium foil in your microwave

It is safe to use aluminium foil in your microwave as long as you follow these safety guidelines.

As with all metals, microwave energy cannot pass through aluminium foil, but provided you keep the aluminium foil away from the side of the microwave it will not cause sparks and there will not be any damage to your microwave.

Using aluminium foil is a good way of shielding parts of food that you do not want to cook as quickly as others – perhaps where the food is narrower and would otherwise overcook.

Place the aluminium foil over the area you want to shield, taking care that the aluminium foil will not touch the sides of the microwave when the turntable plate rotates. Only use one piece of aluminium foil at a time so that you do not get sparks between the separate pieces.

Follow these guidelines when using aluminium foil in your microwave:

• Remove aluminium foil lids from containers before using in the microwave. Some lids are made of card with a aluminium foil covering – these should be removed too. Use a microwave safe transparent lid if possible.
  • Stir food during cooking if the container has a lid or film cover.
  • Always use the glass turntable plate.
• Use shallow containers with a large surface area. Do not use containers that are more than 1.25in (3.5cm) deep.
  • Use gloves when handling hot aluminium foil containers.
• Do not completely cover food with aluminium foil. The microwave energy cannot pass through the aluminium foil so the food will not cook.
• Do not let aluminium foil touch the inside of the microwave.
• Do not use more than one piece of aluminium foil in the microwave at the same time.

utensils remarks
Aluminum foil Shielding	only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow m	manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave	safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glassware Heat-resistant	oven glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Oven cooking bags Follow	manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups Use	for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Greaseproof paper Use	as a cover to prevent splattering or a wrap for steaming.
Plastic containers Micro	wave-safe only. Follow the manufacturer's instructions. Should be labelled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by the instructions on their packaging.
Plastic wrap Microwave	safe only. Use to cover food during cooking to retain moisture.Do not allow plastic wrap to touch food.

microwave heating categories

Your microwave has been tested and labelled to meet the UK government's voluntary agreement on the reheating of pre-cooked food.

The heating characteristics and output power levels of microwaves are usually calculated using a relatively large portion of food (a 1000 gram load, IEC 60705) but many packs of pre-cooked food are sold in smaller packs, often about 350 grams.

The UK government, in partnership with food companies and microwave manufacturers, has set up a system of heating categories to help you choose the reheating time for pre-cooked food.

900W is the output power of the microwave. (IEC60705)

E is the heating category for your microwave.

Check the cooking times for category E on the food's packaging to see how long it should be cooked for.

The category (a letter from A to E), is designed to help you reheat small quantities of food such as microwave ready meals.

The label given above and also on the oven door gives the heating category and output power of the oven.

Microwave ready meals weighing up to 500g (1lb 2oz) should have cooking instructions for heating categories A to E. Follow the instructions for the letter that corresponds to the heating category of the oven.

The higher the output power and heating category of the oven the less heating time is required. This is shown in the diagrams below:

Start cooking at the lowest recommended time, and add more time if necessary. The moisture content of food can vary, ensure food is cooked thoroughly all the way to the centre before serving.

steam

When you microwave food, steam is created as water in the food heats up and evaporates.

The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the microwave. It does this through the vents on the back of the microwave and from around the door.

condensation

As the steam cools, you may find that condensation gathers in small pools inside your microwave and on the work surface beneath the door and vents. Always dry the microwave after cooking foods with a high moisture content.

Your microwave is designed to let steam escape from the vents and around the door without microwave energy escaping. There is no danger of microwave energy escaping with the steam.

Illustration of a microwave oven with control panel and cloud background (no text or symbols)

product overview

the main unit

the control panel

checking your microwave

Check your microwave after unpacking.

For your safety, the microwave stops if the door is opened during cooking. Close the door and press the start/stop button to continue the cooking cycle.

Line drawing of a microwave oven with open door and digital display (no text or symbols)

1. Press the door open button to open the door.
2. Place a cup of water on the glass turntable plate. Make sure the cup is microwave-safe (it should not have any decorative metal trim).
3. Close the door.
4. Press the reset button to clear any settings that have already been made.
5. Press the numeric (0-9) buttons to enter the cooking time. For example, enter "3", "0", for 30 seconds. Press the start/stop button to start a simple 30-second microwave cooking cycle, which allows you to check the operation of the microwave.
6. When the cooking cycle has finished, the water should be hot (be careful when you take the cup out of the microwave).
7. Press the start/stop button once to stop cooking. Press the reset button to cancel the settings.

clock setting

When the microwave is connected to the mains power, the LED display will flash “:”. Please ensure that you have set the clock prior to use.

Please follow the steps below to set the clock.

1. Press the clock button.
2. Press the numeric (0-9) buttons and enter the time. For example, to input the current time 12:30, you need to press "1", "2", "3", "0". The input hour has to be within 1-12 and the input minutes has to be within 0-59.
3. Press the clock button again to complete the clock setting.

- This is a 12-hour clock. When the microwave is first plugged in or when power resumes after a power interruption, the LED display will show "Enter Clock Time". Press the reset button if you prefer not to display the clock. - When programming settings, the microwave will beep to alert you to whether your input is correct or rejected:

1 beep: entry is correct
2 beeps: entry is wrong, check and try again.

oven timer

This feature allows you to set the timer for the microwave. Please ensure the clock has been set.

For setting the kitchen timer, follow the steps below.

1. Press the timer button.
2. Press the numeric (0-9) buttons and enter the timer time.
3. Press the start/stop button to confirm the setting.
   The time countdown can be seen on the LED display for 5 seconds before returning to showing the clock or cooking time.
4. Press the timer button and then the reset button to cancel the oven timer during the timing process.

• During kitchen timer, programmes cannot be set.
• When programming settings, the microwave will beep to alert you to whether your input is correct or rejected:

1 beep: entry is correct
2 beeps: entry is wrong, check and try again.

setting the child lock

This feature prevents the electronic operation of the microwave by locking the operation of the control panel until you have cancelled it.

Please follow the steps below to set the child lock.

1. Press and hold the reset button for 3 seconds. "Lock" will show on the LED display.
2. To cancel the child lock, press and hold the reset button for 3 seconds. "Lock" will disappear from the LED display.

When programming settings, the microwave will beep to alert you to whether your input is correct or rejected:

1 beep: entry is correct
2 beeps: entry is wrong, check and try again.

microwave cooking

For simple microwave cooking, follow the steps below.

For instance: If you want to use 80% microwave power to cook for 20 minutes.

1. Press the numeric (0-9) buttons to enter the cooking time. For example, enter "2", "0", "0", "0" for 20 minutes.
2. To change the power level from 100%, press the power button and then press the numeric (0-9) buttons to enter the power level, e.g. "8" for 80%.

The default microwave power is 100%. You may skip Step 2 if you plan to use 100% microwave power for cooking.

1. Press the start/stop button to confirm and start cooking.

2. Press the start/stop button once to stop the cooking. Press the reset button to cancel the setting.

microwave button control
numeric button	microwave power
1, 0 100%
9 90%
8 80%
7 70%
6 60%
5 50%
4 40%
3 30%
2 20%
1 10%
0	0%

When programming settings, the microwave will beep to alert you to whether your input is correct or rejected:

1 beep: entry is correct
2 beeps: entry is wrong, check and try again.

When "0" is selected (i.e., 0%), no microwave power is present.

• Stop the microwave before removing food.
• Operating the microwave without food in it can result in overheating and damage to the magnetron.

multi-stage cooking (standard)

Some recipes require different stages of cooking temperatures.

For two-stage cooking, please follow the steps below.

You can set a maximum of 2 stages for multi-stage cooking. If defrosting is among one of the stages, then it will be set as the first stage. Auto cooking, quick start cooking and express cooking are not available in multi-stage cooking.

1. Press the numeric (0-9) buttons to enter the cooking time. For example, enter "2", "0", "0", "0", for 20 minutes.

2. To change the power level from 100%, press the power button and then press the numeric (0-9) buttons to enter the power level, e.g. "8" for 80%.

Do not press the start/stop button at this stage.

1. Press the cook button then enter the proper cooking time and (lower) power level.

Most 2-stage recipes use lower power for the 2nd stage of cooking.

1. Press the start/stop button to confirm and start cooking.

2. After stage 1 has elapsed, the microwave will beep once to signal the start of stage 2.

3. Press the start/stop button once to stop the cooking. Press the reset button to cancel the setting.

When programming settings, the microwave will beep to alert you to whether your input is correct or rejected:

1 beep: entry is correct 2 beeps: entry is wrong, check and try again.

multi-stage cooking (with defrost)

For 2-stage cooking with defrost, please follow the steps below.

You can set a maximum of 3 stages for multi-stage cooking with defrosting as one of the stages. However, you will need to set defrosting as the 1st stage. Quick Cook (Auto Cook) and Cook by Weight are not available in multi-stage cooking.

1. Press the speed defrost button.
2. Press the numeric (0-9) buttons to enter the desired defrosting time.

Do not press the start/stop button at this stage.

1. Press the cook button.

2. Press the numeric (0-9) buttons to enter the cooking time and power level. And then press the power button.

3. Press the start/stop button to begin the 2-stage cooking programme with defrost as the 1st stage.

To speed defrost and then cook in 2 stages, follow steps (1) to (4) above. Then repeat steps (3) to (4) above before pressing the start/stop button.

1. Press the start/stop button once to stop the cooking. Press the reset button to cancel the setting.

When programming settings, the microwave will beep to alert you to whether your input is correct or rejected:

1 beep: entry is correct 2 beeps: entry is wrong, check and try again.

speed defrost

To quickly defrost frozen foods, follow the steps below.

1. Press the speed defrost button.
2. Use the numeric (0-9) buttons to enter the desired defrosting time.
3. Press the start/stop button to start defrosting.

• During defrosting, the microwave will automatically pause and beep to remind you to turn over the defrosting food(s). Press the start/stop button to continue the defrosting programme.
• When programming settings, the microwave will beep to alert you to whether your input is correct or rejected:

1 beep: entry is correct
2 beeps: entry is wrong, check and try again.

1. Press the start/stop button once to stop the cooking. Press the reset button to cancel the setting.

cook by weight

Some recipes require weight input to cook thoroughly. To cook by weight, follow the steps below.

1. Press the cook by weight button.
2. Press the numeric (1-3) buttons to enter the correct code (see table below).
3. Press the numeric (0-9) buttons to enter the weight.

microwave button control
code type	max weight
1 Beef 2,700g
2 Mutton	2,700g
3 Pork 2,300g

1. Press the start/stop button to begin cooking.

• Meat must be defrosted from frozen.

• During defrosting, the microwave will automatically pause and beep to remind you to turn over the defrosting food(s). Press the start/stop button to continue the defrosting programme.

• Press the start/stop button once to stop the cooking. Press the reset button to cancel the setting.

defrosting by weight

Some foods (e.g., weight) need to be defrosted according to their weight. To defrost by weight, follow the steps below.

1. Press the defrost by weight button.
2. Press the numeric (0-9) buttons to enter the weight (max. weight is 1800g).
3. Press the start/stop button to begin defrosting.

During defrosting, the microwave will automatically pause and beep to remind you to turn over the defrosting food(s). Press the start/stop button to continue the defrosting programme.

1. Press the start/stop button once to stop the cooking. Press the reset button to cancel the setting.

quick cook settings (auto-cook)

This feature allows you to cook or reheat mot foods based on the food category automatically without having to enter the power level or time.

auto-cook menu

For full auto-cook details, please refer to the auto-cook menu table.

for small portions:

1. Press the appropriate food category button once.
2. Press the start/stop button.

for larger portions:

1. Press the appropriate food category button twice.
2. Press the start/stop button.

The frozen dinner, baked potato, and beverage functions allow you to cook multiple amounts of the same food:

1. Press the appropriate category button once.
2. When "ENTER AMT" appears on the LED display, use the numeric (1-4) buttons to enter the amount of servings.
3. Press the start/stop button to start the cooking programme.
4. Press the start/stop button once to stop the cooking. Press the reset button to cancel the setting.

auto-cook menu table

menu	weight /amount (frequency of button press)	numeric buttons	cooking time	comments
popcorn	99g (press once)	-2:25		Only use suitable microwavable containers and cling film in the microwave.
	others (press twice)	-	manual enter time
baked potato*	110-170g per each (press once)	1 3:20		For best results, pierce the potatoes' skin before cooking. Once the potatoes are cooked, wrap them in aluminium foil for at least 5 minutes to ensure they are cooked thoroughly.
		2 6:20
		3 9:20
		4 12:20
	230-280g per each (press twice)	1 5:00
		2 9:00
		3 13:00
		4 17:00
pizza (cooked)	reheat (press once)	-1:00		This setting is designed for reheating cooked 1 slice of pizza (not frozen pizza).
	reheat (press twice)	-5:00		This setting is designed for reheating cooked 2-3 slices of pizza (not frozen pizza).
beverage	140-200g per cup (press once)	1 1:10		Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking. Check the cooking regularly to ensure the water does not boil over.
		2 2:10
		3 3:10
		4 4:10
	260-310g per coffee mugs (press twice)	1 2:00
		2 3:30
		3 5:00
		4 6:30
frozen dinner	198-255g per share (press once)	1 6:00		Make sure food is cooked thoroughly before consuming. Additional cooking time may be required for thicker piece of meat or those with sauce. Stir well before additional cooking. Check the cooking regularly to ensure the sause does not boil over.
		2 9:30
	280-340g per share (press twice)	1 7:00
		2 11:00
reheat	- (press once)	-3:15		Make sure food is cooked thoroughly before consuming. Additional cooking time may be required for thicker piece of meat or those with sauce. Stir well before additional cooking. Check the cooking regularly to ensure the sause does not boil over.

* It is recommended that when auto-cooking a potato, the potato should weight at least 110g. Note: potatoes will vary in water-content depending on age, type, weight, etc.

cleaning your microwave

Cleaning your microwave each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean.

Unplug your microwave from the mains and wait for it to completely cool down before cleaning.

On the right hand side wall of the cavity is the wave guide cover. Microwaves are passed through this to enable your food to cook. It is important that this wave guide cover is kept clean at all times. Wipe it with mild detergent and water and leave to dry.

The microwave walls have a special enamel coating which makes cleaning very easy. Use a soft damp cloth to wipe off any splashes or a paper towel to mop up any spills. Wipe off grease with a damp cloth and a little detergent. Dry thoroughly. If grease is left to accumulate, it can smoke and even catch fire.

② Make sure you keep the outlet grids clean.

3 Keep the front of the microwave clean so that the door can close properly.

4 Be careful not to spill water into the vents.

5 Do not remove the wave guide cover: It is important to keep the cover clean in the same manner as the inside of the microwave. If grease is left to accumulate, it can smoke and even catch fire.

6 Keep the inside of the door clean with a damp cloth. Use warm soapy water for stubborn marks and dry thoroughly. The inside of the door has a special coating and must not be cleaned with abrasive pads or cleaning powders.

7 Clean behind the door ledge.
8 Use warm soapy water to clean the outside of the microwave. Do not use abrasive cleaners, pads or powders that could scratch the surface.
9 Unplug the microwave before cleaning the power cord and the microwave. Wipe with a damp cloth and leave to dry before plugging it back in.
10 Treat the glass turntable plate as you would any glass plate. After you have used it for more than 15 minutes, allow it to cool down before you use it again. Do not wash the glass turntable plate in very hot water, doing so could crack it. Wash the turntable support in warm water. Do not use very hot water which could warp it. Make sure the glass turntable plate and turntable support are dry before you put them back in the microwave.

Do not remove any fixed parts from the inside of your microwave during cleaning or at any other time.

frequently asked questions

If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the problem.

questions answers
why doesn't the food seem to cook?	Check that:·the cooking time has been set.·the door is closed.·the mains socket is not overloaded causing the fuse to blow.
Why does the food seem undercooked or overcooked?	Check that:·the correct cooking time has been set.·the correct power setting has been used.
How can I stop eggs from popping?	When you bake or poach eggs in the microwave, the yolk can sometimes pop as steam builds up inside it. You can stop the egg from popping by piercing the yolk with a toothpick before cooking. Never cook eggs that are still in their shells.
Why is it so important that I allow standing time after cooking?	With microwave cooking, many foods build up enough heat inside them to continue cooking even after they've been taken out of the microwave. Because microwave cooking works from the outside of food inwards, standing time lets you cook the centre of the food without the outside being overcooked.
Why does my microwave sometimes take longer to cook than it says in the recipe?	First check that the microwave was set just as the recipe said. Cooking times and heat settings are suggestions to help prevent overcooking but differences in the weight, size, shape and starting temperature of food will all affect how long it takes to cook – just as it does with a conventional oven. Use your judgement along with the recipe to check whether the food has been cooked properly.
Why do I get condensation on the inside of the door?	Condensation is perfectly normal, especially when you are cooking food with a high moisture content such as potatoes.
Does the microwave energy get through the window on the door?	No. The door has a special metal screen with holes in that lets you see inside but stops microwave energy from getting out.
Steam comes out of the side of the door and vents. Can microwave energy get out too?	No. The door and vents are carefully designed to let steam out during cooking but keep microwave energy in. The gaps are not big enough for microwave energy to escape.
What happens if the microwave is switched on while the microwave is empty?	The microwave will be damaged. Do not switch the microwave on when there's nothing inside the microwave. It is a good idea to keep a cup of water in the microwave just in case someone accidentally starts the microwave.
Why doesn't the microwave's light illuminate?	Open the door. If the light does not illuminate, the bulb has probably blown. Call a qualified technician – do not try to change the bulb yourself.
There are sparks inside the microwave when I use the microwave. Will this cause any damage?	Yes. Make sure that you are not using any metal utensils and that your containers don't have a metal trim. You must not use metal in your microwave when you cook (except aluminium foil).
Light is showing through the vents and door. Does this mean the microwave energy can escape?	No. It is normal for the light to be visible and is nothing to be concerned about.
Why do I get interference on my TV and radio when I use the microwave?	Microwaves use radio waves similar to those received by TVs and radios. You can lessen the interference by moving your microwave further away from the TV or radio.

specifications

model	K25MB12
input	230 - 240V~ 50Hz
microwave output	900 Watts
microwave frequency	2450 MHz
outside dimensions(width x deep x height)	483mm x 390mm x 281mm
power consumption
microwave input	1300 - 1400 Watts

Complies with EC directives 2004/108/EC and 2006/95/EC.

We continually strive to improve our products. Features and specifications may change without prior notice.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
replacement part part number
glass turntable plate XGALK25MB12P12
turntable support XGALK25MB12P11

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can

deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Manufactured for DSG Retail Limited under a Trademark License from Kenwood Limited

DSG Retail Limited is responsible for after sales service.

If you have a query about the product please contact our product support line 0844 561 6263 (Currys).

DSG Retail Ltd. (co. no. 504877)

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK

kenwoodworld.com

KENWOOD

CREATE MORE
