Product Type	Tumble Dryer
Brand	Kunft
Model	KDM2739
Installation Type	Freestanding
Capacity	7 kg
Dimensions (H x W x D)	850 x 600 x 600 mm
Weight	50 kg
Energy Class	C
Annual Energy Consumption	560 kWh
Drying Programs	Cotton, Synthetics, Delicates, Mix, Time Dry, Eco
Noise Level	70 dB
Features	Anti-crease, Delay Start (up to 24h), Child Lock, Overheating Protection
Filter System	Lint filter (clean after each cycle)
Condenser Type	Vented (requires external venting)
Drum Material	Stainless Steel
Reversing Drum	Yes
Power Supply	220-240 V, 50 Hz
Rated Power	2500 W
Spare Parts Availability	7 years after end of production
Repair Index	6.5 / 10

Frequently Asked Questions - KDM2739 Kunft

How do I clean the lint filter?

Open the door and pull out the lint filter located at the bottom of the door opening. Remove lint by hand or with a soft brush, rinse under water if necessary, and dry thoroughly before reinserting. Clean after every cycle to maintain efficiency.

What should I do if the dryer doesn't start?

Check that the door is fully closed and the child lock is not engaged. Ensure the power cord is plugged in and the circuit breaker has not tripped. Also verify that the delay start function is not set. If the problem persists, consult the manual.

Can I dry all types of fabrics?

No. Always check the care label on garments. Items labeled 'tumble dry low' or 'tumble dry' are safe. Do not dry items with a 'do not tumble dry' symbol, such as wool, silk, or items with foam padding.

How do I use the delay start function?

Press the Delay Start button repeatedly to set the desired delay in hours (up to 24 hours). Then press Start/Pause. The dryer will begin the cycle after the delay period.

Why is my laundry still damp after drying?

This could be due to overloading the dryer, using an incorrect program for the fabric type, or a clogged lint filter. Also ensure the drying level setting is appropriate (e.g., 'Extra Dry' instead of 'Iron Dry').

How often should I clean the condenser (if applicable)?

For vented models, there is no condenser to clean. For condenser dryers, clean the condenser unit every 3-6 months or when the indicator lights up. Refer to the manual for specific instructions.

What does the 'anti-crease' feature do?

The anti-crease function periodically rotates the drum after the drying cycle ends to prevent wrinkles from setting in. It lasts up to 2 hours unless you remove the laundry.

How do I reset the dryer?

To reset, unplug the dryer for 1 minute, then plug it back in. This clears temporary errors. If the issue continues, contact customer support.

What is the maximum load capacity?

The maximum load is 7 kg for cotton programs. For synthetics and delicates, reduce the load to about 3.5 kg to prevent damage and ensure efficient drying.

Can I install the dryer in a cold room?

Yes, but performance may be affected. The ambient temperature should be between 5°C and 35°C. In very cold rooms, drying times will be longer. Ensure proper ventilation.

USER MANUAL KDM2739 Kunft

Front view of a white Kuwait air conditioner washing machine (no visible text or symbols on the device body)

vented tumble dryer

kunft.®

vented tumble dryer

KDM2739

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS .... 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables ...... 6
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS .....11

2.1. Product Description....11
2.2. Using the Product .....11
2.3. Maintenance 17
2.4. Troubleshooting 19

1. TECHNICAL SPECIFICATIONS ...... 20
2. POST-SALE SERVICE 22
3. ENVIRONMENTAL PROTECTION 22

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

vented tumble dryer KDM2739

EN

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

vented tumble dryer KDM2739

EN

- Read all instructions before using the product.

- Maintenance and service operations are only to be carried out by authorized professionals.

- Any damage caused by manual modifications to the product is not covered by the warranty.

- If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

- Unique luxury design: Front loading washing machine design with a unique appearance.

- Micro Control: Simple and convenient operation with the help of a PCB board, and it will sense the temperature when using automatic drying.

- Large door window: View the dryer in action through this window.

- Open the door up to 180°: It is very convenient to be able to open the door up to 180° to load and unload the dryer with your clothes.

- Compact construction: Suitable capacity and unique anti-dust, anti-humidity and anti-vibration design which produces little noise and lasts a long time.

kunft®

• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble dryer.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliance burning other fuels, including open fires.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with extra detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures they will not be damaged.

vented tumble dryer

KDM2739

EN

• WARNING: never turn off a tumble dryer before the end of the drying cycle, and if you do so for whatever reason, quickly remove and spread out all items so that the heat is dissipated.
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances which burn gas or other fuels.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge facing the tumble dryer, in such a way that the tumble dryer door cannot be fully opened.
• Items containing oil can ignite spontaneously, especially when exposed to sources of heat such as a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing items containing oil can prevent heat from escaping and pose a fire hazard.
• If fabrics that contain vegetable/cooking oil or hair care products must be placed in a tumble dryer, they should first be washed in hot water with extra detergent – this will reduce, but not eliminate, the risk.
• The appliance should not be overturned during normal use or maintenance.
• Remove all objects from pockets such as lighters and matches.

kunft®

• This appliance can be used by children aged 8 years old and above and persons with reduced physical, sensory or mental capabilities or who lack the necessary experience and knowledge provided they are supervised or have been given instruction concerning the use of the appliance in a safe way, and that they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance must not be done by children without supervision.
• Care should be taken that, for appliances with ventilation openings in the base, these are not obstructed by carpets or other such objects.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • This appliance is for indoor use only.
• The openings must not be obstructed by a carpet.
• Children aged 3 or under should be kept away from the appliance unless under constant supervision.

vented tumble dryer

KDM2739

EN

2. OPERATING INSTRUCTIONS

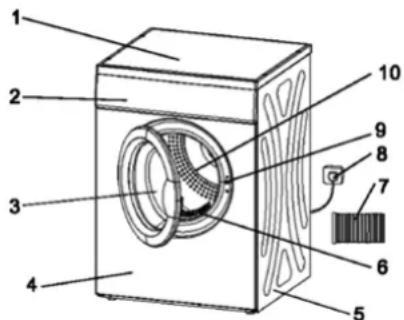

2.1. Product Description

Part Description

1. Top board
2. Control panel
3. Door
4. Front panel
5. Side panel
6. Filter
7. Flex tube
8. Powerplug
9. Switch
10. Tumbling drum

2.2. Using the Product

Note before use

The first step: Power source and earthing.

The dryer employs alternating current with the rated voltage and frequency. When the voltage fluctuates between 6% of the rated voltage, the dryer can work normally. It is recommended a special power socket be placed by the dryer for convenience and safety. The method for connecting the socket is depicted in the figure below.

For your safety, please make improvements as soon as possible according to the rules and suggestions mentioned above.

Earthing

Notes:

The socket and the earth wire must be installed by an electrician to prevent incorrect installation or use of the socket and to guarantee the safe use of electricity. The power wire for the dryer employs a Y connection. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in

kunft.

order to avoid a hazard. The earth wire must not be connected to the neutral wire or the cabinet will be charged, which poses an electric shock hazard.

Step 2: Precautions

Install or store the dryer where it will not be exposed to temperatures below freezing or exposed to water or the elements, which could cause permanent damage and invalidate the warranty.	Keep the area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt. An obstructed port may reduce airflow.
Thoroughly spin the laundry in the washing machine. High spin speed can reduce the drying time and reduce energy consumption.	Make sure combustible spray cans are not close to the dryer when it is in operation. If the can is leaking, do not bring into contact with or place it on the appliance, nor should you start/pause the appliance.
Do not wash or dry articles that have been cleaned, washed or soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.)	Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

vented tumble dryer

KDM2739

EN

Do not allow children on or in the appliance. The close supervision of children is necessary when the appliance is in use in their vicinity.	Please do not use the machine when your feet and/or hands are wet.
Do not store plastic, paper or clothing that may burn or melt on top of the dryer during operation.	The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances which burn gas or other fuels.
Do not dry articles containing rubber, plastic or similar materials such as padded bras, tennis shoes, galoshes, bath mats, rugs, bibs, baby pants, raincoat plastic bags or pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.	The door must only be opened after the drying programme is over. Do not open the door before the programme finishes to avoid scalding yourself with hot steam or on the drying machine itself.

This product is a type I electronic product. Accordingly, please note the following safety issues:

1. By rule, the power supply must be earthed and not in contact with public infrastructure such as gas or water pipes etc. Ensure these different networks are identified and that they are non in contact with each other at any point.
2. Please use a special socket in accordance with the National Standard and with a 10A current rating.

For your safety, please make improvements as soon as possible according to the rules and suggestions mentioned above.

kunft.

When using your dryer, please pay attention to whether or not the fabrics can be tumble dried and to the following symbols which may be present on your clothes:

Dry	Tumble dry	Do not tumble dry	Do not dry
Line dry / hang to dry	Drip dry	Dry flat	Dry in the shade
Dry clean	Do not dry clean	Dry clean, any solvent	Dry clean, hydrocarbon solvent only

Simple installation

Step 1: Place the dryer in a ventilated area at a distance of no less than 10cm from the wall. If placed in a room such as bathroom, it is suggested there are no obstacles within 1.5m of the front of dryer and that it be kept ventilated.

Step 2: Ensuring the dryer is level

Tie a heavy object to a string on the front and sides of the dryer, as depicted in the figure below. If A=A' and B=B', this means the dryer is level. If this is not the case, you can try placing something under the dryer.

Note:

If the dryer is not level (the lean angle is over 2^ ), the dryer will work intermittently or sometimes even stop working

Note, when installing:

- Do not install the dryer in the open air or in a place where it can easily be damaged by rain;

- Do not place the back of the dryer near a curtain or something in the wind;

- Do not place the dryer near gas or flammable material.

Step 3: Regarding the fixing of the flex tube:

- Connect one side of the flex tube with the whorl to the back vent, then rotate it till tight.

vented tumble dryer

KDM2739

EN

- The other end of flex tube should be extended to exterior. Please refer to the correct assembly in the pictures below.

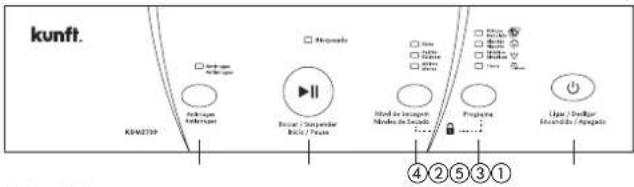

Control panel

Below are instructions for starting and using your new dryer. Please refer to specific sections of this manual for more detailed information. Important Warning: To reduce the risk of fire, electric shock, or personal injury, read this entire manual, including the Important Safety Instructions, before operating this dryer.

1. On/Off
2. Start/Pause
3. Program(Mix/Cotton/Synthetic/1hour)
4. Dry Level(Extra/Standard/Less)
5. Anti-Crease

Instructions:

1) Press the [Program] button to select the desired programme.
2) Press the [Dry Level] button to select the desired level.
3) Press the [Anti-Crease] button to activate the Anti-Crease function.
4) Press the [Start/Pause] button to Start/Pause the programme.
5) If you need to use the child lock function, press the [Program] and [Dry Level] buttons simultaneously for over 3 seconds to activate the child lock function.
6) The buzzer will indicate when the cycle is over. Press the [On/Off] button and unplug the power cable.
7) Clean the filter, the cabinet and the inner tube.
8) This symbol stands for the energy efficiency test programme "standard cotton programme", which is best suited for drying a normal cotton load or for use at the rated load capacity.

Additional Instructions & Notes

1. Before drying, thoroughly spin the laundry in the washing machine. High spin speed can reduce the drying time and reduce energy consumption.
2. For a uniform drying result, sort the laundry according to fabric type and drying programme.

kunft.

1. Before drying, please close zips, hooks and eyelets, do up any buttons, tie fabric belts, etc.
2. Do not over dry the clothes, because over dried clothes can easily get creases.
3. Do not dry articles containing rubber or similar elastic materials.
4. The door must only be opened after the drying programme is over. Do not open the door before the programme finishes to avoid scalding yourself with hot steam or on the drying machine itself.
5. Clean the lint filter and empty the container after each use to avoid extended drying times and additional energy consumption.
6. Do not dry these clothes following a dry-clean.

The reference weight of dry clothes

Mixed-fabric clothes (about 800 g)	Jacket (about 800 g, cotton)	Jeans (about 800 g)	Towel Quilts (about 900 g, cotton)
Single Sheets (about 600 g, cotton)	Work clothes (about 1120 g)	Pyjamas (about 200 g)	Long sleeve shirt (about 300g, cotton)

Short sleeve shirts (about 180 g cotton)

Underpants (about 70 g, cotton)

Socks (about 50 g, mixed weave)

vented tumble dryer

KDM2739

EN

Programmes & Options

Fabric Type	Approximate amount of remaining humidity	Capacity (KG)	Programmes Dry Level Note
Cotton 70% 7 / 3.5 / 1 Cotton Extra Please select
	60% 7 / 3.5 / 1 Cotton Standard
		7 / 3.5 Cotton Less
Mix	70% 7 / 3.5 / 1 Mix	Extra
	60% 7 / 3.5 / 1 Mix	Standard
Synthetic	50%	3.5 / 1	Synthetic	Extra
	40%	3.5 / 1	Synthetic	Standard
Cotton	-	1	1Hr	-

Note:

1. The Cold Air function means there is cold air in circulation for only 3 minutes before the programme is over (with the exception of the 1Hr programme where cold air circulates for 10 minutes.)
2. If the Anti-Crease function is selected, the anti-crease process will last 2 hours, instead of 30min as would otherwise be the case without this option.
3. The internal temperature and humidity will affect drying time;
4. Check the labels on clothes and choose the correct temperature and time accordingly.

Suggestion: When there is less than 0.5kg of clothes, please select an hour dry and Extra for drying.

2.3. Maintenance

Cleaning the filter

1) Clean the lint filter before each use. Remove it by pulling it straight upward.
2) Cleaning the filter Use a wiping cloth and wipe it with your hand.
3) Installing the filter Once the filter has been cleaned using a damp cloth or water, please re-insert it after it has dried out.

kunft®

Cleaning the cabinet and the inner tube

Use a soft damp cloth when cleaning the cabinet and the inner tube.

1. Do not directly rinse with water.
2. Do not use a neutral scouring agent.
3. Not to use gasoline or alcohol.

Make sure you open the front door for aeration when cleaning the inner tube.

Safety reset

1. These dryers have a safety cut out switch which is activated by temperature.
2. The safety reset button is on the backboard. If your dryer is not heating, this button must be pressed before the dryer will operate again. You may need to wait 10 minutes for cooling to take place.
3. The most common reason for the dryer to overheat is a blocked filter.

Clean the lint filter after each load to prevent the dryer from overheating.

It will only be necessary to press the safety reset button if the dryer is not heating. Allow the dryer to cool down for at least 10 minutes before pressing the button. Press the white button in until you feel the reset click. Cleaning the filter after each load will avoid repetitive use of the safety cut out switch.

The cut out switch may be activated in the following cases:

1. The lint filter is blocked.
2. The exhaust outlets at the back of the dryer are blocked.
3. Poor ventilation in the room - open a window or a door
4. A lightweight garment e.g. handkerchief has been sucked onto the filter.

Safety Reset Button

Use your finger or a pencil to press the button in until you feel it click.

vented tumble dryer

KDM2739

EN

2.4. Troubleshooting

Problem Cause Solution
The dryer won't start	Power cutThe power plug is not fully plugged inExcessive load.The temperature fuse cut out.	Wait for power to be restoredCheck the power socket, make sure it is fully plugged in.After spinning and drying, the weight of clothes in the dryer cannot exceed 7kg.Request the services of a qualified person to replace the fuse.
The dryer is hot to the touch or smells hot	The lint filter is dirty.The uptake or exhaust duct is dirty	Clean the lint filter immediately.Clean out the stem.
Clothes are too dry	The dryer is too fullThe clothes weren't removed immediately after the programme endedThe clothes don't assort properly.Too high a temperature was used.	Ensure the dryer isn't too full.Remove the clothes from the dryer immediately after the programme ends.See page 7.Observe the care label on clothes.
Shrunken clothes	Too dry. Observe the care label on clothes. If these shrink easily, inspect them when dry. Remove the clothes from the dryer when they are still a bit damp and line dry them.
Hairballs on clothes	It is common for synthetic fibre or crease resistant fibre garments to produce hairballs due to friction.	Use a fabric softener. Please spray settled gule on cuffs and necklines when ironing clothes. Turn sarsenet inside out to reduce friction.

kunft®

While in operation, the dryer can produce

• A buzzing sound due to vibration: Caused by the turning and bumping of wet clothes.
• Air bumping: When drying, machine will generate steam which will come out from pipe and this will cost bumping with the bottom of inner tub.

Error code	Description Criteria		Course of action	Failure indication
E1 Excessive Temperature		NTC or PCB fault	Stop the programme and go to fault state	Reduced LED flashing
E3 Temperature Sensor error		Temperature Sensor is open or PCB fault	Stop the programme and go to fault state	Reduced LED flashing and standard flashing
E4 Temperature Sensor error		Temperature Sensor cutout or PCB fault	Stop the programme and go to fault state	Increased LED flashing

3. TECHNICAL SPECIFICATIONS

Dimension (LxWxH)	555x595x840 (mm) Weight 33kg
Rated input power	2000W Rated volume of dryer	7.0kg (Dry clothes)
Rated voltage	220-240V~ Rated frequency	50Hz

Product datasheet

Brand: KUNFT

Model: KDM2739

Rated capacity: 7 kg

Dryer Type: Air-Vented

Energy efficiency class: C

Energy consumption: 510.0 kWh per year, based on 160 drying cycles using the standard cotton programme at full and partial load, and on the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.

vented tumble dryer

KDM2739

EN

Automatic or non-automatic: Automatic

EU Ecolabel: N/A

Energy consumption for the standard cotton programme at full load: 4.38 kWh

Energy consumption for the standard cotton programme at partial load: 2.38 kWh

Power consumption for the off-mode (PO): 0.46 W

Power consumption for the left-on mode (PLO): 0.46 W

Left-on mode duration: 10 min

Cotton + Standard programme, i.e. the "standard cotton programme" used at full and partial load, is the standard drying programme on which the information on the label and on the datasheet is based.

This programme is suitable for drying normal wet cotton laundry and is the most efficient programme in terms of energy consumption for cotton.

Weighted programme time for the standard cotton programme at full and partial load: 100 min

Programme time for the standard cotton programme at full load: 130 min Programme time for the standard cotton programme at partial load: 74 min

Noise level for the standard cotton programme at full load: 69dB

kunft®

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Estimado cliente:

Imported, produced and distributed by:
