CS H10A1LE-S - Tumble dryer CANDY - Free user manual and instructions

Product type	Heat pump dryer
Drying capacity	10 kg
Dimensions (W x H x D)	60 x 85 x 65 cm
Net weight	52 kg
Power supply	220-240 V ~ 50 Hz, 10 A
Energy class	A++
Drying programs	16 programs (cotton, synthetics, delicates, etc.)
Options	Delayed start, gentle drying, anti-crease, child lock
Noise level	65 dB(A)
Maintenance and cleaning	Removable lint filter, condenser, and water tank
Safety	Automatic stop at end of cycle, overheat protection
Spare parts and repairability	Available from Candy after-sales service, repairability index 7.5/10
Brand	Candy
Model	CS H10A1LE-S

Frequently Asked Questions - CS H10A1LE-S CANDY

How to clean the lint filter of the Candy CS H10A1LE-S?

Open the door and remove the filter located at the bottom right. Clean it under running water, dry it completely before putting it back. Perform this operation after each cycle to avoid fire risks.

Why is my dryer not heating?

Check that the lint filter is clean, the water tank is not full, and the appropriate drying program is selected. If the problem persists, the condenser or humidity sensor may be dirty.

How to empty the water tank?

The water tank is located at the bottom left. Pull it towards you, empty it into a sink, then put it back until it clicks. An indicator light alerts you when it is full.

The dryer is making abnormal noise, what should I do?

Make sure the appliance is level and there are no objects stuck in the drum. Also check that the filters are properly in place. If the noise persists, contact after-sales service.

What programs are available on this model?

It offers 16 programs including cotton, synthetics, delicates, mixed load, wool, shirts, sport, quick dry, and options like anti-crease and delayed start.

Can I install the dryer under a worktop?

Yes, its dimensions (60x85x65 cm) allow it to fit under a standard worktop. Allow an opening of at least 60x87x66 cm. Ensure adequate ventilation.

How to activate child lock?

Press simultaneously the 'Delayed start' and 'Gentle drying' buttons for 3 seconds. An indicator lights up. To deactivate, repeat the operation.

What to do if error code E01 appears?

Code E01 indicates a communication problem with the control panel. Turn off the appliance, unplug it for 5 minutes, then plug it back in. If the code persists, contact customer service.

How to clean the condenser?

Remove the lower filter, take out the condenser by pulling the handle. Rinse it with clean water, gently brush the fins. Put it back after drying. Do this every 3 months.

Where to find the complete user manual?

The manual is available for free on notice-facile.com as a PDF download. You can also request it by email via the translation form on the website.

USER MANUAL CS H10A1LE-S CANDY

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

By placing the C€ mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

⚠️ Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

Index

1. SAFETY REMINDERS
2. DRAIN HOSE KIT: FITTING INSTRUCTIONS
3. PREPARING THE LOAD
4. CLEANING AND ROUTINE MAINTENANCE
5. WATER CONTAINER
6. CONTROLS AND INDICATORS
7. DOOR AND FILTER AND CONDENSER
8. SELECTING THE PROGRAMME AND SET THE FUNCTION
9. TROUBLESHOOTING CUSTOMER SERVICE

1. SAFETY REMINDERS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance should not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

• WARNING: Misuse of a tumble dryer may create a fire hazard.
• This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

• - Farm houses;
• - By clients in hotels, motels and other residential type environments;
• - Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.

If the appliance is used in a manner inconsistent with this it

may reduce the life of the appliance and may void the manufacturer's warranty.

Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.
• Do not allow children to play with the machine or its controls.
• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.
• WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty. Lint and fluff must not be
• allowed to collect on the floor around the outside of the machine.

The final part of a tumble dryer

- cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

The tumble dryer is not to be

• used if industrial chemicals have been used for cleaning. WARNING: Never stop a tumble
• dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. Maximum load drying weight: • see energy label.

Installation

• Do not use adapters, multiple connectors and/or extensions.
• Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

Important: During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown;

Caution: If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

The Laundry

• Do not dry unwashed items in the tumble dryer.
• WARNING Do not tumble dry fabrics treated with dry cleaning fluids.
• WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.
• Always refer to the laundry care labels for directions on suitability for drying.
• Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer.
• Clothes that are dripping wet should not be put into the dryer. Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
• Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be

washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
• Installing the rear of the appliance close to a wall or vertical surface.
• There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.
• Check regularly that the air flowing through the dryer is not restricted.
• Check frequently the fluff filter after use, and clean, if necessary.
• Prevent items from falling or collecting behind the dryer as

these may obstruct the air inlet and outlet

• NEVER install the dryer up against curtains.
• In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the following configuration.
• Stacking kit Mod 35100019: for minimum washing machine depth 49 cm
• Stacking kit Mod 35900120: for minimum washing machine depth 51 cm

The stacking kit shall be one of those above, obtainable from our spare parts service.

The instructions for installation and any fixing attachments are provided with the stacking kit.

WARNING: the appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

⚠ Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperatures around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold conditions (between +2 and +5°C) might cause some water condensation and water drops on the floor.

Air Outlets in the Base

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
• To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European Directive 2012/19/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household waste. - WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

- To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 6A.

Electricity can be extremely dangerous. This appliance must be earthed. The socket outlet and the plug on the appliance must be of the same type. Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has been installed.

Contains fluorinated greenhouse gases. Hermetically sealed.

R134a / 0.260 [kg] / CO2 equivalent: 0.372 [t] GWP1430

⚠️ You may be charged for a service call if a problem with your machine is caused by incorrect installation.

⚠️ If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.

Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.

Adjusting the Feet

Once the machine is in place, the feet should be adjusted to ensure that the machine is level.

2. DRAIN HOSE: FITTING INSTRUCTIONS

To avoid emptying the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

The kit consists of: 1 hose and 1 tap.

WARNING! Switch off and remove the tumble dryer plug from the electricity supply before carrying out any work.

Fit the Hose as Follows:

1. Flip the machine slowly to the right side.

1. The waste water pipe is situated at the right-hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.

1. Pull the hose off the bridge connection.

1. Attach the black hose from the kit (using the connector and pipe clips supplied) to the hose removed from the bridge connection.
2. Connect the new drain hose to the waste water pipe.
3. Once the machine is in place, check the bottom to ensure that the new hose does not kink when pushing the tumble dryer into position.

Connect to the mains electricity supply.

Caution: If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

3. PREPARING THE LOAD

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

- Check that the filter is clean before every drying cycle.

NEVER

- Put dripping wet items into the tumble dryer, this may damage the appliance.

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying. Tumble drying at high temperature. Tumble drying at low temperature only. Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamide, as well as cotton/synthetic blends.

Do not overload the drum; large items when wet exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

4. CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
• Regularly clean the condenser.
• After each period of use, wipe the inside of the drum and leave the door open for a while to allow air circulation to dry it.
• Wipe the outside of the machine and the door with a soft cloth.
• DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the build-up of fluff, clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The drum, door, and load may be very hot. IMPORTANT: Always switch off and remove the plug from the electricity supply before cleaning this appliance. ⚠ For electrical data, refer to the rating label on the front of the dryer cabinet (with the door open).

5. WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full, the 📋 indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

NOTE: If you have the option of drainage near the dryer, you can use the discharge kit to provide permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

To remove the container tank in door drawer

1. Gently pull out the water container holding the handle. (A) When it is full, the water container will weigh about 6 kg.
2. Tilt the water container to empty the water out through the spout. (B)

When empty, replace the water container back as shown; (C) first insert the base of the container into position as shown (1), then gently push the top into position (2).

1. Press the ▷ button to restart the cycle.

6. DOOR AND FILTER

Pull on the handle to open the door. To restart the dryer, close the door and press the Start/Pause button.

WARNING! When the tumble dryer is in operation, the drum and door may be VERY HOT.

Filter

IMPORTANT: To maintain the efficiency of the dryer, check that the fluff filter is clean before each drying cycle.

1. Pull the filter upwards.

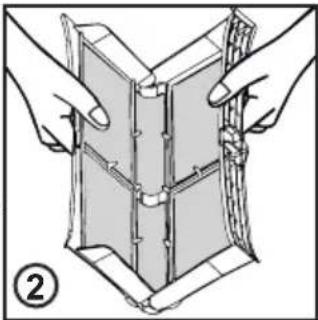

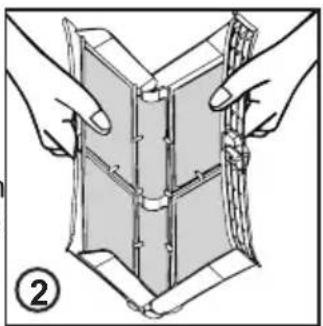

2. Open the filter as shown.
3. Gently remove lint using a soft brush or your fingertips.
4. Snap the filter together and push it back into place.

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying, check that the filter is not clogged.

IF YOU CLEAN THE FILTER UNDER WATER, REMEMBER TO DRY IT.

WARNING! If you open the door mid-cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

To Clean the Condenser Filter

1. Remove the kickplate.
2. Turn the two locking levers anti-clockwise and pull out the front cover.
3. Gently remove the filter frame and clean any dust or fluff with a cloth from the filter. Do not use water to clean the filter.
4. Remove the sponge gently from its place and then wash the sponge by holding it under a running tap, turning it to remove any dust or fluff.
5. Refit the front cover ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise.
6. Refit the kickplate.

⚠ Clean the filters before every cycle.

7. CONTROLS AND INDICATORS

A - Programme Selector -

Rotating the knob in both directions, it is possible to select the desired drying program. To cancel the selections or switch off the dryer, rotate the knob to OFF.

B-Buttons -

1. Start/Pause Button

To start the selected program and/or suspend it.

2. Time cycle selection

It's possible to switch a cycle from automatic to timed, up to 3 minutes after the start of the cycle. After this selection, to reset the automatic drying functioning it is necessary to switch off the dryer. In case of incompatibility, all LEDs flash quickly for 3 times.

3. Drying Selection Button

It allows to set the desired dryness level, an editable option up to 5 minutes after the starting of the cycle:

- Ready to Iron: It leaves the garments slightly wet to facilitate ironing.

2 - Dry Hanger: To get garment ready to be hung.

- Dry wardrobe: For laundry that can be directly stored.

- Extra-dry: To get completely dry garments, ideal for full load.

This appliance is equipped with Drying Manager Function. On automatic cycles, each level of intermediate drying, prior to reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached. In case of incompatibility, all LEDs flash quickly for 3 times.

4. Delay Start Button

To postpone the start of the program for 3h, 6h, or 9h. Opening of the porthole with delayed start set, after re-closing the porthole, press start again to resume the counting.

C-Led

Water tank ☐ - It lights up when it is necessary to empty the condensate water tank.

Filter cleaning ⚙ - It lights up when the cleaning of the filters is requested (the door and the lower filter).

These control lights light up to indicate the drying phase:

- DRY: It lights up when the drying cycle is running.

- ⚙: It lights up when the cycle is in the cooling phase.

- END: It lights up when the cycle is done.

D-

SMART TOUCH area - pressing the START/PAUSE button allows a previously downloaded cycle to start whilst the Touch position is selected on the programme knob (for downloading cycles from the App see the relevant section of this user manual).

APPAREL CARE

The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products provided that the products

are washed and dried according to the instructions on the garment label and those issued by the manufacturer of this machine. M1530.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

Maximum Drying Weight

Cottons	Max.capacity declared
Synthetics or Delicates	Max. 4 kg

Drying Guide

The standard cycle COTTON DRY (☐) is the most energy efficient and best suited for drying normal wet cotton laundry.

The table on the last page shows the approximate time and energy consumption of the main drying programmes.

Power consumption of off-mode	0,40 W
Power consumption of on-mode	0,75 W

Technical Specifications

Drum capacity 1	25
Maximum load See energy label
Height 85 cm
Width 60 cm
Depth	60 cm
Energy class	See energy label

Information for Test Laboratory

EN 61121 Programme To Use

-DRY COTTON

-IRON DRY COTTON

-EASY-CARE TEXTILE

- COTTON OR

-COTTON OR WHITES

-DELICATES OR SYNTHETIC

Clean the filters before every cycle.

ONLY FOR 10 KG CAPACITY TUMBLE DRYER: CONNECT THE DRAIN HOSE FOR RECOVERING CONDENSER WATER ACCORDING TO INSTRUCTION AT CHAPTER 2.

The real duration of drying cycle depends on the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door pushing it slowly until you hear the door 'click' shut.
3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).
4. Press the ▷ button. The dryer will start automatically and the indicator above the button will be continuously lit.
5. If the door is opened during the programme to check the laundry, it is necessary to press ▷III to recommence drying after the door has been closed.
6. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
7. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.
8. When the programme is complete the END indicator will light.

Do not open the door during the automatic programs in order to obtain a proper drying.

1. SELECTING THE PROGRAMME AND SET THE FUNCTION

	PROGRAM	PROGRAM DESCRIPTION	CAPACITY(kg)	DRYINGTIME(min)
	Super Easy Iron	A comfortable solution to dry laundry of mixed fabrics minimizing folds, delivering the perfect humidity to iron in the easier way.Before drying it's better to shake off the linens.	2	*
	Cotton	Program Eco normative (hang dry) drying. The most efficient program in energy consumption. Suitable for cottons and linens.	Full	*
	Whites	The right cycle to dry cottons, sponges and towels.	Full	*
	Mix&Dry	To dry all together different kind of fabrics as cotton ,linen,mix, synthetics.	4	*
	Synthetics	To dry delicate and synthetic fabrics that need an accurateand specific treatment.	4	*
	Shirts	This specifics cycle has been conceived to dry shirts minimizingtangles and folds thanks specific movements of the drum. It'srecommended to take out the linens immediately after drying cycle.	2.5	*
	Coloured	A delicate and specific cycle to dry dark or colour cotton orsyntethics garments.	4	*
	Baby	This cycle is perfect for baby clothes, when an high hygiene levelis expected.	4	150'
	Jeans	Dedicated to dry uniformly fabrics like jeans or denim. It'srecommended flip over the garments before drying.	4	*
	Sport	Dedicated to technical garments for sport and fitness, dryinggently with special care to avoid shrinking and deteriorationof elastic fibers.	4	*
	Wool	Woolen clothes: the program can be used to dry up to 1 kg oflaundry (around 3 jumpers). It is recommended to reverse allclothes before drying. Timing can change due to dimensionsand thickness of load and to spinning chosen duringwashing. At the end of the cycle, clothes are ready to beworn, but if they are heavier, edges can be a bit wet: it issuggested to dry them naturally. It is recommended tounload clothes at the very end of the cycle. Attention: feltingprocess of wool is irreversible; please dry exclusively clotheshwith symbol (symbol "ok tumble"); this program is notindicated for acrylic clothes.	1	70'
	Rapid 45'	Perfect to dry quickly up to 1 kg load. It's recommended tospin at high speed before drying.	1	*
	Relax creases	This is a warm cycle that in only 12 minutes helps to relaxe foldsand creases.	2.5	12'
	Refresh	The perfect cycle to remove the bad smells from the linenssmoothing creases.	2.5	*
Smart Touch Customizable setting that interacts with the App on your android smartphone and to downlothe cycles (see the dedicated section). The factory sets the default programme Auto-Hygierwhich will sanitize the machine.

* The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

SMART TOUCH

This appliance is equipped with Smart Touch technology that allows you to interact, via the App, with smartphones based on Android operating system and equipped with NFC (Near Field Communication) function.

- Download on your smartphone the Candy simply-Fi App.

• Smart Care – -Smart Check-up and a troubleshooting guide.
• My Statistics – Drying statistics and tips for a more efficient use of your machine.

Get all the details of the Smart Touch functions, browsing the App in DEMO mode or go to: www.candysmarttouch.com

The Candy simply-Fi App is available for devices running both Android and iOS, both for tablets and for smartphones. However, you can interact with the machine and take advantage of the potential offered by Smart Touch only with Android smartphones equipped with NFC technology, according to following functional scheme:

Android smartphone with NFC technology	Interaction with the machine + contents
Android smartphone without NFC technology	Contents only
Android Tablet	Contents only
Apple iPhone	Contents only
Apple iPad	Contents only

FUNCTIONS

The main functions available using the App are:

• Voice Assistant – A guide to help you choose the ideal cycle with only three voice inputs (clothes/fabrics, colour, drying level).
• Cycles – To download and launch new drying programmes.

HOW TO USE SMART TOUCH

FIRST TIME - Machine registration

Enter the "Settings" menu of your Android smartphone and activate the NFC function inside the "Wireless & Networks" menu.

Depending on the smartphone model and its Android OS version, the process of the NFC activation may be different. Refer to the smartphone manual for more details.

• Turn the knob to the Smart Touch position to enable the sensor on the dashboard.
• Open the App, create the user profile and register the appliance following the instructions on the phone display or the "Quick Guide" attached on the machine.

More information, F.A.Q. and the video for an easy registration are available on:

www.candysmarttouch.com/how-to

NEXT TIME – Regular usage

- Every time you want to manage the machine through the App, first you have to enable the Smart Touch mode by turning the knob to the Smart Touch indicator.

- Make sure you have unlocked your phone (from stand-by mode) and you have activated the NFC function; then, follow the steps mentioned earlier.

- If you want to start a dry cycle, load the laundry and close the door.

- Select the desired function in the App (e.g.: starting a programme, the Smart Check-up cycle, update statistics, etc...).

- Follow the instructions on the phone display, KEEPING IT ON the Smart Touch logo on the machine dashboard, when requested to do so by the App.

NOTES:

Place your smartphone so that the NFC antenna on its back matches the position of the Smart Touch logo on the appliance (as illustrated below).

If you do not know the position of your NFC antenna, slightly move the smartphone in a circular motion over the Smart Touch logo until the App confirms the connection. In order for the data transfer to be successful, it is essential to keep the smartphone on the dashboard during the few seconds of the procedure; a message on the device will inform about the correct outcome of the operation and advise you when it is possible to move the smartphone away.

Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them.

The replacement of some components of the smartphone (e.g. back cover, battery, etc...) with non-original ones, could result in the NFC antenna removal, preventing the full use of the App.

The management and the control of the machine via App is only possible "by proximity": it is therefore not possible to perform remote operations (e.g.: from another room; outside of the house).

WIRELESS PARAMETERS

Parameter	Specifications
Wireless Standard	ISO/IEC 14443 Type A and NFC Forum Type 4
Frequency band	13,553-13,567 MHz (centre frequency 13,560 MHz)
Magnetic field limit	< 42dBμA/m (at 10 meters)

With this the Candy Hoover Group Srl, declares that this appliance marked with CE complies with the essential requirements of the Directive 2014/53/EU. To receive a copy of the declaration of conformity, please contact the manufacturer at: www.candy-group.com

9. TROUBLESHOOTING

FOR SMART TOUCH MODELS

The Candy simply-Fi app has a Smart Check-up function that allows you to confirm the functionality and status of the product at any time. To use the Candy simply-Fi APP you will need an Android smartphone with NFC technology.

More info can be found on the App.

If the display of the machine is showing an error (by a code or blinking LEDs), you should turn on the App on your Android smartphone, with NFC on, selecting "Read the error" on the "Help on line" menu place your smart phone against the Smart Touch logo on the control panel. You should now be able to read the fault directory to solve the issue.

What Might be the Cause of...

Defects you can remedy yourself

Before calling service for technical advice please run through the following checklist. A charge will

be made if the machine is found to be working d has been installed incorrectly or used incorrectly. If the problem persists after completing the e

For recommended checks, please call Service; they may be able to assist you over the telephone.

The time to end displayed may change during the drying cycle. The time to end is continuously checked during the drying cycle and adjusted to give the best estimated time.

The displayed time may increase or decrease during the cycle, and this is normal.

Drying time is too long / clothes are not dry enough...

• Have you selected the correct drying time/programme?
• Were the clothes too wet? Were the clothes thoroughly wrung or spin-dried?
• Does the filter need cleaning? • Is the dryer overloaded?

The dryer does not operate...

- Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.

- Is the plug properly connected to the mains supply?

• Is there a power failure?

- Has the fuse blown?

• Is the door fully closed?

- Is the dryer switched on, both at the mains supply and at the machine?

- Has the drying time or the programme been selected?

- Has the machine been switched on again after opening the door?

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

Does the filter need cleaning?

The Indicator is on...

Does the water container need emptying?

y

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order. - Has not been installed in accordance with the installation instructions. - Has been used incorrectly.

Spares

^a Always use genuine spares, available direct from service.

Service

For service and repairs call your local service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Air Outlets in the Base

2. EXHAUST HOSE KIT: ASSEMBLY INSTRUCTIONS

1. Remove the hose from the fitting.

6. DOOR AND FILTER

Air Outlets in the Base

6. DOOR AND FILTER

Fluff filter indicator

More information, F.A.Q. and the video for an easy registration are available on: www.candysmarttouch.com/how-to

Air Outlets in the Base

2. FLEXIBLE DRAIN HOSE KIT: ASSEMBLY INSTRUCTIONS

6. DOOR AND FILTER

7. CONTROLS AND INDICATORS

A- Knob -

Air Outlets in the Base

2. DRAIN HOSE KIT: INSTALLATION INSTRUCTIONS

1. Disconnect the hose from the bridge connection.

6. DOOR AND FILTER

DELICATE OR SYNTHETIC

⚠ Clean the filters before each cycle.

⚠ ONLY FOR DRYERS WITH A CAPACITY OF 10 KG: CONNECT THE DRAIN HOSE FOR COLLECTING CONDENSATE WATER ACCORDING TO THE INSTRUCTIONS IN CHAPTER 2.

Air Outlets in the Base

2. DRAIN HOSE: INSTALLATION INSTRUCTIONS

6. DOOR AND FILTER

Filter Status Control Indicator

7. CONTROLS AND INDICATORS

A - Cycle selector -

Air Outlets in the Base

6. DOOR AND FILTER

What Might be the Cause of...
