F 40 DRL E - Bike light Fuxon - Free user manual and instructions

Product Type	Bicycle headlight
Model	F 40 DRL E
Brand	Fuxon
Luminous Flux (Main LED)	40 lux (max)
Daylight Running Lights	2 LEDs, 20 lux (dimmed)
Standlight	Via capacitor, approx. 4 minutes
Power Source	Hub dynamo (6V AC/DC)
Switch Modes	Auto (bright/dark), On, Off
Auto Sensor	Distinguishes between bright and dark conditions
Compatibility	E-bike and standard bicycles with hub dynamo
Rear Light Connector	Red/black (⊖) and black (⊕) wires
Standards	German road traffic regulations (StVZO)
Voltage Protection	Built-in voltage security system
Dimensions (approx.)	80 x 40 x 30 mm
Weight (approx.)	100 g
Housing Material	Aluminum and plastic
Mounting	Handlebar bracket (included)
Care Instructions	Clean with a soft, damp cloth; do not use solvents
Repairability	Entire unit must be replaced if any LED fails
Included Accessories	Mounting bracket, cables, manual

Frequently Asked Questions - F 40 DRL E Fuxon

How do I connect the rear light?

Use the provided cable connectors: connect the red/black wire (⊖) and black wire (⊕) to your rear light. Ensure correct polarity.

Does this light require a battery?

No, it is powered by a hub dynamo. It has a capacitor for standlight function, which charges during riding.

What does the AUTO mode do?

In AUTO mode, the sensor detects ambient light. In bright conditions, the main LED runs dimmed (20 lux) with daylight LEDs. In dark, main LED runs at full 40 lux and daylight LEDs act as standlight.

How long does the standlight last?

The standlight from the capacitor lasts approximately 4 minutes after stopping.

Is the light compatible with e-bikes?

Yes, it is specially developed for e-bikes and includes a voltage security system to protect against overvoltage.

What if one of the LEDs stops working?

If any LED fails, the entire lighting unit must be replaced. Individual LEDs are not replaceable.

Can I use this light with a bottle dynamo?

It is designed for hub dynamos. Bottle dynamos may not provide stable voltage, but it may work if voltage is within limits.

How do I mount the light?

Attach the included bracket to your handlebar using the screw. Then slide the light onto the bracket and tighten.

What is the maximum brightness?

The main LED reaches up to 40 lux in ON mode or AUTO dark mode. The daylight running lights emit about 20 lux.

Is the light road-legal in Germany?

Yes, it meets the German StVZO standard for bicycle lighting.

USER MANUAL F 40 DRL E Fuxon

Technical facts and references

▶ 1 high-performance LED
▶ 2 Daylight-Running-LEDs
▶ Vehicular optical test requirement: German standard
▶ Standlight via capacitor
▶ with AUTO-ON-OFF-switch
▶ With voltage security system

▶ with sensor
▶ with connectors for hub dynamo and rearlight
▶ Attention: The loading process of the capacitor takes approx. 4 minutes riding time
▶ especially developed for-E-bike

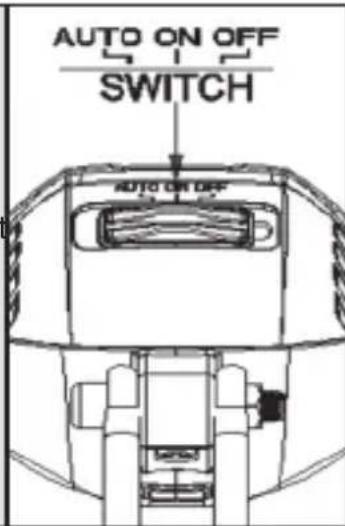

Switch functions:

AUTO The sensor distinguishes between BRIGHT and DARK

BRIGHT (UV-light) The complete light unit is shining (The running light is working dimmed (20 LUX) and the day-running-lights are also shining DARK The running light reaches its full capacity (40 LUX), the day-running light takes over the standlight function (approx. 4 minutes the light is working)

ON The main LED will be on during riding and reaches a per-formance of up to 40 LUX. The daylight LEDs take over the standlight function. (4 minutes max.)

OFF Both main and daytime-runninglight are switched off.

ATTENTION! If one diode is not working the complete lighting unit must be exchanged.

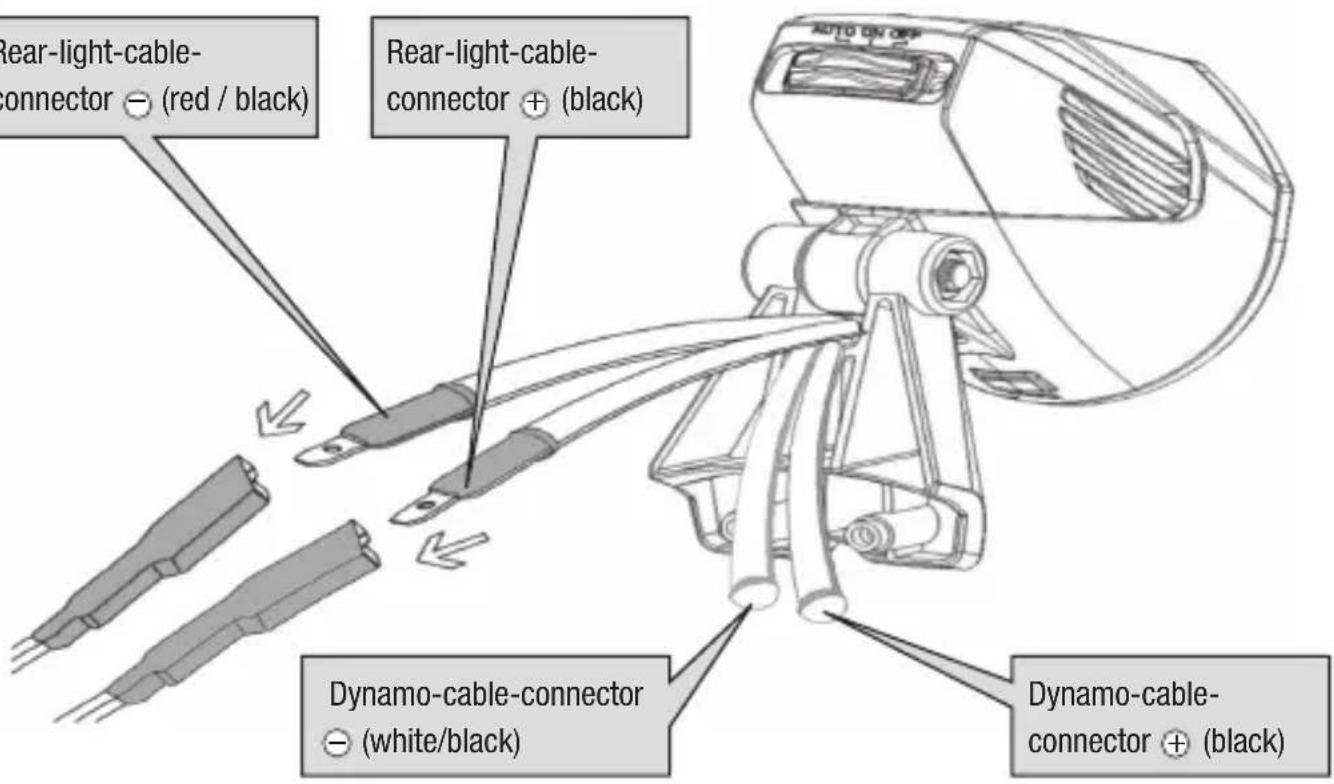

Cableconnection:

Rear-light-cable- connector ⊖ (red / black)

Rear-light-cable- connector ⊕ (black)
