Product Type	Bike Light
Brand	Fuxon
Model	F-15 PRO EB
Light Source	LED
Max Lumen Output	1200 lumens
Beam Distance	Up to 200 meters
Battery Type	Lithium-ion rechargeable
Battery Capacity	5000 mAh
Charging Time	4 hours
Run Time (Max)	10 hours (low mode)
Charging Port	USB-C
Mount Type	Handlebar mount (included)
Waterproof Rating	IPX6
Dimensions	120 x 35 x 45 mm
Weight	220 g
Light Modes	High, Medium, Low, Flashing, SOS
Daytime Running Light	Yes
Remote Control	Included wireless remote
Material	Aluminum alloy
Certifications	CE, RoHS
Warranty	2 years
Included Accessories	USB charging cable, remote, mount, manual

Frequently Asked Questions - F-15 PRO EB Fuxon

How do I charge the Fuxon F-15 PRO EB bike light?

Use the included USB-C cable. Connect to a standard USB charger (5V/2A). Charging time is approximately 4 hours. The LED indicator turns red while charging and green when fully charged.

What is the battery life of the F-15 PRO EB?

Battery life varies by mode: up to 10 hours on low mode, 6 hours on medium, 3 hours on high, and 12 hours on flashing mode. Battery capacity is 5000 mAh.

Is the Fuxon F-15 PRO EB waterproof?

Yes, it has an IPX6 waterproof rating, meaning it is protected against powerful water jets. It can withstand heavy rain and splashes, but not submersion.

How do I mount the light on my bike?

Use the included handlebar mount. Secure the mount to the handlebar using the rubber strap, then slide the light onto the mount until it clicks. Tighten the screw to secure.

Can I use the remote control to switch modes?

Yes, the wireless remote allows you to change modes without removing your hands from the handlebars. It has a range of up to 5 meters.

What light modes are available?

There are 5 modes: High (1200 lumens), Medium (600 lumens), Low (300 lumens), Flashing, and SOS. The day running light mode also activates automatically in daylight.

How do I clean and maintain the bike light?

Wipe the light with a damp cloth. Do not use harsh chemicals. Ensure the charging port is dry before charging. Store in a dry place. Check mount regularly for tightness.

What should I do if the light stops working?

First, try charging it fully. Ensure the mount is properly connected. If it still doesn't work, check the remote battery (CR2032). If issues persist, contact Fuxon support.

Is the F-15 PRO EB suitable for off-road cycling?

Yes, with 1200 lumens and a beam distance of 200 meters, it is ideal for mountain biking and night trails. The sturdy aluminum alloy housing withstands vibrations.

Does the light have a memory function?

Yes, the F-15 PRO EB remembers the last mode used. When turned on again, it will resume in the same mode.

USER MANUAL F-15 PRO EB Fuxon

Technical facts and references

▶ Headlight with 1 High Efficiency LED (1,2 W, 15LUX)
▶ Input Voltage: 6V (12V) DC
▶ Vehicular optical test requirement: German Standard
▶ with fixed reflector type K 1118

Important:

This frontlight is only allowed to use with electrical assisted bicycles with 6 (12V) input voltage. The bicycle must be equipped with its own controlling unit (low battery indicator) as well as an automatic safety stop of the motor in order to avoid the deep discharge of the rechargeable battery.

The on/off function is effected by the control unit of the bike with motor assisted pedal cycle.

When mounting the headlamp please make sure that the screws will be securely tightened so that the frontlight can not change its original position.

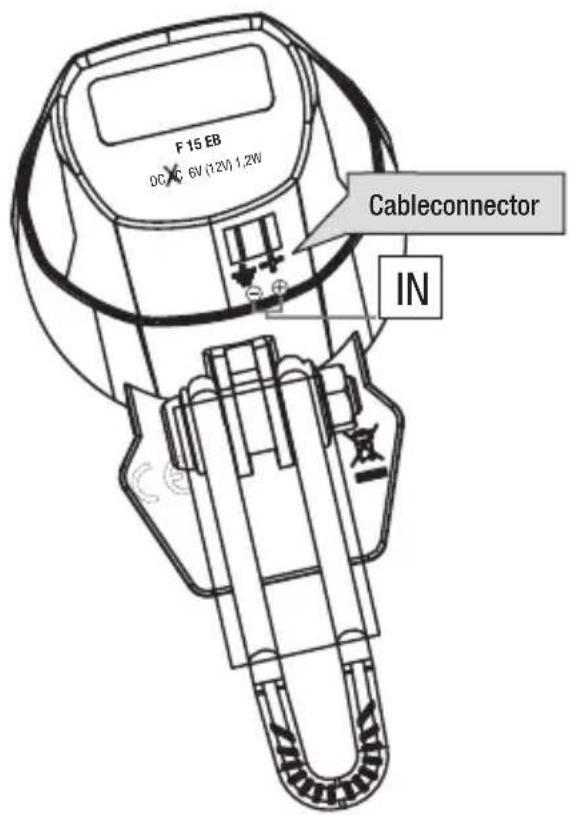

Cableconnector:

The frontlight has to be mounted in a way that the cone of light reach the road 10 m ahead of the bike.

Before every ride make sure that the light is not covered.
