WS-5008 - Lawn Spreader McGregor - Free user manual and instructions

Product Type	Lawn Spreader
Model	WS-5008
Brand	McGregor
Hopper Capacity	50 lbs (22.7 kg)
Spreading Width	Up to 10 ft (3 m)
Material	Plastic hopper, steel frame
Wheel Size	10 inches
Operation Type	Push / Manual
Dimensions (L x W x H)	24 x 18 x 14 inches (61 x 46 x 36 cm)
Weight	12 lbs (5.4 kg)
Power Source	Manual / No battery required
Functions	Broadcast spreading for grass seed, fertilizer, salt
Adjustable Flow Control	Yes, calibrated dial
Assembly Required	Yes, minimal with included tools
Maintenance	Clean after use, lubricate moving parts annually
Safety Features	Lockable handle to prevent accidental operation
Warranty	2-year limited warranty
Spare Parts	Available: flow control knob, wheel assemblies, hopper lid
Repairability	Modular design for easy replacement of parts
Intended Use	Residential lawns and gardens

Frequently Asked Questions - WS-5008 McGregor

How do I assemble the WS-5008 spreader?

Refer to the assembly manual included. Typically, attach the handle to the frame, fix the wheels, and mount the hopper. All necessary tools are provided.

What materials can I spread with this spreader?

You can spread grass seed, fertilizer, ice melt, and other granular materials. Avoid using wet or chunky substances.

How do I calibrate the spreader for different materials?

Set the flow control dial to the recommended setting for the material. Refer to the calibration chart in the manual or start with a low setting and adjust as needed.

What is the maximum spreading width?

The WS-5008 can spread up to 10 feet (3 meters) wide, depending on the material and walking speed.

How do I clean the spreader after use?

Empty the hopper, rinse with water, and dry thoroughly. Pay special attention to the impeller and flow mechanism to prevent clogging.

Can I use this spreader on slopes?

Yes, but exercise caution on steep slopes. The spreader is designed for level to moderate inclines. Avoid uneven terrain to prevent spillage.

How do I store the spreader during winter?

Clean the spreader thoroughly, apply lubricant to moving parts, and store in a dry place. Remove the hopper if possible to save space.

What should I do if the spreader doesn't dispense evenly?

Check for clogged holes or a blocked impeller. Ensure the flow control is set correctly and walk at a consistent pace.

Is the spreader covered by warranty?

Yes, it comes with a 2-year limited warranty against manufacturing defects. Proof of purchase is required for claims.

Where can I buy spare parts?

Spare parts are available through authorized dealers or the manufacturer's website. Common parts include the flow knob, wheels, and hopper lid.

USER MANUAL WS-5008 McGregor

Green agricultural sprayer with metal frame and 'MEGREGOR' logo, no text or symbols on the object itself

McGregor 12L Lawn

Spreader

(Model: WS-5OO8

Cat No.: 86599O3)

Please read these

instructions fully before starting assembly

These instructions contain important information that will help you get the best from your lawn spreader, ensuring it is assembled correctly. If you need help or have damaged or missing parts, call the Customer Helpline on O345 640 O800

AFTER SALES SUPPORT

0345 640 0800

Contents

Safety Information....3

Technical data....3

Assembly....3

Spreading adjustment....4

Instructions ....4

Use....4

Safety Information

Important - Please read these instructions fully before operating or maintaining

The lawn spreader is not a toy and should be stored out of the reach of children.

Technical data

Parts

Model: WS-5008

Capacity: around 12 litres

Spreading width: 45cm

Dimensions: 56.5x20x109cm

Spreader settings: 10

Weight: 1.4kgs

List of components

1. Handle
2. Bottom handle
3. Wheels
4. Adjustment knob
5. Support foot

	bended tube	1PC
	straight tube	2PC
	tank with wheels and control lever	1PC

Assembly

The lawn spreader is almost ready for use on delivery. The wheels and adjustment knob are fitted at the factory.

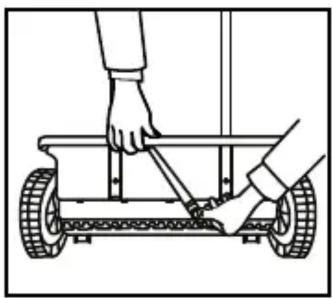

If the adjustment knob is off, the installation method is as follows: (Keep your hand on the hinge).

Technical line drawing of a wheeled cart with two wheels and a support structure (no text or symbols)

Technical line drawing of a wheeled cart with wheels and a handle (no text or symbols)

Line drawing of a hand using a tool to lift a wheeled cart (no text or symbols)

Line drawing of a hand operating a wheeled cart with a tool, no text or symbols present

The procedure for fitting the handle is as follows:

Assembly

Insert the thick end of the tubes into the sockets on the lawn spreader. Make sure they engage. Place the upper handle on the lower handle. Make sure they engage. The lawn spreader is now assembled and ready for use.

Simple line drawing of a two-wheeled cart with wheels and a downward arrow indicating motion (no text or symbols)

Spreading adjustment

The lawn spreader is equipped with a 10-step system that regulates the spreading amount. "0" is the lowest setting(no spreading)and "10" is the highest setting. The particle size corresponding to each gear is as follows:

Step system	1	2	3	4	5	6	7	8	9	10
Suitable particle diameter	0.5mm	1.2mm	1.8mm	2.8mm	3.8mm	5.0mm	6.0mm	7.2mm	8.0mm	8.2mm

Choose the selected setting by setting the knob to the relevant number on the lawn spreader. For most seeding and/or weed and moss killers, setting 3-4 are ideal. The actual spreading quantity depends on various factors and can only be measured in practice.

instructions

select setting "0" to avoid the material running out during filling. Fill the fertiliser spreader with the required material.

Use

Move the lawn spreader to the place where you want to spread from and adjust the spreading quantity. Carefully push the spreader over the area to be treated. The rotating axle moves the material out of the fertiliser spreader as the spreader moves forward.
