TW 0745 - Household Fan Orbegozo - Free user manual and instructions

Product Type	Domestic Pedestal Fan
Brand	Orbegozo
Model	TW 0745
Dimensions (height)	120 cm
Base Diameter	30 cm
Net Weight	3.5 kg
Power Supply	220-240 V ~ 50 Hz
Maximum Power	50 W
Number of Speeds	3 speeds
Oscillation Function	Yes, horizontal
Timer	Yes, up to 7 hours
Remote Control	Yes, included
Protection Grille	Front and rear metal grille
Cleaning	Dust with a damp cloth; removable grille
Safety	Automatic shut-off if tipped over
Spare Parts	Available on the manufacturer's website

Frequently Asked Questions - TW 0745 Orbegozo

How to assemble the fan?

Insert the tube into the base, attach the motor onto the tube, then install the grilles and blades according to the diagram in the manual.

How to use the remote control?

Insert the batteries (2x AAA) and point towards the receiver. Allows to change speed, oscillation, and timer.

What to do if the fan does not turn on?

Check the plug and power cord. Make sure the tip-over safety is not activated.

How to clean the fan grilles?

Unplug the appliance. Use a slightly damp soft cloth. Never immerse in water.

The fan is noisy, is this normal?

A slight motor noise is normal. If the noise is loud, check that the blades are properly secured and that nothing is obstructing.

How to set the timer?

Press the timer button to select the duration (1h, 2h, 4h, 7h). The fan will turn off automatically.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Do not expose to humidity.

How to activate oscillation?

Press the oscillation button on the device or remote control. The fan will sweep horizontally.

What to do if the remote control does not respond?

Replace the batteries. Check that no obstacle is blocking the signal. If the problem persists, contact customer service.

Where to find spare parts?

Go to the official Orbegozo website or contact their customer service. Use the model number TW 0745.

USER MANUAL TW 0745 Orbegozo

White cylindrical industrial fan with vertical cooling fins and a base (no visible text or symbols)

TW 0745

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Simple line drawing of a bowl with three circular wells and a handle (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central pin (no text or symbols)

Pillar

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Make certain that the power source conforms to the electrical requirements of the Fan.

16. Use this Fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.
17. This Fan must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres.
18. Where possible, avoid the use of extension cords. I minimize the risk of overheating by ensuring that they are UL listed. Never use a single extension cord to operate more than one Fan.
19. Do not block or manipulate the fan while it is working.
20. Locate the Power Cord so the Fan or other objects are not resting on it. Do not run Power Cord under carpeting. Do not cover Power Cord with throw rugs, runners, or the like. Arrange Power Cord away from room traffic and where it will not be tripped over.
21. This Fan is not intended for use in wet or damp locations. Never locate a Fan where it may fall into a bathtub or other water container.
22. Do not use Fan outdoors.

- Never insert fingers, pencils or any other object through the grille when fan is running.

- Disconnect the plug when moving from one location to another.

- Disconnect plug when cleaning grills.

- Be sure fan is on a stable, even surface when operating to avoid overturning.

- DO NOT USE fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.

HOW TO USE

I Connect the machine to the power supply.
I Press the "1" "2" "3" button for fan ON, and select Low, Medium, and High speed settings Press "0" for fan OFF.
Press √OSCILLATION button to turn on the oscillation function. Press again to turn off.
Timing: if timing is needed, turn the timer knob clockwise to desired position. The fan will stop on time automatically. If turn to OFF, it will stop work.

ASSEMBLY INSTRUCTIONS

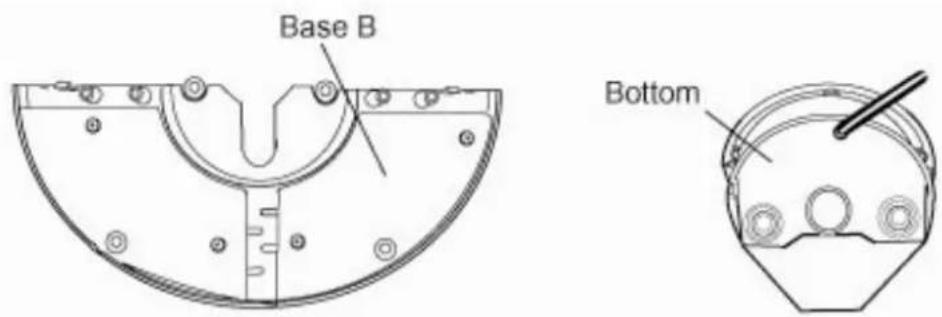

1. Place the main body of fan on a table to assemble Base B.

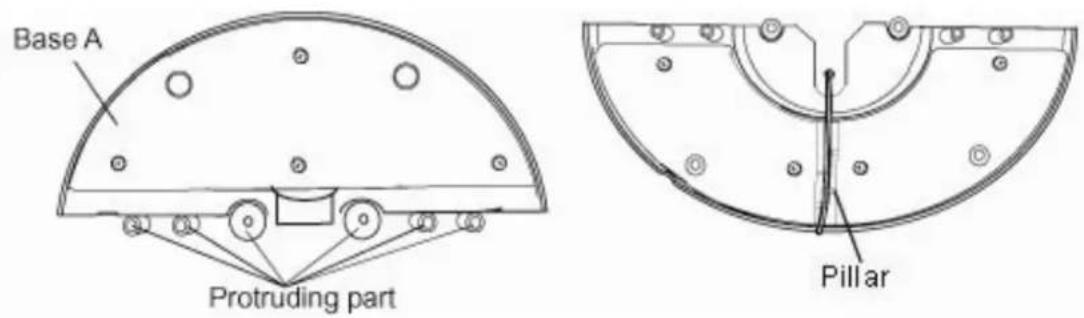

1. When assembling the fan, please insert the 6 protruding parts of Base B into the hollows of Base A. Then thread the cable through the pillar on the Base B.

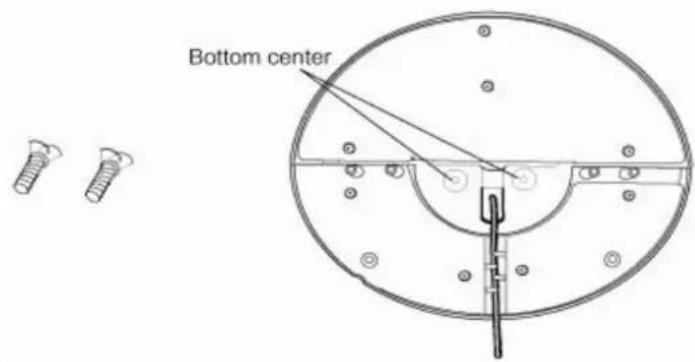

1. Please tightly fix the 2 screws in foundation which is located in the center of bottom.

MAINTENANCE

WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING.

WARNING: DO NOT IMMERSE FAN IN WATER!

CLEANING: Clean the Fan intake and exhaust openings with the vacuum brush attachment on your vacuum cleaner..

This will remove dirt and lint that may accumulate over time. DO NOT ATTEMPT TO TAKE APART FAN. Clean the body of the Fan with a soft cloth.

CAUTION: Do not use gasoline, benzine, thinner, harsh cleaners, etc. as they may damage the Fan. NEVER use ALCOHOL OR SOLVENTS.

STORAGE:

Store the Fan, with these instructions, in the original carton in a cool, dry place.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2004/30/EU.
