Product Type	Chest Freezer
Brand	Magic Chef
Model	HVDR1040B
Capacity	10.1 cu. ft.
Dimensions (W x D x H)	28.5 x 26.5 x 35.2 inches
Weight	110 lbs
Power Supply	115 V / 60 Hz
Annual Energy Consumption	350 kWh/year
Temperature Range	-10°F to 10°F
Defrost Type	Manual Defrost
Refrigerant	R600a
Noise Level	40 dB
Storage Basket	Yes, 2 wire baskets
Interior Light	Yes, LED
Lock and Key	Yes
Temperature Control	Adjustable thermostat
Warranty	1 year parts and labor
Cleaning	Unplug and wipe interior with mild detergent
Defrosting	Turn off, remove food, allow ice to melt

Frequently Asked Questions - HVDR1040B Magic Chef

How do I install the Magic Chef HVDR1040B freezer?

Place the freezer on a level surface in a dry, well-ventilated area. Allow 2 inches of clearance on sides and back. Plug into a dedicated grounded outlet rated 115V/60Hz. Wait 2-3 hours after placement before turning on.

What is the temperature range of this freezer?

The adjustable thermostat allows you to set temperatures between -10°F and 10°F (-23°C to -12°C). For long-term storage, keep at 0°F (-18°C).

How do I defrost the freezer?

Unplug the freezer and remove all food and baskets. Leave the lid open to allow ice to melt naturally. Do not use sharp tools to remove ice. Once defrosted, wipe dry and plug back in.

How often should I clean the freezer?

Clean the interior every few months using a mild detergent and warm water. Wipe the door gasket regularly to ensure a proper seal. Avoid abrasive cleaners.

What should I do if the freezer is not cooling properly?

Check that the power cord is plugged in and the thermostat is set correctly. Ensure the vents are not blocked and the door is closed tightly. If the problem persists, contact a qualified technician.

Can I use an extension cord with this freezer?

No, do not use an extension cord. Plug the freezer directly into a dedicated wall outlet to avoid voltage drop and potential fire hazards.

How long can I store food in this freezer?

Food can be stored for several months at 0°F. For best quality, consume frozen meats within 6-12 months and vegetables within 8-12 months.

What is the energy consumption of the HVDR1040B?

The freezer consumes approximately 350 kWh per year under normal use. Actual consumption may vary based on ambient temperature and usage.

Does the freezer have a lock?

Yes, the HVDR1040B comes with a lock and key for added security. Keep the key in a safe place.

Why is the freezer making noise?

Normal sounds include the compressor humming and refrigerant flowing. If you hear loud rattling or clicking, check that the freezer is level and that the baskets are secure.

USER MANUAL HVDR1040B Magic Chef

9.9 Cu. Ft.

TOP MOUNT REFRIGERATOR

User's Manual

Front view of a double refrigerator with a 'V Magic Chef' label on the top (no other text or symbols)

Model HVDR1040W / HVDR1040B / HVDR1040S / HVDR1040ST

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR REFRIGERATOR AND KEEP IT FOR FUTURE REFERENCE.

Product Registration

Thank you for purchasing a Magic Chef® product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.
2. Registering your product will allow for more efficient warranty service processing when warranty service is required.
3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Magic Chef® product.

TABLE OF CONTENTS

STRUCTURE ILLUSTRATION 3

IMPORTANT SAFETY INSTRUCTIONS.... 4

INSTALLATION INSTRUCTION 5

TROUBLESHOOTING GUIDE.... 11

WARRANTY.... 12

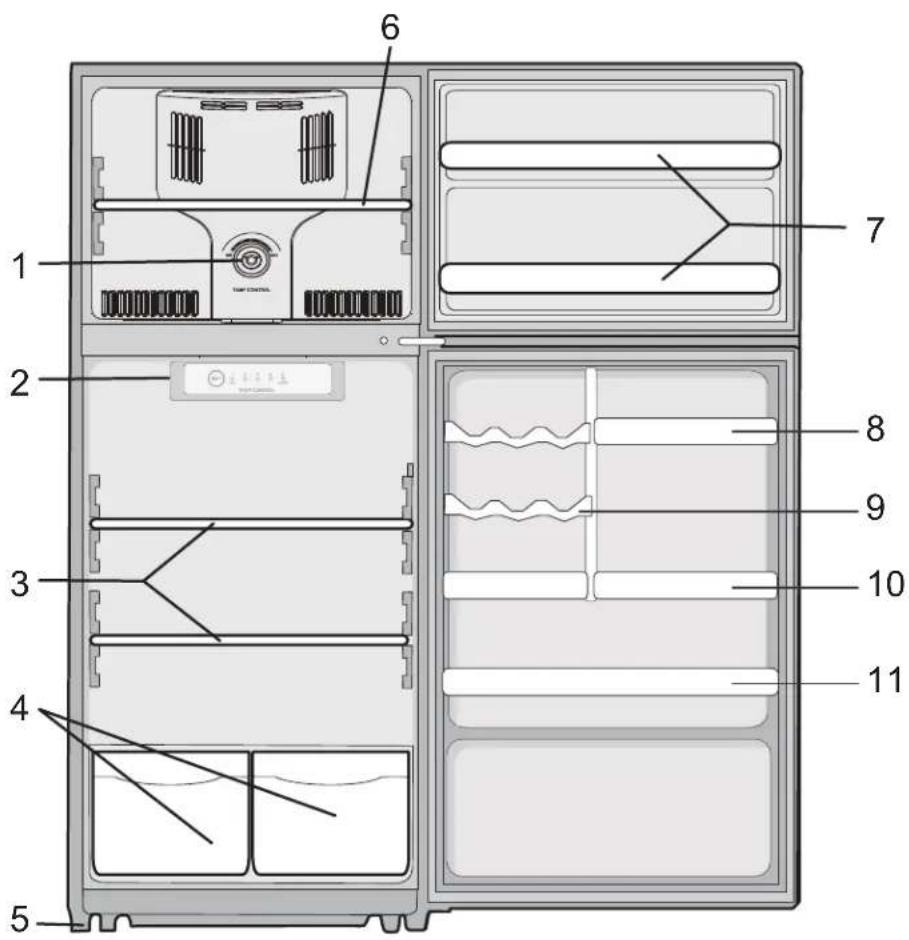

Structure Illustration

1. Freezer control knob
2. Refrigerator temperature control
3. Refrigerator glass shelf
4. Vegetable bin
5. Adjustable feet
6. Freezer shelf

7. Freezer door rail

8. Bottle rack (Small)

9. Can rack
10. Gallon rack
11. Bottle rack (Large)

Important Safety Instructions

WARNING

To reduce the risk of fire, electrical shock, or injury follow these basic precautions when using your refrigerator.

1) WARNING—Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
2) WARNING—Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3) WARNING—Do not damage the refrigerant tubing to increase the risk of a leak when handle, move and use of refrigerator.
4) WARNING—Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
5) WARNING—DANGER: Never allow children to play with, operate, or crawl inside the refrigerator. Risk of child entrapment. Before you throw away your old refrigerator or freezer:
• Take off the doors
- Leave the shelves in place so that children may not easily climb inside.
6) The appliance has to be unplugged before carrying out user maintenance on the appliance.
7) This appliance can be used by children age 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and maintenance should not be made by children without supervision.
8) If the component part is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
9) Please abandon the refrigerator according to local regulations as the unit contains flammable blowing gas and refrigerant.
10) Follow local regulations regarding disposal of the appliance due to flammable refrigerant and blowing gas. All refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal. It is the consumer's responsibility to comply with federal and local regulations when disposing of this product.
11) This appliance is intended to be used in household and similar environments such as
• staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
12) Do not store or use gasoline or any inflammable liquors and liquids inside or in the vicinity of refrigerator.
13) Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician install an outlet near the appliance. Use of an extension can negatively affect the unit's performance.

Caution: risk of fire

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORIZED SERVICE PERSONNEL TO CARRY OUT SERVICES OR REPAIRS INVOLVING THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Installation Instructions

Before Using Your Refrigerator

• Remove the exterior and interior packing.
• Before connecting the refrigerator to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from improper handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth. (Cleaning instructions on page 7)

Location

• Do not recess or build-in. This appliance is designed to be free standing only.
• Allow 5 inches clearance space between the back and sides of the refrigerator, which allows the proper air ventilation.
• Avoid Installation

o On weak surfaces unable to support refrigerator when fully loaded.
o In direct sunlight and sources of heat (stove, heater, radiator, etc.). Ambient temperature below 50°F or above 85°F will hinder the performance of this appliance.
o In moist areas.
o In garage. This unit is not designed for any type of outside installation.
o In moving vehicle. This unit is not designed to be installed in an RV or used with an inverter. This unit is intended for household use only.

Installing Your Refrigerator

• Adjust the leveling feet to keep the refrigerator level.
• Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord.
• After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for 24 hours before placing food in the refrigerator or freezer compartment.

Electrical Connection

WARNING

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.

This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.

This refrigerator requires a standard 115/120 Volt A.C. \~/60Hz electrical outlet with three-prong ground.

This refrigerator is not designed to be used with an inverter.

The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury.

Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. Use of an extension cord can negatively affect the performance of the unit.

If any problems with the appliance persist, please contact our Customer Service Department to consult with a representative at [phone] or visit our website to request warranty service at www.mcappliance.com.

Operating Your Refrigerator

Temperature Control

The temperature control is located inside the refrigerator and in the freezer compartment on some models. The temperature is factory preset to provide satisfactory food storage temperatures. However, the temperature control is adjustable to provide a range of temperatures for your personal satisfaction.

To adjust the temperature colder in the refrigerator compartment, press the SET button on the control panel so that the display light shifts to a higher number. "1" is the warmest setting and "5" is the coldest. To adjust the temperature colder in the freezer compartment, move the Freezer Control knob towards the maximum setting. After each movement of either control, allow 24 hours for the unit to adjust. If the unit is still not cold enough, repeat until desired temperature is achieved.

To adjust the temperature warmer in the refrigerator compartment, press the SET button on the control panel so that the display light shifts to a lower number. To adjust the temperature warmer in the freezer compartment, move the Freezer Control knob towards the minimum setting. After each movement of either control, allow 24 hours for the unit to adjust. If the unit is still not warm enough, repeat until desired temperature is achieved.

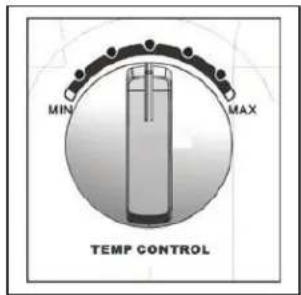

TEMP CONTROL

NOTE

If the unit is unplugged or loses power; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator may not start.

Replacing the Interior Light

Before removing the light bulb, turn the refrigerator temperature control to the "1" position. Then unplug the electrical cord from the wall outlet. Failure to do so may result in electrical shock or personal injury. Replace the old bulb with a new bulb of the same wattage and size.

Freezer Compartment Operation

Temperature Control

Your refrigerator has one control for regulating the temperature in the freezer compartment. The freezer temperature control is located on the freezer compartment's interior back panel. For the best performance, leave the freezer control at the midpoint and adjust the refrigerator compartment temperature control. Adjust the freezer control one increment at a time until the desired temperature is reached.

Ice Tray

To make ice, pour cool water into ice tray and place it in the freezer for two hours. To release ice cubes, twist the ice tray and the ice cubes will separate from the ice tray. To shorten the time of making ice, you can set the temperature control knob at a colder position.

Illustration of two hand positions on a grid notebook, one holding a curved object (no text or symbols)

NOTE

Do not store canned foods or food stored in glass containers in the freezer compartment.

The Freezer Compartment

This compartment is designed for the long-term storage of frozen food. The storage life of frozen foods varies and the recommended storage time should not be exceeded. Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.

Care and Maintenance

Cleaning Your Refrigerator

• Disconnect the electrical unit from the wall outlet.
• Clean interior and parts with a cloth soaked in lukewarm water and baking soda solution. A solution of 2 tablespoons baking soda to a quart of water will clean and neutralize odors. Rinse and wipe dry.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
• The outside of the refrigerator should be cleaned with a warm damp cloth and mild detergent. Do not use harsh or abrasive cleaners.
• Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard.

Vacation Time

• For long vacations, remove all food. Then, unplug the electrical cord from the wall outlet.
• Clean the interior and leave doors open to avoid possible odor or mold formation.
• Use extreme caution in the case of children. The unit should not be accessible to child's play.

Moving Your Refrigerator

• Disconnect the electrical cord from the wall outlet.
• Remove all the food and securely tape down all loose items such as shelves, drawers, and doors.
• Be sure the refrigerator stays in the upright position during transportation.

Energy Saving Tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
• Organize and label food to reduce door openings and extended searches

Changing the Reversible Door

Before reversing the door swing, ensure the appliance is unplugged and empty. Provide additional support for the doors while hinges are being removed. Do not depend on the door magnets to hold the door in place. It is recommended that two people perform this task. DO NOT lay the appliance completely flat as this may damage the coolant system.

Door parts

Top hinge

Bottom right hinge

Top hinge washer

Right pin assembly (2)

Middle hinge washer

Middle hinge

Included parts

Left pin assembly (2)

Bottom left hinge

Step 1

Remove top hinge cover. Unscrew and remove the top hinge and top hinge washer. Reserve the screws.

Step 2

Lift the freezer door up and away from the appliance.

Step 3

Unscrew and remove the middle hinge and middle hinge washer. Reserve the screws. Lift the refrigerator door up and away from the appliance.

Step 4

Unscrew and remove the bottom right hinge. Reserve the screws. Remove screw covers from opposite corner (left) and cover exposed holes (right). Attach bottom left hinge with the reserved screws.

Step 5

Remove right pin assemblies from the bottom of the freezer and refrigerator doors. On the opposite side, attach the replacement pin assemblies (located in the plastic bag with the Use and Care Manual) with a screwdriver. Note: You must re-use the screws from the pin assemblies that are removed in this step when attaching the new assemblies.

Step 6

Place the refrigerator door on the bottom left hinge. Ensure the door is aligned horizontally and vertically. Attach middle hinge to top (left) of refrigerator door, attach washer to the back of hinge, align with holes and affix to middle beam with reserved screws. Fasten with screwdriver (not included).

Step 7

Place the freezer door on the middle hinge. Ensure that the door is aligned horizontally and vertically, and that the gasket seals on all sides before attaching the top hinge. Attach the top hinge and replace the hinge cover.

Troubleshooting Guide

You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.

ProblemelborP Possible CausePossible Causes
Refrigerator does not operateCompressor turns on and off	Refrigerator is unplugged.The circuit breaker is tripped/ fuse blown.The room temperature is warmer than normalDoor is left open or is frequently opened.The re r erator oes ot ha e the rre teara esee e at as e ent y been d s nne tedape d tme.
Refrigerator compartments are too warm	Temperature ntr l is n t set correctly.Door is left open or is frequently opened.The door gasket does not seal properly.A large amount of warm or hot food was stored recently. Wait for the refrigerator to reach its selected temperature.The refrigerator has recently been disconnected for a period of time.
Vibrating or rattling (slight vibration is normal)m rat ro t rn r r r rr nrs m n snn P pping or cracking sounds when compressor comes onhe door w no c ose proper	Leveling legs need adjustingRefrigerator is placed on an uneven or weak surface.The refrigerator is touching the wall. Re-level the refrigerator and move it away from the wall.The exterior refrigerator walls can be as much as 30 warmer than room temperature.This is normal while the compressor works to transfer heat from inside the refrigerator cabinet.Door is left open or is frequently opened.Is normal in hot and humid weather. Air carries moisture into the refrigerator when doors are opened.This is the normal sound of refrigerant (used to cool refrigerator) circulating throughout the system.This is normal. Metal parts undergo expansion and contraction, like hot water pipes. The sound will level off or disappear as refrigerator runs.The re ri er or is oo e e s r c .s

Limited Warranty

MC Appliance Corporation warrants each new Refrigerator to be free from defects in material and workmanship, and agrees to remedy any such defect or to furnish a new part(s), at the company's option, for any part(s) of the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year from the date of purchase. A copy of the dated sales receipt or invoice is required to receive warranty service, replacement or refund.

In addition, MC Appliance Corporation warrants the compressor (parts only) to be free from defects in material and workmanship for a period of five years. The consumer is responsible for all labor and transportation expenses related to the diagnosis and replacement of the compressor after the initial one-year warranty expires. In the event the unit requires replacement or refund under the terms of this warranty, the consumer is responsible for all transportation expenses to return the unit to our factory prior to receiving a replacement unit or refund. A copy of the dated sales receipt/invoice is required to receive warranty service, replacement or refund.

This warranty covers appliances in use within the contiguous United States, Alaska, Hawaii, Canada and Puerto Rico. This warranty does not cover the following:

technician is not available.

installation instructions.

Limitations of Remedies and Exclusions:

Product repair in accordance with the terms herein, is your sole and exclusive remedy under this limited warranty. Any and all implied warranties including merchantability and fitness for a particular purpose are hereby limited to one year or the shortest period allowed by law. MC Appliance Corporation is not liable for incidental or consequential damages and no representative or person is authorized to assume for us any other liability in connection with the sale of this product. Under no circumstances is the consumer permitted to return this unit to the factory without the prior written consent of MC Appliance Corporation.

Some states prohibit the exclusion or limitation of incidental or consequential damages, or limitations on implied warranties. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Model Parts & Labor Compressor (Parts Only) Type of Service

HVDR1040W One Year Five Years In-Home
HVDR1040B	One Year Five Years In-Home
HVDR1040S	One Year Five Years In-Home
HVDR1040ST	One Year Five Years In-Home

For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty service or order parts.

CNA International, Inc. d/b/a MC Appliance Corporation. All rights reserved. Magic Chef® logo is a registered trademark of CNA International, Inc.

www.mcappliance.com Printed in China

Front view of a double refrigerator with a 'V Magic Chef' label on the top (no other text or symbols)

Modelo HVDR1040W / HVDR1040B / HVDR1040S / HVDR1040ST

Illustration of two mechanical components with curved arrows indicating motion (no text or symbols)

NOTA
