Product Type Lawn Mower
Brand McGregor
Model MER1940
Power Source Electric (corded)
Motor Power 1200 W
Cutting Width 40 cm
Cutting Height Adjustment 25 - 75 mm (5 positions)
Grass Bag Capacity 40 L
Weight 12 kg
Dimensions (L x W x H) 80 x 50 x 40 cm
Wheel Size 18 cm (front) / 22 cm (rear)
Cutting System Rotary steel blade
Grass Discharge Rear bagging
Safety Features Safety switch, blade brake, cable restraint
Handle Type Foldable, ergonomic
Maintenance Clean after use, sharpen blade annually
Spare Parts Available Replacement blades, grass bag, wheels
Noise Level 85 dB(A)
Warranty 2 years

Frequently Asked Questions - MER1940 McGregor

How do I adjust the cutting height on the McGregor MER1940?
The cutting height is adjusted using a lever near the wheels. There are 5 positions ranging from 25 mm to 75 mm. Turn off the mower and wait for the blade to stop before adjusting.
What should I do if the mower does not start?
Check that the power cord is properly connected and the outlet is working. Ensure the safety switch is engaged. If it still doesn't start, inspect the fuse or circuit breaker. Never attempt to force the motor.
How often should I sharpen the blade?
Sharpen the blade at least once a year or after every 25 hours of use. A dull blade tears grass, leading to disease. Use a file or grinder and maintain the original angle. Replace if damaged.
Can I use an extension cord with this electric mower?
Yes, use a heavy-duty outdoor extension cord rated for at least 13 amps. Keep the cord away from the cutting path and use the cord restraint hook to prevent disconnection.
How do I clean the grass bag?
Empty the bag after each use. Occasionally rinse with water and allow to dry completely before storing. Do not use harsh chemicals. Check for tears and replace if necessary.
What is the maximum slope I can mow safely?
The recommended maximum slope is 15 degrees (approximately 26% grade). Mow across slopes, never up and down. If the slope is steeper, consider using a trimmer or manual tools.
Where can I find replacement parts?
Replacement blades, grass bags, and other parts are available through the McGregor website or authorized dealers. Use the model number MER1940 to ensure compatibility.
How do I store the mower during winter?
Clean the mower thoroughly, remove the grass bag, and store in a dry place. If possible, drain the fuel if it were gas (electric models have no fuel) but for electric, simply unplug and coil the cord. Apply light oil to the blade to prevent rust.
Is the McGregor MER1940 suitable for small lawns?
Yes, with a 40 cm cutting width and 40 L bag, it is ideal for small to medium lawns up to 500 m². For larger lawns, consider a self-propelled or riding mower.
What safety precautions should I take while mowing?
Always wear sturdy shoes and long pants. Never mow in wet conditions. Keep children and pets away. Ensure the blade stops before reaching into the discharge chute. Disconnect power before cleaning or adjusting.

User questions about MER1940 McGregor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Lawn mower in PDF format for free! Find your manual MER1940 - McGregor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MER1940 by McGregor.

USER MANUAL MER1940 McGregor

natural_image Exterior view of a Megregor lawn mower (no signage or text beyond model name)

McGregor 140 0 W/ 160 0 W/ 190 0 W

Electric Rotary Mower

7496428 (Model: MER1434)

760 3314 (Model: MER1737)

7436653 (Model: MER1940)

Important - Please read these

instructions fully before starting assembly

These instructions contain important information that will help you get the best from your mower, ensuring it is assembled correctly and safely. If you need help or have damaged or missing parts, call the Customer Helpline on 0 345 60 5 20 63

AFTER SALES SUPPORT

0 345 60 5 20 63

Contents

Safety Information 3-12

Warning Symbols 3

General Safety....5

Personal Safety 7

Operation and Maintenance Safety....11

Intended Use 12

Service 12

In the Box 13-15

Parts 7496428 (Model: MER1434) ...... 13

Parts 7603314 (Model: MER1737)....14

Parts 7436653 (Model: MER1940)....15

Assemble....16-18

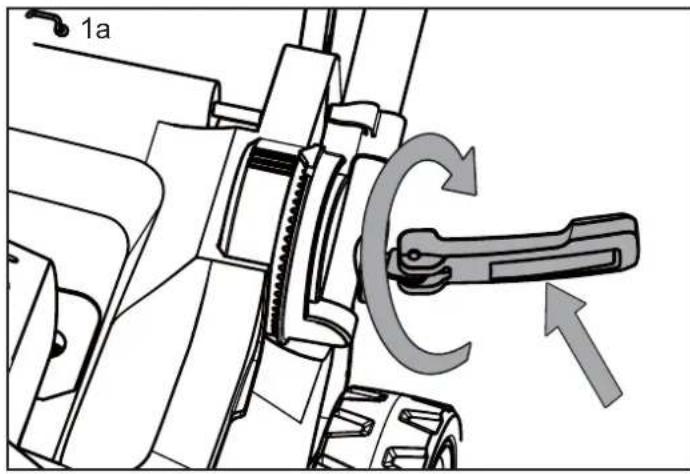

Step 1 - Handle Assemble ...... 16

Step 2 - Grass Collection Bag Assemble 17

Step 3 - Fitting the Grass Collector .... 18

Prepare 19

Step 1 - Setting the Cutting Heights.... 19

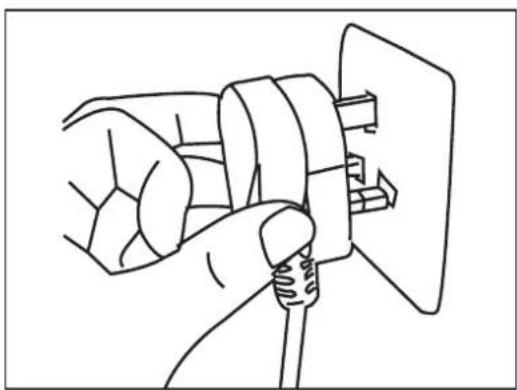

Step 2 - Connection to the Power Supply....19

Operate 20-22

Step 1 - On / Off Operation .... 20

Step 2 - Mowing Direction 20

Step 3 - Grass Collection Bag Full Indicator 21

Step 4 - Emptying the Grass Collection Bag .... 21

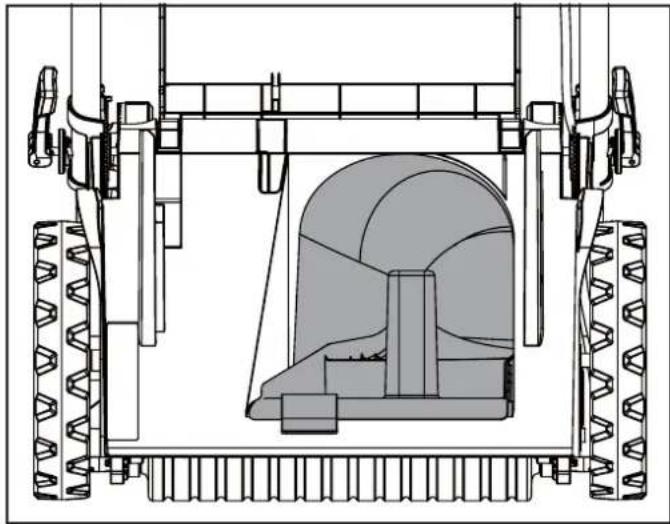

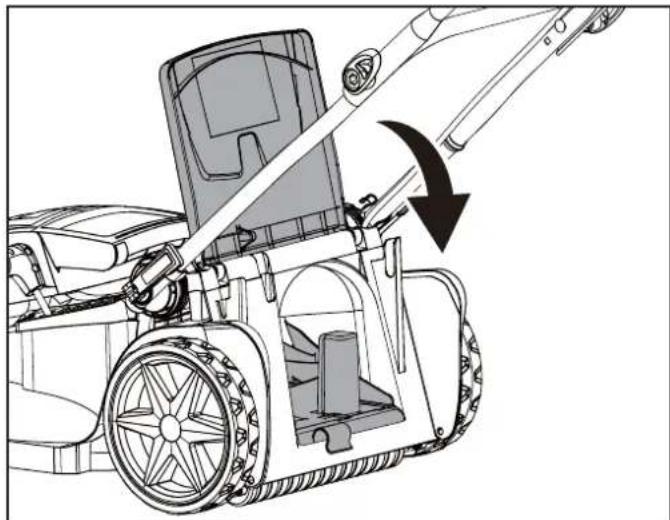

Step 5 - Using as a Mulcher ( if applicable) ...... 22

Maintenance and Repair 23-24

Storing 23

Cleaning 23

Blade Maintenance 24

Technical Data 25-26

Technical Date Table....25

Part List....25

Recycling and Disposal 26

Troubleshooting 27

General Troubleshooting 27

Getting Help 28

Customer Helpline 28

Guarantee 28

McGregor MER1940 - Getting Help 28 - 1

Safety Information

Important - Please read these instructions fully before starting assembly

Warnings Symbols

McGregor MER1940 - Safety Information - 1

The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when assembling and operating the mower.

Take extra care, beware of hazards.

McGregor MER1940 - Safety Information - 2

Read instruction manual.

McGregor MER1940 - Safety Information - 3

Wear eye and ear protection.

McGregor MER1940 - Safety Information - 4

Do not use the machine in the rain or leave it outdoors when it is raining.

McGregor MER1940 - Safety Information - 5

Pay attention that bystanders are not injured by objects thrown out from the machine.

McGregor MER1940 - Safety Information - 6

Keep bystanders a safe distance away from the machine.

McGregor MER1940 - Safety Information - 7

Sharp blade. Beware of injury to toes or fingers.

McGregor MER1940 - Safety Information - 8

Disconnect from the mains supply before any maintenance work.

McGregor MER1940 - Safety Information - 9

Warning. Beware of electric shocks.

McGregor MER1940 - Safety Information - 10

Keep the mains supply cord away from the cutting blade.

McGregor MER1940 - Safety Information - 11

Safety Information

Important - Please read these instructions fully before starting assembly

Warnings Symbols (continued)

McGregor MER1940 - Safety Information - 1

Wait until all moving parts have stopped completely before touching them. The blade may continue to rotate after the machine is switched off, a rotating blade can cause injury.

McGregor MER1940 - Safety Information - 2

Noise level specification Lwa in dB.

McGregor MER1940 - Safety Information - 3

Protection class II

McGregor MER1940 - Safety Information - 4

Do not dispose of electrical equipment in domestic waste.

McGregor MER1940 - Safety Information - 5

Cutting width ("XX" means 34cm, 37cm, 40cm)

McGregor MER1940 - Safety Information - 6

Important! When using equipment, the following safety precautions must be followed to avoid injuries and damage.

  • Read all operating instructions carefully and comply with them. It is important to understand these instructions and to acquaint yourself with the machine, its correct usage and all safety requirements.
  • Keep this manual in a safe place so that the information is available at all times.
  • If you give the equipment to any other person, give them these operating instructions as well.

We accept no liability for damage or accidents which result from non-compliance with these instructions.

McGregor MER1940 - Safety Information - 7

Note! Only supply power to the equipment through circuit protected by an RCD with a maximum trip current of 30 mA.

- Use only plugs or connectors approved for outdoor usage.

- Extension cables must comply to H07RN-F requirements as described in DIN 57 282/VDE 0282 and must have a minimum cross-section of 1.5 mm^2 . The plug must have an earth and any connection must also be earthed and splashproof. Before use, check the cables for signs of damage and ageing. Never use the mower if the cables are not in perfect condition (this also applies to the supply cable on the mower). If the cable is damaged whilst the mower is working, disconnect the mains plug from the power supply immediately and then check the extent of the damage.

- Never allow children or others who are not familiar with the operating instructions to use the lawnmower. Local regulations may stipulate the minimum age of the user of this type of machinery.

- In areas where the mains supply is weak or bearing a high load, this mower may cause further voltage fluctuations as it starts. In extreme cases, this can cause damage to other equipment working from the same supply. In this case we recommend to temporarily switch off any unneeded equipment or

Important - Please read these instructions fully before starting assembly

General Safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Important - Please read these instructions fully before starting assembly

Personal Safety (continued)

• Always check the mower for signs of damage before each usage.
• Always disconnect the mains lead from the electrical supply before carrying out any inspection, servicing or maintenance work.
- Ensure that all the guards are securely fitted and in good working order.
- Check the grass bag at regular intervals for signs of wear and to ensure that it is always in perfect working order.
- Before each use, inspect the mower to check the cutting blade, fastening bolts and the entire cutting unit for any signs of wear or damage. To prevent imbalance or vibration, worn or damaged cutting blades and fastening bolts must always be replaced in full.
- Damaged parts on the mower must be replaced by qualified personnel. Use only genuine spare parts.
- Repair work on the electrical parts of the lawn mower may only be carried out by a qualified electrician.
- Follow the instructions to fit or remove the blade and wear protective gloves.
- The user remains responsible for any injury to third parties within the working area of the lawn mower whilst the lawnmower is being used.
- Only work in good daylight or appropriate and adequate artificial light.
- Never use the mower when you are tired.

Important - Please read these instructions fully before starting assembly

Personal Safety (continued)

  • Never run the mower in enclosed or poorly ventilated rooms or if there are inflammable or explosive fluids, vapours or gases nearby.
  • Switch off the motor and disconnect the mains lead before clearing blockages in the grass ejection area and before you inspect it if the mower has struck a foreign body.
  • Always use the lawn mower with the grass bag correctly fitted.
  • Check the site on which you intend to use the lawn mower and remove all objects that may be caught or thrown up by the mower. Foreign bodies must be removed before you start mowing. Keep an eye on the power cable and keep it away from the cutting blade at all times.
  • Ensure that you do not push the mower over areas that might damage or snare the power cable.
  • Never lift the lawn mower when you start the motor.
  • Before you lift the lawn mower to transport it, switch off the motor, disconnect the mains lead and wait until the blade has come to a complete standstill.
  • When you start the motor, the lawn mower should not be tilted unless the grass is particularly long. In this case only tilt it up as far as is really necessary and only raise the side that is furthest away from the user.
  • Never reach towards rotating parts with your hands or feet. Always keep away from the discharge chute.
  • Before you attach or empty the grass bag, switch off the motor and wait until the blade has come to a complete standstill.

Important - Please read these instructions fully before starting assembly

Personal Safety (continued)

  • Make sure you keep your feet at a safe distance from the mower blade at all times! Do not stand near the grass ejection chute if the grass bag is not fitted.
  • The safety distance from the moving blade produced by the push handle must be maintained at all times.
  • If you use the mower on a small incline, mow across the slope (not in an up and down direction). Always be sure of your footing on slopes.
  • Be particularly careful when changing direction with the mower whilst working on a slope.
  • Do not use the lawn mower on gradients of over 15 degrees.
  • Ensure that you have safe footing at all times whilst working with the mower.
  • Always wear strong, anti-slip footwear and long trousers when using the mower. Never mow in bare feet or in open-toed sandals.
  • When the mower is running ensure that no person or pet, particularly children and animals, is in the immediate vicinity of the lawn mower. Ensure that you keep everybody at least 10 meters away from the mower when it is working.
  • Switch off the motor and disconnect the plug from the power supply if the mower strikes a foreign body. Check the mower for signs of damage and carry out all necessary repair work before you start the mower again.
  • If the lawn mower begins to vibrate abnormally, switch it off immediately, disconnect the plug immediately and check it carefully. Ensure that all the nuts, bolts

and screws are tight and that the mower is in a safe condition for use.

  • Do not leave the mower out in the rain. The lawn must not be wet or very damp.
  • Only push the mower at a normal walking pace.
  • Be particularly careful when you change the direction of the mower or pull it towards you. Avoid pulling it towards you while the blade is moving.
  • Switch off the mower if it has to be pushed over surfaces other than grass, and when moving the mower to and from the area you wish to mow.
  • Carefully actuate the starter switch in accordance with the instructions. (See Operating Instructions)
  • Do not switch the mower on and off frequently over a short period of time, and in particular do not play with the ON/OFF switch.
  • Do not touch the cutting blade until the machine has been disconnected from the mains and the cutting blade has reached a complete standstill.
  • Never lift or carry the mower whilst the motor is running.
  • Switch off the motor and disconnect the plug whenever you leave the lawn mower.
  • Keep the lawn mower in a dry place which is inaccessible to children at all times.
  • Before you adjust or clean the mower, or check whether the mains lead is kinked or damaged, switch off the mower and disconnect the plug from the power supply.

McGregor MER1940 - Personal Safety (continued) - 1

Safety Information

Important - Please read these instructions fully before starting assembly

Operating and Maintenance Safety

McGregor MER1940 - Safety Information - 1

CAUTION! Read all safety requirements and instructions.

Any errors made in following the safety requirements and instruction may result in an electric shock, fire and serious injury.

Keep all safety regulations and instructions in a safe place for future use.

  • Do not use the lawnmower if the cords are damaged or worn.
  • Do not connect a damaged cord to the mains supply or touch a damaged cord before it is disconnected from the mains supply. A damaged cord could allow parts to become live and cause a risk of electrocution.
  • Do not attempt to touch the blades before the machine is disconnected from the supply and the blades have come to a complete stop.
  • Keep extension cords away from the blade. The blade can cause damage to cords and lead to contact with live parts.

McGregor MER1940 - Safety Information - 2

Disconnect from the mains supply (i.e. remove the plug from the mains socket).

  • Whenever leaving the machine unattended.
  • Before cleaning a blockage.
    • After striking a foreign object.
  • Whenever the machine starts vibrating abnormally.

McGregor MER1940 - Safety Information - 3

Safety Information

Important - Please read these instructions fully before starting assembly

Intended Use

McGregor MER1940 - Safety Information - 1

This lawnmower is designed for domestic use only:

  • This electric lawnmower is intended for mowing lawns in domestic and hobby gardens.
  • This product is not to be used in wet weather conditions and may not be used to mow wet or unusually high grass, e. g. pasture grass or for shredding leaves.
  • This product is intended for private domestic use only, not for any commercial trade use.

It must not be used for any purposes other than those described. Any use of the machine that deviates from its intended use and is not Included in these instructions is considered unauthorized use and relieves the manufacturer from his or her legal liability. This includes the use of unapproved accessories and replacement parts.

Service

This tool is manufactured in accordance with the relevant safety regulations. To avoid danger, electrical appliances must only be repaired by qualified technicians. Call our customer helpline at 0345 605 2063 for advice.

In the Box

Parts 7496428 (Model: MER1434)

1 Lock-off safety button
2 Switch levers
3 Cable strain-relief
4 Switch box housing
5 Upper handle bar

6 Wing knob
7 Grass collection bag top
8 Grass collection bag
9 Cutting height adjuster

10 Quick release lever
11 Grass collection bag handle
12 Deflector guard
13 Carrying handle

14 Motor housing
15a Front wheels
15b Rear wheels

Technical diagram of a lawn mower with numbered parts labeled for identification.

In the Box

Parts 7603314 (Model: MER1737)

1 Lock-off safety button
2 Switch levers
3 Cable strain-relief
4 Switch box housing
5 Upper handle bar

6 Wing knob
7 Grass collection bag top
8 Grass collection bag
9 Cutting height adjuster

10 Quick release lever
11 Grass collection bag handle
12 Deflector guard
13 Carrying handle

14 Motor housing
15a Front wheels
15b Rear wheels
16 Mulching plug

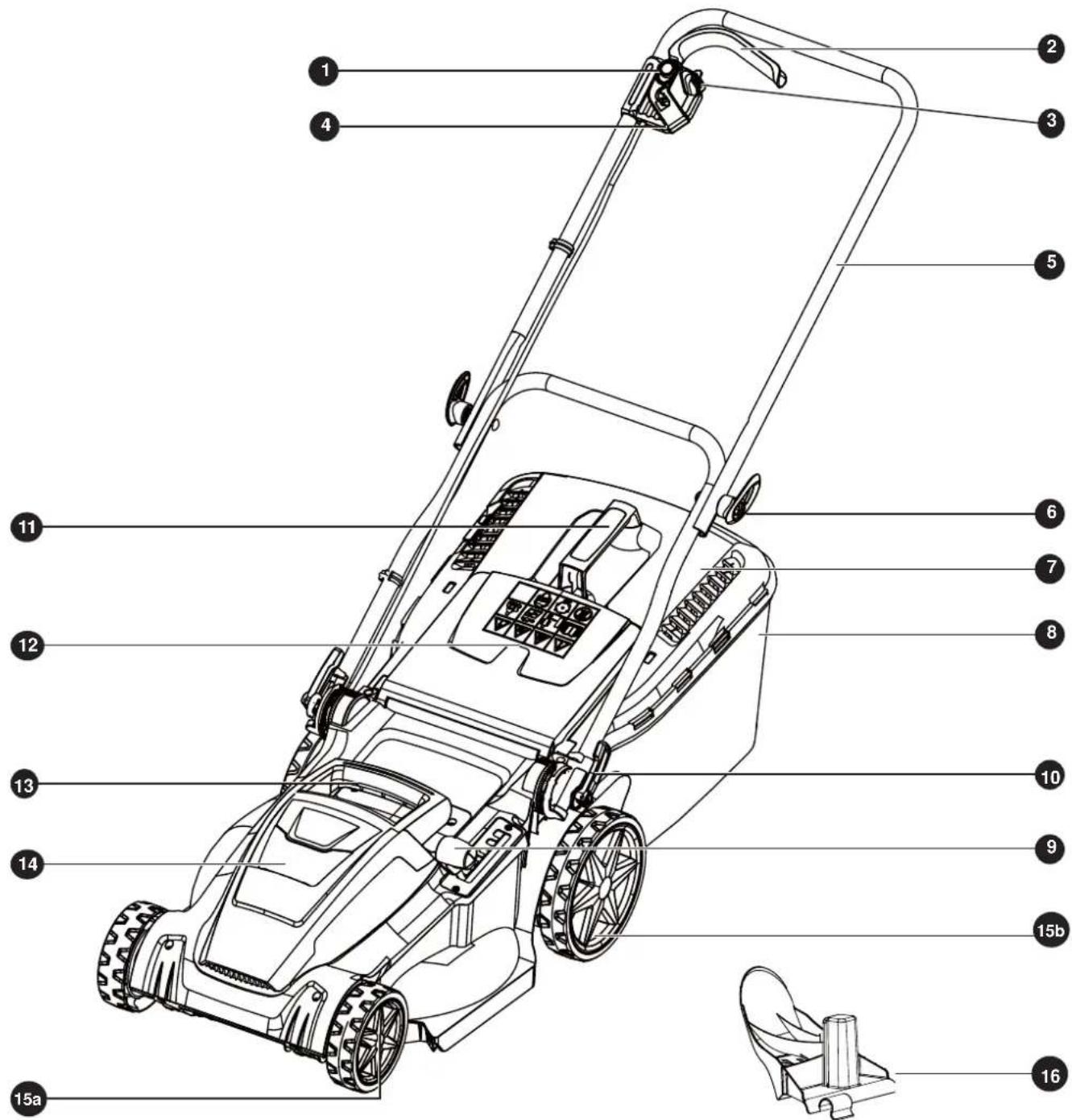

Technical diagram of a lawn mower with numbered parts labeled for identification.

In the Box

Parts 7436653 (Model: MER1940)

1 Lock-off safety button
2 Switch levers
3 Cable strain-relief
4 Switch box housing
5 Upper handle bar

6 Wing knob
7 Grass collection bag top
8 Grass collection bag
9 Cutting height adjuster

10 Quick release lever
11 Grass collection bag handle
12 Deflector guard
13 Carrying handle

14 Motor housing
15a Front wheels
15b Rear wheels
16 Mulching plug

Technical diagram of a lawn mower with numbered parts labeled for identification.

Assemble

Step 1 - Handle Assembly

McGregor MER1940 - Step 1 - Handle Assembly - 1

natural_image Mechanical assembly diagram showing a turning tool interacting with a mechanical component (no text or symbols)

1b

1a To fix the lower handle assembly into position, tighten the quick release levers in a clockwise direction and then locking them into position by folding the levers snug against the handle support. These levers should be folded in towards the bar using moderate force to lock them in position. If they feel too tight when you fold them, turn them anti-clockwise to loosen them and then attempt to fold them again. Do not use excessive force.

1b • The top handle section is assembled to the bottom handle support using a bolt, and Wing Knob on either side.

To tighten - turn clockwise or to loosen- turn anticlockwise, before folding them.

Assemble

Step 2 - Grass Collection Bag Assemble
McGregor MER1940 - Assemble - 1

- Insert the handle into the slots on the top of the grass collection bag, Clip the plastic retainers found on both sides of the cloth bag onto the metal frame of the plastic upper, Fully insert the rods of the metal frame into the slots on either side of the plastic base. Ensure the side clamping sleeves are properly fixed on the frame.

Assemble

Step 3 - The Grass Collection Bag

McGregor MER1940 - Step 3 - The Grass Collection Bag - 1

natural_image Technical line drawing of a mechanical device with a tool box and wheel assembly (no text or symbols)

Ensure the mulch plug is not inserted into the lawn mower before fitting the grass collector. If it is, remove by squeezing the lever on the mulch plug post and lift it out of the mower.

- Lift the deflector guard

Place the grass collection bag on the mounting bracket provided at the back of the lawnmower. Lower the deflector guard onto the grass collection bag.

Always ensure grass deflector and grass collection bag fit securely.

Prepare

Step 1 - Setting the Cutting Heights

A higher cut height should generally be selected for the first cut of the season. When cutting longer grass, cut the grass in 2 or more passes by lowering the cutting height gradually at each pass. These techniques will help to avoid over-stressing your grass.

Technical diagram of a vehicle's front wheel assembly with labeled components and parts

McGregor MER1940 - Step 1 - Setting the Cutting Heights - 2

natural_image Technical line drawing of a mechanical assembly with gears and brackets (no text or symbols)
7496428 / 7603314 7436653
Cutting adjustment Rear Central
Cutting heights 20 / 30 / 40 / 50 / 60 / 70 20 / 30 / 40 / 50 / 60 / 70

IMPORTANT! Ensure the power cord is disconnected from the mains supply before adjusting the cutting height.

- To adjust the cutting height, gently pull the height adjustment lever towards you to disengage it from its existing position and move it to the desired cutting height position. Ensure it clicks back firmly into position.

Step 2 - Connection to the power supply

McGregor MER1940 - Step 2 - Connection to the power supply - 1

natural_image Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

McGregor MER1940 - Step 2 - Connection to the power supply - 2

natural_image Line drawing of a hand holding a cable or wire, no text or symbols present
  • Hook the mains cable through the cable strain-release.
  • Connect the mower to your power supply socket.
    • Before switching on, ensure that the mower is not in contact with any foreign objects.

Operate

Step 1 - On/Off Operation

McGregor MER1940 - Step 1 - On/Off Operation - 1

natural_image Diagram showing two mechanical clamping setups with arrows indicating motion (no text or symbols)
  • To switch on, press the safety lock-off button on the handle, then activate the start/stop switch lever. Release the lock-off button.
    • To switch off, release the start/stop switch lever.
    • After switching off the equipment, the blade may continue to turn for several seconds. Do not touch the moving blade. There is a risk of serious injury.

Step 2 - Mowing Direction

McGregor MER1940 - Step 2 - Mowing Direction - 1

- Place the mains lead in loops on the ground near the wall socket. Mow away from the socket and cable and ensure that the mains lead is always on the section of lawn that you have already mowed so that you do not run over the mains lead with the mower. The blades can cause damage to the power cord if contact is made and risk electrocution.

Operate

Step 3 - Grass Collection Bag Full Indicator

GO STOP

GO STOP

  • When this flap remains open as you work, it means that the grass collector is not full (air flowing freely through the grass collector).
  • When this flap remains closed it means that the grass collector is full and needs to be emptied (no airflow through the grass collector)

Step 4 - Empty Grass Collection Bag

McGregor MER1940 - Step 4 - Empty Grass Collection Bag - 1

natural_image Technical line drawing of a mechanical device with a tool box and wheel assembly (no text or symbols)

- To remove the grass collector, raise the deflector guard with one hand and remove the grass collector holding its handle with your other hand. To maintain safety, the deflector guard automatically closes to the rear discharge position when you remove the grass collector.

Operate

Step 5 - Using as a Mulcher (if applicable)

McGregor MER1940 - Step 5 - Using as a Mulcher (if applicable) - 1

natural_image Technical line drawing of a robotic lawn mower with a seat and belt switch (no text or symbols)

McGregor MER1940 - Step 5 - Using as a Mulcher (if applicable) - 2

natural_image Technical line drawing of a mechanical assembly with gears and a central housing (no text or symbols)

McGregor MER1940 - Step 5 - Using as a Mulcher (if applicable) - 3

natural_image Technical line drawing of a lawn mower with a blade and wheel assembly (no text or symbols)
  • Before fitting the mulching plug, disconnect the lawnmower from the mains supply.
  • Lift the deflector guard, remove the grass collection bag and insert the mulching plug into rear discharge chute, ensuring it is correctly fitted. Lower the deflector guard.
  • The mulching plug retains the cut grass inside the deck and cuts this grass several more times into very small particles before it is deposited back onto the lawn. This finely cut grass acts as a nutrient for the lawn.

Maintenance and Repair

Storing

McGregor MER1940 - Storing - 1

natural_image Technical line drawing of a two-wheeled toy car with wheels and structural components (no text or symbols)

The handles can be folded for easy storage.

  • Loosen (turn anti-clockwise) the two wing knobs on the upper handle assembly to allow for folding.
    • Unfold the quick release levers on the lower handle section and turn anti-clockwise to loosen.
  • Ensure the power cable is not caught between the folding sections.

Cleaning

WARNING: Always switch the product off, disconnect it from power supply and let the product cool down before performing inspection, maintenance and cleaning work!

Cleaning

  • Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a soft brush or blow it with compressed air at low pressure after usage.
  • Clean the mower regularly with a soft brush. Do not use cleaning agents or solvents; these may damage plastic components.
  • Ensure that no water can seep into the device.

Maintenance and Repair

Blade Maintenance

McGregor MER1940 - Blade Maintenance - 1

natural_image Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

If the blade is blunt, it can be sharpened in a specialised workshop. If the blade is damaged or showing signs of imbalance, it must be replaced.

Carry out the following steps to change the blade:

  • Turn the mower over and rest it carefully on its side.
  • Use safety gloves and hold the blade firmly. Turn the blade bolt anticlockwise to remove the blade.
  • Install the new blade in the reverse order. Ensure that the blade is positioned correctly and the screw tightened firmly. The blade's wings should be angled upwards (towards the mower).
  • Tighten the fastening bolt. The tightening torque should be approx. 25 Nm.

McGregor MER1940 - Blade Maintenance - 2

IMPORTANT! Always wear safety gloves when engaging in any maintenance work.

Only replace the blade with a suitable (legally we cannot prevent use of spares from other companies) replacement blade as this will ensure top performance and safety under all conditions.

Technical Date

Technical Date Table

Model 7496428 (MER1434) 7603314(MER1737) 7436653 (MER1940)
Voltage 220-240 V ~ 50 Hz
Power input 1400W 1600W 1900W
Motor speed 3450/min 3450/min3350/min
Cutting width 34cm 37cm 40cm
Cutting height adjustment20, 30, 40, 50, 60, 70mm; 6 levels
Volume of grass bag35 liters40 liters42 liters
Wheel size140/170 mm140/200mm
LpA sound pressure level84dB(A), K=3dB(A)88dB(A) K=3dB(A)89dB(A) K=3dB(A)
LWA sound power level96 dB(A)
Vibration at the handlebars ahv< 2.5m/s ^2
Protection class☐ II

Part List

PART NUMBER7496428 (MER1434)ACCESSORIES
111232102Blade
111232101Grass bag
111228107Wing knobs
111232109Quick clamp
PART NUMBER7603314 (MER1737)ACCESSORIES
211030014Blade
111227111Grass bag
111227107Wing knobs
111227105Quick clamp
PART NUMBER7436653 (MER1940)ACCESSORIES
111193114Blade
111230113Grass bag
111228107Wing knobs
111227105Quick clamp

Technical Date

Recycling and Disposal

Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. Recycle rather than dispose of unwanted material in landfill whenever possible. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly.

Only dispose of electrical/electronic/battery terms in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your cooperation is vital to ensure the success of these schemes and for the protection of the environment.

McGregor MER1940 - Recycling and Disposal - 1

Recycle packaging where facilities exist.

This symbol is known as the Crossed out Wheelie Bin Symbol. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or batteries can be harmful to health.

McGregor MER1940 - Recycling and Disposal - 2

WARNING!

Only perform the steps described within these instructions!

All further inspection, maintenance and repair work must be performed by an qualified specialist! Always turn off the machine and remove the plug before making any adjustment.

The following table provides solutions to common problems encountered with the mower.

Fault Possible Cause Solution
Mower does not start No powerat mains socket Check the fuseswitch,socket, cable, wire and have any repairs carried out by a qualified electrician
Defective on/off switch Repair by a qualified technician required
Defective motor
Grass too long Set at a higher cut setting. Lift the front wheels slightly by pressing down on the handle bar.
Motor stops Blade is blocked Disconnect from mains and remove blockage
Untidy finish, motor labours Cut height too low Set a higher cut height
Blade fails to turnBlade blocked by grassRemove blockage
Blade bolt looseTighten the blade bolt
Strange noises, rattling or vibrationsBlade bolt looseTighten the blade bolt
Blade damagedReplace the blade

Getting Help

Customer Helpline

Our dedicated UK based customer helpline is open to assist you with assembly, parts queries and technical support. We are open during office hours.

Our experts are here to get you back enjoying your garden in no time.

Calling our service does not affect your statutory rights.

After sales helpline number: 0345 605 2063

Guarantee

Dear Customer,

In the unlikely event that your device develops a fault, please contact our Customer service department on the telephone number shown below.

  1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. Claims must be accompanied by Proof of Purchase. This must be in the form of a Sales receipt or Bank statement and must show that the product has been purchased within 2 years prior to the claim, from the retailer that it was originally sold to.
  2. Our guarantee covers problems caused by material or manufacturing defects, and will result in the repair of these defects or replacement of the device with a like for like or similar article.

Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities.

  1. The following are also excluded from our guarantee :

A. Faults due to accidents, customer misuse or unauthorized repairs
B. Failure due to lack of routine maintenance.
D. Accidental damage or wear to any cables, the drive belt or the blade.

C. Failure as a result of not using the equipment in accordance with the manual and safety instructions

  1. The guarantee is valid for a period of 2 years starting from the purchase date of the device.

Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site Service is used.

  1. Please keep your sales receipt in a safe place.
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : McGregor

Model : MER1940

Category : Lawn mower
