RDPD 107617 J - Tumble drier Hotpoint Ariston - Free user manual and instructions

Product Type	Washer-dryer (combination washing machine and tumble dryer)
Brand	Hotpoint Ariston
Model	RDPD 107617 J
Dimensions (width x height x depth)	59.5 cm x 85 cm x 60.5 cm
Capacity (wash)	1 to 10 kg
Capacity (dry)	1 to 7 kg
Maximum Spin Speed	1600 rpm
Water Pressure Range	0.05 - 1 MPa (0.5 - 10 bar)
Drum Volume	71 litres
Energy Rated Programmes	Wash: programme 8 at 60°C with 10 kg load; Dry: "EXTRA" dryness level with 7 kg load
Direct Injection Technology	Pre-mixes water and detergent for effective cleaning at low temperatures
Drying Options	Iron dry, Hanger dry, Cupboard dry, Extra dry, Time-based (30-180 min)
Special Programmes	Daily Mix Wash & Dry, Shirts Wash & Dry, Anti-Stain Turbo 45', Anti-Stain Power 20°C, Multi Colour, Ultra Delicates, Wool, Sport, Fast 30'
Steam Function	Steam Hygiene and Steam Refresh options for removing bacteria and reducing creases
Control Panel Features	Digital display, function buttons, delay timer, key lock, auto clean
Detergent Dispenser	2 compartments (main wash and additives), includes removable partition for liquid/powder
Load Balancing System	Automatic drum rotation before spin to distribute load evenly
Self-Cleaning Pump	Maintenance-free pump with accessible pre-chamber for foreign objects
Safety Features	Door lock, child lock (key lock), overheating protection, auto standby after 30 min
Energy Consumption (off-mode)	0.5 W
Energy Consumption (left-on)	8 W
Compliance	EMC 2014/30/EU, LVD 2014/35/EU, WEEE 2012/19/EU

Frequently Asked Questions - RDPD 107617 J Hotpoint Ariston

What does the error code F-01 mean on my Hotpoint Ariston RDPD 107617 J?

Error code F-01 indicates a general electronic fault. Try switching off the machine, unplugging it for 1 minute, then restarting. If the problem persists, contact an authorized technician.

Why is my washer-dryer not drying the clothes properly?

Check that the appliance is plugged in, the door is closed tightly, and the drying function is selected (not set to OFF). Also ensure that the water tap is on (for drying cycles) and that the load does not exceed 7 kg.

How do I clean the detergent dispenser drawer?

Remove the drawer by lifting and pulling it out. Wash it under running water. This should be done frequently to prevent detergent buildup.

Can I use liquid detergent in this machine?

Yes, use the removable plastic partition supplied and place it in the appropriate slot. Follow the detergent manufacturer's instructions. Do not use hand washing detergents as they produce too much foam.

How do I unlock the door manually if the power is off?

Unplug the appliance, ensure water level is below the door opening (drain if necessary via the hose), remove the lower front panel with a screwdriver, pull the plastic tie-rod downwards while opening the door. Reposition the panel after.

What does the 'Direct Injection' feature do?

Direct Injection pre-mixes water and detergent to create an active emulsion that penetrates fabrics more effectively at low temperatures, improving cleaning while preserving colors and fabrics. It has two modes: Power for best cleaning, and EcoEnergy for energy saving.

Why does my washer-dryer vibrate excessively during spin?

Ensure the machine is level and the transportation screws are removed. Also check that it is not pressed against walls or cabinets. Overloading or unbalanced loads can also cause vibration.

How do I run a drying-only cycle?

Press the 'Drying only' button. Select a compatible programme (not cycles 1-2-3-4 or 14), then adjust the drying level or time using the drying button. The washing phase is bypassed.

What is the maximum load for the 'Fast 30'' programme?

The maximum load for the Fast 30' programme is 4 kg for washing only. If drying is also selected, the load reduces to 1 kg.

How often should I run the 'Auto Clean' programme?

It is recommended to run the Auto Clean programme every 40 wash cycles. Activate it by pressing the Auto Clean button for 5 seconds, then press Start/Pause. The cycle lasts about 70 minutes.

USER MANUAL RDPD 107617 J Hotpoint Ariston

! This symbol reminds you to read this instruction manual.

GB

English,1

Polski,13

Deutsch,25

Contents

Installation, 2-3

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Français,37

Care and maintenance, 4

Cutting off the water or electricity supply

Cleaning the washer-dryer

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

RDPD 107617 J

Precautions and tips, 5

General safety

Disposal

Opening the porthole door manually

Description of the washer-dryer, 6-7

Control panel

Display

How to run a wash cycle or a drying cycle, 8

Wash cycles and functions, 9

Table of wash cycles

Wash functions

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

Special wash cycles

Load balancing system

Troubleshooting, 11

Service, 12

! This instruction manual should be kept in a safe place for future reference. If the washer-dryer is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.
! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance.

Unpacking and levelling Unpacking

1. Remove the washer-dryer from its packaging.
2. Make sure that the washer-dryer has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

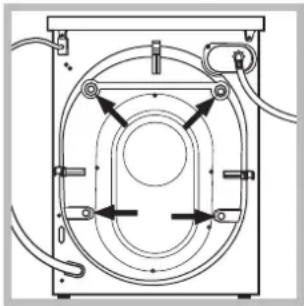

1. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

2. Close off the holes using the plastic plugs provided.

3. Keep all the parts in a safe place: you will need them again if the washer-dryer needs to be moved to another location.
   ! Packaging materials should not be used as toys for children.

Levelling

1. Install the washer-dryer on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

Line drawing of a door corner with a scroll wheel and directional arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2^ .

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washer-dryer.

Connecting the electricity and water supplies

Connecting the water inlet hose

Technical line drawing of a mechanical component with two views: top shows a knob-like shape, bottom shows a flanged base (no text or symbols)

1. Connect the inlet hose by screwing it to a cold water tap using a 3/4 gas threaded connection (see figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

Line drawing of a mechanical component with a valve and handle, no text or symbols present

1. Connect the inlet hose to the washer-dryer by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

2. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the range of values indicated in the Technical data table (see next page).
! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.
! Never use second-hand hoses.
! Use the ones supplied with the machine.

Connecting the drain hose

Connect the drain hose, without bending it, to a drain duct or a wall drain situated between 65 and 100 cm from the floor.

Diagram of a pipe connection with a bulb and handle, no text or symbols present

Alternatively, place the drain hose over the edge of a washbasin or bathtub, by fastening the guide (which can be purchased at the technical assistance centre) to the tap (see figure). The free end of the hose

should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the electricity socket must remain within easy reach.
! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.
! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these standards are not observed.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using wash cycle auto clean (see "Cleaning the washing machine").

Technical data
Model	RDPD 107617 J
Dimensions	width 59.5 cmheight 85 cmdepth 60,5 cm
Capacity	from 1 to 10 kg for the wash programmefrom 1 to 7 kg for the drying programme
Electrical connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure1 MPa (10 bar)minimum pressure0.05 MPa (0.5 bar)drum capacity 71 litres
Spin speed	up to 1600 rotations per minute
Energy rated programmes according to regulation EN 50229	Wash: programme 8; temperature 60°C; using a load of 10 kg.Drying: the greater load (7kg) must be dried by selecting the “EXTRA” dryness level.The remainder of the load must be dried by selecting the “EXTRA” dryness level: the load must consist of 3 sheets, 2 pillowcases and 1 hand towel.
	This appliance conforms to the following EC Directives:- EMC 2014/30/EU (Electro-magnetic Compatibility)- LVD 2014/35/EU (Low Voltag- 2012/19/EU (WEEE)

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle.
  This will limit wear on the hydraulic system inside the washer-dryer and help to prevent leaks.
• Unplug the washer-dryer when cleaning it and during all maintenance work.

Cleaning the washer-dryer

• The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.
• The washer-dryer has a auto clean programme for its internal parts that must be run with no load in the drum.

To help the wash cycle you may want to use either the detergent (i.e. a quantity 10% the quantity specified for lightly-soiled garments) or special additives to clean the washer-dryer. We recommend running a cleaning programme every 40 wash cycles.

To activate the programme, press the button for 5 seconds then press START/PAUSE to start the programme, which will last roughly 70 minutes.

Cleaning the detergent dispenser drawer

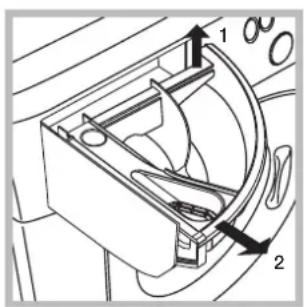

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Caring for the door and drum of your appliance

• Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washer-dryer is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front part of the washer-dryer (see figure);

Pure technical line drawing of a mechanical component with no text or symbols

1. unscrew the lid by rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

2. clean the inside thoroughly;

3. screw the lid back on;
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

! This washer-dryer was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not dry unwashed items in the tumble dryer.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

- The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

- Do not touch the machine when barefoot or with wet or damp hands or feet.

- Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.

- Do not open the detergent dispenser drawer while the machine is in operation.

- Do not touch the drained water as it may reach extremely high temperatures.

- Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.

- If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.

- Always keep children well away from the appliance while it is operating.

- The door can become quite hot during the wash cycle.

- If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

- Before loading laundry into the washer-dryer, make sure the drum is empty.

• During the drying phase, the door tends to get quite hot.

- Do not use the appliance to dry clothes that have been washed with flammable solvents (e.g. trichlorethylene).

- Do not use the appliance to dry foam rubber or similar elastomers.

• Make sure that the water tap is turned on during the drying cycles.
- Children of less than 3 years should be kept away from the appliance unless continuously supervised.
- Remove all objects from pockets such as lighters and matches.

Disposal

- Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.

- The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

1. remove the plug from the electrical socket.

Line drawing of a washing machine with a bucket and outlet tube (no text or symbols)

Simple line drawing of a tool inserted into a bracket with an arrow indicating direction (no text or symbols)

1. make sure the water level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

2. using a screwdriver, remove the cover panel on the lower front part of the washer-dryer (see figure).

Hand inserting a USB into a device component (no text or symbols visible)

Illustration of a hand holding a small electronic component (no text or symbols visible)

1. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards and open the door at the same time.
2. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

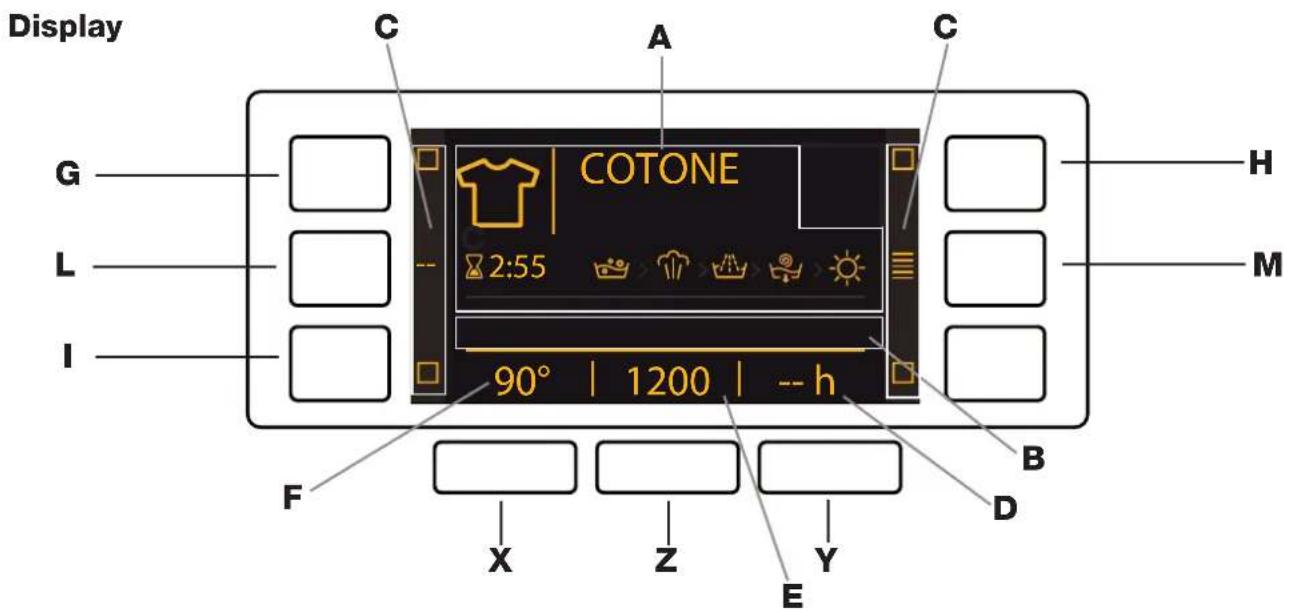

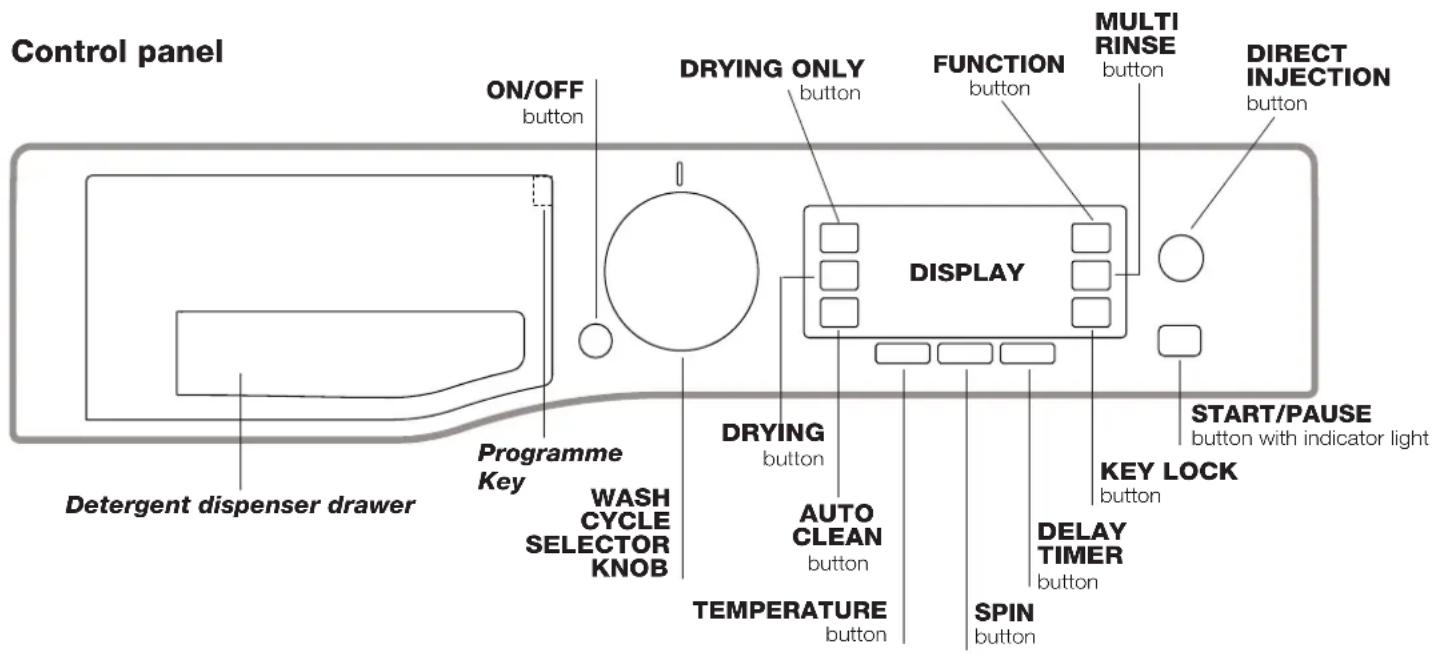

Description of the washer-dryer

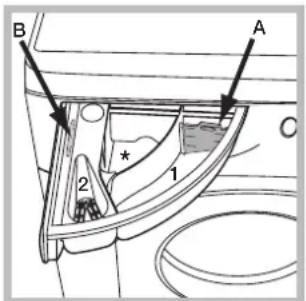

Detergent dispenser drawer: used to dispense detergents and washing additives (see "Detergents and laundry").

Programme Key: the Programme Key inside the detergent dispenser shows all the available programmes together with a graphical guide on how to use the individual dispenser compartments.

ON/OFF button press this briefly to switch the machine on or off. The START/PAUSE indicator light, which flashes slowly in a green colour shows that the machine is switched on. To switch off the washer-dryer during the wash cycle, press and hold the button for approximately 3 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR KNOB: used to set the desired wash cycle (see "Table of programmes and wash cycles").

FUNCTION button: press the button to select the desired function. The corresponding indicator light on the display will switch on.

AUTO CLEAN button: press to clean the machine's internal parts (see "Cleaning the washer-dryer").

DIRECT INJECTION button: press to select the DIRECT INJECTION option.

MULTI RINSE button press to select the desired rinse type.

SPIN button press to reduce or completely exclude the spin cycle - the value is indicated on the display.

TEMPERATURE button press to decrease the temperature: the value will be shown on the display.

DRYING button ⚙️: press to decrease or exclude drying; the selected drying level or time will appear on the display.

DRYING ONLY button-press to run the drying cycle only.

KEY LOCK button → activate the control panel lock, press and hold the button for approximately 2 seconds. When the display visualises "KEY LOCK ON" the control panel is locked (apart from the ON/OFF button). This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home. To deactivate the control panel lock, press and hold the button for approximately 2 seconds.

DELAY TIMER button press to set a delayed start time for the selected wash cycle. The delay time will be shown on the display.

START/PAUSE button with indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has started the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the symbol is not illuminated, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

Standby mode

This washer-dryer, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again. Consumption in off-mode: 0,5 W Consumption in Left-on: 8 W

The display is useful when programming the machine and provides a great deal of information.

The following will appear in area A: the icon and programme selected, the washing and drying phases and time remaining to the end of the cycle.

Area B will include the two intensity levels relative to the DIRECT INJECTION option.

The indicator lights relative to the available functions appear in area C.

Area D will have the time remaining to the start of the selected programme if the DELAY TIMER function was set.

String E shows the maximum spin speed value (this depends on the selected wash cycle); if the programme does not include the spin cycle, the dimly lit “--” symbol will appear in the area.

Area F will visualise the temperature value selectable on the basis of the set programme; if the temperature of the programme cannot be set, the area will show the symbol “--” dimly lit.

Door locked symbol 🔒

If the symbol is lit, this indicates that the washer-dryer door is blocked to prevent it from being opened accidentally. To prevent any damage from occurring, wait for the symbol to switch itself off before opening the appliance door.

N.B.: if the DELAY TIMER function has been activated, the door cannot be opened; pauses the machine by pressing the START/PAUSE button if you wish to open it.

! The first time the machine is switched on, you will be asked to select the language and the display will automatically show the language selection menu.

To select the desired language press the X and Y buttons; to confirm the selection press the Z button.

To change the language switch off the machine and press buttons G, H, I simultaneously until an alarm is heard: the language-selection menu will be displayed again.

! To change the display luminosity, which by default is set to the highest value, switch the machine off then simultaneously press buttons G, L and M until the buzzer sounds. Press buttons X and Y to choose the desired level of luminosity then confirm by pressing button Z.

! During the wash cycle or when the DELAY TIMER function has been enabled, if the user does not interact with the display for 1 minute the "SCREEN SAVER" activates. To return to the previous window, simply press any button.

How to run a wash cycle or a drying cycle

1. SWITCH THE MACHINE ON. Press the On/Off button; the text HOTPOINT will appear on the display and the START/PAUSE indicator light will flash slowly in a green colour.
2. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes on the following page.
3. MEASURE OUT THE DETERGENT. Open the detergent dispenser drawer and pour the detergent into the relevant compartments as described in "Detergents and laundry".
4. CLOSE THE DOOR.
5. SELECT THE WASH CYCLE. Use the WASH CYCLE SELECTOR knob to select the desired wash cycle; the name of the wash cycle will appear on the display. A temperature and spin speed is set for each wash cycle; these may be adjusted. The duration of the cycle will appear on the display.
6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modifying the temperature and/or spin speed. The machine automatically selects the maximum temperature and spin speed set for the selected wash cycle; these values cannot therefore be increased. The temperature can be decreased by pressing the button, until the cold wash (the display will visualise the “--” symbol) setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded (the display will visualise the “--” symbol). If these buttons are pressed again, the maximum values are restored.

! Exception: if the 5 programme is selected, the temperature can be increased up to a value of 40°C.

! Exception: if the 7 programme is selected, the temperature can be increased up to a value of 90^ C.

! Exception: if the 9 programme is selected, the temperature can be increased up to a value of 60^ C.

Setting a delayed start.

To set a delayed start for the selected programme, press the corresponding button repeatedly until the required delay period has been reached. To remove the delayed start function press the button until the text “-- h” appears on the display.

Setting the drying cycle.

The desired drying cycle type may be set by pressing the DRYING button once or several times. Two options are available:

A - Based on the how damp the clothes are once they have been dried:

Iron: suitable for clothes which will need ironing afterwards. the remaining dampness softens creases, making them easier to remove.

Hanger: ideal for clothes which do not need to be dried fully.

Cupboard: suitable for laundry which can be put back in a cupboard without being ironed.

Extra: suitable for garments which need to be dried completely, such as sponges and bathrobes.

B - Based on a set time period: between 30 and 180 minutes. To exclude the drying phase press the relevant button until the text OFF appears on the display.

If your laundry load to be washed and dried is much greater than the maximum stated load, perform the wash cycle, and when the cycle is complete, divide the garments into groups and put some of them back in the drum. At this point, follow the instructions provided for a "Drying only" cycle. Repeat this procedure for the remainder of the load. A cooling-down period is always added to the end of each drying cycle.

Drying only

Press button - to perform the drying-only cycle. After selecting the desired cycle (compatible with the type of garments), press button - to exclude the washing

phase and start the drying phase at the maximum level for the selected cycle. The drying level or time may be set and changed by pressing the drying button - Not compatible with cycles 1-2-3-4 and 14).

Set the rinse type.

Option makes it possible to select the desired rinse type for sensitive skin. Press the button once for the "Extra

+1" level, which makes it possible to select an additional rinse after the standard cycle rinse and remove all traces of detergent. Press the button again for the "Extra +2" level, which makes it possible to select two additional rinses to the standard cycle rinses; it is recommended for very sensitive skin. When the button is pressed for the third time, the "Extra +3" level is set, thus allowing the selection of 3 rinses in addition to the standard cycle's rinses. The option - started with cycles at a temperature of 40^ - makes it possible to remove major allergens such as pollen, cat and dog hair. With cycles at a temperature higher than 40^ a very good level of antiallergic protection is achieved. Press the button again to go back to the

"Normal rinse" rinse type. If the current adjustment can be neither set nor changed, the display will show "No Selection" or "No Change".

Modifying the cycle settings.

- Press the button to enable the function; the relevant indicator light on the display will light up.

- Press the button again to disable the function; the relevant indicator light on the display will switch off. ! If the selected function is incompatible with the set programme, the relevant indicator light will appear dimly lit; in addition, the incompatibility will be signalled by a buzzer (3 beeps) and the wording "No Selection" will appear on the display.

! If the selected function is incompatible with another previously set function, the wording "No Selection" will appear on the display and the function will not be enabled.

! The functions may affect the recommended load value and/or the duration of the cycle.

1. START THE PROGRAMME. Press the START/PAUSE button. The corresponding indicator light will become green, remaining lit in a fixed manner, and the door will be locked (the DOOR LOCKED symbol will be on). During the wash cycle, the name of the phase in progress will appear on the display. To change a wash cycle while it is in progress, pause the washer-dryer using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an orange colour); then select the desired cycle and press the START/PAUSE button again. To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

2. THE END OF THE WASH CYCLE. This will be indicated by the text "CYCLE END" on the display; when the DOOR LOCKED symbol switches off the door may be opened. Open the door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun, press and hold the Button. The cycle will be stopped and the machine will switch off.

Direct Injection

The washer-dryer is equipped with the innovative technology «Direct Injection» which pre-mixes water and detergent, thus immediately activating the detergent's cleaning principles. This active emulsion is directly introduced into the drum of the washer-dryer and penetrates the fibres with more efficacy in cleaning even heavily soiled garments at low temperatures, fully preserving colours and fabrics.

The mode «Power» ensures the best cleaning performance and the mode «EcoEnergy» allows more energy saving.

Table of wash cycles

Wash cycles	Description of the wash cycle	Max. temp. (°C)	Max. speed (rpm)	Drying	Detergents		Max. load (kg)	Cycle duration
					Wash	Fabric softener
ANTI CREASE								The duration of the wash cycle can be checked on the display.
1	Daily Mix Wash & Dry	40°	800	●	●	●		3
2	Shirts Wash & Dry	40°	1000	●	●	●		2
3	Pre Iron	- - - - -	1,5
4	Steam Refresh	- - - - -	2
DAILY CLEAN
5	Anti-Stain Turbo 45'	20° (Max. 40°C)	1200	●	●	●		5,5
6	Anti-Stain Power 20°C	20°	1600	●	●	●		10
7	Cotton: lightly soiled resistant and delicate colours.	40° (Max. 90°C)	1600	●	●	●		10
8	Eco Cotton (1-2): heavily soiled whites and resistant colours.	60° 1600		●	●	●		10
9	Synthetics (3): lightly soiled resistant colours.	40° (Max. 60°C)	1000	●	●	●		5
SPECIALS
10	Multi Colour	40° 1600		●	●	●		10
11	Ultra Delicates	30°	--	●	●	●		1
12	Wool: for wool, cashmere, etc.	40° 800		●	●	●		2,5
13	Sport	40°	600	●	●	●		4,5
14	Fast 30' (**): to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800	●	●	●		4
Partial Programmes
	Rinse	-	1600	●	-	●	10
	Spin + Pump out	-	1600	●	--	10
	Pump out only *	-	--	--	-	10

* If you select programme and exclude the spin cycle, the machine will drain only.
** If a drying cycle is also programmed, the machine will run a "wash+dry" programme lasting 45' with maximum spin speed and a 1kg laundry load.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with regulation EN 50229: set wash cycle 8 with a temperature of 60°C.
2) Long wash cycle for cottons: set programme 8 at temperature 40°C and press the DIRECT INJECTION button under "Power" mode.
3) Long wash cycle for synthetics: set wash cycle 9 with a temperature of 40^ C.

Wash functions

! If the selected function is incompatible with the set programme, the relevant indicator light will appear dimly lit; in addition, the incompatibility will be signalled by a buzzer (3 beeps) and the wording "No Selection" will appear on the display.
! If the selected function is incompatible with another previously set function, the wording "No Selection" will appear on the display and the function will not be enabled.

Steam Hygiene

This option enhances washing performance by generating steam during the wash cycle to remove any bacteria from the fibres, which are treated at the same time. Place the laundry in the drum, choose a compatible programme and select option

! The steam generated during the operation of the washing machine may cause the porthole door to become hazy.

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause a build up on the inside of your appliance and contribute to environmental pollution.

! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.
! Do not use hand washing detergents because these create too much foam.

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

! Do not pour detergent into the middle compartment (*).

compartment 1: Deter- gent for the wash cycle (powder or liquid)

If liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage. If powder detergent is used, place the partition into slot B.

compartment 2: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

Preparing the laundry

• Divide the laundry according to:
• the type of fabric/the symbol on the label
• the colours: separate coloured garments from whites.

- Empty all garment pockets and check the buttons.

- Do not exceed the listed values, which refer to the weight of the laundry when dry: see "Table of wash cycles".

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g

Special wash cycles

Daily Mix Wash & Dry use programme 1 to wash and dry mixed garments (cotton and synthetics). This cycle may be used to wash and dry loads of up to 3 kg; we recommend the use of liquid detergent.

The use of the steam in this programme is optimised to reduce the formation of creases on garments, making them easier to iron.

Shirts Wash & Dry: use programme 2 to wash and dry shirts and T-shirts in different fabrics and colours to ensure maximum care. This cycle may be used to wash and dry loads of up to 2 kg. To achieve optimum results, use liquid detergent and pre-treat cuffs, collars and stains. The use of the steam in this programme is optimised to reduce the formation of creases on garments, making them easier to iron. Pre Iron: use this programme immediately before ironing; max. 1.5 kg load. The use of the steam in this programme is optimised to reduce the formation of creases on garments, making them easier to iron.

Steam Refresh: for refreshing garments, neutralised unpleasant odours and relaxing the fibres by delivering steam into the drum. The garments will be damp at the end of the cycle.

Anti-Stain Turbo 45': this cycle ensures excellent stain removal capacity even at 20°C in just 45 minutes. The temperature of this cycle can be increased up to 40°C.

Anti-Stain Power 20°C: this programme ensures maximum stain removal capacity with no need for pre-treatment at low temperatures, preserving fabrics and colours.

Multi Colour: for washing coloured cotton garments.

This programme is optimised to keep colours bright even after repeated washing.

Ultra Delicates: use programme 11 to wash very delicate garments having strasses or sequins.

We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates. Use liquid detergent on delicate garments for best results.

When selecting an exclusively time-based drying function, a drying cycle is performed at the end of the wash cycle that is particularly delicate, thanks to light handling and appropriate temperature control of the water jet.

The recommended durations are:

1 kg of synthetic garments --> 165 min
1 kg of synthetic and cotton garments --> 180 min
1 kg of cotton garments --> 180 min
The degree of dryness depends on the load and fabric composition.

Wool - Woolmark Apparel Care - Green:

the wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool garments labelled as "hand wash" provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washer-

dryer. (M1135)

Sport: for washing lightly soiled sports clothing (tracksuits, shorts, towels, etc.); for best results, we recommend not exceeding the maximum load indicated in the "Table of wash cycles". We recommend using liquid detergent, and adding the amount suitable for a half-load.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washer-dryer performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Your washer-dryer could fail to work. Before contacting the Technical Assistance Centre (see "Assistance"), make sure that the problem cannot be solved easily using the following list.

Problem:
The washer-dryer does not switch on.

The wash cycle does not start.	There is no power in the house.The washer-dryer door is not closed properly.The ON/OFF button has not been pressed.The START/PAUSE button has not been pressed.The water tap has not been opened.A delayed start has been set.
The washer-dryer does not take in water (the text “NO WATER, Turn tap on” appears on the display).	The water inlet hose is not connected to the tap.The hose is bent.The water tap has not been opened.There is no water supply in the house.The pressure is too low.The START/PAUSE button has not been pressed.
The washer-dryer continuously takes in and drains water.	The drain hose is not fitted at a height between 65 and 100 cm from the floor (see “Installation”).The free end of the hose is under water (see “Installation”).The wall drainage system is not fitted with a breather pipe.If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washer-dryer to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.
The washer-dryer does not drain or spin.	The wash cycle does not include draining: some wash cycles require the drain phase to be started manually (see “Wash cycles and functions”).The drain hose is bent (see “Installation”).The drainage duct is clogged.
The washer-dryer vibrates a lot during the spin cycle.	The drum was not unlocked correctly during installation (see “Installation”).The washer-dryer is not level (see “Installation”).The washer-dryer is trapped between cabinets and walls (see “Installation”).
The washer-dryer leaks.	The water inlet hose is not screwed on properly (see “Installation”).The detergent dispenser drawer is blocked (for cleaning instructions, see “Care and maintenance”).The drain hose is not fixed properly (see “Installation”).
The machine is locked and the display flashes, indicating an error code (e.g. F-01, F-.).	Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again.If the problem persists, contact the Technical Assistance Service.
There is too much foam.	The detergent is not suitable for machine washing (it should display the text “for washer-dryers” or “hand and machine wash”, or the like).Too much detergent was used.
The washer-dryer does not dry.	The appliance is not plugged into the socket, or not enough to make contactThere has been a power failure.The appliance door is not shut properly.A Delay Timer has been set.DRYING is in the OFF position.

Possible causes / Solutions:

GB

Before calling for Assistance:

• Check whether you can solve the problem alone (see "Troubleshooting");
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;
• the appliance model (Mod.);
• the serial number (S/N).

This information can be found on the data plate applied to the rear of the washer-dryer, and can also be found on the front of the appliance by opening the door.

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

Line drawing of a mechanical component with a valve and handle, no text or symbols present

Simple line drawing of a tool inserted into a bracket with arrows indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Hand inserting a component into a device (no text or symbols visible)

Hand inserting a USB into a device (no text or symbols visible)

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a door corner with a circular button and directional arrow (no text or symbols)

Technical line drawing of two mechanical components: a cap and a flanged base (no text or symbols)

Diagram of a mechanical device with a valve and handle, showing rotational motion (no text or symbols)

Simple line drawing of a pipe with a bulb above it, no text or symbols present

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Simple line drawing of a circular component mounted on a rectangular base (no text or symbols)

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Diagram of a hand pressing a button on a computer monitor (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a car door corner with a circular sensor or indicator on the left side (no text or symbols)

Technical line drawing of two mechanical components: a hexagonal nut and a flanged bolt (no text or symbols)

Diagram of a mechanical valve or pump assembly with directional arrow (no text or symbols)

Diagram of a pipe connection to a water level with a valve, showing fluid flow direction (no text or labels)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Diagram of a hand pressing a button on a device component (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

bac 2: Additifs (assouplissant, etc.)
