Product Type	Ultra Slim Wireless Speaker
Model	BTS01
Dimensions	∅90 x 30 mm
Weight	135 g
Battery Type	Lithium-ion
Battery Capacity	400 mAh
Charging Time	Up to 2.5 hours
Playback Time	Up to 10 hours
Standby Time	Up to 24 hours
Power Output	3 W
Material	Aluminium alloy
Wireless Range	Up to 10 m
Bluetooth Version	Not specified (estimated 4.0 or later)
Supported Storage	Micro SD (TF) card up to 32 GB (not included)
Microphone	Built-in for hands-free calls
Controls	Play/Pause/Answer, volume +/-, mode switch, ON/OFF
Charging Port	Micro USB
Package Contents	Speaker, USB charging cable (500 mm)
Certifications	IMDA, CE
Usage	Portable music playback and hands-free calling

Frequently Asked Questions - BTS01 Valore

How do I pair the Valore BTS01 with my phone?

First, turn on the speaker by sliding the ON/OFF switch to ON. Activate Bluetooth on your phone and select 'Valore BTS01' from the device list. The LED will turn solid blue when connected. If pairing fails, turn off the speaker and retry.

How long does it take to fully charge the speaker?

The speaker takes up to 2.5 hours to charge fully. A red indicator light turns off when charging is complete. For first use, charge for at least 8 hours.

What should I do if the sound is too soft?

Check the volume levels on both the speaker (long press Volume +) and your mobile device. Also ensure the battery is not low. If problem persists, re-pair the devices.

Can I use a Micro SD card with this speaker?

Yes, the speaker supports Micro SD (TF) cards up to 32GB (not included). Insert the card into the TF card slot and press the Mode button to switch to TF mode.

How do I answer or reject a call?

Short press the Play/Pause/Answer button to answer a call. Short press again to hang up. Long press the same button to reject an incoming call.

What is the Bluetooth range of the speaker?

The effective wireless range is up to 10 meters (33 feet) in open space. Walls and obstacles can reduce the range.

How do I switch between Bluetooth and TF card mode?

Short press the Mode switch button to toggle between Bluetooth and TF card playback. The LED indicator may change color to indicate the mode.

What should I do if the speaker won't connect?

Ensure the speaker is charged and within 1 meter during pairing. Turn off other Bluetooth devices. Reset by turning the speaker off and on. If still not working, delete the pairing from your phone and repeat the steps.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use water or cleaning agents. Avoid moisture and submersion. Keep the charging port dry.

Is the speaker water-resistant?

No, the speaker is not water-resistant. Avoid exposure to moisture, rain, or submersion in liquid. Keep it dry at all times to prevent damage.

USER MANUAL BTS01 Valore

Thank you for purchasing the Valore Ultra Slim Wireless Speaker (BTS01).

Designed to fit into your bag with its 30mm ultra slim profile, this Valore wireless speaker is brilliantly thin, lightweight yet powerful in sound. Take this pocket-sized portable speaker everywhere with you, plus manage your calls directly with the built-in microphone.

Important: Please read the user manual thoroughly before using your wireless speaker.

Specifications:

• Wireless range: Up to 10m
  • Built-in battery: 400mAh Lithium battery
• Standby time: Up to 24 hours
• Charging time: Up to 2.5 hours
• Playback time: Up to 10 hours
• Power output: 3W
• Dimension (L x W x H): ∅90 x 30mm
• Weight: 135g
  • Material: Aluminium alloy

- Support: Micro SD (TF) card up to 32GB (not included)

Package Contents:

• Ultra slim wireless speaker
• USB charging cable (500mm)

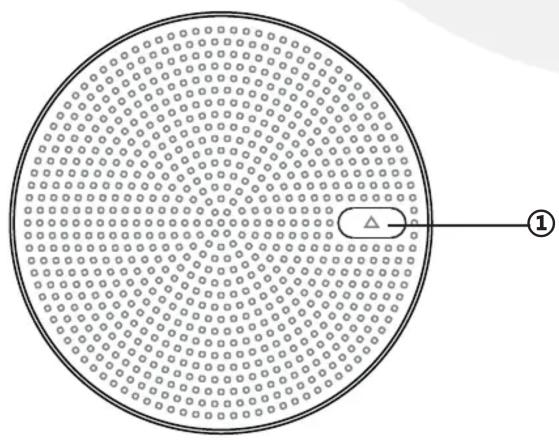

UNDERSTANDING THE PRODUCT

Circular diagram with dot pattern and labeled point (1), no readable text or symbols beyond labels

① Play/Pause/Answer
② ON/OFF switch
③ Previous/Volume -
④ Mode switch
⑤ Next/Volume +
⑥ Mic
⑦ Micro USB charging port
⑧ TF card slot

START USING THE WIRELESS SPEAKER

1) Charging the wireless speaker

Connect the USB charging cable provided to the Micro USB charging port. A red indicator will light up when charging and will switch off when wireless speaker is fully charge.

Note: Please charge the speaker for at least 8 hours before first use. Please make sure that the speaker is switched off when charging is in progress.

2) Pairing the wireless speaker (switched off)

Single:

Step 1: Activate Bluetooth function on your mobile device to begin pairing with speaker.

Step 2: Switch on the speaker by shifting the ON/OFF switch to ON.

Step 3: Connect to the speaker by selecting ‘Valore BTS01’ under the device list.

Step 4: Once connected, the LED light at the will be solid blue.

Note: If the pairing is not successful, please turn off wireless speaker first, and then re-pair again. After pairing is successful, paired devices will remember each other. Unless pairing information is deleted because of new pairing, no need to pair when using the next time.

If you want to pair the wireless speaker with other devices, please turn off Bluetooth function of existing source device, and pair the wireless speaker with the new device according to steps 1-4 mentioned above.

3) Wireless speaker controls

Pause/Play/Answer: Short press to play/pause music. Short press to answer. Short press to hang up. Long press to reject call.

Previous/Volume - : Short press to go to previous song. Long press to reduce volume.

Next/Volume + : Short press to go to next song. Long press to increase volume.

Mode switch : Short press to switch between TF and Bluetooth mode.

TROUBLESHOOTING

Issue 1: Speaker is unable to connect successfully to your mobile device

Problem 1: Speaker's battery is flat

Solution: Fully charge the speaker (6 hours) and retry connection with your mobile device.

Problem 2: Speaker not paired to your mobile device

Solution: Make sure that the speaker is successfully paired upon selecting ‘Valore BTS01’ in the device list.

Problem 3: Speaker and mobile device too far apart

Solution: Make sure that the speaker is within a metre range during pairing and connection.

Problem 4: Speaker is connected to other mobile device

Solution: Make sure that the speaker has already been disconnected before making a new connection with a new device.

Issue 2: Sound from the speaker is too soft or silent

Problem 1: Speaker's battery is low / flat

Solution: Fully charge the speaker (6 hours) and retry connection with your mobile device.

Problem 2: Speaker or mobile device's volume is too low

Solution: Turn the volume of the speaker or mobile device up to increase the volume.

Problem 3: Music track may not be audible

Solution: Make sure that the music track is of a playable format for the mobile device.

Problem 4: Speaker and mobile device might not be connected properly.

Solution: Repeat the connection step via Bluetooth again to make sure that it is connected properly and try again.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not store the speaker in a high temperature environment.
• Do not place the speaker near a fire or other excessively hot environments.
• Do not expose this speaker to moisture or submerge it in liquid. Keep speaker dry at all times.
• Do not attempt to charge the speaker using any other method or connection other than the headset's provided charging cable.
• Do not disassemble this speaker or attempt to repair or modify it in any manner.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this headset. If there is any damage to the speaker such as dents, punctures, tears, deformities or corrosion, stop using the speaker and contact us immediately via email at [e-mail], or return this product to the store where you have purchased it from.
• If the product produces an abnormal smell, high temperature (low temperature during normal use), discolours or changes shape abnormally, stop using the product and contact us immediately via email at [e-mail].

DISCLAIMER & TRADEMARKS

All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes.

The trademarks, service marks and logos used and displayed in the Materials are registered and unregistered trademarks and service marks of Valore and others. All other registered and unregistered company names, product names and marks mentioned herein the (“Materials”) are the property of their respective owners and may be trademarks or registered trademarks.

Complies with IMDA Standards DA103331

CE

Inspired by Valore Singapore

For full range of Valore products visit www.valore.sg
