SWD 100 C2 - Electric blanket SILVERCREST - Free user manual and instructions

Product Type	Electric Blanket
Brand	SilverCrest
Model	SWD 100 C2
Dimensions	160 x 130 cm (Single)
Weight	1.5 kg
Power Consumption	120 W
Voltage	220-240 V ~ 50/60 Hz
Temperature Settings	3 Levels (Low, Medium, High)
Heating Zones	2 (Head and Chest areas)
Control Type	Detachable, Dual Control (2 sides)
Auto Shut-Off	Yes, after 3 hours
Overheat Protection	Yes, with thermal fuse
Material	Fleece (Polyester)
Washability	Machine washable (control removed)
Certifications	CE, GS, RoHS
Warranty	2 years
Safety Features	Overheat protection, auto shut-off, detachable control
Color	White/Grey

Frequently Asked Questions - SWD 100 C2 SILVERCREST

Can I wash the SilverCrest SWD 100 C2 electric blanket?

Yes, the blanket is machine washable. Unplug and remove the detachable control first. Use a gentle cycle at 30°C. Do not iron or dry clean.

Does the blanket have an automatic shut-off feature?

Yes, the blanket includes a 3-hour auto shut-off for safety. It will turn off automatically after 3 hours of continuous use.

Is it safe to use the electric blanket overnight?

Yes, it is safe for overnight use thanks to the overheat protection and auto shut-off. However, always follow the manual and do not cover the control.

What are the dimensions of the SWD 100 C2?

The blanket measures 160 cm x 130 cm, suitable for a single bed.

Does the blanket have dual controls?

Yes, it features dual controls so each side can set a different temperature level.

How many temperature settings are available?

There are 3 heat levels: Low, Medium, and High, controlled via the detachable switch.

Can I use a timer or schedule the blanket?

No, the blanket does not have a built-in timer. It only has a fixed 3-hour auto shut-off. Use an external timer if needed.

Is the control detachable for washing?

Yes, the control is detachable. Always remove it before washing the blanket. The blanket is machine washable at 30°C.

What certifications does the blanket have?

It is certified with CE, GS, and RoHS, ensuring compliance with European safety and environmental standards.

How long is the warranty period for the SilverCrest SWD 100 C2?

The blanket comes with a 2-year warranty against manufacturing defects. Keep your receipt for proof of purchase.

USER MANUAL SWD 100 C2 SILVERCREST

Operating instructions and safety advice

IAN1 14202

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

List of pictograms used....Page 6

Introduction......Page 6

Intended use....Page 6

Parts description Page 7

Scope of delivery....Page 7

Technical Data Page 7

Important safety instructions....Page 7

Safety system....Page 9

Special features....Page 9

Start-up Page 9

Switching on/off/Selecting the temperature......Page 10

Temperature levels Page 10

Automatic switch-off Page 10

Cleaning and Care....Page 10

Storage Page 11

Disposal Page 11

Warranty / Service centre Page 11

Declaration of conformity....Page 12

List of pictograms used:
	Read the instructions!		The textiles used with this heated blanket meet the high human ecological requirements of Öko-Tex standard 100, as verified by the German Hohenstein Research Institute.
	Volt (AC)		Caution - Risk of electric shock!Danger to life!
	Hertz (mains frequency)		This heated blanket is machine washable. Set the washing machine to an extra gentle washing cycle at 30 °C.
	Watt (effective power) Do not use bleach
	Safety class II Do not dry in a tumbler dry
	Observe the warning and safety instructions!		Do not iron.
	Not suitable for very young children age 0-3 years!		Do not dry clean.
	Do not stick needles into it!		Dispose of the packaging and the heated blanket in an environmentally friendly way!
	Do not use folded or rucked!

Electric Overblanket

●Introduction

Please make yourself familiar with the heated blanket before preparing it for use or using it for the first time. To do so,

please carefully read the following operating instructions and the important safety information. The heated blanket must only be used as described and for the stated types of use. Keep these instructions in a safe place. If you pass the heated blanket on to others you should also give them all of the documentation.

Intendeduse

This heated blanket is designed to warm the human body. It must only be used as a cover, not as a pad. The heated blanket is not intended for use in hospitals or for commercial use. In particular it must not be used for babies or infants, persons who are insensitive to heat, helpless persons, or animals. Any use other than that described above or modification of the heated blanket are not permissible and may lead to injury and / or damage to the heated blanket. The manufacturer assumes no liability for damages caused by improper use.

Partsdescription

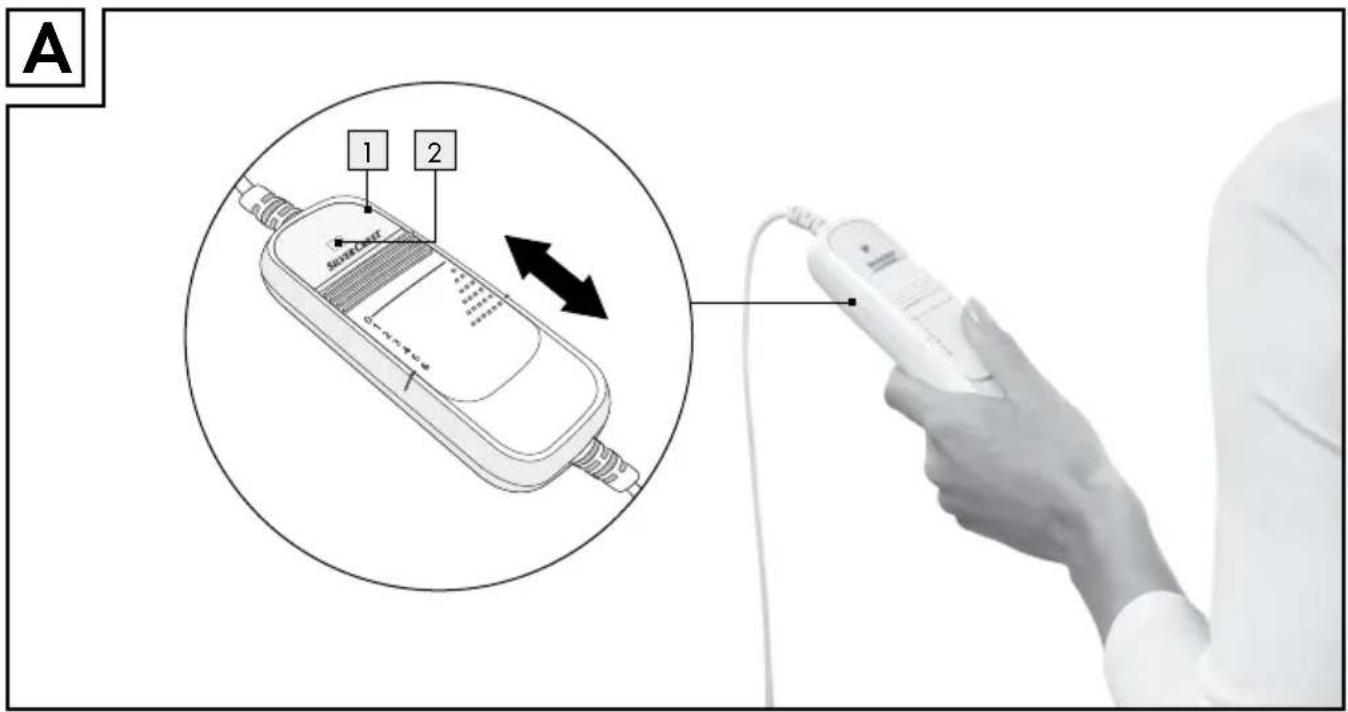

1 Control unit (see Fig. A)
2 Function display (see Fig. A)

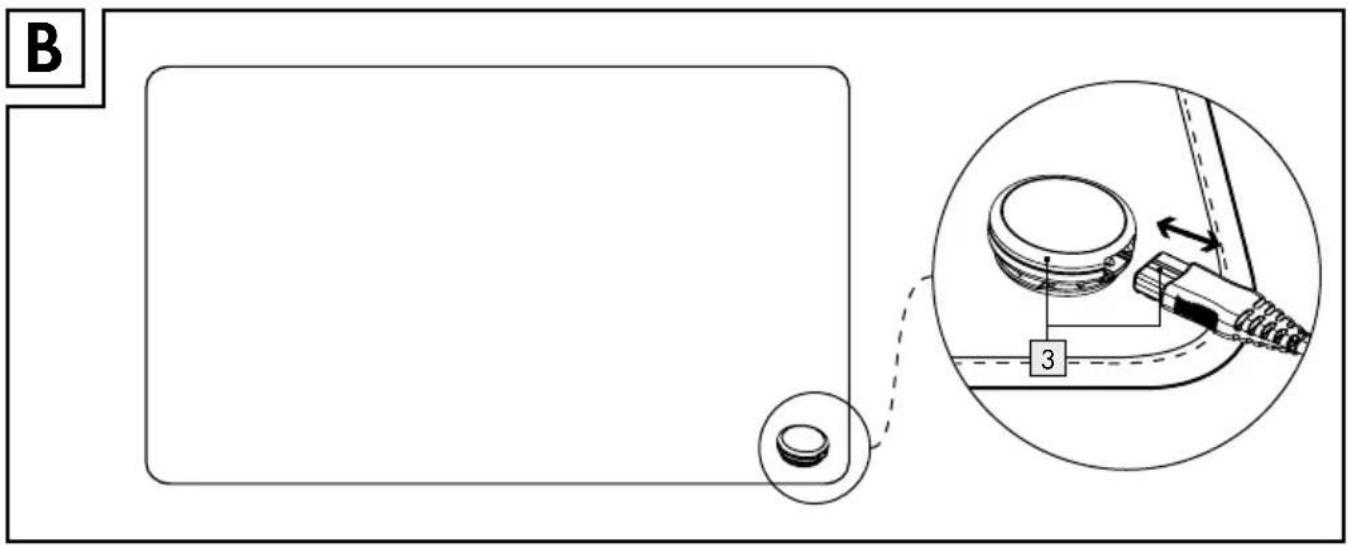

3 Plug-in connector (see Fig. B)

- Scope of delivery

Please check immediately on unpacking that the delivery scope is complete and that the heated blanket is in perfect condition.

1 Electric Overblanket
1 Control unit / plug-in connector
1 Set of instructions for use

●TechnicalData

Model: SWD 100 C2

Type: B10

Power supply: 230-240V/50-60Hz

Power consumption: 100W-110W

Dimensions: approx. 180 x 130 cm

Protection class: II/

electric field strength: max. 5000V/m

magnetic field strength: max. 80A/m

magnetic flux density: max. 0.1 milli-Tesla

Manufacturer:

MGG Elektro GmbH

Steinstraße 27

40210 Düsseldorf, Germany

IMPORTANT INFORMATION – KEEP FOR FUTURE REFERENCE!

Important safety instructions

WARNING!

Failure to observe the following instructions can cause personal injury or property damage (electric shock, burns, fire). The following safety instructions and hazard warnings are not only intended to protect your own health and the health of others, but also to prevent damage to the heated blanket. Observe this safety advice. If you pass the heated blanket on to anyone else, please pass on these operation instructions as well.

SCALDING HAZARD!

This heated blanket may not be used by persons insensitive to heat and other persons in need of protection who do not respond to overheating (e.g. diabetics, persons with skin changes caused by illness or scarred skin areas in the application area after using analgesics or alcohol). There is a risk of skin burns.

WARNING! This

heated blanket may not be used for very young children (0–3 years), as they are unable

Important safety instructions

to react to overheating. There is a risk of skin burns.

This heated blanket may not be used by young children (3–8 years) unless the control unit was set by a parent or a supervising person and the child was adequately instructed on the safe use of the heated blanket. There otherwise is a risk of burns.
This heated blanket may be used by older children age 8 and up, and persons with diminished physical, sensory or mental capacities or lacking experience and knowledge when supervised and instructed on the safe use of the heated blanket and understand the associated risks.
■ Children must be supervised to ensure they do not play with the heated blanket. There is a risk of injury.
■ Children must not perform clean or maintain the product without supervision. There is a risk of injury.
The heated blanket is not intended for use in hospitals or for commercial use. This poses a risk of injuries and / or damage to the heated blanket.
WARNING! not poke the heated

blanket with needles or sharp objects. There is a risk of electric shock.

WARNING! not switch on the head

blanket whilst folded or bunched up. The heated blanket may otherwise be damaged.

• Do not use when wet! Otherwise there is a risk of electric shock.
  This heated blanket may only be operated with the control unit specified on the label. The heated blanket may otherwise be damaged.
  The electric and magnetic fields emitted by this heated blanket could possibly interfere with the functionality of your pacemaker. However, the levels are far below the permissible limits: electric field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m magnetic flux density: max. 0.1 milli-Tesla. Therefore please consult your physician and the manufacturer of your pacemaker before using this heated blanket.
• Do not pull, twist or kink the cables. The heated blanket may otherwise be damaged.
  ■ Frequently check this heated blanket for signs of wear or damage.

If signs thereof are detected, the heated blanket was used improperly or will no longer heat up, it must first be inspected by the manufacturer before being switched on again.

If the mains lead to the heated blanket is damaged it must be replaced by the manufacturer, his customer service centre, or a similarly qualified person to prevent hazards.
■ With the heated blanket switched on, never

• place objects on it (e.g. suit-cases or clothes baskets),
• place a heating source such as a hot-water bottle, heating pad or similar items on it. The heated blanket may otherwise be damaged.

The electronic components inside the control unit will heat up whilst operating the heated blanket. For this reason, never cover the control unit or place it on the heated blanket during operation. This poses a risk of injuries and / or damage to the heated blanket.
■ Always observe the information on start-up, cleaning and care, and storage.
■ If you have additional questions on using our products, please

contact our Customer Service Department.

●Safetysystem

Note: The heated blanket features a safety system. The electronic sensor technology prevents the heated blanket from overheating across the entire surface by automatically switching off in the event of a malfunction.

If the safety system switches the heated blanket off automatically as a result of a malfunction, the function display 2 on the control unit 1 will no longer light up, even when the heated blanket is switched on.

☐ Please note that, for safety reasons, the heated blanket must not be used after a fault and must be returned to the service address indicated.

●Specialfeatures

This heated blanket features a super soft, hygienic fabric. The textiles used in this heated blanket satisfy the high human ecological

requirements of Öko-Tex Standard 100, as verified by the German Hohenstein Research Institute.

- Start-up

Note: When the heated blanket is used for the first time, you may notice a smell of plastic; however, this will disappear after a short time.

To use the heated blanket, first connect the control unit 1 with the heated blanket using the plug-in connector 3 (see Fig. B).

- Switching on/off/Selecting the temperature

Switching on:

☐ Set the control unit to level 1, 2, 3, 4, 5 or 6 to switch on the heated blanket.

Note: The function display 2 will light up after switching the heated blanket on.

Switching off:

☐ Set the control unit to level 0 to switch the heated blanket off.

Note: The function display 2 will go off.

Selecting the temperature:

☐ Set the control unit to the highest temperature setting (setting 6). This will cause the heating pad to warm up quickly.

WARNING! When operating the heated blanket for several hours, we recommend setting the control unit 1 to the lowest setting to prevent the body from overheating and to prevent potential subsequent skin burns or a heat stroke.

●Temperaturelevels

☐ Set the control unit to the desired temperature (see Fig. A).

Level 0: off

Level 1: minimum heat

Level 2-5: custom settings

Level 6: maximum heat

●Automaticswitch-off

Note: The heated blanket switches itself off automatically after approx. 180 minutes. The function display 2 on the control unit 1 will then start flashing.

☐ To switch the heated blanket back on, first select level 0 and after approx. 5 sec. select the desired temperature level.

If the heated blanket is no longer used after the timer expires:

• switch off the heated blanket (level 0),
• unplug from the socket,
• disconnect the plug-in connector 3, thus the control unit 1 from the heated blanket.

- Cleaning and Care

WARNING! DANGER TO

LIFE BY ELECTRIC SHOCK! Before

cleaning the heated blanket, always

unplug the mains plug from the socket and disconnect the plug-in connector 3, thus the control unit 1 from the heated blanket (see Fig. B). Otherwise there is a risk of electric shock.

Use a dry, lint-free cloth for control unit cleaning and care.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY!

Never immerse the control unit 1

in water or other liquids. It may otherwise be damaged.

If the heated blanket is slightly soiled, use a dampened cloth and a little liquid mild detergent, if necessary.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Never

use chemical cleaning agents or agents to clean the heated blanket of unit 1. The heated blanket and it may otherwise be damaged.

The heated blanket is machine washable. Set the washing machine at an extra washing cycle for deli-

cate items at 30 °C.

Use a mild detergent at the dose recommended by the manufacturer.

Please note, frequent washing will cause wear on the heated blanket. It should therefore be washed no more than a maximum of 5 times in a washing machine during its lifetime.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Please note that the heated blanket must not be dry-cleaned, wrung out, machine dried, mangled or ironed. These may all damage the heated blanket.

Do not bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).

Do nor dry in a tumbler dryer.

Do not ran.

Do not dry clean.

■ Reshape the still damp heating pad to its original size immediately after washing and allow to dry flat, spread across a drying rack.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do not fasten the heated blanket with pegs or the like to dry. These may all damage the heated blanket.

DANGER OF ELECTRIC SHOCK! Do not reconnect the control unit 1 with the heated blanket until the connector 3 and the heated blanket are completely dry. Otherwise there is a risk of electric shock.

DANGER OF ELECTRIC SHOCK! RISK OF PROPERTY DAMAGE! Do not under any circumstances switch the heated blanket on to dry. Otherwise there is a risk of electric shock.

Storage

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Let the heated blanket cool before putting it away. These may all damage the heated blanket.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! To prevent the heated blanket from becoming sharply creased, do not place other objects on top of the heated blanket when it is stored. These may all damage the heated blanket. If you do not intend to use the heated blanket for any length of time, store it in the original packing in a dry place without weighing it down. Disconnect the plug-in connector 3, thus the control unit 1 from the heated blanket.

●Disposal

The packaging and ancillary packing consist of environmentally friendly materials. They can be disposed of at your local recycling facility.

Do not dispose of electric equipment in the household waste!

In accordance with the European Directive on waste electrical and electronic equipment and its transposition into national law, used electrical equipment must be collected separately and recycled in an environmentally friendly manner.

Contact your local refuse disposal authority for more details of how to dispose of your worn out heated blanket.

● Warranty / Service centre

We provide a 3-year warranty covering faults in materials or manufacture of the heated blanket from the purchase date.

The warranty does not cover:

- Damage from improper use.

·Wearparts.

- Defects the customer was aware of at the time of purchase.

- Damage caused by the customer.

Warranty / Service centre / Declaration of conformity

This warranty does not affect the customer's legal rights.

The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Claims under the warranty are honoured

for a period of 3 years after the date of purchase.

In the event of a warranty claim, the customer has the right to have the goods repaired by our own workshop or a workshop authorised by us. The heated blanket must not be opened for any reason. Opening or modifying the device invalidates the warranty. This warranty does not grant any additional rights to the customer. Complaints are often initiated by difficulties encountered during use. Many of these complaints can be resolved by telephone or email. Please contact our Service Hotline in the first instance, before you return the heated blanket to the manufacturer.

IAN 114202

- Declaration of conformity €

This heated blanket complies with the requirements of the relevant European and national guidelines.

This is confirmed by the CE mark.

The relevant declarations are held by the manufacturer.
