SBS75 - Food Warmer SWAN - Free user manual and instructions

Brand	Swan
Model	SBS75
Product Type	Plate Warmer
Dimensions (approx.)	45 x 30 x 5 cm
Weight (approx.)	1.5 kg
Power Supply	220-240V, 50/60Hz
Power Consumption (approx.)	150 W
Heating Surface Material	Stainless steel
Temperature Settings	Adjustable thermostat
Maximum Plate Size	Up to 28 cm diameter
Capacity	Accommodates 4-6 plates
Main Functions	Heats plates to serving temperature; keeps food warm
Controls	Rotary dial for temperature
Indicator Light	Power and heating indicators
Safety Features	Auto shut-off, overheat protection
Cleaning & Maintenance	Wipe with damp cloth; do not immerse in water
Spare Parts / Repairability	Heating element and thermostat replaceable by qualified technician
Certifications	CE, RoHS
Package Contents	Plate warmer, user manual

Frequently Asked Questions - SBS75 SWAN

How do I use the Swan SBS75 plate warmer?

Place the plate warmer on a flat, heat-resistant surface. Connect the power cord and turn the dial to your desired temperature setting. Wait for the indicator light to turn on, then place plates on the surface. Allow a few minutes for them to heat up. Always use heat-resistant gloves when handling hot plates.

Can I leave the plate warmer on overnight?

No, do not leave the plate warmer unattended or on overnight. It is equipped with an auto shut-off feature for safety, but you should always turn it off and unplug it after use.

What types of plates can I use?

The plate warmer is suitable for most ceramic, porcelain, and metal plates. Avoid using plastic or melamine plates as they may melt. Ensure plates are dry before placing them on the warmer.

How do I clean the plate warmer?

Unplug the device and let it cool completely. Wipe the surface with a damp cloth and mild detergent. Do not immerse in water or use abrasive cleaners. Dry thoroughly before next use.

What is the maximum temperature?

The adjustable thermostat allows a temperature range up to approximately 80°C (176°F), ideal for keeping plates warm without burning.

Does the plate warmer have an automatic shut-off?

Yes, the Swan SBS75 is equipped with an overheat protection that automatically turns off the device if it exceeds safe temperatures.

Can I warm food directly on the plate warmer?

The plate warmer is designed for warming plates and dishes, not for direct food heating. Placing food directly may cause uneven heating or damage.

What should I do if the indicator light does not turn on?

Check the power connection and ensure the dial is turned on. If the light still does not come on, contact Swan customer service or a qualified technician.

Is the plate warmer safe for use with children?

The surface becomes hot during operation. Keep children and pets away from the device while in use. Do not touch the heating surface without protection.

Where can I find a replacement heating element?

Replacement parts should be obtained from authorized Swan service centers. Do not attempt to replace parts yourself to avoid injury or damage.

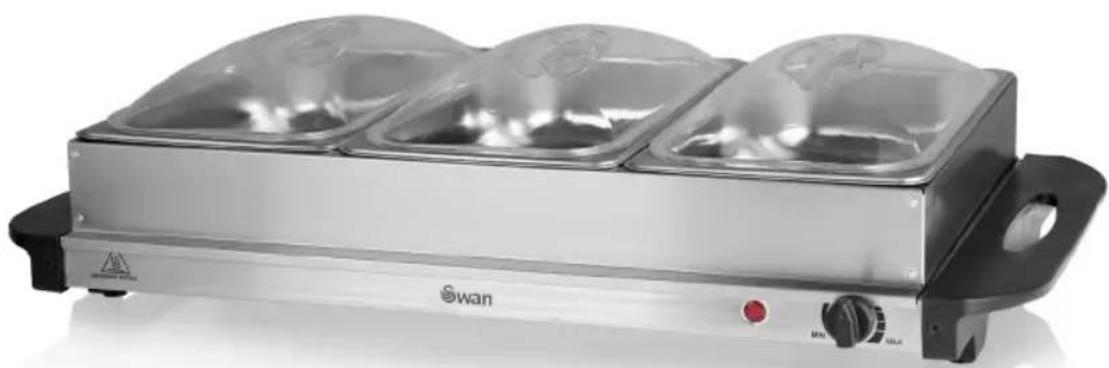

USER MANUAL SBS75 SWAN

Buffet Server

SBS75

Helpline

01384 573999

v1.0

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

When using your Buffet Warmer, basic safety precautions should always be followed:

• Read all instructions.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• Do not leave the appliance unattended whilst connected to the mains power supply.
• Do not immerse the appliance in water or any other liquids.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
• Close supervision is required when using this appliance near children.
• Never leave the appliance within reach of children.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.
• Do not operate the appliance with a damaged plug or cord, after a malfunction, or after being dropped or damaged in any way.
• Do not use the appliance for anything other that its intended use.
• Do not touch hot surfaces, use handle or knobs when working with the unit.
• Never place your hand over the steam vents or cover when the appliance is in operation.

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

- Ensure the appliance is used on a stable, heat resistant surface.

- Any meat dishes placed in the buffet server must be thoroughly cooked first. Do not place raw meat in the buffet server.

- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environments, bed and breakfast type environments

TECHNICAL DATA

Model: SBS75

Voltage: 230V AC 50/60Hz

Power: 300 Watts

CAUTION: Surfaces become hot during use.

Only use this appliance on work tops that can withstand temperatures of 60C for extended periods.

Swan

3

HOW TO USE

Before first use, remove all packaging.

Wash the trays and lids in warm soapy water (all dishwasher safe). Rinse and dry thoroughly. Re-fit to the base

Note: There will be a faint smell when using the buffet server for the first time but this is quite normal and will fade with use. This is caused by preserving oils evaporating.

WARNING: This appliance will get hot during use, please exercise extreme caution.

• Place the Buffet Server on a stable surface that can withstand temperatures of up to 60 degrees Centigrade for extended periods.
• Plug the buffet server into the mains power supply and turn the temperature control to the mid position.
• Place the prepared food into each of the warming pans and adjust the temperature to the desired heat. The indicator light will cycle On and Off whilst maintaining the correct temperature.
• It is not recommended to keep this appliance On for more than 6-8 hours at any one time as food bacteria could develop.
• After use, unplug the appliance from the mains power supply and allow to cool thoroughly
• Never attempt to move the Buffet Server or it's trays while the appliance is still hot. To do so poses a significant scalding risk.

How to use the warming plate without warming pans and frame

• Place the warming tray on a stable, heat resistant surface.
• Plug the buffet server into the mains power supply and turn the temperature control to the mid position.
• The indicator light will illuminated red and will turn Off when the desired temperature is reached.

HOW TO USE

TIPS

• Pre-heat the appliance for 10 minutes.
• Food warmed on the tray must be pre-cooked and already hot as this appliance is not designed for heating from cold or frozen.
• When you have finished using the appliance, unplug from the mains power supply and allow to cool for approximately 90 minutes before storing.
• You can put plates on the Buffet Server without the trays or frame attached, in order to keep them warm
• Where possible, use oven loves when handling the hot trays

CLEANING & MAINTENANCE

• Caution: Always ensure the appliance is unplugged from the mains power supply and has thoroughly cooled before cleaning or storing.
• Remove each warming pan, the lid and the frame and wash in warm, soapy water Rinse well and dry thoroughly. These can be put in the dishwasher
• Wash the warming tray base with soft cloth (or kitchen roll) moistened with a mild detergent solution.
• Do not use any abrasive cleaning agents or allow water to spill or seep into the frame. Never immerse the warming, tray cord or plug in water or any other liquid.
• Re-assemble the buffet server and store in a cool, dry place.

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

BLUE

NEUTRAL

BROWN

LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

6

Swan

WARRANTY

This product is guaranteed for One year from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It does not cover wear and tear, damage, misuse or consumable parts or limescale damage.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
  • This guarantee is valid in the UK and Eire Only.
