Product Type	Deep Fryer
Model	SD46010N
Brand	Swan
Capacity	1.5 L (oil)
Food Capacity	500 g
Power	1500 W
Voltage	220-240 V, 50/60 Hz
Temperature Range	150-190 °C
Timer	30-minute mechanical timer
Heating Element	Hidden stainless steel
Filter	Permanent mesh filter
Material	Stainless steel body, non-stick inner pot
Dimensions (W x D x H)	28 x 22 x 25 cm
Weight	2.5 kg
Cord Length	0.9 m
Safety Features	Auto shut-off, cool-touch handle, overheat protection
Dishwasher Safe Parts	Basket and lid
Oil Drainage	External oil drain valve
Viewing Window	Yes, with steam vent
Warranty	2 years

Frequently Asked Questions - SD46010N SWAN

What type of oil can I use in the Swan SD46010N deep fryer?

You can use vegetable oil, canola oil, peanut oil, or sunflower oil. Avoid using olive oil or butter as they have low smoke points.

How do I clean the deep fryer?

Allow the oil to cool completely. Remove the basket and lid, which are dishwasher safe. Wipe the interior with a paper towel. Do not immerse the base in water.

What is the maximum oil level I should fill?

Fill oil up to the MAX line marked inside the pot. Typically about 1.5 liters. Exceeding may cause overflow.

How long does it take to preheat the oil?

Preheating typically takes 8-10 minutes, depending on the temperature setting.

Can I fry frozen foods directly?

Yes, but shake off excess ice first. Lower the basket slowly to avoid oil splatter.

What should I do if the deep fryer doesn't turn on?

Check that the timer is set (minimum 5 minutes) and the thermostat dial is adjusted. Ensure the appliance is plugged into a working outlet.

How often should I change the oil?

Change oil after every 8-10 uses, or when it becomes dark, smells rancid, or smokes excessively.

Is the deep fryer safe to leave unattended?

No. Never leave the deep fryer unattended while in use. Always monitor cooking.

Can I use the deep fryer without the lid?

It is not recommended. The lid prevents splatter and maintains temperature. Always cook with the lid closed.

How do I reset the overheat protection?

If the appliance shuts off due to overheating, unplug it and allow it to cool for 30 minutes. It will reset automatically.

USER MANUAL SD46010N SWAN

5 Litre Air Fryer

Model: SD46010 (all colours)

Help line: 0333 220 6050

v1.0

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Always ensure that the voltage on the rating label corresponds to the mains voltage in your home. Incorrect operation and improper use can damage the appliance and cause injury to the user. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent. Never immerse the unit in water or any other liquid for cleaning purposes. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.

• The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use the appliance on a gas or electric cooking top or over or near an open flame.
• Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
• This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
• Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.

3 Swan

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

• The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
• In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentioned precautions and instructions, could affect the safe operation of this product.
• Your appliance must never be switched on through an external timer or any kind of separate remote control system

CAUTION: SURFACES BECOME HOT DURING USE. ALWAYS USE TONGS WHENEVER POSSIBLE

CAUTION: PLEASE ENSURE YOUR WORK TOP IS ABLE TO WITHSTAND A TEMPERATURE OF AT LEAST 60 DEGREES CENTIGRADE FOR EXTENDED PERIODS. IF IN DOUBT, MOUNT THE PRODUCT ON A SUITABLE WOODEN PLINTH.

TECHNICAL DATA

Description: Air Fryer

Model: SD46010N

Input Voltage: 220-240V

Frequency: 50/60Hz

Power consumption: 2000 Watts

4 Swan

PARTS & ASSEMBLY

• Before first use, carefully remove all packaging and familiarise yourself with the various parts of your product.
• Thoroughly clean the basket and pan with hot water, some washing-up liquid and a non-abrasive sponge. Note: You can also clean these parts in the dish-washer.
• Wipe inside and outside of the appliance with a moist cloth.
• This is an oil-free fryer that works on hot air, Do not fill the pan with oil or frying fat.

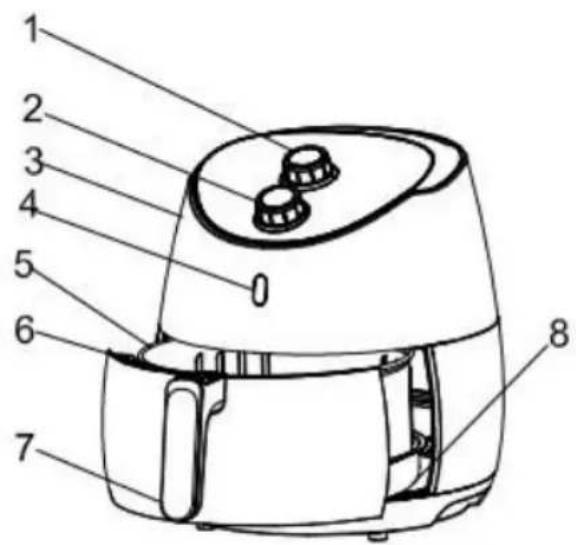

PARTS - REFER TO PANEL ABOVE

1. Temperature control
2. Timer
3. Main housing
4. Power-on light
5. Basket
6. Basket release button
7. Basket handle
8. Pan
9. Air outlet
10. Power cord

PARTS & ASSEMBLY

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Swan

HOW TO USE

Preparing For Use

1. Place the appliance on a stable, horizontal, and even surface that can withstand the weight and temperatures of 60°C.
2. Place the basket in the pan (Fig. 3).
3. Do not fill the pan with oil or any other liquid.
4. Do not put anything on top of the appliance; the airflow will be disrupted and affect the hot air frying result.

Hot Air Frying

1. Connect the mains plug into an earthed wall socket.
2. Carefully pull the pan out of the hot-air fryer (Fig. 4).
3. Put the ingredients in the basket (Fig. 5).

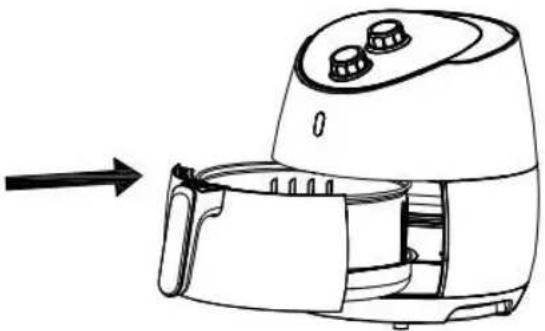

4. Slide the pan back into the hot-air fryer (Fig. 6).
5. Note: Carefully align with the guides in the body of the fryer.
6. Never use the pan without the basket in it.
7. Caution: Do not touch the pan during use; only touch it when it has completely cooled. Only hold the pan by the handle.
8. Determine the required preparation time for the ingredient [see section 'Settings' below].
9. To switch on the appliance, turn the timer knob to the required time (Fig.7)
10. Turn the temperature control knob to the required temperature. See section 'Settings' below to determine the right temperature (Fig.8).
11. Pre-heating is optional but better results are obtained if you add 3 minutes to the cooking time when the appliance is cold.
12. Note: If you want, you can also let the appliance preheat without any ingredients inside. In that case, turn the timer knob to more than 3 minutes and wait until the heating-up light goes out (after approx. 3 minutes). Then fill the basket and turn the timer knob to the required preparation time.
13. The timer starts counting down the set preparation time
14. During the hot air frying process, the working light comes on and goes out from time to time. This indicates that the heating element is switching on and off to maintain the set temperature.
15. Excess oil from the ingredients is collected on the bottom of the pan.
16. Some ingredients require shaking halfway through the preparation time (see section "Settings" in this chapter). To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the fryer.

7 Swan

HOW TO USE

CAUTION: Do not press the button on the handle when shaking the pan. (Fig.3)

Tip: To reduce the weight, you can remove the basket from the pan and shake the basket only. To do so, pull the pan out of the appliance, place it on a heat-resistant surface, and press the button on the handle to lift the basket out of the pan.

Tip: If you are cooking ingredients that need shaking partway through cooking, set the timer for half the cooking time. When the bell sounds, remove the basket and shake it. Replace the basket and set the timer for the remainder of the cooking time.

- When you hear the timer bell and cooking is complete, pull the pan out of the appliance and place it on a heat-resistant surface.

Note: You can also switch off the appliance manually. To do this, turn the time control knob to 0.

• Check if the ingredients are ready.
• If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer for a few extra minutes.
• To remove ingredients (e.g., fries), pull the pan out of the Air Fryer and place it on a heat-resistant surface, then press the basket release button to lift the basket out of the pan.
• Do not turn the basket upside down with the pan still attached, as any excess oil that has collected on the bottom of the pan will leak onto the ingredients and pose a scald hazard. Always remove the basket from the pan first.
• To remove large or fragile ingredients, lift them out of the basket using the tongs provided.
• When a batch of cooked food is ready, the Air Fryer is instantly ready for preparing another batch.

SETTINGS

The table below will help you select the basic settings for the ingredients.

Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape, and brand, we cannot guarantee the best setting for your ingredients. Always ensure food is cooked thoroughly regardless of the timing guideline.

Tips

• Smaller ingredients usually require a slightly shorter cooking time than larger ingredients.
• A larger amount of ingredients sometimes requires a slightly longer cooking time and a lower temperature.
• Shaking smaller ingredients halfway through the cooking time optimises the end result, and can help prevent unevenly fried ingredients.
• Add some spray oil to fresh potatoes for a crispy result. Fry your ingredients in the Hot-air fryer within a few minutes after you added the oil.
• Snacks that can be prepared in an oven can also be prepared in the Hot-air fryer.
• The optimal amount for preparing crispy fries is 500 grams.
• Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter cooking time than home-made dough.
• Place a baking tin or oven dish in the Hot-air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.
• You can also use the Hot-air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150°C for up to 10 minutes.

Temp (C) Food Amount Time (mins)
200 Frozen chips thin 100-400g 9
200 Frozen chips thick 100-400g 11-18
180 Fresh chips/wedges	100-400 15-22 (spray with oil first)
180 Pork chop up to 500g 10-15
180 Burger uo to 500g 7-14
180 Chicken breast up to 500g 10-15
200 Chicken nuggets Up tp 400g	6-10
180 Sausage frozen Up to 400g	20
180 Sausage fresh Up to 400g	15
180 Pasties/pastry top	Up to 500g	8-12 mins

CLEANING & MAINTENANCE

1. Remove the mains plug from the wall socket and allow the appliance to cool down. Note: Remove the pan to let the Air Fryer cool down more quickly.
2. Wipe the outside of the appliance with a moist cloth and dry with a kitchen towel.
3. Clean the pan and basket AFTER EVERY USE with hot water, some washing-up liquid and a non-abrasive sponge.

Note: The pan and basket are dishwasher-safe.

Tips: If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some washing-up liquid. Put the basket in the pan and let the pan and the basket soak for about 10 minutes. Clean the inside of the appliance with a soft cloth or sponge dampened with a mild detergent solution.

Do not use abrasive cleaners (e.g. metal scouring pads) or strong chemical cleaners.

NEVER immerse the main unit in water or run it under the tap.

SPARE PARTS

Replacements for lost parts can be obtained via our web site

www.swan-brand.co.uk

Use the following references when ordering:

SD46010N01 - Detachable cooking tray

SD46010N02 - Detachable basket

SD46010N03 - Cooking rack

SD46010N04 - Tongs

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in

August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.
