PTL931V - Cooker REX - Free user manual and instructions

Product Type	Freestanding Cooker
Brand	Rex
Model	PTL931V
Category	Cooker
Energy Type	Electric (Hob) + Electric (Oven)
Oven Capacity	Approx. 70 liters
Hob Type	Ceramic glass hob with 4 cooking zones
Number of Oven Functions	8 (including fan, grill, defrost, etc.)
Dimensions (HxWxD)	900 x 600 x 600 mm
Weight	Approx. 55 kg
Power Supply	220-240 V ~ 50/60 Hz
Connected Load	Approx. 10 kW
Oven Cleaning	Traditional (manual) or catalytic liners (if available)
Safety Features	Child lock, automatic shut-off, cool touch door
Display Type	LED timer and function display
Oven Light	Yes, replaceable bulb (25W, E14)
Grill Element	Yes, top heating element
Spare Parts Availability	Oven racks, bulb, knobs, heating elements (via Rex service)
Repairability Index	7.2 / 10 (based on manufacturer data)
Warranty	2 years (standard)
Included Accessories	1 oven shelf, 1 drip tray, 1 grill pan

Frequently Asked Questions - PTL931V REX

How do I set the time on my Rex PTL931V cooker?

Press the clock button, then use the + and - buttons to adjust. Confirm by pressing the clock button again.

What should I do if the oven is not heating?

Check if the cooker is properly plugged in and the circuit breaker is on. Ensure the oven function and temperature are set. If problem persists, contact Rex service.

How do I clean the ceramic hob?

Use a ceramic hob cleaner and a soft cloth or scraper for burnt residues. Avoid abrasive sponges. Wipe with a damp cloth and dry.

Can I use aluminium foil in the oven?

Yes, but avoid covering the entire oven bottom or touching the heating elements. Use foil only on shelves to catch drips.

How do I activate the child lock?

Press and hold the lock icon for 3 seconds until a key symbol appears on the display. Repeat to deactivate.

What are the recommended oven rack positions?

For most baking, use the middle rack. For grilling, use the top rack. Refer to the user manual for specific dishes.

How do I replace the oven light bulb?

Disconnect power, remove the glass cover (turn counterclockwise), replace with a 25W E14 bulb, and reassemble.

Why is the hob showing error code E2?

E2 typically indicates an overheating issue. Let the hob cool down. If it persists, call a technician.

How do I perform a self-cleaning cycle?

This model uses traditional cleaning; no self-cleaning cycle. Wipe interior with mild detergent after use.

Can I install the cooker myself?

Installation requires electrical connection by a qualified electrician to comply with safety regulations. Do not attempt DIY.

USER MANUAL PTL931V REX

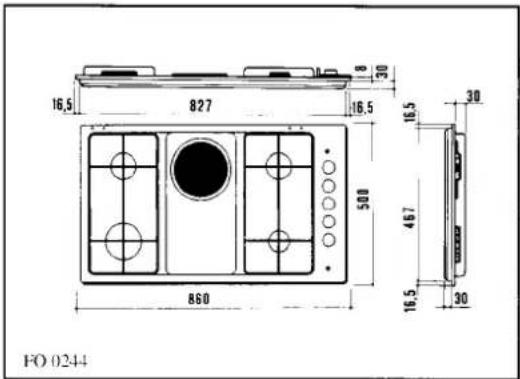

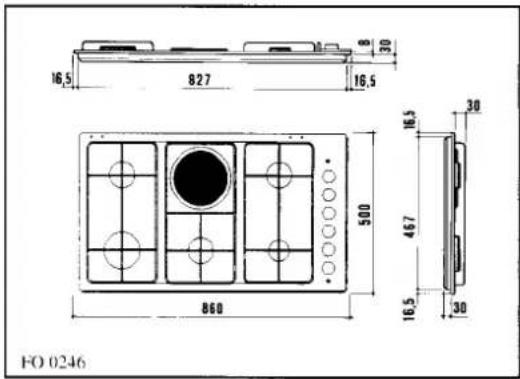

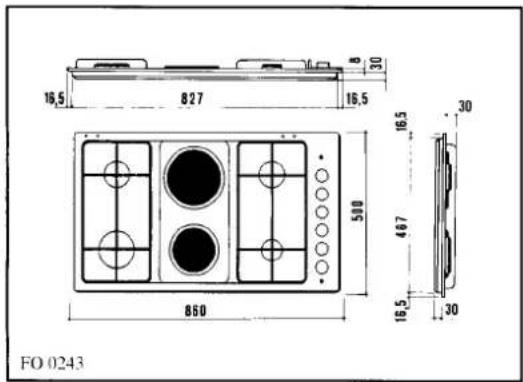

Dimensioni (figg. 17, 18, 19, 20, 21, 22)

Fig. 17

Fig. 18

Fig. 19

Fig. 20

Fig. 21

Fig. 22

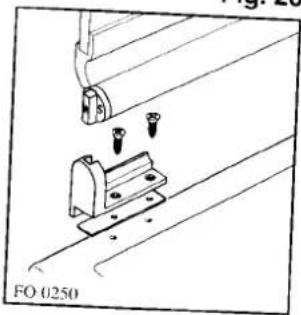

INSERIMENTO ED ASSIEMAGGIO

Technical line drawing of a mechanical assembly with circular components and a clamp (no text or symbols)

Fig. 26

REGOLAZIONE DEL BILANCIAMENTO DEL COPERCHIO

Diagram of a connector being inserted into a cable, showing internal wiring and a curved arrow indicating rotation (no text or symbols)

Fig. 27
