Product Type	Freestanding Cooker
Brand	Rex
Model	PXL94V
Width	900 mm
Depth	600 mm
Height	850 mm
Weight	50 kg
Energy Source	Electric
Total Power Rating	9 kW
Hob Type	Ceramic Glass
Number of Cooking Zones	4
Oven Type	Electric Fan Oven
Oven Capacity	70 L
Oven Functions	Conventional, Fan, Grill, Defrost
Cleaning Method	Manual cleaning with mild detergent
Safety Features	Child lock, Overheat protection, Residual heat indicators
Spare Parts Availability	Knobs, heating elements, thermostat, door hinges
Repair Service	Authorized service centers available
Energy Efficiency Class	A+
Warranty	2 years
User Manual Language	English (EN)

Frequently Asked Questions - PXL94V REX

How do I install the cooker?

Ensure the kitchen has proper ventilation and a dedicated power outlet. Follow the installation diagram in the manual. Leave at least 5 cm clearance around the appliance for airflow.

What should I do if the oven does not heat up?

Check the power supply and circuit breaker. If the problem persists, test the heating element with a multimeter. Replace if faulty or contact an authorized service center.

How to clean the ceramic hob?

Use a ceramic hob cleaner and a soft cloth. Avoid abrasive sponges. Clean spills immediately to prevent staining.

Can I use aluminum foil in the oven?

Avoid using aluminum foil directly on the oven floor as it may block heat circulation. Use it only on baking trays and never cover the entire rack.

Why is the oven fan noisy?

A low hum is normal. If the noise is loud or grinding, the fan blade may be loose or obstructed. Turn off the appliance and inspect, or call a technician.

How to replace the oven bulb?

Disconnect power. Remove the glass cover by turning it counterclockwise. Replace with a 300°C heat-resistant bulb (E14, 25W). Reattach cover.

What does the child lock function do?

The child lock prevents accidental operation by disabling the control panel. Activate it by holding the lock button for 3 seconds. Deactivate similarly.

How to set the timer?

Press the timer button, use +/- to set minutes, then confirm. The oven will beep when time is up. For a delayed start, consult the manual for specific steps.

My hob shows an error code E5. What to do?

Error code E5 indicates a hob overheating. Turn off the appliance and let it cool. Ensure ventilation slots are not blocked. If it repeats, call service.

Where can I find spare parts?

Spare parts are available at Rex authorized dealers or online. Use the model number PXL94V for correct parts like knobs, heating elements, and thermostats.

USER MANUAL PXL94V REX

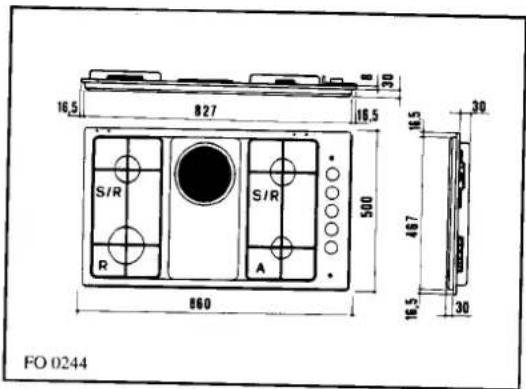

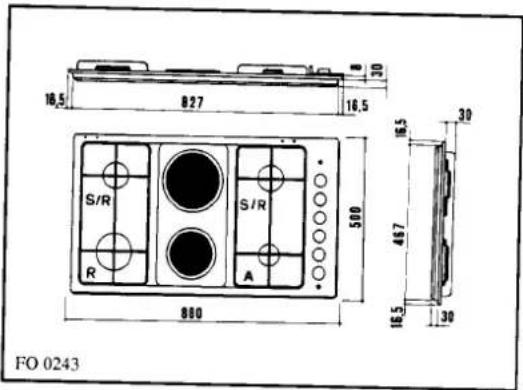

Dimensioni (figg. 17, 18, 19, 20, 21, 22)

Fig. 17

Fig. 18

Fig. 19

Fig. 20

Fig. 21

Fig. 22

INSERIMENTO ED ASSIEMAGGIO

Fig. 26

REGOLAZIONE DEL BILANCIAMENTO DEL COPERCHIO

Fig. 27
