Product Type	Rice Cooker
Brand	Black & Decker
Model	RC600
Capacity	6 cups (uncooked)
Power Consumption	600 Watts
Voltage	120 V, 60 Hz
Dimensions (W x D x H)	10.5 x 8.5 x 8.5 inches
Weight	3.5 lbs
Material	Aluminum inner pot with non-stick coating
Functions	Cook, Keep Warm
Control Type	Mechanical switch with indicator light
Inner Pot Features	Removable, non-stick, easy-clean
Accessories Included	Measuring cup, serving spatula
Safety Features	Auto shut-off, cool-touch handles, steam release vent
Cleaning	Wipe body with damp cloth; wash inner pot and accessories with mild soap
Repairability	Spare parts available for inner pot, lid, and cord
Country of Origin	China
Warranty	1 year limited

Frequently Asked Questions - RC600 BLACK & DECKER

How much rice can the RC600 cook?

The RC600 can cook up to 6 cups of uncooked rice, yielding about 12 cups of cooked rice.

Does the RC600 have a keep-warm function?

Yes, the RC600 automatically switches to keep-warm mode after cooking to keep rice at serving temperature.

How do I clean the rice cooker?

Unplug and let cool. Wipe the exterior with a damp cloth. Wash the inner pot, lid, and accessories in warm soapy water. Do not immerse the base in water.

Can I cook other grains in the RC600?

Yes, you can cook quinoa, oatmeal, or other grains using similar water-to-grain ratios. Adjust water as needed.

What is the power cord length?

The power cord is approximately 30 inches long.

Is the inner pot dishwasher safe?

The inner pot is hand wash recommended to preserve the non-stick coating. Dishwasher use may reduce its lifespan.

Does the cooker automatically shut off?

Yes, the RC600 has auto shut-off when cooking is complete or if it overheats.

Can I replace the inner pot?

Yes, replacement inner pots are available from Black & Decker or authorized retailers.

How do I prevent rice from sticking?

Rinse rice before cooking, use the correct water ratio, and lightly oil the inner pot if desired.

What does the indicator light mean?

When plugged in, the red light shows the cooker is on keep-warm mode. When cooking, the light is on; it turns off when cooking completes and switches to warm.

USER MANUAL RC600 BLACK & DECKER

Save this use and care book

Olla Arrocera de 1,8 Litros

Series RC500

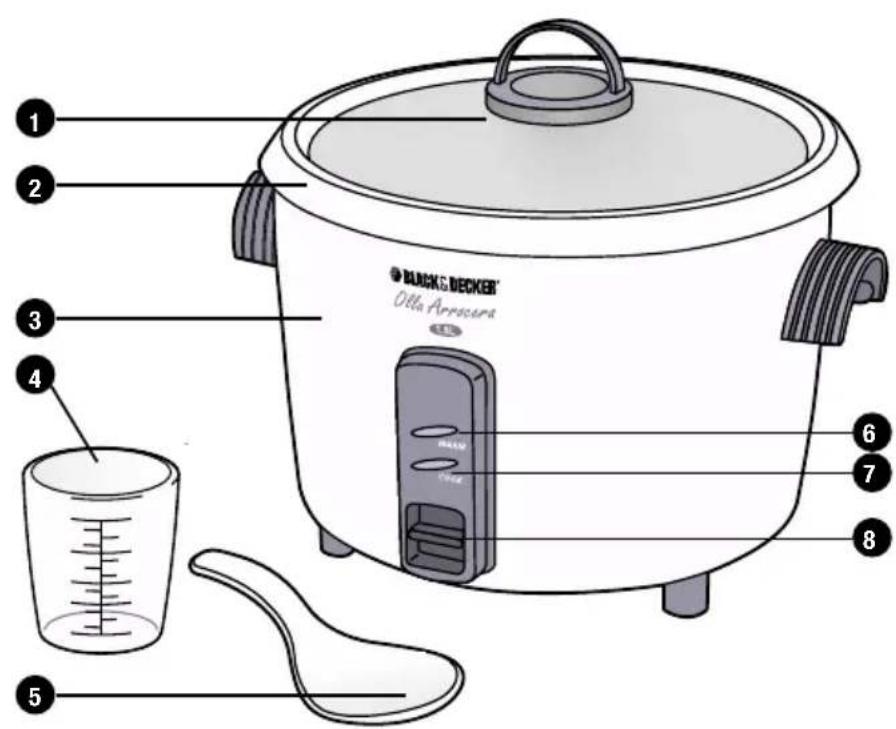

1. Lid with Vent
2. Inner Bowl
3. Cooker
4. Measuring Scoop
5. Spatula
6. Keep Warm Indicator Light
7. Cook Indicator Light
8. ON Switch

English

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:

■Read all instructions carefully.
■Avoid touching hot surfaces — use handles or knobs. Avoid hot steam escaping from the Vent in the Lid.
■To protect against electrical hazards, do not allow water or other liquids to spill on-to the plug or cord, or to enter the switch mechanism or power cord inlet socket. Do no immerse these parts, or the body of the Cooker in water or other liquids.
■Always use Rice Cooker on a dry, level surface. Never put liquid into the outer pot, only into the Inner Bowl.
■Lift and open cover carefully to avoid scalding and allow water from condensation to drip into the Cooking Bowl.
■Close supervision is necessary when an electrical appliance is used by, or near children.
■Turn OFF and unplug from outlet when not in use; allow to cool before disassembling parts and before cleaning.
■Extreme caution must be used when moving an appliance containing hot water or other liquids.

■Do no operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped, or damaged in any manner. Return the complete appliance to your nearest authorized service facility for examination, repair or adjustment.
■The use of attachments not recommended or sold by the appliance manufacturer may cause hazards.
■Do not place any part of this appliance on or near a hot gas or electric burner, or in a heated oven.
■Always attach the cord to the inlet socket on the Cooker first, then plug into an outlet. To disconnect, turn power OFF and remove plug from power point first.
■Do not use appliance for other than intended use of food preparation and service. This appliance is intended for household use only.
■Do not use outdoors.
■Keep the space between the Inner Bowl and the heating plate clean and free from any foreign particles.

ELECTRICAL CORD

The cord of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an Underwriters Laboratories (UL) - Listed, NOM, or appropriate agency-approved extension cord rated no less than 15-amperes and 120 volts (6 amps/220 volts). When using an extension cord, do not let it drape over the working area or dangle where someone could accidentally trip over it. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections.

BEFORE USING THE RICE COOKER FOR THE FIRST TIME, wash the Inner Bowl and Lid with warm, soapy water. Rinse and dry thoroughly.

How To Use

NOTE: Your Rice Cooker can help you cook rice the way you like it — soft and fluffy or firm and tender.

■Cooking Rice - using the measuring scoop provided, measure out required quantity. For Model RC500 - up to 10 SCOOPFULS
■Remember - one cup (150 grams) of uncooked rice makes about three cups of cooked rice.
■Measure and place the rice in the Inner Bowl of the Cooker. Be sure the heating plate is cool before cooking.
■Add cold water to the exact level indicated on the side of the bowl. For example, for 4 scoopfuls of uncooked rice, fill with water to the "4" level mark. By adding too much water you may cause the unit to boil over.
■Taste and hardness will vary depending on the quality of rice and length of time it is cooked. For a softer, fluffier rice add a little more water. For a firmer, crunchier rice add a little less water. Note that brown rice takes longer to cook than white rice and requires more water. For the first few times you may need to experiment to suit your taste.
■Before placing the Inner Bowl into the Cooker, check that the heating plate and outside of the Bowl are clean and dry. This is important to ensure proper contact between heating plate and Inner Bowl.
■Place the Lid on the Cooker. As the rice expands and cooks, steam will come out of the Vent in the Lid and you may hear it

whistle. Avoid this hot steam. Do not place the Cooker under cabinets because of escaping steam.

■Push the power cord into inlet socket on the Cooker, then plug it into an outlet. The 'WARM' will light up.

■Press the switch button down to start. The 'COOK' will light up.

■When cooking is completed, the Cooker will automatically switch to 'WARM' — the 'COOK' light will go out and the 'WARM' light will glow. The rice will be kept warm.

■Loosen the rice with a fork and use as required.

■The 'WARM' cycle is designed to continue until the unit is unplugged. The rice can be kept in the unit on 'WARM' for up to 5 hours. Beyond this time will cause loss of flavor, color and nutrients.

■DO NOT interfere with the automatic switch mechanism by preventing it from switching to the 'WARM' cycle. DO NOT immediately depress the switch again after it has begun the 'WARM' cycle.

■After use, unplug from the outlet and remove the power cord from the inlet socket of the Cooker.

■Always clean the Cooker thoroughly as soon as possible after each use.

COOKING GUIDE – RC500 Series

AMOUNT RICE AMOUNT WATER APPROX. COOK TIME MAKES (8-oz cups/227 g)

FOR WHITE LONG OR MEDIUM GRAIN RICE2 half scoops To 2 mark 15-19 minutes 2-3 cups4 scoops To 4 mark 20-22 minutes 8-10 cups6 scoops To 6 mark 24-25 minutes 11-12 cups8 scoops To 8 mark 30-33 minutes 18-19 cups10 scoops To 10 mark 34-40 minutes 21-24 cupsFOR WHITE LONG OR MEDIUM GRAIN RICE2 half scoops To 2 mark 18 minutes 2-2/3 cups4 scoops To 4 mark 25 minutes 9 cups6 scoops To 6 mark 29 minutes 12 cups8 scoops To 8 mark 35-36 minutes 17 cups10 scoops To 10 mark 39-40 minutes 21 cups

NOTE: It is not recommended to prepare instant rice or wild rice in these rice cookers.

Important Notes

■DO NOT keep small amounts of rice warm in the Cooker for extended periods.
■If you have steamed other ingredients with the rice, the time stored at 'WARM' should be kept to a minimum to avoid unpleasant aromas.

■When cooking a large quantity of rice, take extra care to add the correct quantity of water to avoid boiling over.

Care and Cleaning

AFTER EACH USE:

■Unplug from the outlet before cleaning and detach the cord from the Cooker.
■NEVER place the body of the Cooker in water or other liquid.
■If rice sticks to the Inner Bowl, fill it with hot soapy water and let it soak for 30 minutes before cleaning.
■The body should be cleaned by wiping the inside and outside surfaces with a damp soapy cloth and drying thoroughly.

■If water should accidentally enter the switch mechanism, power cord inlet socket, or spill onto the heating plate, allow to dry thoroughly before using the Cooker again.
■The Inner Bowl and Lid may be washed in warm soapy water. Do not use abrasive cleaners or metal scouring pads. Scratching or denting the surface of the Bowl could result in poor contact with the heating plate.

Service and Repairs

Service, if necessary, must be performed by a Black & Decker Company-Owned or Authorized Household Appliance Service Center.

FULL ONE-YEAR WARRANTY

Household Products warrants this product against any defects that are due to faulty material or workmanship for a one-year period after the original date of consumer purchase. This warranty does not include damage to the product resulting from

accident, misuse or repairs performed by non-authorized repair shops. If the product should become defective within the warranty period, we will repair it or elect to replace it free of charge. To honor this warranty, the product with the correspondent registration card and/or proof of purchase are required. This warranty gives you specific legal rights and you may have other rights which may vary in your country. Should you have any questions, contact your nearest Black & Decker owned or authorized service center.
