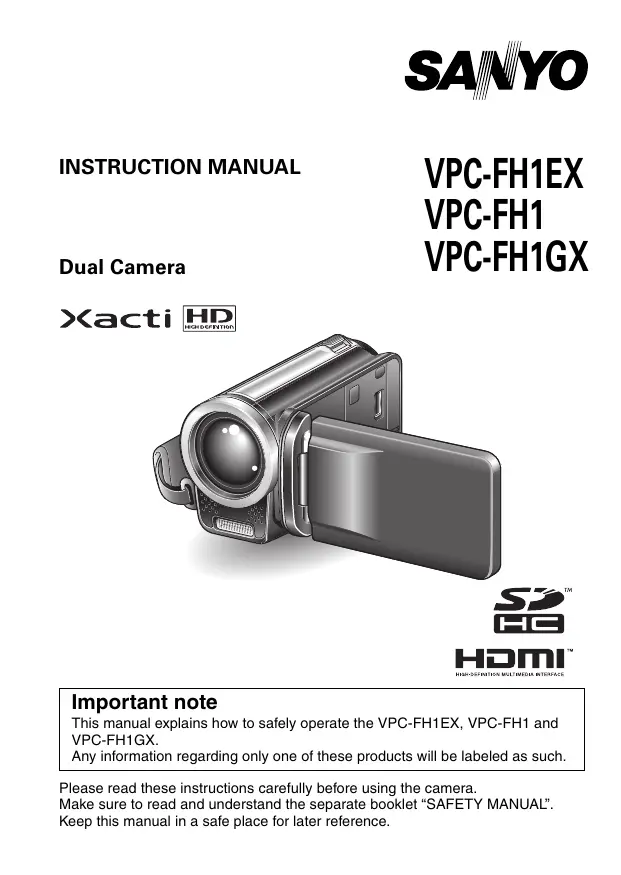

VPC-FH1 VPC-FH1GX Dual Camera ><acti Important note This manual explains how to safely operate the VPC-FHIEX, VPC-FH1 and VPC-FH1GX. Any information regarding only one of these products will be labeled as such. Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “SAFETY MANUAL'. Keep this manual in a safe place for later reference.

Warning TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The following advisory is included in accordance with the laws of the State of California (USA):

This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. + This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Reorient or relocate the receiving antenna. +_ Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. + Consult the dealer or an experienced radio/TV technician for help. + Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment Declaration of Conformity Model number: VPC-FH1 Trade Name: SANYO Responsible party: SANYO FISHER COMPANY Address: 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: [phone] This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)_this device may not cause harmful interference, and (2) this device must accept any interference received, including interter- ence that may cause undesired operation. Ï English

+ This Class B digital apparatus complies with Canadian ICES-003.

The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and/or reused. The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste. Note: If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators. Please, dispose of them correct at your local community waste collection/ recycling centre. Please, help us to conserve the environment we live in! SANYO FISHER Sales (Europe) GmbH Stahlgruberring 4, D-81829 München, Germany SANYO Electric Co., Ltd. 1-1, Sanyo-cho, Daito City, Osaka 574-8534, Japan

This product is certified by an official certification company &7 Whichis authorized by the Russian Federation AR46 English

HOW TO READ THIS MANUAL

For first-time users Please read the sections on “SETUP” and “SIMPLE” in this manual, as well as the included “QUICK GUIDE” to familiarize yourself with your camera's operation. To use the various camera features Please read the sections on “NORMAL! and “OPTION SETTINGS" in this manual. To view on a TV, please read the section on “OTHER DEVICES AND CONNECTIONS" in this manual. To connect to a computer, please see the “Xacti Software CD INSTRUCTION MANUAL. To use additional features To use a computer to edit the recorded data or to save data to a DVD, please read the “Xacti Software CD INSTRUCTION MANUAL". You may find the answers to questions or problems concerning camera operation in the sections “COMMONLY ASKED QUESTIONS" (page 153) and'TROUBLESHOOTING" (page 161). manual HINT Points giving some extended instructions or special points to pay attention to. CAUTION Points that require special attention. (page xx) Refer to the page indicated for detailed information. English

Preparing the camera insert the SD Memory Card. + An SD Memory Card is not included with your camera. Please purchase a commercially sold card. + In this manual, the SD Memory Card is referred to as the “card”. Monitor unit Card slot cover © Open @ Insert 2 Connectthe AC adaptor to the camera. + AC adaptor DC IN terminal cover Ÿ © Open To power outlet English iv

Shooting À Press the ONOFF button for at least 1 second to QNOFF turn the camera on. Ifthe screen to set the date and time appears, press the MENU button 2 times to cancel it For how to set the date and time, see page 38. 2 Record. To record a video clip: Press the [ 1p ] button to begin recording a video clip. Press the [ 1f$ ] button again to end he recording. To take a photo: + Press the [ ÊJ ] button. + A still image is captured. Lé] button Ce PAS) MENU button 00:13:51 V English

Before capturing those important shots, be sure to first take a test shot to confirm that your camera is set up and ready to go + Sanyo declines any claim for compensation for recorded contents etc. in case of photographing or recording failure due to a chance camera or card flaw. Playback À press the REC/PLAY button. +_ The display changes to the Playback Screen. 2 Selectthe image to play back. + Toggle the SET button lefl, right, up or doun to move the orange frame to the image you wish to play back. The image information for the framed image is shown at the bottom of the screen. Orange frame REC/PLAY button SET button

00:00:05 Remaining battery power idication English Vi

3 Press the SET button. +_ Playback begins. <To return to the recording mode> + Press the REC/PLAY button. When you are finished using the camera... Press the ON/OFF button for at least 1 second to turn the camera off. To continue to the next operation. Please confirm that your computer is connected to the Internet. Vii English

Burn your recorded (Windows Vista) Using the supplied CD-ROM (Xacti Software CD), you can store your captured images on a DVD. Detailed information about the Xacti Software CD can be found on page 4 in the Xacti Software CD INSTRUCTION MANUAL. leo clips onto a DVD Install application programs À Setthe supplied CD-ROM in your computers DVD drive. +_ The installation window opens. 2 Click on [Nero 8 Essentials]. + After clicking on an application program, follow the instructions shown on the monitor to install the program. + Nero 8 Essentials works with both Windows XP and Windows Vista. For detailed information concerning the operating environment, please see page 5 in the Xacti Software CD INSTRUCTION MANUAL. 3 inthe installation window, click on [Fi from the computer's DVD drive. <Using Blu-ray Disks/AVCHD> + The supplied Nero 8 Essentials cannot be used to record Blu-ray Disks or AVCHD. To record Blu-ray Disks or AVCHD, please upgrade the Nero 8 Essentials software (a paid-for service). + Note that your computer must be connected to the Internet in order to complete this procedure. + Please see the Sanyo support page (page 16 in the Xacti Software CD INSTRUCTION MANUAL) or visit the following website for more information. http://www.sanyo-dsc.com/ <About the Kodak online service> + When the installation window closes, a dialog box to connect to the website introducing Kodak's online service appears. Check the [No thanks!] option button, and then click on the [OK] button. h] and remove the CD-ROM

Connect your camera to a computer Connect your camera to a computer, and copy the desired files to the computer. À Use the supplied dedicated USB interface cable to connect your camera to the computer. 2 Turn on the camera. +_The USB Connection Screen appears on the camera's monitor. USB CONNECTION PRINTER CANCEL FEUCANCEL 5OK Le] Supplied dedicated USB interface cable

To USB terminal To USB connector on the computer iX English

3 Select COMPUTER", and press the SET button. +_ The screen to select the computer connection mode appears. 4 Select “CARD READER", and press the SET button. +_ The message [Found New Hardware] appears in the task tray, showing that the camera is recognized as a drive. +_ The card is recognized (mounted) as a disk, and the [XACTI (E:)] icon appears in the [My Computer] window. +_ The drive name (E:) may be different on your computer. 5 Copy the files from the card to the computer's hard disk. +_ The data recorded with your camera are stored in the following folder. You can specify the folder on the hard disk to which to copy the files.

XACTI (E:)\DCIM\**SANYO

{** represents numbers [page 12 in the Xacti Software CD INSTRUCTION MANUAL]). +_ The drive name (E:) may be different on your computer. HINT + For information on how to copy all the camera's still image and video clip files at once, please see the support pages at the website below http:/www.sanyo-dsc.com/ English X

Burn video clips onto a DVD (For Windows Vista users) Here's how to write your recorded data onto a DVD in the mpeg? format. For information on other operations, please see the Help file for Nero Vision. To access the Nero Vision Help file, click the [?] button on the Nero Vision start screen. insert a biank DVD in your computer's DVD drive. 2 Ciickthe Start button, and point to [AII Programs] —> [Nero 8], and click on [Nero Vision Essentials]. + Nero Vision starts up, and the start screen appears.

A VISION 5 gen Res Brant. ocean + The specifications for the Nero 8 Essentials edition that is included with your camera are different from those of the commercially sold edition. Xi English

Under the “What would you like to do?" heading, point to [Make DVD] and click on [DVD-video]. +_ The Hints window opens, in which you can find an explanation of each screen. <To disable the Hints window > + From the [Show hints when moving to page] menu in the Hints window select [Disable]. Click on “Third party patent activation” on the tool bar. +_ The screen to activate third party patent activation (the certification process that enables you to use the functions) via the Internet or FAX appears. The activation process is necessary in order to create and play back DVDs, as well as to import and export MPEG-2 type files. Once the third party patent activation is completed, it will not be requested again The number of times for third party patent activation is limited. When this limitation has been exceeded (by multiple installations, for example), please follow the instructions on the screen to contact Nero support. English Xii

• Click the [Back] button. 2h ri me 6 Under the “What would you like to do?" heading, click [Add video files]. + The window to select files to burn to DVD opens. TZ Click on a file to burn to DVD. <To select multiple files> + Click on the files while holding down the [Ctr] key. English

8 ciickthe [Open] button. + The selected files are shown in the “Content” field. prove

© Ge Be Ne <To check the contents of the selected files> + When you double-click a file in the “Content” field, the window to play the file appears. Click the [Next] button when you want to return to the previous window. <To deselect a file> @ Right-click on the file in the “Content” field that you wish to deselect + A pulldown menu appears. @ Click [Remove]. + The selected file is removed from the “Content” field. English Xiv

9 ciick the [Next] button. + The window to edit the disk menu appears. XV English

10 ciick on one of the designs under “Templates”, and then click the INext] button. +_ À preview of the selected design is shown. English XVi

12 ciick the [Burn] button. + Disk writing begins. + The process status is shown in the “Recording progress” field D M) D ie ere a ——— © Er) + When the burn process is completed, a screen asking if you would like to save a log file of the burn process appears. 13 ciickthe [Yes] button. + Enter a name for the log file. 14 ciickthe [Save] button. + A screen for you to indicate the next operation appears. English XViii

15 ciick the [Finish] button. + A screen asking if you would like to save the project appears. 16 ciick the [Yes] button. + Enter a name for the project file. 17 ciick the [Save] button. + Nero Vision Essentials ends. CAUTION + When burning full high-definition (HD) images to a DVD, it may take some time to convert the video format, depending on your computer's capability. + Commercialy sold DVD software cannot be played back XiX English

How was that? The convenient accessories not only let you immediately view images captured with the camera, but you can also upload images to your computer and create your original DVDs. Read the following explanations to find out how you can fully enjoy your camera's digital video feature. English XX

HOW TO READ THIS MANUAL

QUICK SEARCH BY OPERATION

CHECKING THE INCLUDED ACCESSORIES

How to use the accessories …

ABOUT THE SEPARATELY SOLD A

THE CARD Separately sold accessories Media cards that can be used with this camera What “card” means in this manual GETTING THE MOST OUT OF YOUR CAMERA High-quality images with “Full High Definition*” Includes SIMPLE mode for quick-and-easy operation Image stabilizer for sharp pictures . Sharp face shots Xacti Library feature . Lots of accessories for optimal use of eur caplured images . SYSTEM MAP . nm SETUP PARTS NAMES . Camera Remote control unit

PREPARING THE REMOT! Prepare the battery … How to use the remote control unit

About recharging … About the temperature alert icon

Turning on the camera . Turning on the camera when the poner save “Gleep) m mode is active . Tuming off the camera .

About the SIMPLE mode and NORMAL mode Suitching between the SIMPLE and NORMAL modes . Accessing/exiting the SIMPLE/NORMAL Mode Menu Screen Overview of the SIMPLE Mode Setting Screen …… Overview of the NORMAL Mode Setting Screen … SIMPLE SHOOTING BEFORE TAKING PICTURES . For best results Using the autotocus . Select the recording size Select the focus setting Hints for taking pictures

DISPLAY THE OPTION SETTING MENU . INTRODUCTION TO THE OPTION SETTING ME! Storage folder setting Shoncut setting TV output setting File No. continued setting Formatting (initializing)

CHECKING THE REMAINING CARD MEMORY …

Checking the remaining number of images and video recording time. For audio recordings CHECKING THE REMAINING BATTERY PACK CHARGE .

= OTHER DEVICES AND CONNECTIONS

Notes regarding the Scene Select feature and filters … [172 SPECIFICATIONS .174 Camera .174 Camera connectors .178 Battery lite .179 Possible No. of Images/Possible Shooting Timo/ Possible Recording Time Remote control unit Conceming the mult-indicator Supplied AC adaptor Supplied Li-ion battery pack Others . . Before capturing those important shots, be sure to first take a test shot to comfirm that your camera is set up and ready

Your camera has an abundance of convenient features and functions. From creating precisely the photo you want, to viewing images using various techniques, you can locate the exact operation for your purposes in the following table. Basic operation MConvenient functions: Getting started Log the date and time | For more accurate shooting/recording | of your photos focus + “VIDEO CLIP + “DATE AND TIME + “How to use the manual RECORDING- on SETTING" on page 38 | _ focus” (manual focus) on page 63 Zoom in on the page 93 + “SHOOTING SINGLE | subject Set the focus to a SHOTS" on page 64 | + ‘MACRO- narrow range + “Sequential shots” on PHOTOGRAPHY + “Focus mode seting' on page 89 {Z00M)" on page 70 page 94 + “Audio recording'on | Close-up Reduce noise when page 86 photography recording + “Focus range” (super | + “NOISE REDUCTION macro mode) on seting' on page 126 ages 46 and 52 + “Select the focus setting” {super macro mode) on page 61 Optimize the photo | Setthe camera's color/contrast quality characteristics + “Selectine recording | + “mage quality setting” on page 126 size” on pages 46 and

“Video setting” on pages 50 and 85 “Si image setting” on pages 50 and 89 Capture fast-moving subjects + “Scene select seting” (sports mode) on pages 50 and 90 Suppress camera shake effect + “Video stabilzer' and “Photo stabilzer' on page 52 +_ “Motion compensation (mage stabiizer) setting” on page 92 English 6

Shooting/recording t functions <posure compensation” on page 101 Jing he flash on pages 46 and 66 + “Scene select seing” (night view portrait mode/fireworks modellamp mode) on pages 50 and 90 Increase the camera's sensitivity _“High sensitiy mode setting” on pages 54 and 100 Photographing people + “Scene select seing” (portrait mode/night view portrait mode) on pages 50 and 90 + “Filer seting” (cosmetcfiter) on pages 50 and 90 Sharp face shots ace chaser seing" on pages 54 and 98 Simplified operation for shooting/playback “SIMPLE MODE/NORMAL MODE" on page 42 Photographing landscapes “Scene select setting (landscape more) on pages 50 and 90 Take a self-photo _“Seltimer sating on page 91 Make images lighter | Measure the or darker brightness of a + “Exposure compensation" | specific area on page 10 + “Light-measuring mode + “High sensitiity mode setting on pages 52 and setting" pages 54 and 100 | 94 Adjust the camera's sensitivity + 180 sensiiviy seting pages 52 and 95 For a more precise exposure setting + “Exposure setting {manual exposure controi) on pages 54 and 97 Change the color of | Make white appear the i natural + “Fier setting" + “White balance seing” on {monochrome fiter/sepia | pages 54 and 96 fiter) on pages 50 and 90 7 English

Basic operation | Convenient functions, Getting started Adjustthe speaker | Change the angle of viewing images volume view + “PLAYING BACK VIDEO |+ “PLAYBACK VOLUME" | + “Rotaie” on pages 55 and GLIPS AND STILL pages 48, 55 and 78 106 IMAGES on page 73 | Search forimage/ | Reduce the photo audio files size + “21-image display + “Resize” on pages 55 playback” on page 82 and 106 + “Selecting the playback folder on pages 56 and

Magnify an image + “Magniing (200ming in) the image” on page 84 + “Audio playback on | Adjust the speaker volume page 88 : “PLAYBACK VOLUME” on pages 48, 55 and 78 Continuous playback + “SLIDESHOW PLAYBACK" on pages 48, 55, 77 and 103 Adjust the monitor brightness + “Adjusting the monitor brighiness” on page 65 + “BRIGHTNESS seing” on page 126 Playback on a TV + “PLAYING BACK ON A TV" on page 148 Set the TV system + “TV output setting" on pages 128 and 132 How to use Xacti Library + “Xacti Library’ on page 149 English 8

File managing/processing Basic operation |Convenient functions Search for image/audio files 1-image display playback" on page 82 electing the playback folder on pages 56 and 83 Delete files Protect files from accidental erasure + “DELETING FILES" on | * ‘File protect setting’ on pages 55 and 104 pages 48, 55 and 79 Format a card _“Formatting (initilizing)" on pages 128 and 139 Delete a part of a video clip and join video clips +_ “Editing video clips” on pages 56 and 108 Specify the number of prints, index print, and date imprint rinting instructions” on pages 56 and 117 View the settings that were in effect when the image/audio files were recorded +_ ‘FILE INFO DISPLAY" on page 121 9 English

Using with a computer Basic operation JConvenientfunctions Use the camera as a card reader + “USING AS À CARD READER" on page 9 in the Xacti Software CD INSTRUCTION MANUAL. Copy files from your camera to a computer “Connect your camera to a computer” on page x Burn files copied to the computer onto a DVD +_ “Burn video clips onto a DVD (For Windows Vista users)” on page xi Playback + “About video clip files recorded with this camera” on page 13 in the Xacti Software CD INSTRUCTION MANUAL Using as a webcam + “Using as a PC camera” on page 15 in the Xacti Software CD INSTRUCTION MANUAL Record an image of the computer screen + “SCREEN CAPTURE” on page 17 in the Xacti Software CD INSTRUCTION MANUAL English 10

CHECKING THE INCLUDED ACCESSORIES

Perchlorate Material - special handling may apply. The lithium battery used in this camera contains perchlorate material, which may require special handling. See www.dtsc.ca.gov/hazardouswastel perchlorate. + Dedicated USB converter cable: 1 + Foruse with the Xacti Library feature + “SAFETY MANUAL" {safety precautions booklet) Please read this booklet carefully before using the camera.

CHECKING THE INCLUDED ACCESSORIES

How to use the accessories M Grip belt 13 English

ABOUT THE SEPARATELY SOLD

ACCESSORIES AND THE CARD

Separately sold accessories + Mini HDMI cable VCP-HDMIO2 Cable for connecting to the HDMI terminal on the camera. + Lithium-ion Battery Charger VAR-L50 Battery charger for the supplied or separately sold lithium-ion battery pack (DB-L50A) + Lithium-ion Battery DB-L50 Same model as the supplied lithium-ion battery pack. + Wide Conversion Lens VCP-LO7W1 Converts your camera lens to a wide-angle lens. + Tele Conversion Lens VCP-L15T Converts your camera lens to a telephoto lens. + Super Wide Conversion Lens VCP-LO4SW This conversion lens has an even wider angle of view than the Wide Conversion Lens. + Filter Set VCP-FO3SET C-PL filter and lens protector set. 15 English

Media cards that can be used with this camera The types of card that can be inserted into and used with this camera are: + SD Memory Card + SDHC Memory Card What “card” means in this manual + In this manual, SD Memory Cards and SDHC Memory Cards that can be used in this digital camera are referred to as “card”. English 16

GETTING THE MOST OUT OF YOUR

CAMERA Your dual camera can record video clips in Full High Definition’. It includes an operation mode that lets even novice shutterbugs record and play back without getting flustered, as well as software with which you can easily create your original DVDs. In addition, it comes with the “Xacti Library" feature for Saving recorded data to hard disk and managing files without using a computer. High-quality images with “Full High Definition*” (pages 50, 60 and 85) Your camera can capture full high definition (full HD) 1920 x 1080-pixel video clips. Also, the H.264/MPEG-4 AVC standard is used for formatting video files. You get both compact file size and high picture quality in one high performance camera.

• “Full High Definition” by SANYO Dual Camera signifies recording at a resolution of 1920 pixels horizontally x1080 pixels vertically. 17 English

includes SIMPLE mode for quick-and-easy operation (page 42) Select from two recording/playback modes: the “SIMPLE mode” for users new to the camera, and the “NORMAL mode” for full use of all the camera's many features and functions. Example:

Select video Es VIDEO D HA and photo size frac val ol FILTER »X E2NFLASH pal Ü) ESS SELF-TIMER >", HIEXT 5OK «æ HVEXITON OK LA] <SIMPLE Mode Recording <NORMAL Mode Recording Menu> Menu> Image stabilizer for sharp pictures (pages 52 and 92) Your camera can compensate for the camera shake that results in blurry images when you try to capture a fast-moving subject or zoom in on a subject, Image stabilizer functions for both video clip recording and stil image shots are on board. English 18

GETTING THE MOST OUT OF YOUR CAMERA Sharp face shots (pages 54 and 98) Your camera is equipped with a face recognition feature which detects the subject face even when slightly lit from behind or in dim surroundings and automatically adjusts the focus and brightness to compensate. Now those otherwise perfect photos that are marred by shadowed faces can be minimized. Xacti The Xacti Library feature feature allows you to save files recorded with your camera to a large-capacity hard disk without using a computer and play them back on your TV. No computer operation is involved. You can vieu full high- definition images right on your TV screen 19 English

Lots of accessories for optimal use of your captured images (page 21, and page 4 in the Xacti Software CD INSTRUCTION MANUAL) Use the accessory cables to view images on a TV or computer. Or connect the camera directly to a printer to make prints of your photos. And with the software in the supplied CD-ROM (Xacti Software CD), you can create your original DVDs and CDs. English 20

SYSTEM MAP You can connect the camera to various devices to expand its capabilties. Internet Dedicated USB interface cable Printer Dedicated S-AV interface cable =

Dedicated ‘component cable Card reader DPOF-compatible printer + Photo shop Commercially available SD Memory Card 21 English

Remote control sensor Microphone Flash Bottom Battery cover Tripod Stand hole English 22

PARTS NAMES Rear COMPONENT/AV terminal ON/OFF button Speaker Multi-indicator Grip beit holder Monitor USB terminal HDMI terminal Card slot cover DC IN terminal cover Battery cover lock L@ button REC/PLAY button [6 ] button MENU button SET button 23 English

Remote control unit (Oo, ©

© O] NC] T © <in the recording mode> <in the playback mode> © [3] button © [4] button © Works the same as pushing 200m switch toward the [WI (LEA) side @ Works the same as pushing 200m switch toward the [TI (OR) side © SET button © Works the same as toggling SET button to the left @ MENU button Works the same as toggling SET button up © Works the same as toggling SET button to the right ® Works the same as toggling SET button down @ ON/OFF button + Works only when the Xacti Library is in use (when the AC adaptor is connected). © [6] button @ [ m4] button @ Works the same as pushing 00m switch toward the [MA (LEA!) side @ Works the same as pushing 200m switch toward the [TI (IC) side © SET button © Works the same as toggling SET button to the left @ MENU button Works the same as toggling SET button up © Works the same as toggling SET button to the right ® Works the same as toggling SET button down @ ON/OFF button English 24 H an13S

Be sure to format a newly purchased card or one that was used in another device before using it in your camera (pages 128 and 139). If an unformatted card is used, the card itself may become unusable. Card slot cover Monitor unit © Open © Rotate to open Card slot cover Card Card slot @ Pull @ Insert © Insert the card until it clicks into place + Afterinserting the card, colse the card slot cover. 25 English

<To remove the card...> + To remove the card, press it in, and then release. The card will protrude slightly, and you can then pull it out. CAUTION Do not attempt to forcibly remove the card + Doing so may damage the card or the stored files. If the multi-indicator is flashing res + Never remove the card when the multi-indicator is flashing red, as doing so may result in loss of files stored in the card. English 26

CONTROL UNIT The remote control unit can be used to take pictures and play them back with the camera. Prepare the battery A battery is already installed in the remote control unit at the time of purchase. À pull out the battery insulating sheet. +_The remote control unit becomes operable when the insulating sheet is removed. Insulating sheet Replacing the remote control unit battery Follow the procedure below to replace the CR2025 battery used in the remote control unit approximately every year (differing depending on the amount of use) Remove the old battery — | Insert a new battery @ Pull out the battery slot. @ Insert a new battery. + While pressing the tab, pull + First wipe the battery with a the battery slot out clean, dry cloth, and insert it with the (+) mark facing up. +) mark

Battery slot | 73% \ @ Remove the battery. @ Re-insert the battery slot.

How to use the remote control unit The remote control unit can be used at an angle that is displaced 15 degrees horizontally from the remote control sensor on the front of the camera, at a distance of up to 7 meters (22.97 ft.). When operating the remote control unit, remove any object that may obstruct the path between it and the remote control sensor. At a distance of up to 7 meters (297) Remote control sensor Infrared emitter CAUTION + Ifthe remote control unit is operated in sunlight or under inverter lighting, the remote control receiving range may become shorter. This is a characteristic of the infrared remote control unit and is not a defect. To avoid this malfunction when operating the remote control unit, take care to Shield the remote control sensor from strong light. English 28

Changing the remote control code The remote control unit will also work with other Sanyo cameras that can be operated by infrared remote control. When more than one camera is present, it is recommended to change the remote control code to ensure that only the intended camera operates when the remote control unit is used. The remote control code is set to “RC CODE 1” at the time of purchase. <Changing the remote control code from “RC CODE 1" to “RC CODE 2"> À aimthe infrared emitter at the remote control sensor on the camera. 2 Simultaneousiy press the MENU button and the [ 14 ] button for at least 3 seconds. 3 Press a button on the remote control unit and check thatthe camera is receiving correctly. +_The remote control codes are retained even if he batteries in the remote control unit or camera are replaced. + Ifthe remote control codes for the remote control unit and the camera and do not match, the remote control unit cannot be used to operate the camera. <Resetting the remote control code to “RC CODE 1"> À aimthe infrared emitter at the remote control sensor on the camera. 2 Simultaneousiy press the MENU button and the [ (03 ] button for at least 3 seconds. 29 English

Please charge the supplied battery pack before using it. Install the battery pack in the camera, and connect the AC adaptor to charge the battery. Power to the camera can also be supplied from a power outlet when the AC adaptor is connected. À while pressing the battery cover lock, slide it (D), and pull out the battery cover toward the bottom of the camera (2). +_ The battery cover comes off. Battery cover English 30

2° insert the battery pack, then replace the battery cover. Battery pack <To remove the battery pack...> + Raïse the edge of the battery pack to remove it. 31 English

3 use the power cord to connect the AC adaptor to a power outlet. + Charging begins. DC IN terminal How to open the DC IN terminal cover

@ Open downwards. @ Use fingernail to open. <During charging...> + During charging, the multi-indicator is lit red. When charging is completed, the indicator turns off. + The multiindicator flashes red if the battery pack is defective or is not installed correctly. Make sure that the battery pack is correctly installed +_ The charging time is approx. 200 minutes. English 32

CAUTION Do not charge the battery pac! in continuous use for a long time + The battery pack becomes hot when the camera is used continuously for a long time. lf you attempt to charge the battery pack in this state, the multi- indicator may flash red and it may not be possible to charge the battery pack. Wait until the battery pack has cooled down before attempting to charge it Does the battery pack appear swollen? + The lithium-ion battery used in this camera may expand slightly when Stored in a hot environment or repeatedly used, but this is not a safety hazard. mediately after the camera has been HINT About the internal backup battery + This camera’ internal battery serves to maintain the date and time settings, as well as the shooting settings. The backup battery will be fully charged when the battery pack is kept in the camera continuousiy for about 2 days. In the fully charged state, the backup battery will maintain the camera settings for about 7 days. ‘When not using the camera for a long time, remove the battery pack + A small amount of power is still used even if the camera is turned off, and it is therefore recommended that the battery pack be removed from the camera if it is not going to be used for a long time. Note that when the battery pack is removed for a long period, the time and date settings may be cleared. Before using your camera again, be sure to confirm that the camera settings are correct. Recharging when connected to the USB terminal (page 6 in the Xacti Software CD INSTRUCTION MANUAL) + The battery can be recharged while the camera is connected to a computer. + Note, however, that the time it takes to recharge will differ depending on the camera's operating condition. + Connect the dedicated USB interface cable to the USB connector on your computer. Do not connect it to the USB connector on the monitor or the keyboard, or to the USB hub. + Ifthe camera is not going to be used for an extended period of time, please disconnect the dedicated USB interface cable from the camera. 33 English

About recharging Recharging takes place only when the camera is turned off, or when the power save function or the sleep function has been activated. Recharging does not take place when the camera is in the recording mode or playback mode. About the temperature alert icon During camera use, if the temperature of the battery of {excluding the battery) rises, a temperature alert icon described below. ide the camera will appear as Æ When the battery or internal camera (excluding battery) temperature rises during use + During camera use, if he temperature of the battery or inside the camera (excluding the battery) rises, a icon lights on the monitor. It is still possible to record and play back even when the icon is lit; however it is advised that you discontinue use as soon as possible and turn the camera of. Ifthe temperature rises further, th camera will turn off automatically. The camera cannot be turned on until the temperature has dropped (or as long as the [2] icon remains flashing). Please wait until the temperature has dropped before resuming use. During video recording, a countdown indicator will show the time Starting about 15 seconds before shutdown. When the indicator shows 0 seconds, recording stops. Ifthe camera is turned off while the temperature is high (that is, while the icon is flashing), it cannot be turned on again until the temperature has dropped (or as long as the [ZA] icon remains flashing). icon will start to flash, and the English 34

OFF Turning on the camera À open the monitor unit, and press the ON/OFF button for at least Monitor unit 1 second. ONOFF + If you press the REC/PLAY button utton for at least 1 second, the camera turns on in the playback mode. +_ If you briefly press the ON/OFF button, once, the camera will Switch to the power save mode. REC/PLAY button 35 English

Turning on the camera when the power save (sleep) mode is active In order to preserve battery pack power, the power save (sleep) function will automatically turn off the camera after about 1 minute of no use during shooting, or about 5 minutes of no use during playback (factory-preset setting). + When the power save mode is active, you can restore the power by any of the following methods: + Press the ON/OFF button. + Press the [ ÊX ] or [ 19f ] button. + Open the monitor unit. + Press the SET button. + When the MENU button is used to turn on the camera, the screen to set the operation sounds appears. After the power save mode has been active for about 1 hour, the camera will switch to the standby mode. In this case, you can restore the power by pressing the ON/OFF button, or by closing and then opening the monitor unit, When the AC adaptor is connected, the power save mode will become active about 5 minutes after the camera is turned on (factory-preset setting). The user can specify the time elapsed before the power save mode is activated (page 128). When the camera is connected to a computer or printer, the power save mode becomes active after about 12 hours. English 36

Turning off the camera À press the ONOFF button forat least 1 second. +_ The camera turns off. ON/OFF button HINT To immediately activate the power save mode + Press the ON/OFF button briefly to activate the power save function. About the standby mode + To turn off the camera only briefly, you can close the monitor unit to put the camera in the standby mode. The standby mode uses almost no power. When the monitor unit is opened again, the camera turns on immediately and you are ready to shoot or view images without any delay. CAUTION If the (07 icon appears. + When a picture is taken, the date and time it was captured are recorded with it. Ifthe date and time settings have not been completed (page 38), the date and time cannot be recorded with the captured images. For this reason, immediately after the camera is turned on, the “Set date and time” reminder briefly appears, after which th icon is shown on the Recording Screen. To have the date and time recorded with the images, please complete this setting before capturing images. 37 English

The camera will record the date and time an image or audio recording is taken so that you can display them during playback. Therefore, before capturing images, make sure the correct date and time are set. + To correct the date and time setting, please see under HINT on page 40. Example: To set the clock to 7:30 p.m. on December 24, 2009

Turn on the camera (page 35), and press the SET button. +_ The Clock Set Screen appears. + Follow the procedures below to enable or disable the date display during playback, to set the display format for the date, and to set the date and time. To display the Recording or Playback Screen, press the MENU button 2 times. 2 setthe date. @ Select “DATE”. @ Press the SET button. + The Set Date Screen appears. @ Set the date to “2009/12/24”. +_The date is set in the following order: Set the year — Set the month — Set the day. Toggle the SET button left or right to select year, month or day. Toggle the SET button up or don to increase or decrease the number. @ Press the SET button. [GICLOCKISET > EU TIME __[S

3 Setthe clock. © Select “TIME”. © Press the SET button. + The Set Time Screen appears. © Set the time to “19:30”. + The time is set in the following order: Set the hour — Set the minute. + A 24-hour clock is used for the time display. @ Press the SET button. Set the order in which the date is displayed during playback. @ Select ‘DISP* @ Press the SET button. + The Set Date Format Screen appears. @ Toggle the SET button up or down. + Toggle the SET button up to change the displayed date order as follows: EicLock ser TIME [SicLock SET ESS > KZ] LOY'M/ 2m MIN Toggle the SET button down to change it in the reverse order. @ Press the SET button. 39 English

5 Press the MENU button. +_ The date and time setting is completed. + To display the Recording or Playback Screen, press the MENU button. HINT + Under normal conditions, while the battery pack is being replaced, an internal battery will maintain the date and time settings. However, there is a small chance ihe settings may be lost (the backup will last for about 7 days). is recommended to check that the date and time settings are still correct after replacing the battery pack and before shooting or recording of any type (follow step 1) To correct the date and time settings @ Turn on the camera. @ Display the Option Menu 1 (page 122). @ Select “CLOCK SET” and press the SET button. +_The screen to set the date and time appears. +_The current date and time settings are shown. @ Select the line you wish to change, and make the correction. English 40

Switch between the recording mode (for recording) and the playback mode {for viewing your recorded images). À rurn on the camera (page 35). 2 Press the REC/PLAY button. +_The mode changes. + The mode changes each time the REC/PLAY button is pressed. <Example of the recording mode> REC/PLAY button 20081225 1425 100-0006 RIHD 37.68 00:00:25 #OK <Example of the playback mode> A English

About the SIMPLE mode and NORMAL mode The “SIMPLE mode” comprises only those functions that are most often used and necessary to operate the camera, while the “NORMAL mode” enables full use of all the camera's many functions. Select the mode that is suitable for your purposes. Select video and photo size ni] HIEXT 50K <SIMPLE Mode Setting Screen> r=. RECORDING MENU 1 VIDEO » ES PHOTO q SCENE SELECT pl) LTER \ PI >» L2RFLASH + a) SK SELF-TIMER > ENEXIT OK Li <NORMAL Mode Setting Screen> English 42

Switching between the SIMPLE and NORMAL modes À rurn on the camera (page 35). + The previous mode is active. 2 Press the MENU button. + The Menu Screen for the active mode appears. 3 Selectthe operating mode icon, and press the SET button. + Switch from the SIMPLE mode to the NORMAL mode, or from the NORMAL mode to the SIMPLE mode. + Press the MENU button to cancel the Menu Screen. 43 English

@ Recording size (page 60) + Select the video clip size to record. €: The video clip size is 1920 x 1080 pixels, recorded at 60 fields/sec. The captured still image size is 3264 x 2448 (4:3) pixels. E: The video clip size is 640 x 480 pixels, recorded at 30 frames/sec. The captured still image size is 1600 x 1200 (4:3) pixels. @ Focus range (page 61) + Select the focus range that corresponds to the distance to the subject. (&4): The camera automatically focuses on the subject within a range of 50 cm (19.69 in.) to infinity (normal). (@): The camera focuses on a subject within a range of 1 cm (0.39 in.) to 1 m (8.28 ft.) (super macro). @ Flash (page 66) + Specify how the flash will rate. : The camera detects the subject brighiness and uses the flash only when necessary. (}: The flash operates with every image captured regardes of the conditions. CA): The flash does not operate even in dark situations. © (page 43) + Set to the NORMAL mode. © Remaining battery power indication (page 142) English 46

© Slideshow (page 77) @ Delete (page 79) + Specify the slideshow settings + Delete files. and play the slideshow. © a (page 43) @ Playback volume (page 78) + Set to the NORMAL mode. + Adjust the volume for video © Remaining battery power clip and audio file playback. indication (page 142) English 48

@ Video clip settings (page 85) <HD mode> Record at 1920 x 1080 pixels, 60 fps (60p). Record at 1920 x 1080 pixels, 60 fields/s (60). Record at 1920 x 1080 pixels, 30 fps (30p). Record at 1280 x 720 pixels, 30 fps (30p). <SD mode> Record at 640 x 480 pixels, 30 fps (80p) Record at 448 x 336 pixels, 240 fps (High-speed recording). Record at 192 x 108 pixels, 600 fps (High-speed recording). C8]: Make an audio recording. @ Still image settings (page 89) [f2ul: Image size is 4000 x 3000 pixels. Image size is 3264 x 2448 pixels (low compression) Image size is 3264 x 2448 pixels (normal compression). [: Image size is 3264 x 1840 pixels (16:9 aspect ratio). Œ: Image size is 1920 x 1080 pixels (16:9 aspect ratio). Image size is 1600 x 1200 pixels. Image size is 1280 x 720 pixels (16:9 aspect ratio). Ti: Image size is 640 x 480 pixels. 3264 x 2448-pixel sequential shots. 2288 x 1712-pixel sequential shots. @ Scene select (page 90) WT: Full auto setting CR]: Sports mode (W}: Portrait mode Lei): Landscape mode L&*]: Night view portrait mode Snow & beach mode Fireworks mode Lamp mode @ Filter (page 90) No filter Cosmetic filter L@}: Monochrome filter Led: Sepia filter © Flash [A]: The camera will detect the subject brighiness and use the flash only when necessary. [#1]: The flash will operate with every image captured regardiess of the conditions. T1: The flash will not operate even in dark situations. © Selt-timer (page 91) Selt-timer is of. Shooting begins 2 seconds after the [ ÉD or | mé] button is pressed. Shooting begins 10 seconds after the [ ] or [ 1 ] button is pressed. @ Remaining battery power indication (page 142)

@ Video stabilizer (page 92) + Compensate for camera Shake during video clip recording [NW]: Record with image stabilizer on. Record without image stabilizer. @ Photo stabilizer (page 92) + Compensate for camera Shake during still image shooting. Shoot with image stabilizer on. Shoot without image stabilizer. © Focus range (page 93) + Select the focus range that corresponds to the distance to the subject. (Œu: The camera automatically focuses on the subject with a range of 50 cm (19.69 in.) to infinity (normal). IF]: The focus can be set manually. The camera focuses on the subject within a range of 1 cm (0.39 in.) to 1m (8.28 fL) (super macro). @ Focus area (page 94) 9-point range finder focus Earl: Spot focus © Light-measuring mode (page 94) Mult-section light measuring Center-weighted light measuring Spot light-measuring © ISO sensitivity (page 95) Sensitivity is set automatically (video clip recording: ISO 50 to 800; still image shooting: ISO 50 to 200) Sets sensitivity to ISO 50 Sets sensitivity to ISO 100 Sets sensitivity to ISO 200 Sets sensitivity to ISO 400 Sets sensitivity to ISO 800 Sets sensitivity to ISO 1600 Sets sensitivity to ISO 3200 {video clip recording: ISO 1600) +_ The indicated ISO value is the standard output sensitivity. @ Remaining battery power indication (page 142)

@ White balance (page 96) © High sensitivity mode White balance is (page 100) automatically adjusted [HS]: increased sensitivity. depending on the ambient Normal sensitivity. lighting (auto). For shooting in sunny conditions (fair). For shooting in overcast us conditions (cloudy). @ Remaining battery power For shooting under indication (page 142) fluorescent lighting (fluorescent) T1: For shooting under incandescent lighting (incandescent). CE]: For setting the most accurate white balance {one push). @ Exposure (page 97) CP]: The exposure is set automatically. CS]: Set the shutter speed manually. [A]: Set the aperture manually. [M]: Set the aperture and shutter speed manually. @ Face chaser (page 98) Enable face chaser. Disable face chaser. @ Photo wide D-range (page 99) Enable wide D-range shooting. Disable wide D-range shooting. al zoom (page 100) DIM}: Enabie the digital zoom. Disable the digital zoom. English 54

@ Slideshow (page 103) @ Delete (page 79) + Specify the slideshow settings + Delete files. and play the slideshow. © Rotate (page 106) © Playback volume (page 78) + Rotate a still image. + Adjust the volume for video © Resize (page 106) clip and audio file playback. + Reduce the resolution of a still © Protect (page 104) image. + File protect setting (delete @ Remaining battery power prohibited) indication (page 142) 55 English

EXIT OK @ Edit photo (page 107) + Repair the “red-eye” caused by the flash, reduce the blur from camera shake, or enhance the contrast. @ Video clip edit (page 108) + Edit video clips. © Printing instructions (page 117) + Specify the printing instructions (DPOF settings) @ Select folder (page 83) + Select a folder to play back. © Copy 2 Copy les fromfo the card to/ from the Xacti Library (displayed only when Xacti Library is used). © Sort by date + Creale dated folders and sort the files in one roll by date {displayed only when Xacti Library is used). @ Remaining battery power indication (page 142) English 56

For best results Hold the camera securely, keeping your elbows close to your body and making sure the camera is stable. Correct hold Incorrect hold A finger is blocking the lens or flash <Holding the camera> Example: @ Insert your hand in the grip belt. @ Enfold the camera in the palm of your hand to grip it @ Use your index finger to operate the zoom switch, and your thumb 10 operate the other controls. <Caution> + Due to the characteristics of the camera, the outer surface may become warm during use, but this does not indicate a malfunction. (In particular, the area indicated by gray in the figure may become hot.) Ifthe camera starts to feel uncomfortably hot during use, you might temporarily discontinue use until it cool down, or try holding it in your other hand for a while. Please use a tripod or other support when using the camera for a long time. 57 English

Using the autofocus The autofocus will work in almost all situations; however, there are certain conditions that may cause the autofoeus function to not work properly. the autofocus function is not working properly, set the focus range to capture images (page 61). M Conditions that may cause incorrect focus The following examples are some of the situations where the autofocus function may not work. + Subjects with low contrast, very bright subjects at the center of the image or dark subjects or locations Use the focus-lock function to lock the focus on an object with contrast at the same distance as the desired subject. + Subjects without vertical lines Use the focus-lock function to lock the focus while framing the subject vertically, then re-orient the camera to compose a horizontally framed image. English 58 H ONILOOHS/3IdNIS

The following examples are some of the situations where the autofocus function may work, but not as desired. + When both near and far objects are present Use the focus-lock function to lock the focus on an object at the same distance as the desired subject, then reposition the camera to compose the picture. + Fast-moving subjects Use the focus-lock function to lock the focus on an object at the same distance as the desired subject, then reposition the camera to compose the picture. HINT. + Still images can be rotated when they are played back (pages 55 and 106). + When the [ 3 ] button is pressed halfway, the image in {he monitor may waver vertically. This is the result of internal image processing and is not a malfunction, This wavering is not recorded and will not affect your images in any way. + When the optical zoom is used or when the autofocus is operating, the image may appear to waver, but this is not a malfunction. 59 English

Select the recording size The larger the image size (number of pixels), the better the image quality will be, but the file size will also be larger. Select the image quality that is correct for the intended purpose. À Display the SIMPLE Mode Recording Menu (page 44), select the recording size setting, and press the SET button. To keep in HDTV size « mt HDTV si œ FE MA MNEXIT 50K

F3: The video clip size is 1920 x 1080 pixels, recorded at 60 fields/sec. The captured still image size is 3264 x 2448 (4:3) pixels. The video clip size is 640 x 480 pixels, recorded at 30 frames/sec. The captured still image size is 1600 x 1200 (4:3) pixels. 2 Select the desired video clip recording size, and press the SET button. +_ This completes the recording size setting. English 60 H ONILOOHS/3IdNIS

Select the focus setting Select the focus range corresponding to the distance between the camera and the subject. À Display the SIMPLE Mode Recording Menu (page 44), select the focus setting, and press the SET button. All ranges AVE = Automatic focus ba (people, landscape, etc.) NAUEXIT GOKk (C1 (4): The camera automatically focuses on the subject within a range of 50 cm (19.69 in.) to infinity (normal) The camera focuses on a subject within a range of 1 cm (0.39 in.) to

1.0 m (8.28 ft.) (super macro).

2 Select the desired focus range, and press the SET button. +_ This completes the focus range setting. 61 English

ts for taking pictures Muting the operation sounds + The audio guidance that sounds when you operate the camera can be muted (page 124) Where are the image and audio files saved? + All the image and sound files are recorded on the card installed in the camera. Taking pictures in backlight conditions. + When taking pictures with the light coming from behind the subject, due to the characteristics of the lens, ghost patterns (flare phenomenon) may appear in the captured image. in this situation, it is recommended that you avoid taking pictures with the subject lit from behind. While the image files are being recorded... + While the mult-indicator is flashing red, the image files are being written to the memory, during which time it is not possible to capture another image. Another image can be captured after the flashing red indicator turns off. However, even when the mult-indicator is flashing red, depending on the cameras internal memory remaining capacity, in some cases the next image can be captured about 2 seconds after shooting. English 62 H ONILOOHS/3IdNIS

À turn on the camera (page 35), and set it to the recording mode (page 41). Lo] button 2 Press the [ button. Recording begins. +_Itis not necessary to keep the Le ] button pressed while recording. When the remaining recording time available for the currently recording clip becomes litlle, a countdown of the remaining recording time appears on the display. 3 End the recording. +_ Press the [ ef ] button again to Stop recording. Available recording time remaining 63 English

Capture a still image (single-shot). À rurn on the camera (page 35), and set it to the recording mode (page 41). 2 Press the [ 3 1 button. © Press the [ (0 ] button halfway. + The autofocus operates, and the image is focused (iocus lock). @ Continue to gentiy press the [ (A ] button al the Way. + The shutter releases and the image is captured. You can view the captured image on the monitor by keeping the [ @ ] button depressed when you capture the image.

HINT Adjusting the monitor brightness + While the Recording Screen is active, you can quickly access the screen for adjusting the brighiness of the monitor by pressing the MENU button for at least 1 second. What is the camera focusing on? Target mark + A target mark £ on the monitor shows the area the camera is focusing on. + The camera automatically determines the correct focus by measuring from 9 different focus points within the shooting area. If the target mark is at a position that is different from the point you wish to focus on, you can refocus, for Camera shake icon ‘example, by changing the shootin( D 07 changng 8 Shutter speed « The large target mark appears when Aperture the camera focuses on a wide area in the center of the screen. The focus and exposure can be locked (NORMAL mode) + By assigning an operation shortcut to the SET button (pages 126 and 130), you can set the autofocus or the exposure to a fixed setting. When the exposure setting is fixed, the icon appears on the monitor; when the autofocus setting is fixed, the [WF] icon appears on the monitor. + When the focus range (pages 50 and 90) setting or scene select setting is changed, the focus lock is released The shutter speed and aperture are displayed (NORMAL mode) + The shutter speed and aperture settings are shown on the Recording Screen. You can use them as a reference when shooting. Ifthe camera shake icon ii appears... (NORMAL mode) + During still image shooting, if the shutter speed is slow and the possibility that the image may be blurred due to camera shake becomes high, the camera shake icon may appear on the monitor. In this case, use a tripod to stabilze the camera when shooting, or set the flash operation mode to automatic (pages 46 and 66). + When shooting with the scene select function set to the fireworks mode, the camera shake icon always appears, but this is normal. 65 English

Using the flash The flash is not only used for photographing under dark conditions, but is also convenient for example when the subject is in shadow or li from behind. The flash is available only when shooting Single-shot still images. À Display the SIMPLE Mode Recording Menu (page 44), select the flash setting, and press the SET button. + The screen to select the flash operation appears. O Flash automatically

H ONILOOHS/3IdNIS GA): The camera detects the subject brightness and uses the flash only when necessary. (: The flash operates with every image captured regardiess of the conditions. CH): The flash does not operate even in dark situations. 2 Select the desired flash operation, and press the SET button. +_ This completes the flash operation setting 3 Press the [ (3 ] button to take the picture. English 66

CAUTION Do not touch the flash unit when shooting + The flash unit becomes very hot and may cause a burn. Avoid touching the flash unit when shooting, HINT + The flash cannot be used during video clip recording, + By assigning an operation shortcut to the SET button (pages 126 and 130), you can change the flash mode from the Recording Screen (NORMAL mode) 67 English

You can capture a still image (a single-shot) while recording a video clip.

2 Press the [#$ 1 button. Turn on the camera (page 35), and set it to the recording mode (page 41). [button ( cù Jbutton When you see a scene you'd like to capture as a Still image, press the LO ] button. H ONILOOHS/3IdNIS Press the [ 1e] button to end the video clip recording. English 68

SHOOT A STILL IMAGE WHILE RECORDING A VIDEO CLIP HINT + When shooting a still image while recording a video clip, the flash does not operate. + The photo stabilizer (pages 52 and 92) is inoperative. + When the remaining video recording time becomes approximately 50 seconds, it will no longer be possible to capture a still image while recording a video clip. The exact remaining recording time at which this. occurs will differ depending on the subject and on the recording size (page 60), as well as on the video clip recording mode (page 85). If you intend to capture a stil image while recording a video clip, it is suggested that you take note of the remaining video recording time. About the recording size of still images + The size of a still image captured during video clip recording depends on the video clip recording size. Video clip recording size setting Still image recording size Es Co (16:9) LE] (16:9) (Ou (4:3) + ILis not possible to capture a still image while recording a video clip at a high recording speed (54), EM). + Itis not possible to capture sequential shots. 69 English

MACRO-PHOTOGRAPHY (ZOOM) Your camera has two zoom functions: optical zoom and digital zoom. À point the camera lens at the subject. 2° Pushthe zoom switch toward [T/OS] or [W/E ] to compose the desired image. [T/OL J: Zoom in on the subject. IW/Æ ]: Zoom out. + When the zoom switch is pushed, the zoom bar appears on the monitor. When the optical zoom factor is at maximum, zooming Stops temporarily. When the zoom switch is pushed toward the [T/CN.] side again, the mode changes to the digital zoom mode and zooming continues. 3 Take the picture. For video clip recording, see page 63. For shooting single shots, see page 64. For shooting sequential Shots, see page 89. Zoom switch (TO YWES) Monitor Zoom bar When both optical and digital 200m are enabled Optical zoo Digital zoom (yellow) When optical 200m only is enabled Pointer English 70 H ONILOOHS/3IdNIS

MACRO-PHOTOGRAPHY (ZOOM) HINT About the “16x Advanced Zoom” + During video clip recording, the “16x Advanced Zoom" function makes it possible to electronically magnify the image with no image degradation, and increase the magnification to a maximum 16x. 71 English

The remote control sensor on your camera makes it possible to capture images and play them back using the supplied remote control unit. À prepare the remote control unit (page 27). 2° Turn the camera on, and set it to elther the recording mode or the playback mode. 3 aim the remote control unit at the camera's remote control sensor. + Open the monitor unit. ONILOOHS/3IdNIS 4 Press the buttons on the remote control unit to operate the camera. EE English 72

STILL IMAGES À Setthe camera to the playback mode (page 41). 2 Select the image to play back. Orange frame + Toggle the SÉT button left, right, up or down to move the orange frame to the file you wish to play back. The image information for the framed image is shown at the bottom of the screen. US HS Lu Press the SET button. +_ Playback begins. <To return to the screen to select playback files> During still image playback: Toggle the SET button down. During video clip playback: Toggle the SET button down once to stop video clip playback, and toggle the SET button down again. SET button 73 English

Video clip playback operation To do this. Do this Normal forward playback _ [Press the SET button: Stop playback During playback, loggle the SET button down. During playback, press he SET button or pause toggle the SET button up. During accelerated playback, toggle the SET button up. Toplayback | Duringforward one image | playback at a time After pausing playback, toggle the SET button to the right. (single- _ | Duringreverse frame step) | playback After pausing playback, toggle the SET button to the left. During forward Slow playback Afler pausing playback, press and hold Ihe SET button to the right. playback | Duringreverse playback Afler pausing playback, press and hold ihe SET button to the left. Forward playback

accelerate During forward playback, toggle the SET button to the right +_ The playback speed changes each time the SET button is toggled to the right, as follows: Normal playback — 2x > 5x > 10x — 15x Toggle the SET button to the left to resume normal playback speed. playback Reverse playback During forward playback, toggle the SET button to the left. +_ The playback speed changes each time the SET button is toggled to the left, as follows: 15x € 10x € 5x Toggle the SET button to the right to resume normal playback speed. Relum to normal playback speed Press the SET button. Adjusting the volume Louder: During playback, push Îhe 200m Switch toward the [T] side. Softer: During playback, push the zoom Switch toward the [W] side. English 74 H HOVSAV Id FANS

PLAYING BACK VIDEO CLIPS AND STILL IMAGES HINT If the F#1 icon appears on the playback Screen... + The Fi icon appears when playing back a file that was saved in segments (page 87). Although playback of these multiple files is continuous, there is a slight pause at the point where the files are joined 75 English

How to save one frame from a eo clip as a still image À Play backthe video clip. Pause the playback atthe point you wish to “snap” a photo. 2 Press the [ 3] button. +_ The screen to select the aspect ratio of the still image appears. Select the desired aspect ratio, and press the [ (Ê | button. Note, however, that i the video clip aspect ratio is 4:3, you cannot select 16:9. +_ Itis not possible to save a frame from a video clip that was recorded in the FI] mode. HINT. The file for a video clip is very large + Therefore, be aware that if the video clip is uploaded to a computer to be played back, the computer may not be able to play back the video fast enough, making it appear jerky. (The video will always be displayed properly on the camera monitor or a television.) + Depending on the card, shooting may end even before the possible Shooting time indicated Display the video clip playback point + During video clip playback, press the MENU button for at least 1 second to display a bar showing the current playback point in the video clip. + Press the MENU button for about 1 second to cancel the bar. H HOVSAV Id FANS CAUTION During video clip playback, the sound of a motor is audible.… + During recording, the sound of the optical zoom movement or autofocus movement was recorded. This is not a malfunction. If no audio is heard... + The audio is not played back when the video clip is played back in the frame-by-frame, fast playback or reverse playback mode. English 76

SLIDESHOW PLAYBACK You can play back files in succession with the “slideshow playback" feature. À nisplay the SIMPLE Mode Playback Menu (page 44), select the slideshow setting, and press the SET button. Es} Play back all files. ŒÆX}: Play back video clips and audio files. Play back still image files. EiSLIDESHOW 2 Select the type of file to play back, and press the SET button. + Slideshow playback begins. + To stop slideshow playback, press the SET button or MENU button. HINT About the slideshow settings + The slideshow settings can be changed from the NORMAL Mode Playback Menu (page 103) 77 English

PLAYBACK VOLUME Adjust the playback volume for video clips and audio files. À pisplay the SIMPLE Mode Playback Menu (page 44), select the playback volume setting, and press the SET button. +_ The volume control bar appears. 2° Toggle the SET button to the left or right to set the volume, and press the SET button. +_ The playback volume is set, and the display returns to the SIMPLE Mode Playback Menu: HINT EMPLAY VOLUME F2 OVOLUMESETTING (| The volume can be adjusted during playback + During video clip or audio file playback, if you push the zoom switch toward [T/OS] or [W/ÆR ], the volume control bar will appear, allowing you to adjust ihe volume. In the NORMAL mode + When you select “PLAY VOLUME" from the NORMAL Mode Playback Menu and press the SET button, the volume control bar appears. English 78 H HOVSAV Id FANS

DELETING FILES You can delete files if you no longer need them. You can delete single files, selected files or all the files at one time. Delete single/delete all À nisplay the SIMPLE Mode Playback Menu (page 44), select the delete setting, and press the SET button. DELETE SINGLE: Deletes one file at a time. DELETE SELECTED: Deletes the selected files {page 80). DELETE ALL: Deletes all files. THIDELETE L_DELI [EE] 2 Select the desired delete mode, and press the SET button. +_The Delete Confirmation Screen appears. <DELETE SINGLE> + Toggle the SET button to the left or right to select the file you wish to delete. +_ There is no confirmation screen when deleting single files. Please make sure that the displayed image is one you wish to delete. <DELETE ALL> +_Toggle the SET button to the left or right to confirm the files to delete. 79 English

3 Select “DELETE"”, and press the SET button. <DELETE SINGLE> + The currently displayed file is deleted. + To delete other files, select the files, select “DELETE" and press the SET button. <DELETE ALL> +_ The Delete Confirmation Screen again appears. To delete the files, select *YES”, and press the SET button. When file delete is completed, “No image” is shown. Delete selected Delete selected files. À bisplay the SIMPLE Mode Playback Menu (page 44), select the delete setting, and press the SET button. 2 Select “DELETE SELECTED", and press the SET button. + The screen to select files to delete appears. H HOVSAV Id FANS

ES io OT DELETEMETOK 3 Select an image you wish to delete. + Toggle the SET button left, right, up or down to move the orange frame to the file you wish to delete. English 80

DELETING FILES 4 Press the SET button. +_ The selected file is marked with the delete icon [ @ ]. + Up to 100 files can be selected. + To cancel a delete selection and remove the delete icon from a file, move the orange frame to the marked file and press the SET button 5 Pressthe[@/#4] button. + The Confirm Delete Screen appears. 6 Select “YES", and press the SET button. +_ The selected files are deleted. HINT In the NORMAL mode + When you select ‘DELETE" from the NORMAL Mode Playback Menu and press the SET button, the Delete Screen appears. CAUTION + Files that are protected from accidental delete cannot be deleted. To delete protected files, set the protect setting for the files to off (pages 55 and 104), and then follow the file delete procedure. 81 English

PLAYBACK MODES 21-image display playback À nisplay the image you wish to play back. 2° Pushthe zoom switch toward the [W/ES] side. + The 21-image display appears. 3 Select the image to play back. + Toggle the SÊT button up, down, left or right to move the orange frame to the desired image, and press the SET button. Instead of pressing the SET button, you can push the zoom switch toward the [T/C\ ] side to show the 8-image display. Ifthe zoom switch is pushed toward the [W/F5] side while the 21-image display is Shown, the display changes to the ë screen to select the playback folder (page 83). Itis not possible to perform the file delete or file protect settings on the 21-image display. : Zoom switch [W/ÆA] English

PLAYBACK MODES Selecting the playback folder Ifthe card contains multiple folders, you can select from which folder you would like to play back. À bisplay the Playback Screen. 2 Push the zoom switch toward the [WE] side twice. SELEGREOEEER) + The screen to select the playback folder appears. + _lfthe zoom switch is pushed toward the [T/O..] side, the camera changes to the 21-image display (page 82). 5oK (mn 3 Toggle the SET button up or doun to move the orange frame to the desired folder, and press the SET button. +_ The files in the selected folder are displayed in the Playback Screen. HINT In the NORMAL mode + When you select “SELECT FOLDER" from the NORMAL Mode Playback Menu and press the SET button, the screen to select the playback folder appears. 83 English

Magnifying (zooming in) the image À nisplay the image that you want to magnity.

+ For a video clip, pause playback at the place you want to magnify. Push the zoom switch toward the [TO] side once. + Magnification is enabled. +_ The image is magnified, and the central portion of image is displayed. Toggle the SET button to view different parts of the magnified image. To magnify: Magnification increases each time the zoom switch is pushed toward the [T/On] side. To return to normal size: Magnification decreases each time the zoom switch is pushed toward the (W/ES) side. + Press the SET button to return to the normal (100%) view. HINT The magnified portion of the image can be saved as a separate image + Press the [ ID ] button. The magnified portion is saved as a new still image. English 84 H HOVSAV Id FANS

RECORDING MENU 1 Video setting You can record video clips in either the HD mode (16:9 horizontal to vertical aspect ratio) or the SD mode (4:3 aspect ratio). In addition, the higher the frame rate number, the smoother playback will be. However, as with the recording size, the file size is also proportionately larger, using up more memory. This menu is also used when making audio recordings. CAUTION When editing video clips. + In order for video clips to be joined, they must have been photographed in the same mode. + Video clips that were photogr mphedin diferant modes cannot be joined. Restrictions when [S#] or EM is set + When the camera is connected to a ST. the image is shown on the camera monitor in the recording mode, and on the TV in the playback mode. When the [ 1% ] button is pressed, a video clip is recorded for about 10 seconds. Recording is discontinued when the [ # ] button is pressed again The following recording functions are not available. Capturing a still image during video clip recording Zoom Image stabilizer Scene select (fixed at AIT) Manual exposure Face chaser recording High sensitivity mode recording Photo wide-D range recording Noise reduction You cannot record when the possible recording time is less than about 12 seconds. + Ifthe AE lock setting is active, it is canceled when the or setting is set. 85 English

Audio recording Æ Audio recording

Select [®], and press the SET button. +_The audio recording mode is enabled. + The menu display is canceled if the MENU button is pressed. Remaining time Press the [ 1e] button. + Audio recording begins. During recording, MX appears in the monitor. Its not necessary to continue pressing the [ ir button while recording, Length of recording, Een Il RECOO:00:06 3 Endthe recording. + Press the [ 6% ] button again to stop recording. English 86 ONILOOHS/TVWEHON

RECORDING MENU 1 HINT You can capture a still image during an audio recording + Press the [ 3 ] button during audio recording to capture a Ou still image. About files saved in segments + Ifthe continuous recording time of a voice memo exceeds about 13 hours, the recorded file is saved once, and the recording continues in a new file. When recording a video clip whose file size exceeds 4 GB, the recorded file is saved once, and the recording continues in a new file. (These 4 GB segments are automatically created. The recording session continues until you stop recording, but video clip or voice memo recording is temporarily interrupted while the file is being saved.) 87 English

M Audio playback À Select an audio file, and press the SET button. + Playback begins. fast reverse | reverse To do this... Dothis Start playback | Press the SET button. Normal | pause Press the SET button. playback Toggle the SET button up. Stop playback | T09gle the SET button down. During playback, toggle the SET button to the right. Fast Each time the SET button is toggled to the forward | right, the speed increases. If the SET button is toggled to the left during fast forward, the speed decreases. During playback, toggle the SET button to Fest the left. forward! | Fast Each time the SET button is toggled to the left, the speed increases. Ifthe SET button is toggled to the right during fast reverse, the speed decreases. Pause Toggle the SET button up. Return to normal Press the SET button. playback Louder During playback, push the zoom switch Volume toward the [T/O.] side. adjustment Soîter During playback, push the zoom switch toward he [W/ FA ] side. CAUTION If no audio is heard... + The audio is not played back when the audio recording is played back in the fast playback or fast reverse mode. English 88 ONILOOHS/TVWEHON

RECORDING MENU 1 Still image setting For still images, you can select either the 4:3 or 16:9 horizontal to vertical aspect ratio. This menu is also used for shooting sequential shots. Sequential shots À select and press the SET button. +_The camera changes to the sequential shots mode. 2 pressthe [3] button. + Shooting begins. Shooting continues as long as the [ IÊd ] button is Kept pressed. HINT What is the maximum number of images in a sequential shots

If you continue shooting even after the maximum number of images has been captured, recording does not stop. + If you continue shooting after the maximum number of images has been captured, subsequent captured images will overwrite the sequence already captured, beginning from the first image in the sequence. About the focus when shooting sequential shots + When sequential shots are captured, the autofocus operates when the LI] button is pressed halfway, fixing the focus. Can the flash be used? + The flash does not operate when shooting sequential shots. the angle of view change? + When shooting sequential shots, the angle of view relative to that of still ing may change. setting, the images are captured with an enlarged angle of view in comparison to other recording modes. About the PHOTO NR (page 126) setting + During sequential shots shooting, the PHOTO NR setting automatically tumms OFF. 89 English

Scene select setting You can select from various preset settings (aperture, shutter speed, etc.) for specific shooting conditions. HINT + To return to normal photography, select and press the SET button. + When capturing images using the lamp F&1, fireworks or night view portrait (&%] setting, use a tripod or other method to stabilize the camera. + Ifthe recording size is set to or the scene select function will be from the scene select menu, ts mode, it is not possible to select night view portrait or lamp ER. + A table showing the limitations for settings corresponding to scene select icons other than AIT is on page 172. Filter setting The filer feature changes image characteristics such as color tones, to apply unique effects to the photographed image. HINT + To return to normal photography, select press the SET button. + À table showing the limitations for settings corresponding to filter icons other than (ÆY is on page 173. from the filter menu, and English 90 ONILOOHS/TVWEHON

RECORDING MENU 1 Self-timer setting By assigning an operation shortcut to the SET button (pages 126 and 130), you can set the self-timer from the Recording Screen HINT To pause or cancel the self-timer function... + Ifthe [ É3] button or [ @ ] button is pressed again before the shutter is released, the self-timer countdown temporarily stops. Press the | C3 ] button or [ #4 ] button one more time to restart the self-timer. + To cancel self-timer photography, select the [EJ icon from the self-timer menu, and press the SET button. + The self-timer is automatically reset to off [I after the power save mode is activated and the camera turned off. When is selected. + When the [ 3 ] button or [ ] button is pressed, the multr-indicator will blink for about 10 seconds, and then the image is captured. Also, 4 seconds before the shutter releases, the indication shown in the illustration appears on the monitor. 91 English

RECORDING MENU 2 Motion compensation (image stabilizer) setting Your camera can minimize a jittery picture by compensating for unintentional hand motion. HINT If the motion compensation does not seem to be working... + Due to the mechanical characteristics of this function, it may not be possible for the camera to compensate for violent motion. + Ifthe digital zoom (page 70) is being used, the large magnification factor may make it difficult for the motion compensation function to work correctiy. + When the scene select function is set to night view portrait [8%] or lamp F1, the motion compensation effect may be insignificant. Can't set the “photo stabilizer” setting? + The photo stabilizer is automatically turned off after any of the following operations. + Setting the exposure to [5], [A] or (pages 54 and 97). + Setting the photo wide D-range setting (pages 54 and 99) to “ON”. + Setting the still image NR (noise reduction) setting (page 128) to “ON”. + Starting video clip recording. + Setting the camera to the sequential shots mode (pages 50 and 89). When motion compensation is enabled, + The following icons are shown on the monitor: Fes] 00:04:30 F5] The video stabilizer is active LE) The photo stabilizer is active Both the video stabilizer and the photo stabilizer are active Did the scene select setting change? + When the photo stabilizer is set to [M], if the scene select setting is will automatically change to AUTO. English 92 ONILOOHS/TVWEHON

RECORDING MENU 2 Focus range setting How to use the manual focus À Select [NF], and press the SET button. + The focus distance adjustment bar appears. 2 Toggle the SET button to the left or right to adjust the focus distance, and press the SET button. + The focus distance is set, and you are returned to the Recording Screen. HINT About the focus range + The focus distance indication shows the distance between the center of the lens and the subject + In some cases there may be a slight variance between the distance {numerical figure) you set in the manual focus mode and the actual distance. About zoom movement when using the manual focus + Ifthe focus distance is set to 70 cm (27.56 in.) or less, the zoom changes to the largest setting that is suitable for that focus distance. + When the focus distance is set to 70 cm (27.56 in.) or less, the zoom will function only within the range at which the image is focused. About the super macro mode + When the focus range is set to super macro set to the wide end. + By assigning an operation shortcut to the SET button (pages 126 and 130), you can change the focus range setting from the Recording Screen the zoom is temporarily 93 English

Focus mode setting When the spot focus setting is selected, the focus mark + appears in the center of the monitor. Light-measuring mode setting When spot light-measuring is selected, the light-measuring spot mark CI appears in the center of the monitor.

Le] Focus mark Light-measuring spot mark English 94 ONILOOHS/TVWEHON

RECORDING MENU 2 ISO sensitivity setting With the initial settings, the ISO sensitivity is automatically set according to the brighiness of the subject. However, the ISO sensitivity can be set to a fixed setting. HINT + Atthe AIT setting, the ISO sensitivity is set automatically (video clip recording: ISO 50 to 800; still image shooting: ISO 50 to 200). + When the ISO sensitivity is set to BA, video clips, as well as captured during video clip recording, will be recorded at ISO + By setting a higher ISO sensitivity, you can set faster shutter speeds and capture images in darker locations, but noise in the captured images may increase or the images may be irregular. + By assigning an operation Shortcut lo the SET button (pages 126 and 130), you can change the ISO setting from the Recording Screen. CAUTION Does the image appear to flicker when recording a video clip? + lfrecording a video clip under fluorescent lights with the ISO sensitivity set 0] or higher, a noticeable flicker may appear in the image. 95 English

RECORDING MENU 3 White balance setting This camera automatically adjusts the white balance under most lighting conditions. However, if you want to specify the lighting conditions or change the overall tone of the image, the white balance can be manually set: How to use the one push seti À Selectthe icon. 2 Fillthe entire screen with a pl and press the SET button. +_ This completes the white balance setting. white card (or piece of paper, etc.), HINT To cancel the white balance setting + Select WB, and then press the SET button. English 96 ONILOOHS/TVWEHON

RECORDING MENU 3 Exposure setting The shutter speed and aperture size can be set individually. À Selectthe desiredicontromthe exposure menu, and press the SET button. @ Toggle the SET button up or down to select aperture value LU 4 or shutter speed 00 @ Toggle the SET button left or — right to change the seting for |L. Shutter speed the selected parameter. Aperture 2 Press the SET button. +_ This completes the exposure setting. HINT + To prevent the effects of camera shake at slow shutter speeds, it is recommended to use a tripod or other method to stabilize the camera. + A slow shutter speed may be useful for photographing in a darker environment, but noise in the image may be increased. + To minimize noise in the image, complete the noise reduction setting (page 126). + The exposure setting automatically becomes [P ] if the scene select function is active. + In the sequential shots mode, the shutter speed is faster than 1/30 sec. + Even if the shutter speed is set to slower than 1/29 sec., the shutter speed during video clip recording is 1/30 sec. + Ifthe exposure setting is set to LS |, [A] or [IL], by assigning an operation shortcut to the SET button (pages 126 and 130), you can select the [S] CA] or exposure setting from the Recording Screen. 97 English

Face chaser setting As you record, the face chaser detects the subjects face, and adjusts the brighiness and focus in a way that produces a clear and bright photo of the subjects face. HINT When the face chaser is set to ON... + Each face in the Recording Screen is marked with a green frame. + Faces that are in focus are marked with a double green frame. + When shooting begins, the frames marking the faces that are in focus change to orange: + Ifthe scene select function setting was fireworks automatically changes to + The light measuring mode changes to multi-section light measuring. + When you play back an image that was captured using the face chaser function and magnify it, the magnified image will be centered on the face(s) that were focused on. or landscape [æïl, it CAUTION + The face chaser function does not work while the digital zoom is being used. + The face chaser function does not work when zooming in or out. + The face chaser function may not work when the subjects face in the monitor is relatively small or appears dark. English 98 ONILOOHS/TVWEHON

RECORDING MENU 3 Photo wide D-range setting By using the photo wide D-range feature, even in an image comprised of both bright and dark subjects, all the subjects will be captured at a natural brighiness level. For example, when a strong backlight is created, as can occur when photographing in bright surroundings, a subject in a bright background appears completely white. Furthermore, the details of dark areas created by the shadows of a backlight are normally obscured in blackness. Shooting with the photo wide D-range function smoothly adjusts the brighiness levels from light areas to dark areas. HINT Other settings during photo wide D-range shooting + When the photo wide D-range is set to “ON”, the following settings automatically change as indicated. Flash (page 50): Disabled (no flash) F3] Exposure (pages 54 and 97] Photo stabilizer (page 92): Scene select fireworks (page 90): TO When sequential shots is active (page 89): [ES Noise reduction (page 126): “PHOTO NRis “OFF” + During video clip recording, the photo wide D-range is automatically switched to “OFF”. + The field of view of captured images will appear slightiy narrow. CAUTION + When the scene select function is set to night view portrait [8%] or lamp E&, the photo wide D-range effect may be insignificant. + The photo wide D-range function does not work when the shutter speed is slower than 1/60. + The photo wide D-range effect may be insignificant if you are shooting in an extremely bright or extremelÿ dark environment. + Note that the exposure time during photo wide D-range shooting is comparatively longer than for normal shooting + When there are smear or flare effects in the image, or when it is misty, shooting with the photo wide D-range function enabled may in some cases produce an unnatural appearing image. + Depending on the surrounding conditions, for example, when the light sources of light and dark areas are different, an unnatural appearing image may be produced. + Image processing after shooting may take some time. 99 English

ty mode setting When you shoot in the high sensitivity mode, the captured image appears even brighter than that specified by the ISO sensitivity and exposure compensation settings. CAUTION Limitations of the high sensitivity mode + When the shutter speed is reduced to create a bright image, video clip motion will appear uneven during playback. + When shooting in a dark environment, the autofocus and auto exposure may not function effectively. + Ifthe video clip setting is or EM, it changes to FH. Digital zoom setting This setting allows you to specify whether or not the digital zoom is enabled during zoom shooting. HINT + The digital zoom does not function in the following situation: When the still image mode is set to An]. English 100 ONILOOHS/TVWEHON

RECORDING MENU 3 Exposure compensation By assigning the exposure compensation operation shortcut to the SET button (pages 126 and 130), you can make the image lighter or darker when capturing images. À assign the operation shortcut to the SET button (pages 126 and 130). 2 Toggle the SET button in the direction for which the operation shortcut was assigned. +_The exposure compensation bar appears. 3 Toggle the SET button to the left or rightto adjust the exposure. +_ The exposure compensation numerical value is shown at the left end of the exposure compensation bar. +_The exposure EE compensation can be set to a value from 1.8 EV to #1.8EV. +_The exposure l compensation bar is Pointer canceled when the MENU Exposure compensation bar button or the SET button is pressed. 101 Engiish

HINT The exposure compensation setting is canceled in the following cases: + When the pointer is set to the center position. + When the camera is set to the playback mode. + After the power is turned off. + When the camera is set to the standby mode. Field of view By using the shorteut function to assign the field of view setting (photo view) to the SET button (pages 126 and 130), you can select whether the photo view or the video view is shown on the recording screen. You can easily see the actual recording area when the field of view for the specific recording mode is selected. Video view

Toggle the SET button in the direction corresponding to the assigned function. | Photo view Toggle the SET button in the direction corresponding to Een Video clip recording area English 102 ONILOOHS/TVWEHON

PLAYBACK MENU 1 Slideshow settings Specify the settings for playing back files continuously in a “slideshow” format. In a slideshow of still images, you can set the transition time, transition effects and BGM Changing a setting À seiectthe item you wish to change, and press the SET button. FM] SLIDESHOW 2 Toggle the SET button up or ‘down to change the setting. START D OK

3 Press the SET button. Begin the slideshow À select “START” and press the SET button. + Slideshow playback begins. + To stop slideshow playback, press the SET button or MENU button. HINT BGM for video clips? + When video clips are played back in a slideshow, the recorded audio track is played back; the BGM is not played. 103 English

File protect setting Prevent accidental erasure of image and audio files. Protect files one by one À pisplay the file that you want to protect from accidental erasure, and display the NORMAL Mode Playback Menu (page 44). 2° Select “PROTECT” and press the SET button. 3 Select “PROTECT SINGLE” and press the SET button. + “LOCK” appears. +_Ifthe protect mode has already been enabled for the file, then “UNLOCK" appears. F3 PROTECT À Toggle the SET button up or down to select “LOCK”, and press the SET button. +_ The protect mode is set for the file. + The protect mark [=] indicates that the file is locked. CAUTION + Even if the protect mode is set for certain files, they will be deleted if the card is reformatted. HINT To select a different image in steps 2 and 3. + Toggle the SET button to the left or right. To cancel the protect mode for a file. + Display the desired file and repeat steps 1 to 3. The protect mark =] will disappear and the protect mode is canceled English 104 HOVSAVId/IVNEHON

PLAYBACK MENU 1 Protect selected files Select multiple files to protect. À Display the NORMAL Mode Playback Menu (page 44). 2 Select “PROTECT” and press the SET button. 3 Select “PROTECT SELECTED" and press the SET button. + Toggle the SET button left, right, up or down to move the orange frame to the file you wish to protect. 20091225 14:25 100-0006 RIM 37.618 00:00:25 pl sIPROTECT 4 Press the SET button. + The selected file is marked with the protect icon [ an ]. + To cancel a protect selection and remove the protect icon from a file, move the orange frame to the marked file and press the SET button. 105 English

Resize A captured image can be resized to a smaller size and saved as a separate image. HINT Why can't the image be resized? + An image can be resized only to a smaller (or the same) size, not to a larger size. Rotate Captured still images can be rotated to the correct orientation for viewing. HINT + An image for which the protect mode has been enabled cannot be rotated. To rotate a protected image, cancel the protect mode before beginning the rotate image procedure (pages 55 and 104). English 106 HOVSAVId/IVNEHON

PLAYBACK MENU 2 Correcting the image Repair the red-eye effect in still images to make the eyes appear more natural, enhance the contrast, or correct a blurry image due to camera shake. HINT If the “Contrast correction not successful”, “Red-eye correction not successful” or “Blur correction not successful” message appears. + The camera was not able to successfully repair the image. + The correction function works to automatically edit flaws that the camera detects in captured images. In some cases, the camera may fail to correct a law. Concerning the date and time information for the saved image + When an image is corrected and saved, the recorded date and time of capture (Exif information) remains unchanged from the original image. However, the file date shown on the computer changes to the date and time the image was revised. 107 English

Editing video clips You can trim away unwanted portions from a video clip and save it as a new video clip (video clip cutting [extracting]). You can also join video clips together and save them as one separate clip (“joining"). Procedure to cut (extract) a portion of a video clip Specify the frames. ï © (©, ©) where the L video clip is to be Fa 3 D we ER En ERUE

Extract the specified portion. [Two ways to cut the video clip] + Trim away portions ® and ©, and save portion ®. + Delete portion ®, and join portions ++ and ©. + The original F = video clipis ,. [#4 not affected. Wi À {You can also choose to erase the original video clip when the new clip is saved.) English 108 HOVSAVId/IVNEHON

Join the video clips. + The video clips are joined. + The original video clips are not affected. {You can also choose to erase the original video clips when the new clip is * saved) 109 English

CAUTION Caution when editing video clips + When editing video clips, do not press the REC/PLAY button. If you press the REC/PLAY button while editing video clips, not only will the editing not be properly completed, but the original video clip may also be erased. + As the number or size of the video clips increases, the card memory may become full, making it impossible to edit or save the video clips. In this case, you will need to free some of the memory on the card by deleting files that are no longer necessary (pages 55 and 79). Regarding the capture date of the saved files + The capture date of edited images changes to the date that the files are saved. English 110 HOVSAVId/IVNEHON

PLAYBACK MENU 2 Video clip cutting (extracting) À Display the video clip from which you wish to extract a segment. 2 Display the NORMAL Mode Playback Menu (page 44), select “EDIT VIDEO”, and press the SET button. EDIT VIDEO HX CUT

3 Select “CUT” and press the SET Start point button. per JQUT 00:00:10

+ The Cutting Screen appears. 111 English

4 specity the start point of the extract. + Use the procedure below to specify the frame from which the video clip extract will start. + Play the video clip until approximately the desired point, pause the video clip, then play the video clip one frame at a time, Stopping at the Start point of the extract. This will be the first frame of the extract. +_Ifthe start point of the video clip is also the start point of the extract, proceed to step 5. <Procedure> Play: After pausing playback, press and hold the SET button to the right for about 2 seconds for forward playback, or to the left for reverse playback. Pause: During playback, press the SET button: Accelerated playback: During playback, toggle the SET button to the left or right to change the playback speed. Single frame: After pausing playback, toggle the SET button to the right to move forward one frame, or to the left to move back one frame. English 112 HOVSAVId/IVNEHON

PLAYBACK MENU 2 5 roggle the SET button up. +_The start point of the video clip extract is set, and the screen to specify the end point appears. Specify the end point of the extract by following the same procedure as in step 4. <When joining the first and latter portions> @ Toggle the SET button down. + Each time the SET button is toggled down, the sections to delete and the sections to save are reversed. @ Specify the end point of the extract. The frame following the end point of the extract will be the start point of the latter portion to be joined. 6 press the [0 / #4] button. + A screen appears for you to select either to save the edited video clip as a new (separate) fie, or to delete the original video clip and replace it with the edited video clip. SAVE AS NEW: The edited video clip will be saved as a new file. The original video clip remains unchanged. OVERWRITE: The original video clip will be deleted. Only the edited video clip will be saved. REVIEW CLIP: Play back the edited video clip belore saving it. 113 English Approximate playback time

End point Portion to be deleted

OVER REVIEW CLIP [EE] ok

T Select the desired option, and press the SET button. + Editing starts. + When editing ends, you are returned to the NORMAL Mode Playback Menu. HINT + You will not be able to ovenwrite the file if the original file is protected. + Ifthe ‘Insufficient memory remaining” message appears, you will need to free some of the memory by deleting files that you do not need to keep. CAUTION Warning concerning the battery pack remaining charge + During the editing of lengthy video clips, the time to process the large amount of data can become quite long. To avoid problems caused by the battery pack becoming depleted in the middle of video clip editing, before starting to edit be sure that a sufficientiy charged battery pack is installed in the camera, or connect the AC adaptor. + Itis recommended that a computer be used to edit long video clips. English 114 HOVSAVId/IVNEHON

PLAYBACK MENU 2 Joining video clips CAUTION + Video clips that were photographed in different modes cannot be joined. À Display the NORMAL Mode Playback Menu (page 44), select _ IM-IEDIMMIDEO. “EDIT VIDEO”, and press the SET button. 2 Select “JOIN” and press the SET button. +_The 8-image playback display for video clips appears. J-SAVEMTOK Fe] DUR 25 ns FD wants

3 Move the orange trame to the video clip you wish to join, and press the SET button. +_ The specified video clip is labeled with a number. + Up to 9 video clips can be CCE selected. Hi FD ons + To cancel a selection and eJ<SAVEMTOK remove the number label from a video clip, select the video clip and press the SET button. 115 English

4 Press the [Ô ; À] button. + A screen appears for you to select either to save the joined video clip as a new (separate) À LT file, or to delete the original video OVERWRIT clips and replace them with the L REVIEWCLIP _] joined video clip. SAVE AS NEW: (He) Gok (en) The joined video clip will be saved as a new file. The original video clips remain unchanged. OVERWRITE: The original video clips will be deleted. Only the joined video clip will be saved. REVIEW CLIP: Play back the joined video clip betore saving it. 5 Select the desired option, and press the SET button. + Editing starts. + When editing ends, you are retumed to the NORMAL Mode Playback Menu. HINT. + Ifthe file size of the video clip after editing exceeds 4 GB, it is not possible to either “SAVE AS NEW” or "OVERWRITE”. + You will not be able to overwrite the file if the original file is protected. If you want it to be erased, you will need to first remove the protection (pages 55 and 104). + Ifthe ‘Insufficient memory remaining” message appears, you will need to free some of the memory by deleting files that you do not need to keep. CAUTION Warning concerning the battery pack remaining charge + During the editing of lengthy video clips, the time to process the large amount of data can become quite long. To avoid problems caused by the battery pack becoming depleted in the middle of video clip editing, before starting to edit be sure that a sufficientiy charged battery pack is installed in the camera, or connect the AC adaptor. + Itis recommended that a computer be used to edit long video clips. English 116 HOVSAVId/IVNEHON

PLAYBACK MENU 2 Printing instructions In addition to using your printer to print out still images captured with your camera, as with conventional film, you can have prints made at shops offering digital print services. Moreover, this camera is DPOF-compatible, so you can use the camera to specify the number of prints, whether or not the date is displayed on the print, and also to request an index print. Display the Printing Instructions Screen À Display the NORMAL Mode Playback Menu (page 44), select “PRINT INSTRUCTIONS”, and press the SET button. ALL IMAGES: The specified printing instructions apply to all the images. EACH IMAGE: The printing instructions are specified for each individual image. INDEX: All the still images are printed as miniature images (thumbnail images), several images on one print. ALL CLEAR: Clear all the printing instructions. This cannot be selected if no printing instructions have been specified for the image.

HINT. Printing a single frame from a video clip + To print with a printer or have the digital print service shop print out a still image from a video clip, you must first save it (extract stil) as a still image (page 76). About the DPOF format + DPOF (Digital Print Order Format) is a print order format. You can connect your camera to a DPOF-compatible printer to produce your prints. You can also setthe printing instructions for the desired images, and then have the requested images printed automatically (page 151). About the finished prints + Rotated images (pages 55 and 106) will be printed in their original orientation. + The quality of the print output wil differ depending on the print service and printer used. Specifying date imprinting and print quantities You can specify printing instructions for each individual image (EACH IMAGE), or apply the printing instructions to all the images (ALL IMAGES). À Display the Printing Instructions Screen (page 117). 2 Select “ALL IMAGES” or “EACH IMAGE". ALL IMAGES: The printing instructions are applied to all the images. EACH IMAGE: The printing instructions are applied only to the image currently displayed.

PLAYBACK MENU 2 3 Press the SET button. + The Date/Copies Print Screen appears or right to display the desired image to print. currently active for the displayed image are shown. You can toggle the SET button to the left or right to confirm the printing instructions for each image. 119 English IF“EACH IMAGE" was selected, toggle the SET button to the left The printing instructions that are HALL IMAGES (Oil. (an :0 cop D core : D ok (DATE (3) Printing instruction:

4 specity whether the date is displayed on the print, and the number of prints. <Specify the number of prints> Dated prints + Toggle the SET button up or Quantity dou ar . cape indication HALL IMAGES | + Display the desired number con of prints. py + Press the SET button. +_The number of prints is set. <Specify dated prints> « + From the screen on whichthe |pga number of prints is set, press the Zoom switch. + Press the SET button. Ca) OK (DATE 5 Press the MENU button. + The printing instructions for the requested print quantities and dated prints are stored. + The display returns to the Printing Instructions Screen. HINT. Can't specify dated prints? + Dated prints are not possible for photos that were captured before the camera's date and time setting was completed. Index print Printing out many small images on one sheet is called an “index print”. This is convenient for use as a list of the images you have captured. English 120 HOVSAVId/IVNEHON

On the Information Screen you can check what the settings were when a file was recorded with your camera. À oisplay the desired file on the camera monitor. 2 Press the MENU button for at least 1 second. The Information Screen appears. Ifthe MENU button is pressed again, the Information Screen is canceled. @ Video clip mode settings @ Image or sound number @ Protect setting © File size © Shooting or recording time © Exposure compensation setting @ Aperture value © Shutter speed © Remaining battery charge @ Date and time of image @ Still image resolution settings @ ISO sensitivity setting 121 English

DISPLAY THE OPTION SETTING

MENU The camera settings are executed via the Option Setting Menu. 1 Turn on the camera, set it to the = NORMAL mode, and press the RECORDING MENT MENU button. PHOTO SCENE SELECT FILTER FLASH Option tab 2 Select an Option tab (1, 2 or 3), and press the SET button. S SELF-TIMER : HJEXIT #OK OPTION MENU 1 © CLOCK SET +_ The Option Setting Menu EE ronene appears. AU STARTUP DISPLAY + Ifyou toggle the SET button to | à OPERATION BEEP the right, the screen to select a setting to change appears. To access a Setting Screen 3 roggle the SET button up or doun to select the item you wish to set, and press the SET button. +_ The Setting Screen for the selected item appears. + To return to the Menu Screen, press the MENU button. English 122 SONILL3S NOILdO

@ CLOCK SET setting (page 38) + Set the camera's clock. @ INFO DISPLAY setting + Specify the information to display on the playback screen. SHOW ALL: Display the capture date and playback time (video clips). DATE & TIME: Display the capture date. COUNTER: Display the playback time when playing back a video clip. OFF: Do not display the capture date or playback time. © STARTUP DISPLAY setting + Select the display that appears on the monitor when the camera is turned on in the recording mode. DATE & TIME: The camera's date and time setting is shown. Xacti: The Xacti logo is shown:

No startup display. @ OPERATION BEEP setting + Settings for the camera's operation sounds, audio guide and volume. TURN ON/OFF: Mute or enable the sounds when the camera is turned on or off. SHUTTER: Select the sound that is produced when the [ ÊJ button is pressed KEY SW: Select the sound that is produced when the SET button, MENU button, etc. are pressed. AUDIO GUID Mute or enable the camera's audio help guide. OPERATION VOL: Adjust the volume of the operation sounds. © POST VIEW setting + Specify the duration that the captured image is shown on the monitor (post-view) after the [ ÊA] button is pressed. © REC FOLDER setting (page 129) @ Remaining battery charge display (page 142) English 124 SONILL3S NOILdO

@ SHORTCUTS setting (page 130) @ NOISE REDUCTION setting + Compared to normal shooting, when the PHOTO NR function is ON, the image processing time after shooting a still image is slightly longer. VIDEO NR: Turn ON/OFF the image noise reduction function during video clip recording. PHOTO NR: Turn ON/OFF the image noise reduction function during still image shooting. +_lfthe photo stabilizer and/ or photo Wide-D range setting is ON, the PHOTO NR setting is automatically turned OFF. In addition, it is turned off during sequential shots shooting. WIND SOUND NR: Turn ON/OFF the wind noise reduction function during video clip/audio recording. © Image quality setting + Set the vividness and sharpness of the images. @ BRIGHTNESS setting + Adjust the brightness of the camera's monitor display. © LANGUAGE setting © Remaining battery charge display (page 142) English 126 SONILL3S NOILdO

@ TV OUTPUT setting (page 132) © POWER SAVE setting (page 36) + Specify the elapsed period of inactivity before the power save mode (to conserve battery power) is activated. @ FILE NO. CONT'D setting (page 137) @ FORMAT (page 139) © RESET SETTINGS + Reset the camera settings to the factory-preset settings. + The following settings do not change with this procedure: Date and time setting Language setting TV system setting © Remaining battery charge display (page 142) English 128 SONILL3S NOILdO

Storage folder setting Create or select a recording folder (a folder in which to store recorded files). À Select“ REC FOLDER”,andpress DIREC FOLDER the SET button. <Create a new folder> + Select “CREATE NEW FOLDER". <Select an existing folder> + Select the desired folder number. 2 Press the SET button. + This completes the create/select folder setting. +_ If you created a new folder, it automatically becomes the selected recording folder. CAUTION When an existing folder cannot be selected or a new one created... + À folder cannot be selected if it was created using a different device, or fit already contains the maximum number of files. 129 English

Shortcut setting Assign functions (operation shortcuts) to the SET button when it is toggled up, down, left or right when the Recording Screen is displayed. À Select "SHORTCUTS", and press the SET button. €: Assign the function when the SET button is toggled up. Q: Assign the function when the SET button is toggled down. Assign the function when the SET button is toggled tothe | [F2 left. Assign the function when the SET button operations SET button is toggled to the right. RECOMMENDED SETTINGS: The most commonly used settings are automatically assigned. 5ok

2. Select the SET button operation to which you wish to assign the

function, and press the SET button. +_ The screen to assign a function to the key appears. OFF: No operation shortcut is assigned to the key. AF LOCK: Lock the focus (page 65). AE LOCK: Lock the exposure setting (page 65). FOCUS: _ Set the focus range (pages 61 and 93). (This operation shortcut can be assigned only to the (°) or () key) FLASH: Set the flash operation (pages 46, 50 and 66). EXP COMPENSATION: Adjust the exposure (page 101). [0 iso: Set the ISO sensitivity (pages 52 and 95). SELF-TIMER: Set the selt-timer (pages 50 and 91) EXPOSURE: Set the exposure value for the exposure setting {pages 54 and 97) [E3] DISP. ON/OFF: Turn the shooting settings display on/off. lv) SEQUENTIAL: Set the image size for single Shots and sequential shots. (F3) PHOTO VIEW: Switch the field of view. English 130 SONILL3S NOILdO

3 Toggle the SET button up or down.

+ Display the function you wish to assign to the key. Press the SET button. The selected function is assigned to the key, and you are returned to the Shortcuts Screen To assign functions to the other keys, repeat steps 2 through 4. Press the MENU button. +_The screen to confirm the shortcut settings appears, and then you are returned to the Option Setting Menu. This completes the shorteuts setting. <To confirm the assigned shortcuts> + On the screen in step 1, press the MENU button, and the screen to confirm the shortcut settings appears. 131 English FISHORTOUTS 8 AFLOCK [EE] ELLS ie) <When “RECOMMENDED SETTINGS" is selected> [SISHORTCUTS

TV output setting Specify the type of image signal that is output from your camera's COMPONENT/AV terminal or HDMI terminal. À select “TV OUTPUT”, and press the SET button.

TV SYSTEM: TV SYSTEM

Set the type of TV signal that is output from the COMPONENT/AV terminal. TV TYPE: Set the TV's aspect ratio. [BIT ouTPUT HDMI: Set the signal that is output from the HDMI terminal. HDMI-CEC: Set the HDMI-CEC function. COMPONENT: Set the signal that is output from the COMPONENT/AV terminal. English 132 SONILL3S NOILdO

2 Select the desired setting, and press the SET button. + The screen to change the parameter for the selected setting appears. <if “TV SYSTEM” is selected> NTSC: Outputs NTSC video signals. PAL: Outputs PAL video signals. <if “TV TYPE" is selected> 4:3: Use this setting when a TV having an aspect ratio of 4:3 is connected. 16:9: Use this setting when a TV having an aspect ratio of 16:9 is connected. <if “HDMI” is selected> AUTO: The output signal is automatically set to match the mode in which the video clip was recorded. 1080p: Choose this setting if the video was recorded in the mode. 720p: Choose this setting if the video clip was recorded in the mode. 1080i: Choose this setting if the video clip was recorded in the mode. 480p: Choose this setting if the video clip was recorded in the mode. + Does not work with 480i connector. <if “HDMI-CEC” is selected> ON: Sets the HDMI-CEC function to “ON”. OFF: Sets the HDMI-CEC function to “OFF”. <if “COMPONENT” is selected> 1080p: Choose this setting if the video was recorded in the mode. (Also, choose this setting if your TV is equipped with a 1080p connector.) 720p: Choose this setting if the video clip was recorded in the mode. (Also, choose this setting if your TV is equipped with a 720p connector.) 1080i: Choose this setting if the video clip was recorded in the mode. (Also, choose this setting if your TV is equipped with a 1080i connector.) 480p: Choose this setting if the video clip was recorded in the mode. (Also, choose this setting if your TV is equipped with a 480p connector.) + Does not work with 480 connector. + Select the setting that matches the mode in which the video clip was recorded. However, your TV may not support the recorded mode, So please refer to the specifications for the TV type indicated in parentheses. 133 English

Toggle the SET button up or down to select the desired parameter. Press the SET button. Press the MENU button. +_ This completes the TV output setting. HINT About the HDMI-CEC function + This is a system control function by which, through an HDMI cable, a control signal is output to electronic devices and the operation of multiple devices is coordinated. + The HDMI-CEC function will operate correctly only when the camera is connected to a SANYO TV that incorporates the HDMI-CEC function. + When the HDMI-CEC function is used, your TV's remote control unit can be used to operate the camera playback; however, it does not work to turn the camera ON. In addition, in the playback mode, the camera's power save function is disabled. + For information concerning connecting and operation, please see your TV instruction manual. {As of May 2008, SANYO TVS that incorcorporate the HDMI-CEC function have not been released.) English 134 SONILL3S NOILdO

Relation between “TV TYPE” setting and TV display The tables below show the video signal that is output when the “TV TYPE" setting is changed. However, note that for some TVs that have an auto-detect function, the output may not conform to the table, or the TV display may not change at all. FVTVPE | TViype lobe | Image file 1obe setting | connected displayed TV display. Still image (4:3) Video clip in SD 43 43 mode Video clip in HD mode 135 English

FIVIVPE" setting TV 1ype 10 be connected Image fe 10 be displayed ‘TV display 16:9 16:9 Still image (43) Video clip in SD mode Video clip in HD mode CAUTION Ifthe TV display is not correct. + Ifthe appearance of the image on the TV monitor is not correct, you can either change the camera's “TV TYPE" setting, or change the screen size setting on your TV. To change the screen size setting on your TV, please refer to the instruction manual for your TV. The aspect ratio of the output still image does not change to 16:97 + The still image output will be 4:3 for images captured in a 4:3 still image mode. English 136 SONILL3S NOILdO

File No. continued setting If a newly formatted card is used, the file name (image number) of the captured image automatically begins from 0001. If the card is subsequently reformatted, or if a different reformatted card is used, the file names again begin from 0001. This is because the file number continued function is set to “OFF”, and consequently it results in more than one card containing images with the same numbers. By setting the file number continued function to “ON”, even if the card is reformatted or the card is replaced with another card, the consecutive numbering of file names continues from the last number recorded by the camera. <File number continued function “OFF”> File name (image number) Card A 0001, 0002... 0012, 0013 Replace card

+ If Card B already has files in it when it replaces Card À, file names are assigned as follows. When the highest file number on Card B (before replacing) is lower than the highest file number on Card A: the file name of the next recorded image continues from last file name recorded on Card A. [Gard A T 0001, 0002... 0012, 0013 ] Replace card

Previously recorded files When the highest file number on Card B (before replacing) is higher than the highest file number on Card A: the file name of the next recorded image continues from last file name recorded on Card B. [Gard A T 0001, 0002... 0012, 0013 ] Replace card

Previously recorded files HINT + Unti the file number continued function is turned “OFF”, consecutive file names are assigned. It is recommended that the file number continued function be returned to “OFF” at the end of each photography session. English 138 SONILL3S NOILdO

Formatting (initializing) A card must be formatted with this camera: + After purchasing, when used for the first time, or + fit was formatted using a personal computer or another digital camera. The card cannot be formatted if the lock switch is set to the LOCK" position Proceed with the format procedure after setting the lock switch to the unlocked position. CAUTION Caution during formatting + Do not turn off the power to the camera or eject the card during formatting. Formatting erases the data + When a card is formatted, all data recorded on the card is erased. Protected data (pages 55 and 104) is also erased, so before formatting a card, any data you want to keep should be copied to your personal computer hard disk or other storage medium. Caution regarding disposing/ransterring the card (recovering data from a reformatted card) + If a card is reformatted or the data is erased from the card using the camera or a computer, the card's control data may be merely modified and the data itself may not be completely erased from the card. + In some cases it may be possible to recover the data from a reformatted card using special software for that purpose. However, if the camera is used to execute a full format, it will be impossible to recover the data even by the use of data recovery software. + fyou are disposing of a card, it is recommended that you physically destroy it. f you are transferring the card to someone else to use, it is recommended that you use the camera’ full format function to reformat the card, or use commercially available software for erasing card data. Managing data is the responsibility of the user. 139 English

MEMORY You can check how many images can be captured and how much recording time is available on the card. For a table showing the maximum number of images and recording time for specific cards, please see “Possible No. of Images/Possible Shooting Time/Possible Recording Time” on page 180. Checking the rem: video recording time ng number of images and À Setthe camera to the playback mode (page 41). +_ The remaining number of images appears in the upper left of the monitor. +_ The remaining video recording time appears in the upper right of the monitor. +_ The remaining number of images and video recording time will differ depending on the resolution and compression settings. DR | Remaining number of images Remaining video recording time

For audio recordings À Setthe camera to the audio Remaining time recording mode (page 86). +_The remaining audio recording time is shown. HINT + When the remaining number of images or the remaining video recording time is “0”, you cannot capture any more images. To capture more images, either install a new card, or save the images to a computer and then delete them (page 79) from the card. + When the remaining number of images or the remaining video recording time is “0”, it may be possible to capture a few more images by selecting a different image quality setting (pages 60, 85 and 89). 141 English

CHECKING THE REMAINING

When using the battery pack, the remaining battery pack charge can be checked on the monitor. Make sure to check this indicator before capturing an image. For an indication of the possible length of time for battery pack operation, see page 179.

Display the Recording Menu or Playback Menu (page 44). +_ The battery pack remaining charge indicator appears in the lower right comer of the monitor. + Due to the battery pack characteristics, when the ambient temperature is low, CÆ may appear early for an incorrect indication of the remaining charge. Also, depending on the conditions of use of the camera or the ambient conditions (temperature, etc.) the indicated remaining charge may change. Therefore, this indication can only be used as a general approximation of the remaining charge. RECORDING MENU1 VIDEO PHOTO SCENE SELECT FILTER FLASH SELF-TIMER IHUEXIT #OK Battery pack remaining.) charge indicator Remaining battery time indication <Recording Screen> English 142 SONILL3S NOILdO

Battery pack remaining Battery remaining charge charge indicator e Approx. full. æ Suficient power for recording and playback. a Power is low. I wi soon be impossible to capture or play 0 back images. IF{his icon flashes when the [(Ê] button or er) L if ] button is pressed, images cannot be captured. Recharge the battery pack +_ The approximate remaining battery time indication appears on the monitor. Please use this as a reference to estimate the remaining recording and/or playback time. HINT + Battery life may differ even among battery packs of the same type. + Depending on the usage of the camera (such as the number of times the flash is used, the use of the monitor, etc.) or the ambient temperature (temperatures below 10 °C [50°F]), the number of images that can be saved on a fully charged battery pack will vary greatiy. + Itis recommended that you prepare an extra battery pack(s) when taking pictures at a wedding or while traveling, for example, so you don't miss capturing images of important moments due to the battery pack power running out. The same is recommended for taking photos in cold environments. (In a ski area, for example, the battery pack can be kept warm in your pocket until ready to use.) 143 Engiish

About image output: The image output destination differs depending on the connection cable. Connection | Image output Recording mode | Playback cable destination | Standby | Recording | mode NTSC: x ": Dedicateg sav | Camera monitor Pa: interface cable NTSC: O = mv PAL: X x ° Dedicated Camera monitor | * o x component — = cable TV [e) x [e] Camera monitor | * o x HDMI cable Tv o x o O: Images are output ‘Images are not output Supplied dedicated S-AV interface cable Not connected" To COMPONENT/ = AV terminal Setthe input to “VIDEO”. White plug: To Audio Input (L) terminal Red plug: To Audio Input (R) terminal Yellow plug: To Video Input terminal

• When connected, the images are not produced normally on the TV monitor. English 144

• When connected, the images are not produced normally on the TV monitor. 145 English

Connect to the 480p/720p/1080i/1080p terminal If your TV has a 480p/720p/1080i/1080p input terminal, you can enjoy the high video quality of component output from your camera. Supplied dedicated component cable White pl 1 Audio Input (L) terminal d plug: T0 Audi Input (R) terminal To COMPONENT/. AV terminal Set the input to “VIDEO”. To 480p/720p/1080i/1080p input terminal NOTE If your TV does not have 480p/720p/1080i/1080p video input capa + The images will not appear on the TV. Camera Menu Screen and TV Menu Screen + The Menu Screen appears only on the TV monitor, so please operate the camera while looking at the TV monitor. Insert and pull out the cable carefully + When connecting the cables, make sure that the cable plugs are correctiy oriented and that they match the shapes of the terminal sockets on the devices. Push the plugs in straight when connecting them. lf undue force is used to connect a cable, it may permanently damage the connector pins in the terminal socket + Do not use excessive force when connecting and disconnecting cables. English 146

To HDMI terminal == Set the input to “ADM ‘To HDMI terminal on the TV To reduce spurious radiation- + Please affix the cores (included) <Camera end> HINT + HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC. 147 English

+ After connecting the camera to the television, switch the TV input to the terminal to which the camera is connected. + When the camera is connected to a TV, no image appears on the camera's monitor. + The playback method is the same as when viewing images on the camera's monitor. Audio playback: see page 88 + The remote control unit can be used for playback (page 72) + The same playback procedure as when playing back with the camera is used to play back audio recordings as well. + Use the TV controls to adjust the playback volume. The camera's controls will not work to adjust the volume. CAUTION Insert and pull out the cable carefully + When connecting the cables, make sure that the cable plugs are correctly oriented and that they match the shapes of the terminal sockets on the devices. Push the plugs in straight when connecting them. If undue force is used to connect a cable, it may permanently damage the connector pins in the terminal socket. + Do not use excessive force when connecting and disconnecting cables. HINT About the display when the “PAL” TV system is selected (page 132) and the supplied S-AV interface cable is used to connect the camera to the

During recording: The image appears on the monitor only; it does not appear on the TV. During playback: The image appears on the TV only: it does not appear on the monitor. English 148

Xacti Library Connect all the devices. + Please make sure that the camera and all devices are turned OFF before proceeding. For detailed information about using Xacti Library, please see the separate Xacti Library Instruction Manual. AC adaptor

To power outlet A ——— Use the USB cable and the Use the cable included with your dedicated USE converter cable camera to connect a TV to the included with your camera to camera. connect the hard disk to the camera. CAUTION Caution when disconnecting cables + When using the Xacti Library, do not disconnect the USB cable. Ifthe USB cable is disconnected while accessing the media, not only may the stored files be damaged, but it may also become necessary to reformat the media, and in doing so, lose al the data. + Be sure to turn off the camera before disconnecting it. By tuming off the camera, you will be able to safely disconnect the drive. 149 English

PRINTING Your camera supports the PictBridge function. By connecting the camera directly to a PictBridge-enabled printer, the camera's monitor can be used to select images and initiate printing (PictBridge printing). À openthe monitor unit to turn on the camera, and turn on the printer. 2 Use the supplied dedicated USB interface cable to connect the camera to the printer. USB CONNECTION Supplied dedicated USB interface cable To USB terminal To USB connector on the printer English 150 H31NIHd Y OL ONILIANNOI

PRINTING 3 Select “PRINTER”, and press the SET button. 4 The PictBridge printing mode is activated. ‘x PictBridge MENU

+_The camera switches to the PRINT ALLINAGES [où DPF PictBridge printing mode, and the PictBridge Menu Screen appears. GY PRINTER SETTINGS KUEXIE = 5 Select the desired type of printing, and press the SET button. PRINT 1 IMAGE: Select the still images you wish to print. PRINT ALL IMAGES: Print all the still images in the card. INDEX: Print all the still images in the card as thumbnail images, many images per print. DPOF: Print images according to the print order settings. PRINTER SETTINGS: Print images according to settings specified by the camera, such as paper size, type, size, layout, printing quality, etc. 151 English

HINT To cancel printing @ During printing, toggle the SET button down. +_The confirmation screen to cancel printing appears. @ Select “CANCEL” and press the SET button. + I'EXIT is selected and the SET button is pressed, printing resumes. About printing all the images + Printing is not possible if there are more than 999 images in the card. + Delete unwanted images before printing. About DPOF printing + DPOF printing is not possible if your printer is not DPOF-compatible. About the printer settings + The printer setting parameters shown on the Printer Settings Screen will differ depending on the printer that is connected. + To use printer values that do not appear on your cameras Printer Settings Screen, select + If function set by the camera is not available in the printer, the camera's printer setting will automatically change to “| CAUTION Insert and pull out the cable carefully + When connecting the cables, make sure that the cable plugs are correctiy oriented and that they match the shapes of the terminal sockets on the devices. Push the plugs in straight when connecting them. If undue force is used to connect a cable, it may permanently damage the connector pins in the terminal socket. + Do not use excessive force when connecting and disconnecting cables. Caution when connecting a printer + Ifthe power to the printer is turned off while it is connected, the camera may not operate correctiy. If the camera does not operate correctiy, disconnect the USB interface cable, turn off the camera, and then reconnect the cable. + During PictBridge printing, the camera's button operation response is slower. + Ifthe camera is powered by the battery pack for printing, make sure that the remaining battery charge is sufficient. English 152 H31NIHd Y OL ONILIANNOI

If you have a question about the camera operation, you might find the answer in this compilation of commonly asked questions. Question Answer Action Why doesntthe | Due to cold Place the camera in power turn on? | temperatures, the | your pocket to warm battery pack it up before using it temporarily lost ts power. Whyis the battery | The ambient Keep the battery pack consumed | temperature is | packin an So quickly even | very low. environment of 10 to after it was fully 40 °C (80 to 104°F). Power | ;echarged? Why doesn't The battery pack | Replace with a new recharging end? | life has expired. | battery pack. If this is not effective, consult your dealer. Why does the The remaining | Use the supplied AC battery pack adaptor, or replace ©. icon power is low. the battery pack with appear? a fully charged one. Why does the Arecorded file is | Nota malfunction. multi-indicator | being saved on | Wait until the multi flash red? the card! indicator turns off. = [Whydoesntthe |Thecamerahas | Nota malfunction. Shooting | flash operate? | determinedthat | Capture the image: the image is bright | the camera will enough and the | determine when the flash is not flash is necessary. necessary. 153 English

Question Answer Action Shooting Are the settings retained even after the camera is turned off? All settings except the self-timer and the exposure compensation are retained even after the camera is turned of. Which resolution setting should 1 use? Select the resolution setting according to the intended use. Appropriate for printing letter-size or larger, and for printing a close-up of part of a photo FT For printing standard photo (photo service) sizes. photos displayed on a web page, or sent as e-mail attachments. English 154 S39IGN34dv

Shooting Question Answer Action What is the — Because shooting difference with the optical between the digital zoom and the optical zoom? 00m uses the optics of a physical lens, you can shoot without losing minute details in the image. The digital 200m, on the other hand, works by magnifying a portion of the image that hits the image sensor and may produce a coarser image. How can | get the distant view into focus? Set the scene select function to the landscape [ei] mode when photographing Or, set the focus range setting to manual focus [ME], and set the distance to. 155 English

Question Answer Action When used in Condition due to | Not a malfunction. cold weather, why | the monitor Spots that appear in does the image | characteristics. | the monitor only seem to leave appear in the traces as it monitor and will not moves? be recorded with the Monitor | Why does the images. displayed image contain some red, blue and green dots, or why are black spots visible? Whyisthe image | The subject was | When capturing an 100 bright? 100 bright. image, devise a way to compensate for a bright subject, or example, by changing the Shooting angle. Whyisthe image | The focus is not | Hold the camera out of focus? locked properly. … | correctiy and slowly Viewing press the [ ©] images button halfway to lock the focus. Then press the [ ©] button all the way to capture the image. Why is a part of the image missing? The image was captured at close range. When capturing an image at close range, compose the image using the monitor. English 156 S39IGN34dv

Question Answer Action Whyis there no | This may happen | Play back images image (f) is when trying to that were recorded shown)? play back images | on a card using this Stored on a card | camera. from a different digital camera. Why is the Ifthe subject Not a malfunction playback image | moves or the This is a distorted? camera is moved | characteristic of the during recording, | CMOS sensor. a distorted image may sometimes occur. Why isntihe Due to the Not a malfunction | magnified image | characteristics of Viewing | clear? the camera, images magnified images appear less clear. Why isn'tihe captured image clear? The image was captured using the digital zoom. Not a malfunction: Can l play back image and sound files that | edited using my computer? We cannot guarantee the accurate playback of files that have been edited using a computer. Why:is there a motor-like sound during video clip playback? The sound of the cameras mechanical action was recorded. Not a malfunction: 157 English

Connecting toaTV Question Answer Action Whyisthereno |Thevolumeon | Adjustihe volume sound? the TVis setto | onthe TV. the minimum. What is the — Normal video difference among the normal video (composite video) output, S-video output and ‘componentHDMI output? (composite video) output: Combines Y (luminance) signal and chrominance Signal and outputs the combined signal. S-video output Outputs the Y signal and chrominance Signal separately. Component/HDMI Signal: Outputs the Y signal, B-Y signal and R-Y signal separately. The picture quality becomes increasingly higher, in order from normal video output, to S-video output, to component output, to HDMI output. Can the dedicated S-AV interface cable and the dedicated component cable be connected at the same time and output the image? You cannot output the image when both cables are connected at the same time. Connect only one of the cables. English 158 S39IGN34dv

message appear? Question Answer Action Why does a There is a Please refer to the Printing | M°SSage appear | problem with the | instruction manual during PictBridge | printer. for your printer. printing? The “Cannot edit | You have Select video clips video clips with | attempted to join | that have the same unlike settings” | video clips having | resolution or frame message different rate. appears. resolutions or frame rates. Whyisanoise | Electromagnetic | Move the AC heard from a waves are emitted | adaptor further away nearby TV or from the AC from the TV or radio radio during adaptor. when recharging the battery battery pack. recharging? Why does the There is no more | Delete unnecessary Mise. | “nsufficient available memory | files, or use a card memory on the card. that has more remaining” memory available. Why does the “Card is protected" message appear? The lock switch on the card is in the locked (protect) position. Move the lock switch to the unlocked position. Why can't the camera be operated? À temporary internal circuitry problem may be the cause. Remove the AC adaptor and the battery pack from the camera, wait a few minutes, then reinstall the battery pack and try again. 159 English

Question Answer Action Misc. À problem such as inability to record or play back occurs. The card contains files that were saved using a device other than this camera. After saving your files to a different medium, format the card. Can Tuse my camera abroad? When the camera is connected to a TV, you can switch the camera's video output to NTSC or PAL. If you have questions about accessories etc, please consult with à dealer near you for advice. Why does the “System error” message appear? À problem has occurred within the camera or card. Check the following items: @® Remove the card and then install it again. @ Remove the battery pack and then install it again. @ Install a different card. 1 “System error still appears after performing the above steps, then take the camera to the dealer for service. English 160 S39IGN34dv

TROUBLESHOOTING Before taking your camera to the repair shop, check the following table for a possible solution to the problem. Camera Problem Cause Action Rae No power. The battery | Recharge the pack is dead. | battery pack, or replace with a new battery pack. Or connect the AC adaptor 27,32 (supplied) The battery | Reinsertthe pack has not … | battery pack, been inserted | making sure to Power correctiy. orient it correctiy. À biinking The battery | Waït forte temperature | pack is too hot. | battery pack to Warning icon is cool down. [A] shown, 34 andthe camera does not turn on. Thecamera |Thepower | Tumonthe turns offby | save function | camera again. 36 itselt. is operating 161 English

Reference Problem Cause Action Page Animageis | Thepoweris | Ifihe power not captured | notturned on. | save function when the was activated, [IQ Jbutton or turn on the Le ] button is camera before pressed. shooting. 36 Ifthe camera was turned off, press the ON/ OFF button to Shooting turn it on. The maximum | Install a new 25 number of card images that [Delete the can be images that are capluredorthe | not necessary. maximum video clip 79 recording time has been reached. English 162 S39IGN34dv

TROUBLESHOOTING Problem Cause Action ES The flash does | The flash off | Setthe flash to notoperate. | mode is automatic flash | 46, 56 selected mode or forced » flash mode. The battery | Recharge the pack is dead. | battery pack, or replace with a fully charged | battery pack. 80,82 Shooting Or connect the AC adaptor supplied) The digital The stillimage | Set the still zoom does not | is set to [M2n. | image to 50, 100 work or lower. The digital Set ihe digital zoom settngis | zoom setting to | 54, 100 setto“OFF”.… | “ON" 163 English

Reference Problem Cause Action en Awaringione | Thebatlery | Recharge the (beep-beep- | packis battery pack, or beep) sounds, | consumed. | replace with a and itis not fully charged possible to battery pack. 80, 82 take a picture Or connect the using the selt- AC adaptor timer. (supplied). Whenzooming | The oplical | Nota in or out, the | zoom has malfunction. 200m moved tothe | Release the 70 [movement | maximum 200m switch, Shooting | stops magnification _ | and push it momentarly.… | position. again. There is noise | The ISO Setthe ISO in the captured | sensitivity Sensitivity to a 52,95 image. setting is too | lower setting high The cameras | Discontinue appears, and | internal shooting, and shooting is not | temperature is | wait forthe a possible. high camera to cool down before using it again. Noplayback | Thecamerais | Setthe camera Monitor | image notsetiothe | totne playback | 44 73 appears. playback mode. mode. English 164 S39IGN34dv

TROUBLESHOOTING ” Reference Problem Cause Action se Theimageis |Theflashwas | Hoidihe 100 dark. blocked bya | camera finger or other | correctly, and 7 object. make sure the flash is not obstructed. The subject | Capturethe was toofar | image in the away. range of 177 operation ofthe flash. Viewing The subject | Usethe orced | 46 66 images was lit from flash mode. " behind. Use ie exposure compensation 101 function. Use the spot light-measuring | 52, 94 mode. Thereis not | Adjustihe ISO enough light. | sensitivity 52,95 setting. 165 English

Reference Problem Cause Action en Theimageis |Theloræed | Selecta too right. |flashmodeis | differentflash | 46,66 selected mode. The subject | Use the was too bright. | exposure “ot compensation function. The ISO Setthe ISO Sensitivity sensitiity to setting is 52,95 incorrect. Theimageis | The subjectis | Capote not in focus. | too close tothe | image with the camera. subject within The focus the settings not | Photographable | 52, 61, Viewing correct range. 94 images Select ne correct focus setting for your neds. Thecamera | Holdihe moved when | camera the [À] correctiy and button was | slowly press pressed. he[ 0] (camera button halfay shake) to lock the 57, 64 Thelocusis | focus. Then notlocked | pressthe[ properÿ. button al ie way to capture the image. Thelensis | Cleanthelens. | dirt. English 166 S39IGN34dv

TROUBLESHOOTING is 100 low. ï Reference Problem Cause Action Pac The colors of | Thisisdueto | Capture the the images | ambient image using 46.66 captured lighting. the forced flash » indoors are not mode. correct. The white Set the white balancesetting | balance setting | 54,96 is incorrect. | correct. Apartoïthe | Thestrapora | Holdihe image is finger was camera missing, blocking the | correctiy, and 7 Viewing lens. make sure the images lens is not obstructed. "Noimage"is | Thereis no file | Play back after shown. in the installed | capturing card. images or _ making audio recordings. During audio | The playback | Adjustihe playback, there | volume setting | playback 48,74, isno sound. | onthe camera | volume 78 167 English

Reference Problem Cause Action en Therisno | The TVoulput | Selectine colorinthe | settingis not | correct TV 128, 132 image. correct output setting. The image is | Boththe Make the distorted. dedicated correct S-AV interface | connection. cable and the dedicated 145 component cable are : connected. cons Noimageor | Thecamerais | Followthe sound. not correctiy | instructions to connected io | make the the TV. connection correctly. PS The TVinputis | Setihe input not set on the TV to correcti. VIDEO" or “HDMP. Thoedgeof |Thisisa Nota the image is | characteristic | malfunction _ cut of. ofthe TV. image [Youcannot |Theprotect | Cancelthe age | editorrotate | modeisset. | protectmode. | 55,104 <diting | an image. English 168 S39IGN34dv

TROUBLESHOOTING remote control sensor. The remote | Replace with a control unit | new battery. battery is consumed The remote | Take care that control unit | the (+) and (-) battery is not | poles are correctly correctly inserted. oriented. Reference Problem Cause Action Page The battery | Correctly Make sure that pack is not insert the the battery charging battery pack in | pack is Charging the charger. | correctly 30 oriented when inserting it in the charger. Theremote | Theremote | Aimtheremote control unit | control unitis | control unit at does notseem | aimed atthe | the camera's to work. V (notatthe | remote control camera's sensor (within remote control | a range of sensor). about 15 degrees left or right horizontally from the remote control sensor) Somethingis _ | Remove or Remote obstructingthe | move the control space between | obstructing 27,28 unit the remote object. control unit and the camera's 169 English

Reference Problem Cause Action Page Theremote | Theremote | Operate the control unit | control unit is | remote control does not seem | too farfromthe | unit from a 10 work. cameras position up to | 27,28 remote control | 7 meters sensor. (22.97f) Remote away. control Theremote | Changethe unit control codes _ | remote control for the remote | code. control unit 2 and camera's remote control sensor are different. The “No card” | No cardis Turn off the message inserted. power and 25 appears. insert a card. The “mage is | You have Set the protect Mise. | Protected” attemptedto | setting for the message delete a file | file to UNLOCK. appears and | thatis 55, 104 the file cannot | protected from be deleted. accidental erasure. English 170 S39IGN34dv

TROUBLESHOOTING Misc. ï Reference Problem Cause Action Page The audio The audio Setthe audio guide does not | guide setting is | quide settingto | 124 sound setto"OFF”. | “ON” The recording capacity is less than that indicated in the section “Possible No. of Images/ Possible Shooting Time/ Possible Recording Time” (page 180). The recording capacity is less than the value specified for the card. Depending on the card, the capacity may be less than the specified value. Please refer to the instructions that accompanied the card. The batiery pack appears to be swollen. Normal change occurring with battery use. Even with normal correct use of the lithium-ion battery, ithas a tendency to swell as the number of charge and discharge cycles adds up andit gradually approaches the end of its service life. Not a safety hazard. If the battery quickly becomes depleted, for example, it has reached the end of its service life. Replace it with a new battery pack. 171 English

Notes regarding the Scene Select feature and filters Scene Select Setting Remarks Sports Focus range: Fixed at [Bi]. ES Exposure: Fixed at [P 1. Portrait Video setting: If set to (6 or A, automatically changes to fiH Focus range: Fixed at [SM]. Face chaser: Fixed at “OFF”. Landscape Exposure: Fixed at [P ]. Video setting: If set to ff or A, automatically changes to Night view portrait | Focus range: Fixed at [SM]. ail Exposure: Fixed at [P ]. Snow & beach Video setting: If set to or KA, changes to Still image setting: When sequential shots is active, Fireworks Focus range: Fixed at (]. Flash: Fixed at [3]. ISO sensitivity: Fixed at AUTO. Photo stabilizer: Fixed at “OFF”. Face chaser: Fixed at “OFF”. Photo wide D-range: Fixed at “OFF”. Exposure: Fixed at [ P]. Video setting: If set to or A, changes to Still image setting: When sequential shots is active, Focus range: Fixed at (&m]. Flash: Fixed at [#1]. Still image NR: Fixed at ‘OFF” Exposure: Fixed at [ P ]. Video setting: If set to or A, changes to Still image setting: When sequential shots is active, changes t ISO sensitivity: Fixed at AUTO.

• In some cases, the shutter speed may decrease to 1/15 sec. English 172 S39IGN34dv

TROUBLESHOOTING Filter Setting Remarks Monochrome Sepia Still image mode: f2u] cannot be selected. About the scene select function and focus range settings + Even if you set the focus range t scene select function is set to any 173 English scene select function changes to BTD when the focus range is set to or [NF], it changes to [Bi] when the ing other than

SPECIFICATIONS Camera Recorded image file format

mages: JPEG format (DCF, DPOF, Exif 2.2 compliant) Note: Designed mainly by the Japan Electronics and Information Technology Industries Association (JEITA), DCF (Design rule for Camera File system) is standard for digital still camera image files to provide interoperability between digital photography devices for the images stored on removable memory cards. However, it is not guaranteed that all devices will support the DCF standard. leo clips: Conforms to ISO-standard MPEG-4 AVC/H.264* Audio: MPEG-4 audio (AAC compression) 48 kHz sampling rate, 16-bit stereo format Data storage media SD Memory Card (accepts a maximum 32 GB SDHC Memory Card) Image sensor/ camera effective number of pixels 1/2.5-inch (1.0 cm) CMOS sensor Still images: Approx. 8 million pixels Videos (HD mode): Approx. 5.31 million pixels Videos (SD mode): Approx. 2 million pixels

• Video clip files recorded with models VPC-CA65 and VPC-CG65 are in the same H.264 format as this model. However, such files cannot be played back, since they are not compatible due to differences such as the data compression method. English 174 S39IGN34dv

SPECIFICATIONS Still image FA: 4000 x 3000 pixels (approx. 12 million pixels) Shooting mode 3264 x 2448 pixels (approx. 8 million pixels, (recording low compression) resolution) 3264 x 2448 pixels (approx. 8 million pixels, normal compression) : 3264 x 1840 pixels (approx. 6 million pixels, 16:9 aspect ratio) : 1920 x 1080 pixels (approx. 2 million pixels, 16:9 aspect ratio) 1600 x 1200 pixels (approx. 2 milion pixels) 1280 x 720 pixels (approx. 900,000 pixels, 16:9 aspect ratio) : 640 x 480 pixels (approx. 300,000 pixels) 3264 x 2448 pixels (approx. 8 million pixels, sequential Shots) 2288 x 1712 pixels (approx. 4 million pixels, sequential shots) Video clip HD mode recording mode 1920 x 1080 pixels, 60 fps (60p) {recording 1920 x 1080 pixels, 60 field/s (6Oi) resolution) 1920 x 1080 pixels, 30 fps (30p) 1280 x 720 pixels, 80 fps (30p) SD mode 640 x 480 pixels, 30 fps (30p) 448 x 336 pixels, 240 fps (High-speed recording) 192 x 108 pixels, 600 fps (High-speed recording) +_The 60 fps frame rate of this camera is 59.94 fps, the 30 fps frame rate is 29.97 fps, the 240 fps frame rate is 239.76 fps and the 600 fps frame rate is 599.4 fps. White balance Fulauto TTL, manual setting possible Lens Focal length: {= 5.95 mm to 59,5 mm, Optical 10* 200m Open: F = 2.0 (Wide) to 2.8 (Tele) 9 groups, 12 elements (including four with eight aspheric surfaces) Galvanometer iris Internal ND filter 35 mm film camera conversion Still image shooting: 35.7 mm to 357 mm (10x) Video clip recording: 41.7 mm to 666.9 mm (16x Advanced Zoom) 175 English

Exposure control type Programmable AE/Shutter speed priority AE/ Aperture priority AE/Manual exposure control Exposure compensation available from the Shooting Setting Screen (0 «1.8 EV in 0.3 EV steps) Light-measuring mode Mult-section measuring, center-weighted measuring, spot measuring Range Normal mode: 50 cm (19.69 in.) to infinity Super macro mode: 11 cm (0.39 in.) to 1 m (3.28 ft.) (Wide end only) Digital zoom For shooting: 1x to approx. 10x For playback: 1x to 62.5x (varies with resolution) Shutter speed Stil image shooting mode: 1/2 to 171,000 sec. {Maximum approx. 4 seconds when scene select function set to lamp E&1]) (During flash: 1/30 to 1/1,000 sec.) Sequential shots mode: 1/15 to 1/1,000 sec. (no flash) Video clip recording mode: 1/30 to 1/10,000 sec. {1/15 sec. max.: when scene select function is set to the lamp high sensitivity mode) Sensitivity Stil image shooting (standard output Sensitivity") video clip recording mode: Auto (video clip recording: ISO 50 to 800; still image shooting: ISO 50 to 200)/1SO 50, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, and ISO 3200 (switchable from Shooting Setting Screen) + Sensitivity measured in compliance with the 1S0 standard (ISO 12232:2006). + Maximum ISO sensitivity up to 1600 equivalent when Scene Select function is set to CH]. + Recorded at ISO 1600 in the video clip recording mode, even if ISO sensitivity setting is B200. English 176 S39IQN3ddv

SPECIFICATIONS Minimum subject illumination 6 lux (1/30 sec in the scene select AUTO mode) 2 lux (1/15 sec in the HIGH SENSITIVITY or lamp mode) Image stabilizer Video: Electronic Still image: Multi-calculation electronic Monitor 8.0" (7.6 cm) low-temperature polysilicon TFT color wide liquid crystal (transmissive), approx. 230,000 pixels Flash working GN = 4.0 range Approx. 50 cm (19.69 in.) to 4 m (13.12 ft.) (Wide) Approx. 80 cm (31.50 in.) to 2.9 m (9.51 ft.) (Tele) Flash modes Auto-flash, forced flash, flash off Focus TTL:type AF (still image shooting mode: 9-point range finder/spot focus; video clip recording mode: GContinuous focus), manual focus (22 steps) Self-timer Approx. 2-second delay, 10-second delay Ambient Temperature | O to 40 °C (32 to 104°F) (operation) environment 0 to 35 °C (82 to 95°F) (when charging) 20 to 60 °C (-4 to 140°F) (storage) Humidity 30 to 90% (operating, no condensation) 10 to 90% (storage, no condensation) Power supply Battery pack | Li-ion battery pack (DB-L50) xt (supplied) AC adaptor | VAR-G10 (supplied) Power consumption 4.3 W (When using the Lion battery during recording) Dimensions (excluding protrusions) | 53.3 (W) x 105.0 (D) x 57.3 (H) mm

2.10 (W) x 4.13 (D) x 2.26 (H) in.

{Maximum dimensions) Volumetric capacity: Approx. 253 cc: Weight Approx. 299 g (10.5 oz.) (camera only [without battery pack and card]) Approx. 342 g (12.1 oz.) (including battery pack and card) 177 English

Camera connectors ICOMPONENT/ AV] (480p/ 1080i/720p/ 1080p output) terminal Regrouped jack Audio | 265 mVrms (-9 dBs), 12 KQ or less, stereo output Video | 1.0 Vp-p, 75 © unbalanced, sync negative, output … | composite video NTSC color TV system/PAL color TV system {Switchable from the Option Screen) S-video | Y signal: 1.0 Vp-p, 75 Q, unbalanced, sync output negative C signal: 0.286 Vp-p, 75 Q, unbalanced NTSC color TV system/PAL color TV system {Switchable from the Option Setting Menu) For 480p/1080i/720p/1080p video output Y signal: 1.0 Vp-p/75 Q unbalanced, tri-level sync Pb and Pr signals: 0.7 Vp-p/75 Q unbalanced [USB] terminal USB 2.0 High Speed PC camera: USB video class THDMI] terminal Video output Total number of scan lines (effective number of scan lines): 750p (720p)/1125i (1080i)/525p (480p)/1125p (1080p) Audio output: L-PCM 48 kHz sampling DCIN (external DC power input) terminal DC 5 V (for exclusive use with the supplied AC adaptor IVAR-G10]) English 178 S39IGN34dv

SPECIFICATIONS Battery life Shooting | Stilimage Approx. 420 images: shooting mode CIPA standard (when a SanDisk 2 GB SD Memory Card is used) Video chip Approx. 150 minutes: recording mode Recorded in FH] mode Playback Approx. 380 minutes: Monitor on, continuous playback + Until battery pack runs out when using a fully charged battery pack at a 25 °C (77°F) ambient temperature. + The operation time may vary depending on the conditions of the battery pack and the conditions of use. Especially when used at temperatures below 10 °C (50°F), the battery pack operation time is significantly reduced. 179 English

Possible No. of Images/Possible Shooting Time/ Possible Recording Time Shootin, SD Memory Card recorang Feting | 408 8 “ 16 GB mode Tu) 1,000 images] 2,000 images] 4,020 images 1,000 images] 2,000 images] 4,020 images ES 1,470 images] 2,960 images] 5,940 images Cu] 1,960 images] 3,950 images] 7,920 images Stilimage | 5,390 images | 10,800 images] 21,700 images mode Qu] 5,640 images] 11,300 images] 22,700 images I | 10300 images] 20,700 images] 41,600 images Di | 24,800 images] 49,800 images] 99,800 images 1,470 images] 2,960 images] 5,940 images 2,950 images] _ 5,920 images] 11,800 images 21 min. 50 sec.| 43 min. 50 sec.| 1 hr. 28 min. 32 min. 40 sec. The 5 min] 2hr 11 min. EM] | 43 min. 20sec.[ 1h27 min| 2hr 54 min. op 57 min. 30 sec.[ 1hr50min| Shr. 50 min. 2hr.45 min.] 5 hr 32 min The À hr 4 min. 2hr. 9 min.| 4 hr. 19 min. À hr 4 min. 2hr. 9 min.| 4 hr. 19 min. Audio recording | — 64 hr. 50 min. 130 hr. 261 hr. mode + Ifthe continuous recording time of a voice memo exceeds about 13 hours, the recorded file is saved once, and then recording continues in a new file. In the video clip recording mode, when the size of the file being recorded exceeds 4 GB, the recorded file is saved once, and then recording continues in a new file. (These 4 GB segments are automatically created. The recording session continues until you stop recording, but video clip or voice memo recording is temporarily interrupted while the file is being saved.) + The above values apply when an SD Memory Card by SanDisk is used. English 180 S39IGN34dv

SPECIFICATIONS + Even with cards of he same capacity, the amount of data that can actually be stored may differ depending on the card brand, etc. + The continuous shooting time for each video clip will differ depending, for example, on the card capacity, environmental conditions (temperature and shooting conditions, etc.) Remote control unit Part number BRC-C3 Power supply Lithium battery (CR2025) Dimensions 35 (W) x 6.5 (D) x 56.6 (H) mm

1.88 (W) x 0.26 (D) x 2.23 (H) in

Weight Approx. 11 g (0.4 oz.) (including battery) 181 English

Concerning the multi-indicator The camera's multi-indicator will light, flash, or be off, depending on the different camera operations. Color Mult-indicator status Camera status Green Lit Connected to a computer or printer Flashing Power save mode active Orange Lit Connected to a Red Lit Charging Slow Battery charge error or rise in internal temperature Flashing Fast During self- timer photography Very fast Accessing memory Multi-indicator English 182 S39IGN34dv

SPECIFICATIONS Supplied AC adaptor Part number VAR-G10 Power source AC 100 V to 240 V, 50/60 Hz Rated output DC5V.20A Ambient Temperature © to 40 “C (32 to 104 °F) (operation), 20 to 60 °C (-4 to 140 °F) (storage) environment Humidity. 20 to 80% (no condensation) Dimensions

48.0 (W) x 77.0 (D) x 28.5 (H) mm

1:89 (W) x 3.03 (D) x 1.12 (H) in. Weight (without power cord) Approx. 115 g (4.1 02) pe Fe LES AC 125 V,7A Power cor rated value LVPC-FHIEX | AC 250 V, 2.5 A VPC-FH1GX | Differs depending on the country + When using the supplied AC adaptor abroad, the power cord may need to be replaced in accordance with local requirements. Please contact your local dealer foi r details. Supplied Li-ion battery pack Model number DB-L50 Voltage 37V Capacity 1,900 mAh (Typ.) Ambient Temperature | O to 40 °C (32 to 104 °F) (during use) environment 10 to 80 °C (14 to 86 °F) (storage) Humidity. 10 to 90% (no condensation) Dimensions 53.1 (W) x 35.3 (D) x 11.4 (H) mm

Others Mac OS is a trademark of Apple Inc. registered in the U.S. and other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the USA and other countries. Intel and Pentium are registered trademarks of Intel Corporation (USA). In this manual, the Microsoft® Windows® 2000 operating system, Microsoft® Windows® XP operating system, and Microsoft® Windows® Vista operating system are collectively referred to as “Windows”. Software Red Eye by FotoNationl M 2003-2005 is a trademark of FotoNation® Inc. ArcSolt is a registered trademark of ArcSoft, Inc. Red Eye software® 2003-2005 FotoNation In Camera Red Eye - covered by U.S. Patent No. 6,407,777. Other patents Pending. SDHC is a trademark S> HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC. All other company and product names are registered trademarks or trademarks of their respective owners. CAUTION + Itis forbidden to copy this manual, whole or in part, without prior written permission. + Allimages and illustrations given in this manual are for explanation purposes and may differ slightly from that of the actual product. Also, actual specifications are subject to change without prior notice and therefore may differ from the contents of this manual English 184 S39IQN3ddv

SPECIFICATIONS Before capturing those important shots, be sure to first take a test shot to comfirm that your camera is set up and ready to go + Sanyo Electric shall not be held responsible for any problems resulting from the use of this camera. + Sanyo Electric declines all responsibility for damages due to improper use of the camera, failure to adhere to the instructions given in this manual, or repairs or changes done by those other than a technician authorized by the manufacturer. Sanyo Electric shall not be held responsible for any damage caused by optional devices or consumable items used with the camera other than those supplied with the camera or those specified by Sanyo Electric. As a precaution against losing data in case of a problem with your hard disk that prevents you from accessing your saved files, its a good practice to regularly make backup copies, on a DVD for example, of the files in the hard disk you are using for the Xacti Library. Sanyo Electric shall not be held responsible for loss of files/data due to failure of your hard disk Sanyo Electric shall not be held responsible for any losses or loss of revenue resulting from the loss of data caused by the malfunction, or the repairing of a malfunction, of the camera. + The images captured with this camera will differ in quality from pictures taken with a standard film camera. 185 English

Taking great pictures in difficult surroundings is easier than you might think. By keeping a few points in mind and choosing the correct settings, you can create photos that you'll be proud to display and share. If images are blurred even when the autofocus is used Your camera employs an autofocus function. When you snap a picture using the autofocus, the camera automatically adjusts the settings so that the image will be in focus. If you are getting blurred images even when using the autofocus, one or more of the following might be the reason. M How the autofocus works The autofocus is activated when the [ f ] button is gently pressed halfway. Press the [ A ] button light, and the target mark will appear on the monitor to indicate that the autofocus has been activated. Next, continue to gently press the [ J ] button all the way to snap the picture. This o-step method is the way to ensure that your photos are perfecily focused. M Reasons for unfocused images @ The [ A] button was pressed all the way in one step. @ After the image was focused, the subject moved. +_ Even if camera focuses the subject once, if the distance between the camera and the subject is changed, the subject may become out of focus. @ The focus setting is not set for the correct distance. +_ If you shoot a close-up subject with the camera set to the normal focus mode, or if you shoot a subject at normal distance with the camera set to the super macro (close-up) mode (pages 52, 61 and 93), the image will not be in focus. M Preventing blurred images @ Confirm that the camera is set to the correct focus mode for your subject @ Hold the camera correctiy, and press the [ @ ] button halfway. @ Wait for the target mark to appear in the monitor, and holding the camera steady, gently continue to press the [ (ÊY ] button all the way down. Following these steps for a gentle but firm pressing of the [ @ ] button will ensure that you get beautifully focused photos. English 186 S39IQN3ddv

Photographing a moving subject Situation: You would like to snap an action shot of a moving child or pet. The autofocus is activated, but because the subject is moving, the image may be blurred. In particular, when the distance between the camera and the subject is changing, it is difficult to lock the focus on the subject. Here are some hints for successfully capturing images of moving subjects. M Reasons for unfocused images When the [ 3 ] button is gently pressed halfway, the cameras autofocus works by determining the distance between the camera and the subject. Once the subject is in focus, if it then moves before the picture is snapped, the image may be out of focus. This often happens when you once lock the focus on a subject and then wait for the right moment to snap the picture. And, conversely, a blurred image may result if you press the [ © ] button all the way in one step in an attempt to quickly capture an action scene, thus failing to activate the autofocus in time. M Preventing blurred images (How to use the manual focus [page 93]) In addition to the autofocus, a manual focus mode is also incorporated in your camera. In the autofocus mode, the distance between the camera and the subject is automatically determined when you press the [ [ÊX ] button halfway. In contrast to this, with the manual focus mode, you manual set the focus by specifying the correct distance between the camera and the subject before taking the picture. 1 How to photograph a moving subject © Set the camera's focus mode to the manual focus. Set the focus distance to the correct distance between the camera and the subject @ When the subject is at the set focus distance, gently press the [ ÊJ button all the way down. <Advantage of using the manual focus> + Images can be quickly captured without waiting for the autofocus to activate. + Because you are presetting the focus distance, the focus can be more accurate. <Using the manual focus effectively> + When photographing a moving subject, press the [ A ] button just before the subject reaches the focus distance, and the shutter will be released when the subject is at the correct distance. + Use manual focus to avoid incorrect focused images when there is an object between the camera and the subject you wish to focus on. 187 English

Shooting portraits (portrait mode (GI) Points: « Choose a background that doesn't detract from your subject. + Move in close to your subject Pay attention to lighting and how it affects your subject. NOTE + Ifthe background is distracting, it will not show your subject to his best advantage. Move in closer to your subject or zoom in so that the background does not compete with the subject + In portrait photography your subject is clearly the central figure, so try techniques that allow the subject to stand out. + If light is coming from behind your subject (backlt), his face will appear dark. You can get a better picture by using the flash, for example, or changing the exposure compensation setting. Photographing moving subjects (sports mode Points: + Match the camera's movement with that of the subject. + Set the zoom to ihe Wide end (wide-angle). + Don't be too hesitant to press the [ LB ] button, or you'll miss the action. NOTE + Tips to not missing those great action shots: Make sure you're holding the camera correctly. Keep the subject in the lens at all times, moving the camera with him while waiting for the right shot, Move your whole body-not just your arms-with the camera while shooting. + Blurred images are more likely when the zoom is set to the Tele end than the Wide end. Set the zoom as close as possible to the Wide end. + Learn to press the [ IA ] button quickly yet smoothly the instant your photo chance occurs. English 188 S39IQN3ddv

Night photography (night view portrait mode Points: + Avoid camera shake. + Increase the ISO sensitivity. NOTE + Camera shutter speed during night photography is considerable slower, so there is a much greater chance that your photographed images will be blurry. Stabilize the camera when shooting. + You can photograph your subject with the night scene in the background by using the flash. Be careful not to shoot too close to the subject, however, or your subjects face will appear too bright. + After the flash operates, keep the camera and the subjects motionless for about 2 seconds. Photographing scenery (landscape mode [æi]) Points: + Shoot using a high resolution. + For zoom photography, use the optical zoom. + Pay attention to picture composition NOTE + When shooting with a wide-angle setting, or if you intend to enlarge the photo, the higher the resolution, the better. + To zoom in on distant scenery, its better to use the optical zoom. Using the digital zoom produces a coarser image. Hold the camera securely, keeping your elbows close to your body and making sure the camera is stable. Taking care to stabilize the camera will increase the likelihood of getting a clear photo. + Don't forget to pay attention to picture composition; note perspective and be aware of how the placement of objects affects the scene. 189 English
