Product Type	Disk Array (Storage Enclosure)
Model	4U60
Form Factor	4U Rackmount
Drive Bays	60 x 3.5" or 2.5" SAS/SATA
Dimensions (W x H x D)	17.5 x 6.9 x 32 inches (44.5 x 17.5 x 81.3 cm)
Weight (Unloaded)	Approx. 30 kg (66 lbs)
Power Supply	Dual hot-swap 2000W (2+2 redundancy)
Cooling	Hot-swappable dual fan modules
Backplane	4x 12Gb/s SAS3 expander
Host Interface	Mini-SAS HD (SFF-8644) per IOM
Management	Web GUI, CLI, SNMP
Drive Support	Up to 14TB HDD or 30TB SSD per bay
Redundancy	Power, cooling, expander modules
Hot-Swap Support	Drives, power supplies, fans
Cleaning	Compressed air for dust; avoid liquids
Safety Precautions	Use ESD wrist strap; keep area clean
Spare Parts	Drive carriers, PSU, fan modules, IOM
Regulatory	CE, FCC, RoHS
Operating Temperature	10°C to 35°C (50°F to 95°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)

Frequently Asked Questions - 4U60 WESTERN DIGITAL

What is the maximum capacity of the WD 4U60?

The 4U60 supports up to 60 drives. With current 22TB HDDs, total capacity can exceed 1.3 PB raw. With SSDs, capacity varies.

Is the 4U60 compatible with any RAID controller?

It works with standard SAS controllers like LSI/Broadcom 9300/9400 series and HPE Smart Array. Check your controller’s expander support.

How do I install drives in the 4U60?

Slide the drive sled into an empty bay until it clicks. Use hot-swap procedures: do not touch circuitry, and wait for indicator to stabilize.

What type of drives does the 4U60 support?

It supports 3.5-inch and 2.5-inch SAS or SATA drives, both HDD and SSD. Use enterprise-grade drives for best reliability.

How do I manage the 4U60 enclosure?

Access via the web interface using the default IP (see manual) or use CLI via SSH. View health, fan speeds, temperature, and drive status.

Can the 4U60 be cascaded with other enclosures?

Yes, using the SAS expansion ports. You can daisy-chain multiple enclosures to a single controller, up to 240 drives (4 enclosures).

What is the power consumption of the 4U60?

Idle consumption is around 200W with few drives. Full load with 60 HDDs can exceed 1200W. Use redundant 2000W PSUs to handle peaks.

How do I replace a failed power supply?

Press the latch and pull the PSU out while the other remains live. Insert the new unit until it clicks. No tools required.

What are the cooling requirements?

Ensure front and rear airflow clearance (at least 6 inches). The enclosure uses front-to-back cooling. Ambient temperature should be 10-35°C.

Does the 4U60 come with drive sleds?

It includes 60 empty drive sleds. If you need spare sleds, order part number WD-SLED-4U60.

USER MANUAL 4U60 WESTERN DIGITAL

4U60 Storage Enclosure

Features

• 60 integrated Ultrastar® drive modules
  — Available with 512e or 4Kn sector size (by part number)
• Host connectivity 2 x SAS QSFP+ receptacles per IO Module; optional connectivity cables are available
  — QSFP+ to HD mini SAS cables for host
  — QSFP+ to QSFP+ cables for daisy-chaining
  • Hot Swappable: two power supplies (with integrated fans), drive modules, and IO modules
• Fully compliant with SAS 3.0 specification for operation up to 12Gbps
• Cable management arm simplifies maintenance of hot-swappable CRUs
  • SCSI Enclosure Services (SES-3)
  • Microsoft Certified for Windows Server 2012 & Windows Server 2012 R2
• 5-year limited warranty on Ultrastar HDD modules, 3-year limited warranty on all other components

Up to 4 storage enclosures supported for daisy-chaining

The HGST 4U60 Storage Enclosure is a high-density, scalable, and cost-effective design, using 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure. It offers 2x2x4-lane SAS 12GB/s performance, high availability (HA), and hot-swappable components. The design is targeted towards data centers that need a dense solution with HA capabilities, while maintaining a low power profile.

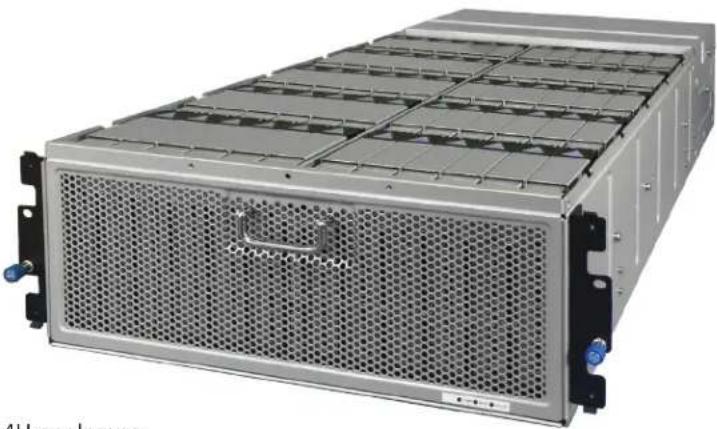

Exterior view of a server rack unit with hexagonal ventilation grilles and cooling fins (no visible text or symbols)

4U enclosure
60 Ultrastar drive modules
Available in 3 capacities ^1 : 480TB, 360TB and 240TB

Specifications

Capacity / Physical Size

Capacity1 Up to 480TB
Height 174.8 mm (6.88 in.) - 4 Rack Units
Width 424 mm (16.69 in.)
Depth 983 mm (38.7 in.) - including cable management
Weight 480TB	89.81 kg (198 lbs.) - fully configured with 60 helium HDDs
	360TB / 240TB 93.71 kg (207.6 lbs) - fully configured with 60 air HDDs

Power and Cooling: Operating

Two 1650W PSUs, hot-swap and redundant
200-240VAC auto-ranging, 47Hz-63Hz input (high line power only)
N+1 redundant fans (fans integrated in PSU)
Environmental	OPERATING NON-OPERATING
Temperature range 5° to 35°C -30° to 60°C
Humidity 8% to 80% (non-condensing)	8% to 80% (non-condensing)
Shock 3.5g 6ms Pulse vertical shock	8g 6ms Trapezoidal
Vibration Random 0.25 Grms, 5-10Hz	Random 0.6 Grms 10-300Hz
	0.05 g sine wave sweep, 10-300Hz
Acoustics	<7.5dB LwA @ 23°C

One MB is equal to one million bytes, one GB is equal to one billion bytes and one TS equals 1.000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the hard drives, the operating system and other factors.

4U60 Storage Enclosure

Available Products

4U60 Storage Enclosure [2x2x4 SAS 12Gb/s]

Part Number Capacity Sector Size Description

1ES0031 480TB 512e			SE (Secure Erase) - Includes 60 Ultrastar He^8 8TB HDD Modules
1ES0034 480TB 512e			ISE (Instant Secure Erase) - Includes 60 Ultrastar He^3 8TB HDD Modules
1ES0063 480TB 512e			TCG (Trusted Computing Group) - Includes 60 Ultrastar He^8 8TB HDD Modules
1ES0033 480TB 4Kn			SE (Secure Erase) - Includes 60 Ultrastar He^8 8TB HDD Modules
1ES0035 480TB 4Kn			ISE (Instant Secure Erase) - Includes 60 Ultrastar He^3 8TB HDD Modules
1ES0058 360TB 512e SE (Secure Erase) - Includes 60 Ultrastar 7K6000 6TB HDD Modules
1ES0059	360TB	512e	ISE (Instant Secure Erase) - Includes 60 Ultrastar 7K6000 6TB HDD Modules
1ES0068 360TB 512e TCG (Trusted Computing Group) - Includes 60 Ultrastar 7K6000 6TB Modules
1ES0060 360TB 4Kn SE (Secure Erase) - Includes 60 Ultrastar 7K6000 6TB HDD Modules
1ES0061 360TB 4Kn ISE (Instant Secure Erase) - Includes 60 Ultrastar 7K6000 6TB HDD Modules
1ES0054 240TB 512e SE (Secure Erase) - Includes 60 Ultrastar 7K6000 4TB HDD Modules
1ES0055	240TB	512e	ISE (Instant Secure Erase) - Includes 60 Ultrastar 7K6000 4TB HDD Modules
1ES0067 240TB 512e TCG (Trusted Computing Group) - Includes 60 Ultrastar 7K6000 4TB Modules
1ES0056 240TB 4Kn SE (Secure Erase) - Includes 60 Ultrastar 7K6000 4TB HDD Modules
1ES0057 240TB 4Kn ISE (Instant Secure Erase) - Includes 60 Ultrastar 7K6000 4TB HDD Modules

Cables

Part Number Description

1EX0085 IO Cable, HD Mini-SAS to QSFP+, 2m

1EX0094 Expansion Cable, QSFP+ to QSFP+, 2m

Contact your HGST Sales representative for information on how to order.
