Riga - Kitchen sink Roca - Free user manual and instructions

Product Type	Kitchen Sink
Brand	Roca
Model	Riga
Material	Stainless Steel
Finish	Satin
Installation Type	Drop-in / Undermount
Number of Bowls	1
Overall Dimensions (L x W x D)	780 x 500 x 190 mm
Cutout Dimensions (L x W)	760 x 480 mm
Depth	190 mm
Drain Size	3.5 inches / 90 mm
Weight	8 kg
Included Accessories	Drain kit, mounting brackets
Warranty	2 years
Cleaning Instructions	Use mild detergent and soft cloth; avoid abrasive cleaners
Care Instructions	Rinse after use, dry to prevent water spots
Installation Requirements	Minimum cabinet width 600 mm
Compatibility (Faucet)	Single-hole or deck-mounted faucet

Frequently Asked Questions - Riga Roca

What is the Roca Riga kitchen sink made of?

The sink is made of stainless steel with a satin finish, providing durability and resistance to rust and stains.

What are the dimensions of the Roca Riga sink?

The overall dimensions are 780 x 500 x 190 mm (length x width x depth). The cutout size is 760 x 480 mm.

Can I install the Riga sink as an undermount?

Yes, the Riga sink is designed for both drop-in and undermount installation. Check your countertop material for compatibility.

Does the sink come with a drain assembly?

Yes, the package includes a drain kit and mounting brackets. The drain size is 3.5 inches (90 mm).

How do I clean the Roca Riga sink?

Use a mild detergent and a soft cloth. Avoid abrasive cleaners or scouring pads to prevent scratching the surface.

Is the Riga sink resistant to heat?

Stainless steel is heat resistant, but it is recommended to avoid placing hot pans directly in the sink to prevent thermal shock.

What is the warranty for this sink?

Roca offers a 2-year warranty against manufacturing defects. Retain your proof of purchase.

Can I use a garbage disposal with the Riga sink?

Yes, the sink is compatible with standard garbage disposals. Ensure the disposal model fits the 3.5-inch drain opening.

Does the sink have soundproofing pads?

The Riga model includes sound-deadening pads on the underside to reduce noise from running water and dishes.

How do I remove water spots from the stainless steel?

Wipe the sink dry after each use. For existing spots, use a stainless steel cleaner or a vinegar-water solution, then rinse and dry.

USER MANUAL Riga Roca

Line drawing of a square sink with a circular drain and a small outlet (no text or symbols)

!

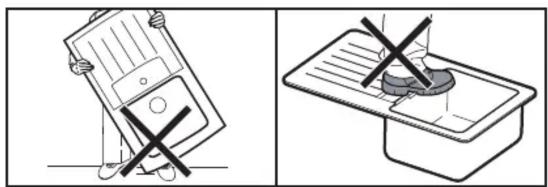

Two technical diagrams showing a device being stopped and placed on a tray with a circular object, both marked with X symbols (no text or labels present)

Simple line drawing of a container with an upward arrow inside (no text or symbols)

[mm]

	A880150	A880140
A	490	390
B	370	370
C	200	200

1

	A880150	A880140
X	370	370
Y	490	390

2

Diagram of a square container with internal flow arrows, placed on a flat surface (no text or symbols)

3

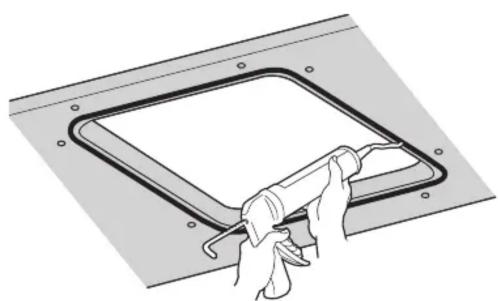

Diagram showing a hand holding a tool interacting with a square frame component (no text or symbols present)

4

Illustration of a hand using a tool to clean or install a square frame (no text or symbols visible)

5

Diagram of a square container with internal flow arrows, placed on a flat surface (no text or symbols)

6

Simple diagram of a downward arrow inside a rectangular box (no text or symbols)

[mm]

	A880150	A880140
A	490	390
B	370	370
C	200	200

1

	A880150	A880140
X	410	410
Y	530	430

2

Mechanical assembly diagram showing a lever mechanism with bidirectional arrows indicating movement (no text or symbols present)

3

Illustration of a hand holding a tool over a tray with paper (no text or symbols)

4

Simple line drawing of a square container with two downward arrows indicating flow or movement (no text or symbols)

5

MANTENIMIENTO

For daily cleaning, use any non-abrasive commercial product. For stubborn stains, use a sponge or soft brush moistened. Afterwards, rinse the sink with water and wipe it with a cloth.

Regularly, it is recommended that you deep clean your sink every now and then. To do this, fill the sink with hot water to a height of approximately 2 cm, add 2-3 teaspoons of dishwashing detergent or one dishwashing detergent tab. Once it has been dissolved properly, clean the sink leaving it to work at least 2 hours. Rinse the sink with water and dry with a cloth.

To avoid lime scale stains, after each use clean the sink rinsing with water and wipe it with a dry cloth.

Scratches can be removed rubbing lightly with a wet melamine foam sponge (magic sponge). Do not use products like abrasive cleaning creams or powders, concentrated caustic soda, formic acid or anything highly corrosive, including solvents.

MANUTENÇÃO
