Oslo - Kitchen sink Roca - Free user manual and instructions

Product Type	Kitchen sink
Brand	Roca
Model	Oslo
Material	Stainless steel (AISI 304)
Shape	Rectangular
Number of Bowls	1 (single bowl)
Installation Type	Top-mount (drop-in)
Overall Dimensions (WxD)	780 x 440 mm
Bowl Dimensions (WxD)	680 x 380 mm
Depth	190 mm
Cut-out Size (WxD)	750 x 410 mm
Weight	8 kg
Finish	Brushed satin
Included Accessories	Drain kit, basket strainer, mounting clips
Warranty	2 years
Standards	EN 13310
Maintenance	Clean with mild detergent and soft cloth; avoid abrasive cleaners
Color	Silver

Frequently Asked Questions - Oslo Roca

What tools are needed for installation?

You will need a jigsaw or hole saw for the countertop cut-out, a screwdriver, adjustable wrench, silicone sealant, and plumber's putty.

Can the Roca Oslo sink be installed undermount?

This model is designed for top-mount (drop-in) installation only. For an undermount look, consider a different Roca model.

How do I clean the stainless steel finish?

Use mild dish soap and a soft cloth or sponge. Rinse thoroughly and dry to prevent water spots. Avoid steel wool or abrasive pads.

Does the sink include a draining basket?

Yes, a 3.5-inch basket strainer is included with the drain kit.

What is the minimum cabinet size required?

The sink requires a base cabinet at least 800 mm wide and 500 mm deep to accommodate the bowl and plumbing.

Is the sink resistant to scratching?

The brushed finish helps hide minor scratches, but stainless steel can scratch. Use cutting boards and avoid dragging heavy pots.

Can I use a garbage disposal with this sink?

Yes, the drain outlet is 90 mm and compatible with standard disposals. Ensure the disposal unit does not exceed the sink's weight capacity.

Does the sink have soundproofing pads?

This model includes rubber undercoating to reduce noise and condensation.

What is the warranty period and what does it cover?

Roca offers a 2-year limited warranty covering manufacturing defects. It does not cover damage from improper installation or misuse.

Are replacement parts available?

Yes, you can order replacement drain kits, strainers, and mounting clips from Roca authorized dealers or online parts stores.

USER MANUAL Oslo Roca

Two technical illustrations showing a device being stopped by a switch, with no visible text or symbols.

A

	A880130A	A880120	A880170A
860	1000	860	1000
500	500	500	500
195	195	195195
-	-	170120

1

	A880120	A880130
	A880160	A880170
X	480	480
Y	840	980

2

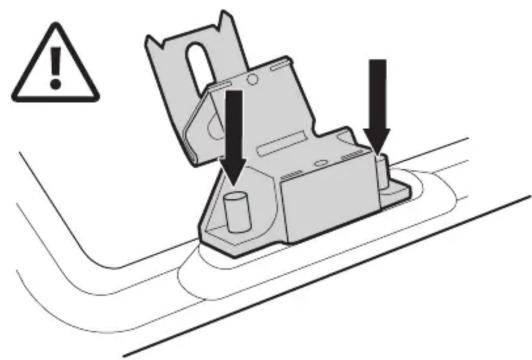

Mechanical component diagram showing a bracket with two arrows indicating downward motion, no text or symbols present.

3

4

Illustration of a hand holding a pen over a tray (no text or symbols)

5

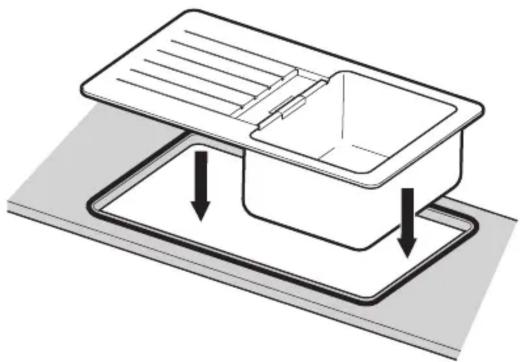

Diagram of a container being placed on a tray with arrows indicating direction (no text or symbols)

6

MANTENIMIENTO

For daily cleaning, use any non-abrasive commercial product. For stubborn stains, use a sponge or soft brush moistened. Afterwards, rinse the sink with water and wipe it with a cloth.

Regularly, it is recommended that you deep clean your sink every now and then. To do this, fill the sink with hot water to a height of approximately 2 cm, add 2-3 teaspoons of dishwashing detergent or one dishwashing detergent tab. Once it has been dissolved properly, clean the sink leaving it to work at least 2 hours. Rinse the sink with water and dry with a cloth.

To avoid lime scale stains, after each use clean the sink rinsing with water and wipe it with a dry cloth.

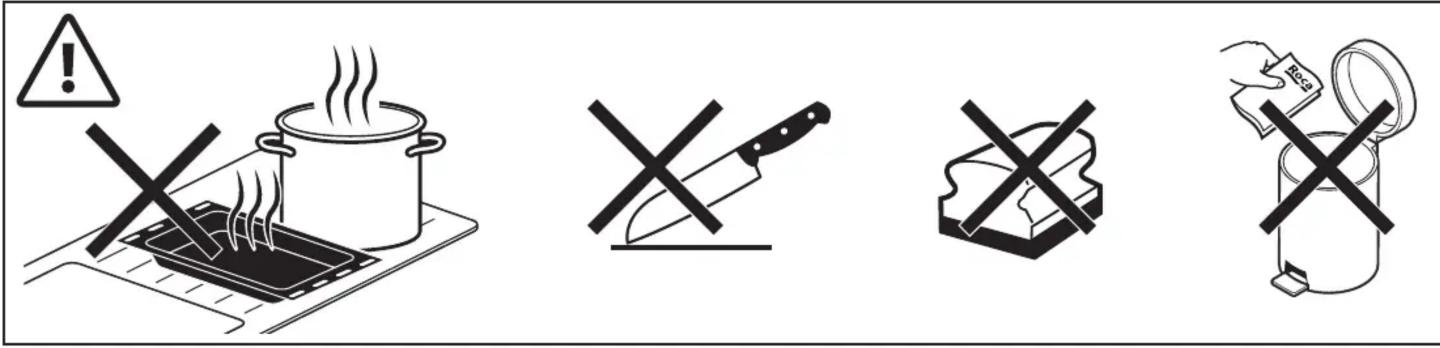

Scratches can be removed rubbing lightly with a wet melamine foam sponge (magic sponge). Do not use products like abrasive cleaning creams or powders, concentrated caustic soda, formic acid or anything highly corrosive, including solvents.

MANUTENÇÃO
