2414477 - Heating Kooper - Free user manual and instructions

Product Type	Fan Heater
Brand	Kooper
Model	2414477
Power Supply	AC 220-240V ~ 50Hz
Maximum Power Output	2000W
Minimum Power Output	1000W
Heating Capacity (Nominal)	2000W
Heating Capacity (Minimum)	1000W
Functions	Fan only, Low heat (1000W), High heat (2000W), Oscillation
Controls	Rotary function selector, Oscillation switch
Safety Features	Overheat protection, Tip-over switch
Minimum Ceiling Clearance	At least 50 cm from walls and objects
Use Location	Indoor only, not in bathrooms, near water, or in rooms < 4 m²
Housing Material	Plastic
Color	Black
Cleaning Method	Wipe with damp cloth after cooling; do not immerse
Energy Efficiency Standard	EU Eco-design compliant
Overheat Protection	Automatic shut-off if air intakes are blocked
Disposal	Separate collection for WEEE; do not dispose with household waste

Frequently Asked Questions - 2414477 Kooper

How do I clean the fan heater?

Make sure the appliance is unplugged and has cooled down completely. Wipe the housing with a slightly damp, lint-free cloth. Do not immerse in water. Use a vacuum cleaner to remove dust from air outlet openings if necessary.

What does the overheat protection do?

The heater has an automatic shut-off that activates if the appliance overheats, for example due to blocked air inlet or outlet grilles. Unplug the heater, wait about 30 minutes for it to cool, remove the obstruction, and then restart. If the problem persists, contact a qualified electrician.

Can I use this heater in the bathroom?

No. The manual explicitly states: DO NOT USE THIS APPLIANCE IN THE BATHROOM, NEAR BATHTUBS, SHOWERS, SWIMMING POOLS, OR NEAR ANY BODIES OF WATER. The heater is for indoor dry locations only.

Can I leave the heater unattended while it is on?

No. The manual warns: DO NOT LEAVE THE APPLIANCE UNATTENDED WHEN IN USE. The heater must be continuously monitored. Also, do not use while sleeping.

What are the power settings?

The function selector has four positions: OFF, Fan only (no heat), 1000W (low heat), and 2000W (full heat). The oscillation function can be turned on/off separately.

How does the oscillation work?

Press the oscillation switch to start the heater oscillating side to side. Press again to stop oscillation. This helps distribute heat more evenly.

What should I do if the heater falls over?

The heater has a safety tip-over switch that automatically turns it off if it is knocked over. Unplug it immediately, let it cool, and inspect for damage. If it appears damaged, do not use and have it checked by a qualified technician.

Can I use an extension cord?

The manual advises: DO NOT USE EXTENSION CORDS OR POWER BOARDS. Plug the heater directly into a wall outlet with a circuit breaker of maximum 30 mA.

Why does the heater smell when first used?

A slight smell may be emitted when the heater is used for the first time. This is normal and will disappear quickly. Ensure sufficient ventilation during initial use.

How should I dispose of the heater at the end of its life?

This product is subject to separate collection for waste electrical and electronic equipment (WEEE) according to EU Directive 2012/19/EU. Do not dispose of it with household waste. Take it to a designated recycling facility or return it to the retailer when purchasing a new equivalent product.

USER MANUAL 2414477 Kooper

Sahara

ATTENTION! READ THE INSTRUCTIONS GIVEN IN THIS HANDBOOK VERY CAREFULLY.

IT SHOULD BE PUT ASIDE FOR FURTHER CONSULTATION DURING THE ENTIRE LIFE-CYCLE OF THE PRODUCT SINCE

IT GIVES IMPORTANT INDICATIONS ON THE PRODUCT'S FUNCTIONS AND SAFETY DURING INSTALLATION,

USE AND MAINTENANCE.

PRODUCT IMPORTED BY GALILEO SPA - STRADA GALLI N. 27 - 00019 VILLA ADRIANA (RM) - MADE OUTSIDE THE EU

GENERAL SAFETY INDICATIONS

RISK FOR CHILDREN!

- A POWER DEVICE IS NOT A TOY. AFTER USE, STORE IT OUT OF REACH OF CHILDREN. KEEP PACKING MATERIAL (PLASTIC BAGS, CARTON, ETC.) OUT OF REACH OF CHILDREN. - THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION BY A RESPONSIBLE ADULT CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN UNLESS THEY ARE OLDER THAN 8 AND SUPERVISED BY A RESPONSIBLE ADULT KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN LESS THAN 8 YEARS.

- CHILDREN SHOULD BE SUPERVISED TO MAKE SURE THEY DO NOT PLAY WITH THE APPLIANCE.

RISK OF INJURY!

• TO AVOID INJURIES AND DAMAGES, DO NOT INTRODUCE YOUR HANDS IN THE MACHINE WHILE IT IS OPERATING AND KEEP AWAY HAIR, CLOTHES AND OTHER OBJECTS.
  • TO AVOID DANGEROUS OVERHEATING, DO NOT COVER THE FAN HEATER
  • DO NOT OBSTRUCT THE PROPER CIRCULATION OF THE AIR
• DO NOT POSITION UNDER, ADJACENT TO, OR NEAR ANY POWER OUTLET
  • DO NOT USE EXTERNAL TIMERS
• DO NOT USE THIS APPLIANCE IN THE BATHROOM, NEAR BATHTUBS, SHOWERS, SWIMMING POOLS, OR NEAR ANY BODIES OF WATER
• CHILDREN BETWEEN 3 AND 8 YEARS OF AGE ARE ONLY TO SWITCH THE APPLIANCE ON OR OFF, PROVIDED THIS DOES NOT REQUIRE THE APPLIANCE BEING MOVED FROM ONE POSITION TO ANOTHER OR CONNECTING/DISCONNECTING THE APPLIANCE FROM THE POWER SOURCE, AND THAT THEY ARE CAREFULLY SUPERVISED BY AN ADULT WITH REGARD TO THE USE OF THE APPLIANCE AND THE ASSOCIATED RISKS

ATTENZIONE

SUPERFICIE CALDA

DO NOT COVER WITH CLOTHES AND DO NOT USE THE APPLIANCE TO DRY THE LAUNDRY

RISK OF ELECTRIC SHOCK!

- THIS APPLIANCE IS INTENDED TO WORK ONLY WITH AC. BEFORE OPERATING, MAKE SURE THAT MAINS VOLTAGE RATING CORRESPONDS TO THE VALUE INDICATED ON THE RATING PLATE OF THE PRODUCT.

- CONNECT THE APPLIANCE ONLY TO OUTLETS WITH A MINIMUM ELECTRIC CURRENT OF 10 AMPERE.

- DO NOT PULL THE POWER CORD OR THE AP-PLIANCE ITSELF IN ORDER TO UNPLUG IT FROM THE OUTLET.

- UNWIND COMPLETELY THE POWER CORD BEFORE SWITCHING ON THE APPLIANCE.

- USE AN EXTENSION CORD ONLY IF IT IS IN PERFECT CONDITIONS.

- DO NOT LET THE CORD HANG OVER SHARP EDGES. DO NOT SQUASH IT.

- DO NOT LET THE APPLIANCE EXPOSED TO THE WEATHER (RAIN, FREEZING, SUN, ETC).

- NEVER USE THE APPLIANCE:

- WITH WET OR DAMP HANDS;

- IF IT HAS FALLEN AND IT CLEARLY BROKE OR DOESN'T WORK PROPERLY;

- IN CASE OF FAULTY PLUG OR POWER CORD;

- IN PRESENCE OF HUMIDITY OR GAS.

- NEVER COVER THE APPLIANCE WITH TOWELS, CLOTHES, ETC.

- INSTALL THE APPLIANCE ONLY ON STABLE SURFA-CES, FAR FROM SHOWERS, BATHTUBS, SINKS, ETC.

- HOWEVER, IF THE APPLIANCE FALLS IN THE WATER, UNPLUG IT IMMEDIATELY AND TAKE IT ONLY

AFTERWARDS. IN THIS CASE, STOP USING THE APPLIANCE AND HAVE IT CHECKED BY QUALIFIED PERSONNEL.

• ALWAYS UNPLUG FROM THE MAINS SUPPLY IMMEDIATELY AFTER THE USE AND BEFORE ANY CLEANING OR MAINTENANCE OPERATION. THE APPLIANCE MAY ONLY BE REPAIRED BY A SPECIALIZED TECHNICIAN. REPAIRING THE APPLIANCE BY YOURSELF MIGHT BE EXTREMELY DANGEROUS.
• ALWAYS CUT THE POWER CORD OF A BROKEN UNIT IN ORDER TO MAKE IT UNUSABLE BEFORE THROWING IT AWAY.
• CLEAN THE APPLIANCE WITH A DAMP CLOTH AFTER IT COOLED DOWN. DO NOT USE SOLVENTS OR ABRASIVE PRODUCTS.
• THE APPLIANCE IS INTENDED ONLY FOR HOME USE. IT CAN ONLY BE USED INDOOR.
• THIS APPLIANCE CANNOT BE USED FOR COMMERCIAL PURPOSES OR OUTDOOR.

THIS APPLIANCE HAS BEEN DESIGNED AND MANUFACTURED IN ACCORDANCE WITH EU ECO-DESIGN STANDARDS. SUCH EFFORTS SHOULD NOT BE NULLIFIED BY IMPROPER USE BEYOND THE SPECIFICATIONS PROVIDED HEREIN.

INSTALLATION:

THE APPLIANCE CAN BE USED ONCE IT HAS BEEN PLACED ON A STABLE, HORIZONTAL SUPPORT SURFACE.

DO NOT PERMANENTLY ATTACH THE DEVICE TO FURNITURE OR SUPPORTS.

- DO NOT USE EXTENSION CORDS OR POWER BO-ARDS.

• IT IS RECOMMENDED THAT THE APPLIANCE BE POWERED USING AN OUTLET WITH A CIRCU-IT BREAKER HAVING A MAXIMUM CAPACITY NOT EXCEEDING 30 MA
• LEAVE A SPACE OF AT LEAST 50 CM AROUND THE APPLIANCE THAT IS FREE FROM FURNITURE AND OBJECTS
• DO NOT POSITION ADJACENT TO WALLS
• DO NOT PLACE ANY ITEMS ON TOP OF THE DE-VICE
• DO NOT USE THIS APPLIANCE IN THE BATHROOM, NEAR BATHTUBS, SHOWERS, SWIMMING POOLS, OR NEAR BODIES OF WATER

USE:

ONLY FOR INDOOR USE IN A THERMALLY-INSULATED ROOM, WITH SUFFICIENT VENTILATION AND FREE FROM DUST OR AIRBORNE PARTICLES.

DO NOT USE THE APPLIANCE TO DRY LAUNDRY, DO NOT OBSTRUCT THE AIR INLET AND OUTLET GRILLES (RISK OF OVERHEATING AND CONSEQUENT FIRE/SHORT-CIRCUITING).

THE APPLIANCE MUST BE INSTALLED IN SUCH A WAY THAT THE SWITCHES AND OTHER CONTROLS CANNOT BE REACHED BY ANYONE IN THE BATH OR SHOWER.

DO NOT USE THE MACHINE TO DRY LAUNDRY. DO NOT OBSTRUCT THE AIR INLET AND OUTLET GRIL-LES (DANGER OF OVERHEATING).

- DO NOT OPERATE THE APPLIANCE NEAR WAL- LS, FURNITURE, CURTAINS, ETC.

- THE APPLIANCE IS NOT SUITABLE FOR CONTINUOUS OR PROLONGED USE

• DO NOT USE WHILST SLEEPING
• THE APPLIANCE MUST BE CONTINUOUSLY MO- NITORED
• DO YOU NOT LEAVE THE APPLIANCE UNATTENDED WHEN IN USE
• DO NOT USE IN ROOMS OR ENVIRONMENTS WITH A SURFACE AREA OF LESS THAN 4 SQUARE METRES
• DO NOT USE EXTERNAL TIMERS

TYPE OF FUEL: ELECTRIC ENERGY
Nominal heating capacity h	nom	2000 kW
Minimum heating capacity h	min	1000 kW

WARNING:

CERTAIN PARTS OF THE APPLIANCE MAY BECOME VERY HOT AND RESULT IN BURNS. SPECIAL ATTENTION MUST BE PAID IN THE PRESENCE OF CHILDREN OR VULNERABLE PERSONS.

- DO NOT USE THE APPLIANCE IN ROOMS IN WHICH THERE ARE PEOPLE WHO ARE UNABLE TO LEAVE AUTONOMOUSLY, UNLESS THEY ARE CONSTANTLY SUPERVISED BY A RESPONSIBLE ADULT.

MAINTENANCE:

• IT IS ESSENTIAL TO PREVENT THE ACCUMULATION OF DUST
• DO NOT STORE IN DUSTY ENVIRONMENTS
• DO NOT CARRY OUT ANY MAINTENANCE WORK ON THE DEVICE YOURSELF; DO NOT DISMANTLE ANY PART OF THE APPLIANCE

DISPOSAL:

GIVEN THAT THIS IS ELECTRONIC WASTE, DISPOSE OF THIS APPLIANCE AT THE END OF ITS USEFUL LIFE IS TO BE IN ACCORDANCE WITH ALL APPLICABLE EU DIRECTIVES AND LOCAL LAWS AND REGULATIONS. DO NOT DISPOSE OF THE APPLIANCE WITH ORDINARY HOUSEHOLD WASTE.

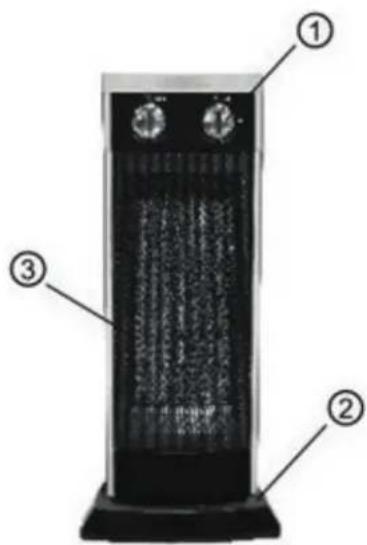

DESCRIPTION OF THE APPLIANCE

1. Function selector
2. Oscillation switch
3. Air outlet

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the appliance.

Keep out of reach of children and pets.

From time to time check the cord form damage. Never use the appliance if cord or appliance shows any signs of damage, but have it checked and repaired by a qualified electrician.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason.

When cleaning the appliance, refer to the instructions in the paragraph "Cleaning and Care".

Never use the appliance near hot surfaces.

Before cleaning and when not in use, always unplug the appliance form the power supply. Do not attempt to remove the plug form the wall socket with wet hands.

Never use the appliance outside and always place it in a dry environment. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Stand the appliance on a stable, flat surface so that it cannot fall. However, the appliance does have a safety tip over switch in its base to ensure it will switch off automatically in the event that it is accidentally knocked over .

Always position the heater in such a way that flammable materials( such as curtains) cannot be ignited. Ensure at all times that the unit is placed solidly on its base. Make sure that the air inlet and outlet openings are

nit blocked .To avoid any risk of fire, do not cover the heater ( eg with clothes)

WARNING: Do not operate the heater near baths, showers, washing basins, swimming pools or any other water container, Do not touch heater with wet hands.

In order to avoid over heating, do not cover the heater.

The Heater must not be locates immediately below a socket-outlet.

Never bloke the air vents on the heater as this could cause over heating.

The temperature of the grids may be very high when the appliance is in use never touch when heater is on.

Never use the appliance near flammable or explosive material.

Do not insert any objects through the grille or into the interior of the appliance.

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

POSITIONING OF THE APPLIANCE

The heater should only be operated at minimum distance of 50cm from ant wall or other object. Position the airflow in order to optimize the heating of the room. Avoid positioning into comers, small spaces or towards floors and ceilings.

OPERATION

When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. This smell will disappear very quickly.

Function selection

• OFF
• Fan without Ileat
• 1000W (low heat output)
• 2000W (full heat output)

Oscillation

This appliance also has an oscillation function. To switch the function on, press the oscillation switch. To stop it, press the oscillation switch again.

OVERHEAT PROTECTION

This heater is protected with an overheat protection that will switch off the appliance automatically in the event of overheating, eg due to the total or partial obstruction of the grids.

In this case, unplug the appliance, wait about 30 minutes for it to cool and remove the object that is obstructing the grids. Switch it back on as described above. The appliance should operate normally. Should the problem persist, please contact a qualified electrician.

CLEANING AND CARE

Bef ore cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.

To avoid the risk of electric shock, do not clean the heater with water and do not immerse it.

The housing may be wiped with a slightly damp, lint-free cloth.

If necessary, dust particles accumulated in the air outlet openings may be removed with a vacuum cleaner.

TRATTAMENTO DEL DISPOSITIVO ELETTRICO ED ELETTRONICO A FINE VITA

Information for users about the correct disposal of the product according to the European Directive 2012/19/EU and to the Legislative Decree N. 49/2014.

Dear Customer,

It is important to remind you that, as a good citizen, you cannot dispose of this product as municipal waste; you have to do a separate collection.

The symbol labelled on the appliance indicates that the rubbish is subject to “separate collection”. Electrical and electronic appliance cannot be considered as domestic waste. Therefore, at the end of its useful life, this product should not be disposed with municipal wastes. The user must therefore assign or (have collected) the rubbish to a treatment facility under local administration, or hand it over to the reseller in exchange for an equivalent new product.

The separate collection of the rubbish and the successive treatment, recycling and disposal operations promote production of appliances made with recycled materials and reduce negative effects on health and the environment caused by improper treatment of rubbish.

Thank you!
